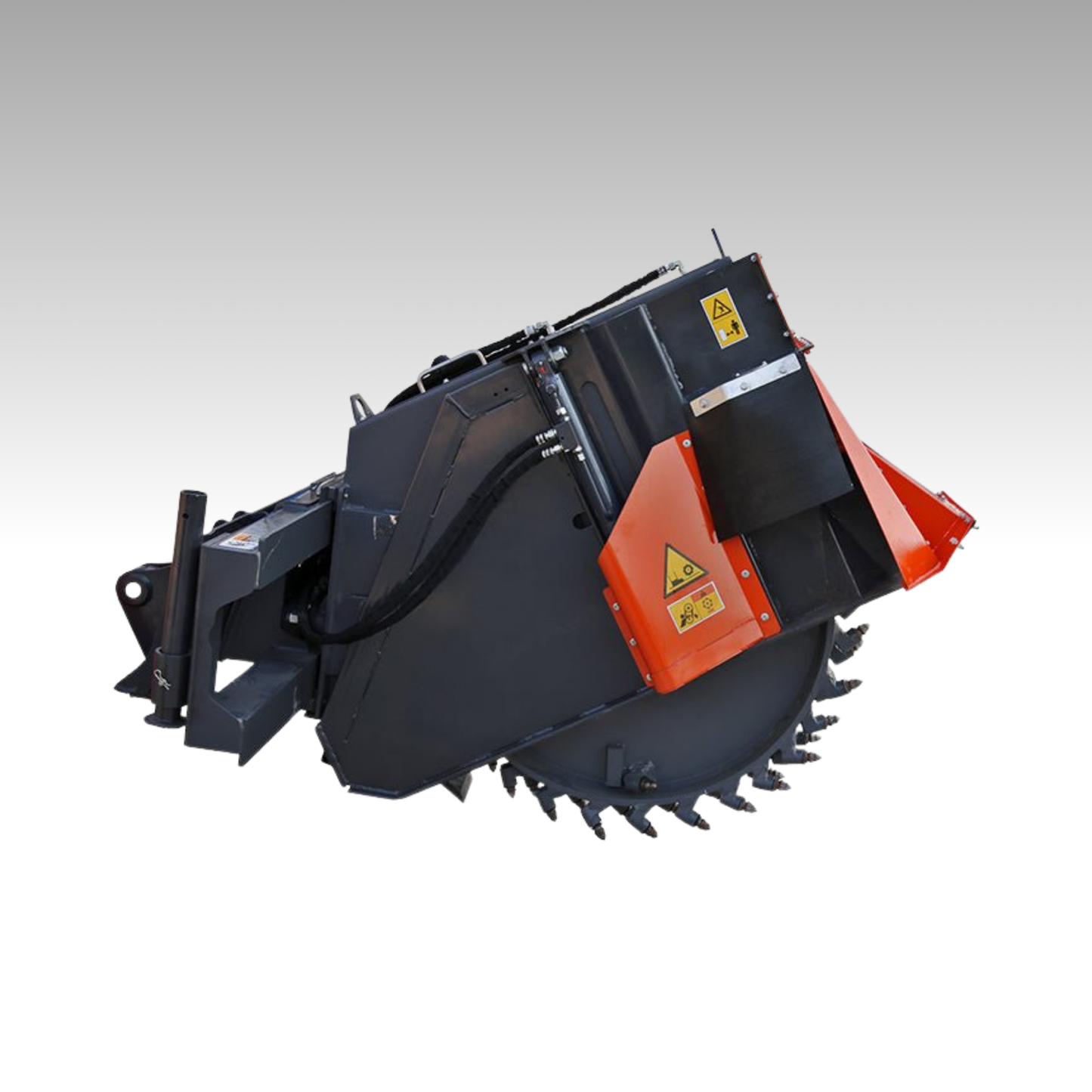

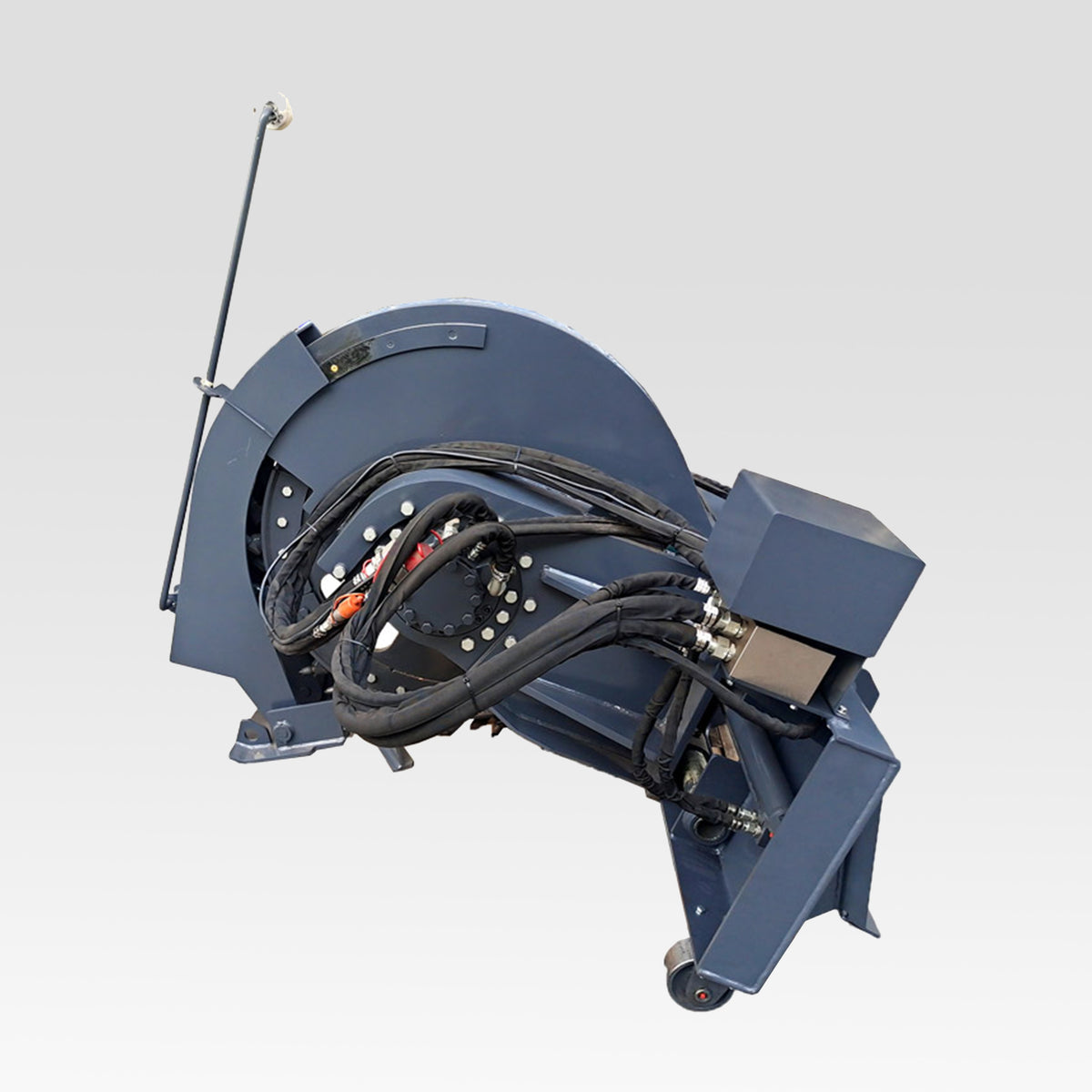

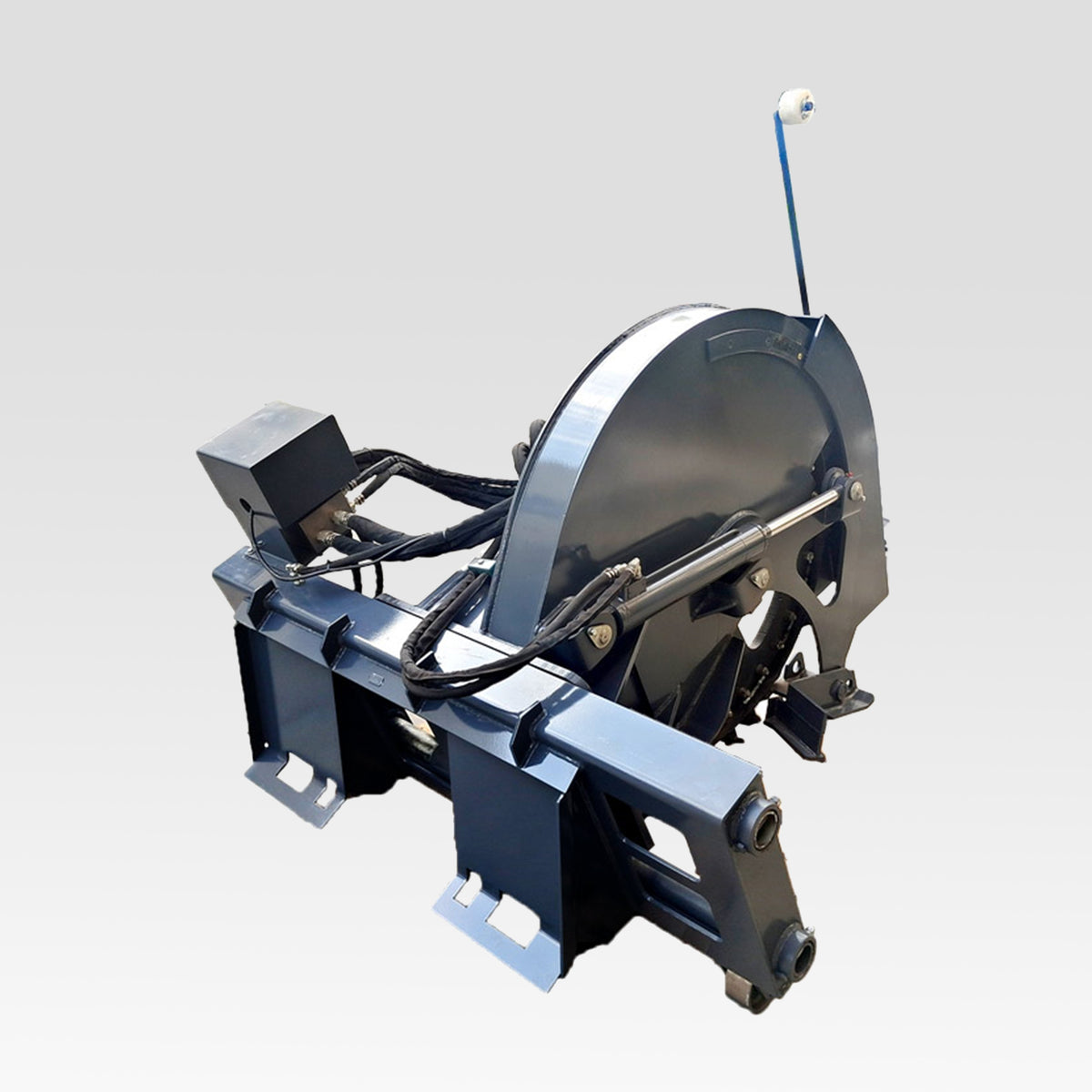

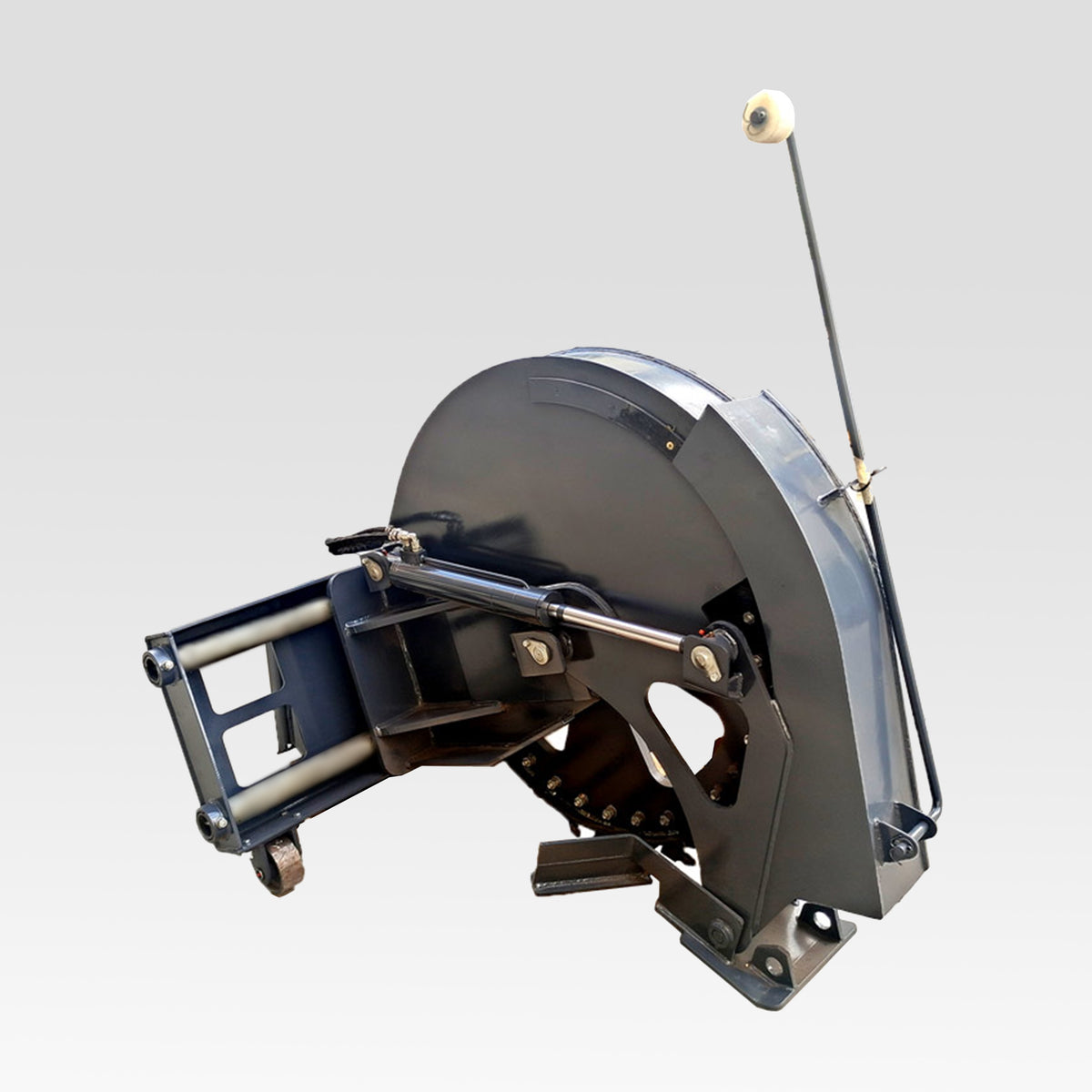

Product Feature
- Featuring electro-hydraulic control, the rock saw allows for infinitely variable adjustment of depth and side shift. This precise control ensures optimal cutting performance and adaptability to diverse project requirements.

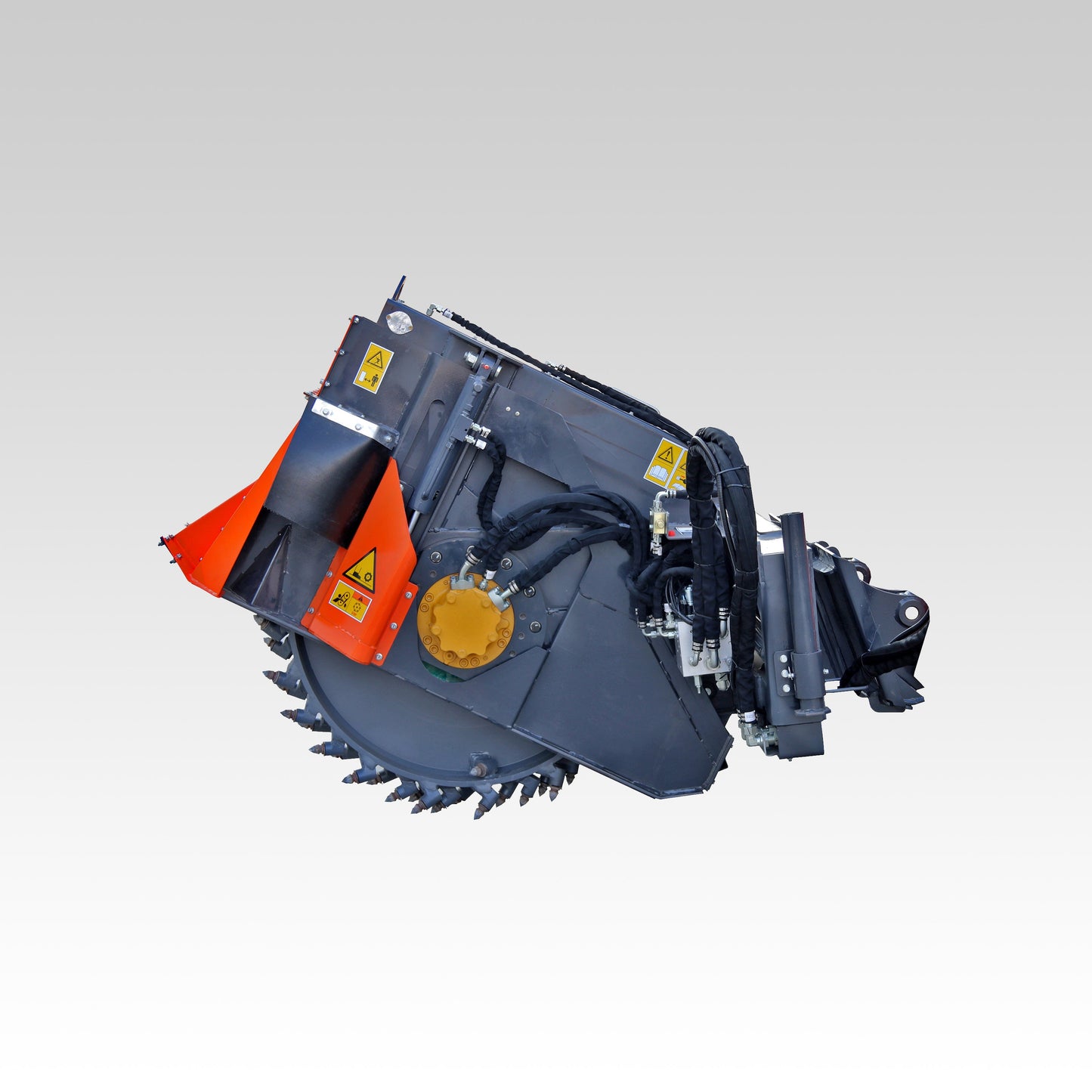

- The powerful hydraulic motor delivers exceptional torque, enabling efficient and smooth cutting through hard rock, concrete, and other challenging materials. Its robust performance ensures reliable operation under heavy workloads.

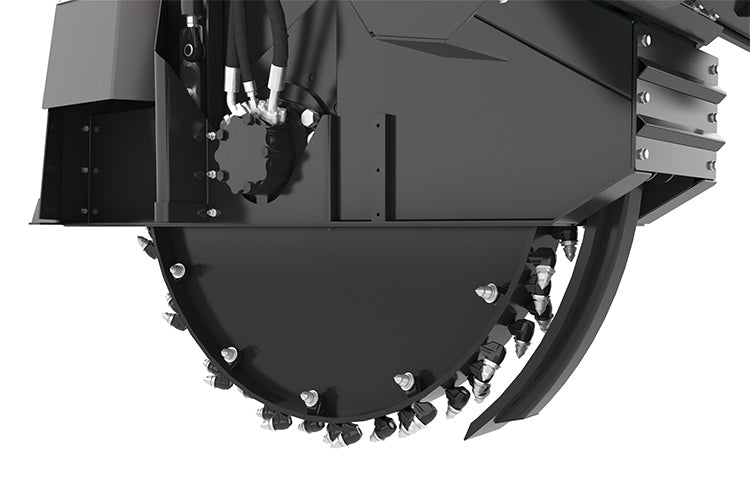

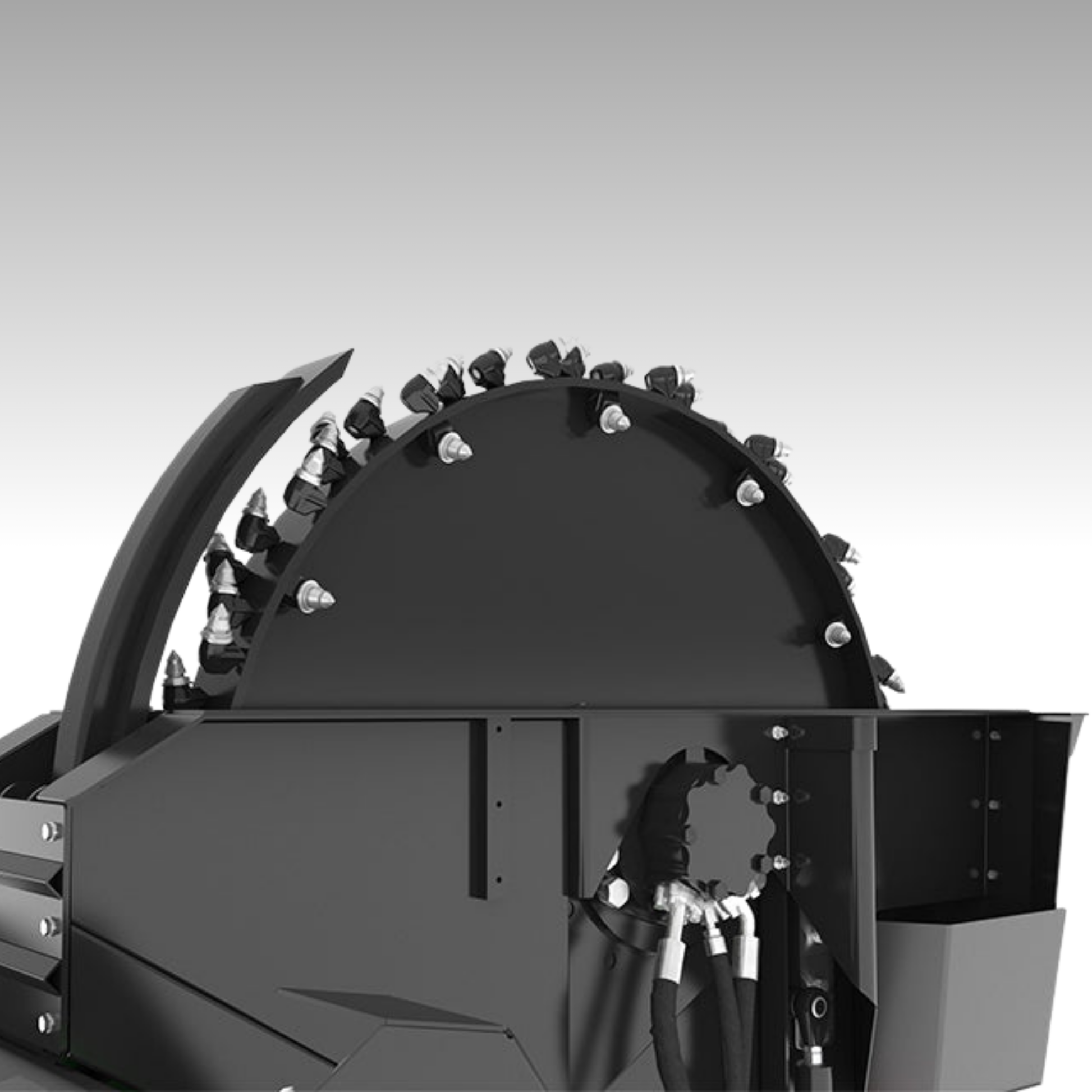

- Equipped with high-quality, long-life milling cutters and holders, the rock saw offers exceptional durability. The cutters are designed for extended use and can be replaced quickly and easily when worn, minimizing downtime.
- The saw produces grooves with uniform width and excellent straightness, ensuring clean and precise cuts suitable for a variety of applications, including trenching for utility lines and excavation.
- The design enables rapid replacement of worn teeth, allowing operators to maintain peak cutting performance with minimal effort. This user-friendly feature enhances productivity and reduces maintenance time.
- Built with high-strength materials, the Rock Saw is designed to withstand harsh environments and heavy-duty use. Its rugged construction ensures long-lasting reliability in demanding projects.

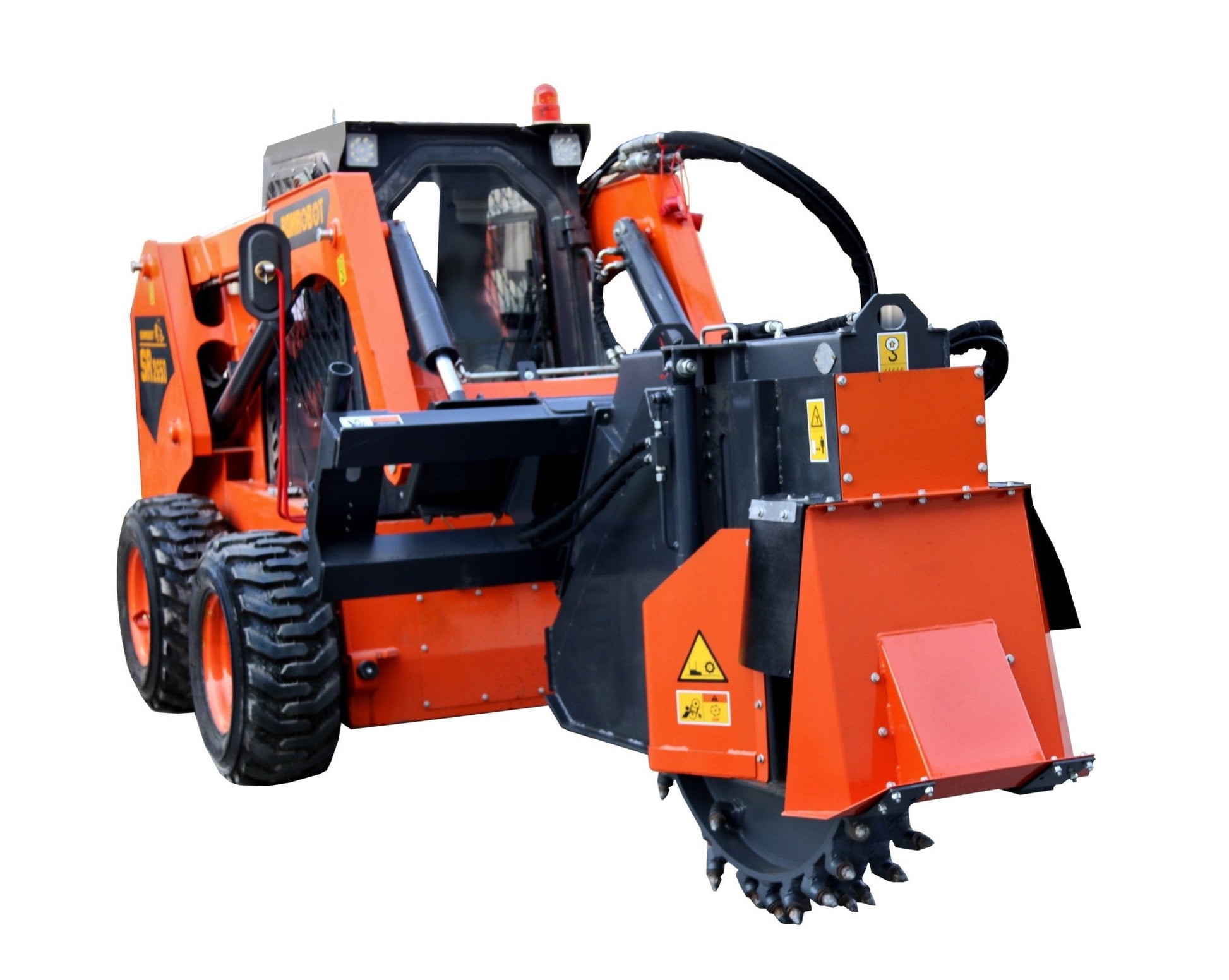

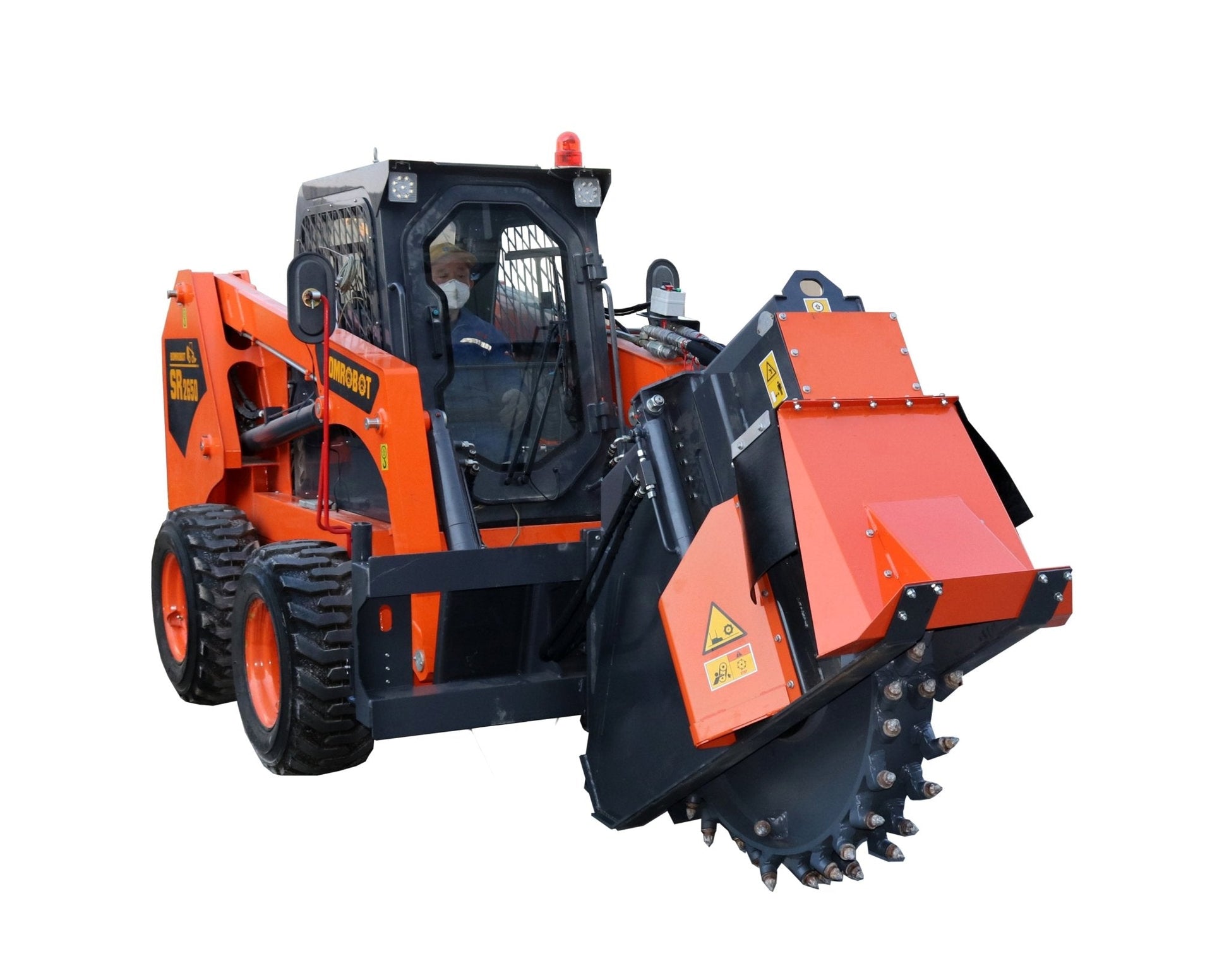

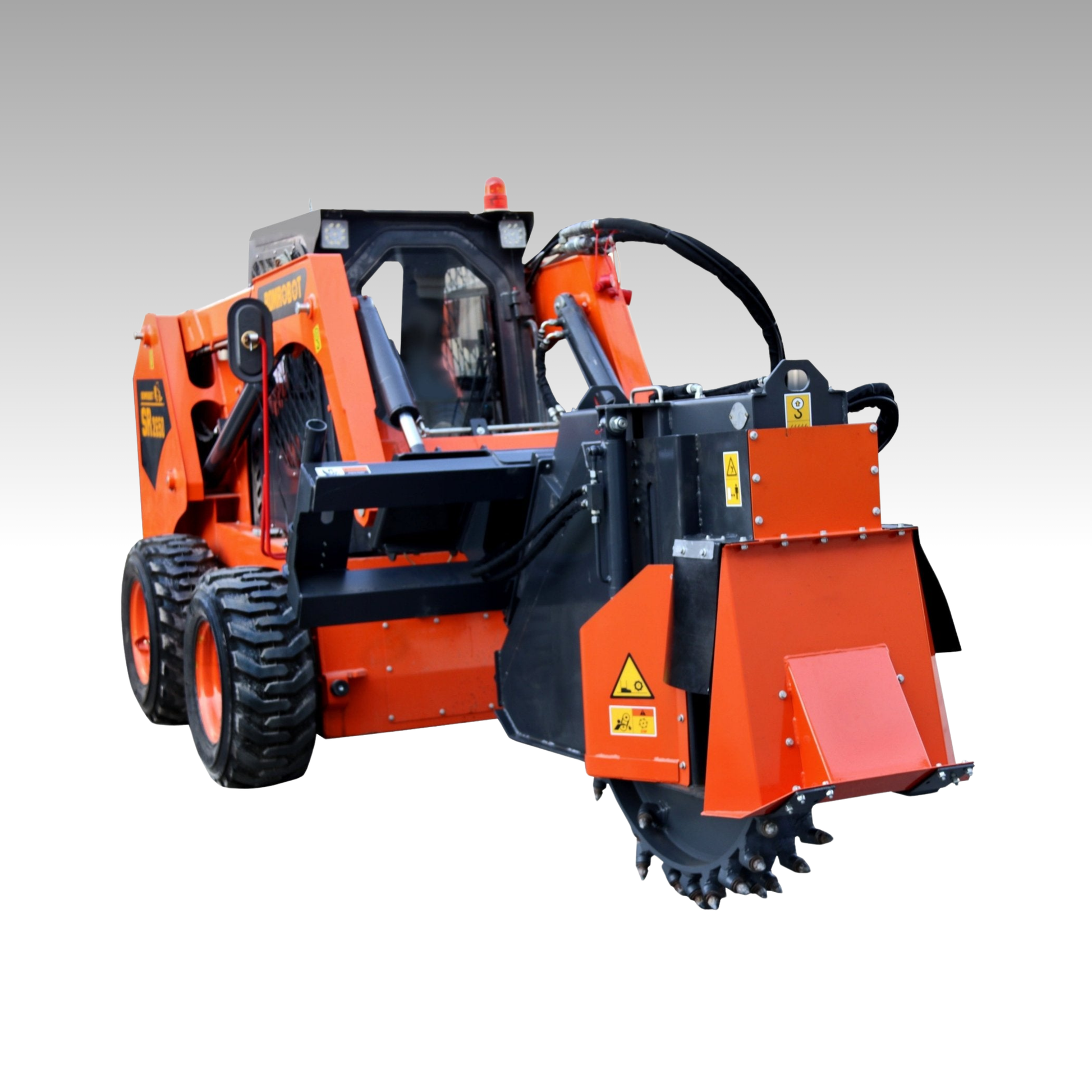

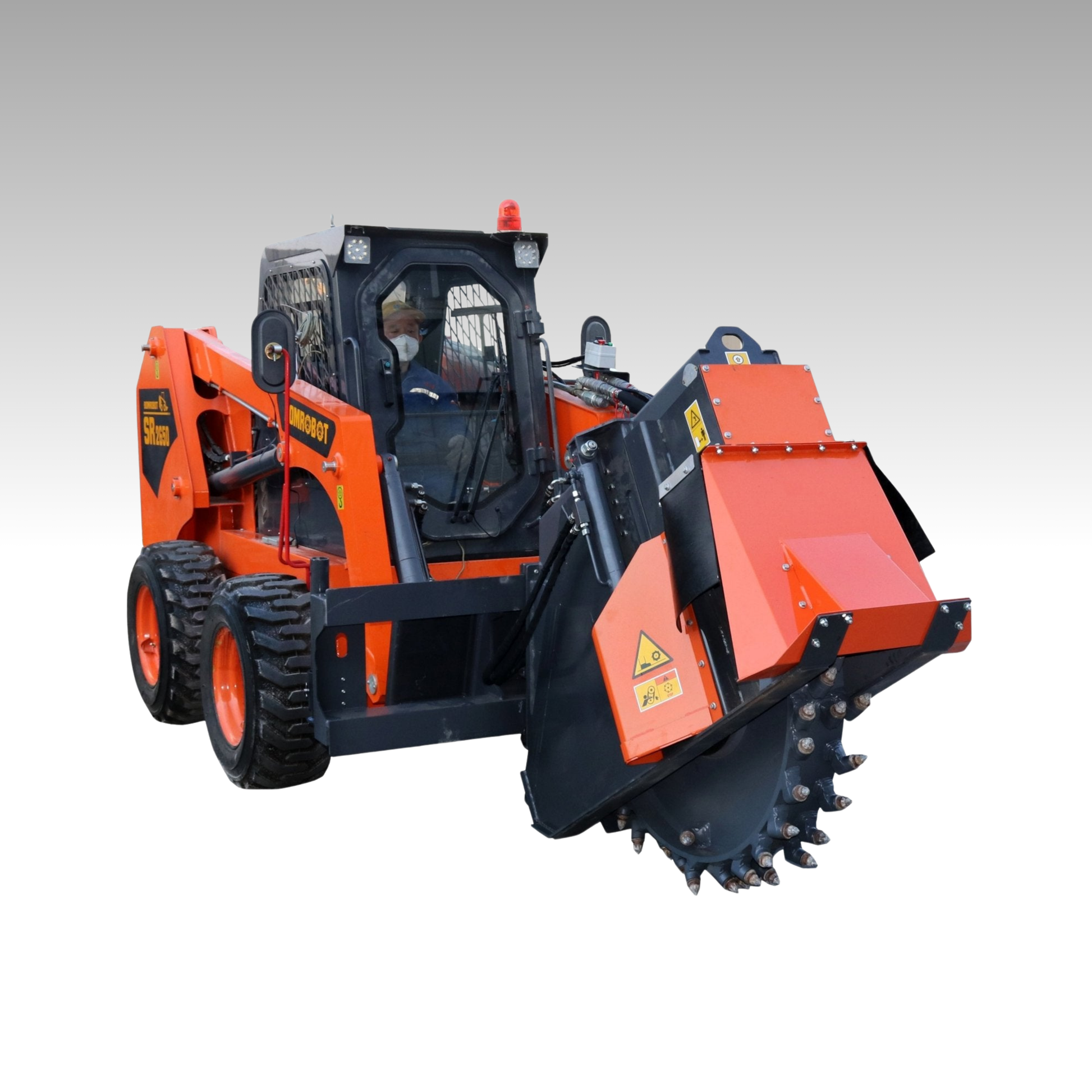

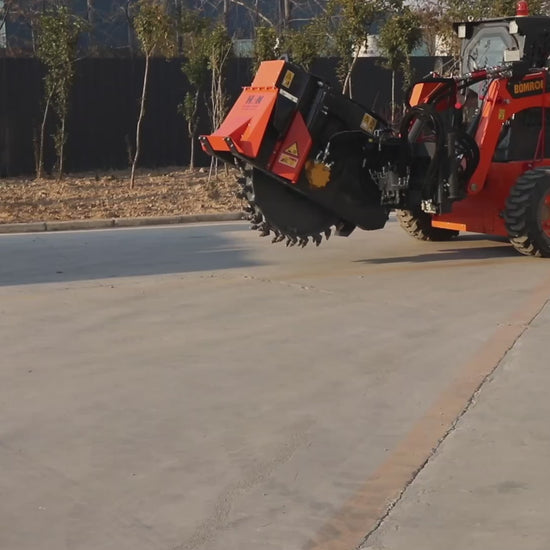

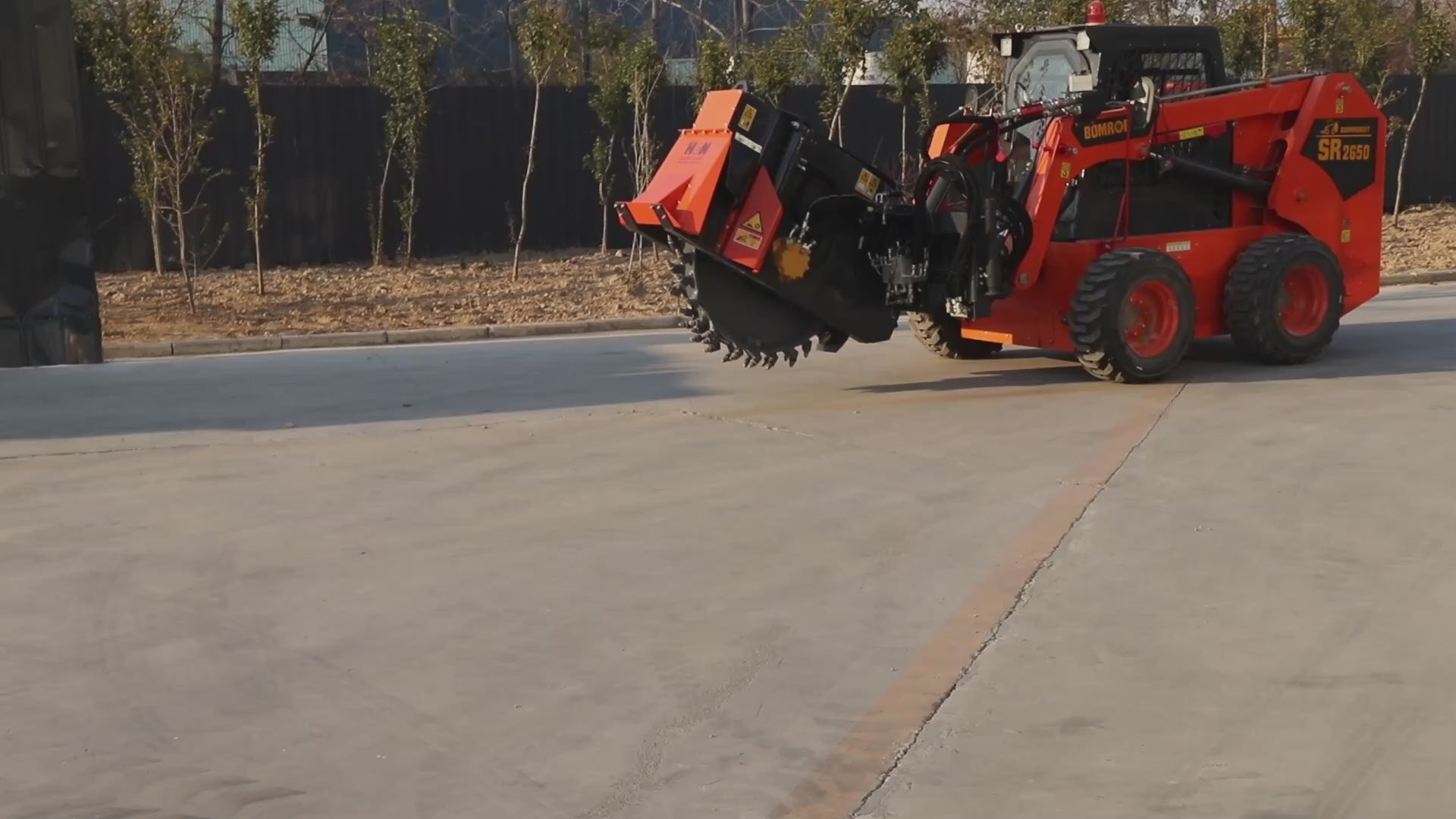

- The attachment is compatible with a range of skid steers, excavators, and loaders, making it a versatile tool for professionals in construction, mining, and municipal maintenance.
Specifications
| Model | 030518i | 030518 | 030524 |
|---|---|---|---|
| Overall Width (in) | 68.9 | 65 | 66.9 |
| Overall Length (in) | 76.4 | 64.6 | 78.7 |
| Overall Height (in) | 57.1 | 51.2 | 63 |
| Digging Width (in) | 7.9 | 3.9 | 3.9 |
| Digging Depth (in) | 5.91 - 17.72 | 17.72 | 23.62 |
| Side Movement (in) | 25.6 | 25.6 | 25.6 |
| Blade Quantity | 62 | 40 | 56 |
| Total Weight (lbs) | 2535.3 | 2425.1 | 2645.5 |
| Pressure (psi) | 3045.8 | 3045.8 | 3045.8 |
| Flow Rate (GPM) | 26.4 - 39.6 | 26.4 - 39.6 | 26.4 - 39.6 |
| Working Voltage (V) | DC12/24 | DC12/24 | DC12/24 |
| Suitable for Machine | Skid steer loader | Skid Steer Loader (Has to fit High flow hydraulic system) |
|
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
