Product Feature

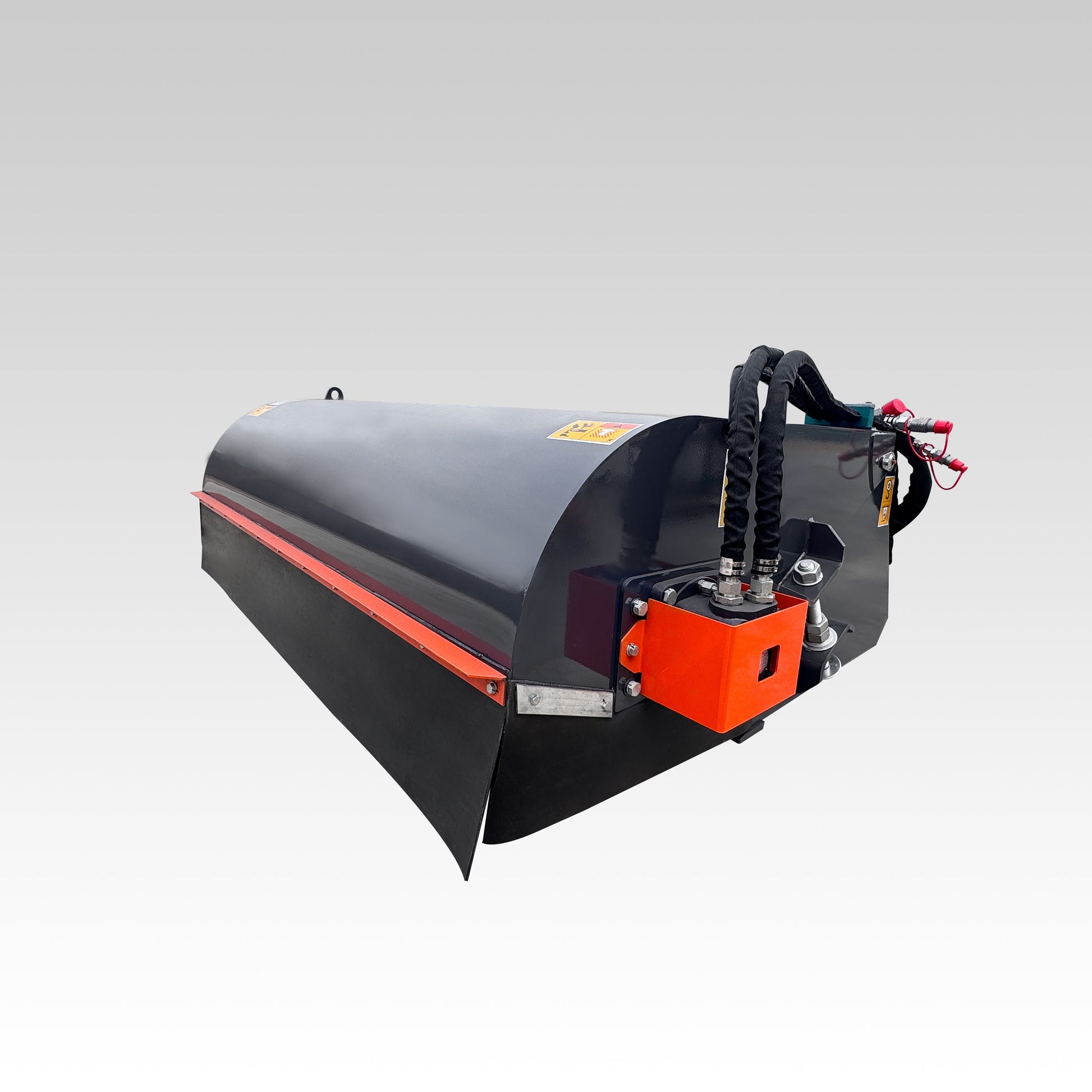

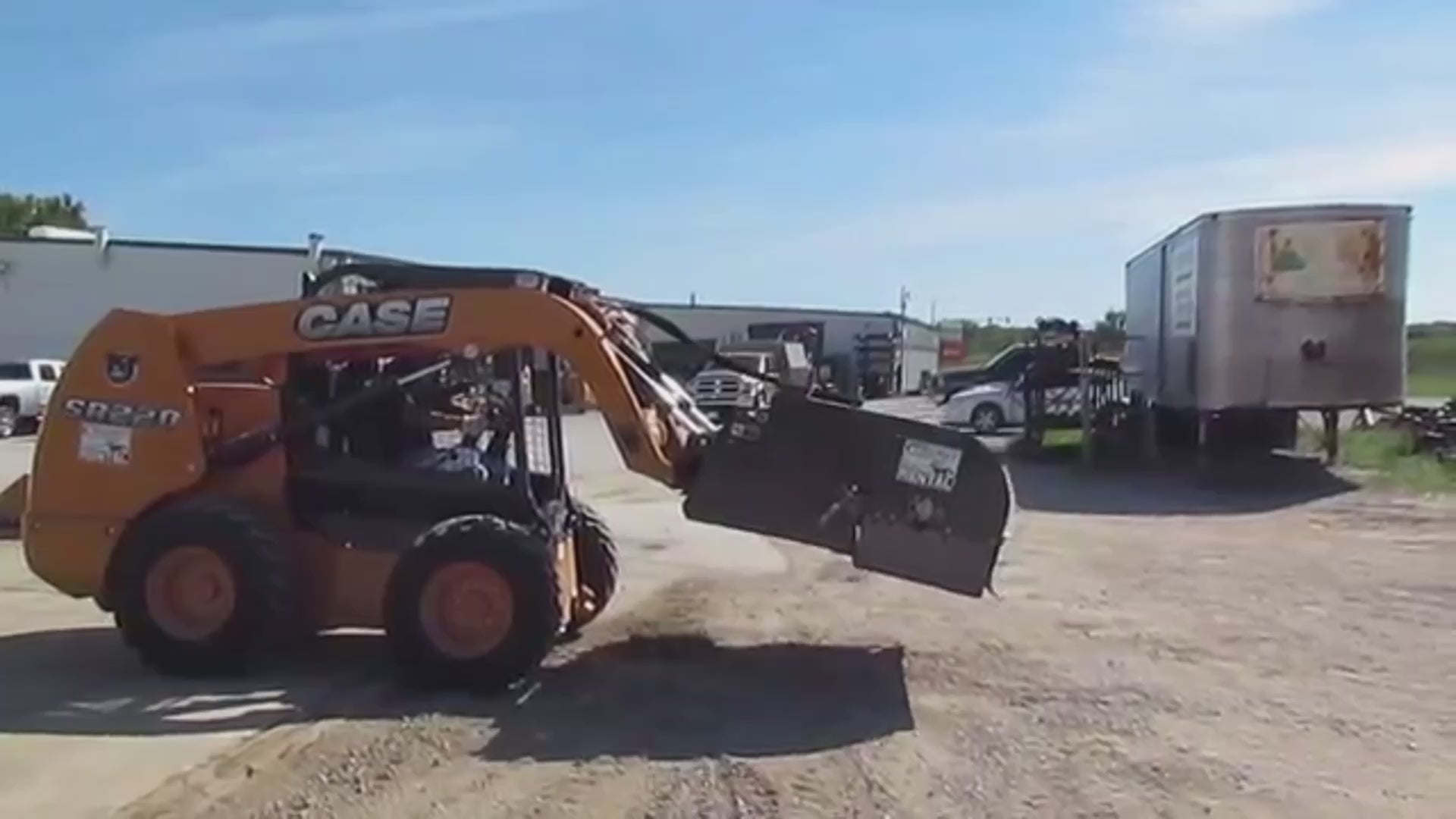

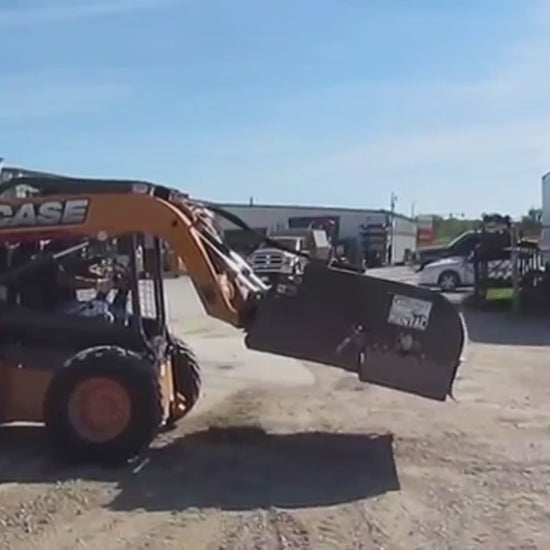

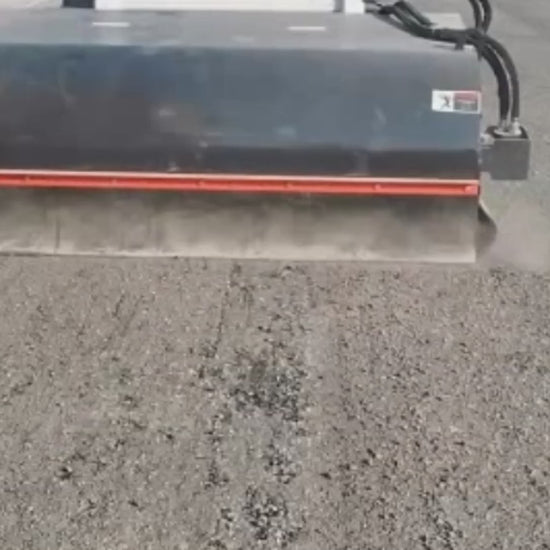

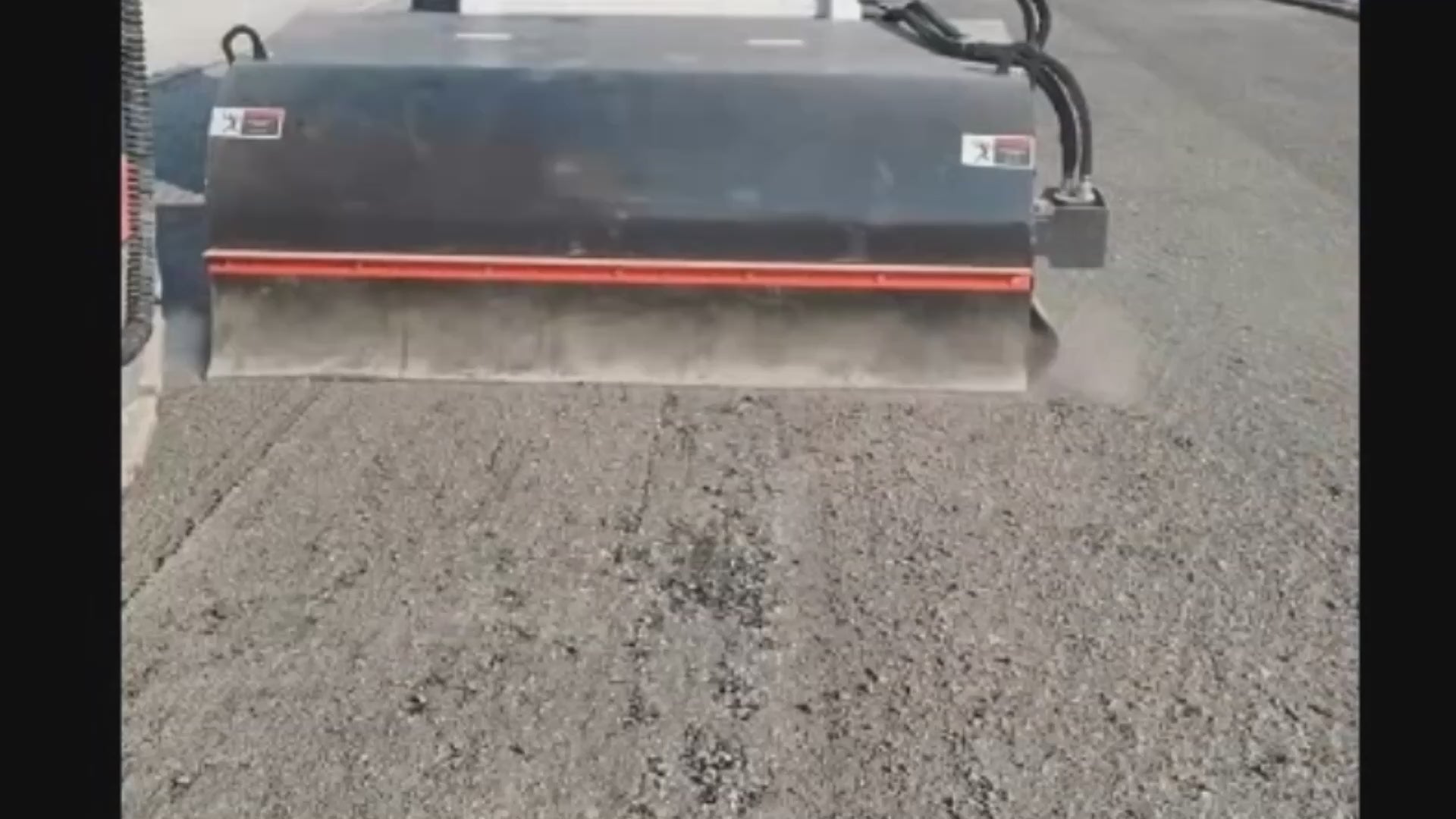

The machine can be installed on sliding loaders, small loaders and other machines, which can clean the dust and waste on the road, and quickly clean parking lots, sidewalks, docks, warehouses and ports. The cleaned garbage can be put in the collecting hopper, put in the designated position. It can easily solve the cleaning problem before the highway paving, and efficiently complete the cleaning operation, with good construction effect and high efficiency.
- Using a hydraulic drive, can achieve positive and negative two directions of cleaning, the bottom with a replaceable wear-resistant plate to extend the service life of the bucket.
- The brush adopts a new type of mixed silk brush, among which: the plastic wire is high elastic, wear-resistant polypropylene engineering material, and the steel wire is high elastic, wear-resistant material 32SiMnTi, which greatly improves the service life and cleaning effect of the brush.

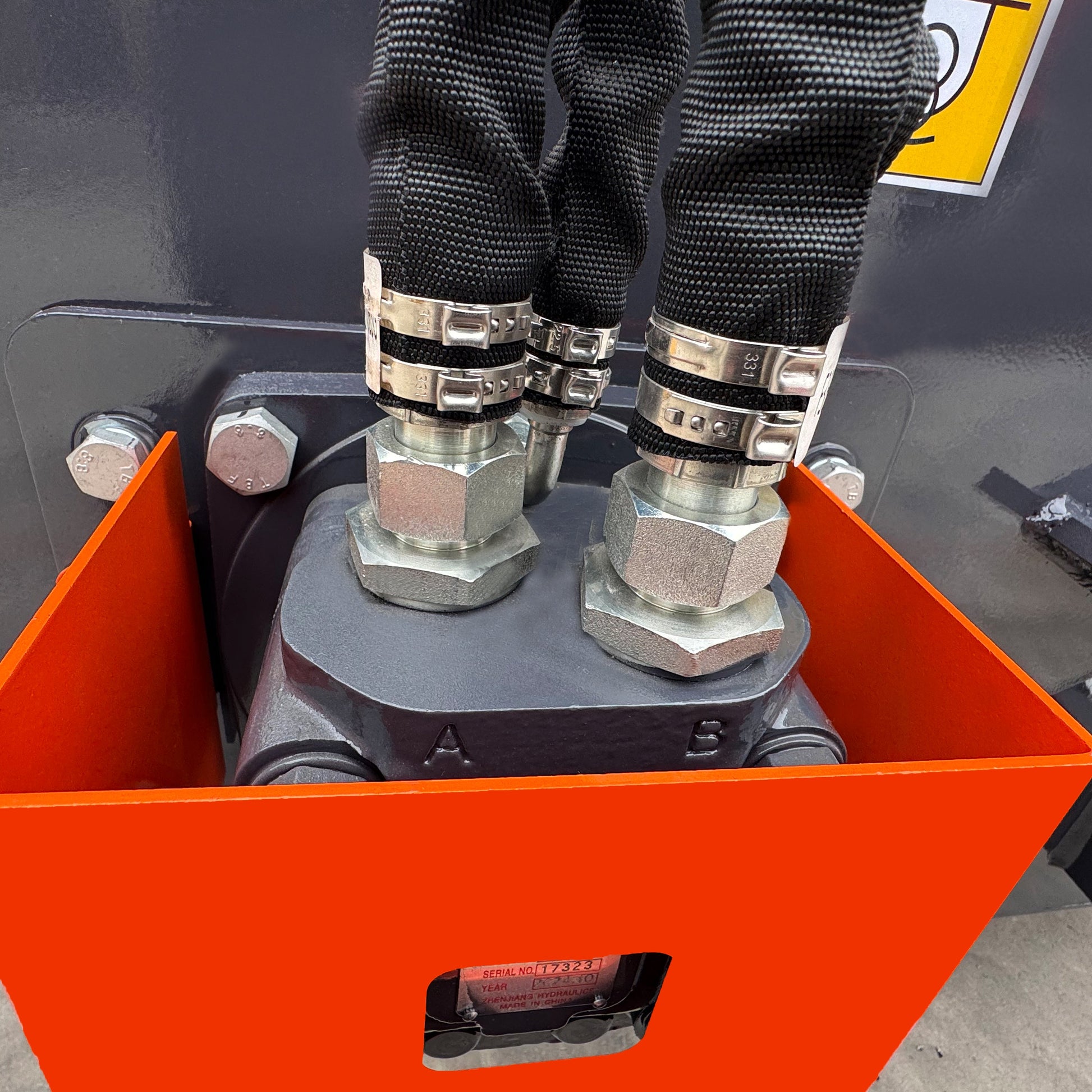

- The motor end is designed with an anti-winding device to prevent the wire-like winding motor from affecting the service life of the motor.
- A unique anti-flip design can effectively prevent the hood from overturning and damaging the cab.
- The optional side brush can be used for roadside, wall side and gutter cleaning.
- A high-pressure atomization dust removal system can be selected to achieve the dust removal and dust suppression function.

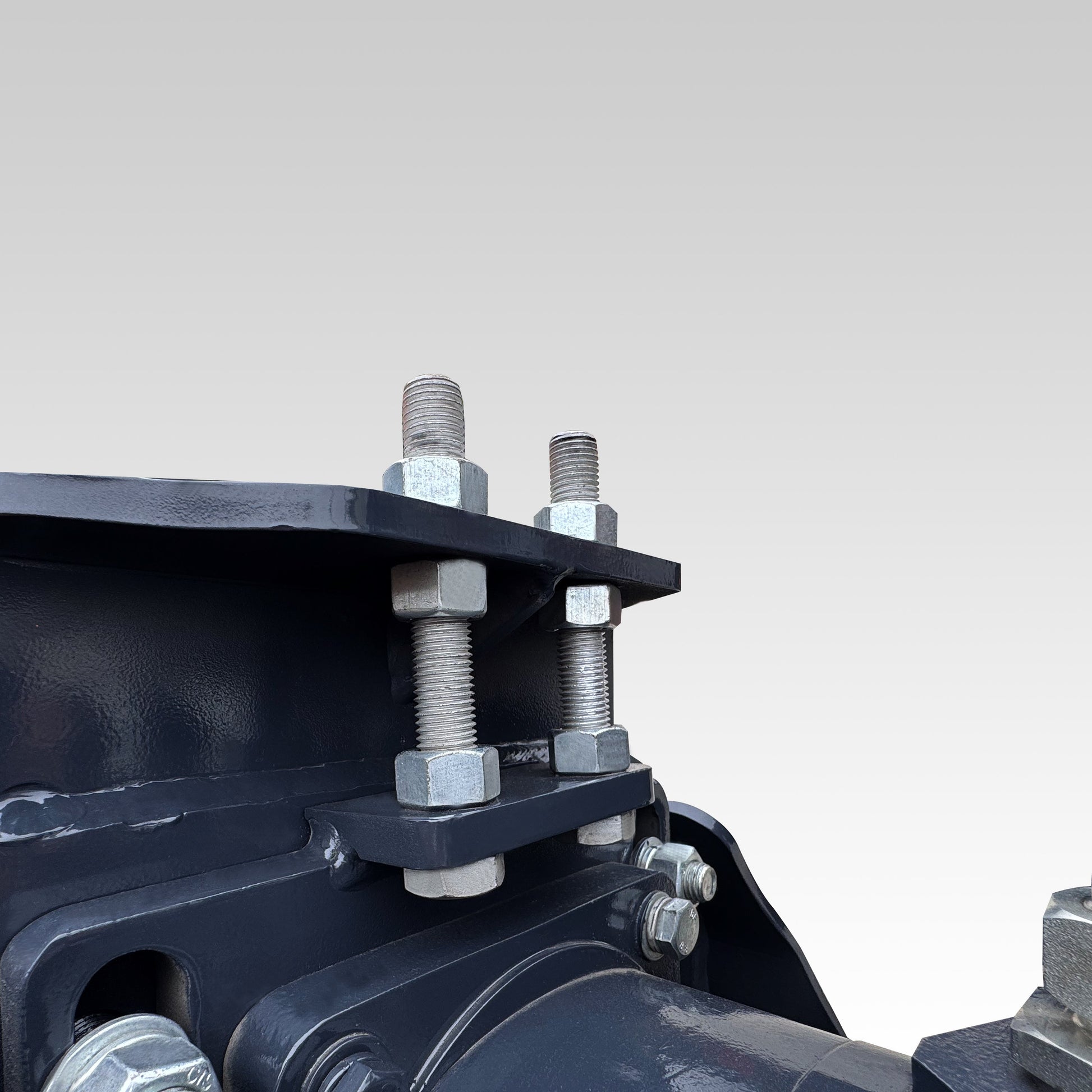

- When adapting to a small loader, please install the limit block (bucket) according to the situation of the host.
Optional:
Fog dust removal system、Brush the cleaning system、 foot plate 、Anti-collision beam、Hydraulic fast change
Specifications
| Model | 020245 | 020260 | 020272 | 0202284 |
|---|---|---|---|---|
| Overall Length (in) | 48 | 57.1 | 57.1 | 57.1 |
| Overall Width (in) | 34.1 | 71.5 | 85.1 | 97 |
| Overall Height (in) | 15.9 | 36.5 | 36.5 | 36.5 |
| Height Without Support Spring (in) | 15.9 | 26.8 | 26.8 | 26.8 |
| Overall Weight (lbs) | 396.8 | 1005.3 | 1058.2 | 1190.5 |
| Bucket Capacity (cubic yards) | 0.13 | 0.51 | 0.6 | 0.74 |
| Working Width (in) | 39 | 60.2 | 72 | 83.9 |
| Brush Diameter (in) | 15.7 | 25.9 | 25.9 | 25.9 |
| Maximum Allowable Pressure (psi) | 2900.7 | 3045.8 | 3045.8 | 3045.8 |
| Flow Rate (gal/min) | 7.9 - 10.6 | 15.9 - 21.1 | 15.9 - 21.1 | 21.1 - 23.8 |
| OPTIONAL | Atomizing dust removal system | |||
| Side brush cleaning system | ||||
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
