Product Feature

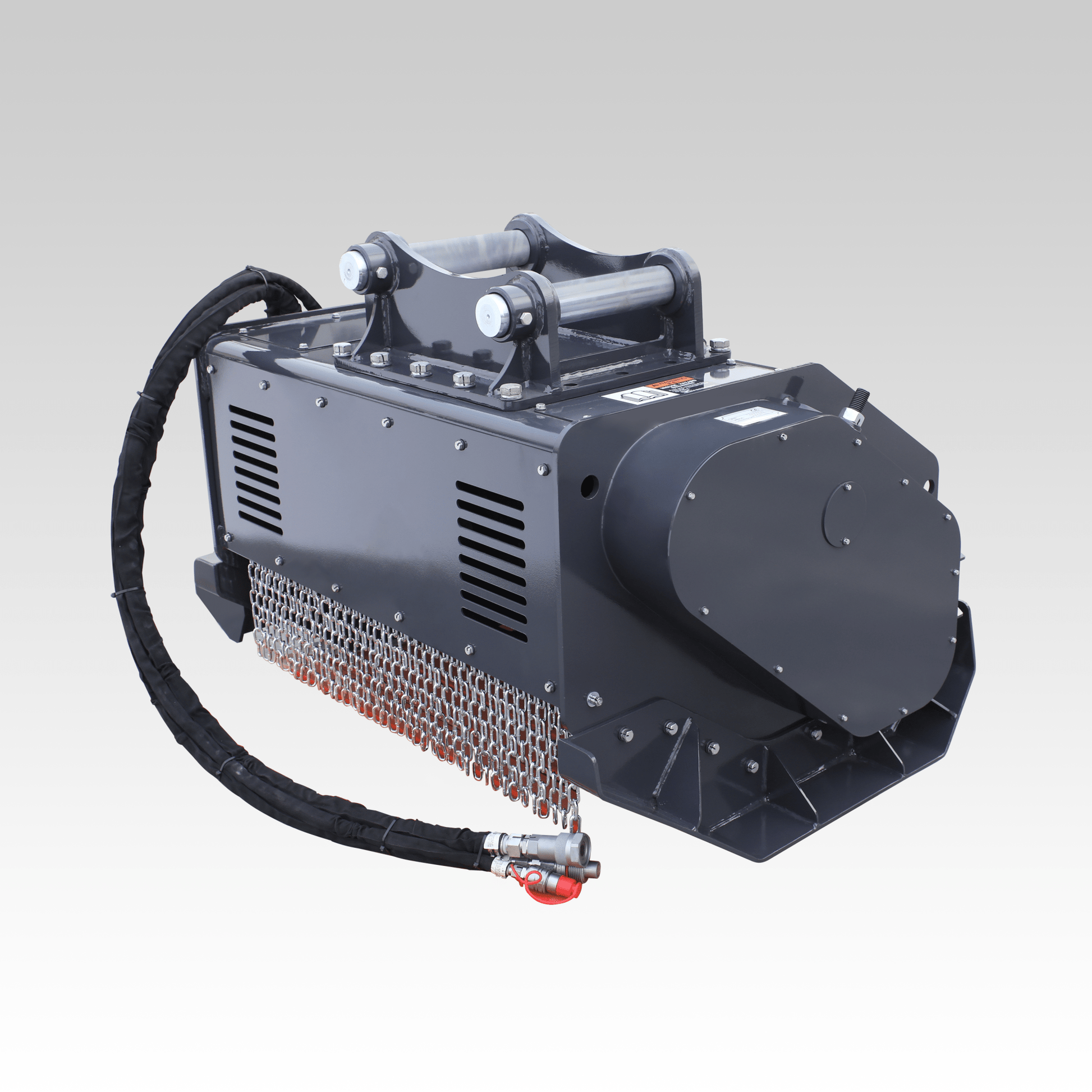

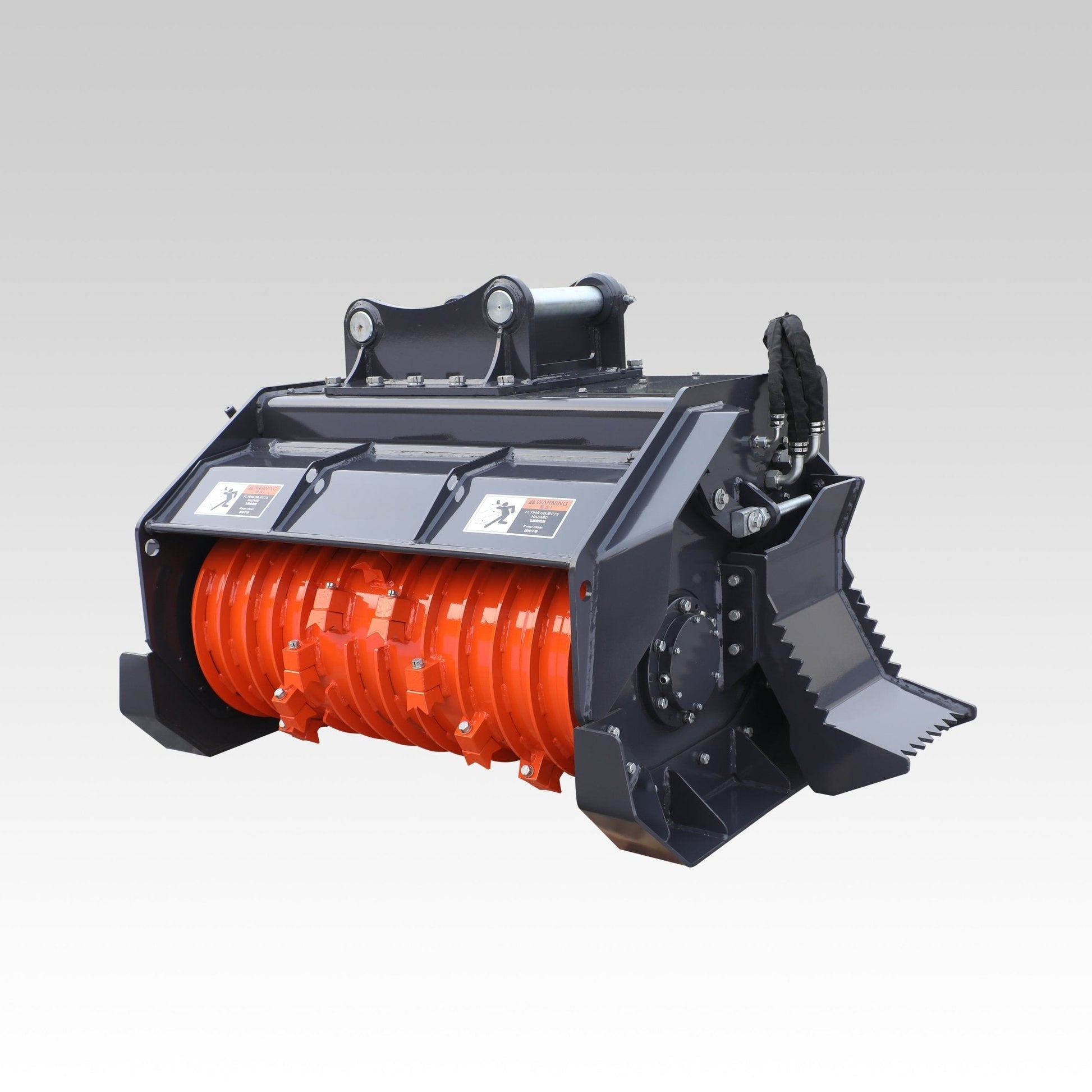

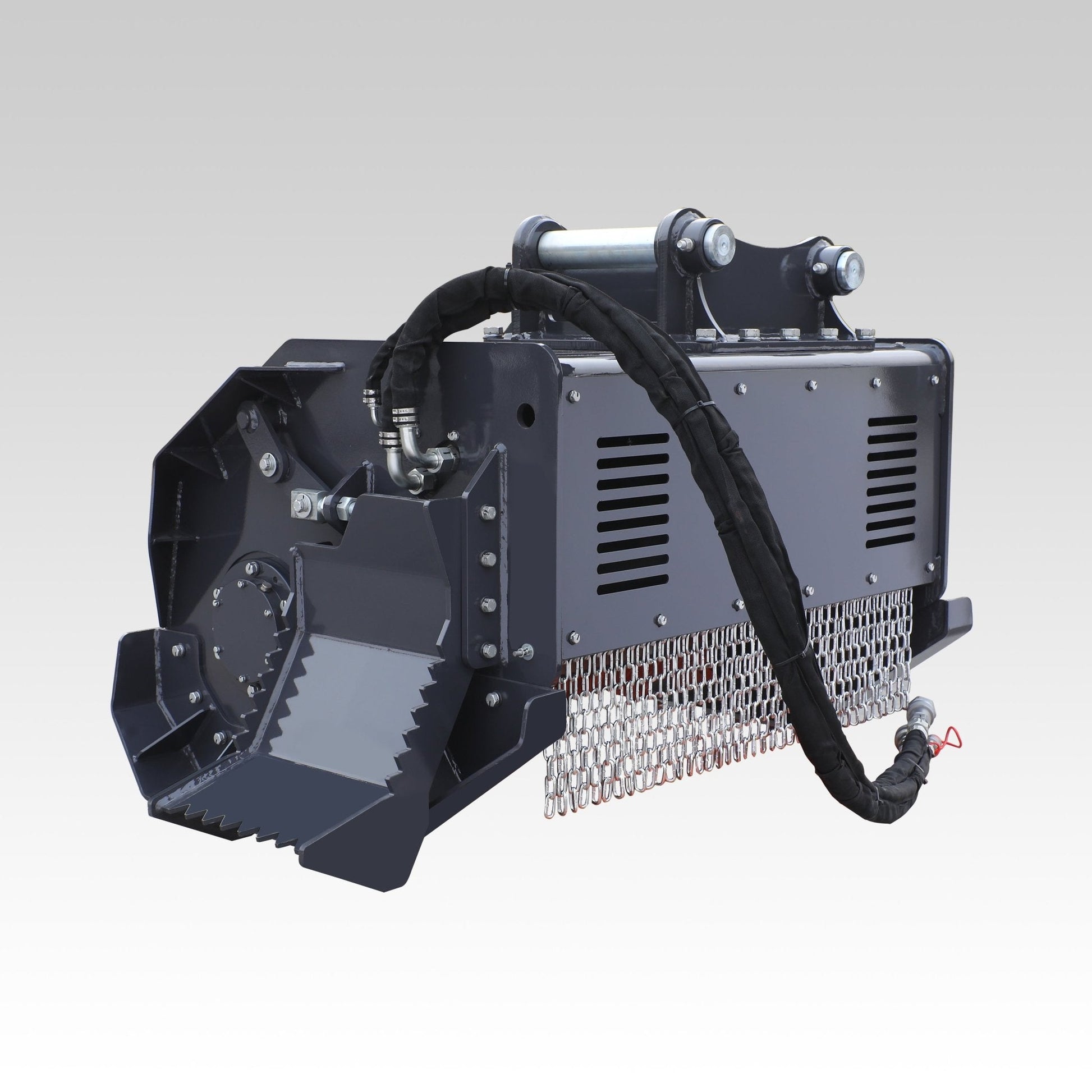

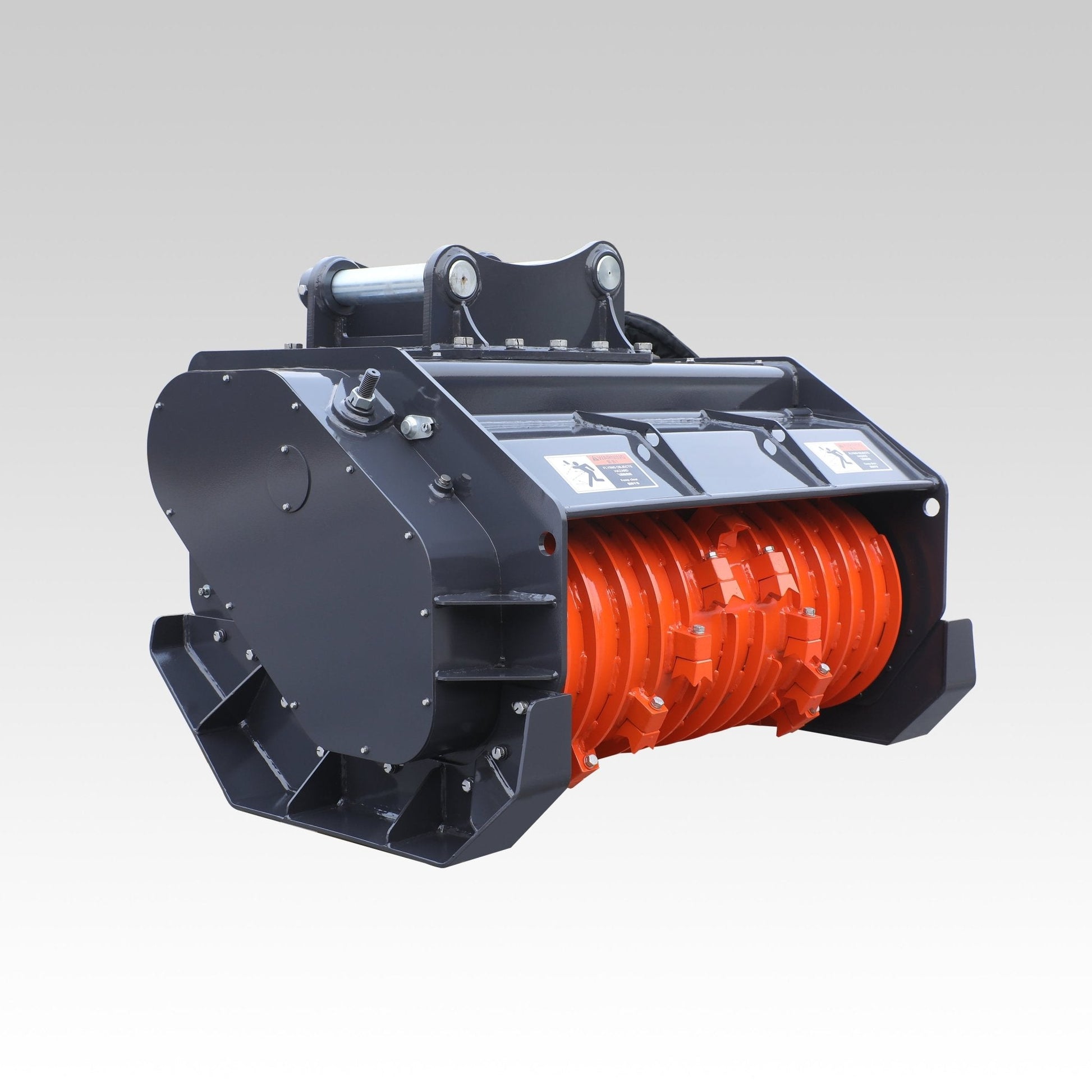

- HCN's 40” skid steer Mini forestry drum mulcher transforms brushes and trees into fine mulch for quick decomposition.
- Capable of punching into large-diameter trees and swiftly bringing down upper limbs, converting overgrowth into mulch.
- Equipped with forty tough alloy mulching teeth, an axial piston motor, and a synchronous belt drive for heavy-duty performance.
- High-strength, steel-body construction ensures durability for tough land-clearing tasks.

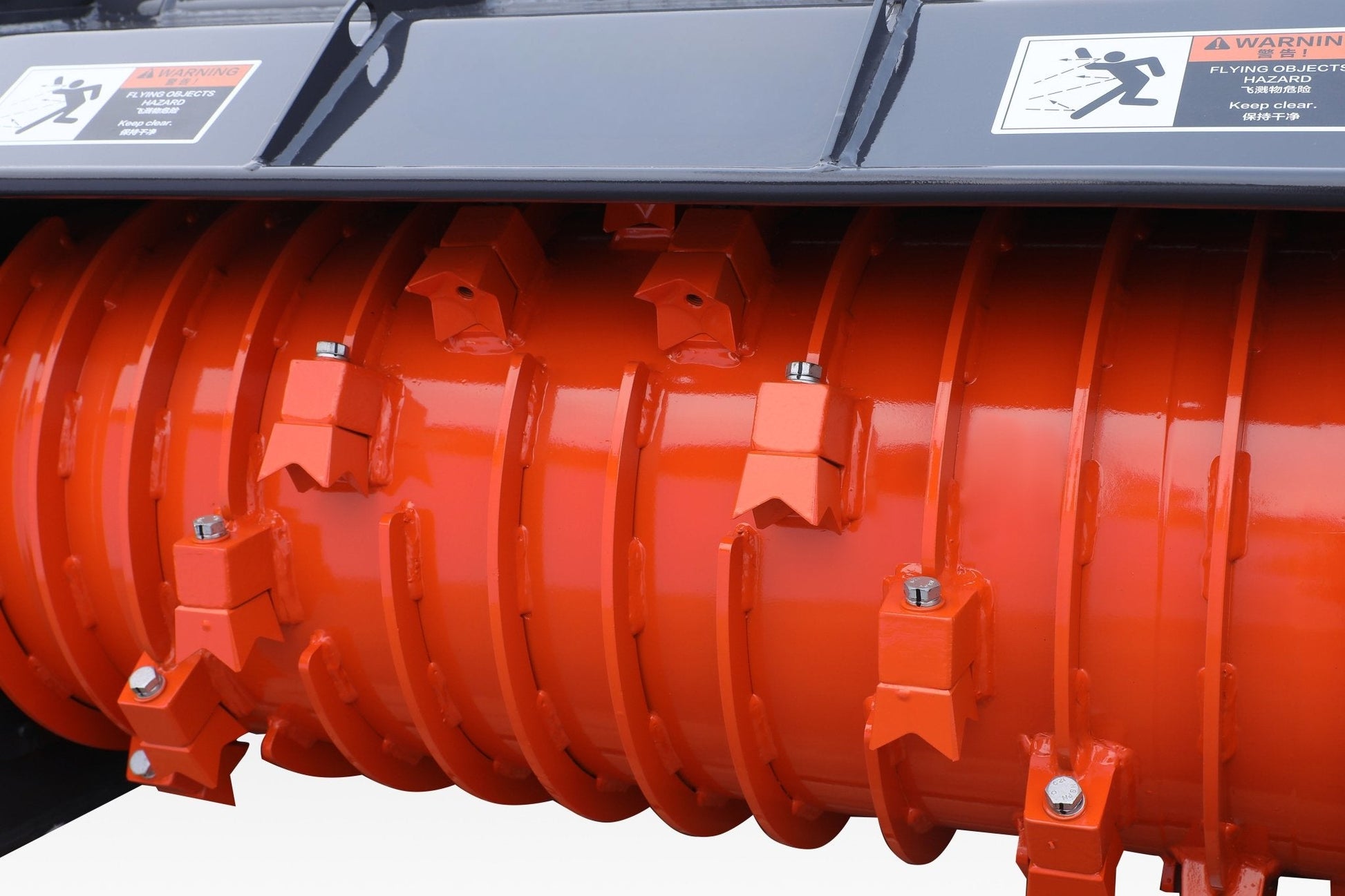

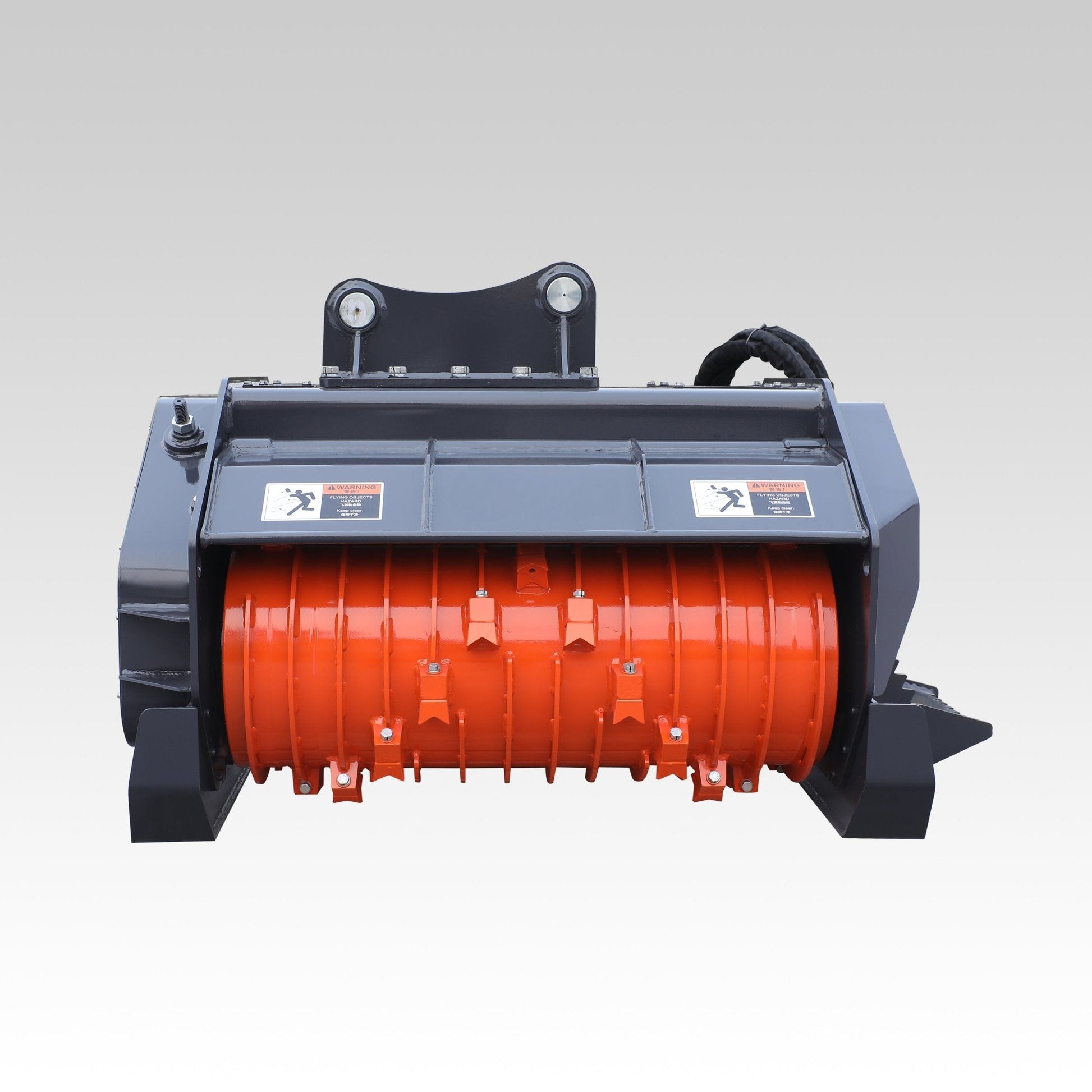

- Heavy-duty carbide teeth on the standard rotor drum provide long life and efficient wood ripping.
- Features a triple helix claw teeth layout for efficient cutting of hardwood, stumps, and branches.
- Includes a pressure gauge, radiator, and independent cooling system for optimal operation.
- Utilizes a sealed transmission chamber to protect belts, pulleys, and key components from damage.
- Comes with hydraulic hoses and ½” flat-faced couplers for easy setup and operation.

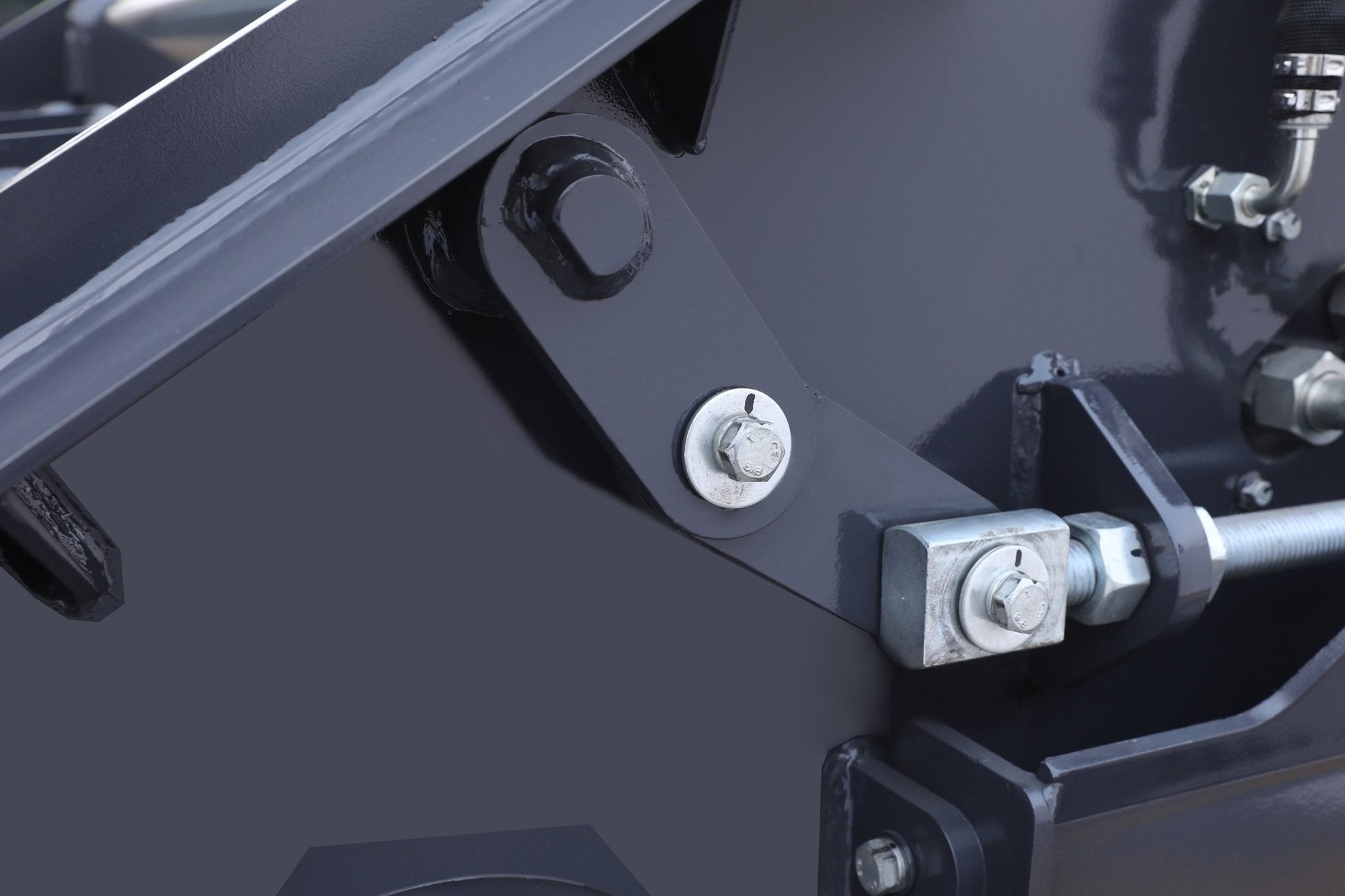

- Features a manually adjustable push bar and self-adjusting motor and belt driving system for low maintenance.
- Offers high-speed motor capability of up to 2000r/min, with three customizable mulcher teeth options available.
- Optional depth control rings limit the engagement of cutting teeth for enhanced efficiency and consistent mulching.
- The compact size accommodates various tree removal jobs.

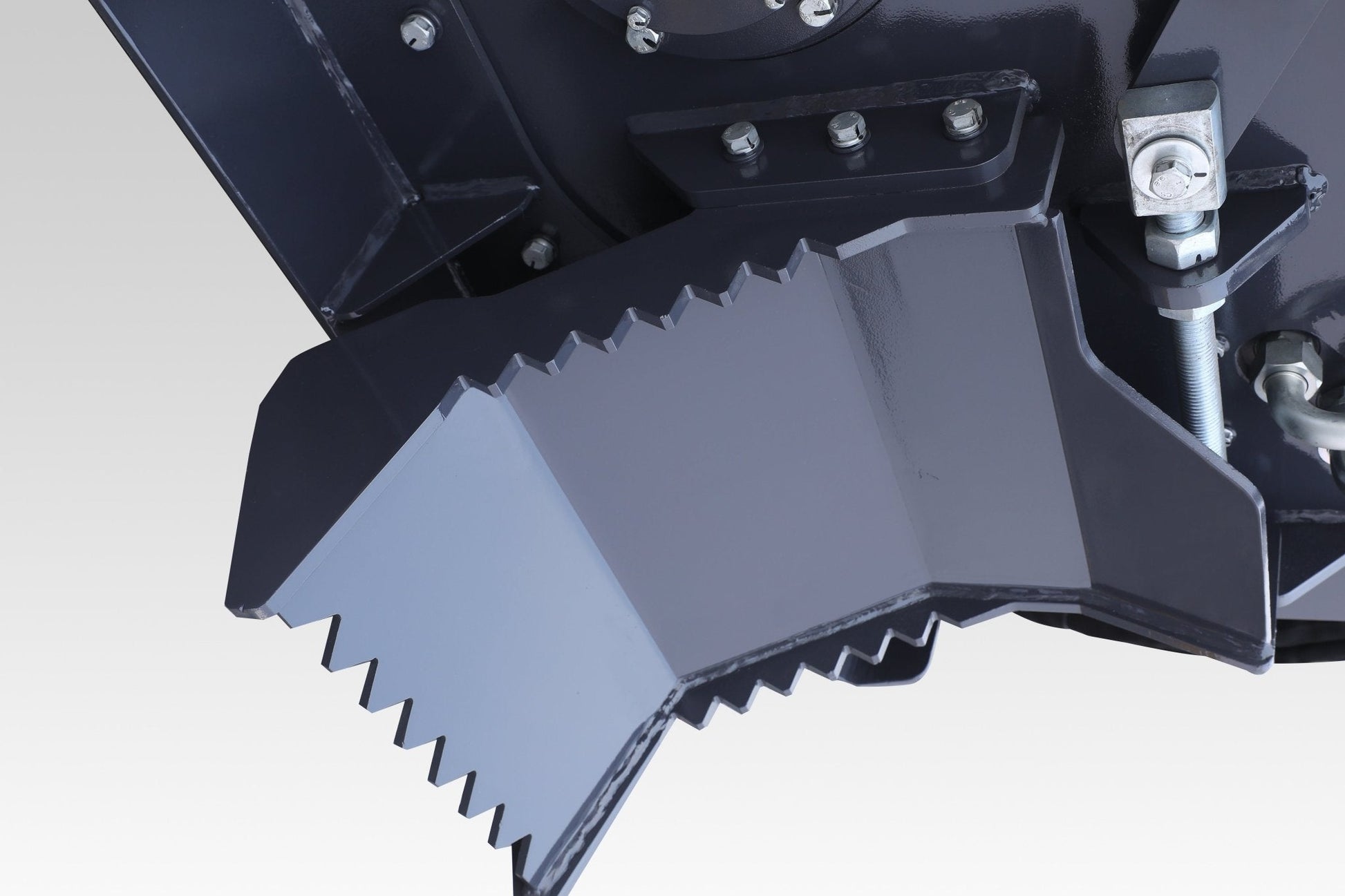

- Reinforced push bar and optional low-profile front gate offer optimal visibility to drum and cutting teeth.
- The hydraulic drum brake stops the drum within 20 seconds of deactivating auxiliary hydraulics.
- Redesigned hydraulic block and drive components enhance durability.
- Replaceable bolt-on skid shoes for operator convenience and uptime.
- Hose clamps and hose slings protect hydraulic hoses from damage.

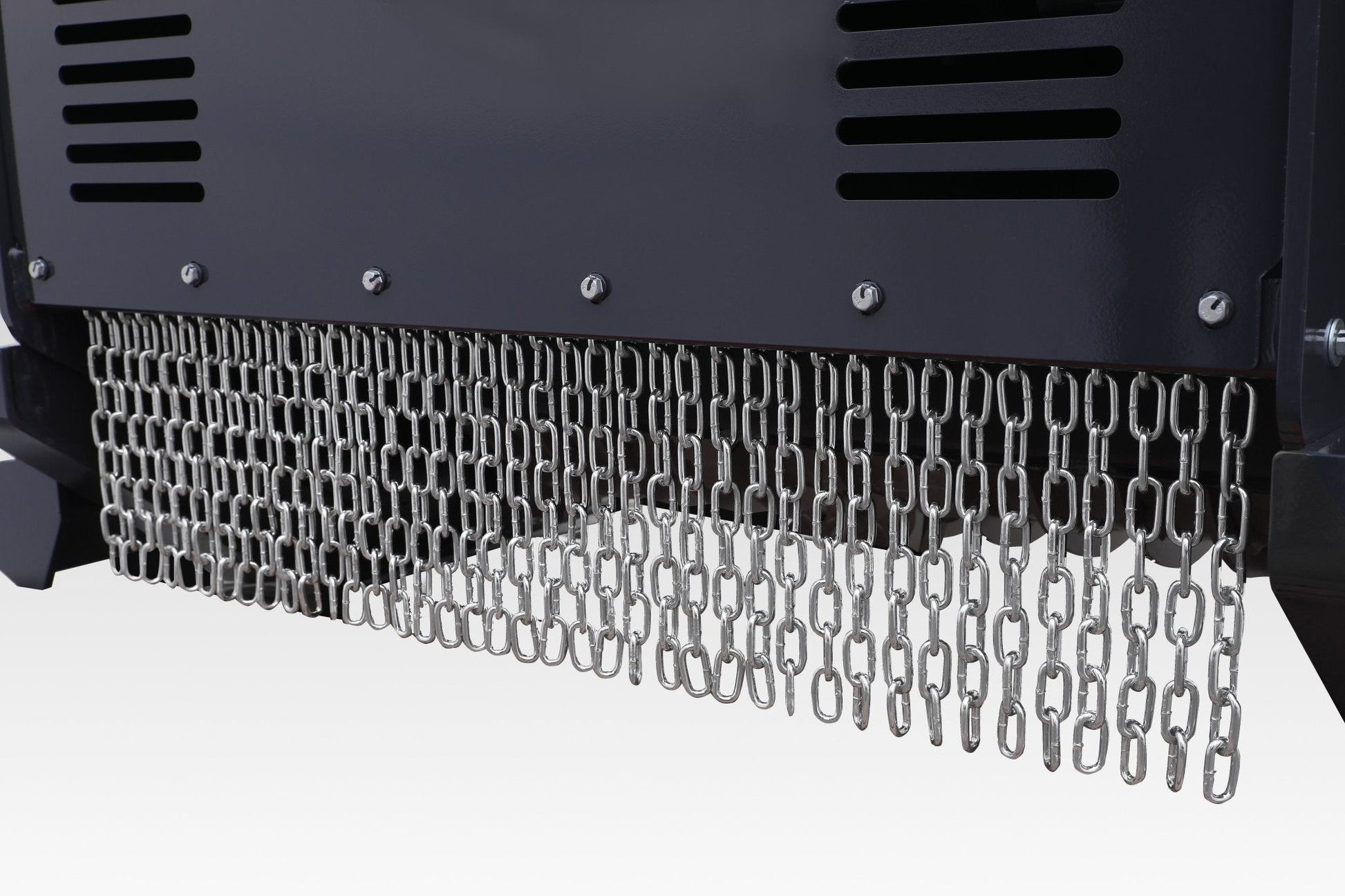

- Rear debris chains obstruct debris thrown toward the rear of the attachment
Specifications
| Model | 051340I | 051340IA |
|---|---|---|
| Length(in) | 37.4 | 37.4 |
| Width(in) | 53.15 | 61.9 |
| Height(in) | 30 | 30 |
| Working Width(in) | 39 | 39 |
| Weight(Ibs) | 1719 | 1785 |
| Work Flow(GPM) | 29-39.6 | 29-39.6 |
| Work Presure(Ibs) | 3045 | 3045 |
| Allow Maximum Pressure(psi) | 4351 | 4351 |
| Blades Number | 25 | 25 |
| Suitable Machine | 14-20T Exacavator | |
| Blade Type/Model (Optional) | Lotus Teeth / Crescent Teeth / Sheep-Horn Teeth |
|
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
