Product Feature
- Hydraulic Drive System: Supports bi-directional sweeping (forward and reverse). The hopper bottom is equipped with replaceable wear-resistant plates to extend the overall service life.
- Durable Brush Design: The sweeper uses a high-performance hybrid brush. The plastic bristles are made from high-elasticity, wear-resistant polypropylene, while the steel bristles are crafted from 32SiMnTi, a high-toughness, abrasion-resistant alloy, significantly improving sweeping efficiency and brush longevity.

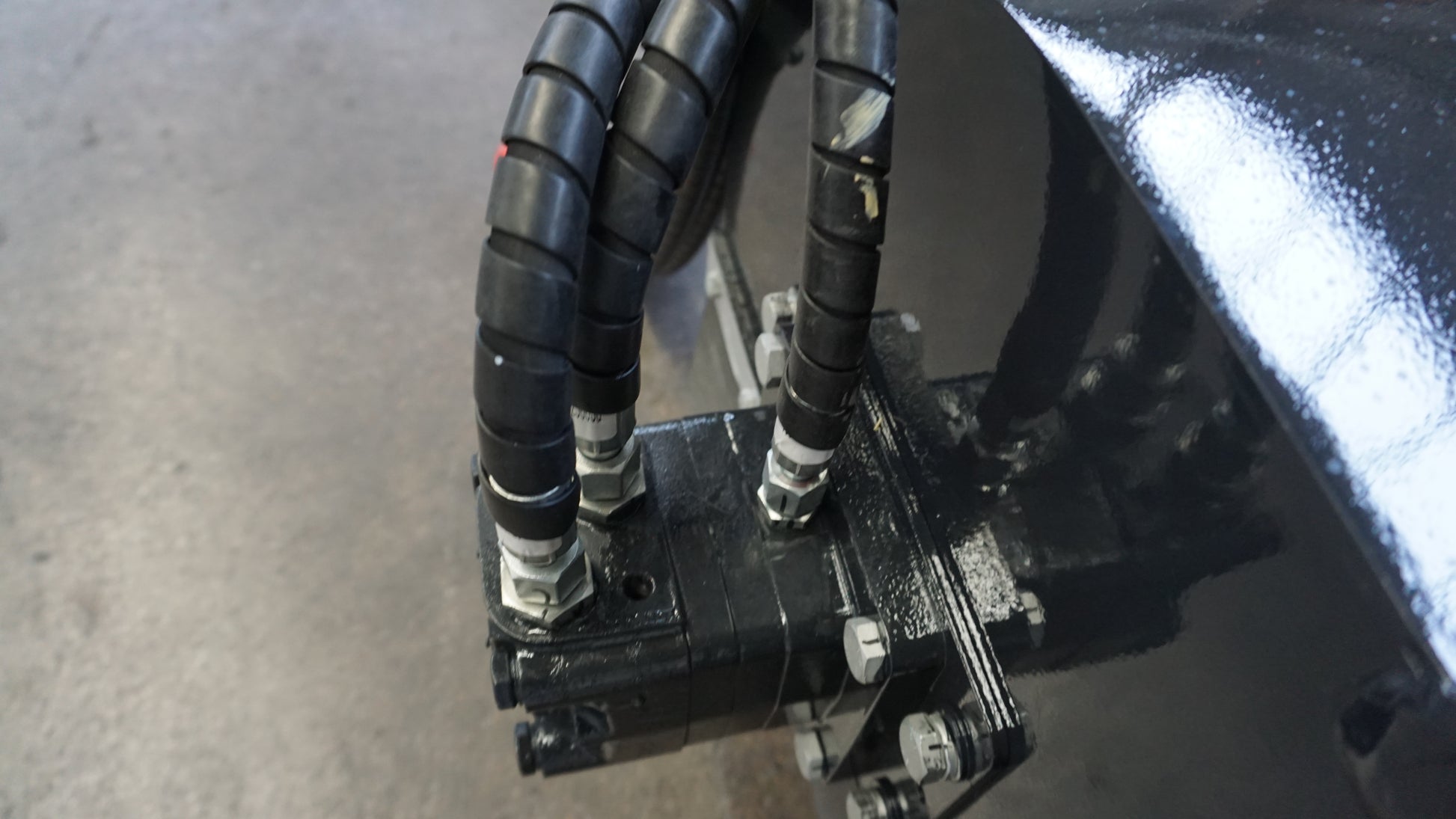

- Anti-Tangle Motor Protection: The motor end features an anti-wrapping design to prevent string-like materials from damaging the motor.
- Anti-Overturn Safety Structure: A reinforced design prevents the top cover from flipping excessively, protecting the operator's cab.
- Optional Side Brush: An additional side brush is available for edge cleaning along curbs, walls, and drainage channels.
- Optional High-Pressure Dust Suppression: A high-pressure atomized mist system can be added to suppress airborne dust during operation.
- Compatibility Note: When used with small loaders, customers are advised to install travel limit blocks (for dumping and retraction) based on the host machine's specifications.
Specifications
| Model | Mini020240 |
|---|---|
| Overall Length (inches) | 48.0 |
| Overall Width (inches) | 34.1 |
| Overall Height (inches) | 15.9 |
| Product Height (excluding support) (in) | 15.9 |
| Total Weight (including mount) (lbs) | 397 |
| Hopper Capacity (cubic yards) | 0.13 |
| Effective Sweeping Width (inches) | 39.0 |

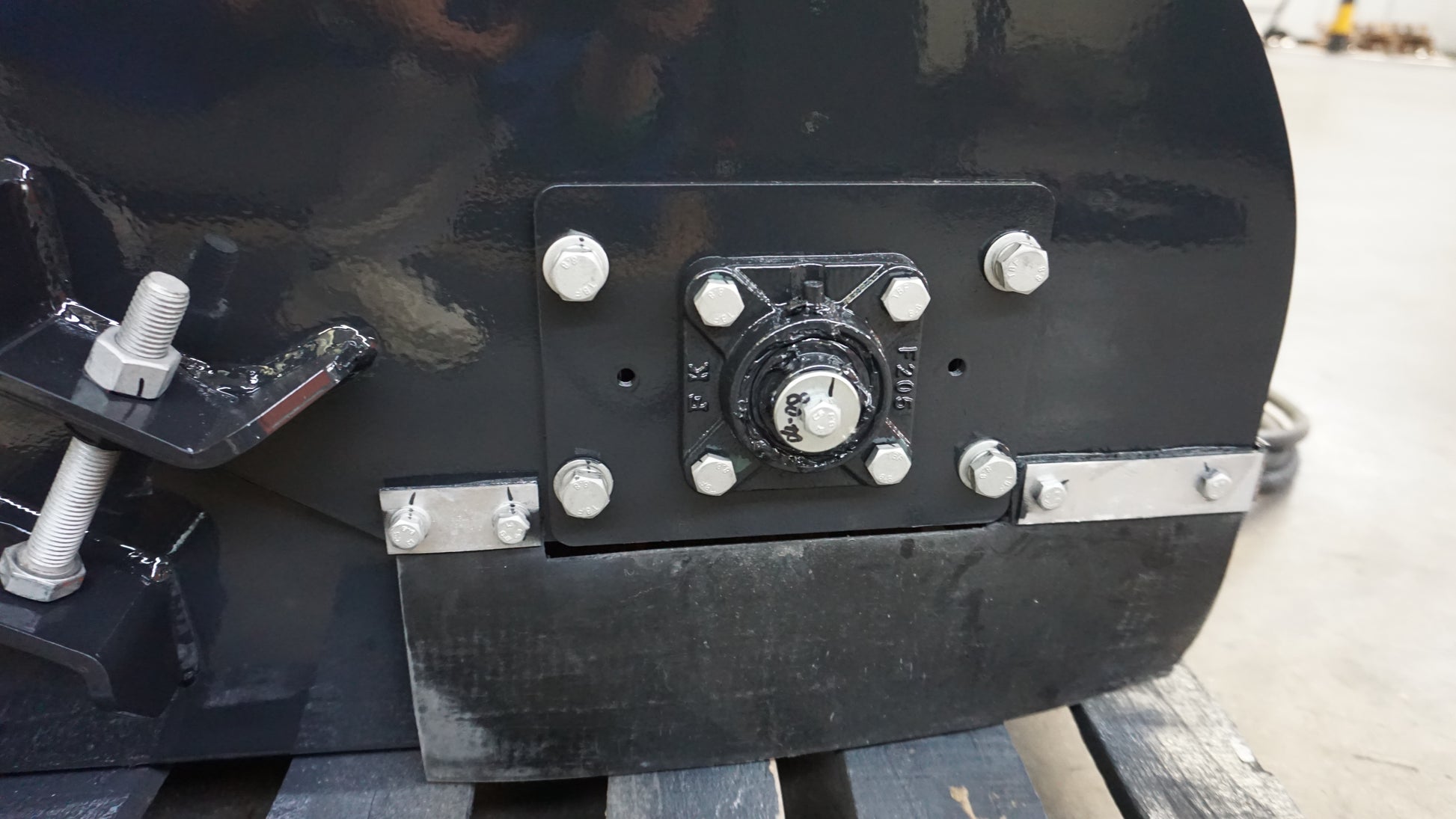

| Brush Roller Diameter (inches) | 15.7 |
| Max Allowable Pressure (psi) | 2,901 |
| Hydraulic Flow (GPM) | 7.9–10.6 |
| Compatible Machine | Mini Skid Steer Loader |
Performance Introduction

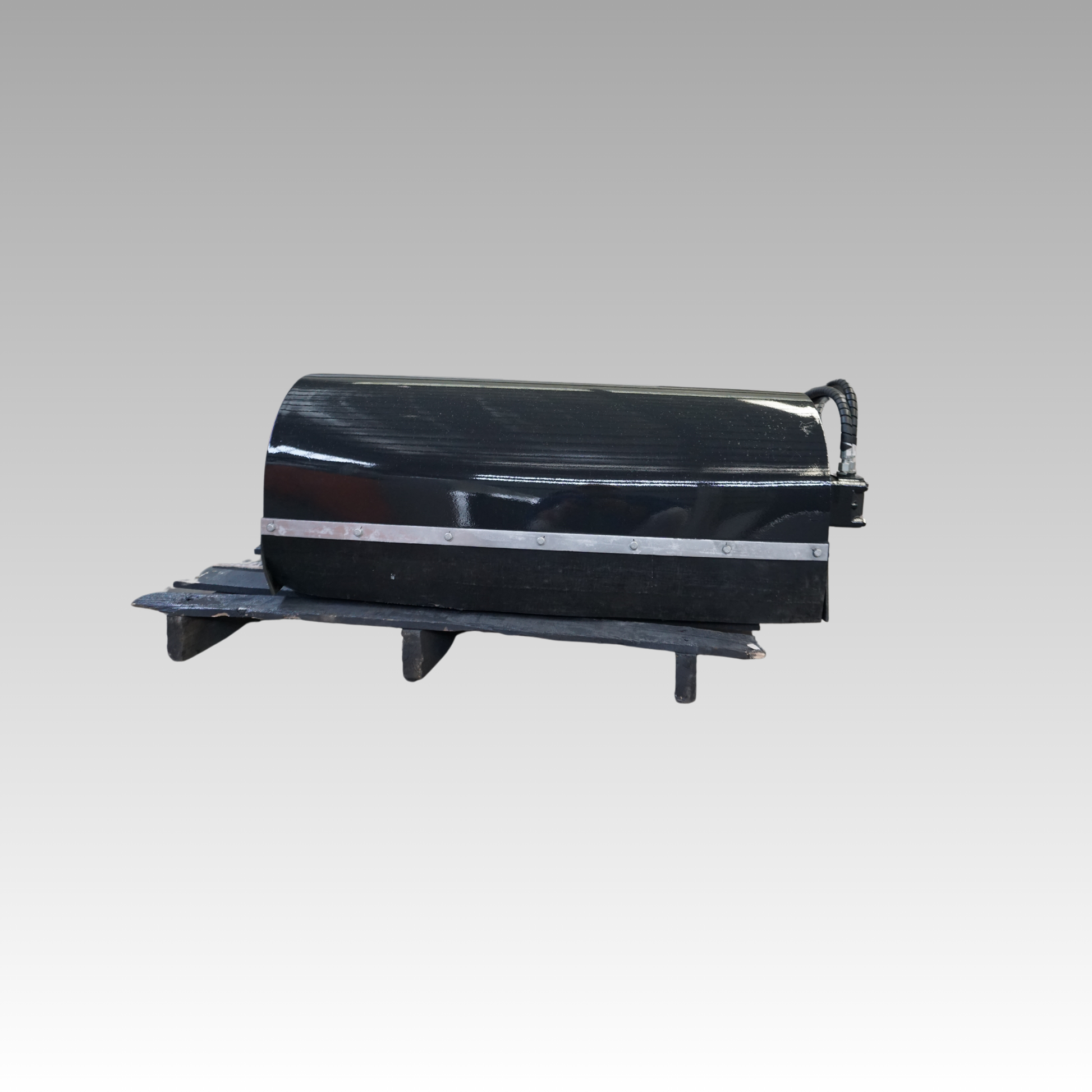

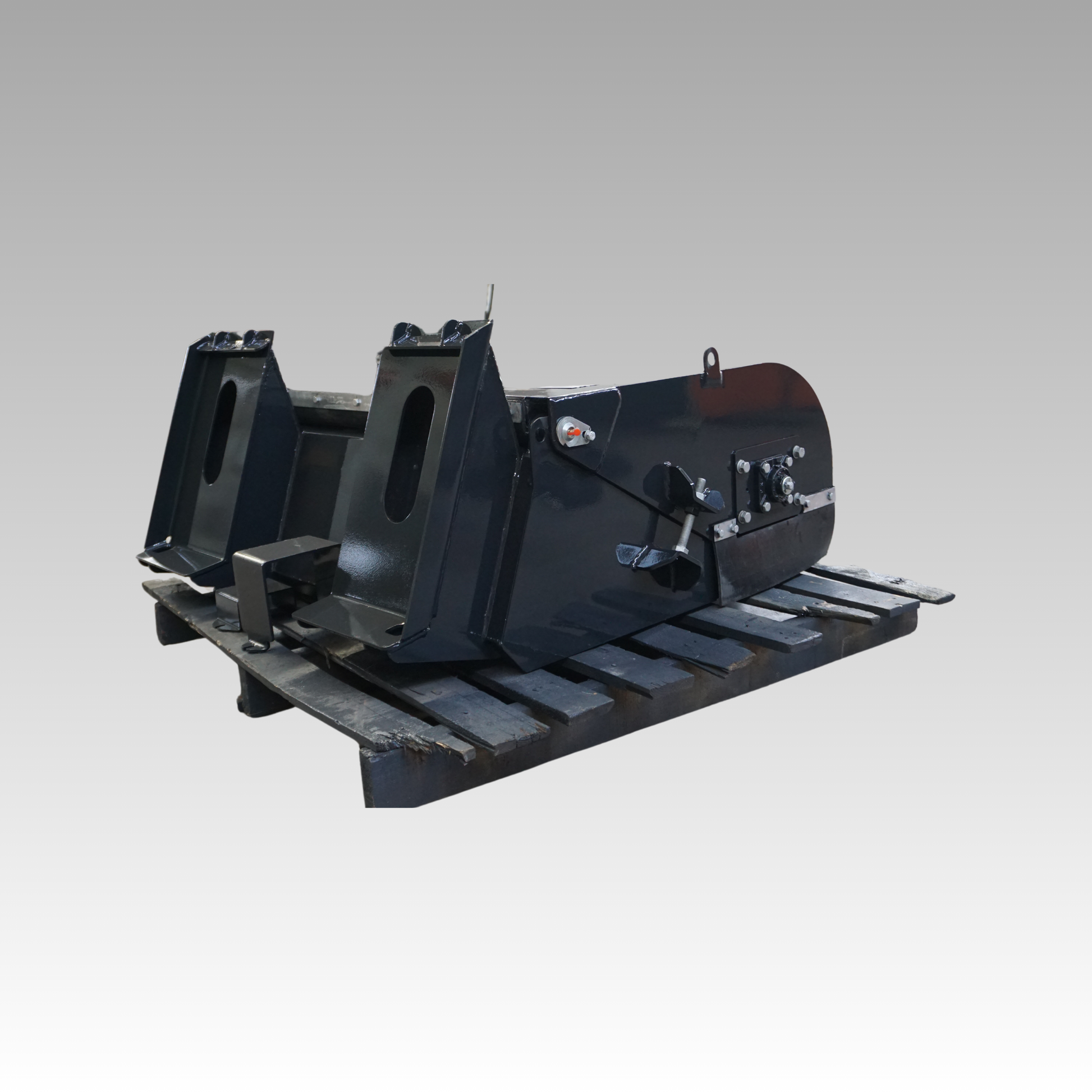

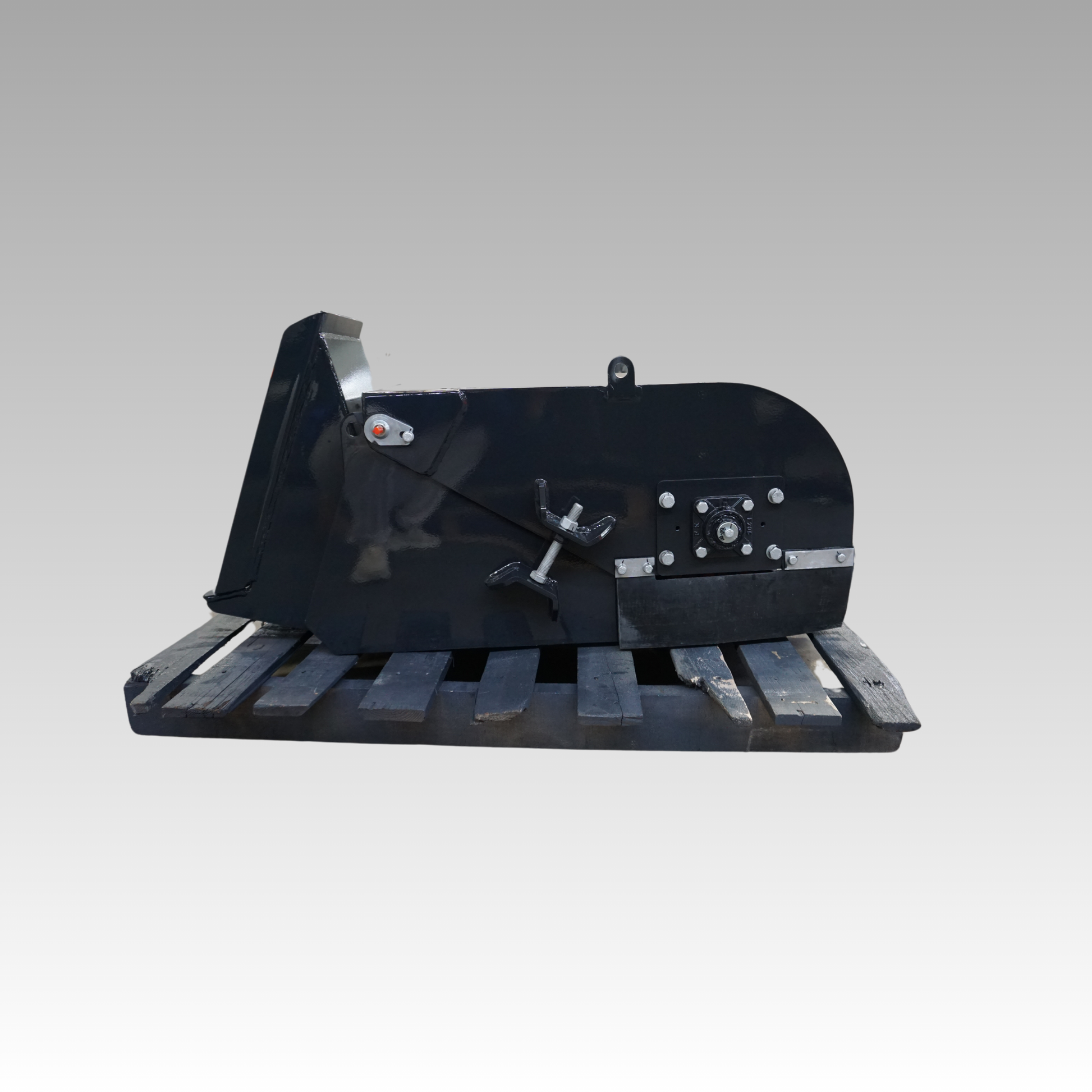

Clean, collect, and dump in one pass. The BeyondTech skid steer mini-PickUp broom turns your mini loader into a professional sweep broom for parking lots, sidewalks, docks, warehouses, and ports—and it’s tailor-made for pre-paving surface preparation.
What it does best
- Sweep → collect → dump: An enclosed pickup broom funnels debris into the integrated hopper for easy disposal at a designated spot.
- Bi-directional cleaning: Hydraulic drive pickup broom supports forward/reverse passes for tight spaces and fast turnaround—your reversible skid steer broom for daily cleanup.
- Surface-prep ready: Leaves a clean, uniform base for asphalt surface prep, milling and paving cleanup, and jobsite cleanup.
Pro-grade features
- Hybrid bristles: Abrasion-resistant brush with polypropylene + steel wire bristles for long life on rough surfaces; great for gravel and sand pickup and even light snow sweeping.
- Hopper durability: Replaceable bolt-on wear plates and wear-resistant hopper plates inside a rugged steel housing with a corrosion-resistant finish.
- Motor protection: Anti-tangle / anti-wrap motor guard, brush motor guard, and a reinforced, anti-overturn top cover for reliability in heavy debris.
- Dust control (optional): Add atomized water dust suppression or high-pressure mist for dustless sweeping in sensitive areas.
- Edge perfection: Optional edge cleaning side brush / curb & gutter broom takes care of corners and along barriers.
Built for uptime
- Quick dump debris broom: Tip and go—no shoveling.

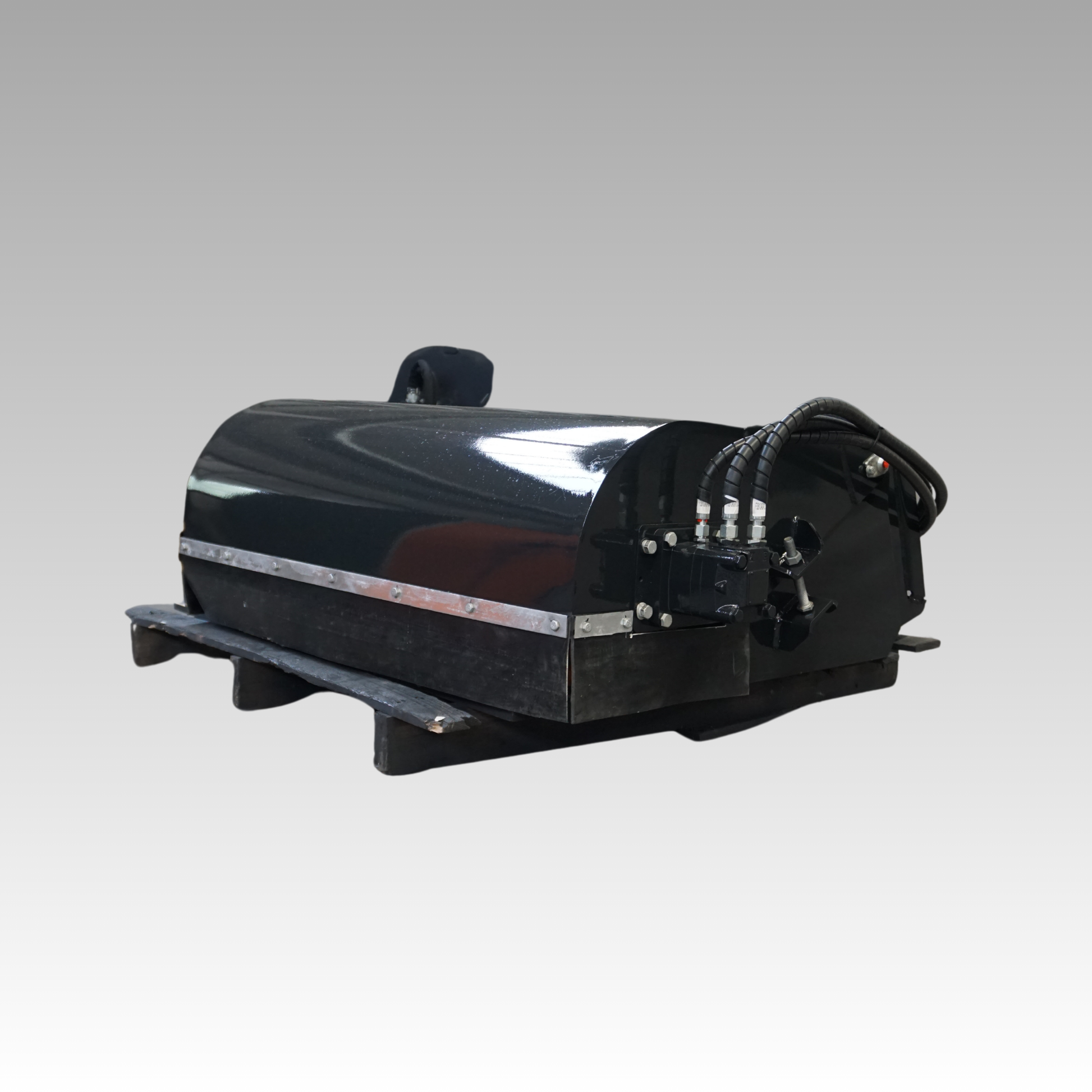

- Service-friendly sweeper: Quick connect hydraulic hoses and heavy-duty hydraulic lines keep maintenance simple.
- Compact footprint: A narrow-width pickup broom with a low-profile hopper for aisles, gates, and tight staging areas.
Performance Video
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
