Product Feature

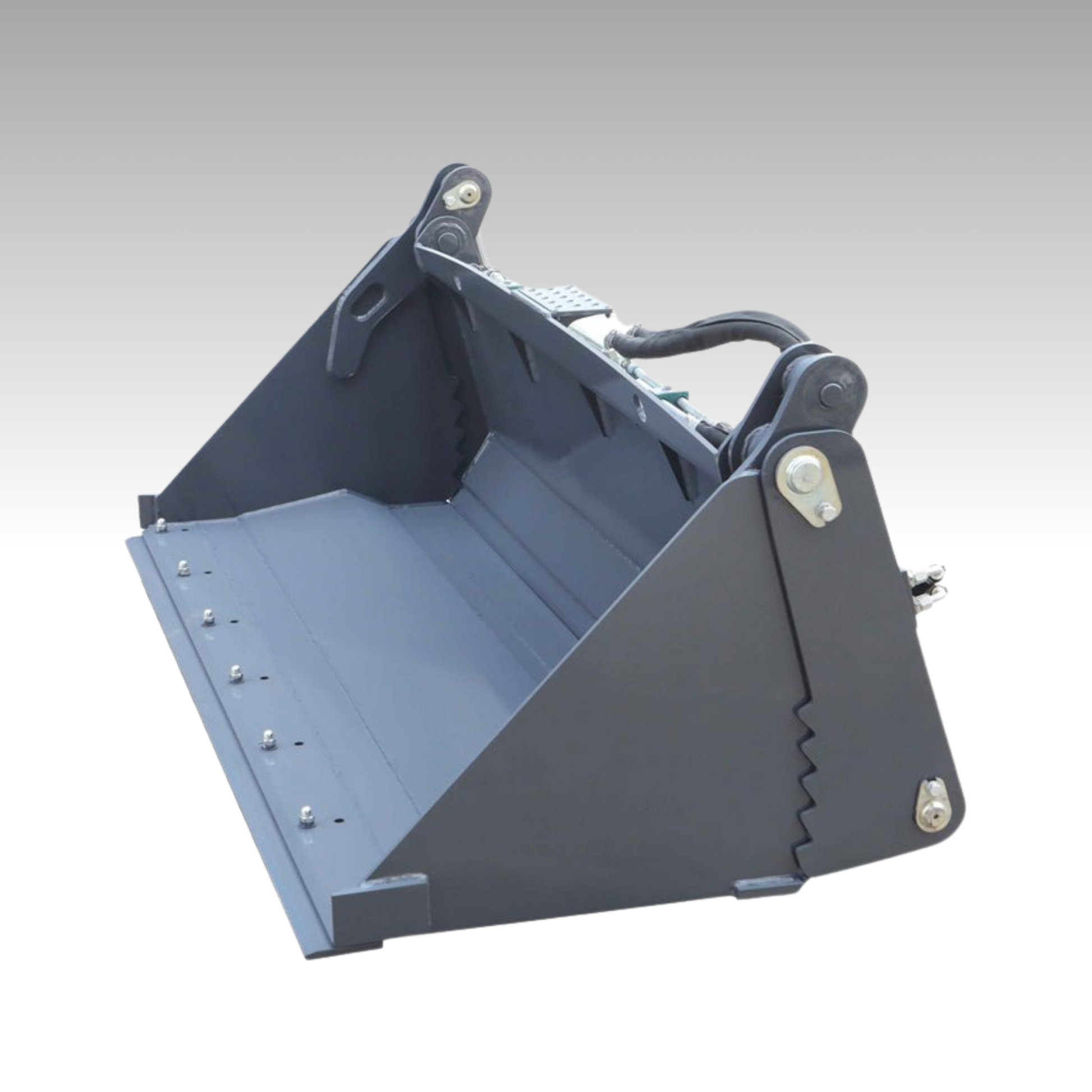

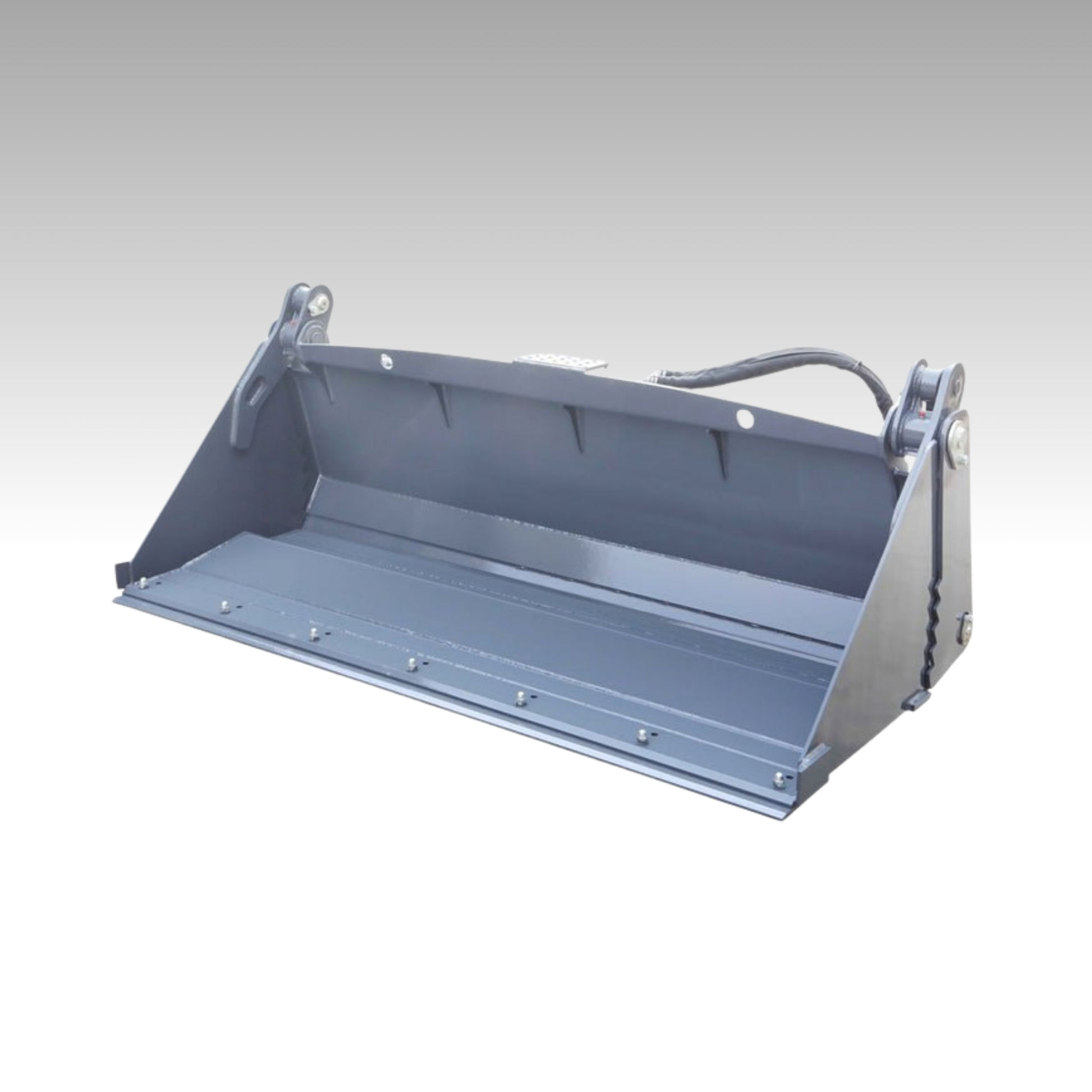

- Four-in-One Functionality
- Loading, Carrying, and Dumping: The bucket functions as a standard loader for material transport.
- Grapple for Odd-Shaped Materials: Serrated, interlocking grapple edges securely hold irregularly shaped items such as logs, pipes, or scrap materials.
- Dozing: When fully opened, the clamshell doubles as a dozer blade for grading and leveling tasks.

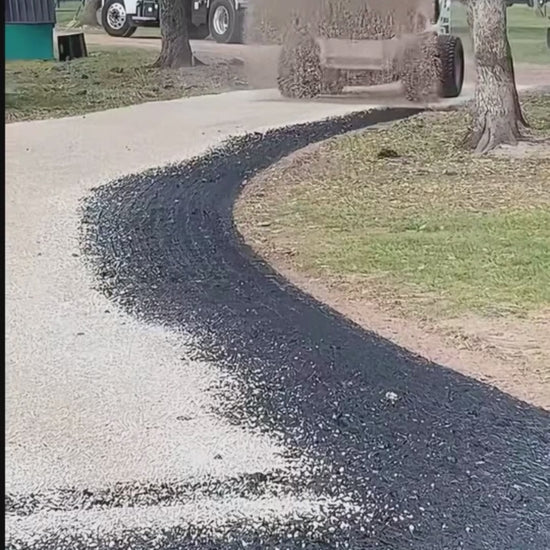

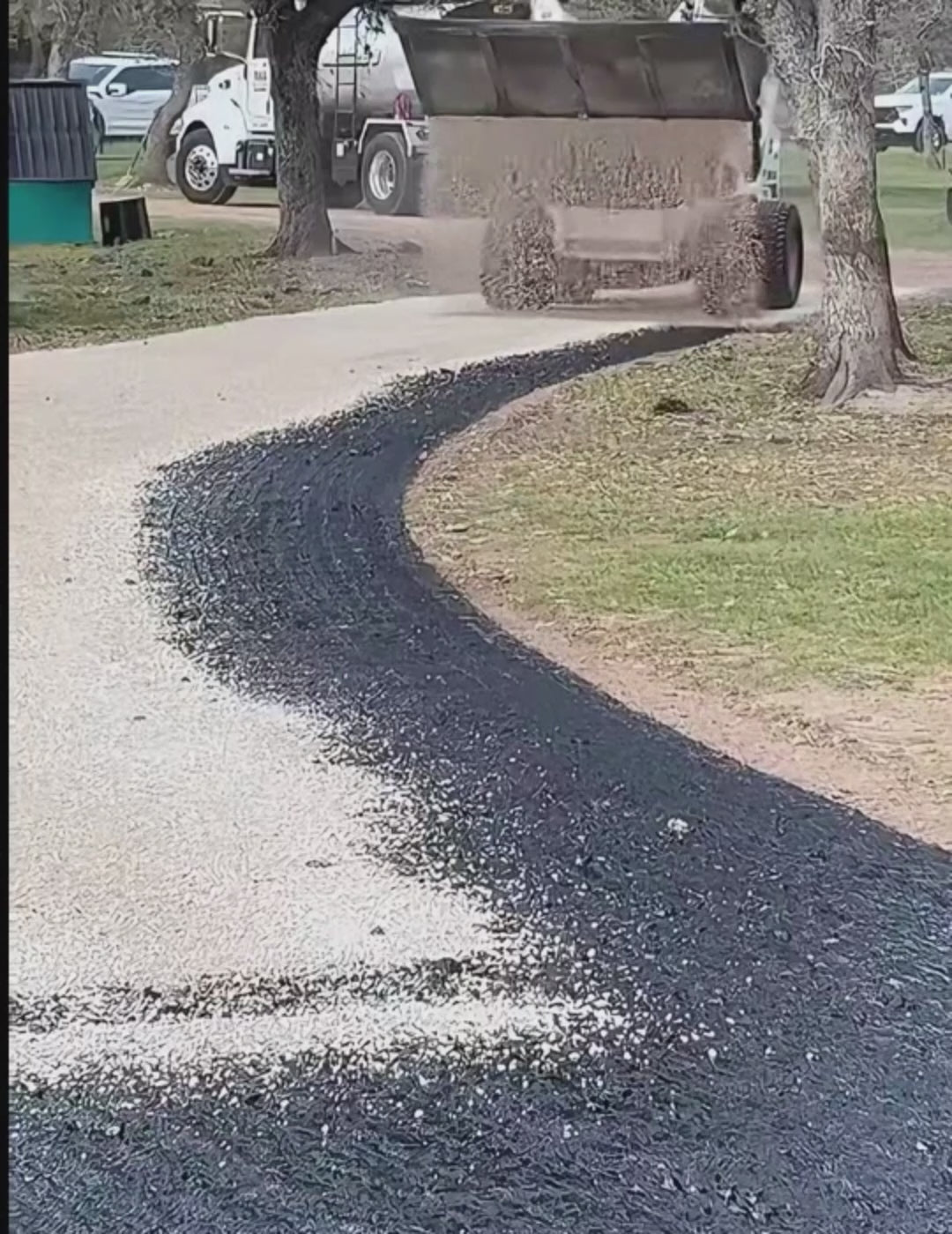

- Material Leveling and Spreading: The clamshell’s wide opening allows for the precise spreading of materials like soil, gravel, or sand.
- Built with high-strength, high-wear-resistant steel and a Hardox® floor, this bucket ensures durability in the toughest working conditions.
Reinforced buckets and clamshell bottoms enhance rigidity, enabling the attachment to handle heavy loads with ease. - Bolt-on cutting edges on both the front and rear provide extended service life and protect bucket corners from wear, ensuring long-lasting durability.

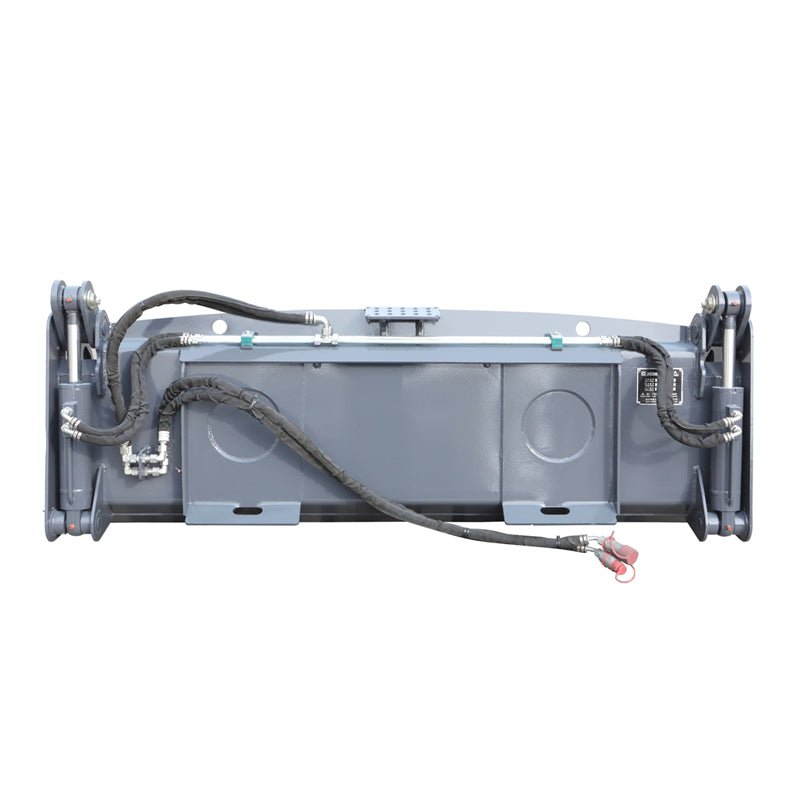

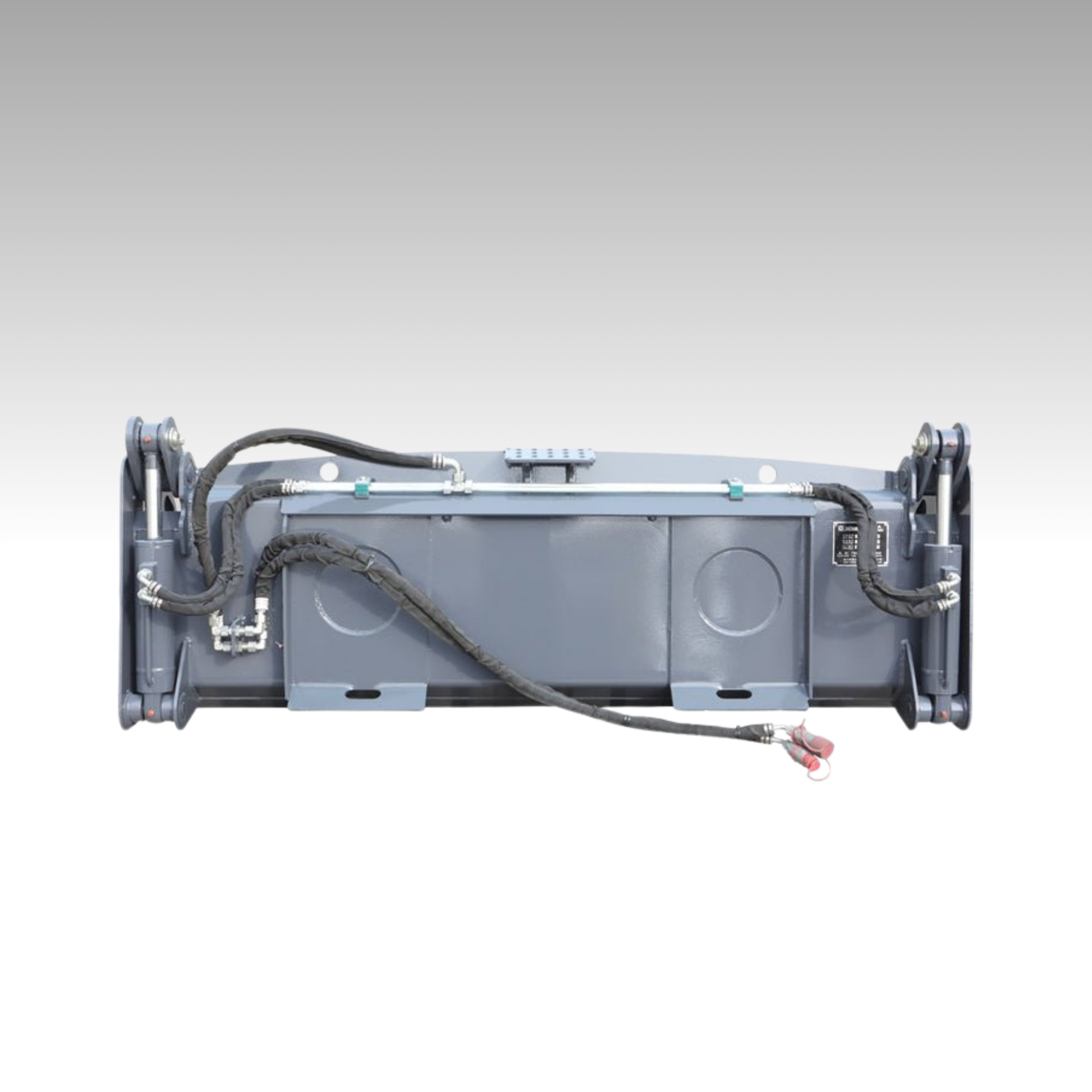

- Equipped with high-quality hydraulic cylinders for smooth and reliable operation. The domestic hydraulic components are designed for long-term durability and precise control.
- The bucket features a multi-fit pickup system, ensuring compatibility with all skid steer brands and various chassis sizes. It can be tailored to fit both small and large equipment, making it an adaptable solution for diverse applications.
- The attachment can be customized to suit specific operational needs, providing flexibility for different industries and tasks.
- These edges provide versatile clamping capabilities for handling a variety of materials in construction, forestry, and recycling applications.
Specifications
| Model | 010460b | 010472a | 010484a |
|---|---|---|---|
| Length (in) | 34.3 / 36.4 | 34.3 / 36.4 | 34.3 / 36.4 |
| Total Width (in) | 62.6 | 74.4 | 83.5 |
| Total Height (in) | 28.1 | 28.1 | 28.1 |
| Open Distance (in) | 31.5 | 31.5 | 31.5 |
| Weight (Including Pendant) (lbs) | 758.4 | 831.1 | 903.9 |
| Flat / Stack Bucket Capacity (cu. ft.) | 12.7 / 16.9 | 14.1 / 18.4 | 15.6 / 19.8 |
| Work Flow (gal/min) | 5.3 - 7.9 | 5.3 - 7.9 | 5.3 - 7.9 |
| Maximum Pressure (psi) | 3045.8 | 3045.8 | 3045.8 |
| Applicable model | Welded edge teeth, optional bucket teeth, or accessory edge plate | ||
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
