Product Feature
- The well lid milling machine is tailored for road inspection well maintenance, enabling fast and efficient repair and lifting of well lids suffering from various defects.
- By precisely milling around the well lids, this device improves the overall quality of repairs, ensuring smooth and visually appealing road surfaces.
- Powered directly by the hydraulic oil supply system of the loader, the milling machine operates seamlessly, utilizing the existing hydraulic system for efficient and consistent performance.
- The hydraulic operation system ensures the milling process is straightforward and easy to handle, reducing operator effort and training time.
- An optional water sprinkling device is available to cool the milling tools during operation, significantly extending tool lifespan and enhancing efficiency in demanding conditions.
- Designed for versatility, the milling machine allows for the installation of a limiting block based on the loader’s specifications, ensuring compatibility and stability.
Specifications
| Model | BM1460I |
|---|---|
| Overall length (in) | 68.9 |
| Overall width (in) | 67.72 |
| Overall height (in) | 68.9 |
| Total weight (including pendant) (lb) | 2866.01 |
| Maximum depth (in) | 11.81 |
| Milling slot width (in) | 1.57 |
| Milling drum inner diameter (in) | 52.76 |
| Working flow rate (gal/min) | 47.55-58.12 |
| Maximum permissible pressure (psi) | 2900.75 |
| Applicable Models | Loaders 5 tonnes and above |
Performance Introduction
- The BeyondTech wheel loader manhole cover milling machine turns your 5-ton loader into a precision ring-cutter that preps inspection wells, sewer lids, and utility hatches in minutes.
- Driven directly from the carrier’s auxiliary hydraulics, the compact, direct-drive milling head carves a clean, circular groove through asphalt or concrete so the lid seat can be lifted, shimmed, and reset without disturbing the surrounding pavement.

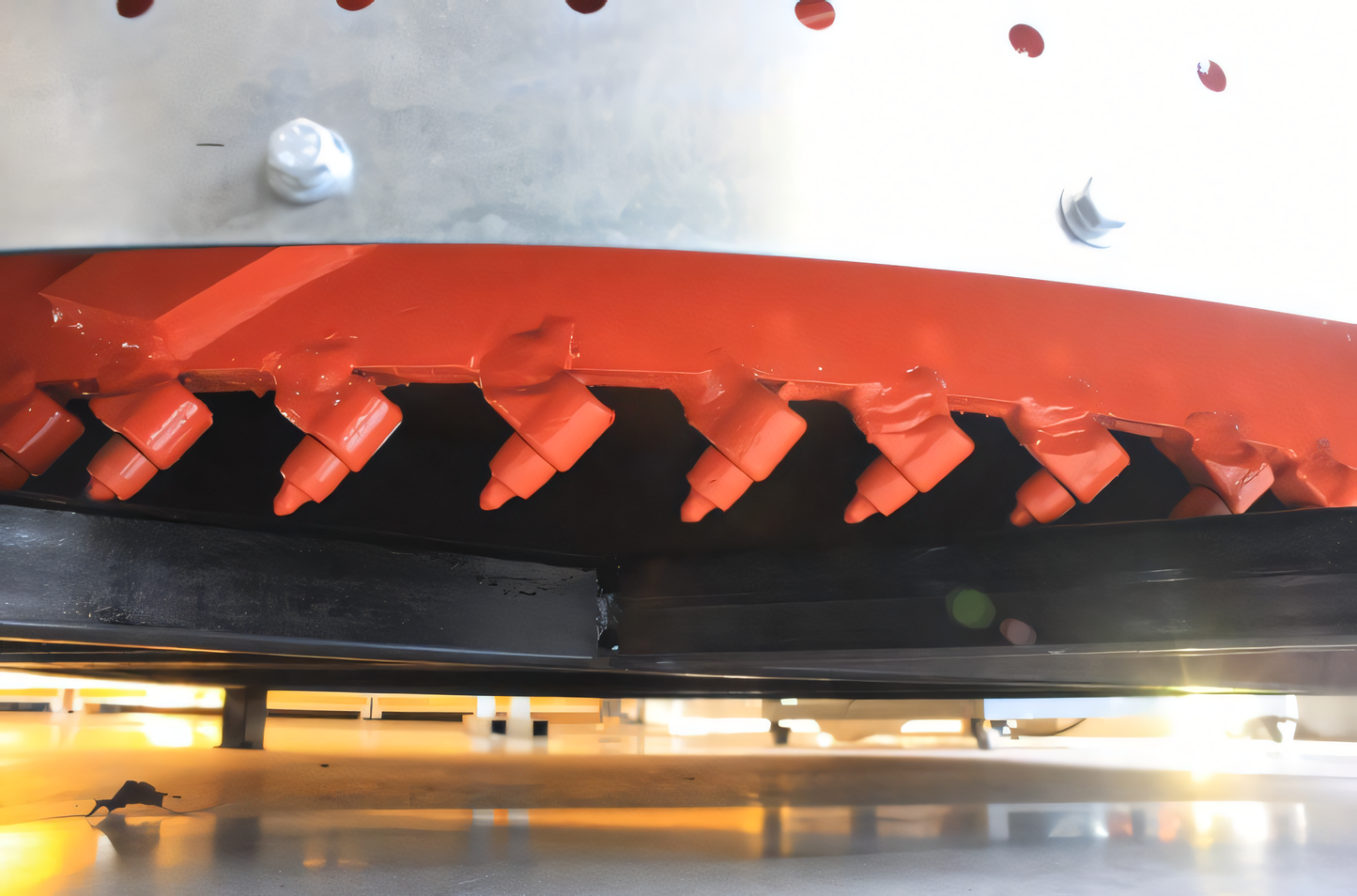

- A dual-motor drum fitted with high-wear cutters maintains constant torque for smooth, chatter-free cuts, while an optional water-spray cooling system keeps bits at peak hardness—extending tool life and slashing consumable costs on demanding urban road jobs.
- Operators simply quick-attach the ISO-coupler milling attachment, set depth with the adjustable limiting block, and engage the one-touch hydraulic well-lid miller; no secondary power pack is required.
- Built from high-strength plate and gusseted for heavy municipal workloads, this robust milling machine resists flex and vibration, delivering repeatable accuracy whether you’re resurfacing a concrete apron or spot-milling an asphalt patch.
- Safety bars mark the cutting width for traffic-side visibility, and a sealed drive keeps dust and grit out of the bearings—translating to longer intervals between service.
- From highway maintenance crews to city street departments, the BeyondTech wheel loader negative-pressure dust sweeper—paired with this high-precision manhole milling attachment—creates a complete road-restoration toolkit that speeds repairs, reduces lane closures, and leaves every lid perfectly flush with the finished surface.
Performance Video
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
