Product Feature
- Dual motors directly power the roller brush for high-efficiency sweeping and reduced energy loss.
- Allows the brush to maintain minimal wear while ensuring an optimal cleaning angle, achieving consistently clean results.
- Unloading cylinders on both sides enable quick and convenient one-touch dumping, enhancing efficiency and extending service life.
- The robust (400-8) solid tires deliver excellent stability and maneuverability, allowing for safe operation and minimal tire wear.

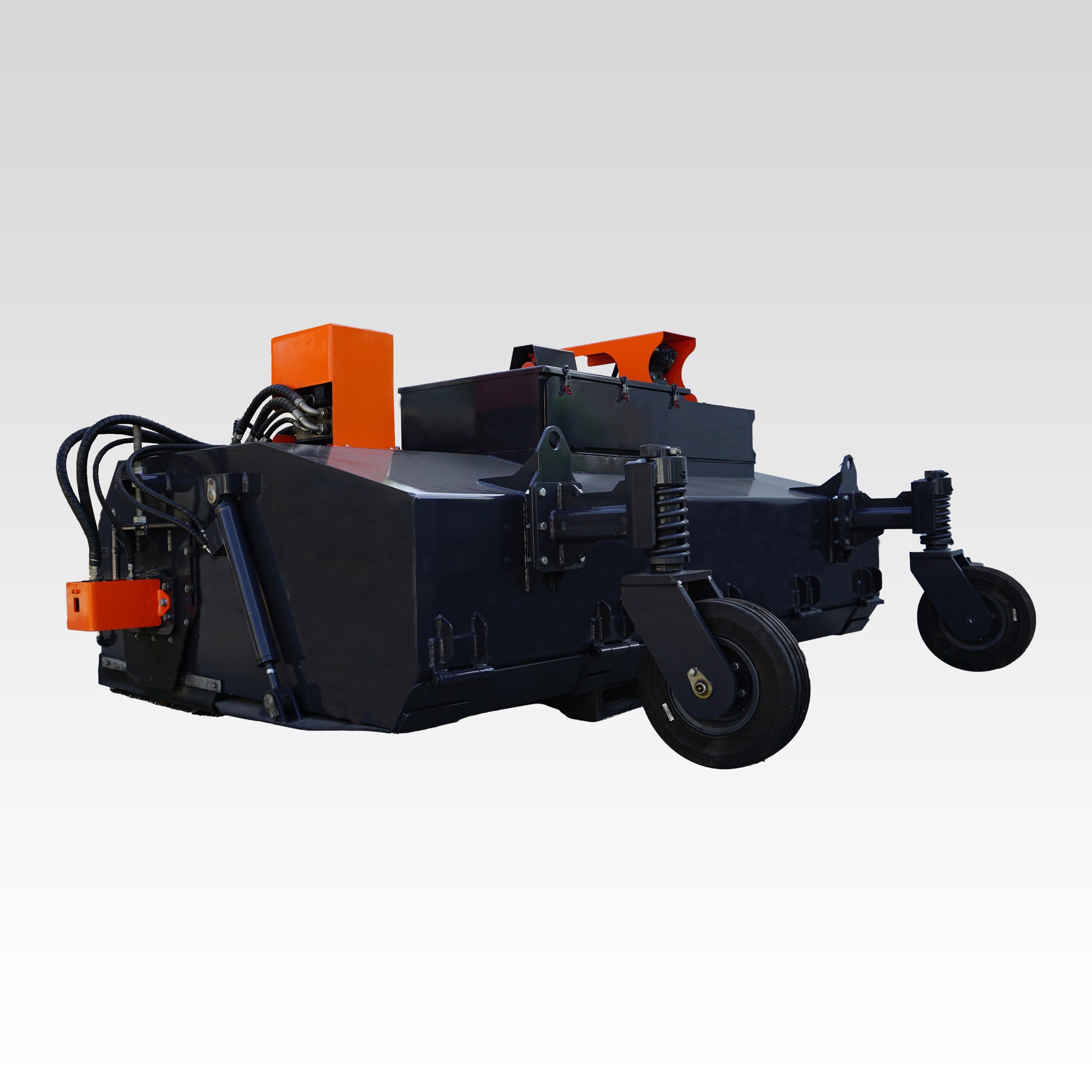

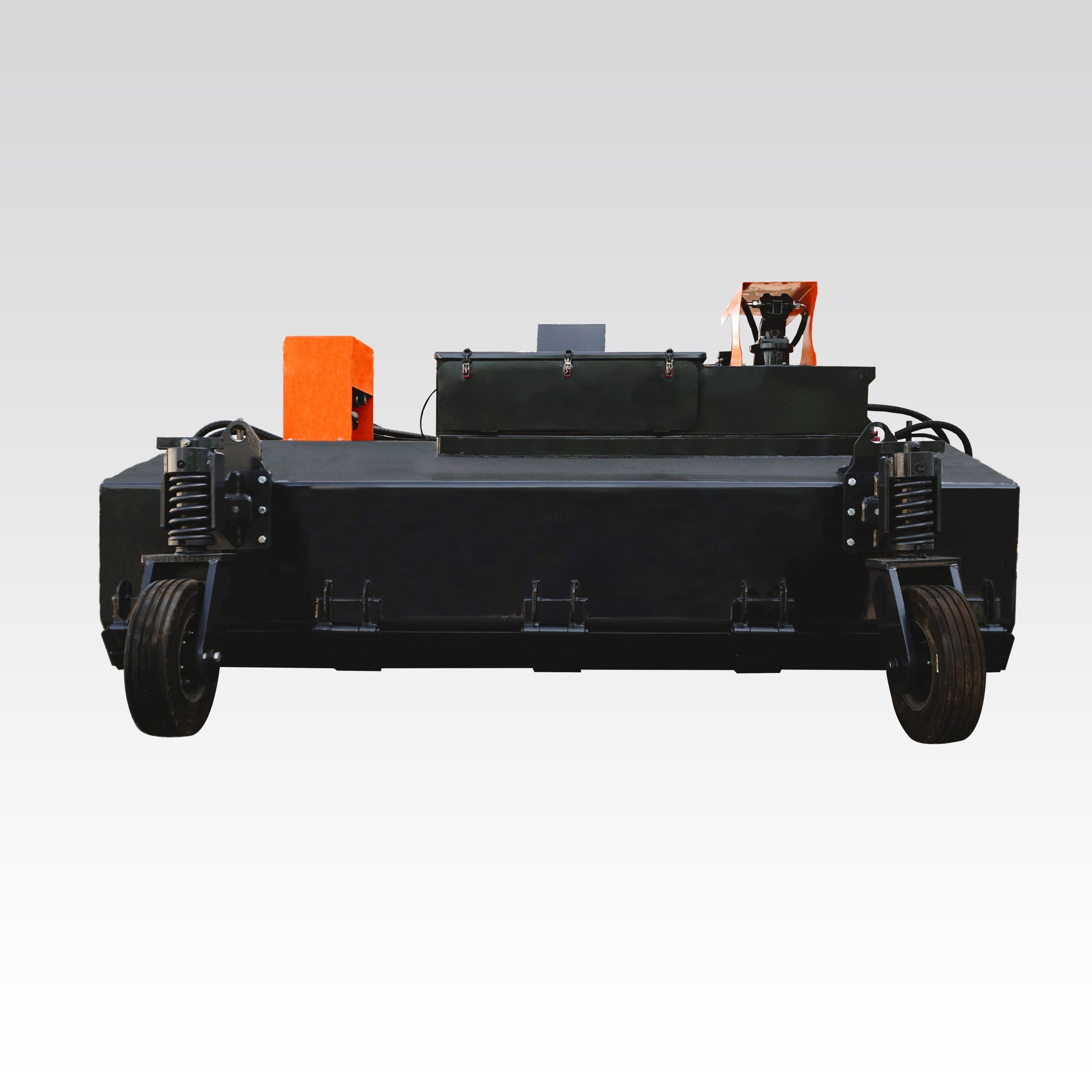

- Front wheels feature anti-shock and anti-vibration systems for safer handling on uneven surfaces, while rear wheels incorporate internal plane bearings for smooth 360° rotation under heavy loads.
Specifications
| Model | BM12NP |
|---|---|
| Overall length (in) | 103.15 |
| Overall width (in) | 135.43 |
| Overall height (in) | 56.5 |
| Sweeping width (in) | 101.57 |
| Aggregate hopper capacity (ft³) | 56.5 |
| Brush diameter (in) | 31.5 |
| Oil supply flow rate (GPM) | 42.27-52.83 |
| Oil supply pressure (psi) | 2320-3050 |
| Weight (lbs) | 4982 |
| Applicable host | 5T loader and above |
| Option | Fog spraying system |
Performance Introduction

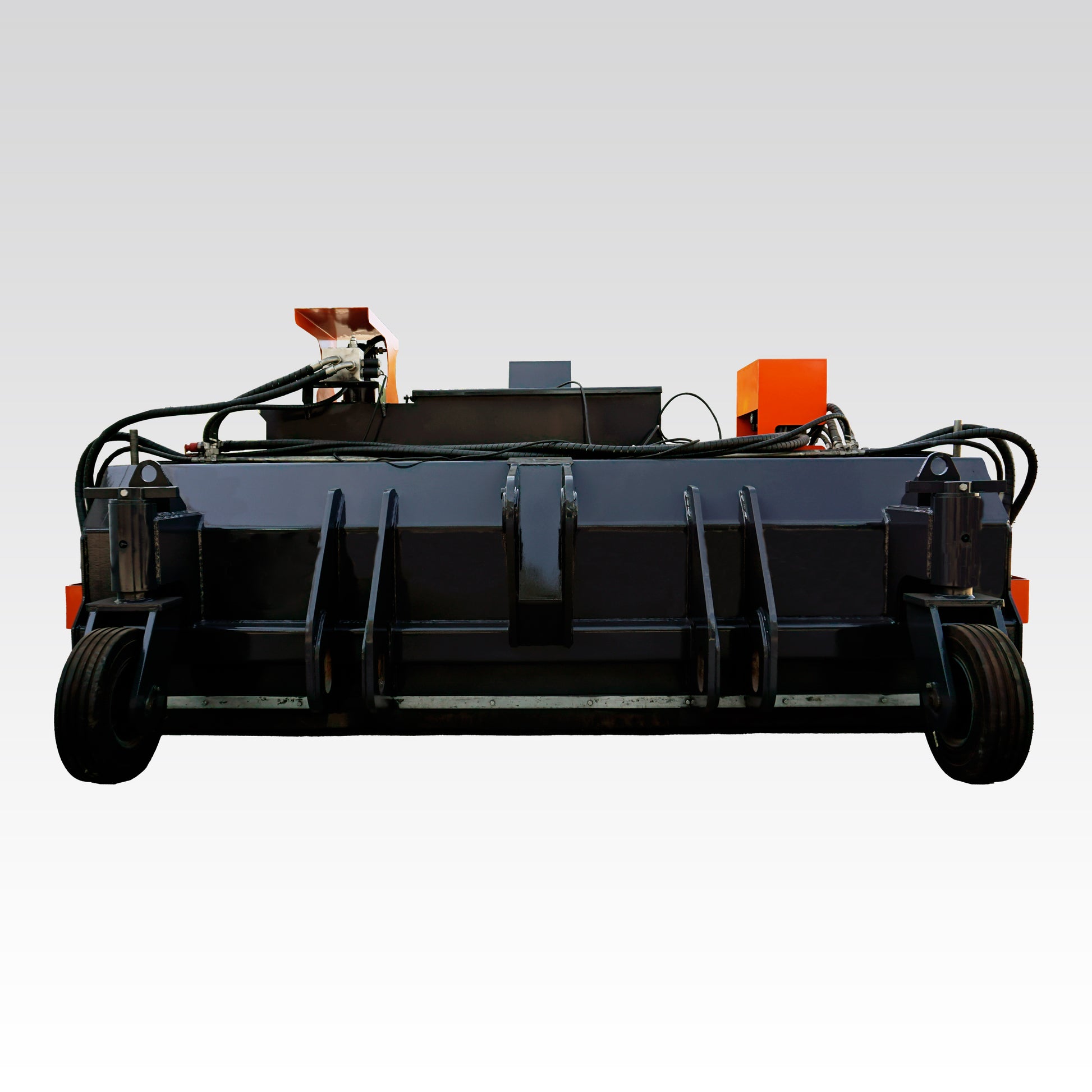

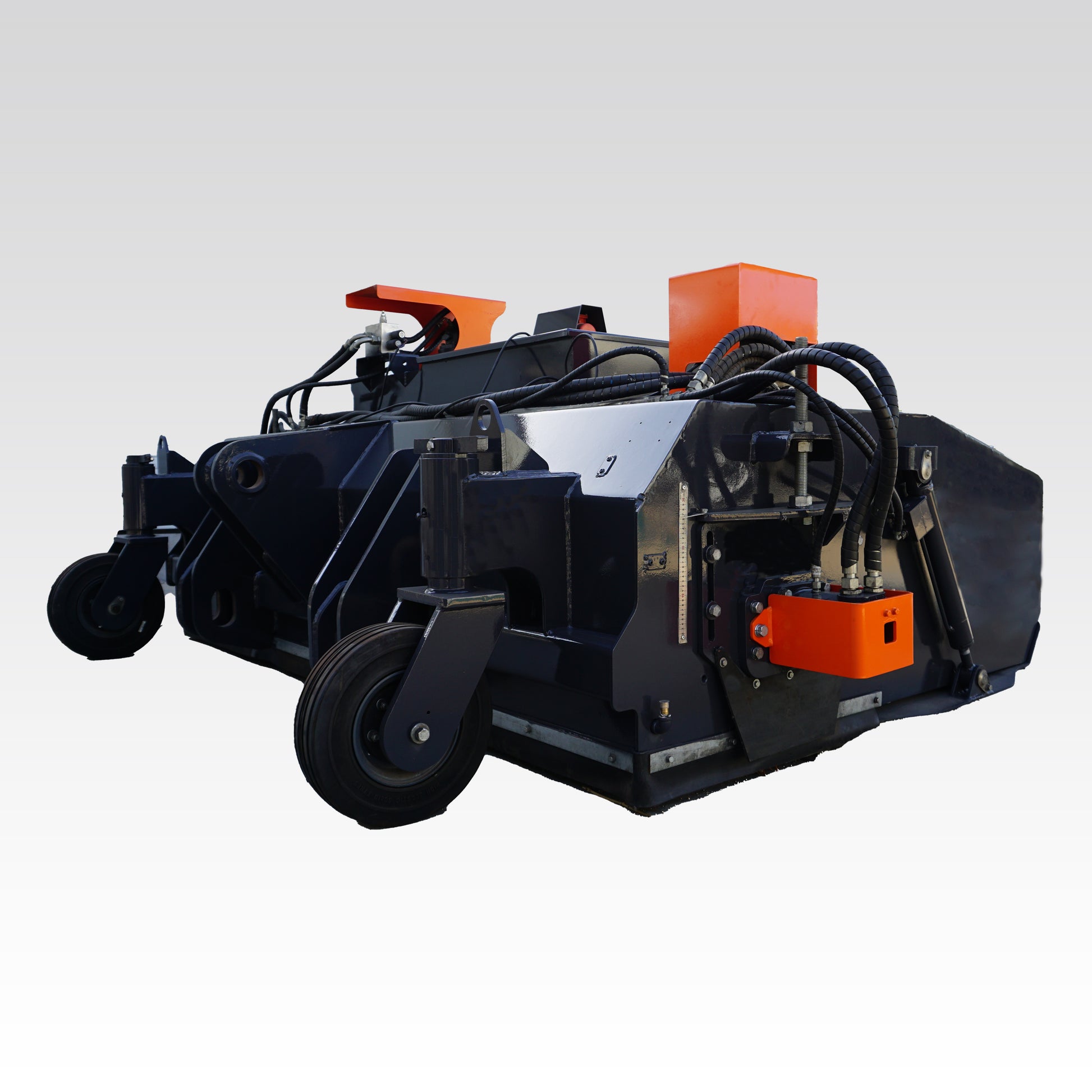

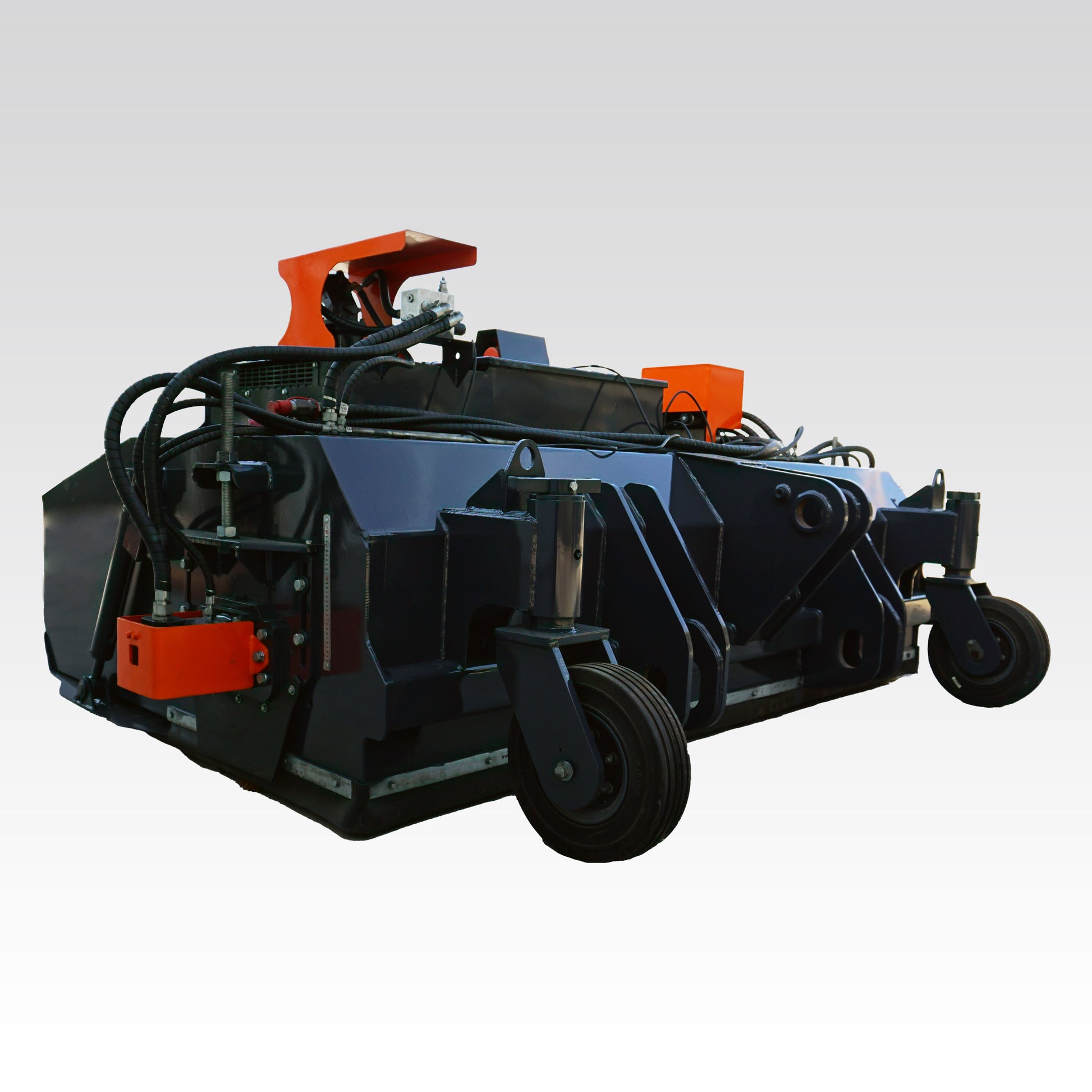

- The BeyondTech wheel loader negative-pressure dust sweeper turns any loader into an industrial vacuum broom that leaves factory floors, ports, and municipal streets virtually dust-free.

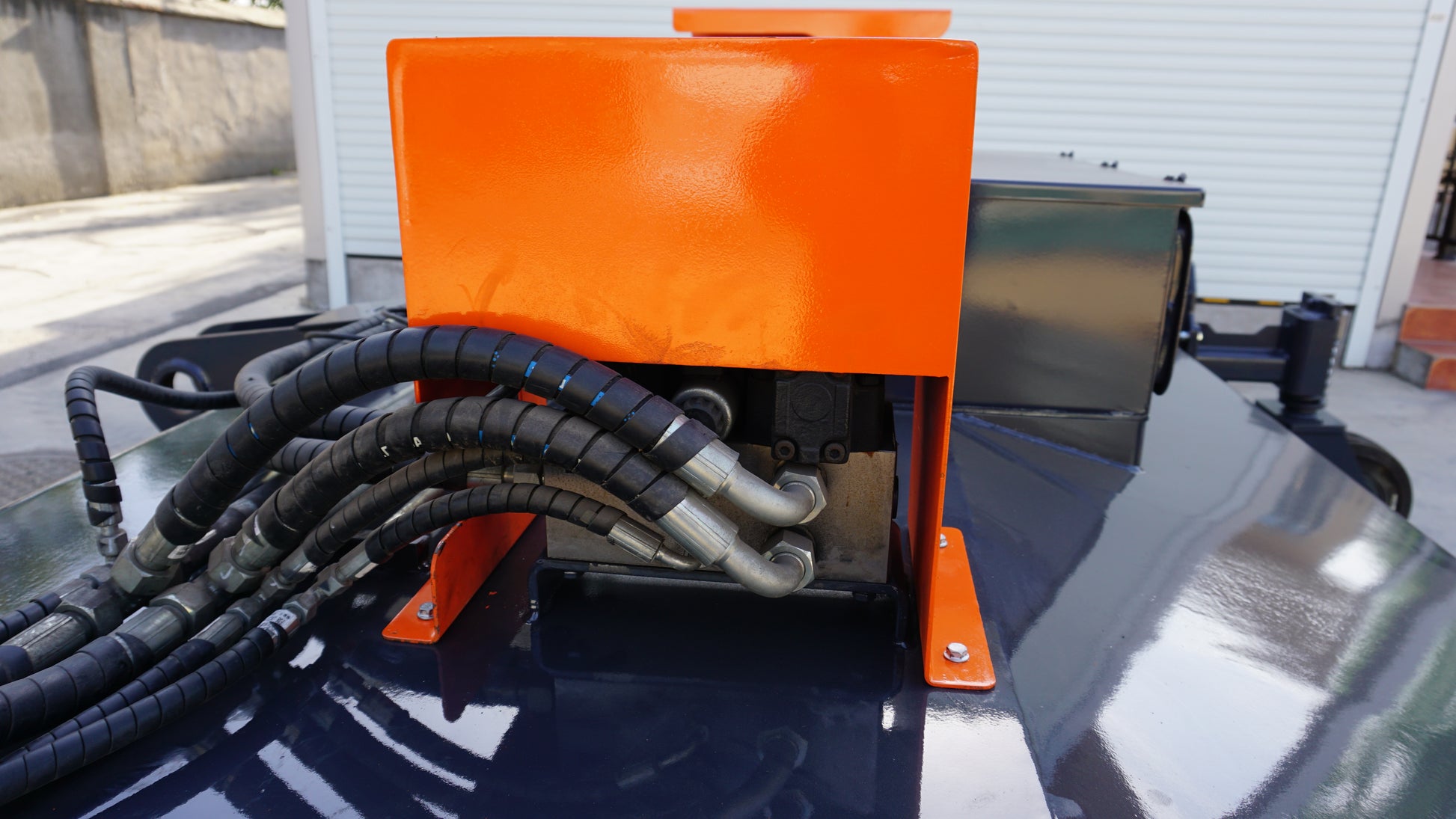

- Two high-torque hydraulic motors direct-drive the wide roller, eliminating belt loss and delivering high suction through the sealed hood.

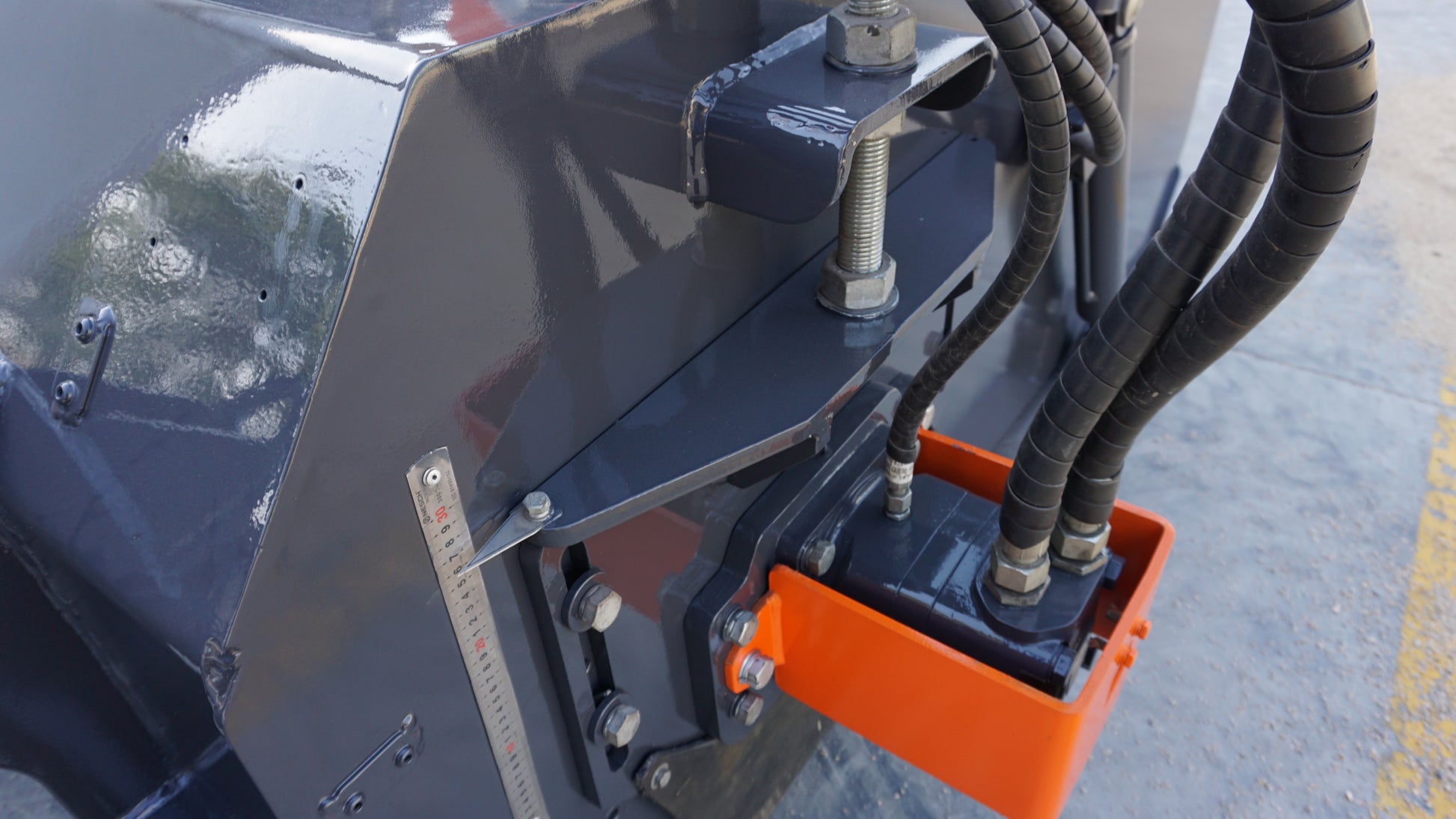

- As the negative-pressure vacuum sweeper lifts fine powder, the wear-resistant brush strips coarse debris; a stepless dial lets you trim bristle height on the fly for perfect, low-wear contact on asphalt, concrete, or quarry base.
- Operators love the one-touch hydraulic dump: twin cylinders lift the integrated hopper so you can empty into a transfer bin without leaving the cab—no manual shaking, no cloud of fines. Anti-shock, anti-vibration front wheels and rear 360° plane-bearing casters keep the heavy-duty dustless sweeper stable over rough construction pads, bridge joints, or mine haul roads, while solid tires shrug off punctures.
- Attach it in minutes via universal coupler and flat-face quick connects, engage the wheel loader dust control sweeper, and watch negative pressure pull particulates straight to the filter rather than into the air.
- From warehouse aisles and parking lots to highway right-of-ways and airport aprons, this high-capacity, low-maintenance sweeper attachment slashes cleanup labor and extends machine life—proving why contractors, municipalities, and material plants choose BeyondTech for dust-free, high-efficiency sweeping shift after shift.
Performance Video
HCN Negative Pressure Dust Sweeper Performance Video On Tiktok
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
