HCN Industry

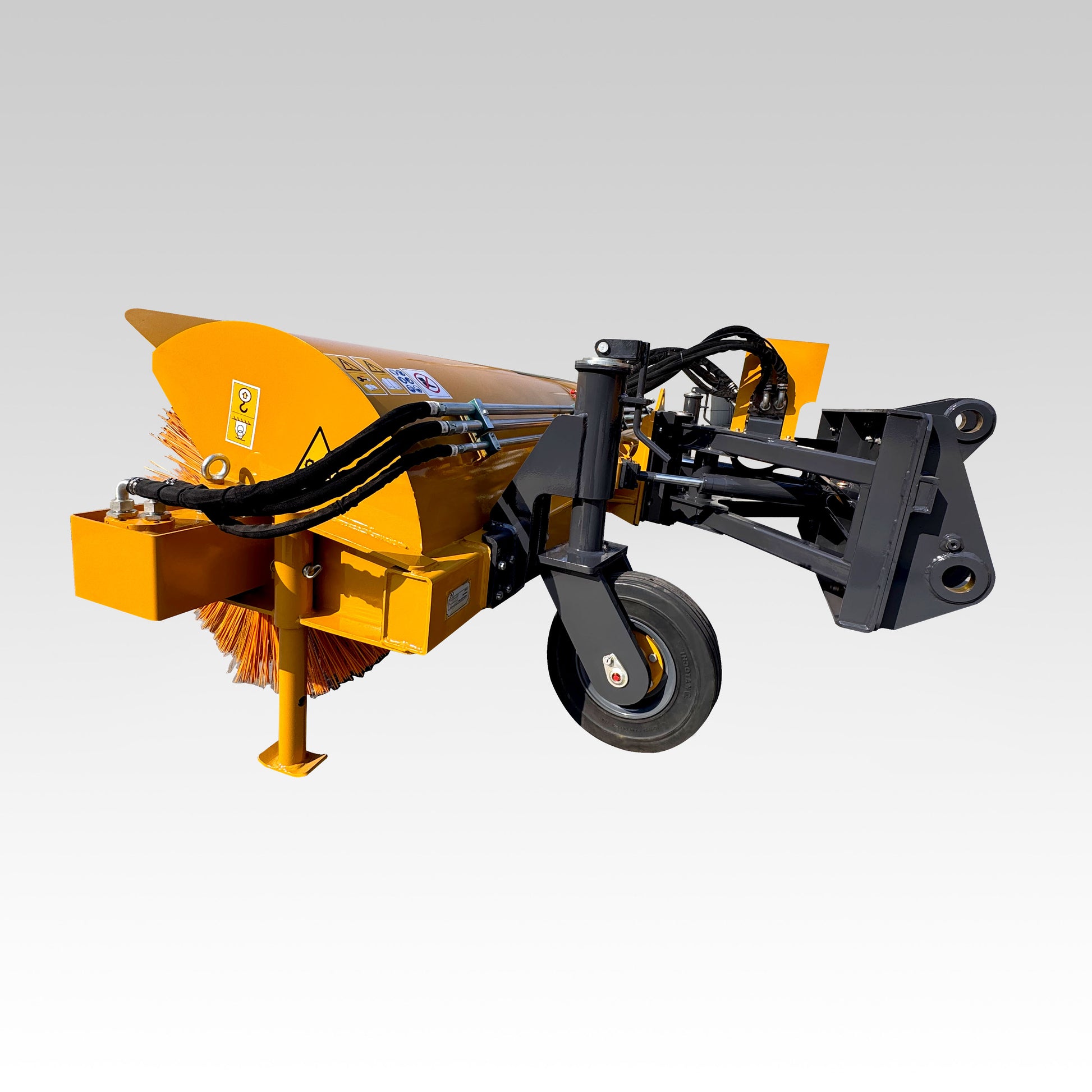

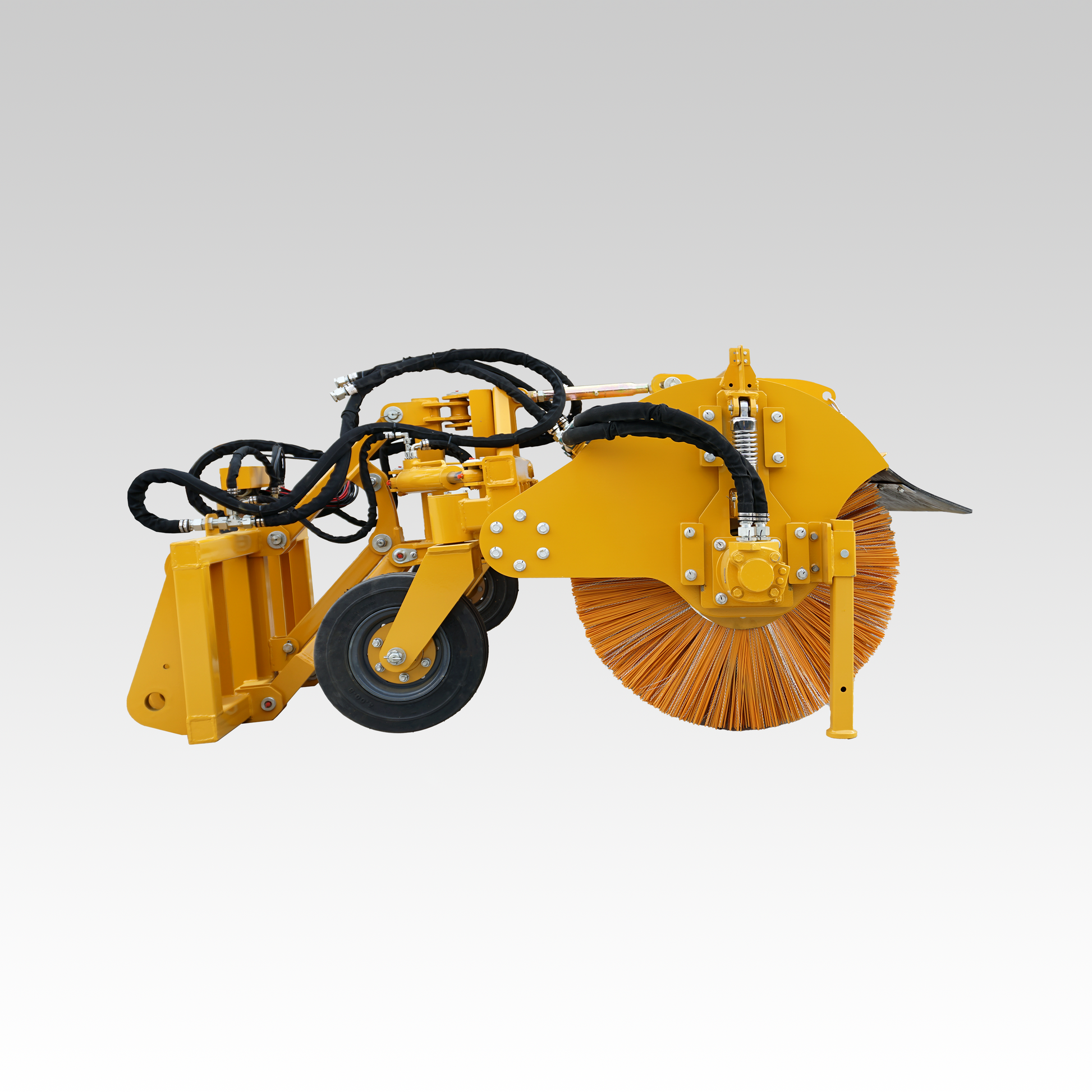

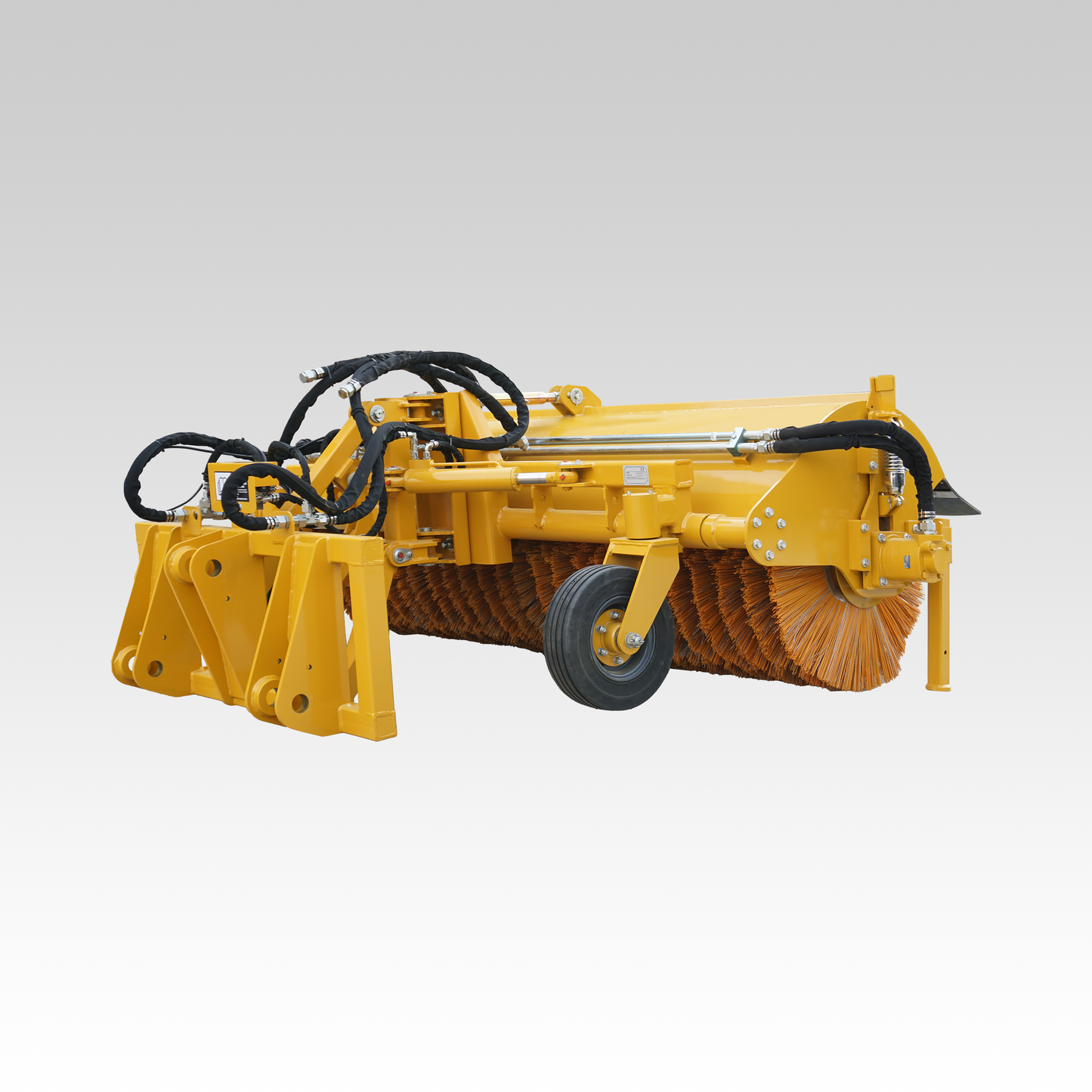

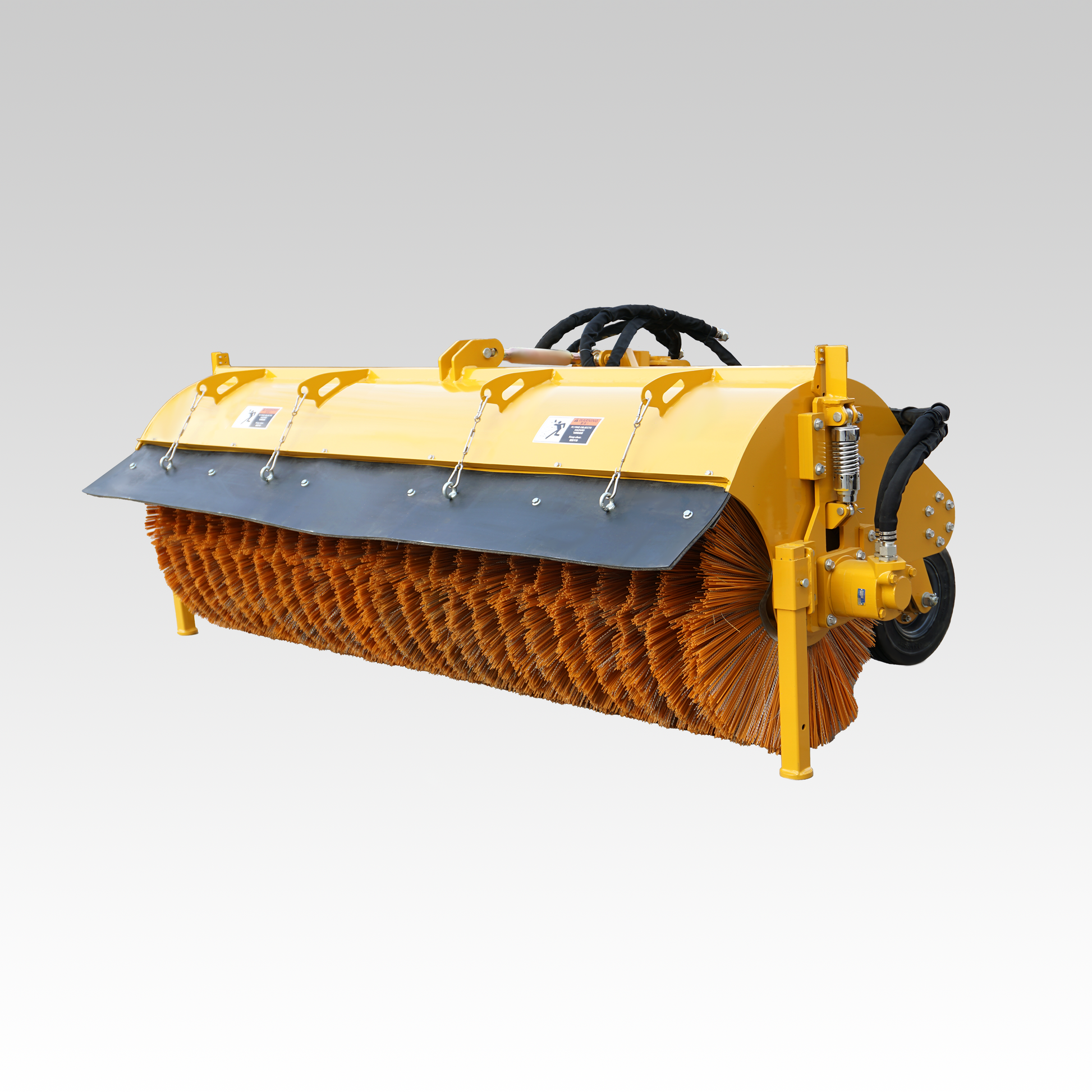

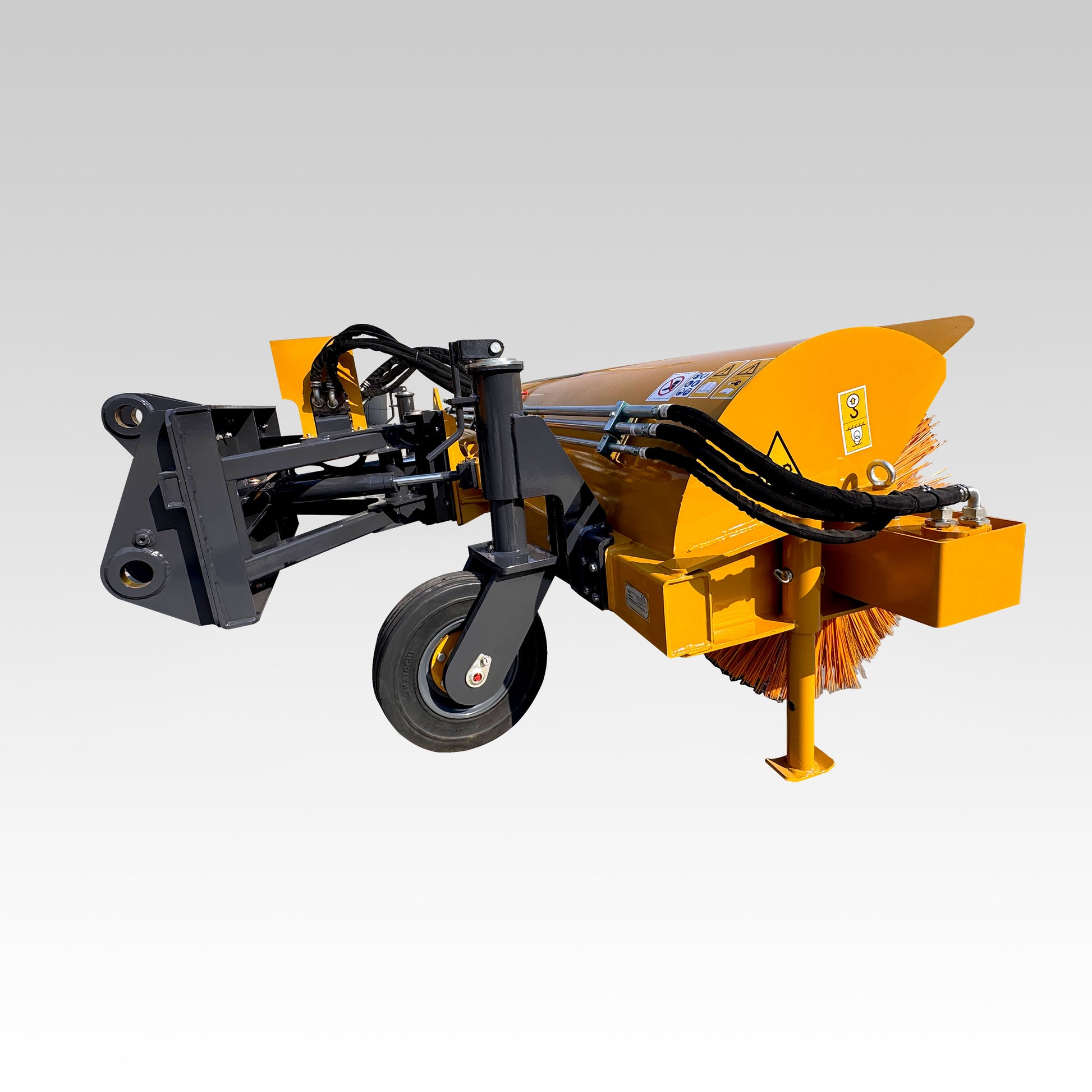

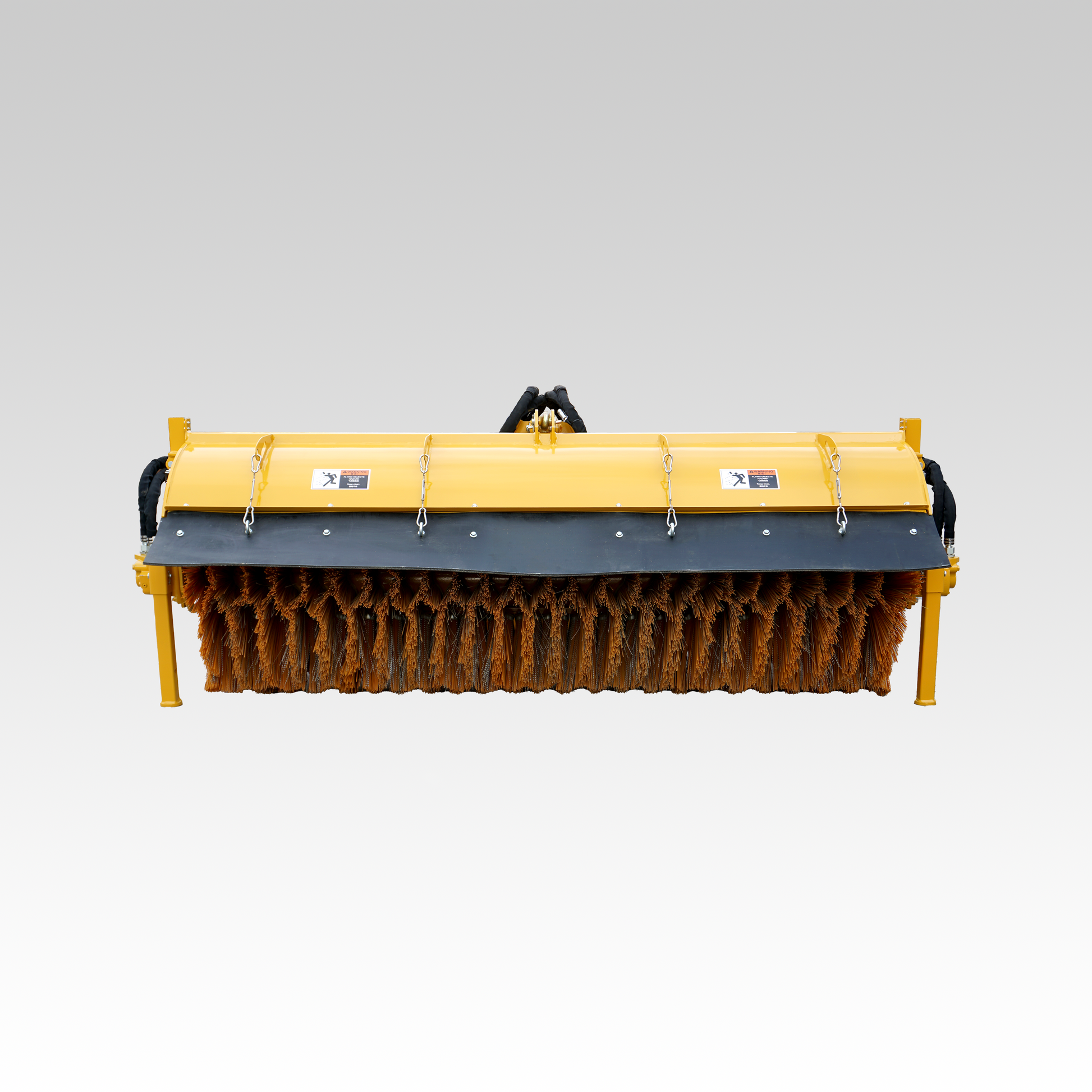

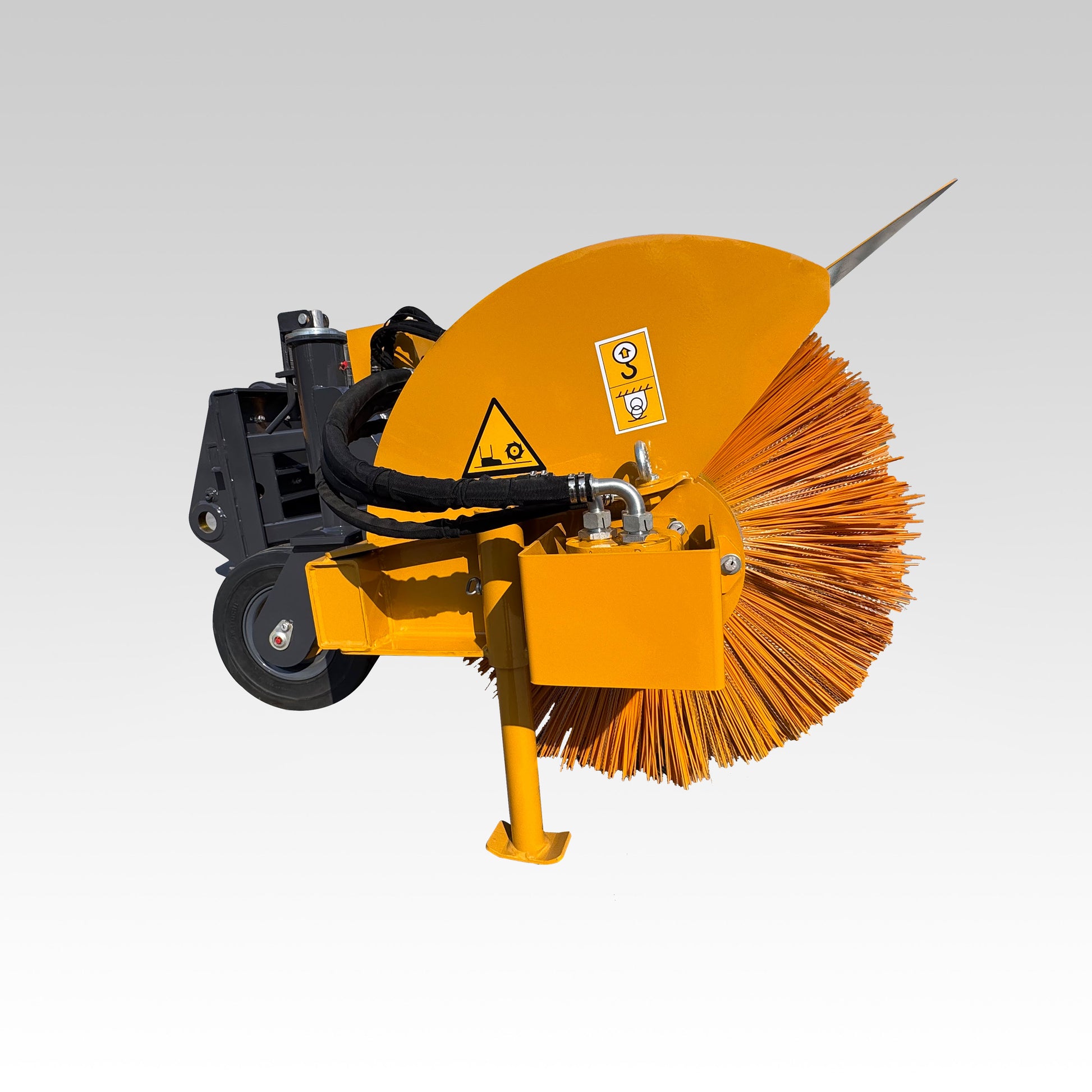

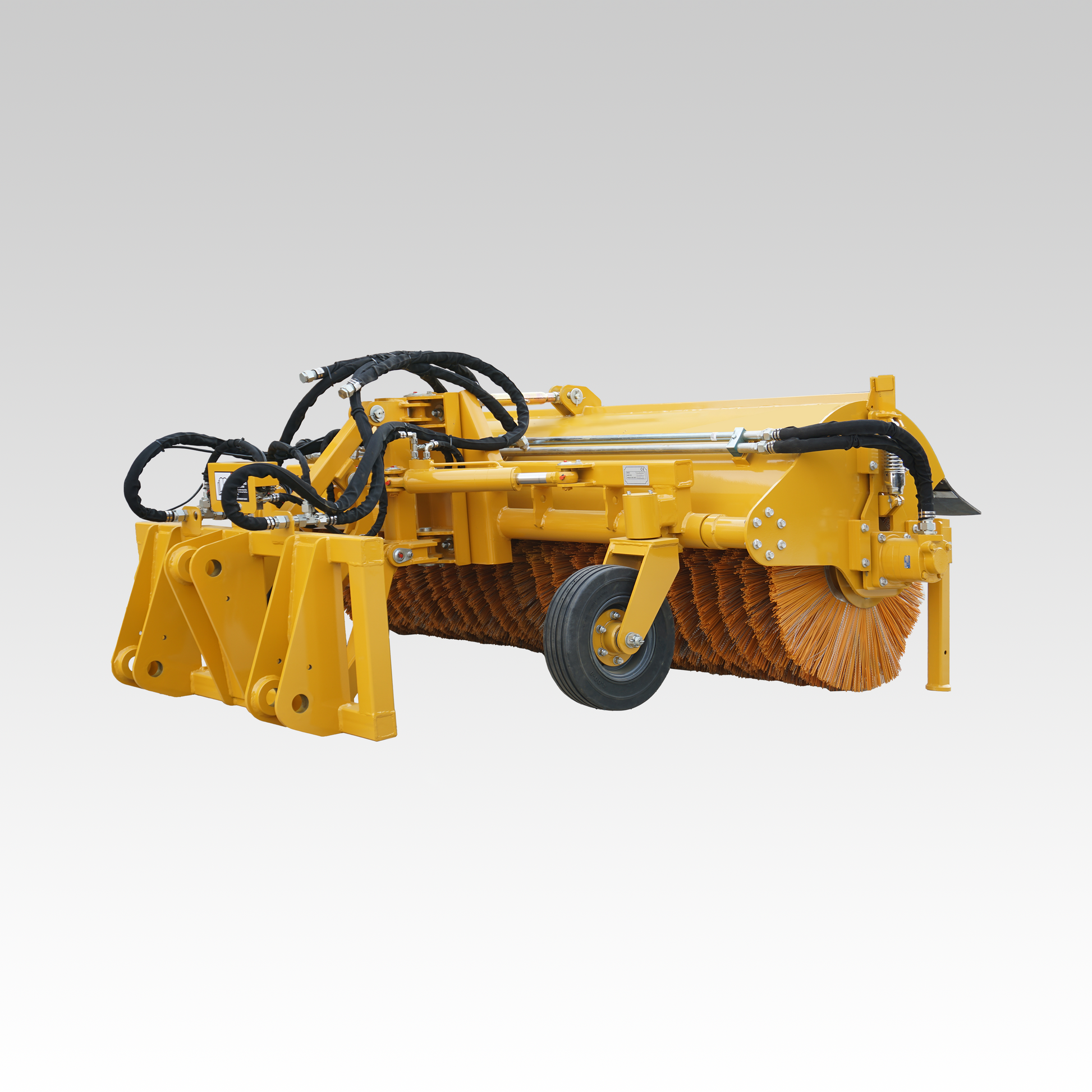

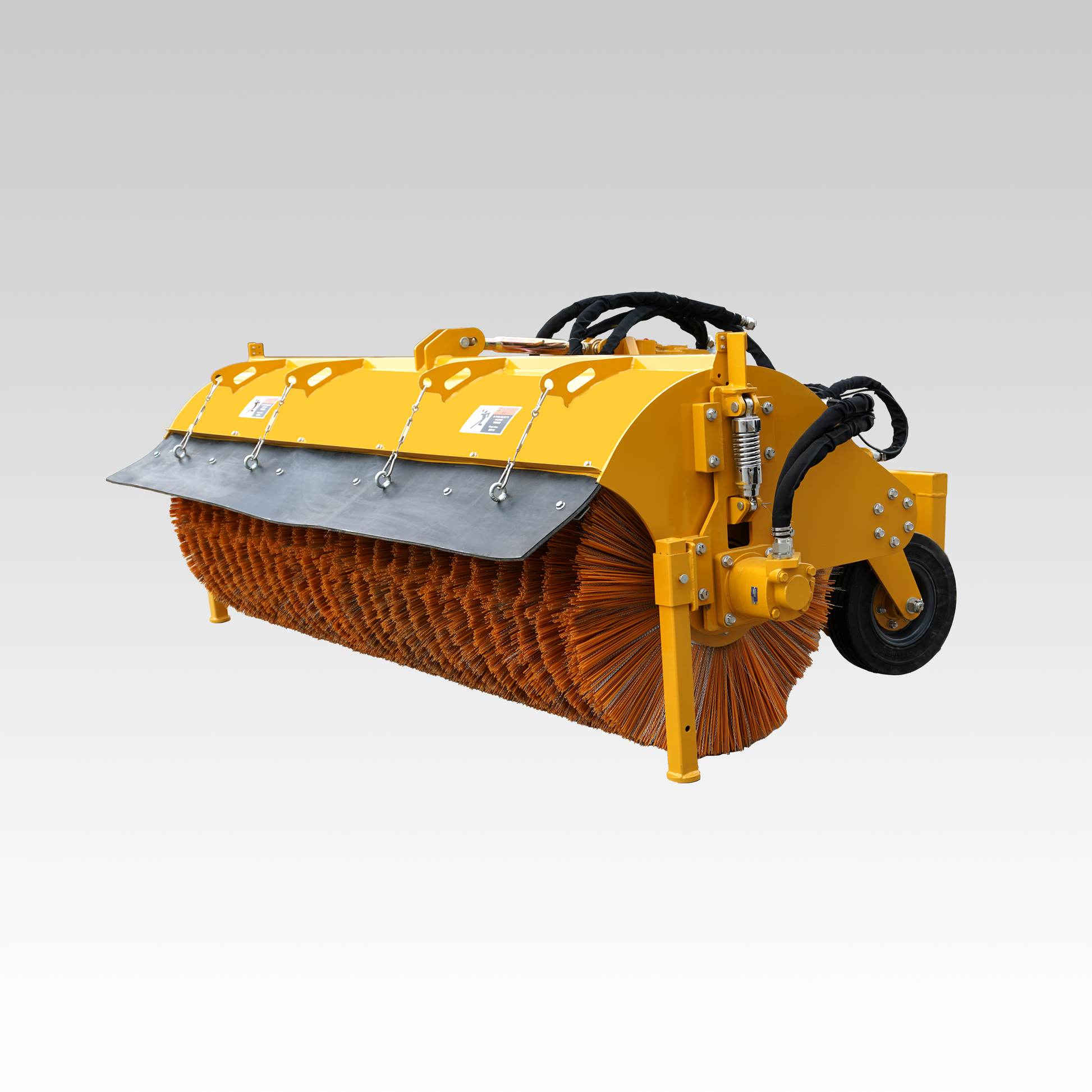

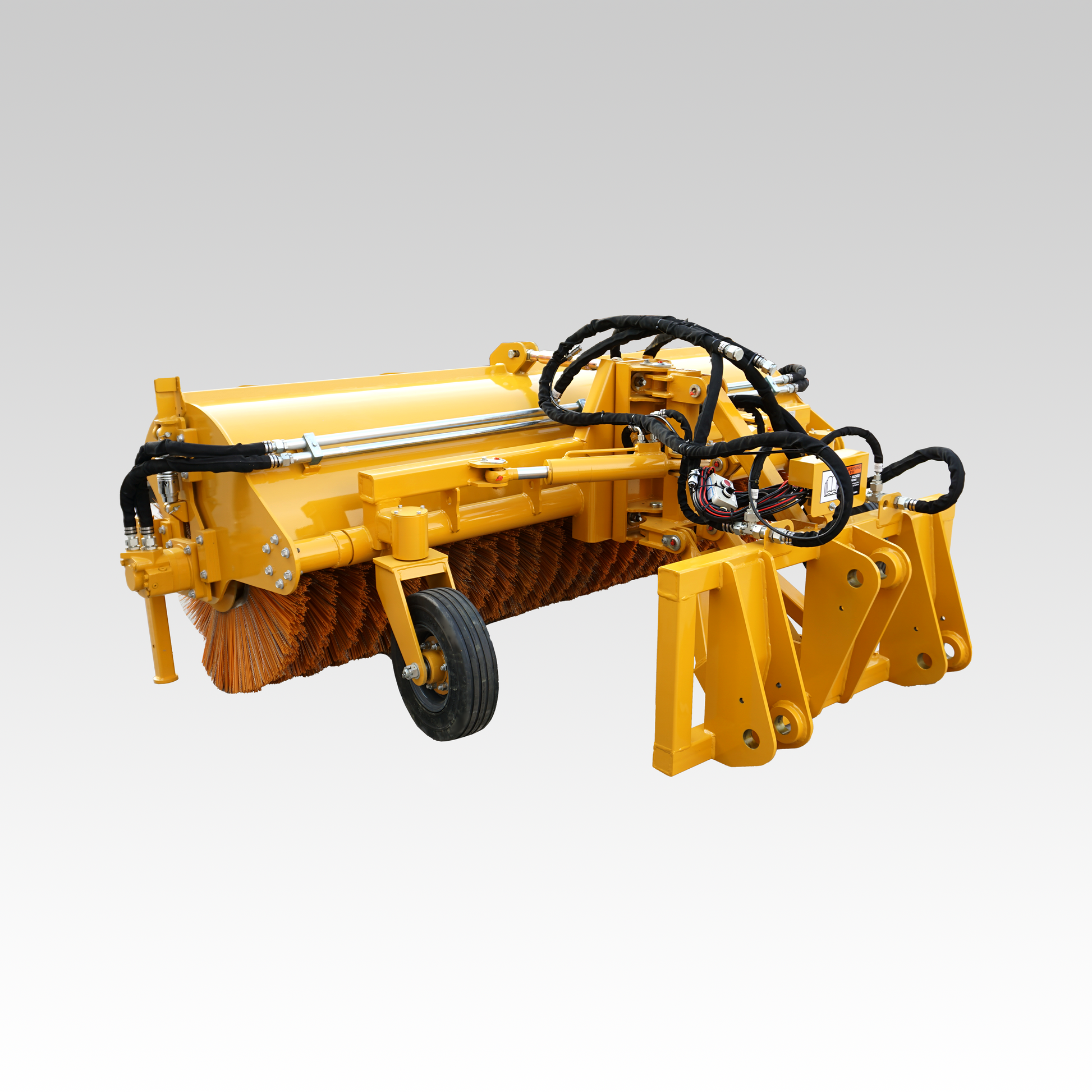

HCN wheel loader Angle Broom, 31“ Brush Diameter, wear resistance, 30° Right&Left

HCN wheel loader Angle Broom, 31“ Brush Diameter, wear resistance, 30° Right&Left

Regular price $19,799.00 CAD
Regular price $19,799.00 CAD Sale price $19,799.00 CAD
Sale Sold out
Model
  • The HCN Angle Broom is a versatile and high-performance attachment designed to effectively clear snow, dirt, and debris from a variety of surfaces, including roads, streets, parking lots, and highways.
  • Built for durability, ease of use, and reliability, this attachment is an essential tool for municipal and private maintenance projects, ensuring a clean and safe environment in all weather conditions.
  • Available in 96", 120", and 140" working widths, with a 31.5" brush diameter and +/- 30° angle adjustment for versatile cleaning.
View full details
Product Feature
  1. Equipped with wear-resistant bristles, it effectively removes snow, dirt, and debris without damaging the underlying surface.
  2. Ensures consistent and thorough cleaning, even in demanding conditions.
  3. Features angle adjustment for flexible operation, allowing debris to be swept to either side with ease.
  4. Ideal for tight corners, wide areas, and hard-to-reach spaces.
  5. Quickly mounts on compatible skid steers, tractors, or loaders, minimizing downtime.
  6. Designed to fit standard attachment systems for seamless integration.
  7. Built with heavy-duty materials and reinforced components for long-lasting performance.
  8. Wear-resistant bristles and sturdy frame ensure excellent durability.
  9. Gentle sweeping action prevents scratches or damage to pavement surfaces.
  10. Perfect for use on asphalt, concrete, and other sensitive surfaces.
  11. Suitable for year-round use, including snow removal in winter and debris cleaning in other seasons.
  12. Widely used for municipal maintenance, commercial projects, and private property upkeep.
Specifications
Model BM11A96 BM11A120 BM11A140
Overall Length (in) 81.1 84.65 84.65
Overall width (in) 127.17 151.57 175.2
Overall height (in) 58.27 58.27 58.27
Transportation Height (in) 45.87 46.85 46.85
Total weight (including pendant) (lbs) 2259 2791 3086
Cleaning Width (in) 96.18 118.11 141.73
Swing angle (°) (hydraulic steering) ±30° ±30° ±30°
Cleaning width after offset 30 (in) 83.07 102.36 122.64
Brush Roll Diameter (in) 31.5 31.5 31.5
Allowable maximum pressure (psi) 290 290 290
Work flow rate (GPM) 34.34-42.27 42.27-52.83 52.83-58.12
working voltage (V) DC24 DC24 DC24
Hanging model 2 ton/3 ton loader 2 ton/3 ton loader 2 ton/3 ton loader
Performance Introduction

The BeyondTech BM11A wheel loader angle broom turns your loader, tractor, or skid steer into a high-performance street sweeper in seconds. A quick-attach, universal mount broom couples to the hydraulics and lets operators pivot the 96, 120, 140-inch rotary brush broom up to ±30°—directing snow, gravel or leaf litter left or right for perfect curb lines and driveway edges.

Built for Continuous Duty

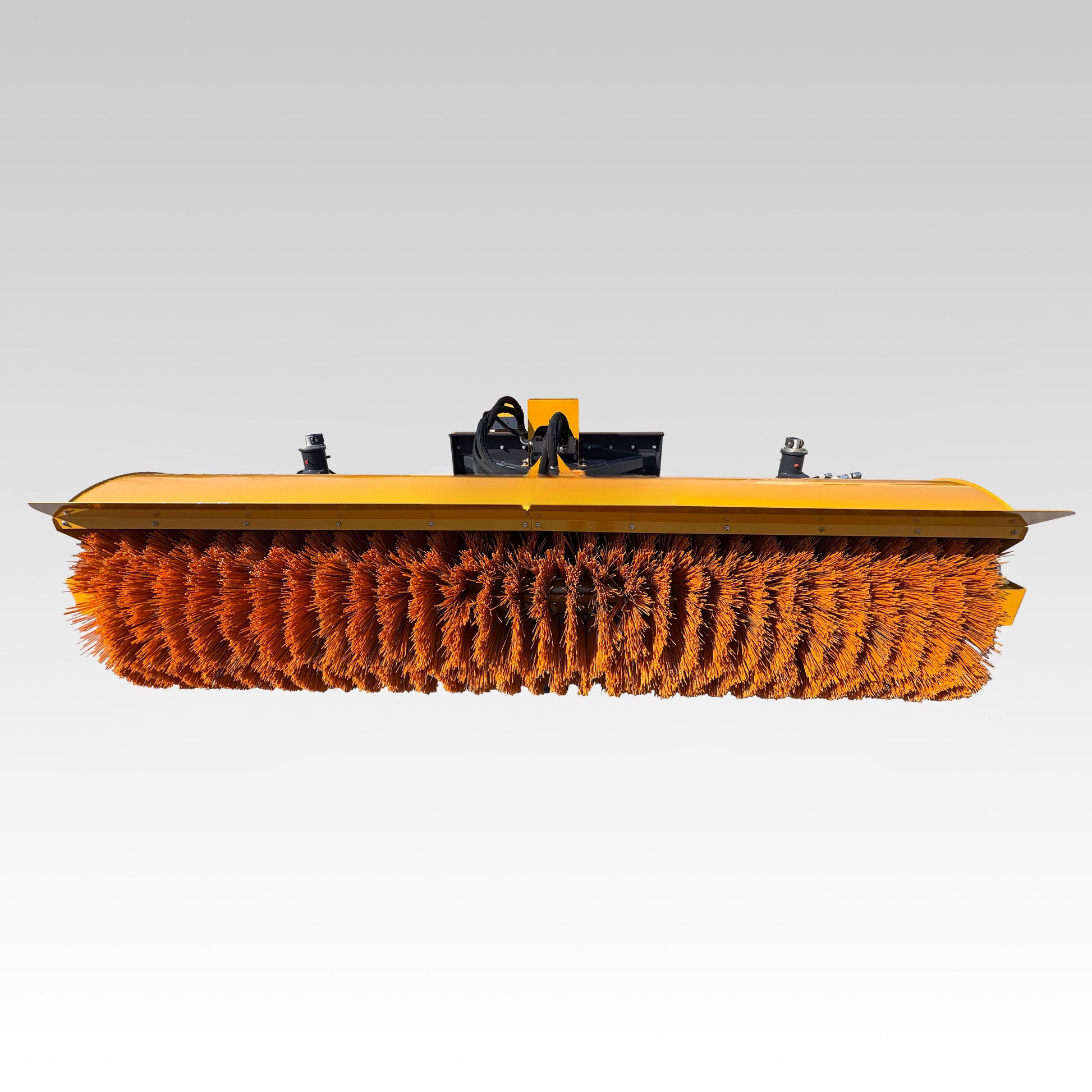

• Densely packed, wear-resistant poly/steel bristles bite into packed snow yet stay gentle on asphalt and decorative concrete, delivering a surface-safe, scratch-free broom finish shift after shift.

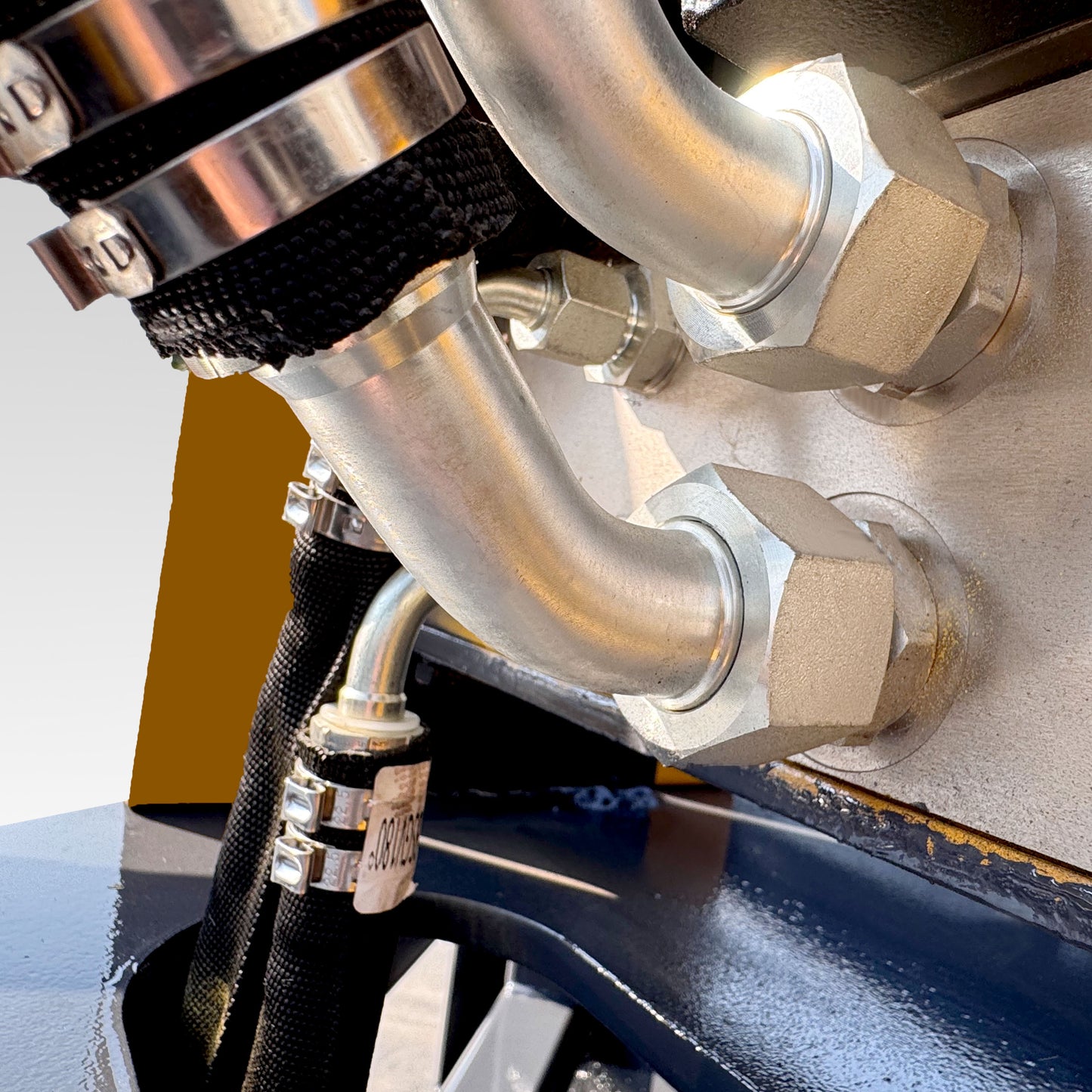

• A heavy-gauge frame, reinforced motor guard and sealed bearings create a truly heavy-duty broom attachment ready for runway snow, highway grit or construction-site dust.
• Replaceable brush cores and bolt-on skid shoes keep maintenance quick; pop in fresh wafers and get back to work in minutes.

Precision Cleaning Anywhere

Adjustable-angle broom action sweeps tight corners, loading-dock walls and parking-lot islands without repositioning the loader.
• Bi-directional operation—forward or reverse sweep—makes it a nimble curb broom for alleys and a wide-path, road-cleaning broom for county crews.
• Low-profile motor housing provides an unobstructed sight-line, boosting safety when clearing sidewalks, warehouses or airport aprons.

One Broom, Four Seasons

Snow in January, spring mulch spills, summer festival litter, autumn leaves—the BM11A is the all-season municipal broom contractors, property managers and DOT fleets rely on to:

  • Push slush and ice off driveways, farmyards and port docks as a rugged wheel loader snow broom.
  • Sweep gravel and millings after road repair with a high-torque, wheel loader road sweeper.
  • Clear dust and debris from warehouses, plants and construction pads with a low-vibration, industrial sweeping broom.
  • Tidy parking lots and runways faster than bucket-backdragging, protecting pavements and tires alike.

Durable, efficient and operator-friendly, the BeyondTech BM11A hydraulic angle broom cuts labor hours, slashes downtime and keeps every surface clean—no matter the season or the job.

Performance Video
Warranty We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.
