HCN Industry

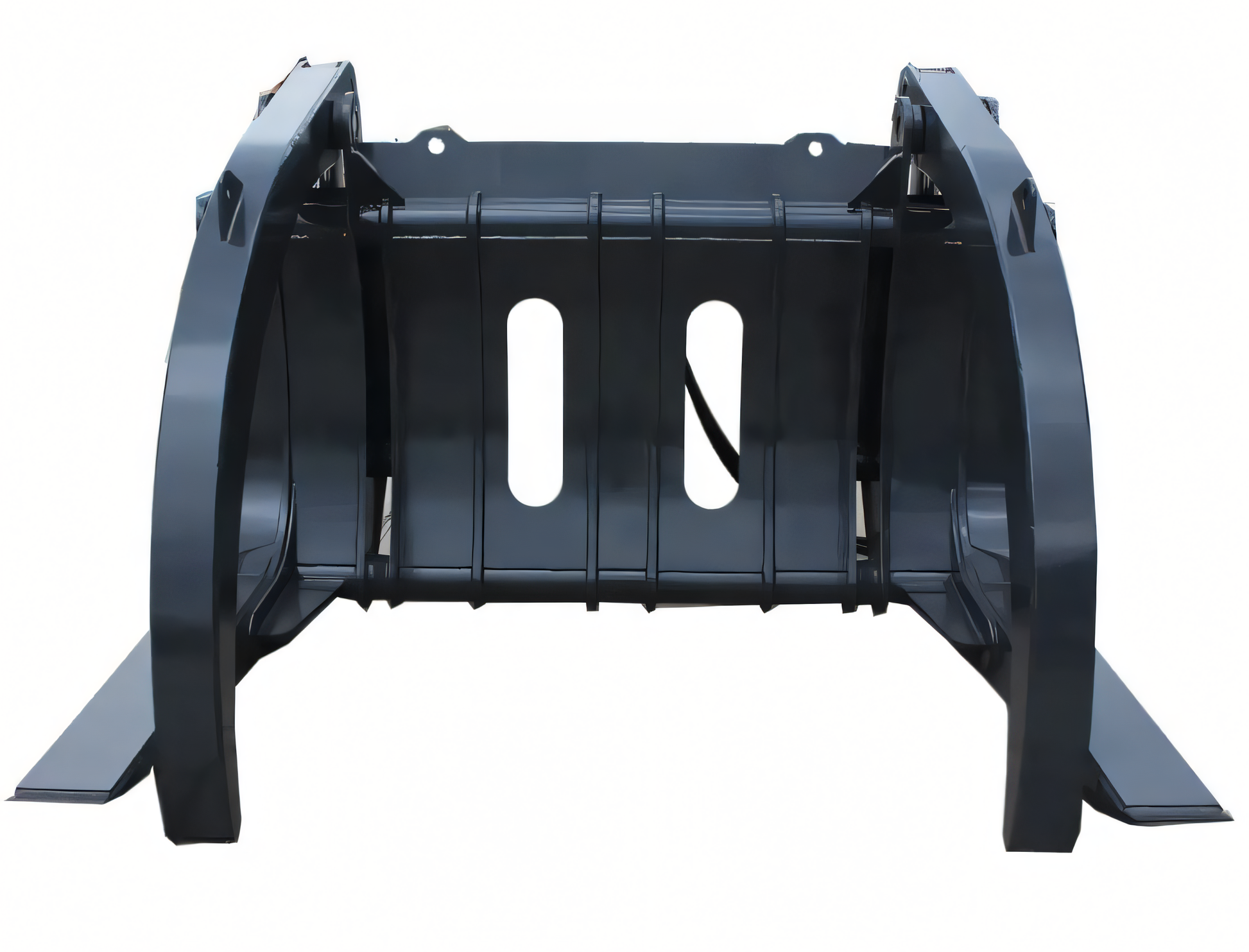

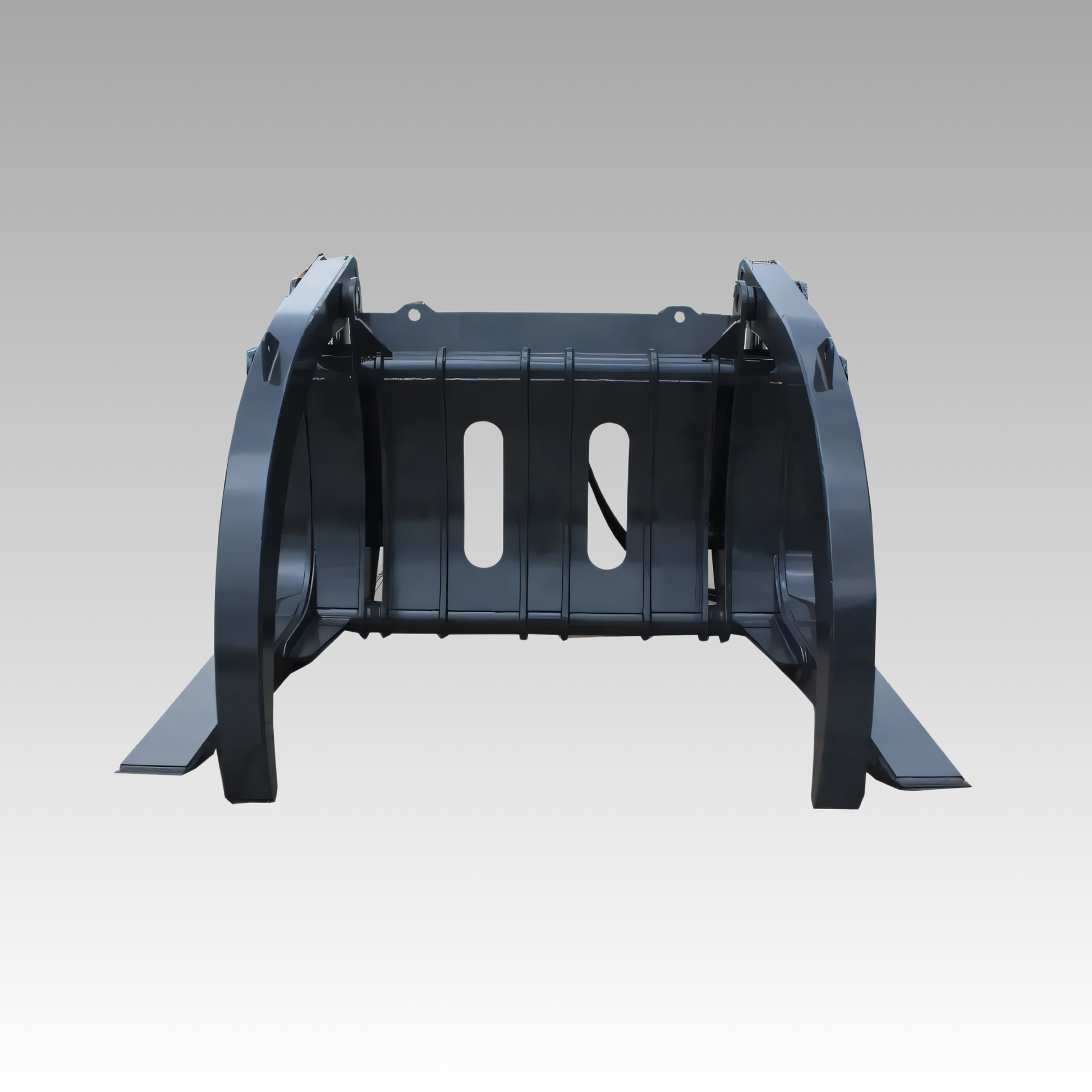

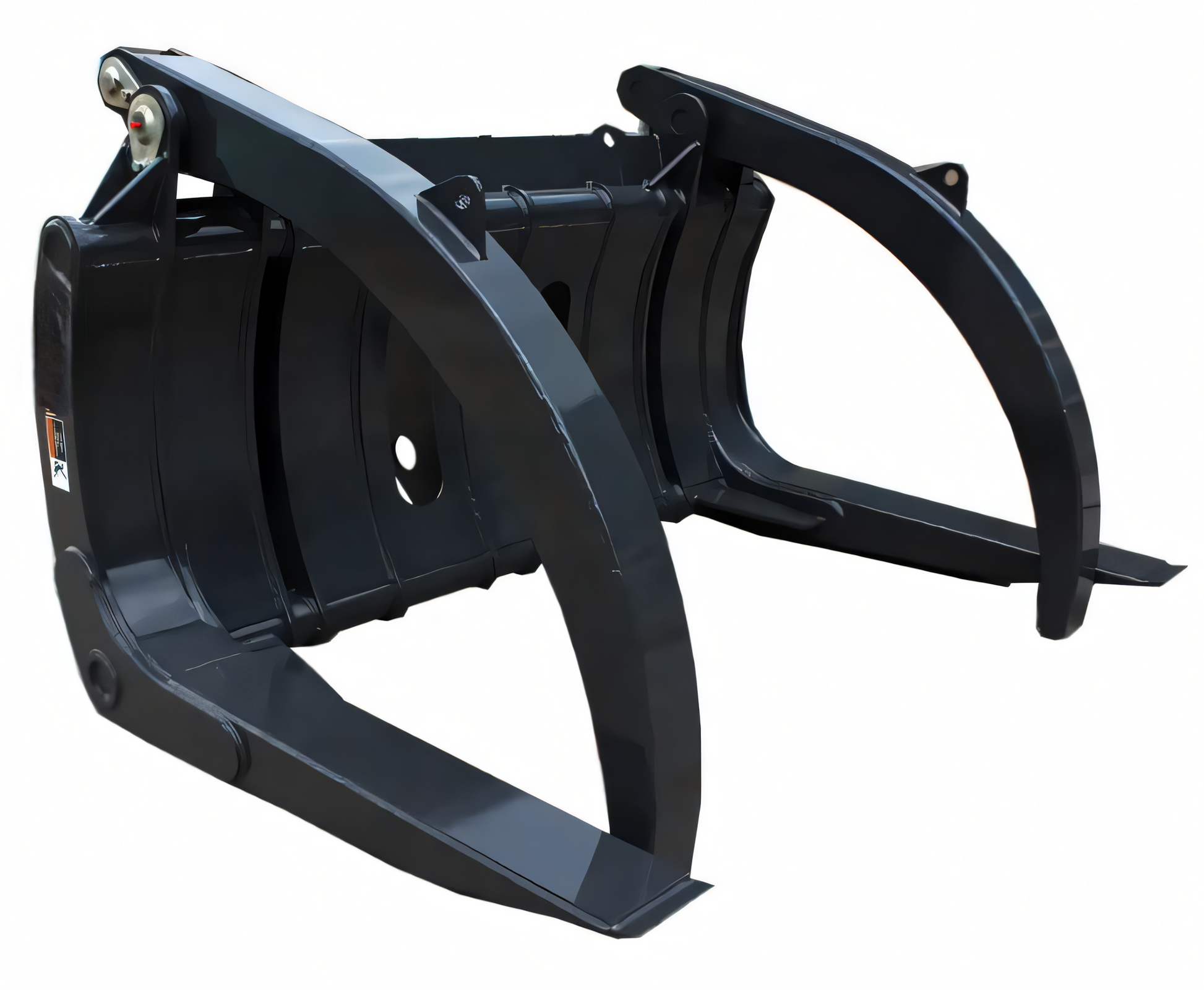

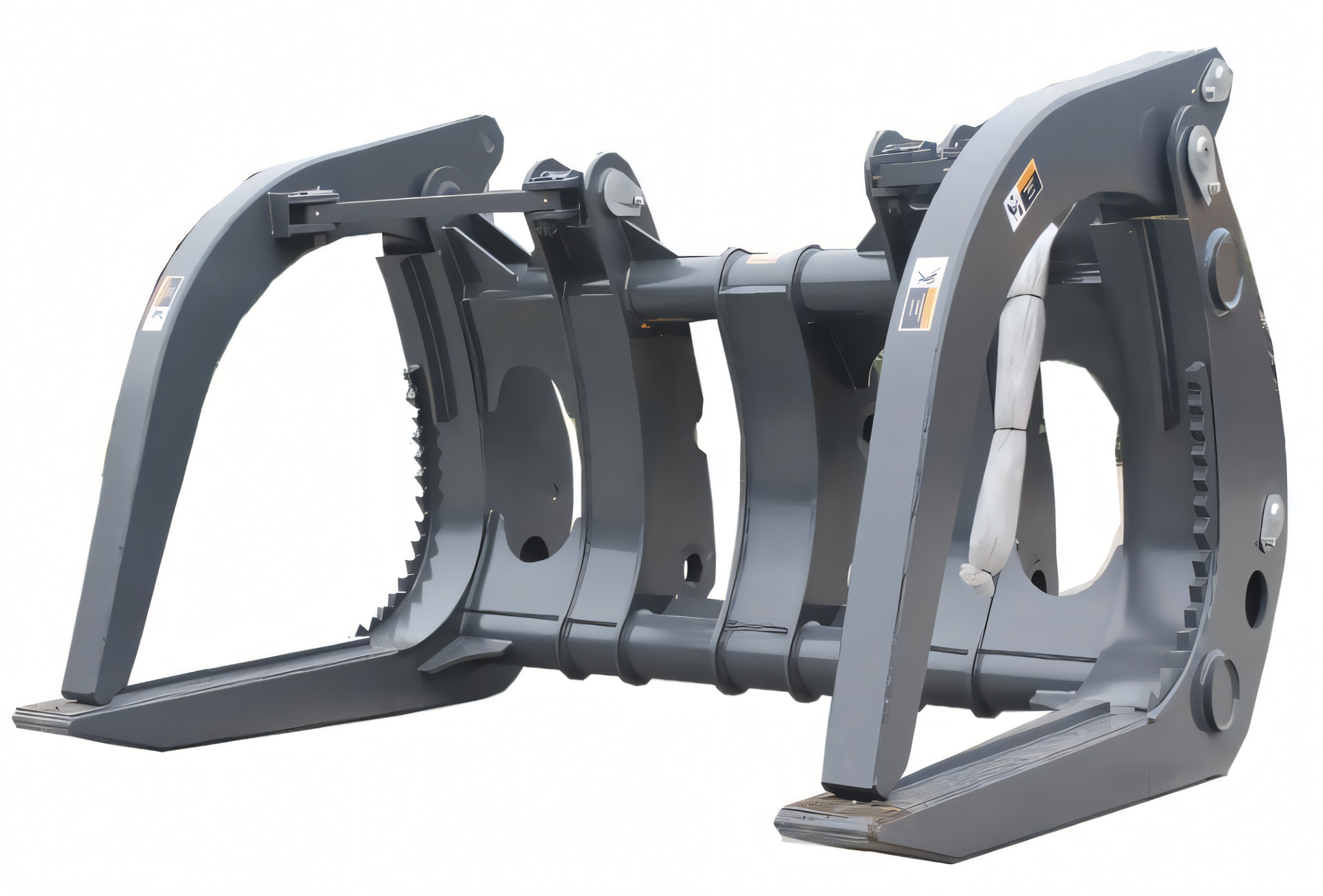

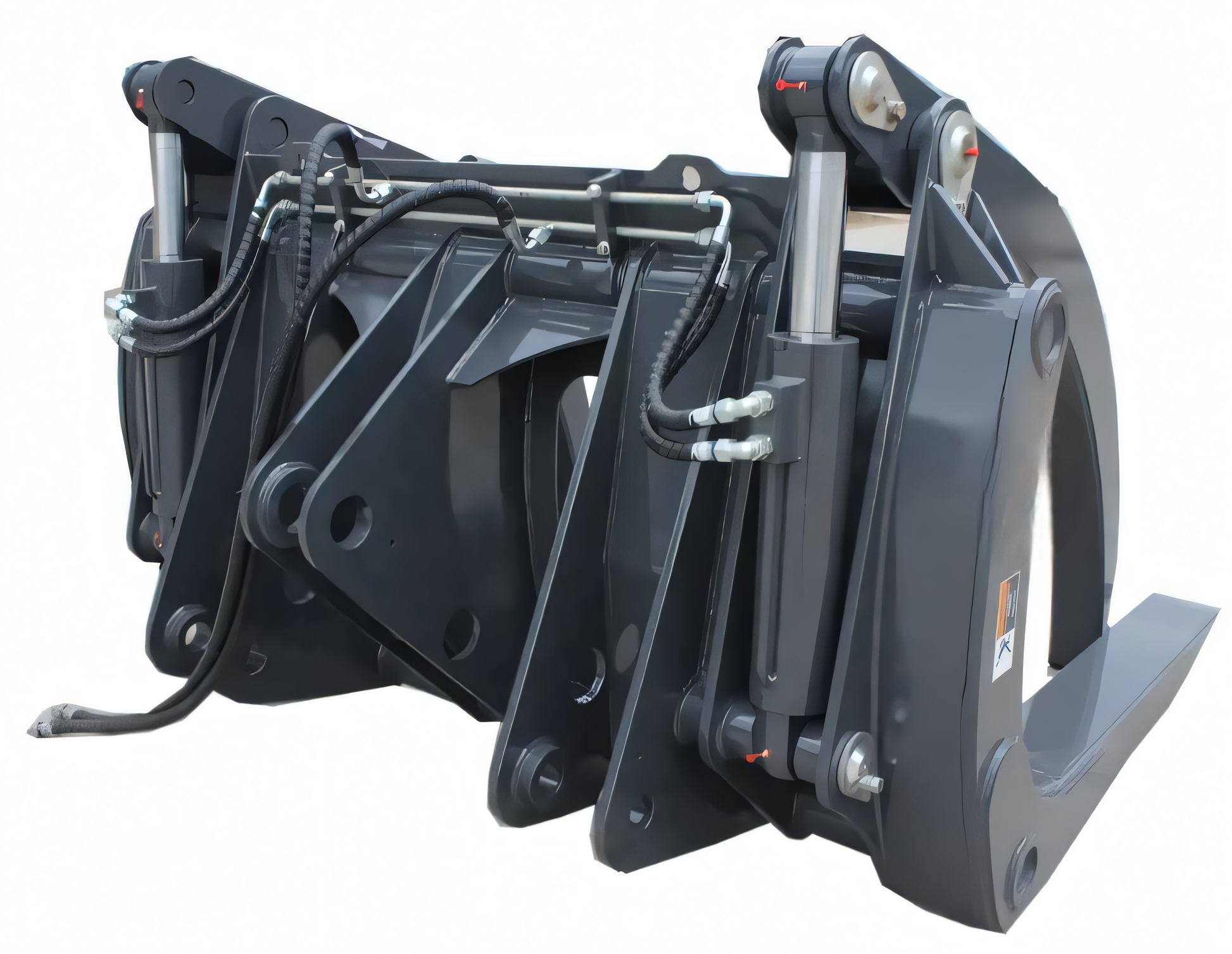

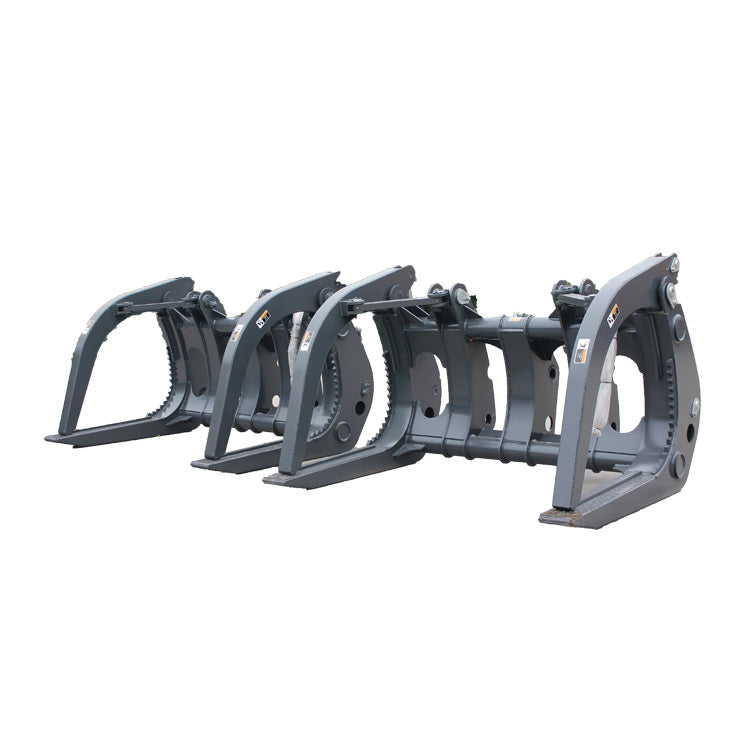

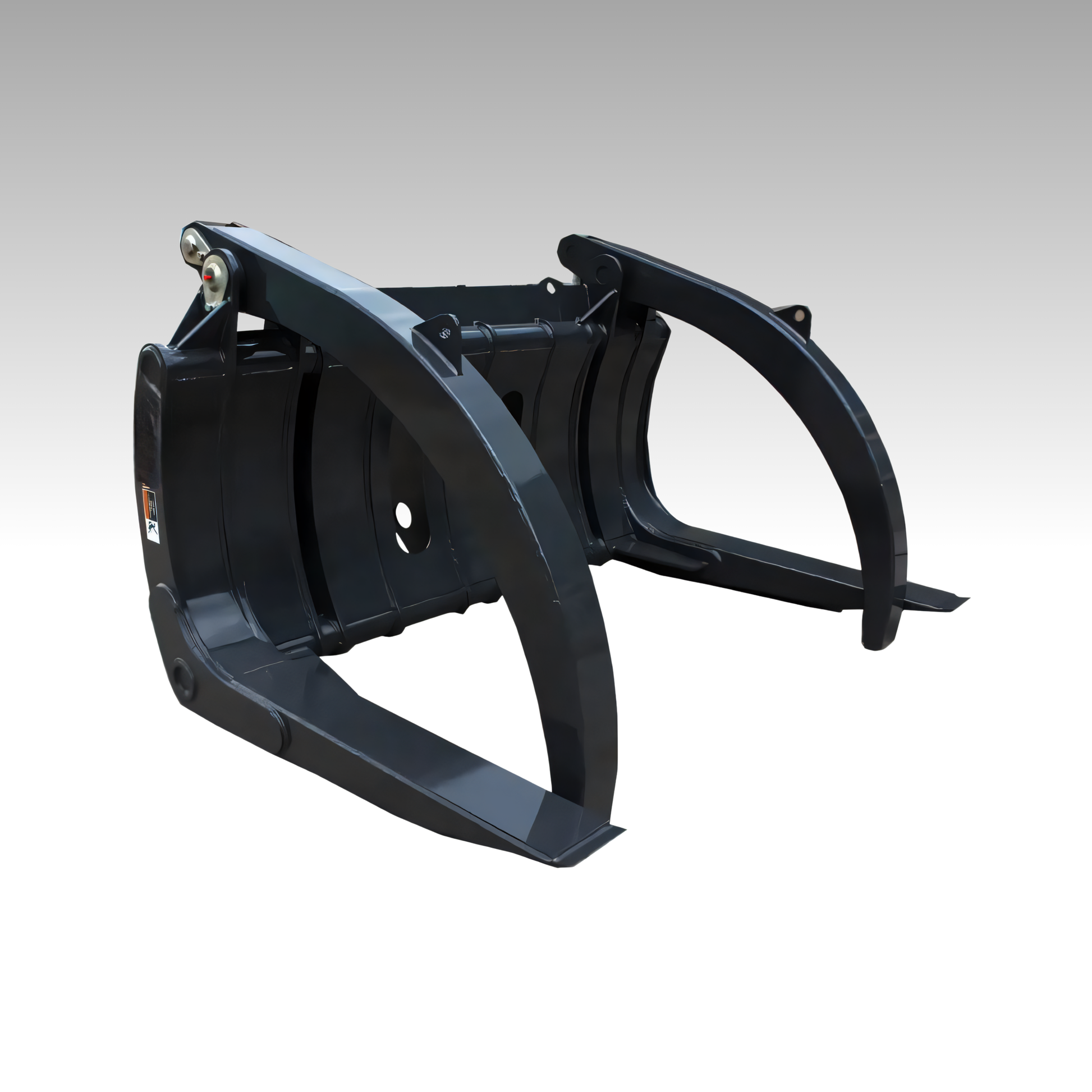

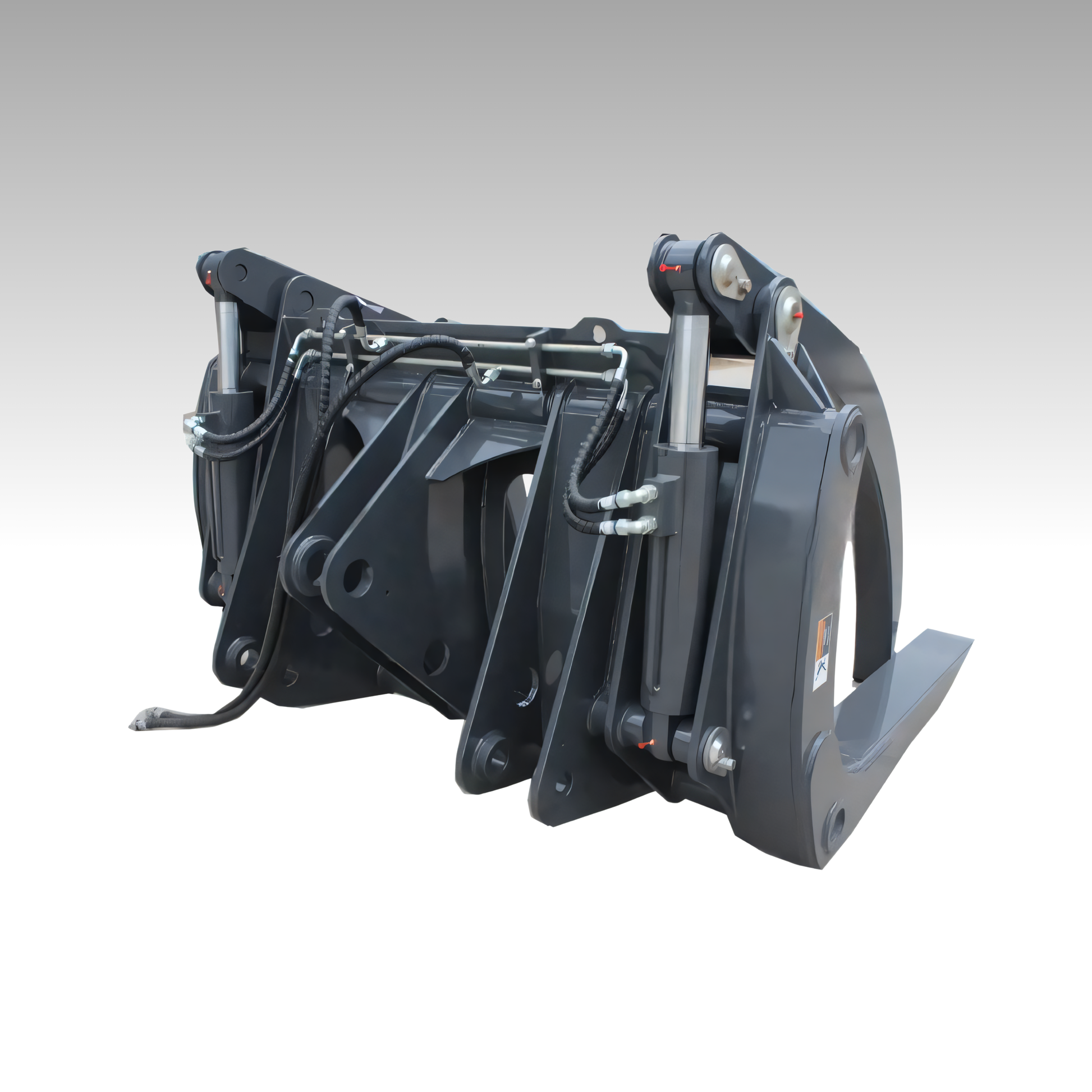

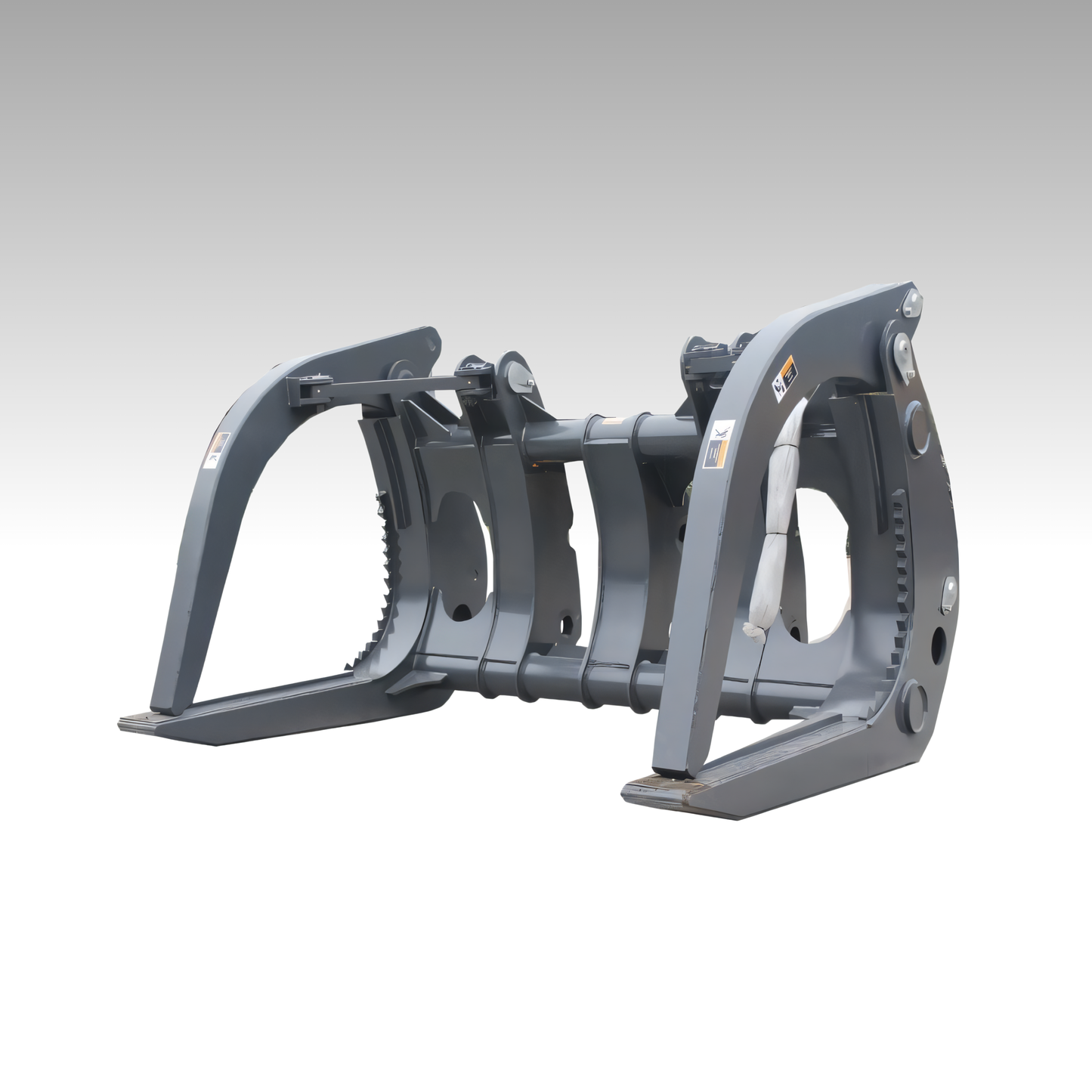

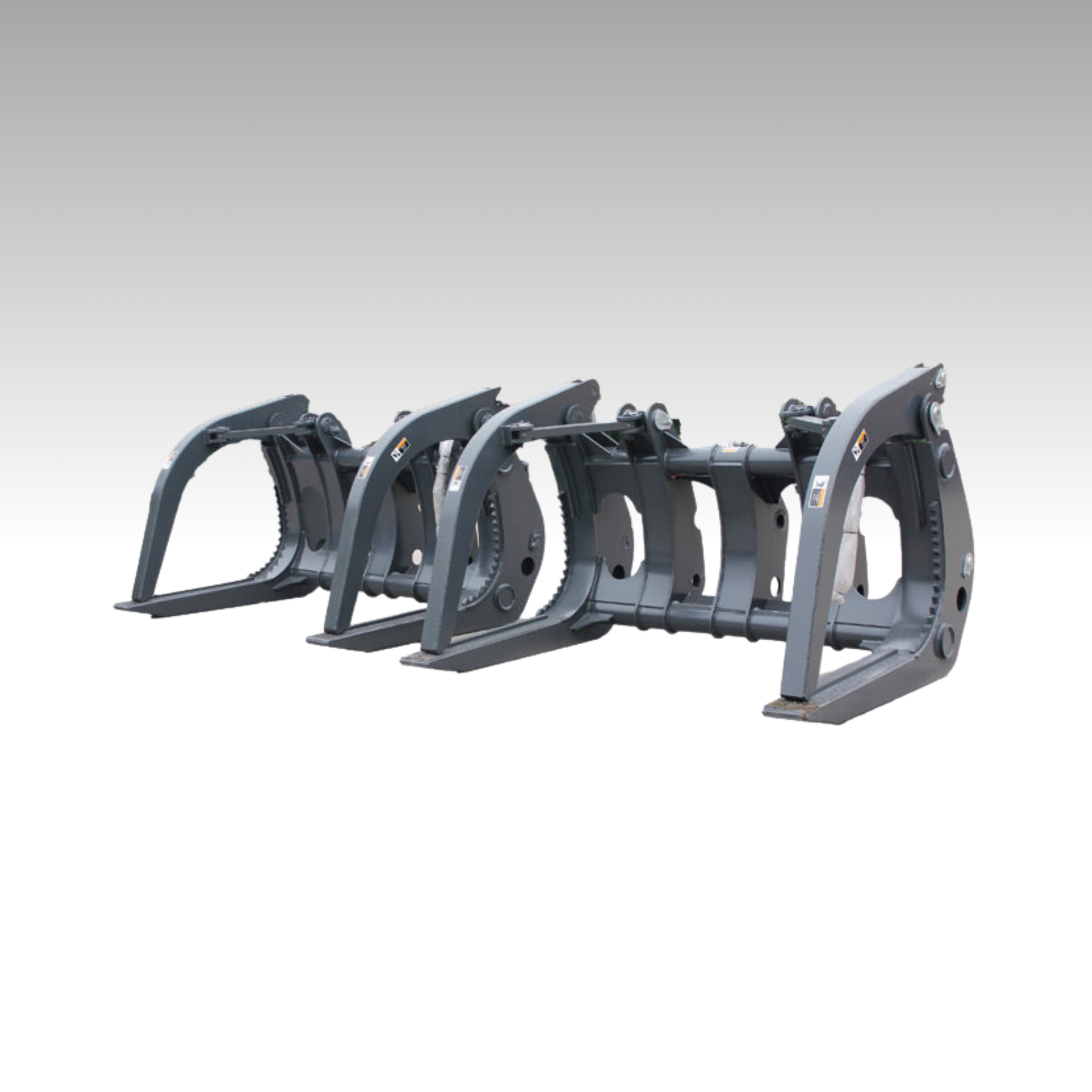

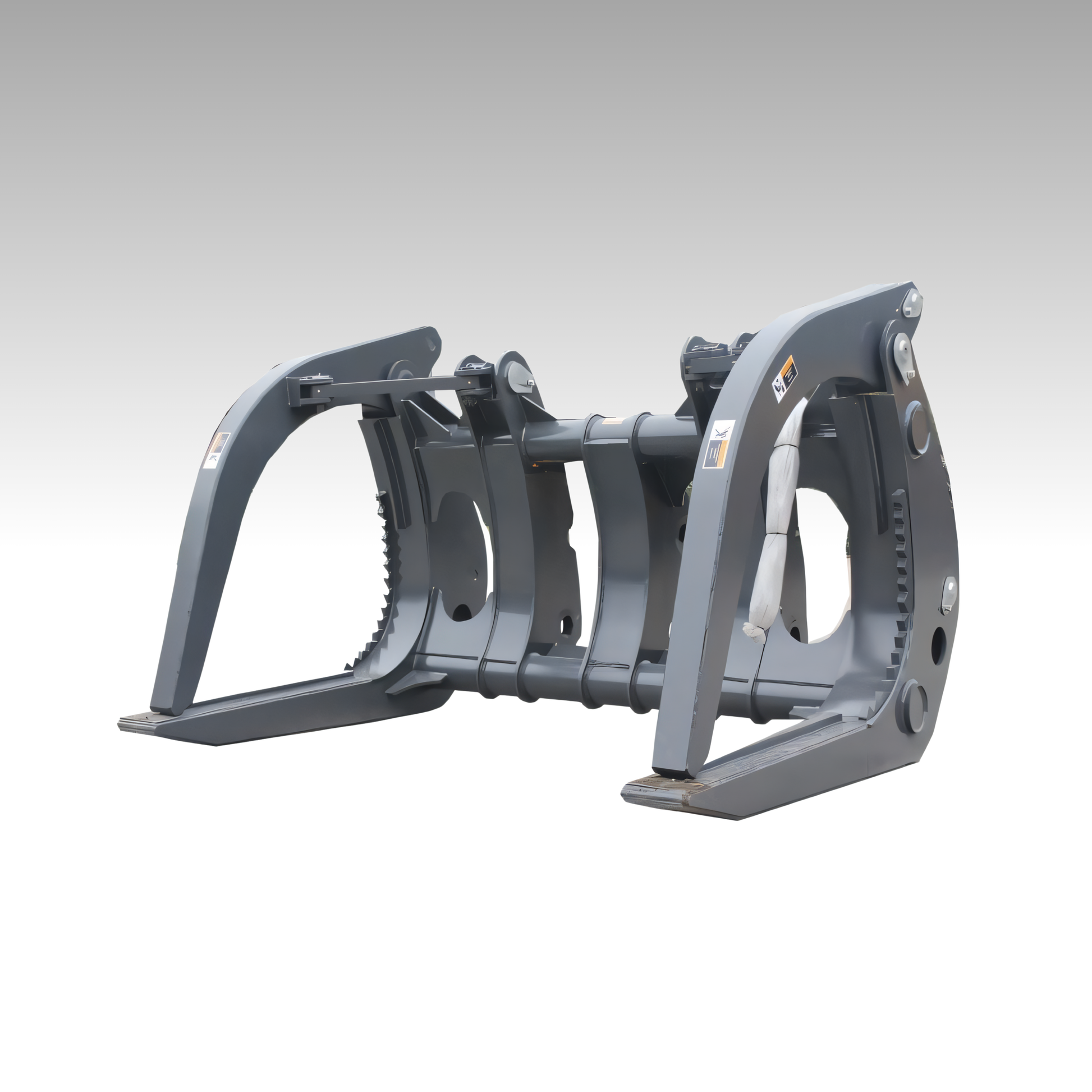

HCN wheel loader Wood grapple, 59-70" open width, for 3T-7T loader

HCN wheel loader Wood grapple, 59-70" open width, for 3T-7T loader

Model
  • The Wheel Loader Wood Grapple is a highly efficient and versatile attachment engineered for handling logs with ease and precision.
  • Designed for both individual log grabbing and stacking, it is an indispensable tool for wood cargo yards, ports, and transshipment operations.
  • This attachment enhances the utility of wheel loaders, delivering superior performance and convenience in demanding environments where reliability and efficiency are paramount.



Request A Quote View full details
Product Feature
  1. Ideal for grabbing and stacking logs, this wood grapple is widely used in wood yards, ports, and transshipment applications, meeting the demands of various operational scenarios.
  2. The wood grapple streamlines material handling tasks, enabling faster loading, unloading, and transportation of logs. Its efficient design reduces manual labor and maximizes productivity.
  3. Customers can install limit blocks (bucket configuration) based on the host machine’s requirements, ensuring compatibility and optimized performance for different equipment setups.
  4. Built with high-strength materials, the wood grapple is designed to withstand heavy-duty workloads and harsh environments, ensuring long-lasting reliability.
  5. Engineered for precise log grabbing and stacking, the grapple minimizes material damage and enhances the safety and organization of cargo handling operations.
  6. The straightforward design allows for quick and hassle-free installation, reducing downtime and enabling operators to get to work without delay.
  7. The intuitive operation and robust hydraulic system make the wood grapple easy to control, enhancing the overall user experience and reducing operator fatigue.
Specifications
Model BM0630 BM0650 BM06d50 BM06d70
Total Width (in) 58.27 72.83 68.9 80.31
Overall Length (in) 90.55 90.55 90.55 106.3
Overall Height (in) 53.15 57.28 62.99 68.11
Maximum Opening (in) 59.06 68.9 74.8 70.08
Maximum Holding Circle (in) 29.53 34.45 N/A N/A
Minimum Holding Circle (in) 25 22.24 39.37 40.55
Weight (including pendant) (lbs) 2315 3362 3219 4630
Allowable Maximum Pressure (psi) 3046 3046 3046 3046
Applicable Flow Rate (GPM) 13.21-18.49 13.21-18.49 13.21-18.49 15.85-21.13
Adapt to the host 3T loader 5T loader 5T loader 7T loader
Warranty We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.
