Product Feature

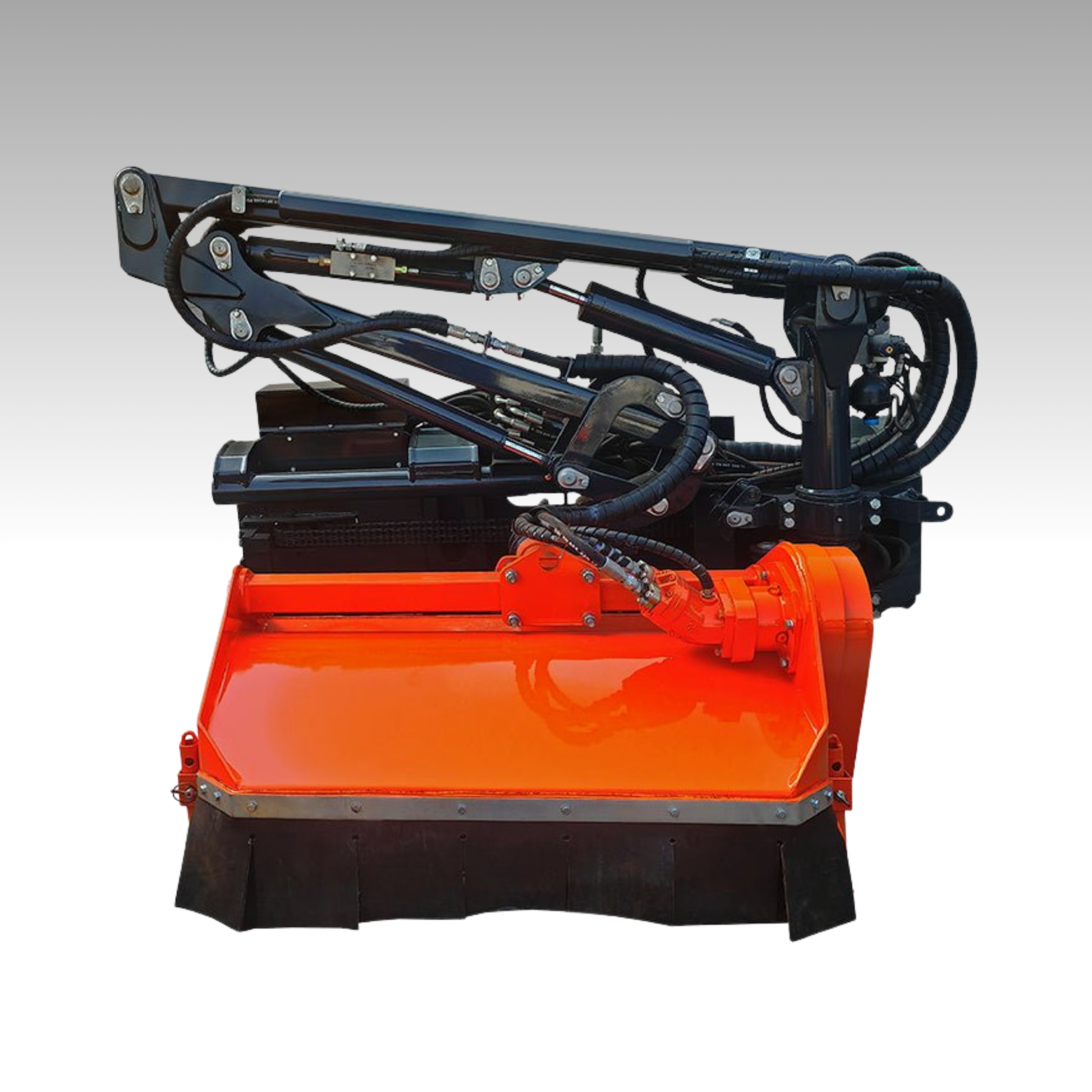

- The boom mower is ideal for tasks such as grass mowing, hedge cutting, tree trimming, ditch cleaning, and weed brushing.
- It is specifically designed for municipal projects, river weed slope trimming, highway green belt maintenance, afforestation, and urban landscaping.

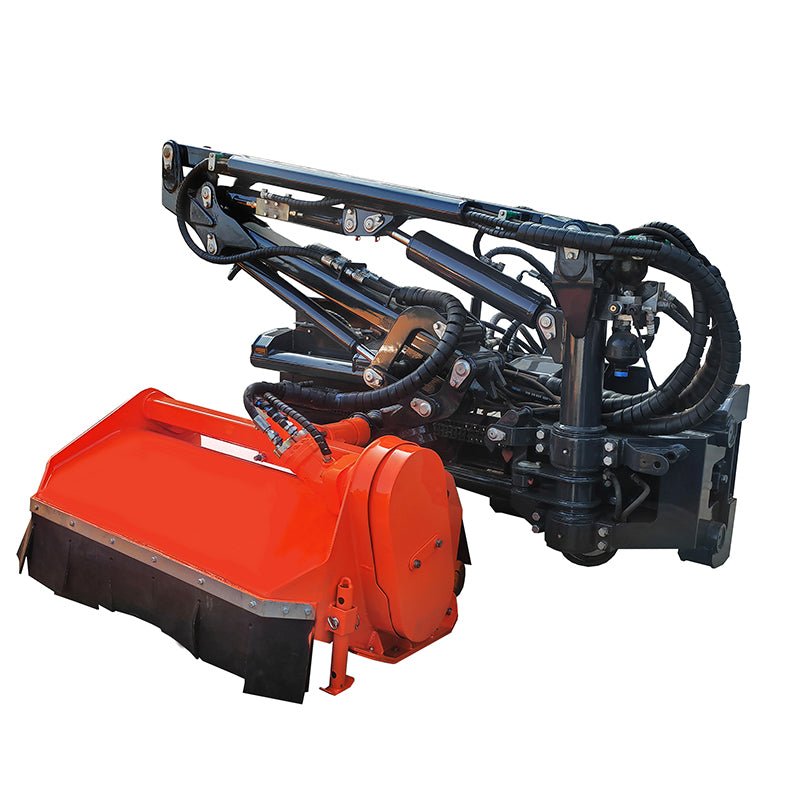

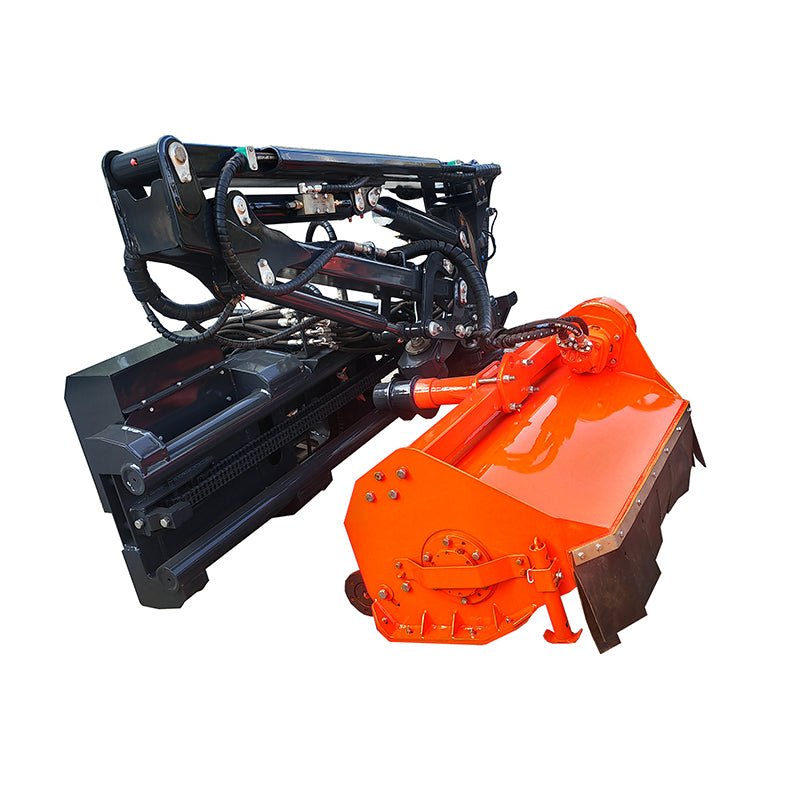

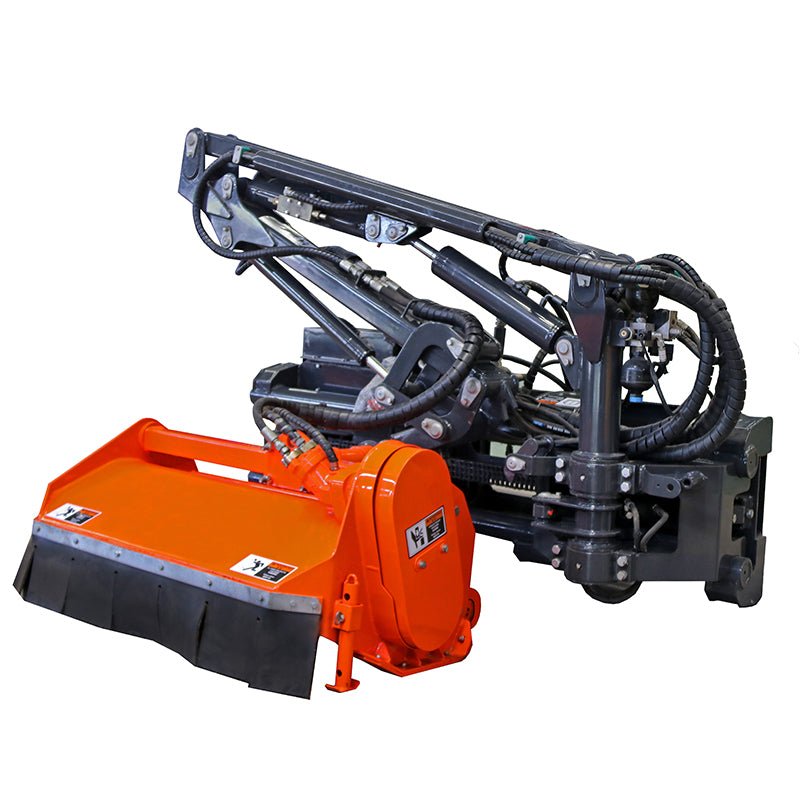

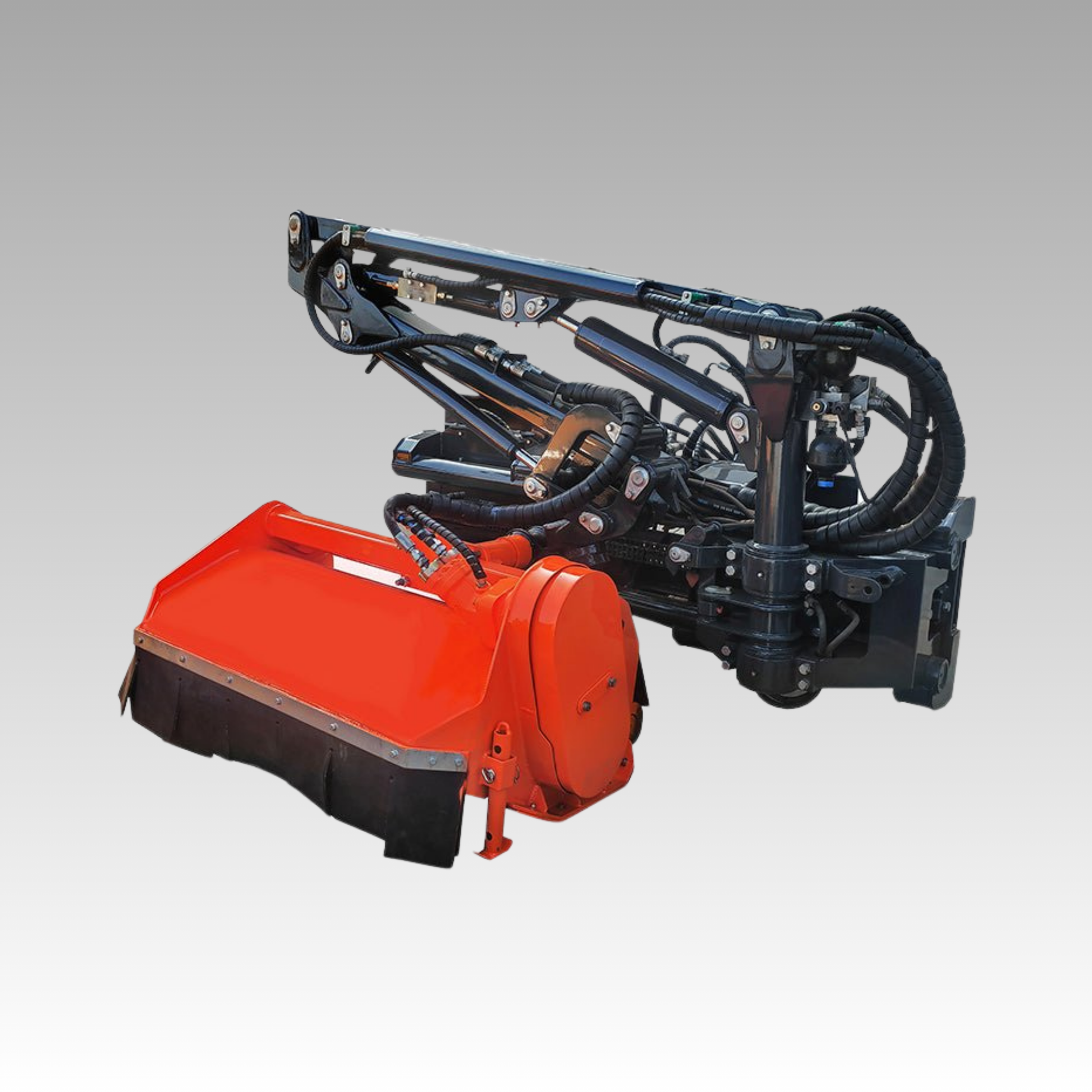

- Equipped with a multi-joint arm, the mower offers flexible control, allowing operators to extend the reach and adjust the mowing angle with ease. This design ensures precise trimming of long-distance guardrails, slopes, and uneven terrain.

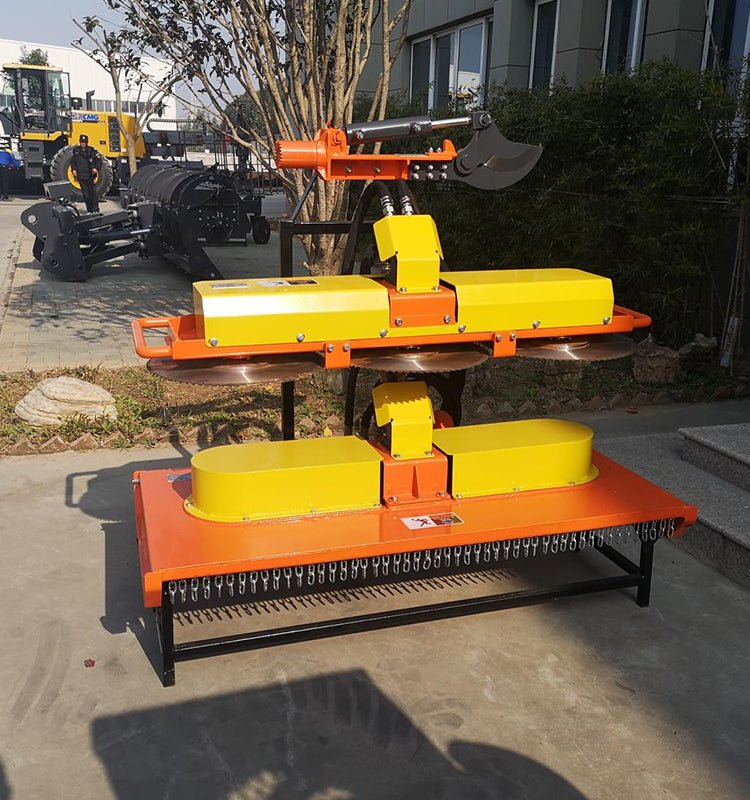

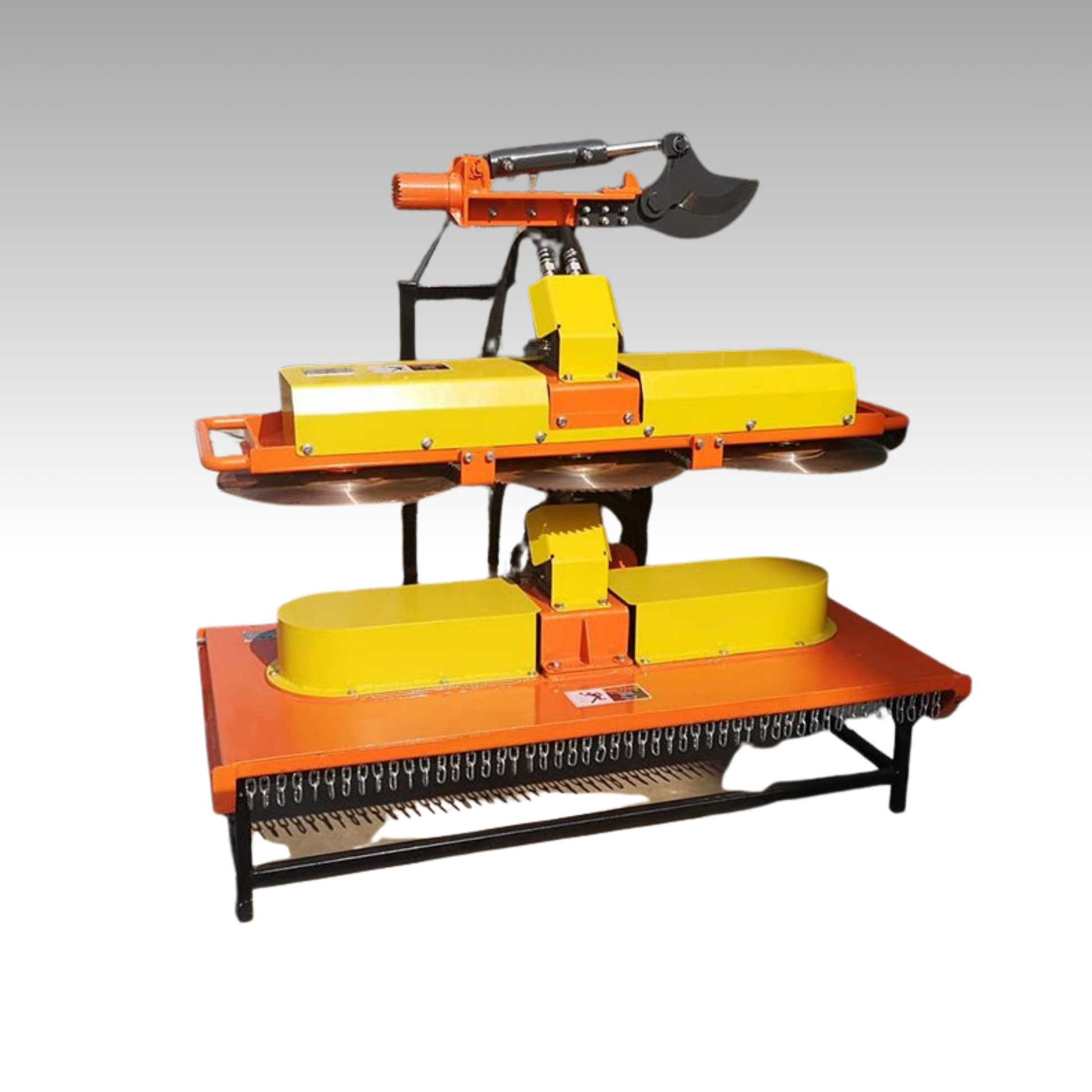

- The attachment comes with a specialized quick-release system, making it easy to change mower head tools on the boom arm. Operators can seamlessly switch between the five available mower head options, optimizing the machine for different tasks.

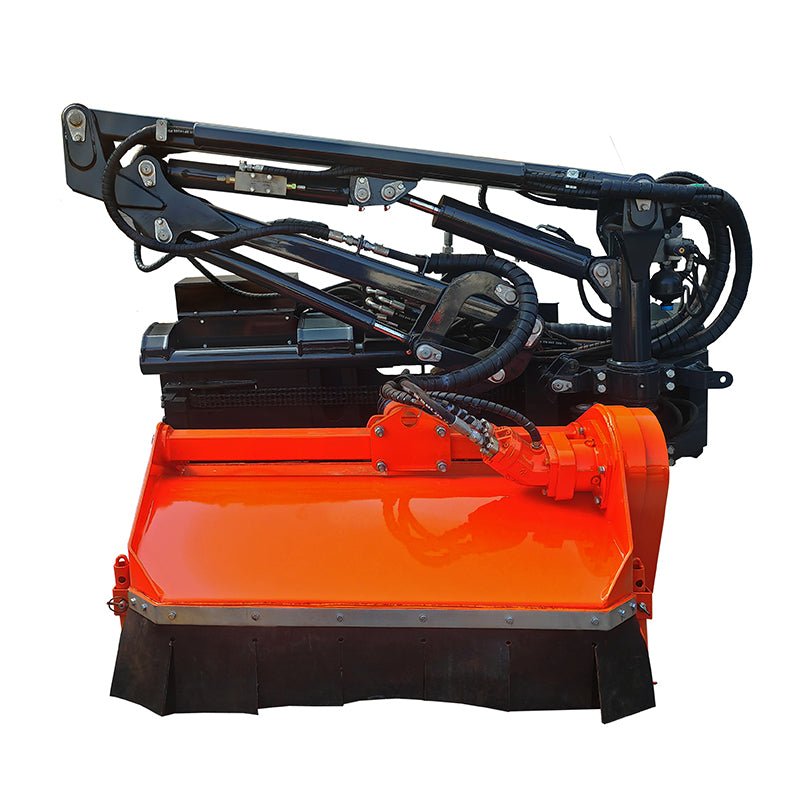

- The mower head features a replaceable flail design, ensuring durability and extended service life while maintaining consistent cutting performance.
- Includes Auto Height Control, which automatically adjusts the mowing head to the terrain for uniform cuts.
- The Rotor Flex system allows the operator to move the attachment tool forward into their field of vision, eliminating the need to strain their neck by constantly looking backward.
- With a slope trimming width of 1 meter, the mower excels in maintaining slopes, embankments, and uneven landscapes.
- The boom mower is equipped with a side shift function, enabling operators to cover a wider trimming range and adapt to different working conditions.
- Manufactured with high-quality materials, the mower ensures durability, reliability, and long-term performance. It is specifically designed for landscape gardeners, agricultural contractors, municipal workers, and forestry professionals.
Specifications
| Model | 052840 |
|---|---|
| Overall Length (in) (Transportation size) | 60.2 |
| Overall Width (in) (Transportation size) | 78.7 |
| Overall Height (in) (Transportation size) | 55.1 |
| Weight (lbs) | 1930.2 |
| Trimming Width (in) | 39.4 |
| Horizontal Angle of Deflection (°) | 30° |
| Horizontal Displacement (in) | 52 |
| Max. Trimming Radius (in) (Host machine is not included) | 181.1 |
| Max. Working Pressure (psi) | 3045.8 |
| Working Speed (mph) | <3.7 |
| Required Hydraulic Flow (GPM) | 19.8-26.4 |
| Working Voltage (V) | DC12/24 |

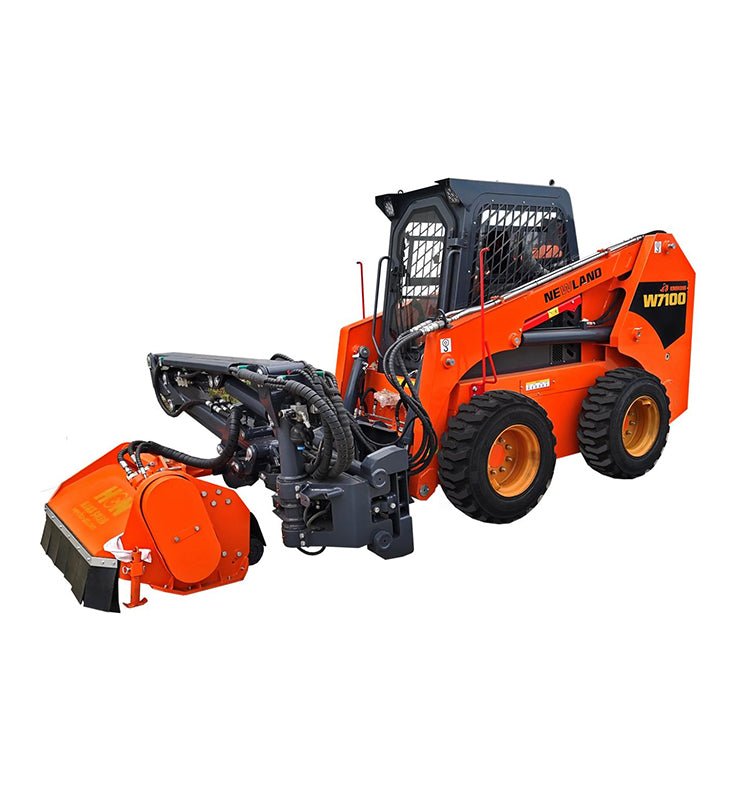

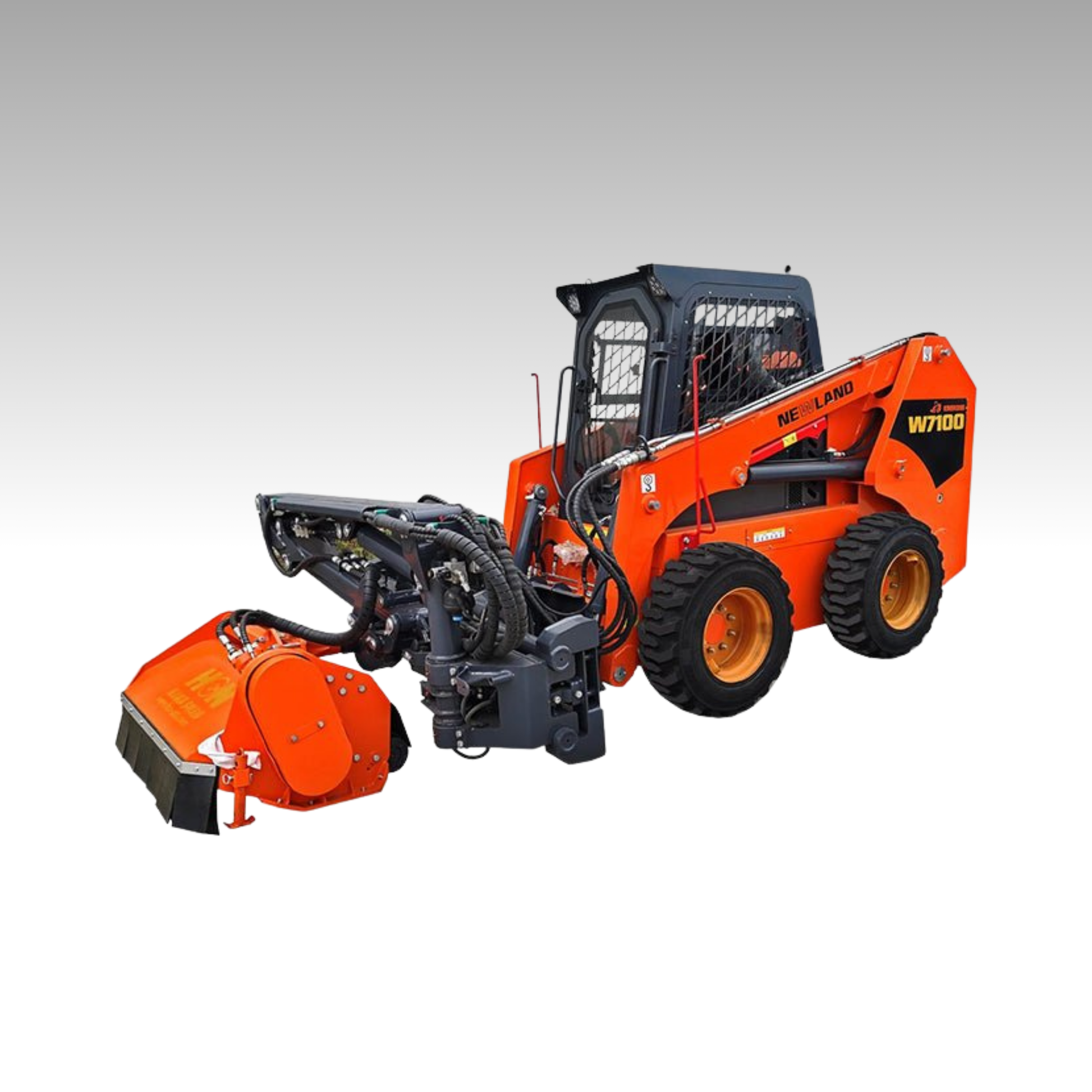

| Suitable machine | Vehicle/high-power skid steer loader |
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
