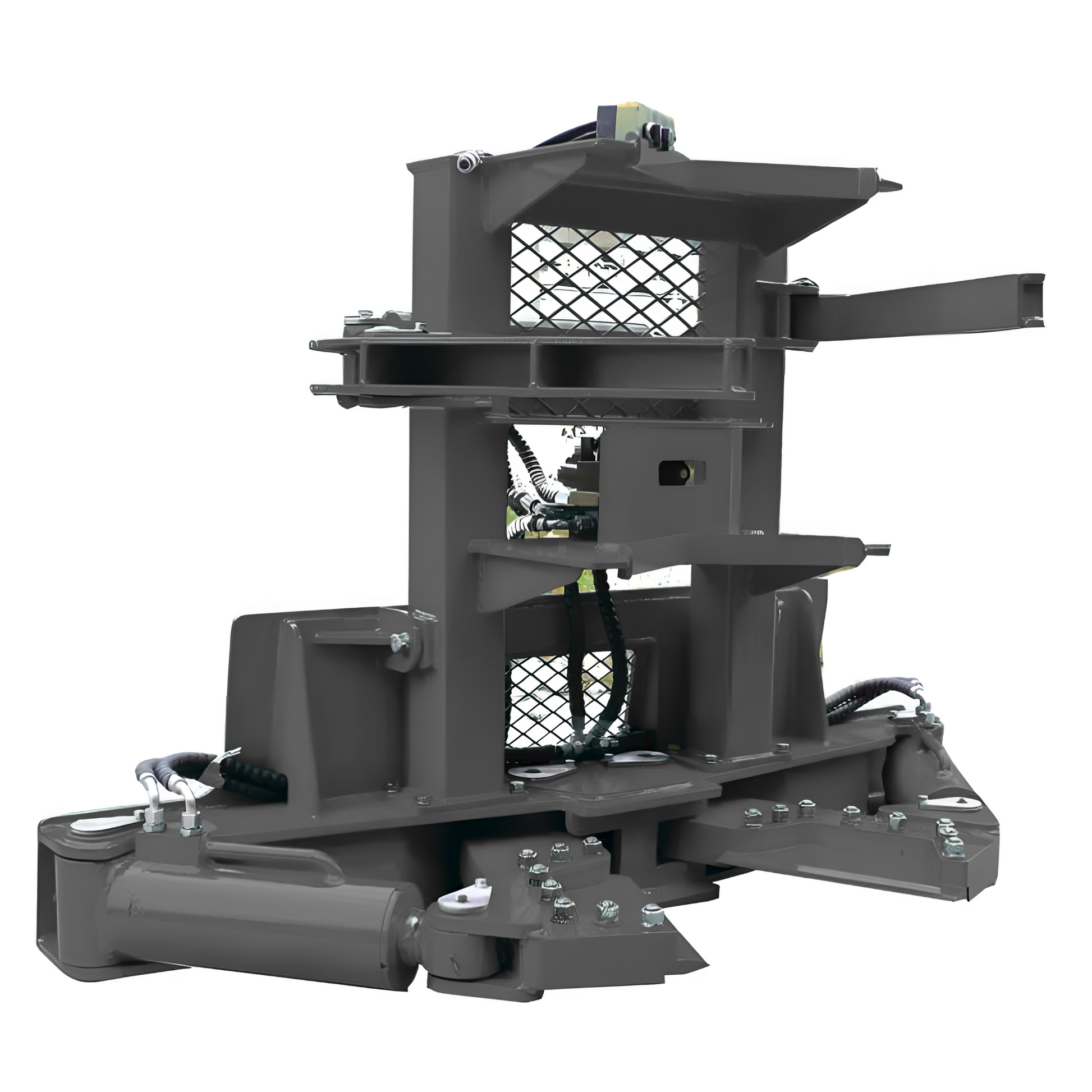

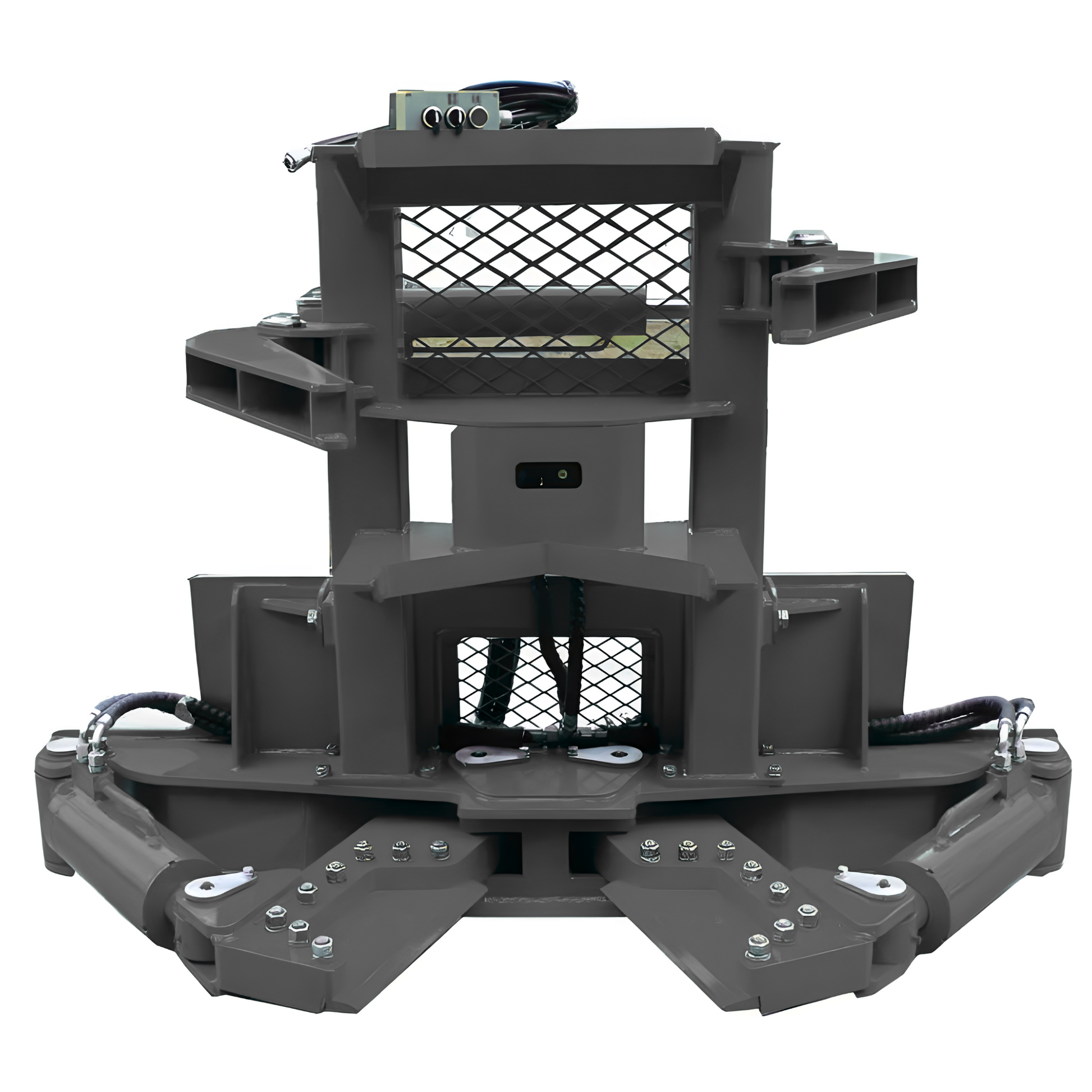

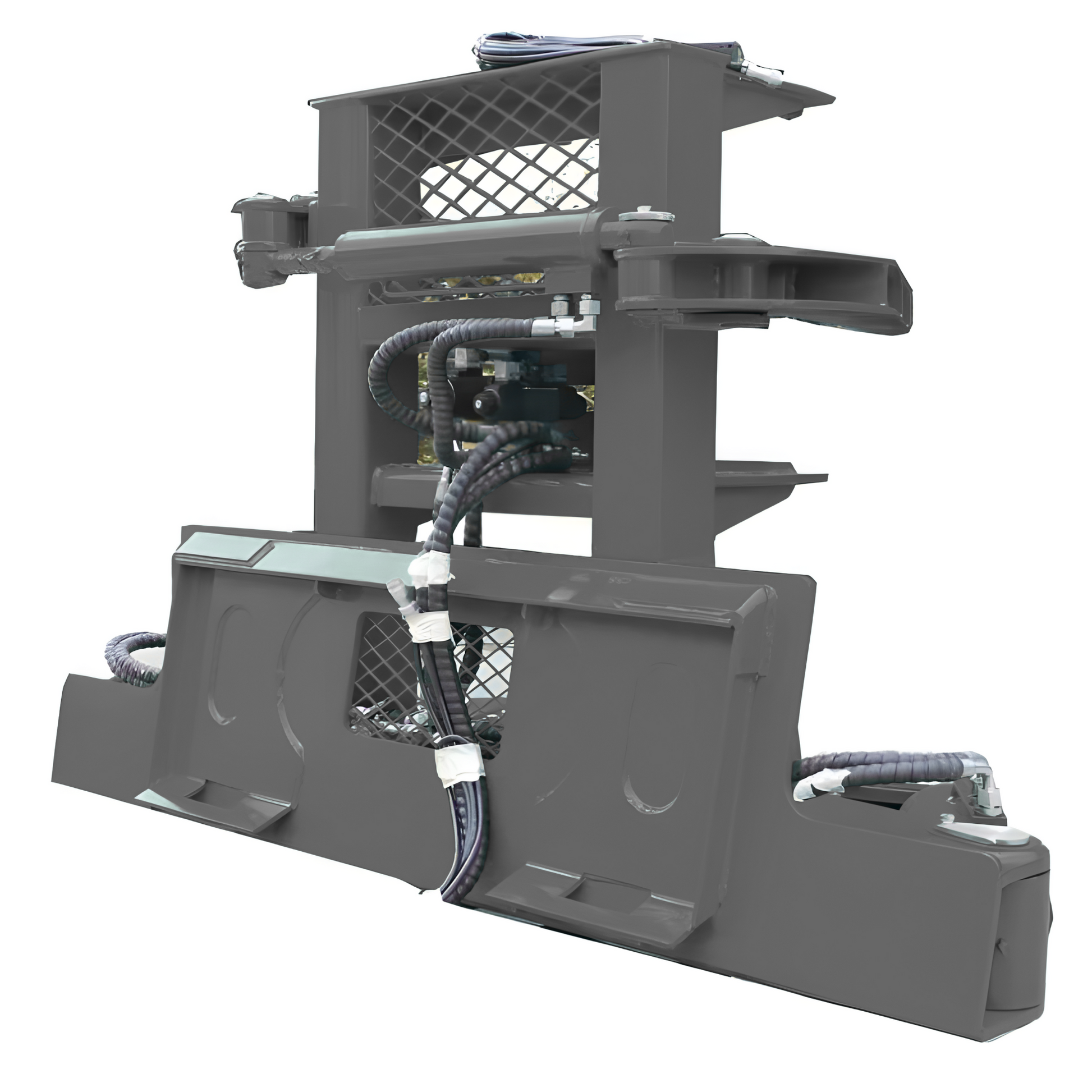

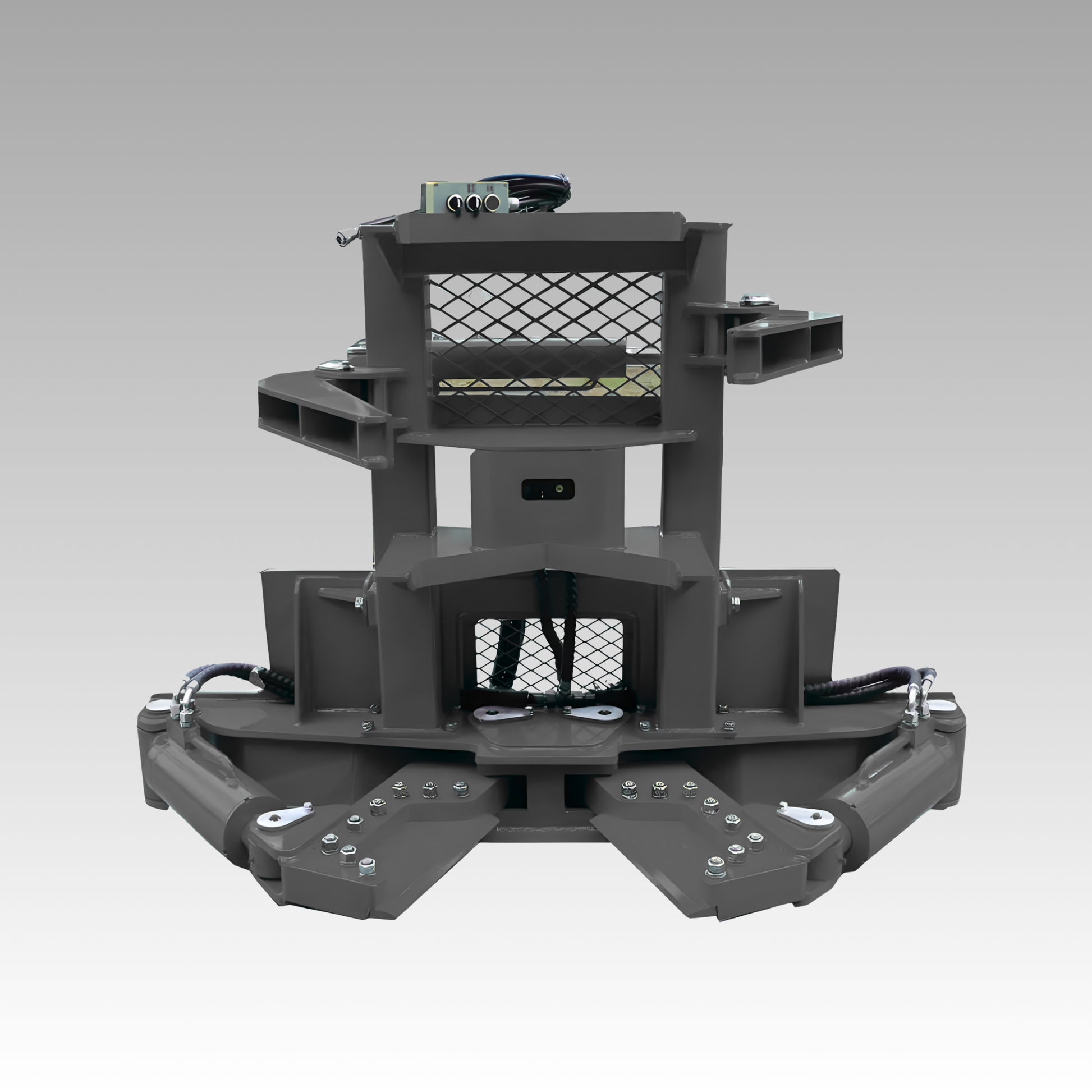

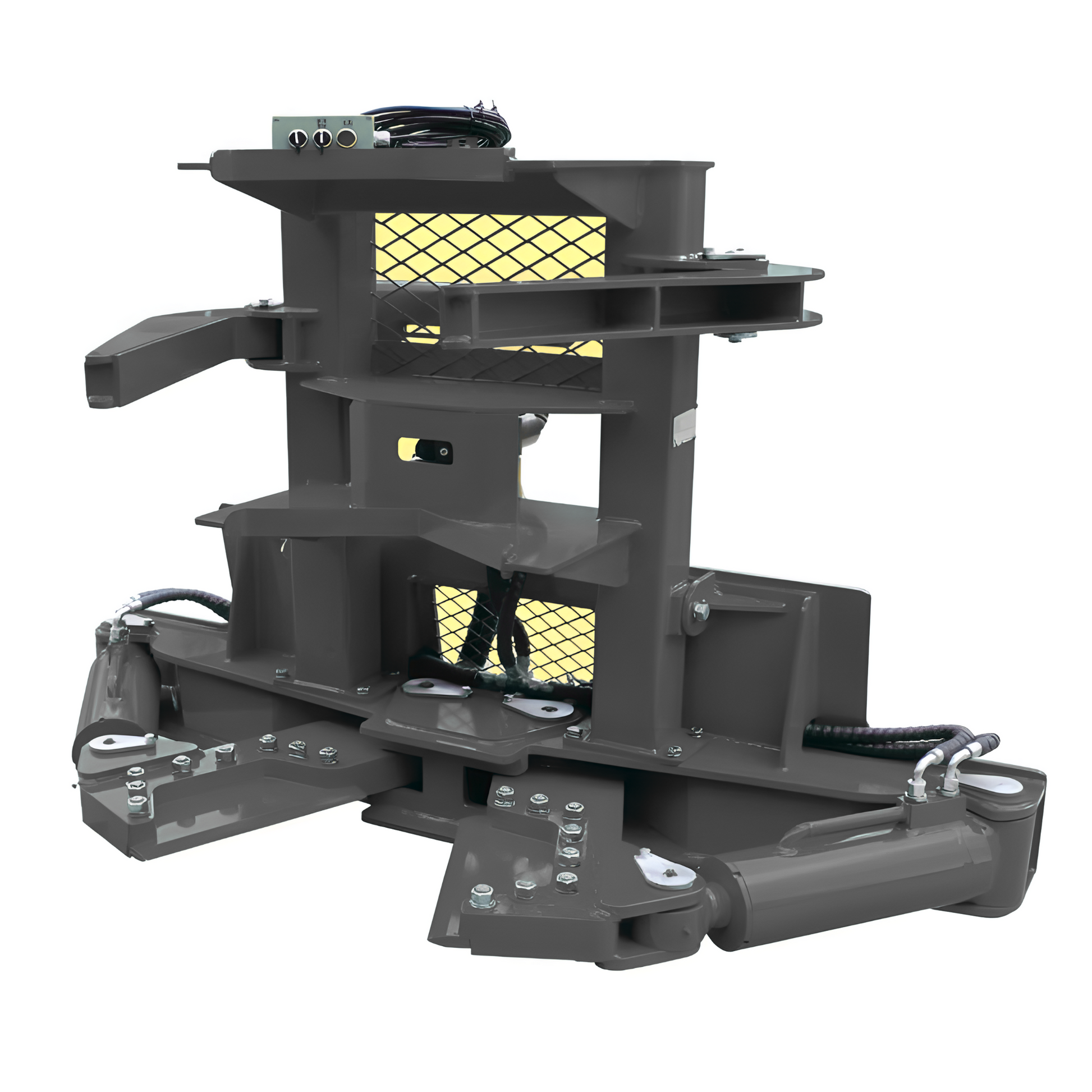

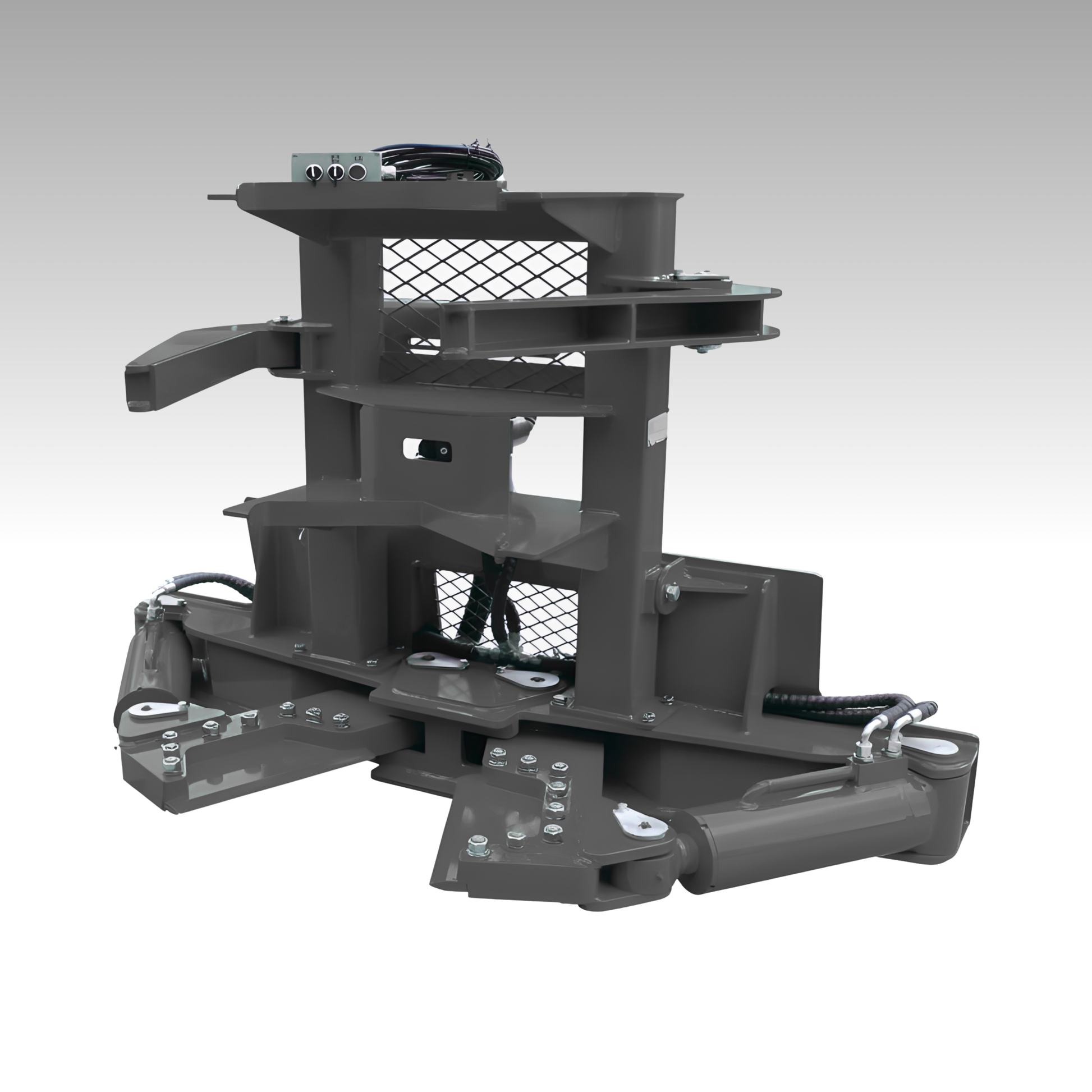

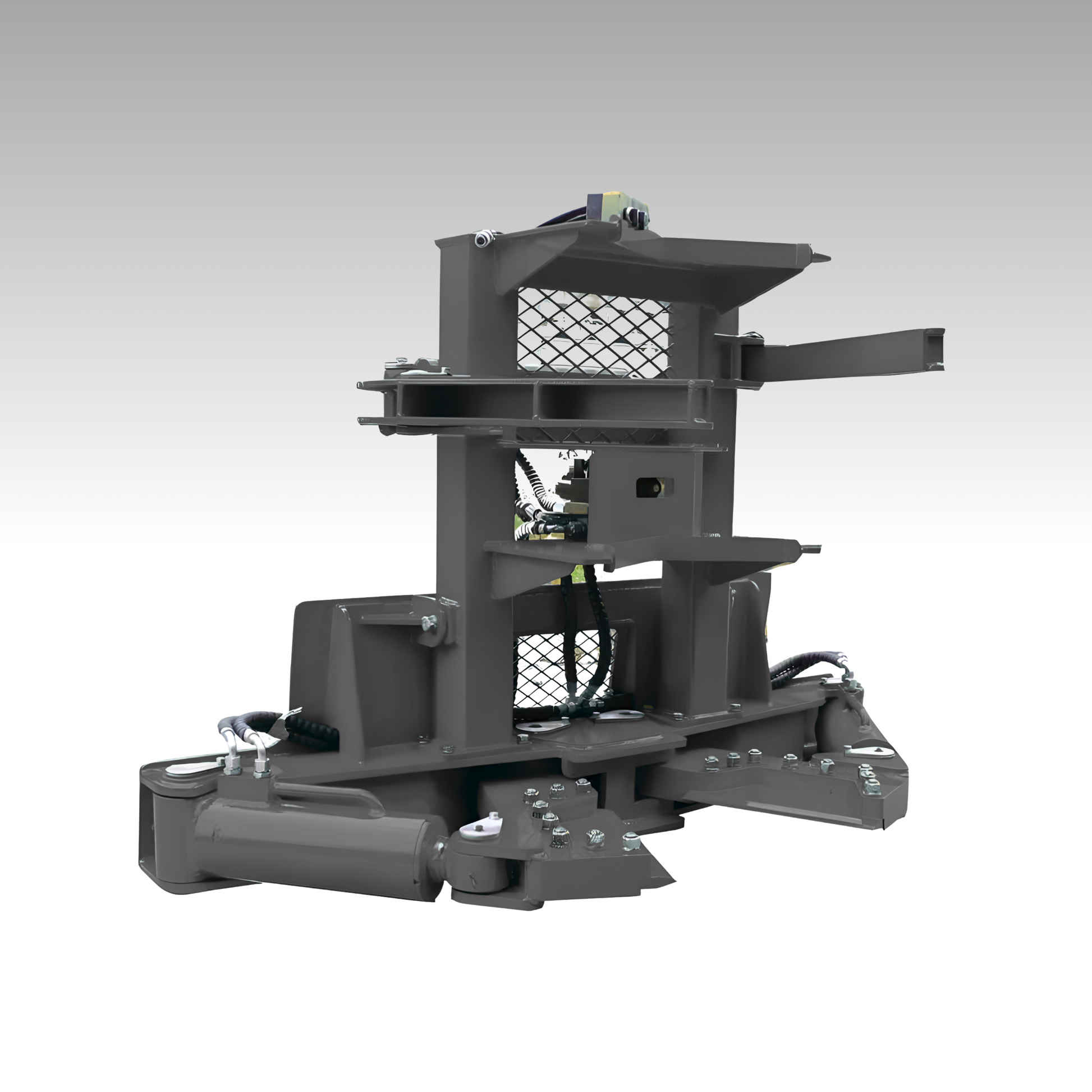

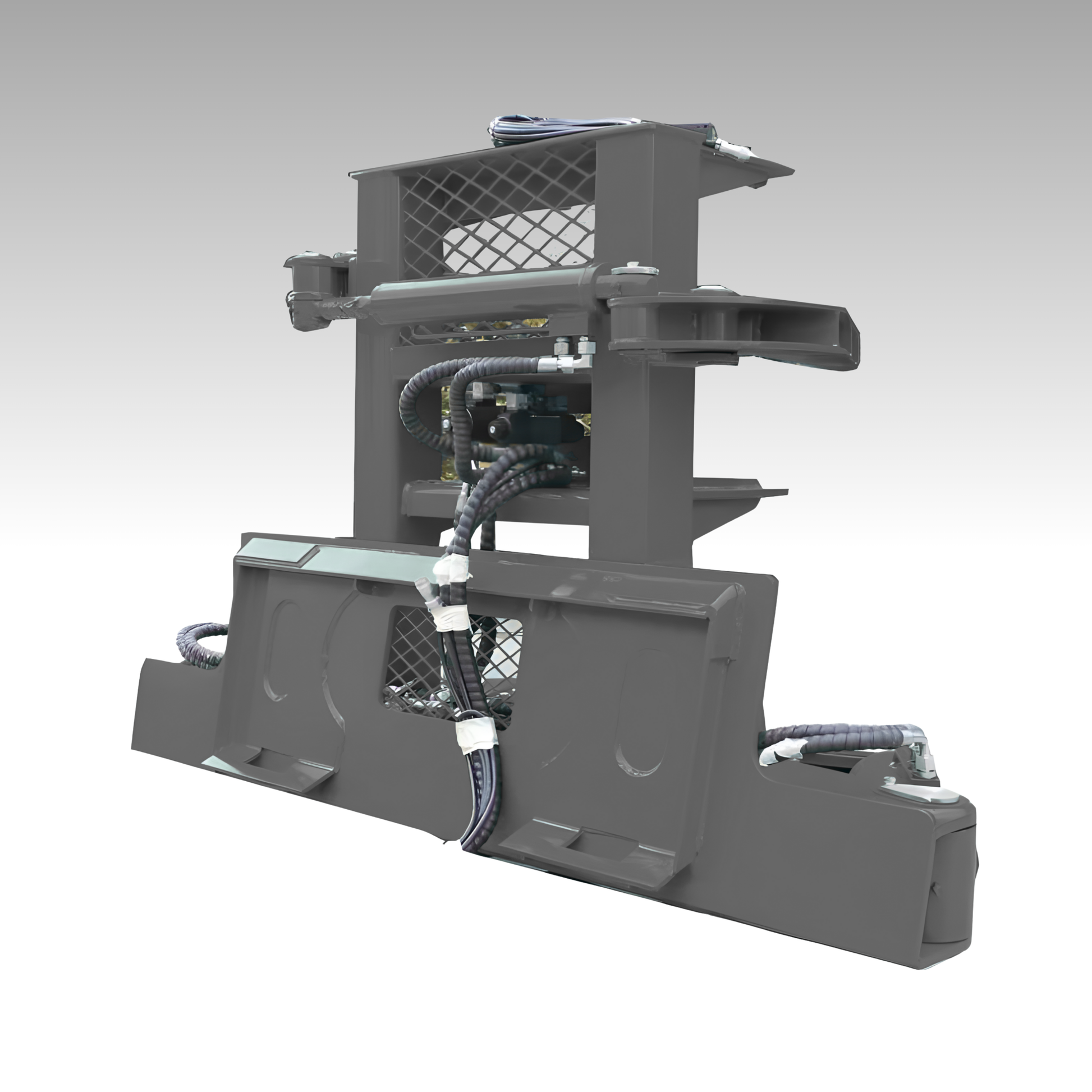

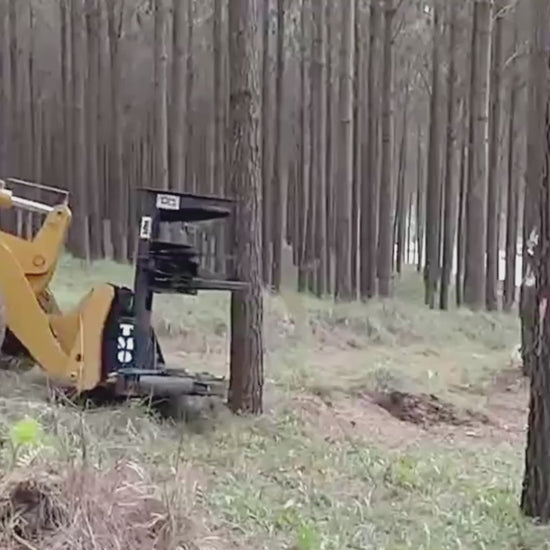

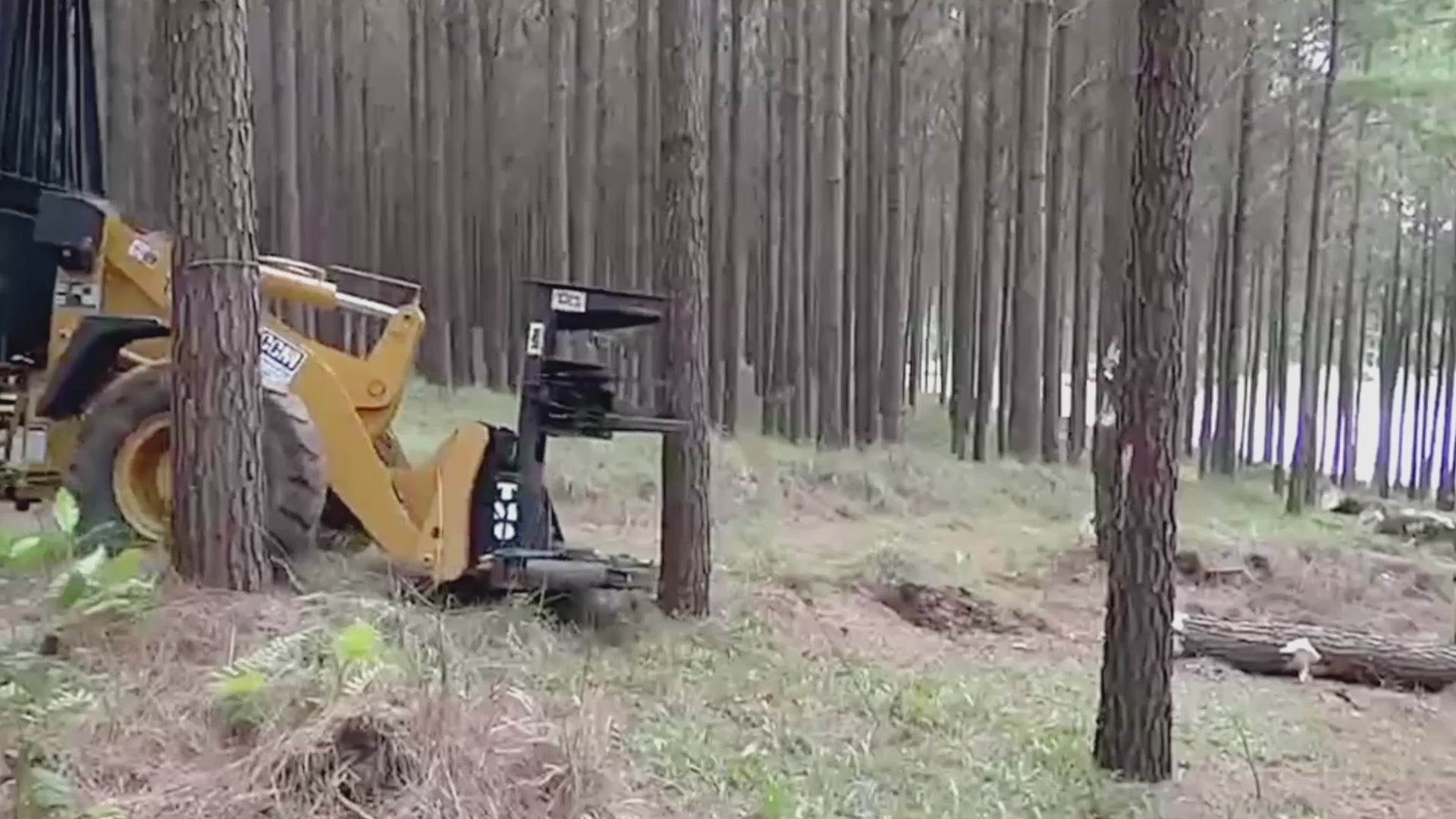

- The HCN Tree Shear is designed for efficient and safe tree-cutting operations with a hydraulic-powered system for precise control of the cutting head.
- Dimensions: 74.8” W x 49.41” H x 33.86” L (051212) or 90.55” W x 57.28” H x 35.24” L (051216).
- Cuts trees up to 12 inches (051212) or 16 inches (051216) in diameter.
- Built for tough tasks with a maximum pressure of 3045 psi and hydraulic flow of 13.2-19.8 GPM.
- Weights: 1,686 lbs (051212) and 1,918 lbs (051216). Optional operating voltage: DC12 or DC24.
Product Feature
- Provides powerful control for opening and closing the shear head, ensuring stable and precise action for clean cuts.
- Equipped with a secure holding mechanism to keep trees steady during cutting, preventing accidental movements for enhanced safety.
- Compatible with skid loaders and small loaders, offering flexibility for various work environments.
- Built with operator safety in mind, the shear is engineered to deliver stable and secure performance even under demanding conditions.
- Designed to significantly reduce the physical effort required for tree cutting, increasing efficiency and operator comfort.
Specifications
| Model | 051212 | 051216 |
|---|---|---|
| Width (in) | 74.8 | 90.55 |
| Height (in) | 49.41 | 57.28 |
| Length (in) | 33.86 | 35.24 |
| Cut the Tree Diameter (in) | ≤ 12 | ≤ 16 |
| Theoretical Weight (lbs) | 1686.5 | 1918 |
| Allow Maximum Pressure (psi) | 3045.8 | 3045.8 |
| Workflow (GPM) | 13.21-19.81 | 13.21-19.81 |
| Operating voltage (V) (optional) | DC12/DC24 | DC12/DC24 |
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
