Product Feature

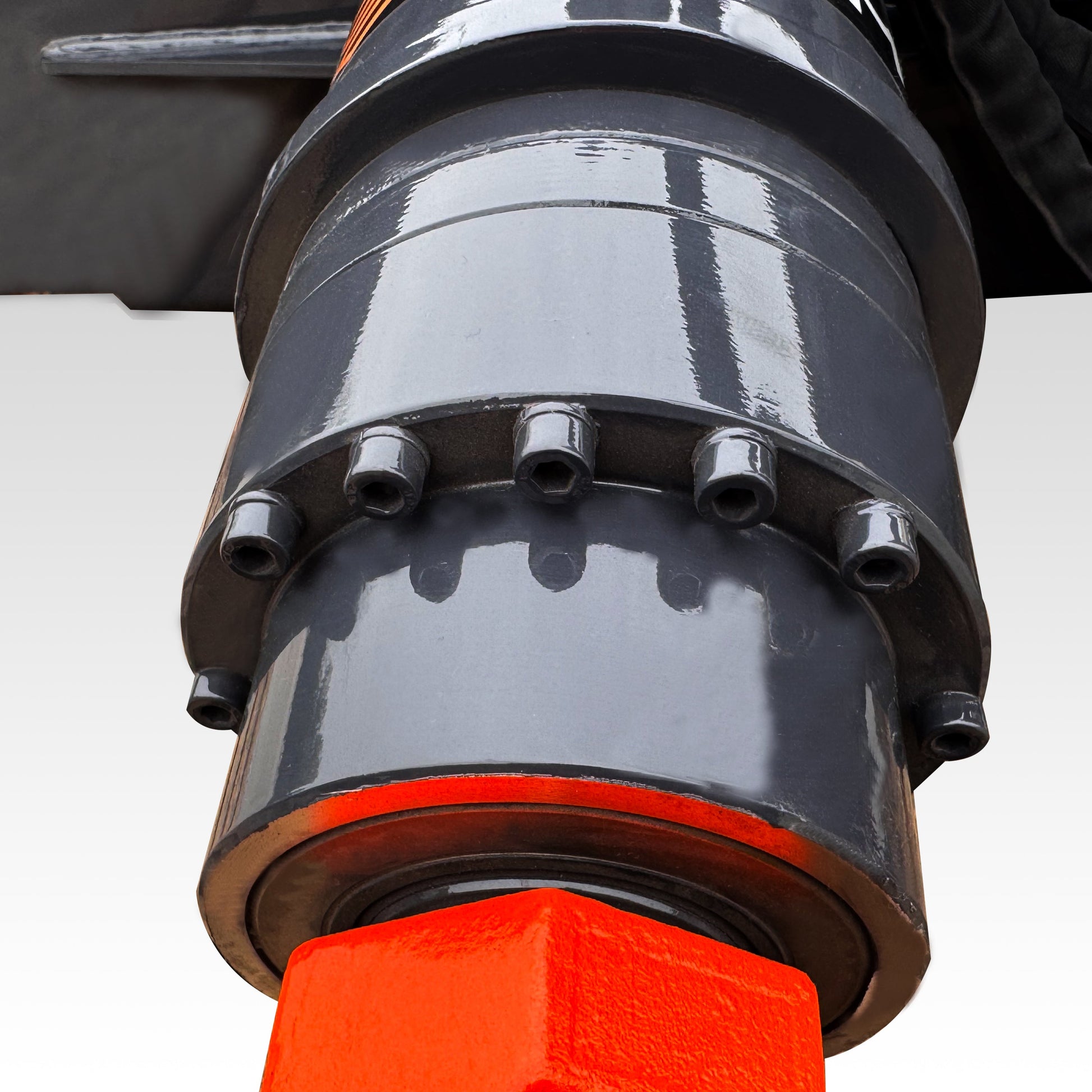

- Crafted with high-grade materials, this system ensures optimal power transfer and operational efficiency, reducing energy loss while enhancing durability and longevity.

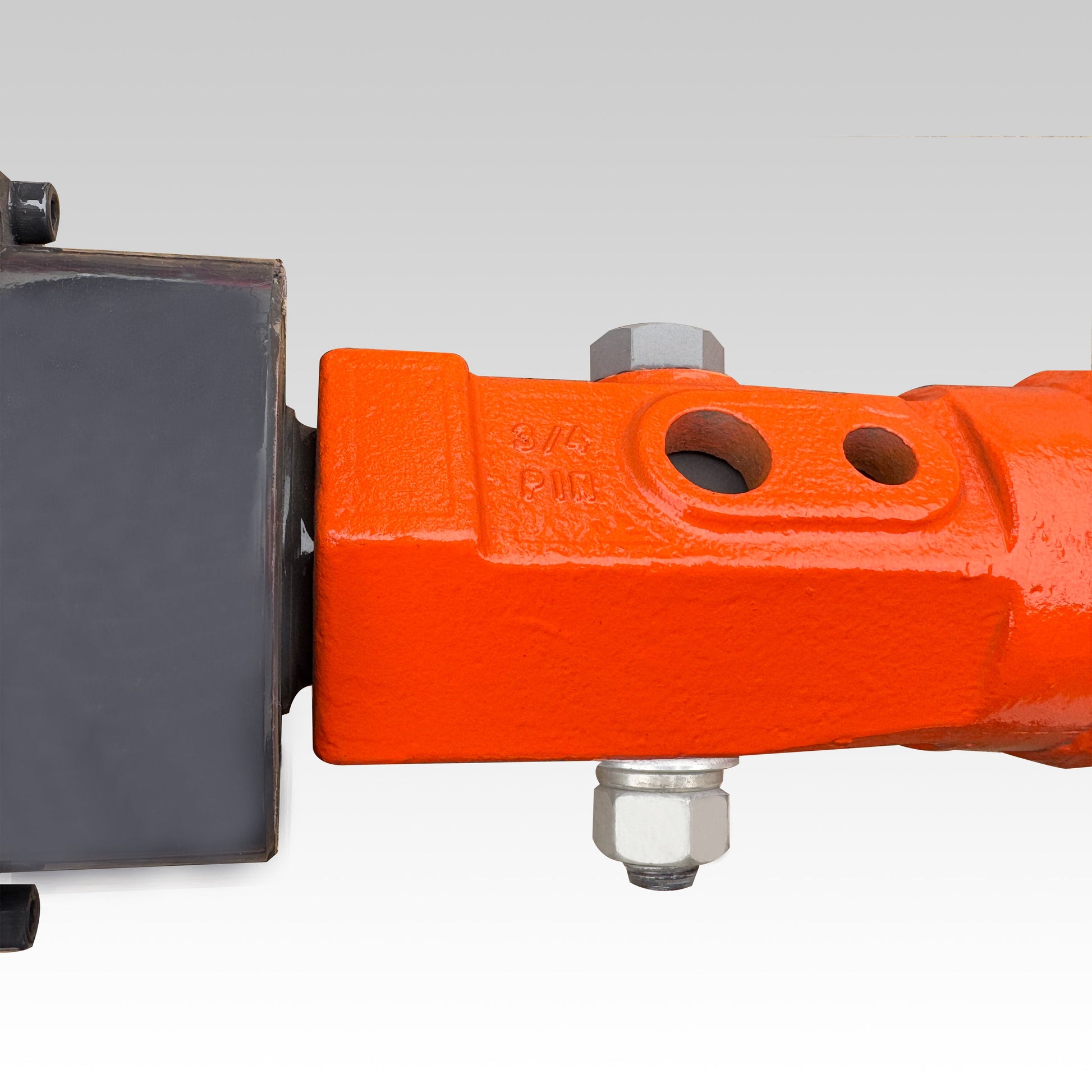

- The integrated locking collar secures the auger in place during operation, preventing any unwanted swinging or deviation, which results in more precise drilling and improved safety.
- Easily switch between forward drilling and reverse extraction modes. This feature offers exceptional versatility, making the auger adaptable to a variety of tasks and site conditions.

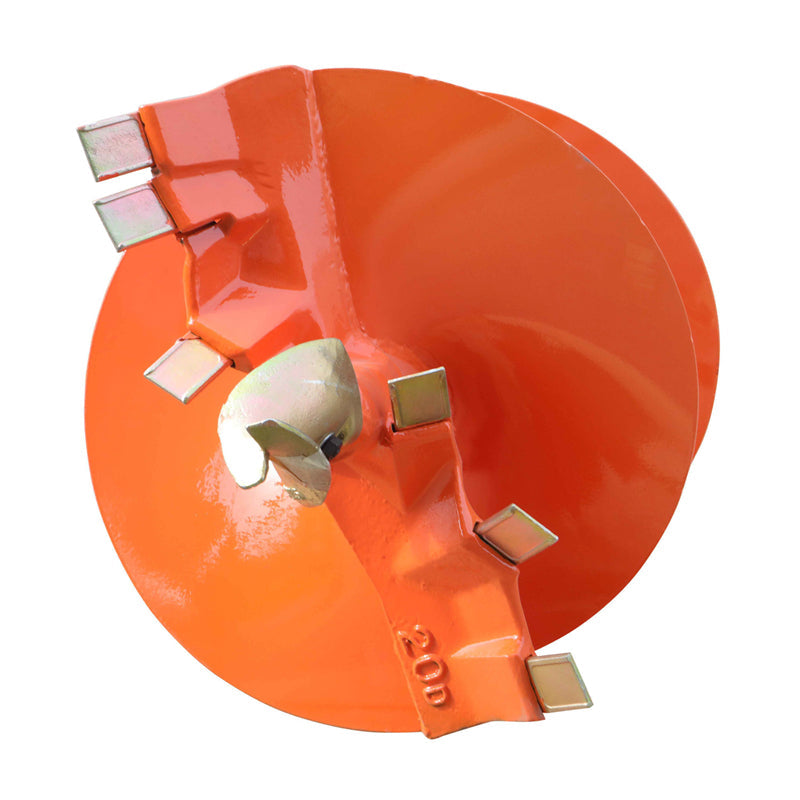

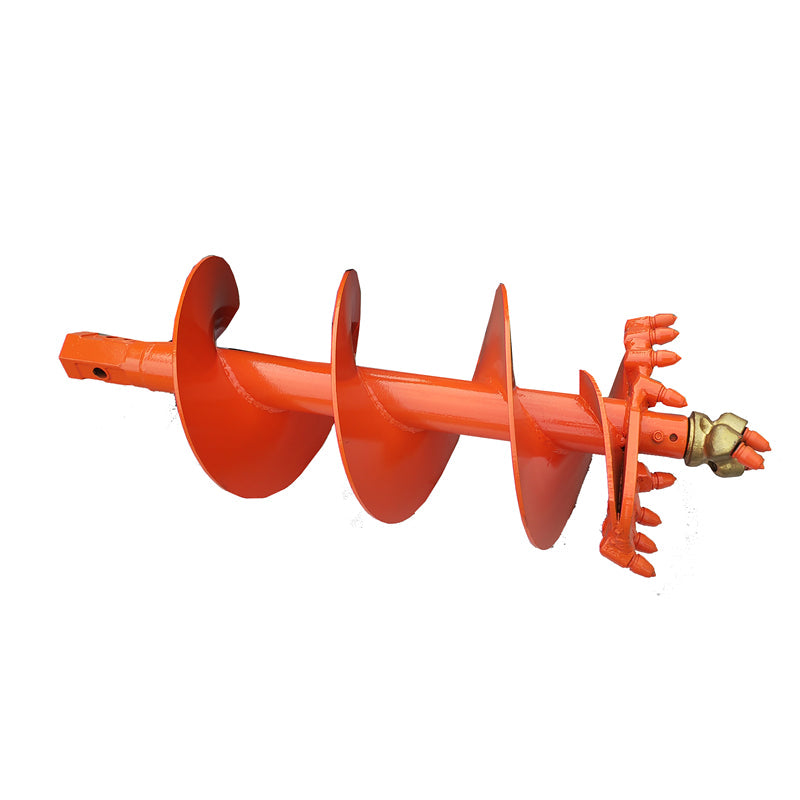

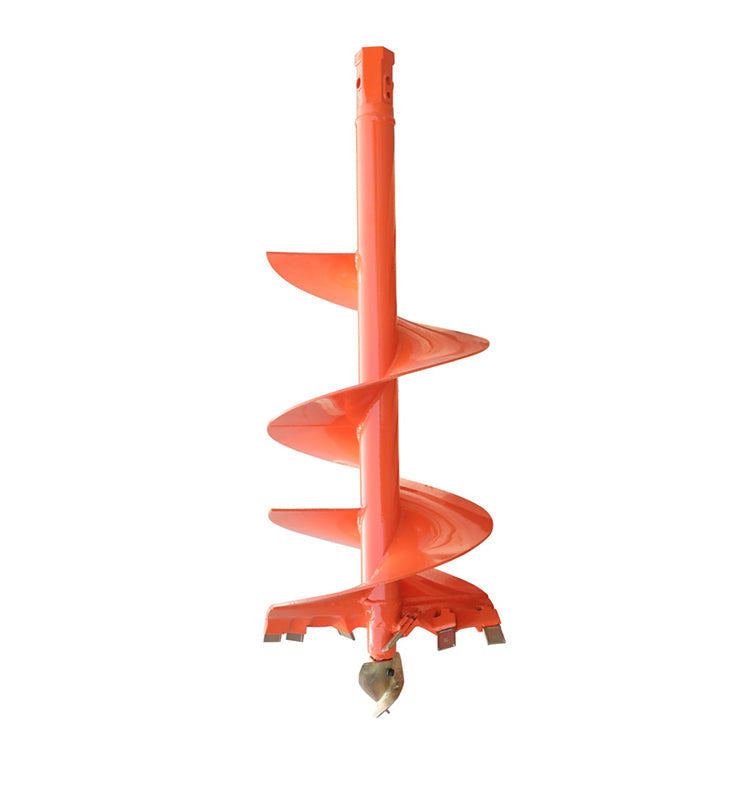

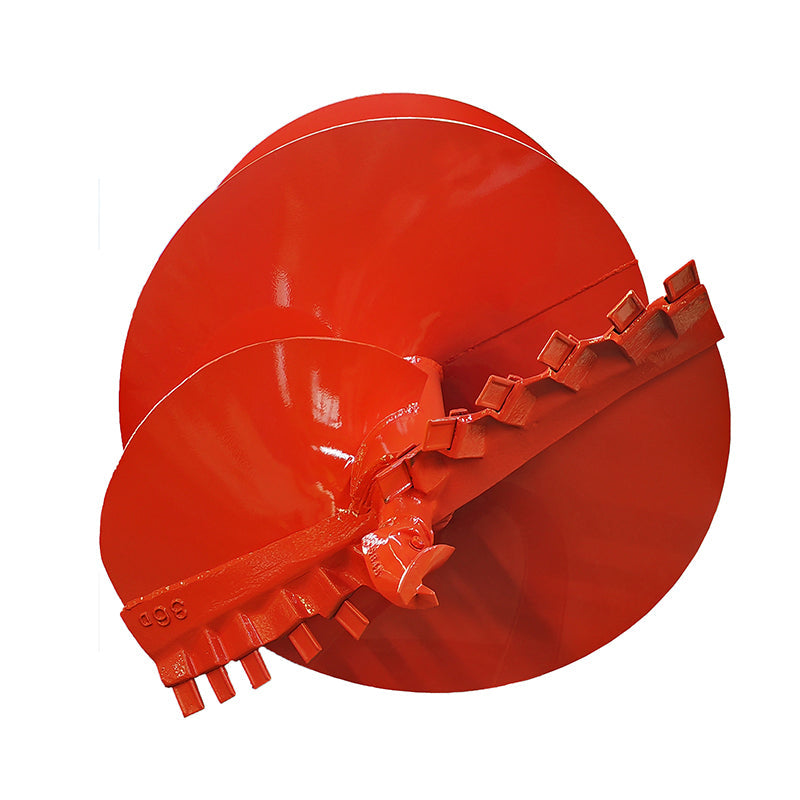

- Designed to keep debris from accumulating, the continuously spiraled cutting bit minimizes the risk of clogging, ensuring a smooth and consistent cutting process for increased productivity.

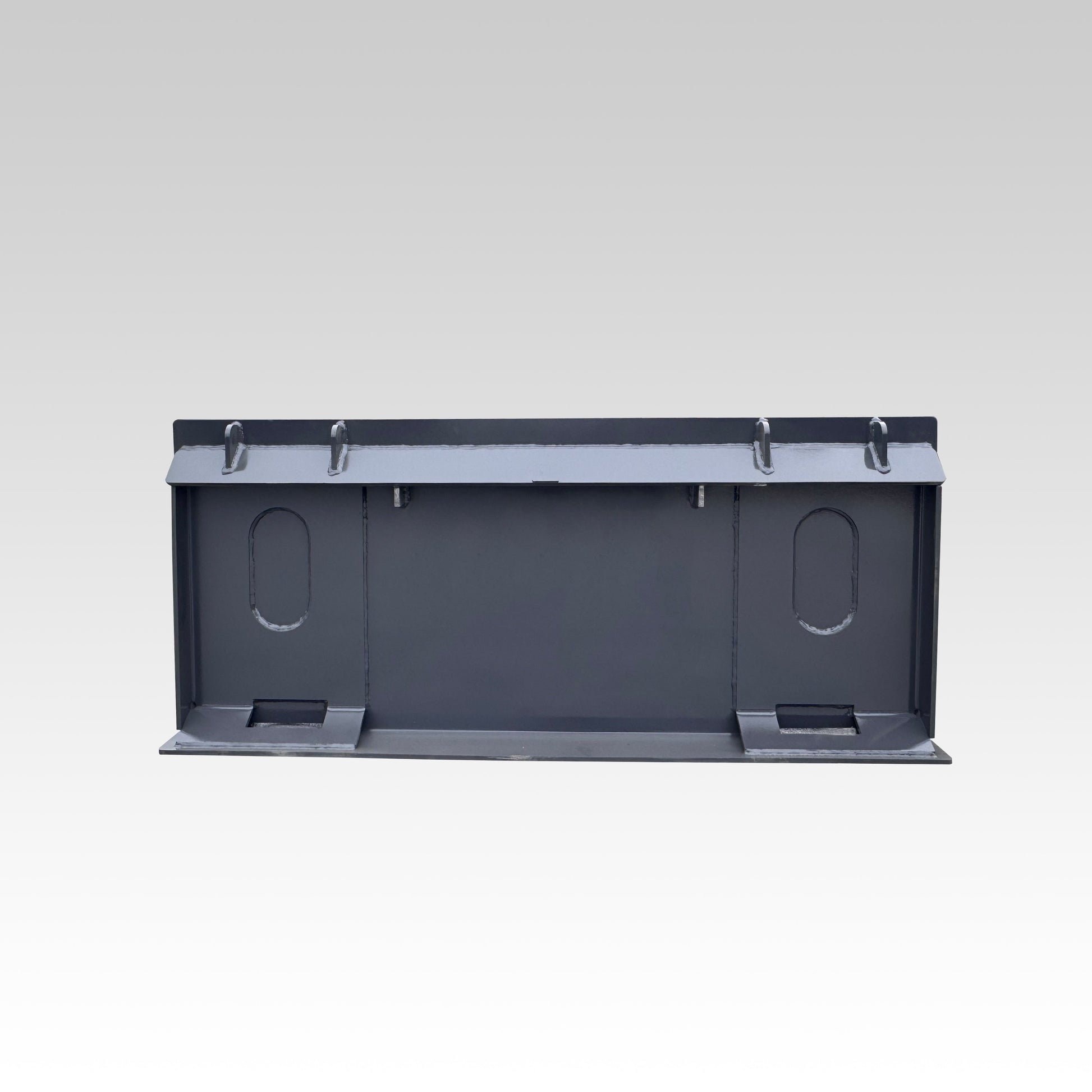

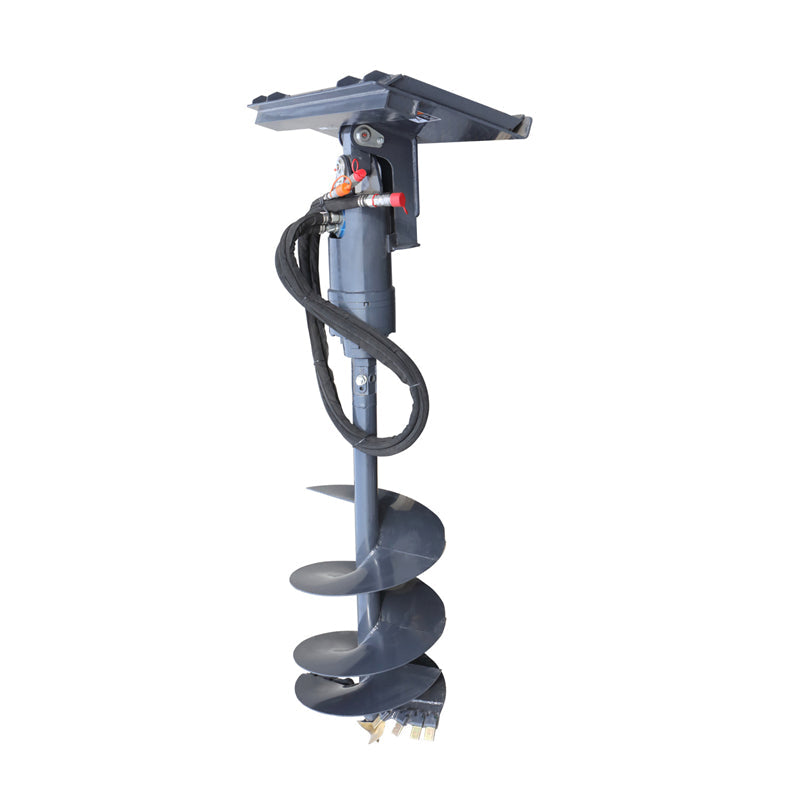

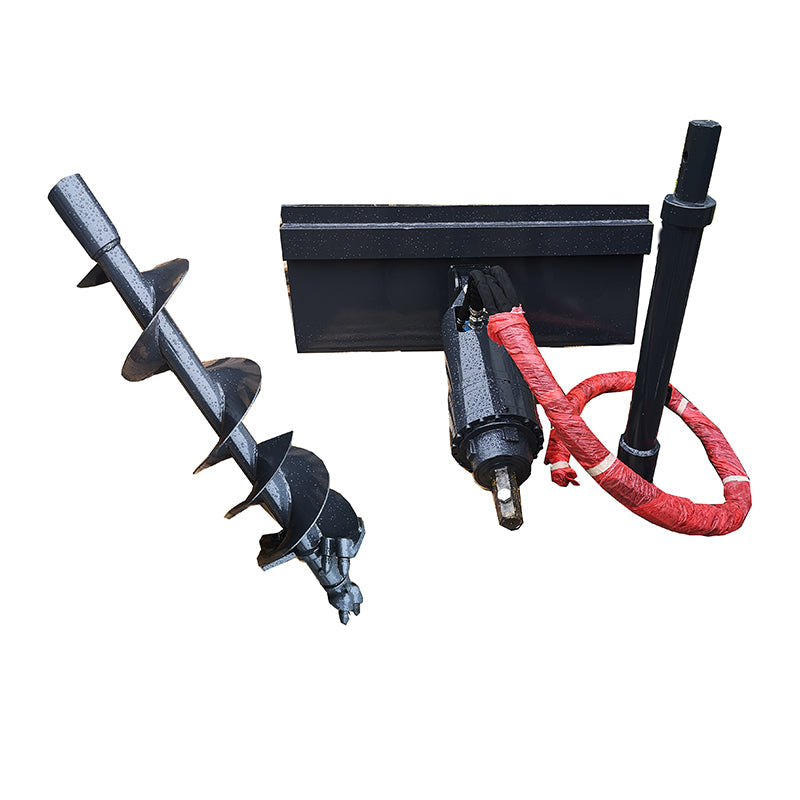

- The auger comes equipped with all necessary components, including hoses and flat-faced couplers, for straightforward, hassle-free integration with skid steer loaders.
Specifications
| Model | 0510SD08 | 0510SD16 | 0510SD24 | 0510SD32 | 0510SD40 |
|---|---|---|---|---|---|
| Overall Length (in) | 9.53 | 12.09 | 12.48 | 12.64 | 15.75 |
| Overall Width (in) | 7.24 | 9.45 | 9.33 | 9.65 | 12.28 |
| Over Height (in) | 72.99 | 75.83 | 80.24 | 84.57 | 100.79 |
| Weight (lbs) | 326 | 412 | 549 | 655 | 1098 |
| Work Flow (GPM) | 6.08 | 6.08 | 11.89 | 11.89 | 11.89 |
| Pressure (psi) | 2465.5 | 2254.5 | 2691.5 | 2465.5 | 2691.5 |
| Auger Diameter (in) | 1.97-11.81 | 3.94-15.75 | 3.94-19.69 | 3.94-27.56 | 3.94-39.37 |
| Rotational Speed | 42-152 | 20-73 | 31-107 | 20-72 | 11-37 |
| Max. Digging Depth (ft) | 5.25 | 6.89 | 7.87 | 9.84 | 17.39 |
| Output Shaft Size (in) | 2 | 2 | 2 | 2.5 | 2.6 |
| Length (ft) | 4 | 4 | 4 | 4.92 | 4.92 |
| Auger Dia. (in) | 7.87 | 15.75 | 23.62 | 31.5 | 39.37 |
Performance Introduction

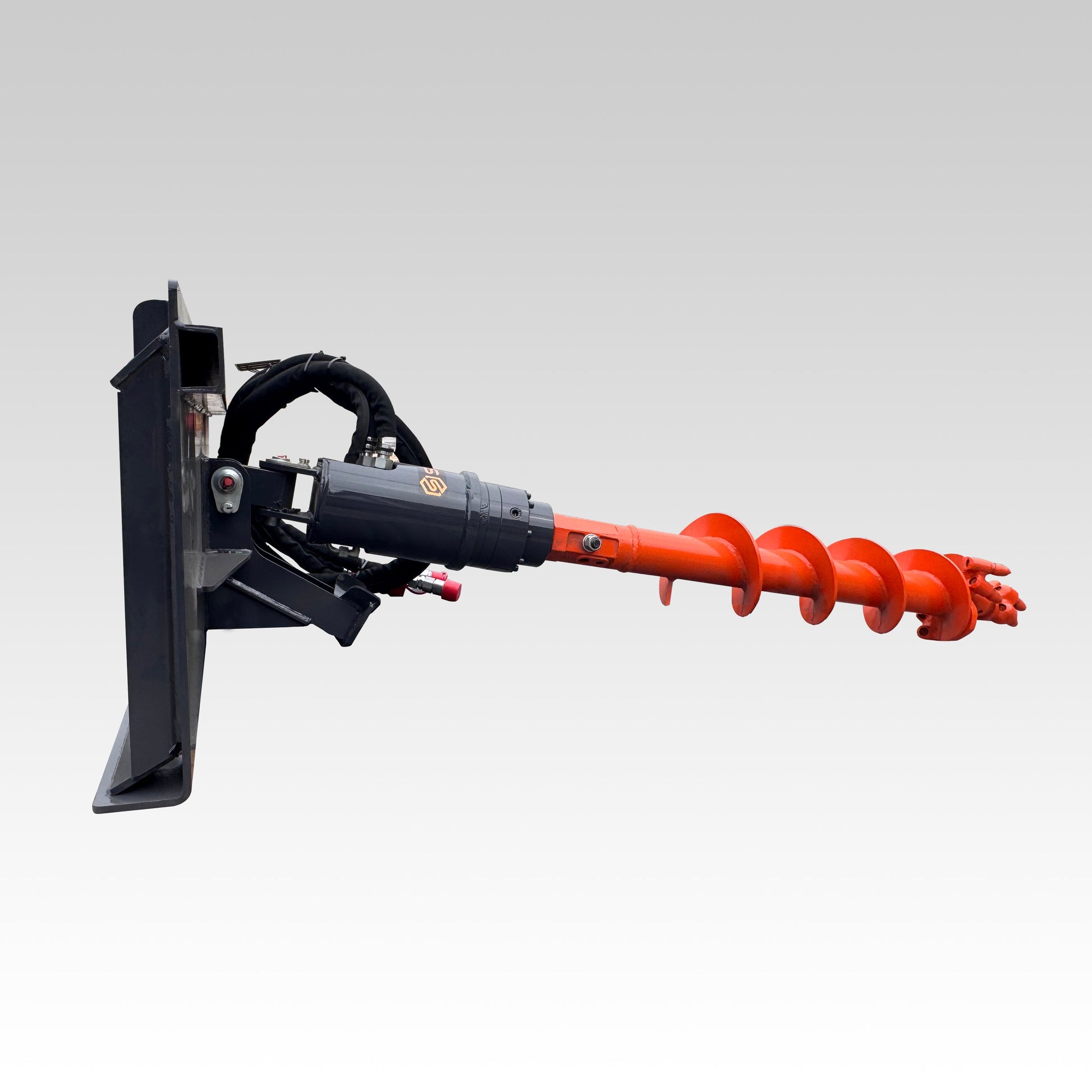

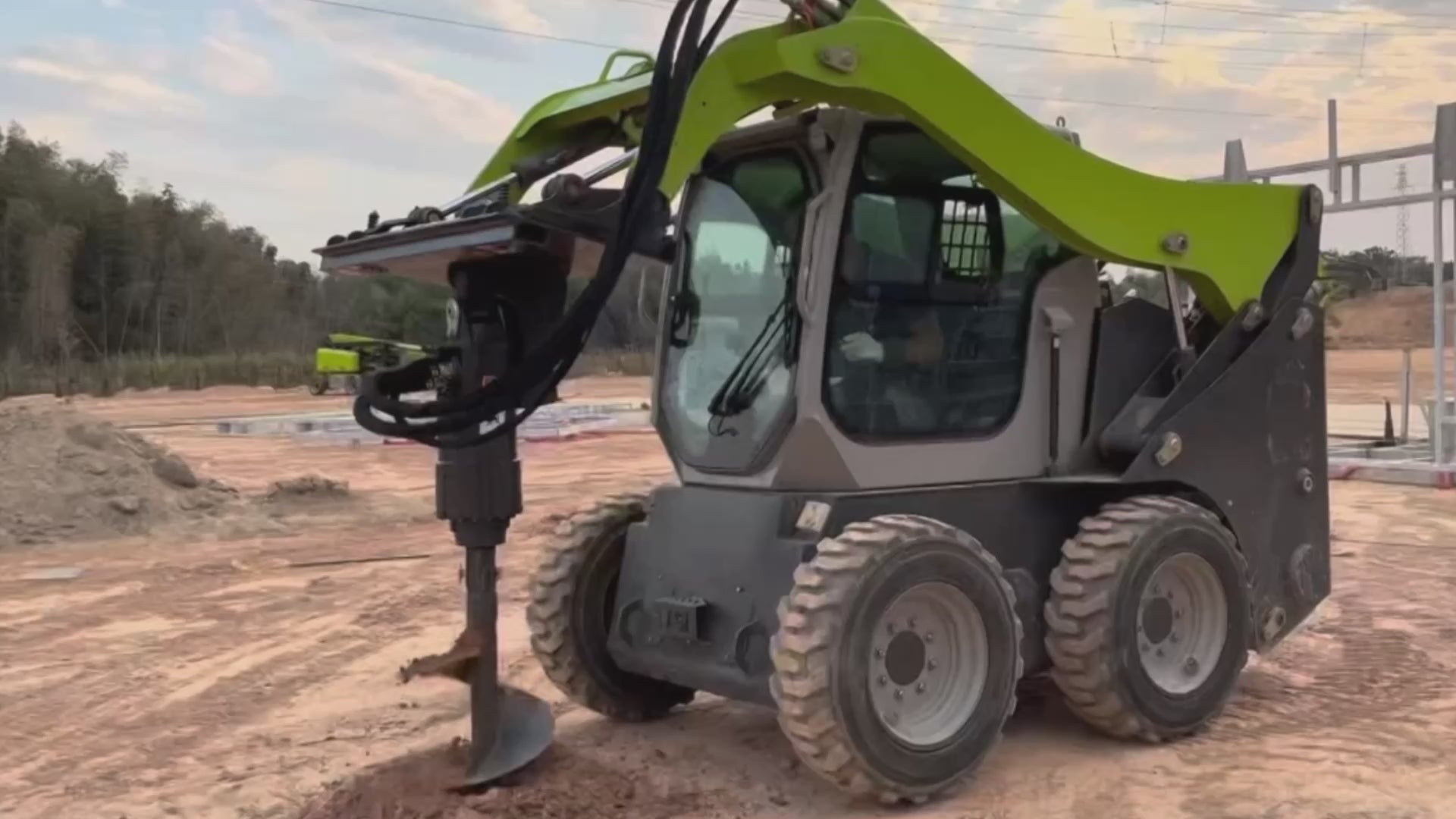

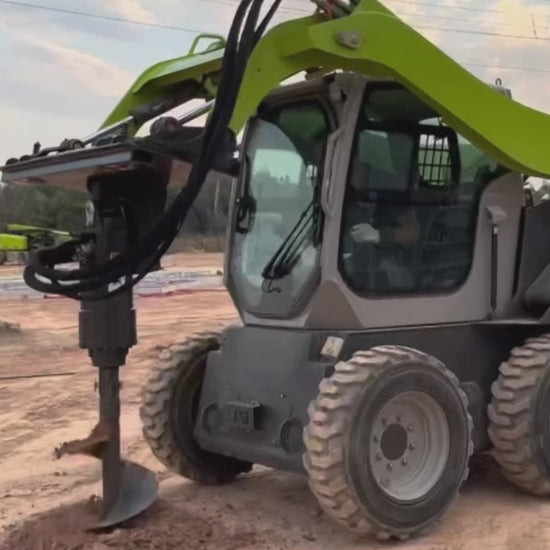

- The BeyondTech skid steer earth auger is a professional-grade solution for drilling flawless holes in clay, rock, gravel, or loam. Smooth power transmission plus a rugged housing means less heat, less wear, and a dramatically longer service life than belt- or chain-drive units.

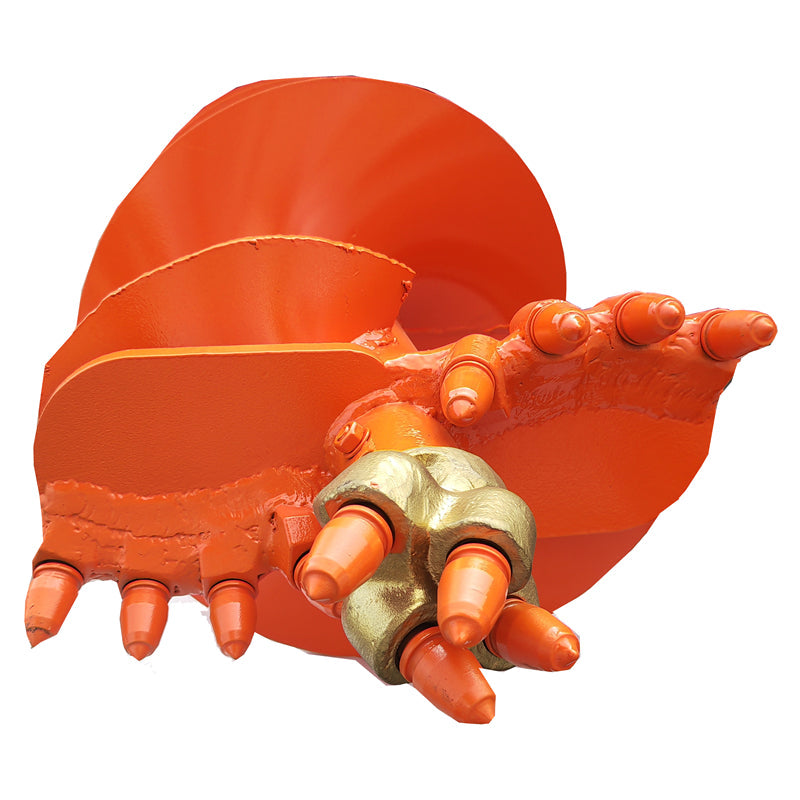

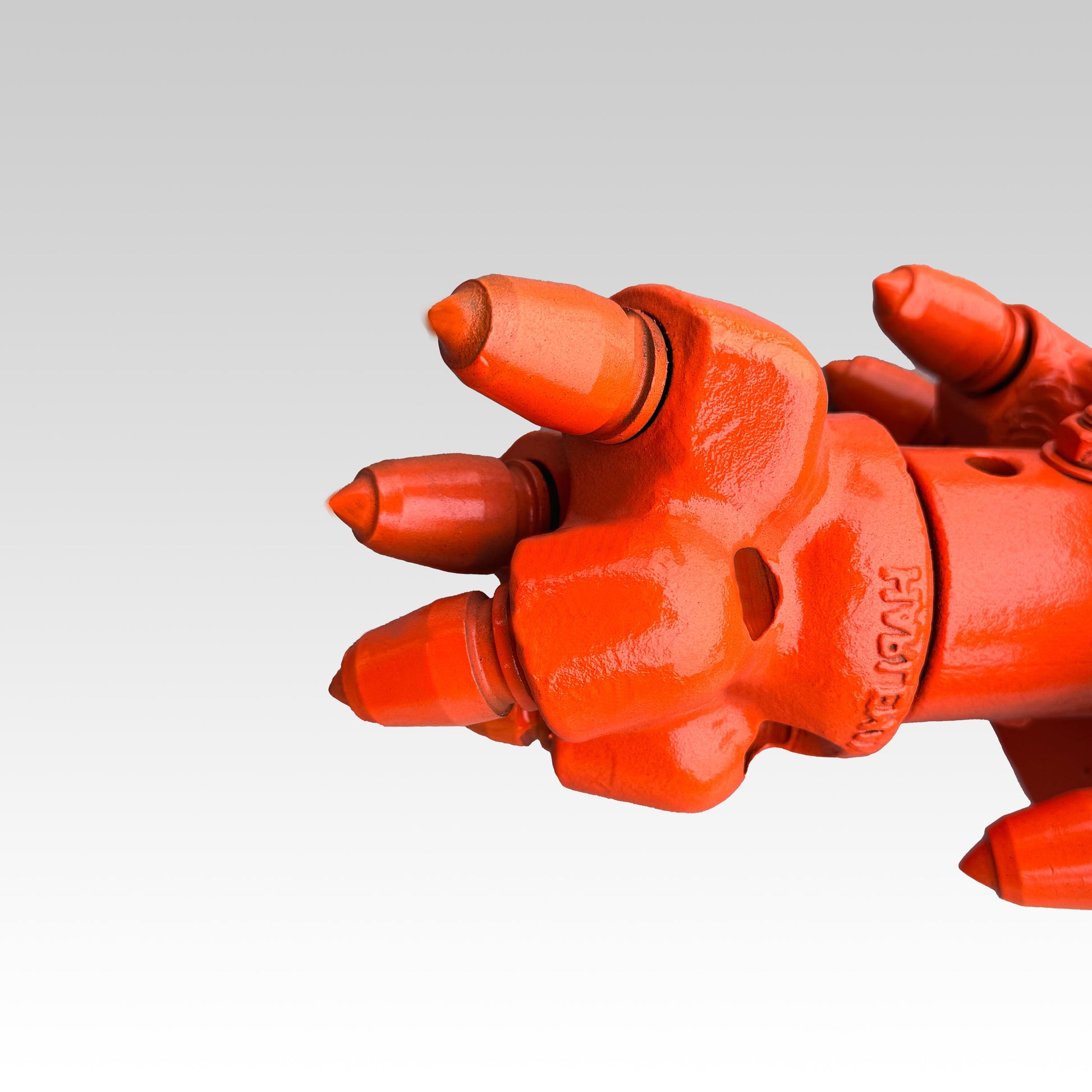

- A hardened locking collar locks the bit to the drive head, eliminating the swing and wobble that plague lesser tools—so every fence-post, deck-footing, or utility-pole hole stays perfectly true. Flip the joystick and the forward / reverse auger drive backs the bit out cleanly, speeding production in sticky clay or frost. Two replaceable, heavy-duty blades ride the continuous-spiral, anti-clog flighting, clearing spoil fast and keeping the cutting edge biting instead of packing.
- Whether you run a farm fleet, a landscape crew, a municipal maintenance yard, or a rental store, the BeyondTech heavy-duty hydraulic earth auger delivers the high torque, low-maintenance performance that professionals trust for high-volume, all-terrain drilling. Attach it once—then dig, set, and repeat with
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
