HCN Industry

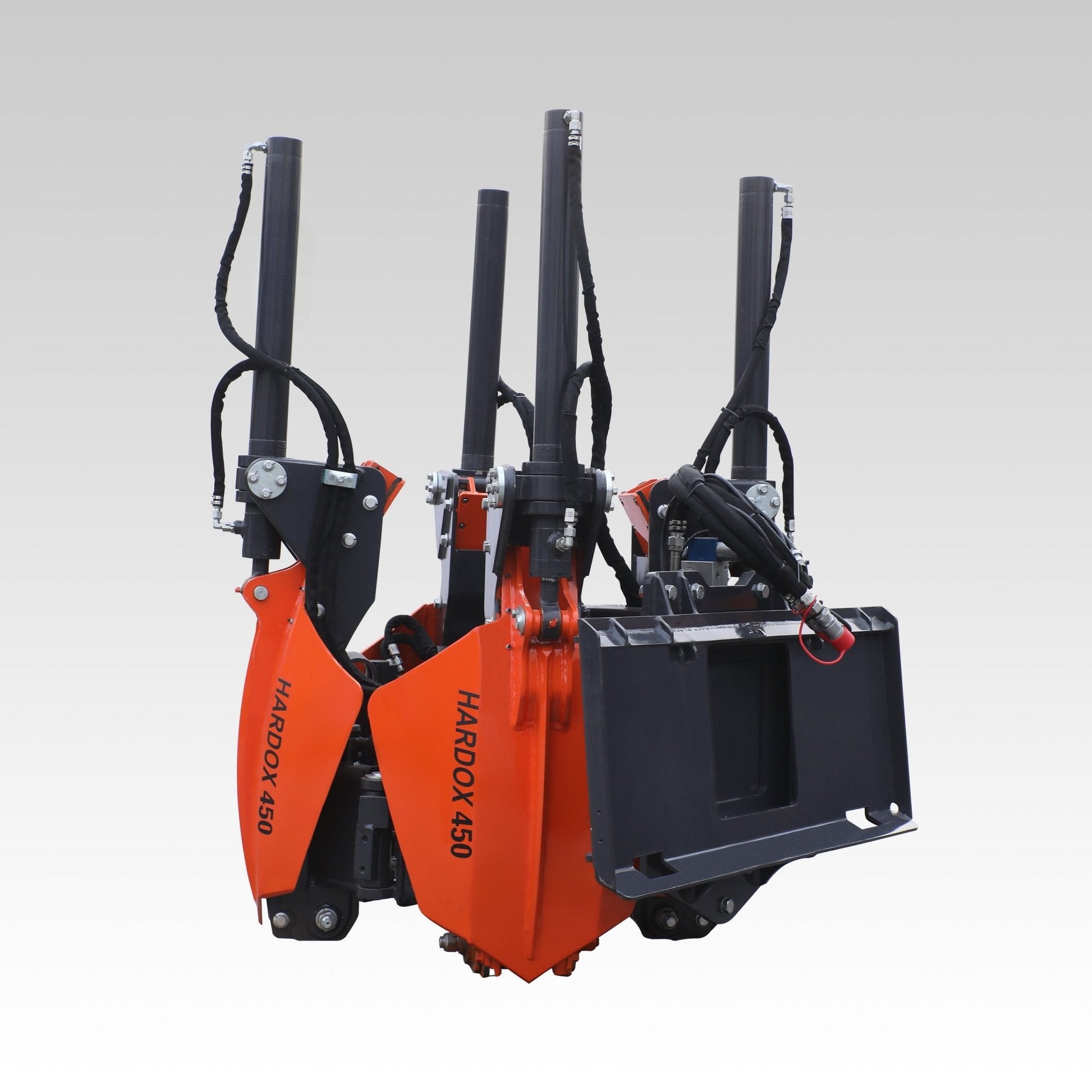

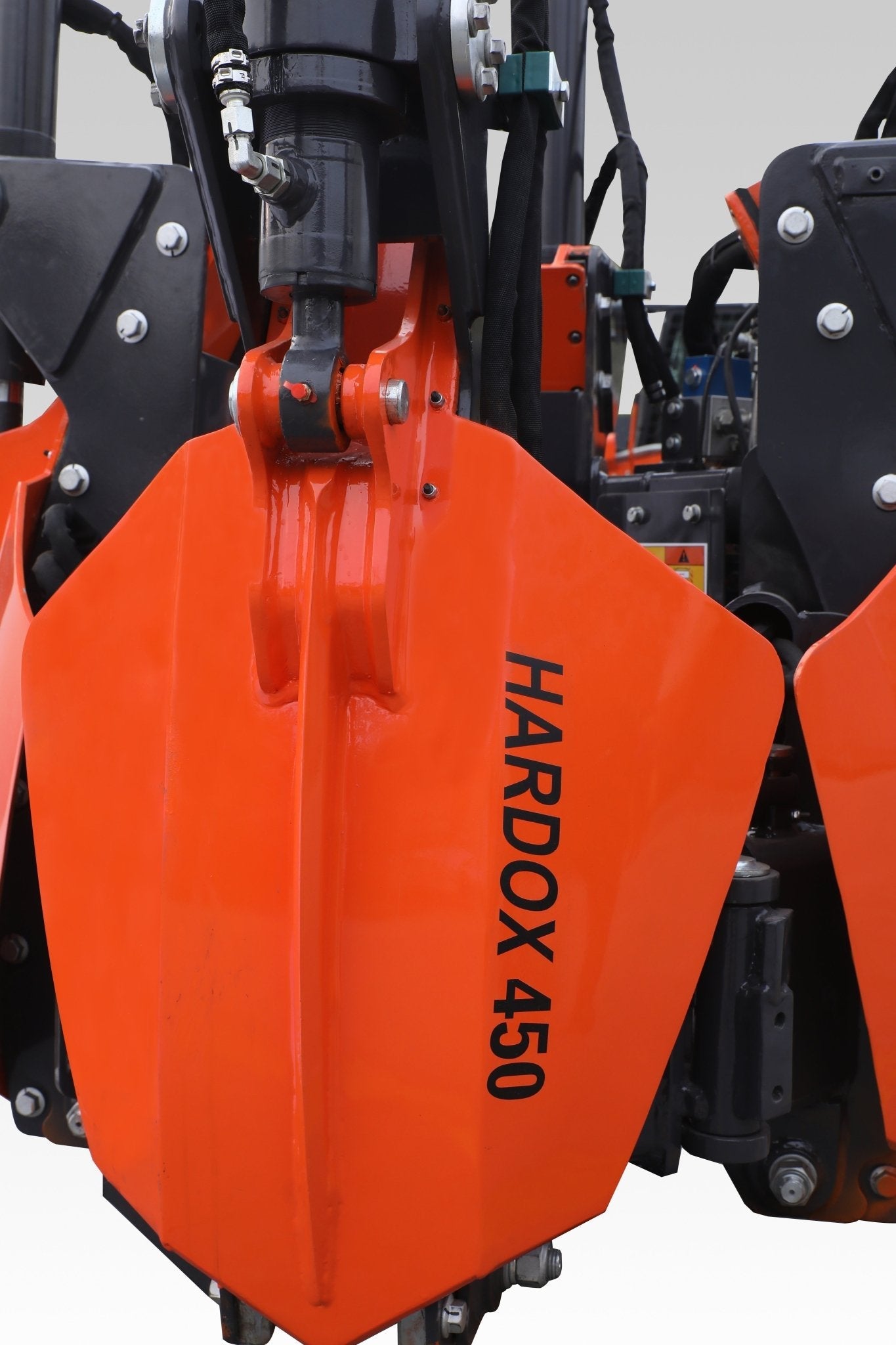

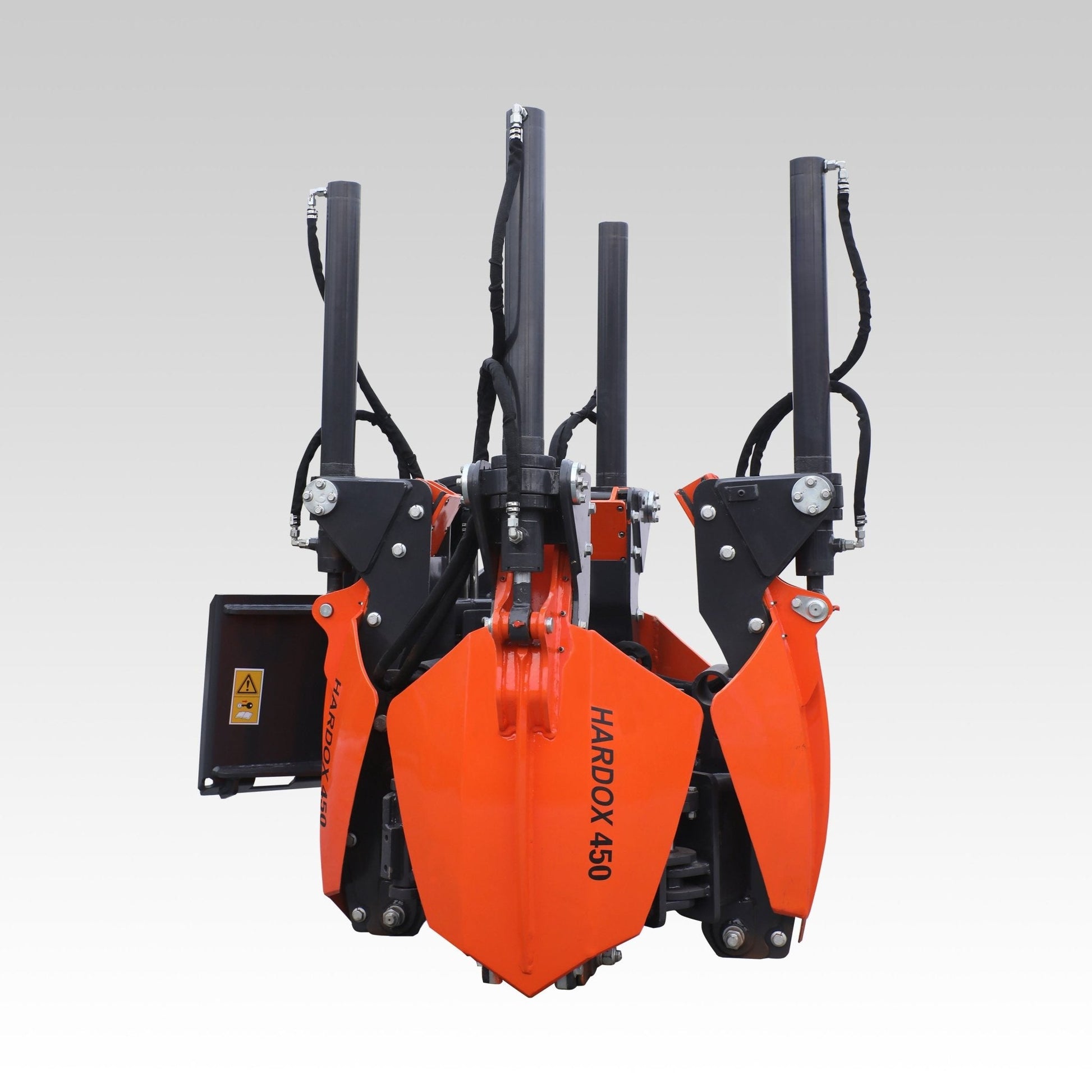

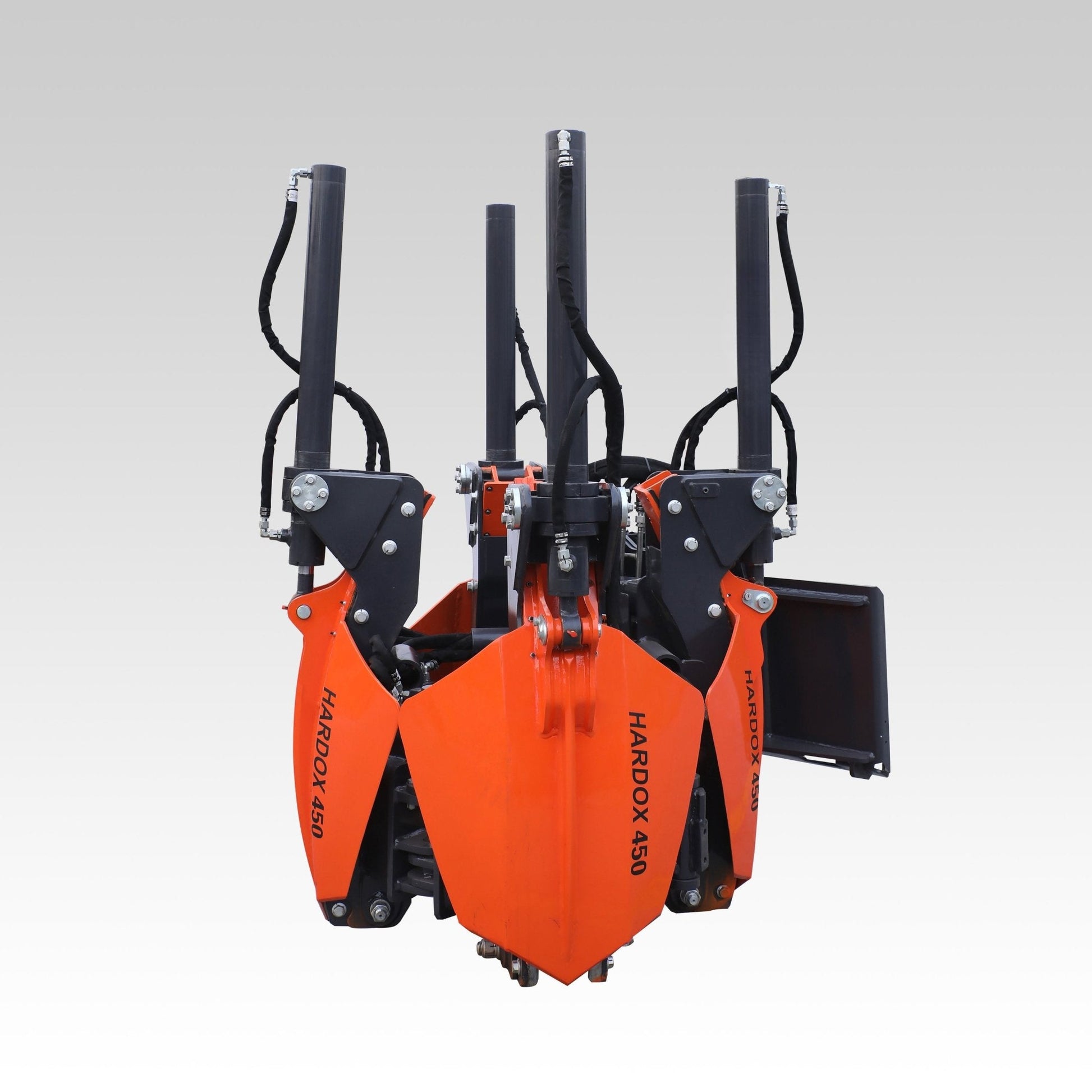

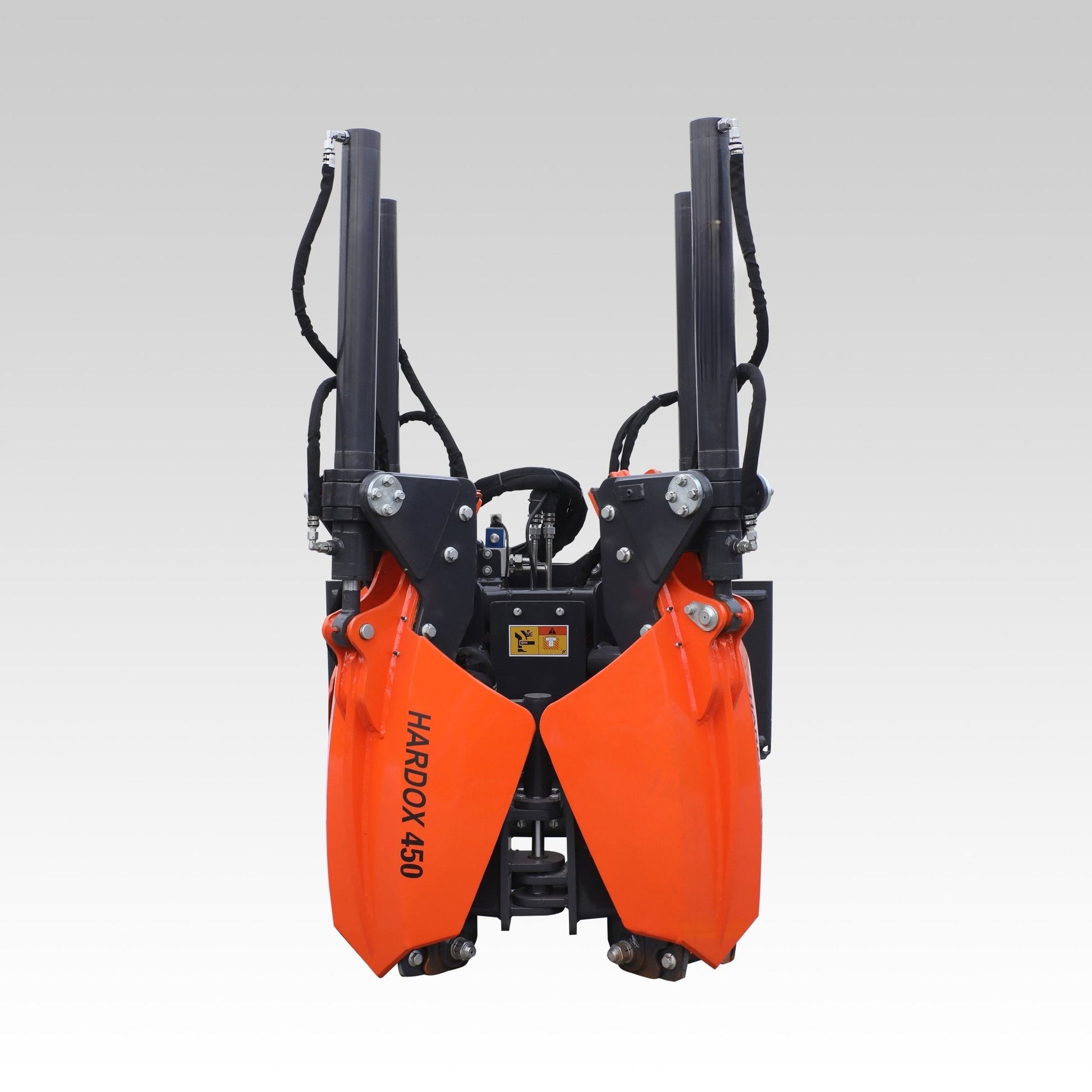

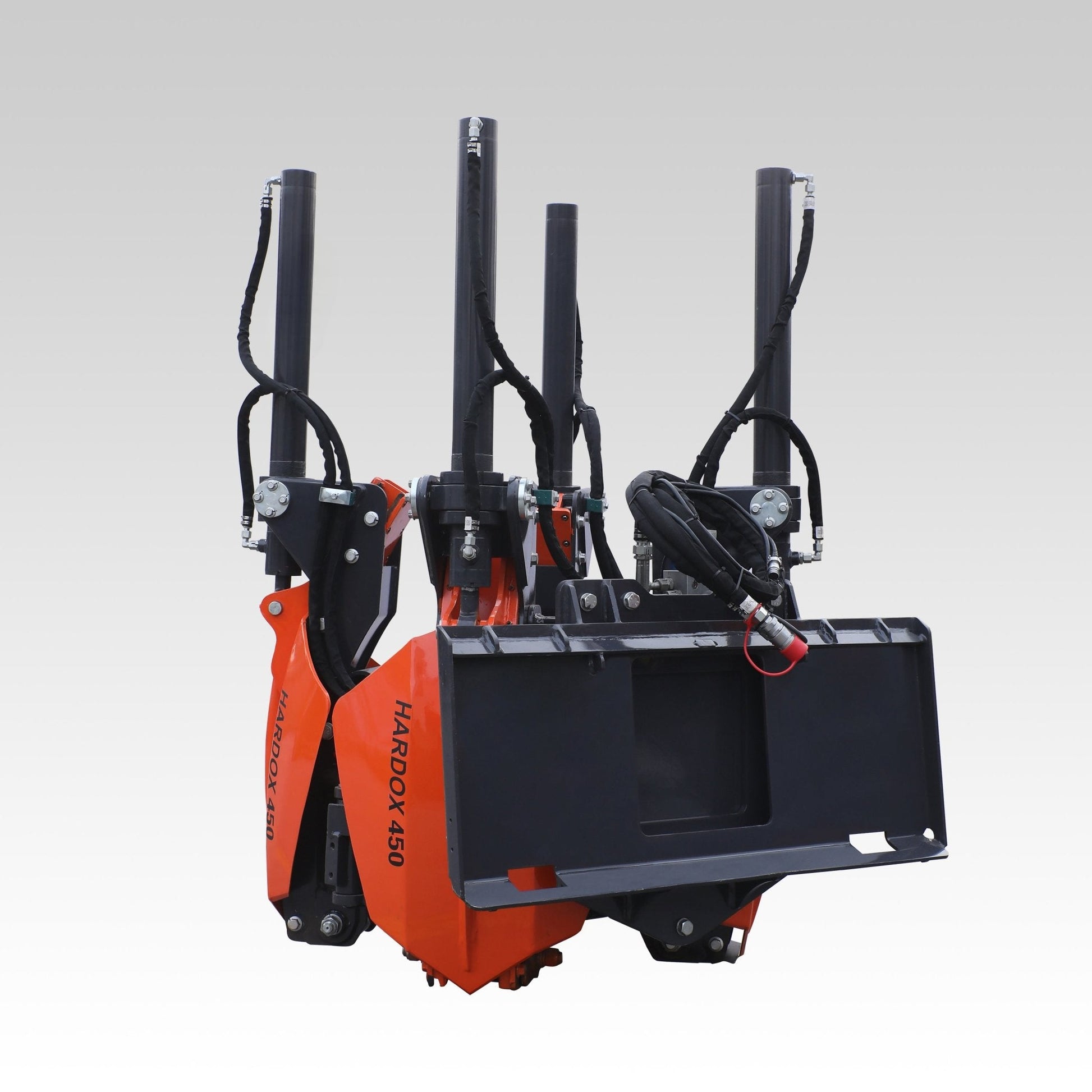

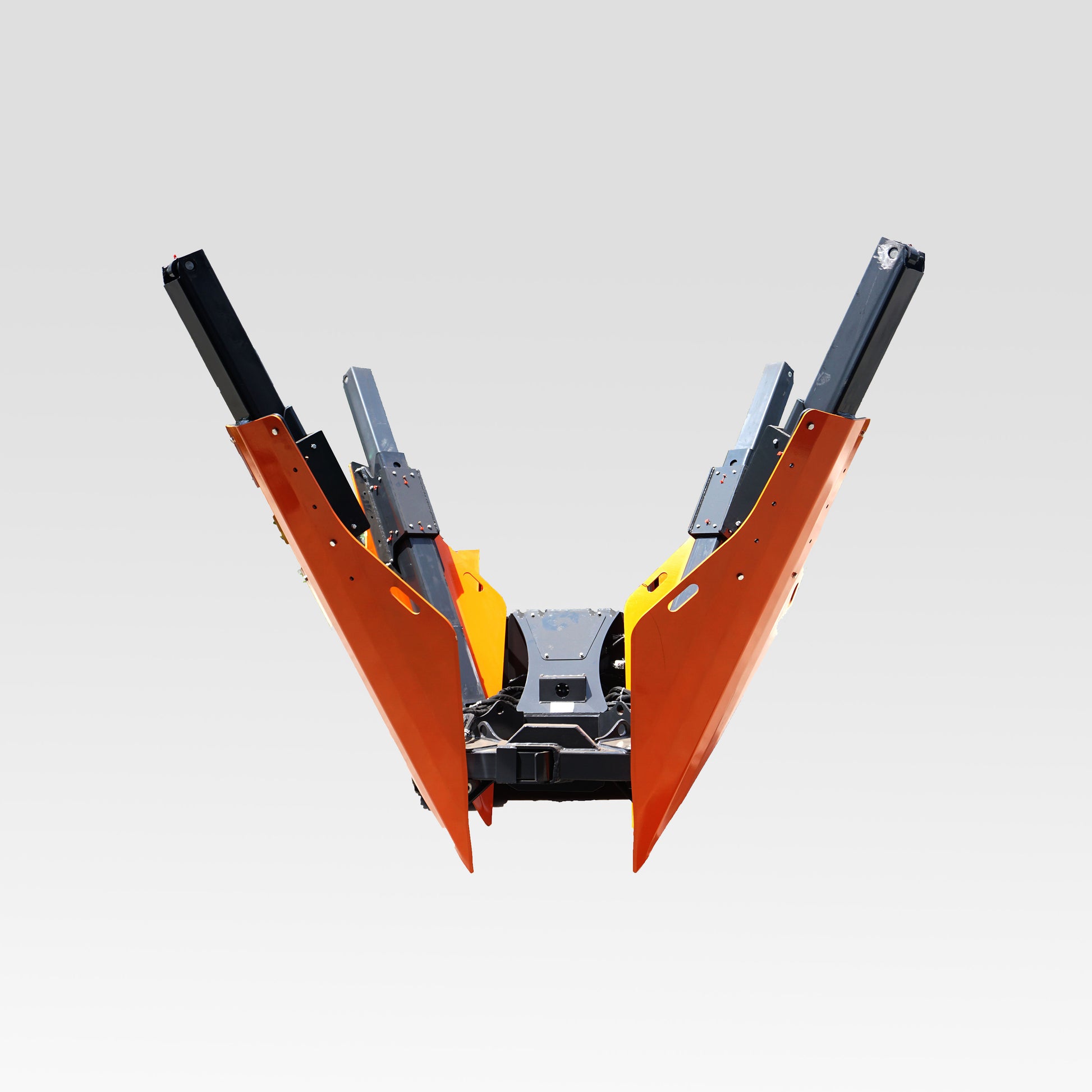

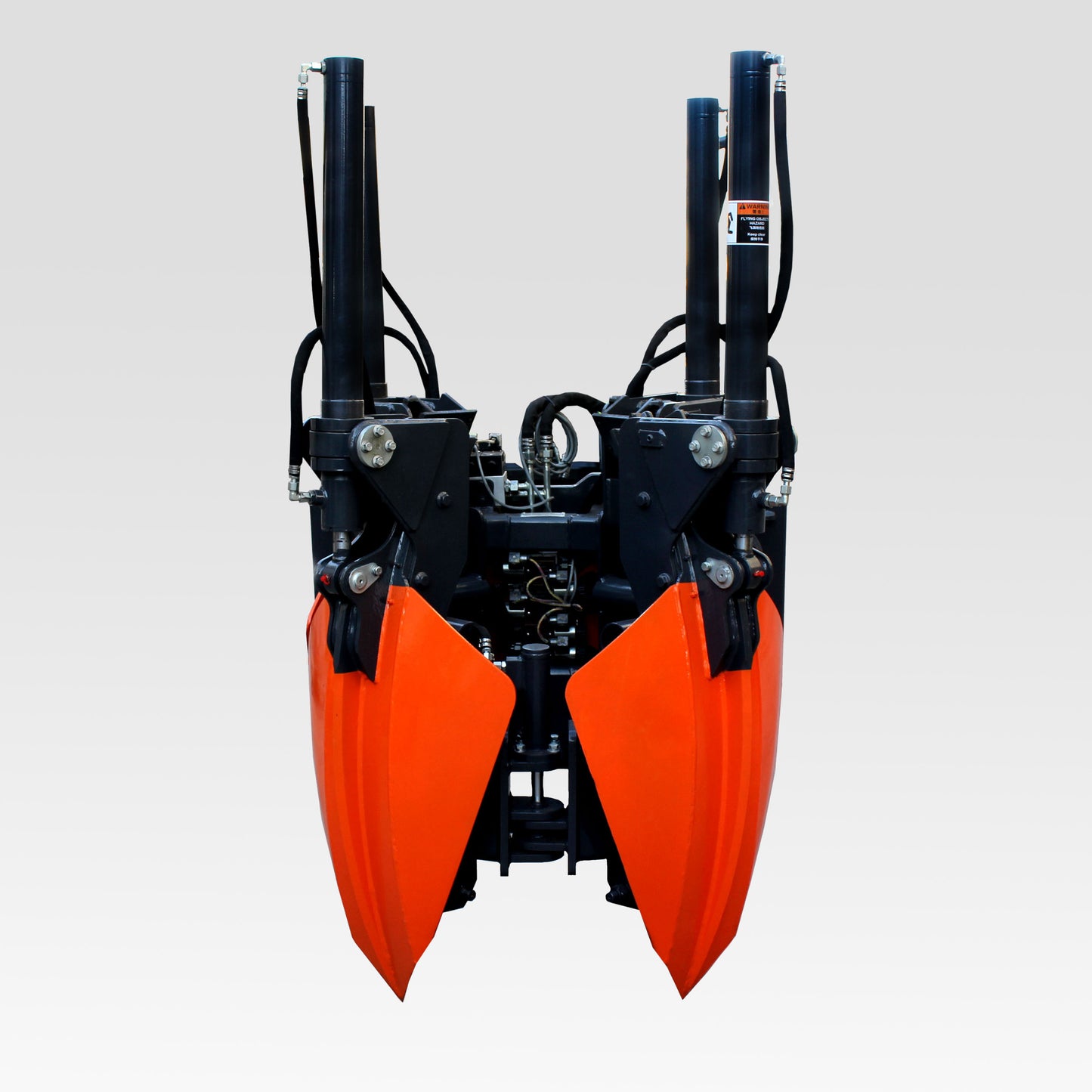

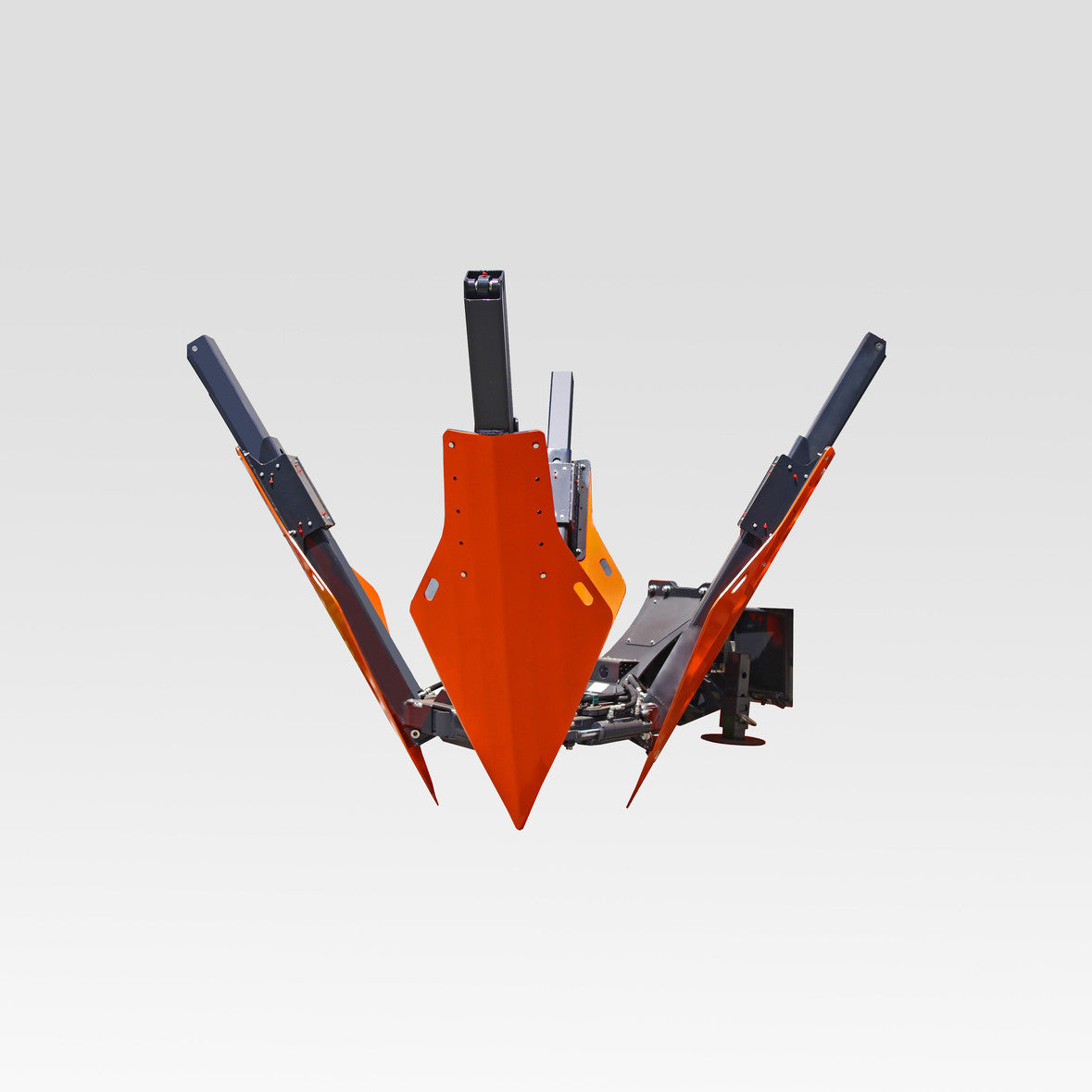

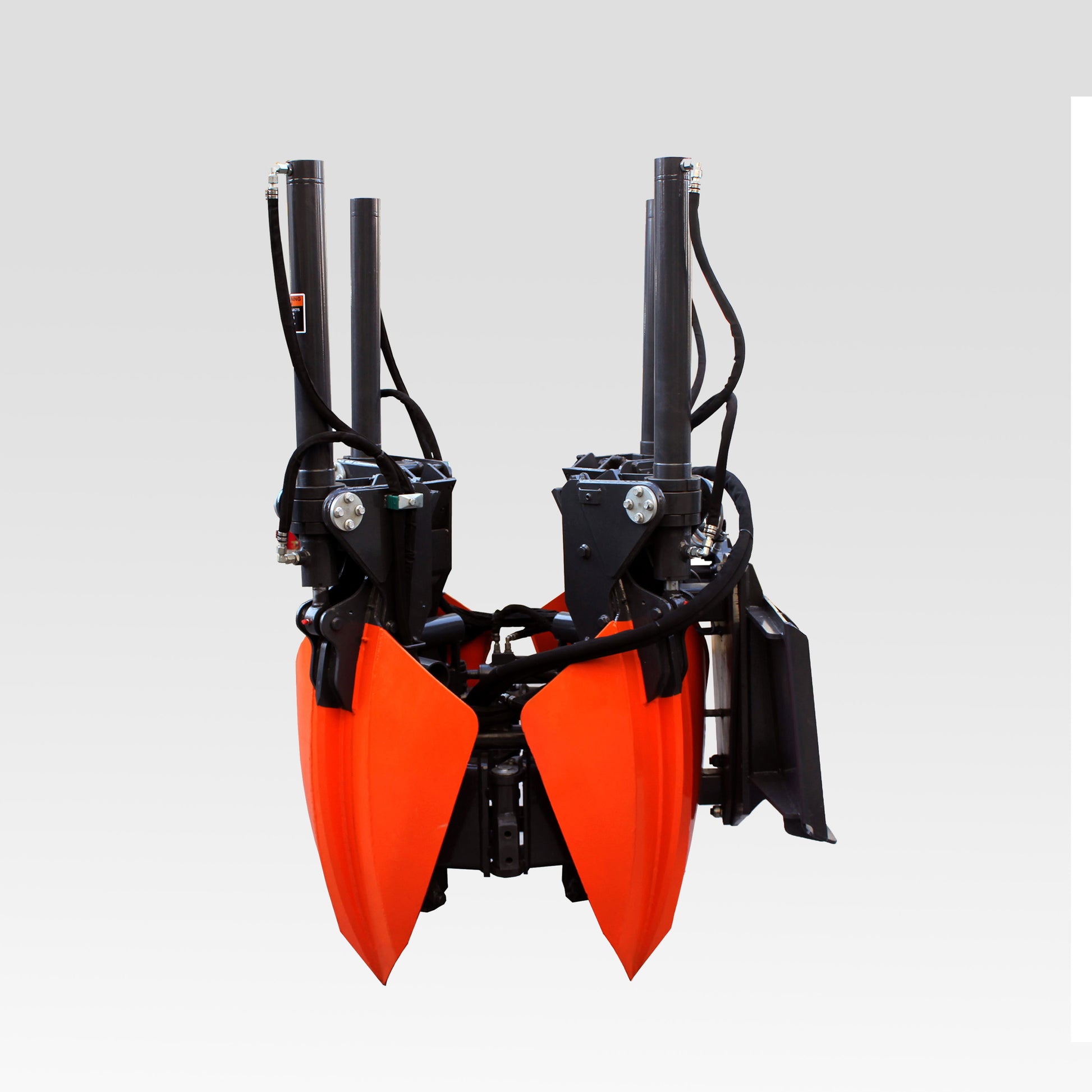

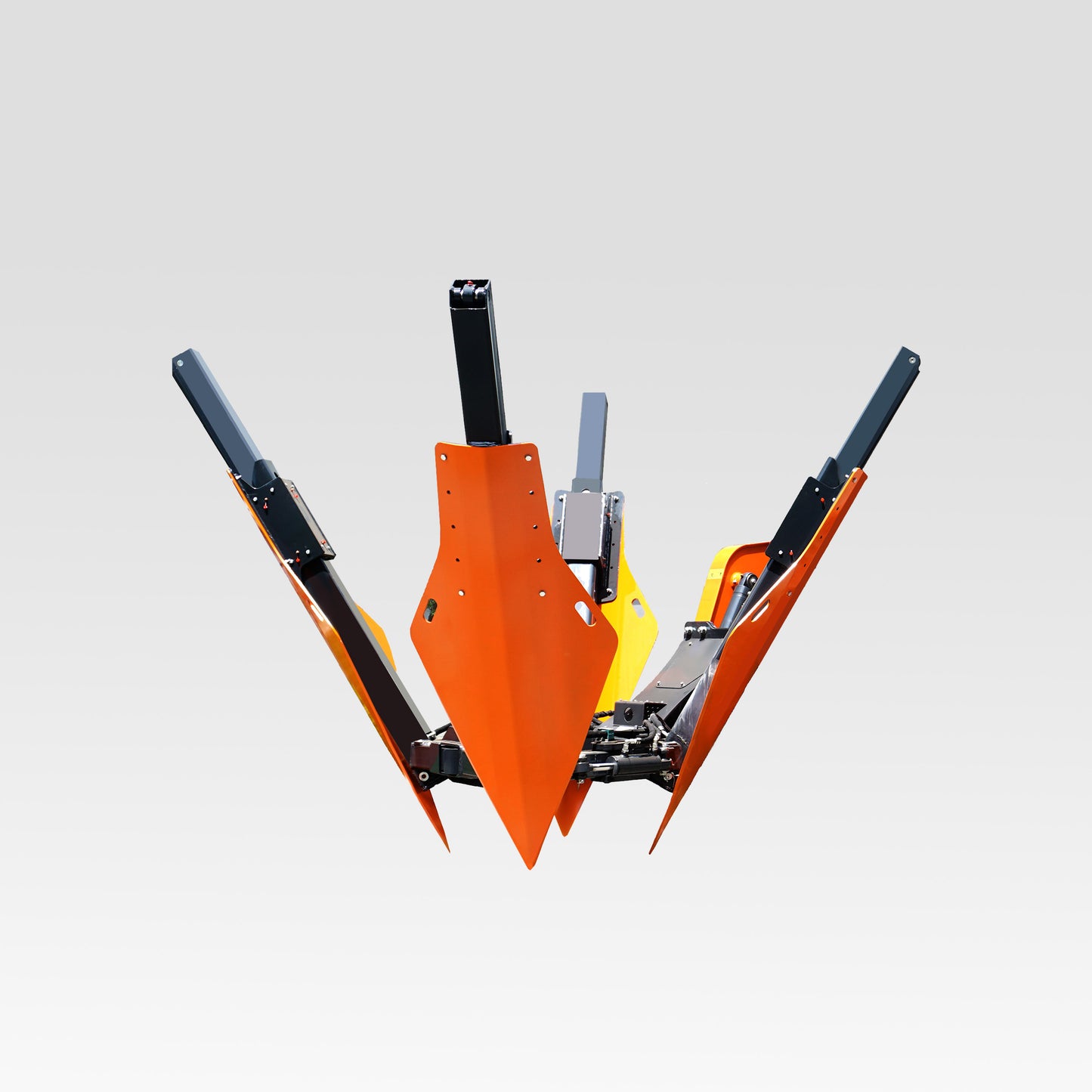

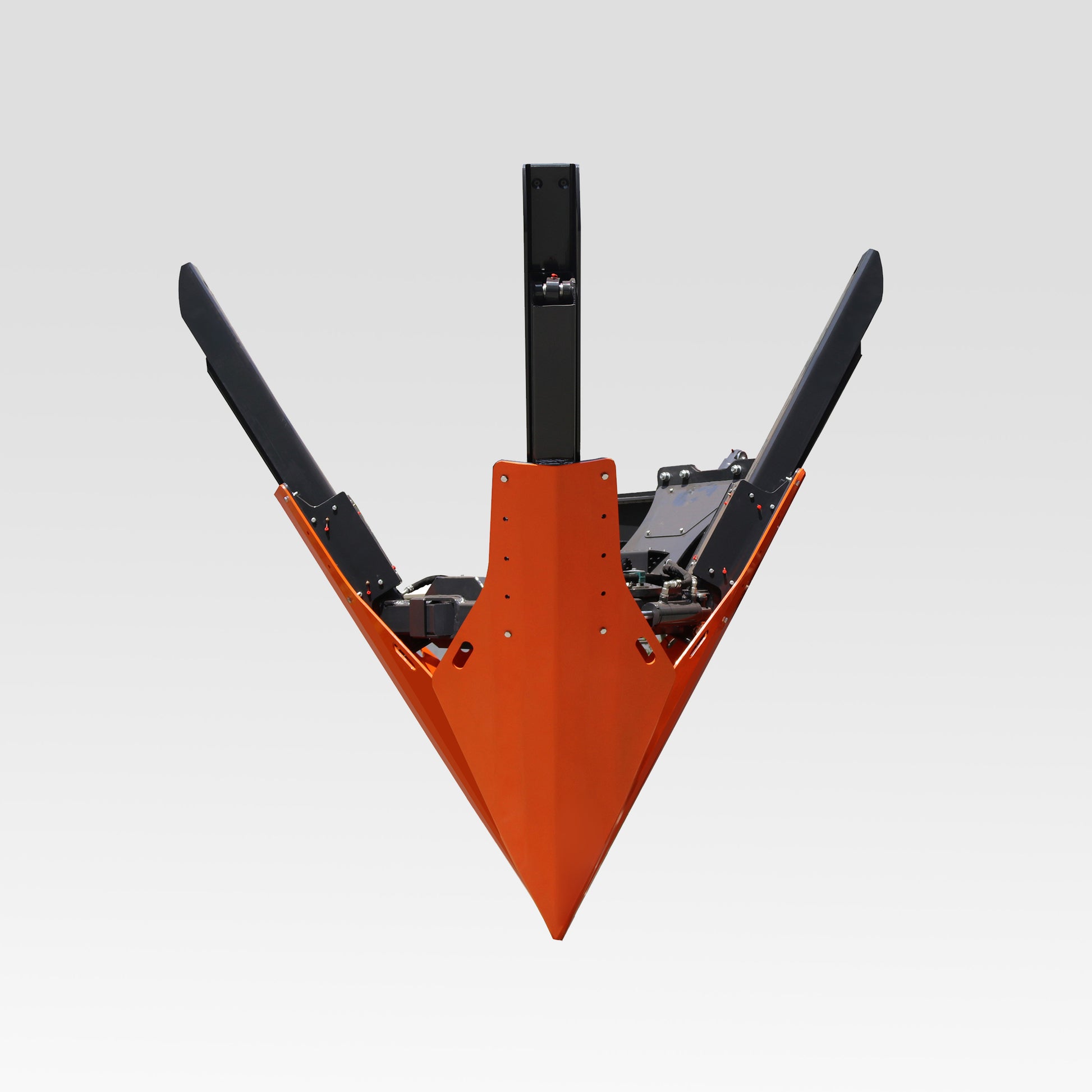

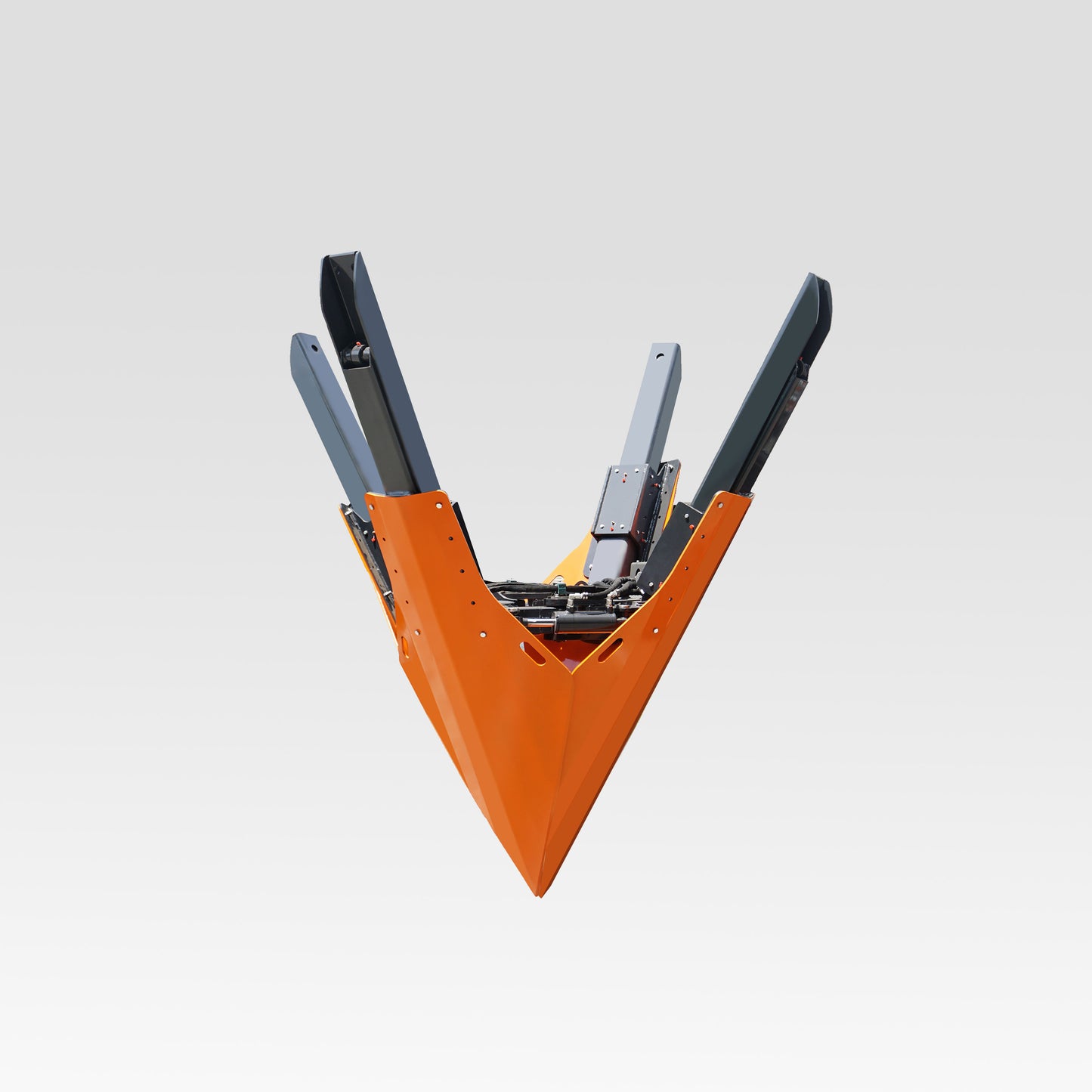

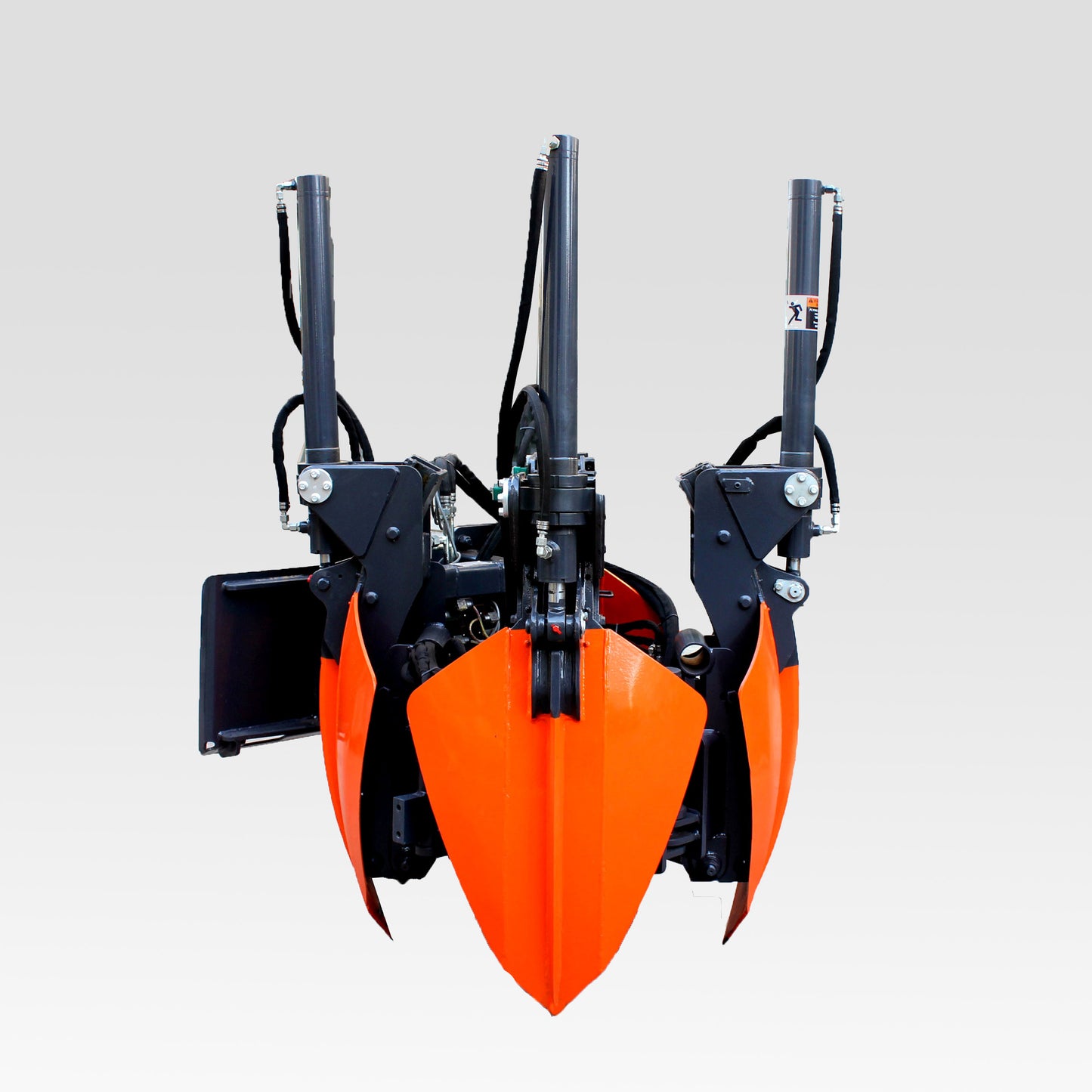

HCN Skid Steer Tree Spade, 33"-45" Root Ball Diameter, 4 HARDOX steel blades

HCN Skid Steer Tree Spade, 33"-45" Root Ball Diameter, 4 HARDOX steel blades

$17,899.00 CAD
$17,899.00 CAD $17,899.00 CAD
Sale Sold out
Model
  • The HCN Tree Spade is designed for efficient excavation, transportation, and planting of small-diameter trees.
  • With features like easy installation, flexible operation, high efficiency, and reliable performance, it enables operators to complete digging, transporting, and planting tasks without leaving the main machine.
  • The conical-shaped soil ball minimizes damage to the root system and preserves the surrounding soil structure, ensuring the tree's survival.
  • Suitable for trees with horizontally growing roots, it requires adjustable pressure and a reversible oil supply when adapted to an excavator, offering versatility and superior functionality.
View full details
Product Feature
  1. Perform tree operations effortlessly: dig, transplant, and load with ease.
  2. Achieve greater mobility and productivity compared to tractor, truck, or trailer-mounted units.
  3. Choose from five sizes and three spade shapes to suit your needs.
  4. Enjoy easy access to trees with the open design.
  5. Versatile adjustable legs accommodate five different types of tree balls.
Specifications
Model 050336 0503A44 0503C36 0503C36A 0503D44
Overall Length (in) 65.2 83.1 41 41 88.6
Overall Width (in) 62.8 83.1 62 62 88.6
Weight (lbs) 1874 2200 1742 1742 2205
Fit Tree Diameter (in) ≤ 3.94 ≤ 4.72 ≤ 3.94 ≤ 3.94 ≤47.2
Ball Diameters Available (in) ≤ 33.5 ≤ 43.7 ≤ 34.6 ≤ 34.6 φ45.3/φ40.6/φ35.4
Digging Depth (in) ≤ 28.3 ≤ 39.4 ≤ 27.6 ≤ 22.2 30.3/26.4/22.4
Operating Pressure (psi) 3046 3046 3046 3046 3046
Operating Voltage (V) DC12/DC24 DC12/DC24 DC12/DC24 DC12/DC24 DC12/DC24
Liter Highest Total Height Blade (in) 73.6 101.4 66 　
Lowest Total Height Blade (in) 73.6 100.6 　 　
Optional accessories (1)Optional support；
(2)Optional mechanical or
hydraulic legs
(mounted on the
back of the loader)		 　 (1)Optional support；
(2)Optional mechanical
or hydraulic legs
(mounted on the
back of the loader)		 　
Hydraulic outriggers Required for skid steer loaders
(not required for remaining models)
Suit machine Skid loader/wheel loader Skid loader/wheel loader ≥75KW Skid Steer Loader/
Wheel Loader/
≥7.5T(Excavator)		 　 Rated loads:
Skid steer loaders over 3527 lbs.
4409-6613 lbs. loaders
Excavators over 26,455 lbs
Performance Introduction

Fast, Operator-Friendly Dig–Transport–Plant

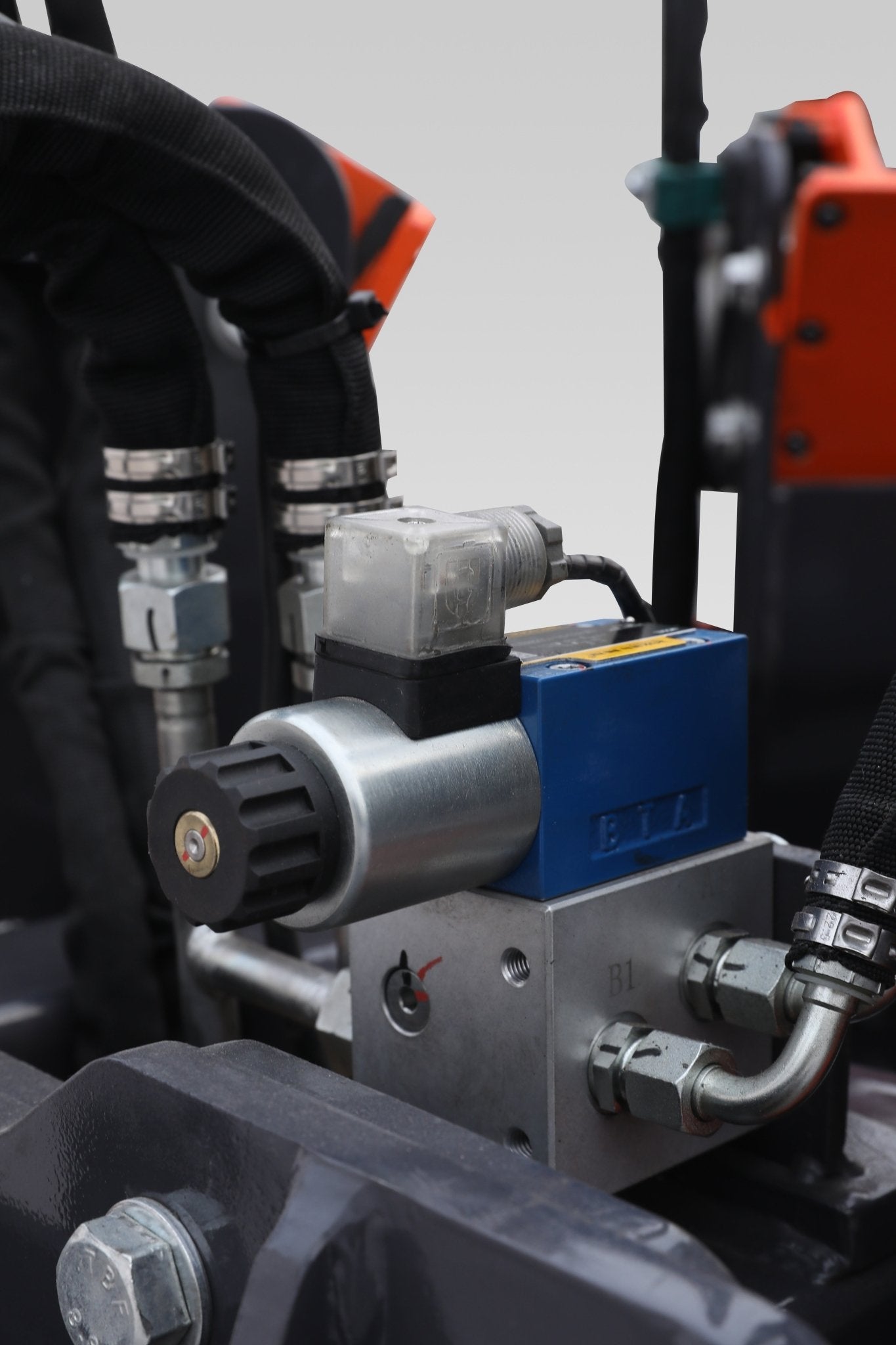

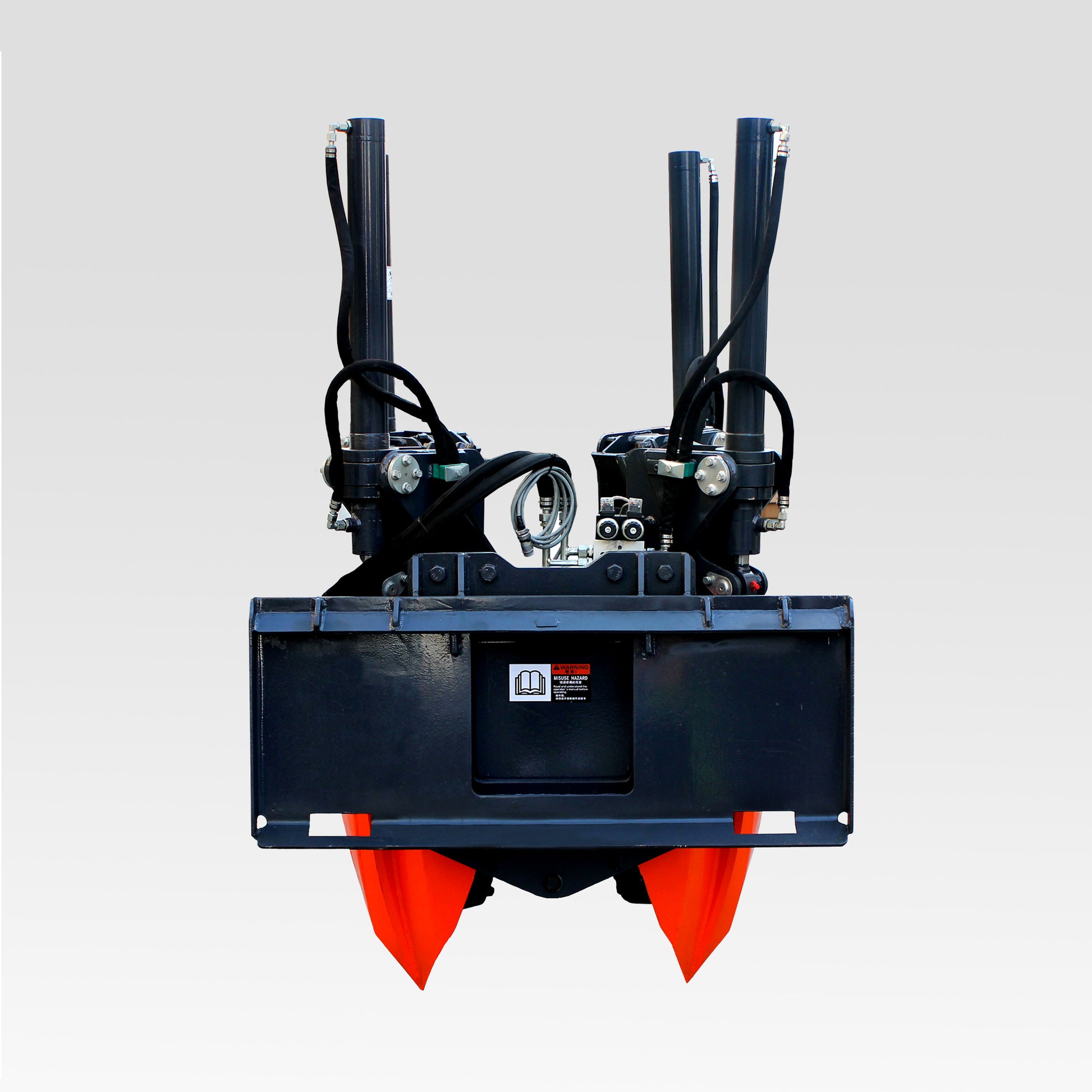

Slip the quick-attach tree spade onto a universal plate, snap the flat-face couplers, and the cab joystick now controls every hydraulic cylinder. With one on-seat motion you dig, clamp, lift, and package a tree—no ground crew, no shovel, and no time lost between machines. Need to switch carriers? The spade’s plumbing accepts reversible oil supply and adjustable pressure, so it doubles as an excavator-adaptable tree spade or tractor/truck-mount alternative without costly re-configuration.

Versatility for Five Ball Sizes

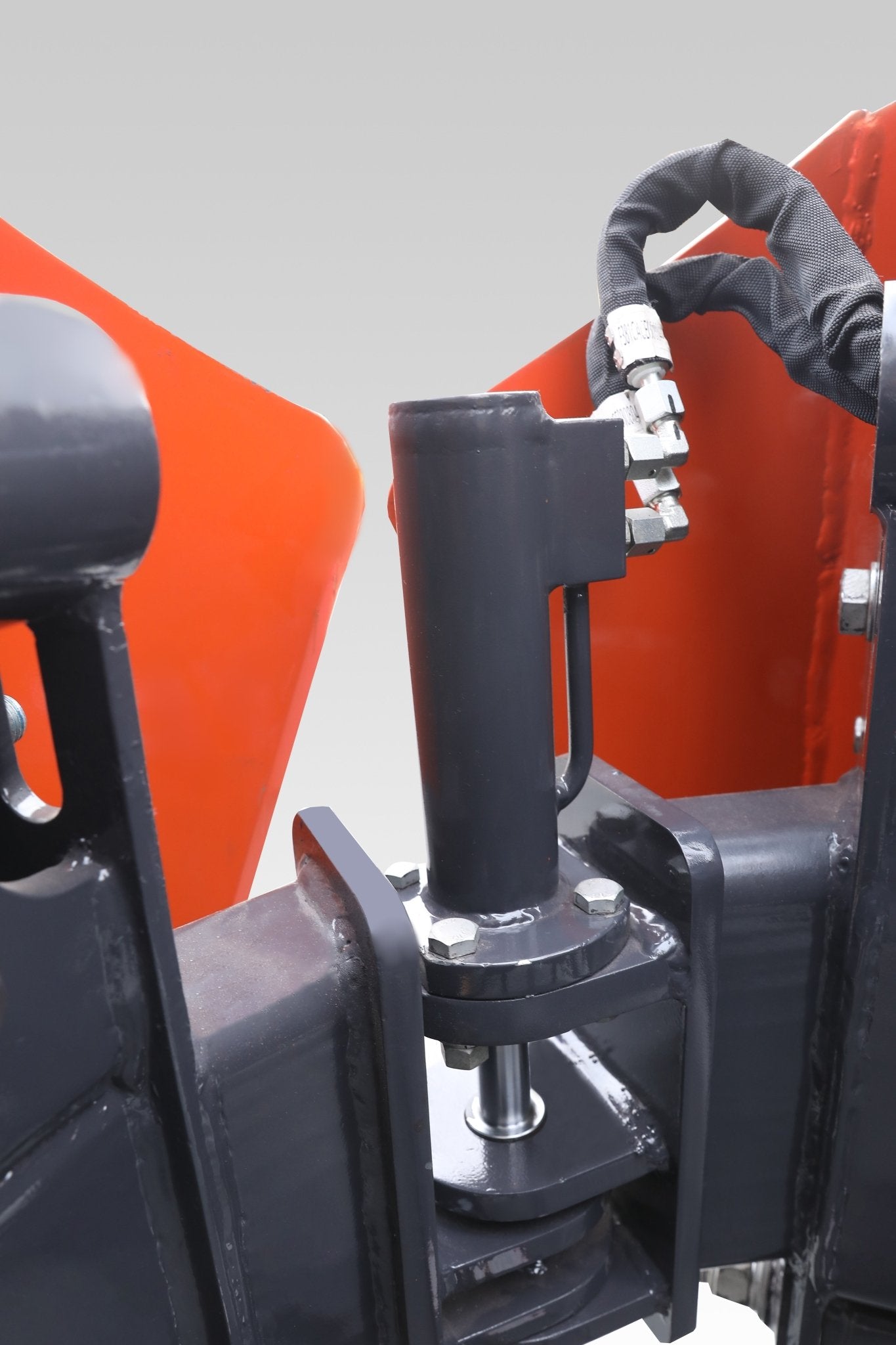

Telescoping legs and interchangeable pads let operators choose among five ball diameters, turning one multi-size tree spade into a transplant rig for small dogwoods, mid-sized maples, or densely planted hedge rows. The open-frame, short-tower tree spade provides clear sight lines for tight-space tree digging between nursery aisles or along golf-course fairways, while overlapping blades guarantee a clean cut and secure grip during high-speed moves across rough terrain.

Built to Work, Built to Last

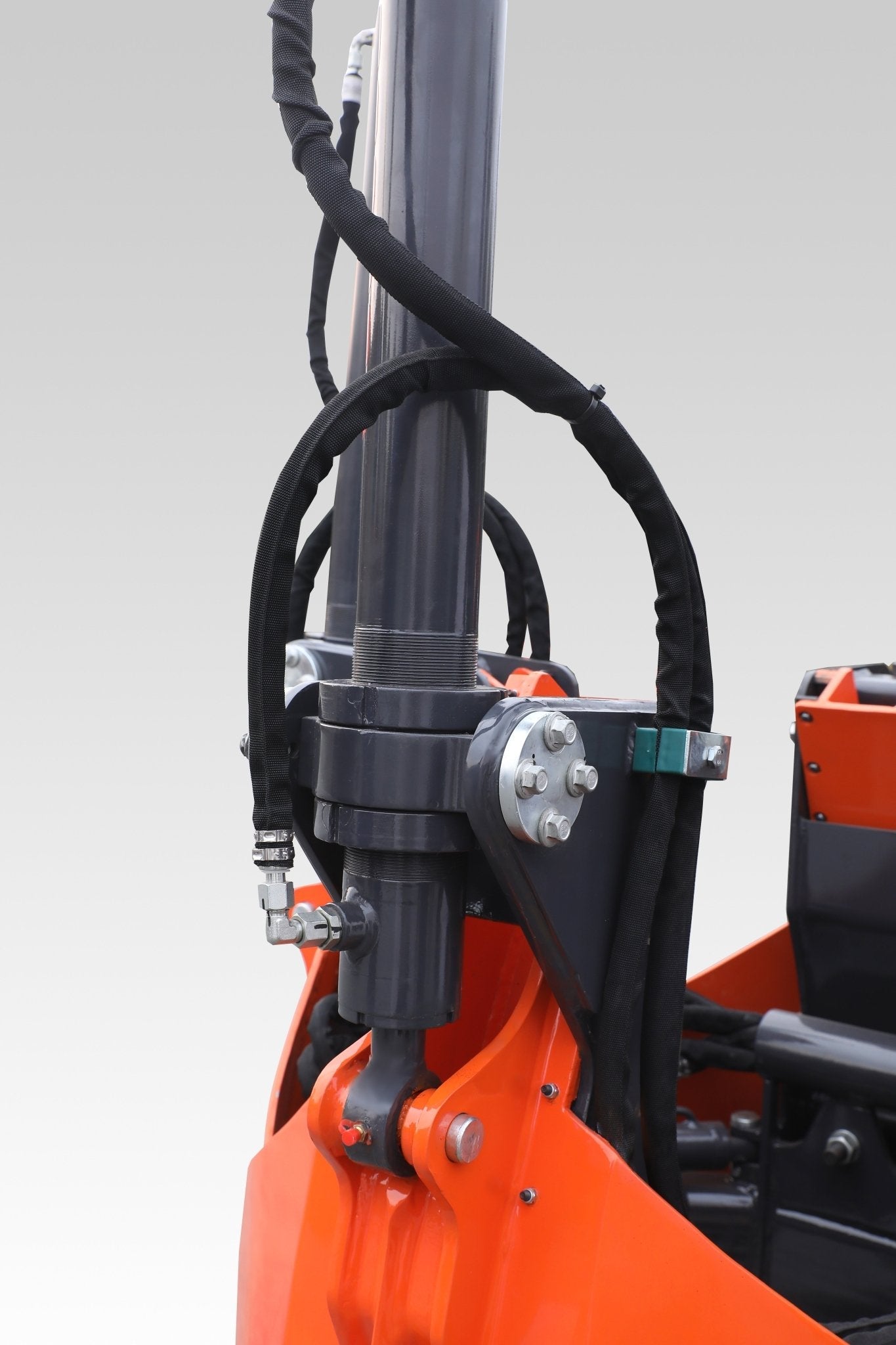

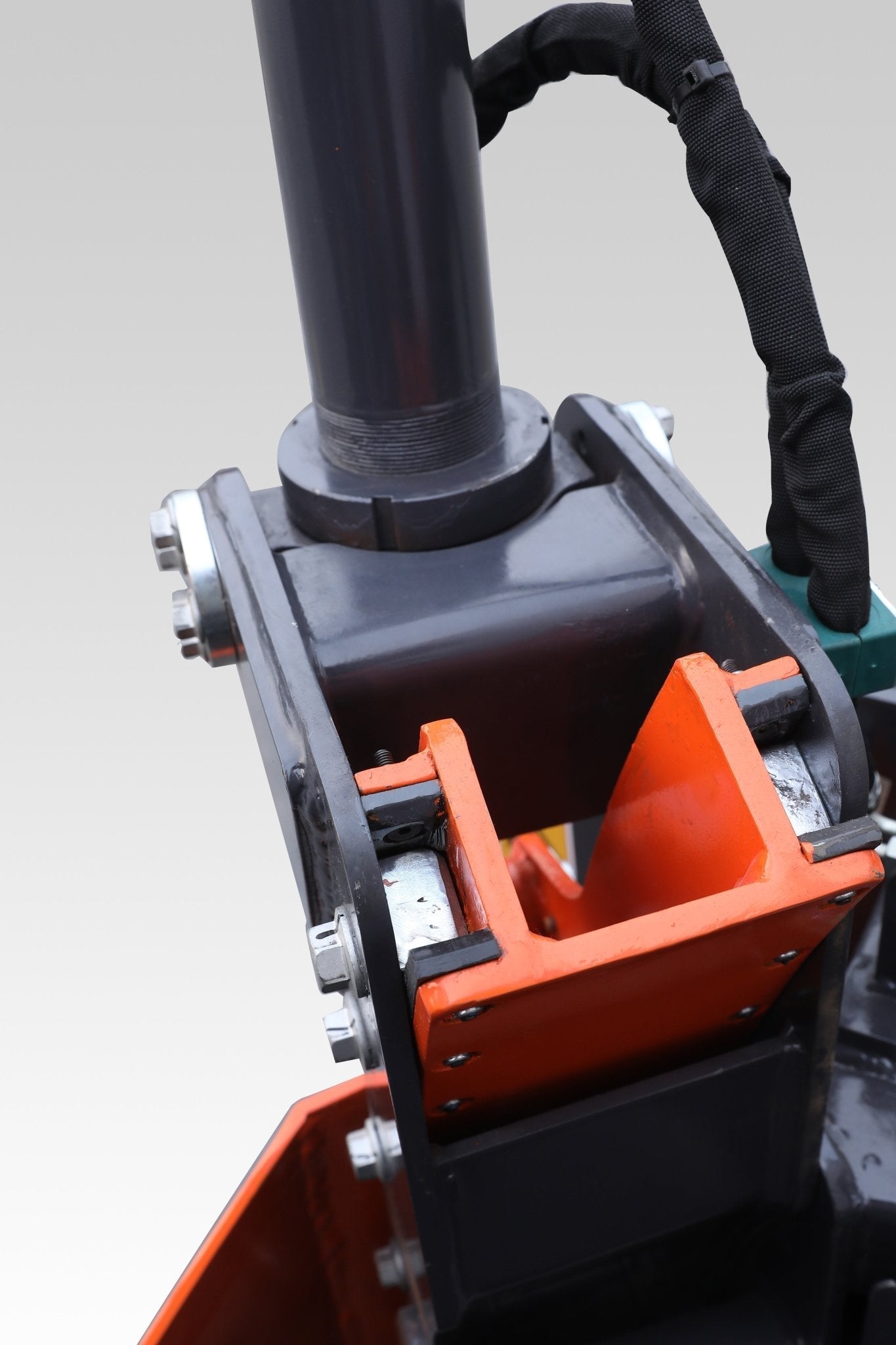

A reinforced frame, heavy-wall cylinders, and premium bushings create a heavy-duty tree spade that thrives in rocky loam, sandy construction fill, or clay-bound park soil. Minimal grease points and sealed pivot pins make it a truly low-maintenance tree spade for rental yards, municipalities, and landscape contractors who can’t afford downtime.

Where It Excels

  • Nurseries & Arborists – a nursery tree spade that turns seasonal digging crews into one-operator jobs.
  • Municipalities & Parks – relocate ornamentals with an operator-friendly, cab-controlled tree spade that never blocks pedestrian paths.
  • Landscaping & Golf Courses – perfect alignment and precision tree spade cuts for specimen relocation or hazard removal.
  • Construction & Farming – rescue trees before grading or move windbreak rows with a compact loader tree spade that navigates between equipment and fence lines.

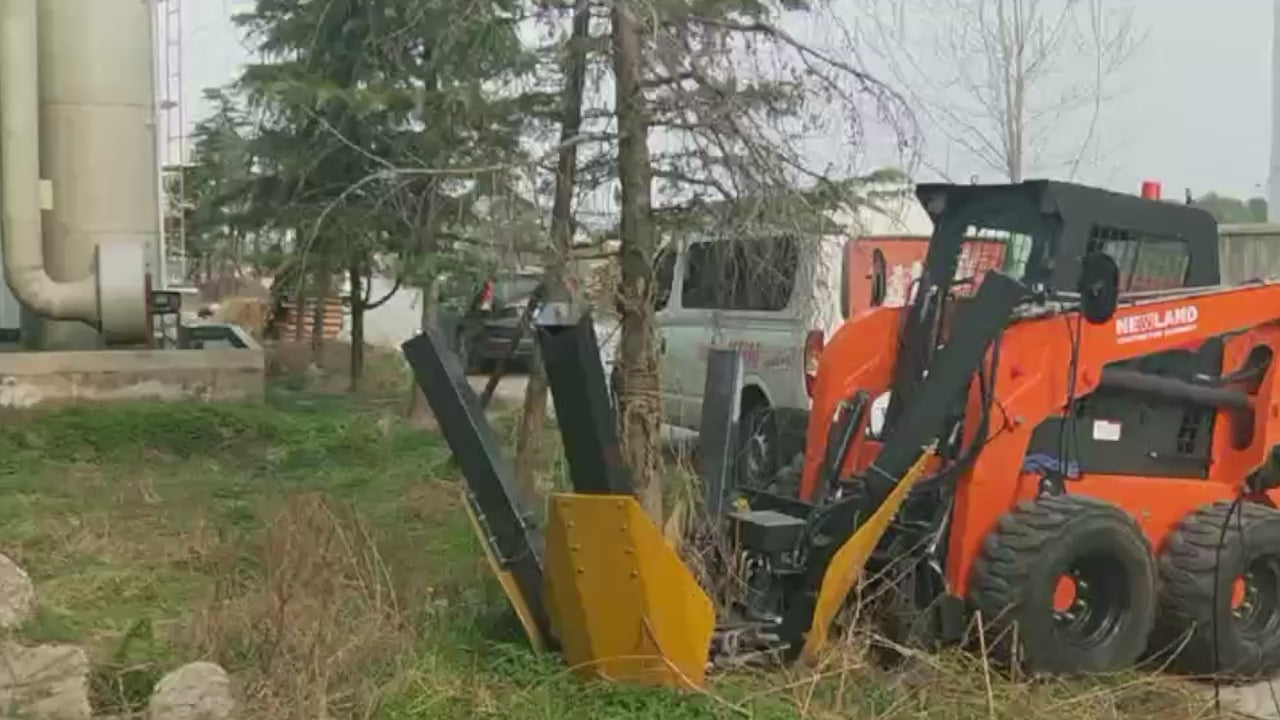

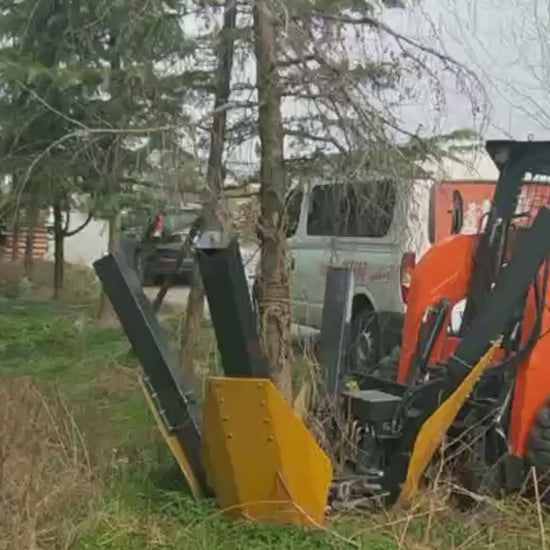

Performance Video

HCN Tree Spade Performance Video On Tiktok

Warranty We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.
