Product Feature
- Manufactured from high-wear-resistant steel, the HCN U-Type Blade ensures durability and long-lasting performance in demanding environments.
- It is available in customizable sizes to meet specific operational needs, allowing for maximum flexibility in different job scenarios.
- Engineered for universal compatibility, this attachment works seamlessly with all skid steer brands, eliminating the need for additional modifications.
- It is ideal for tasks such as material handling, site leveling, snow removal, and more, offering enhanced utility across various industries.
- Designed with efficiency in mind, the blade requires minimal maintenance, ensuring reduced downtime and lower operational costs.
Specifications
| Model | 040872 | 040872a |
|---|---|---|
| Length (in) | 19.9 | 41 |
| Width (in) | 76 | 76 |
| Height (in) | 27.9 | 28.7 |
| Angle of Deflection (°) | Pure structure, without deflection function |
±30 |
| Allowable Maximum Pressure (psi) | — | 3045.8 |
| Theoretical Weight (lbs) | 496 | 727.5 |
Performance Introduction

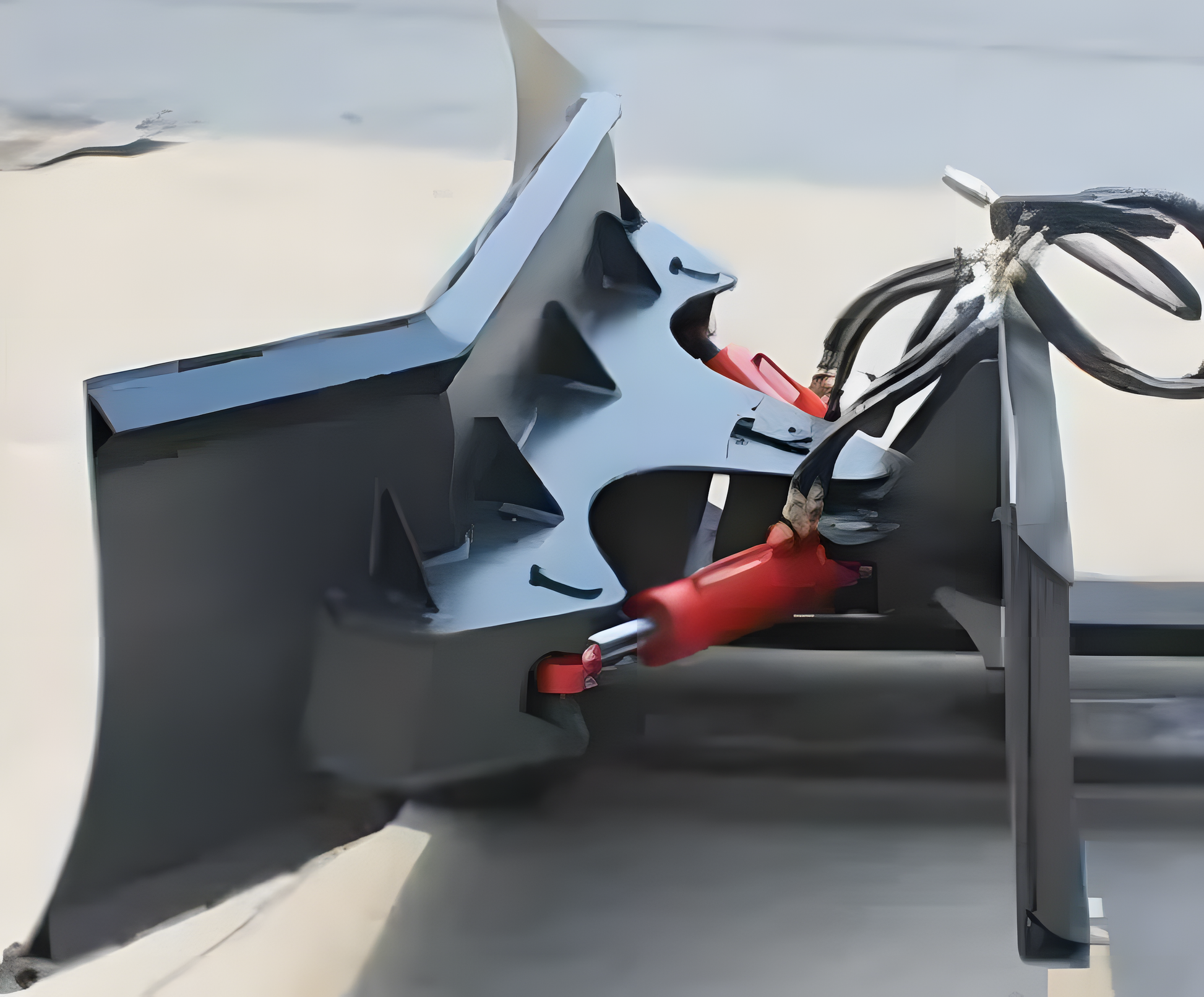

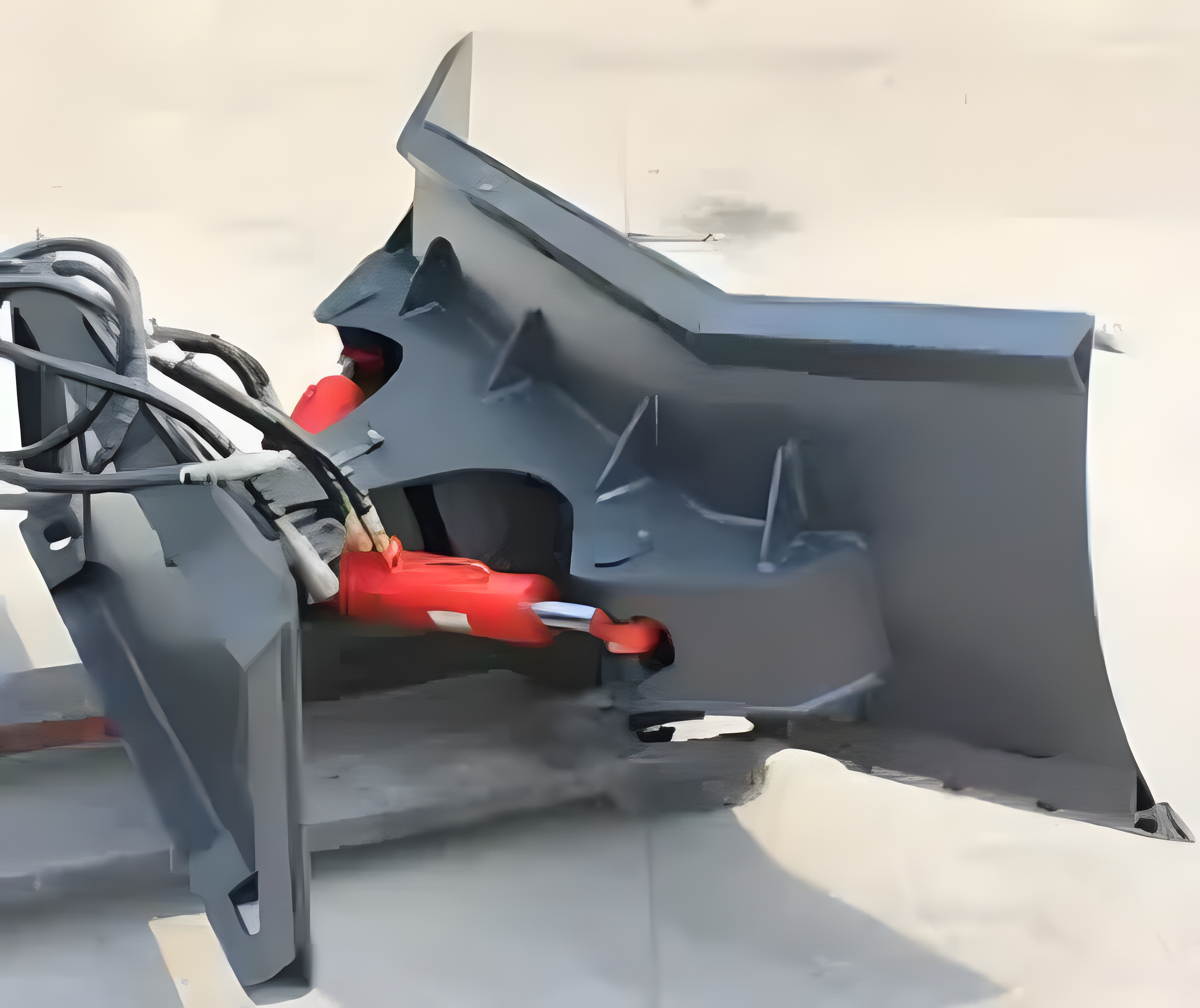

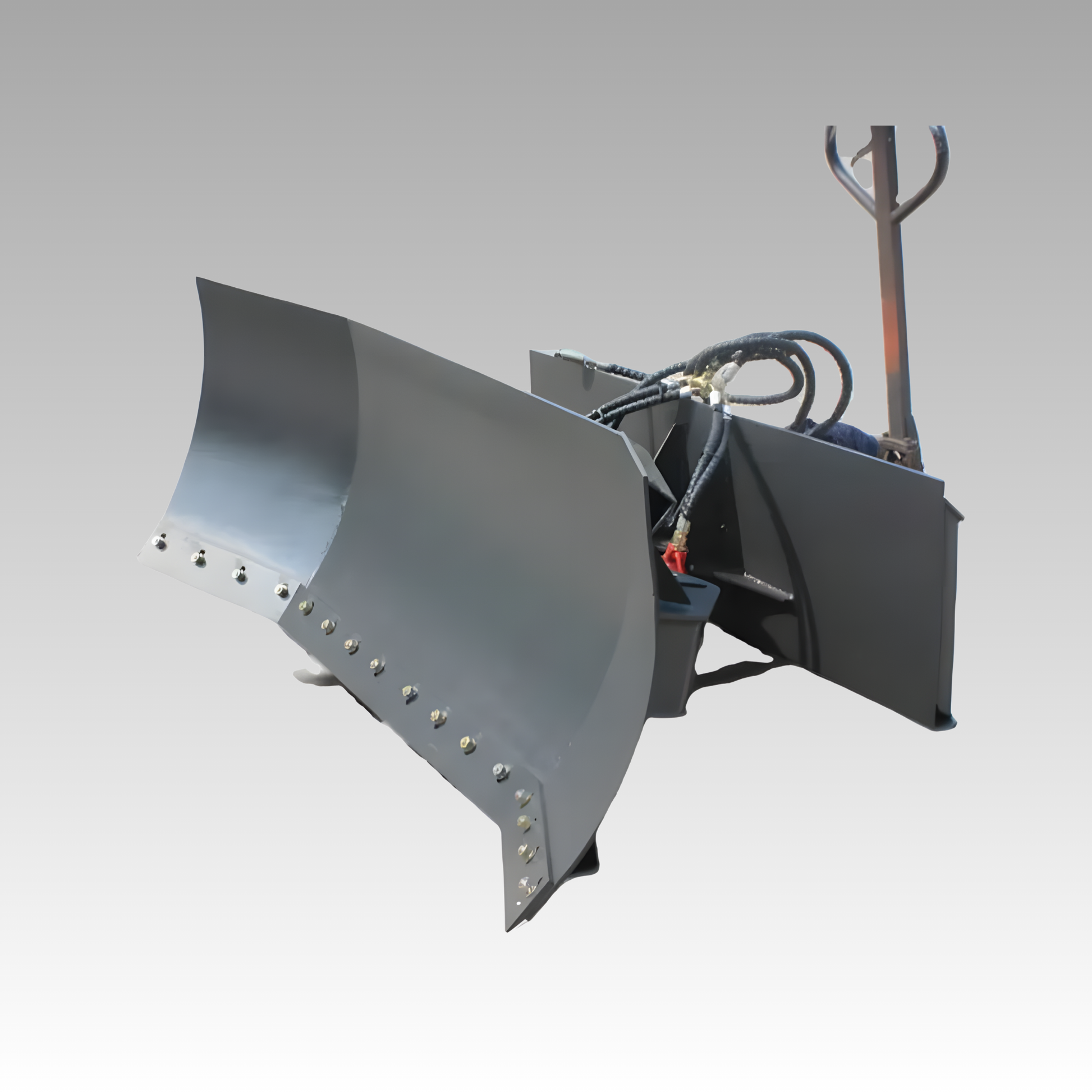

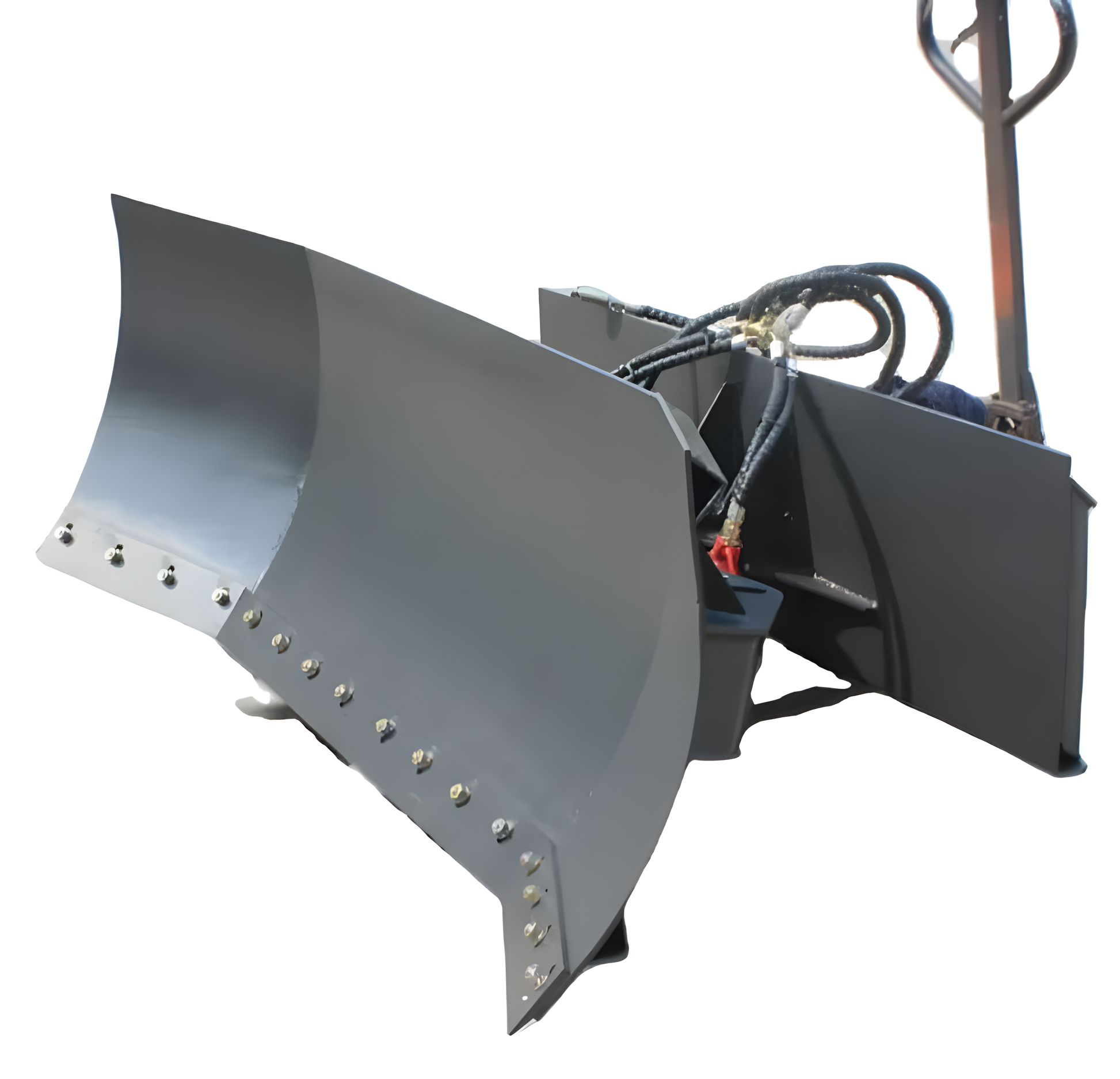

- The BeyondTech skid steer U-type blade is the premium, go-anywhere dozer attachment that transforms any brand of skid, track, or compact loader into a nimble bulldozer. Fabricated from high-strength, wear-resistant steel, this heavy-duty U blade shrugs off gravel, coal, mulch, and demolition debris while its curved profile scoops, carries, and rolls material forward for effortless pushing power. Choose a low-cost mechanical U blade skid steer model for simple dirt-pushing chores or step up to the hydraulic U blade attachment with a ±30° side-to-side deflection that acts like a skid steer U angle blade, windrowing soil one pass and snow-pushing U blade the next—all within a stout 76-inch working width.

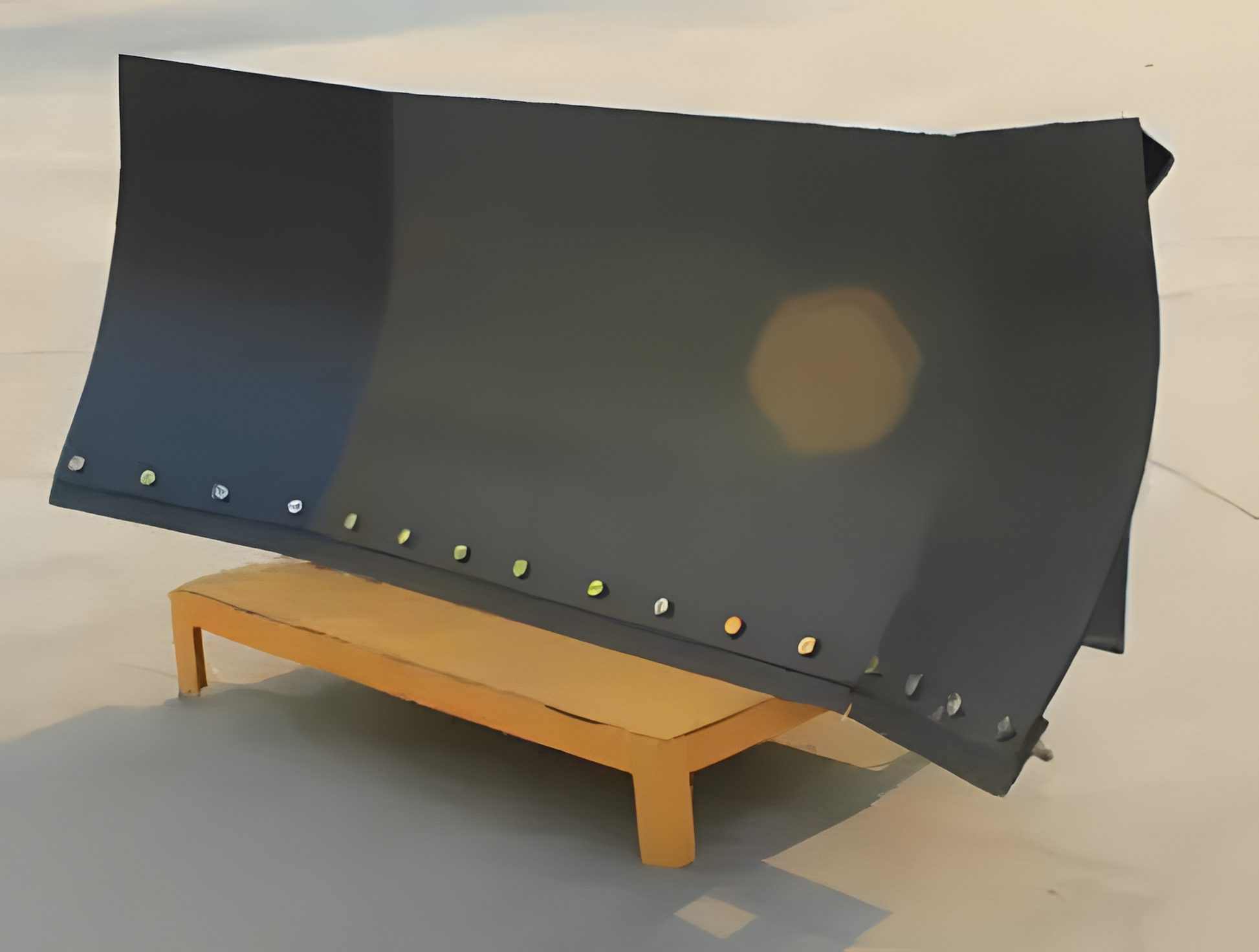

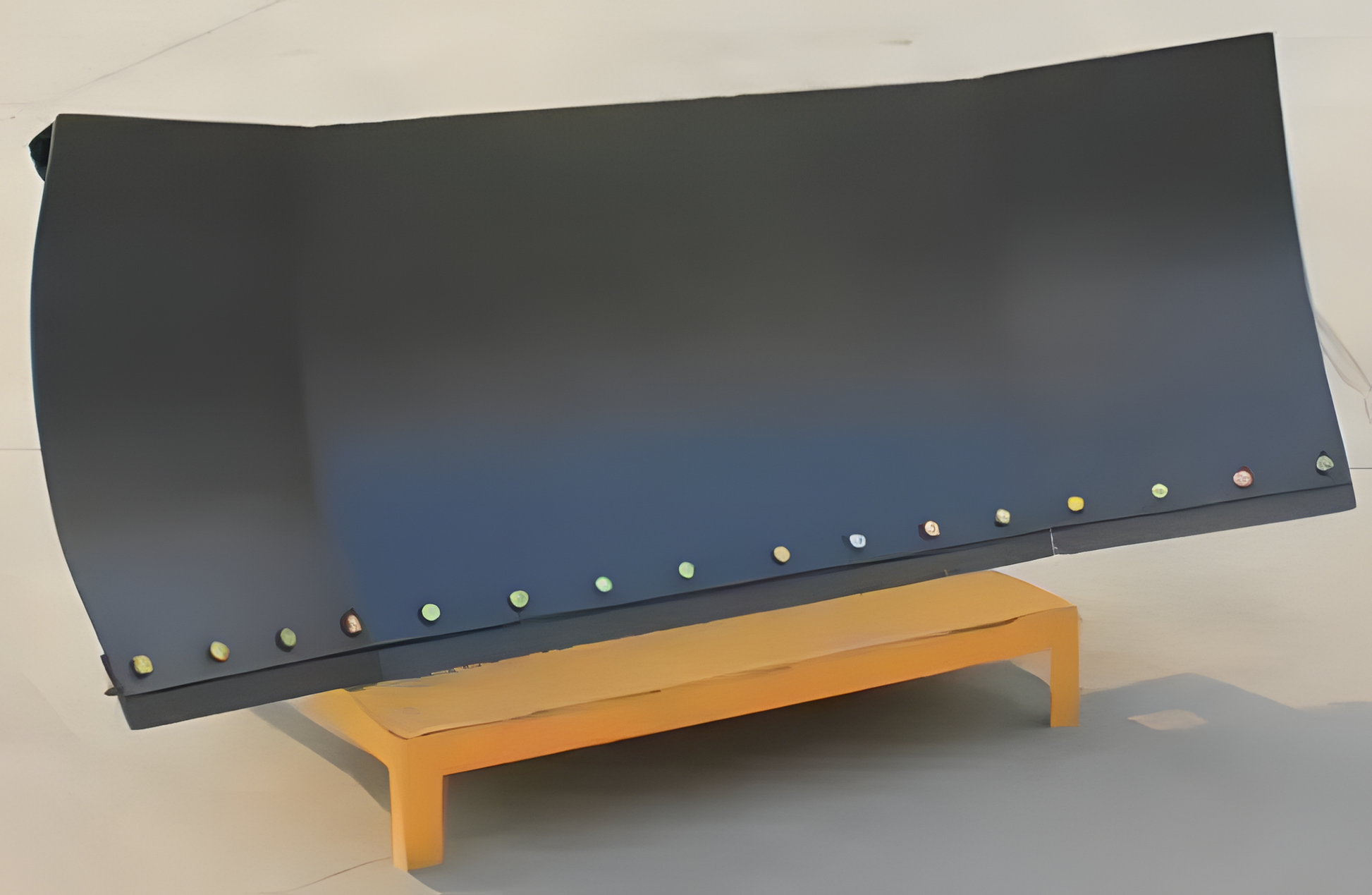

- Because the blade mounts with a multi-fit pickup and flat-face couplers, you’ll bolt on in seconds and hit the ground running on flows from 1 740 to 3 045 psi. Contractors rely on its adjustable-angle U blade for grading house pads, trench back-fill and shoulder maintenance; municipal crews count on its snow-scooping capacity for overnight plow routes; and farmers appreciate a reliable U blade that piles silage, manure, or feed without beating up the loader arms. Bolt-on, reversible cutting edges—and optional serrated or skid-shoe kits—deliver long life with fast field swaps, while forged pivot pins and self-aligning bushings keep the rugged U-type blade tight and rattle-free season after season.
- Whether you need a site-leveling U blade, a high-capacity material-collection U blade for aggregate, or a quick-attach earth-moving U blade attachment for rental fleets, BeyondTech supplies the versatile, low-maintenance U blade that lifts productivity on every job from highway right-of-way to dairy feedlot.
Performance Video
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
