Product Feature

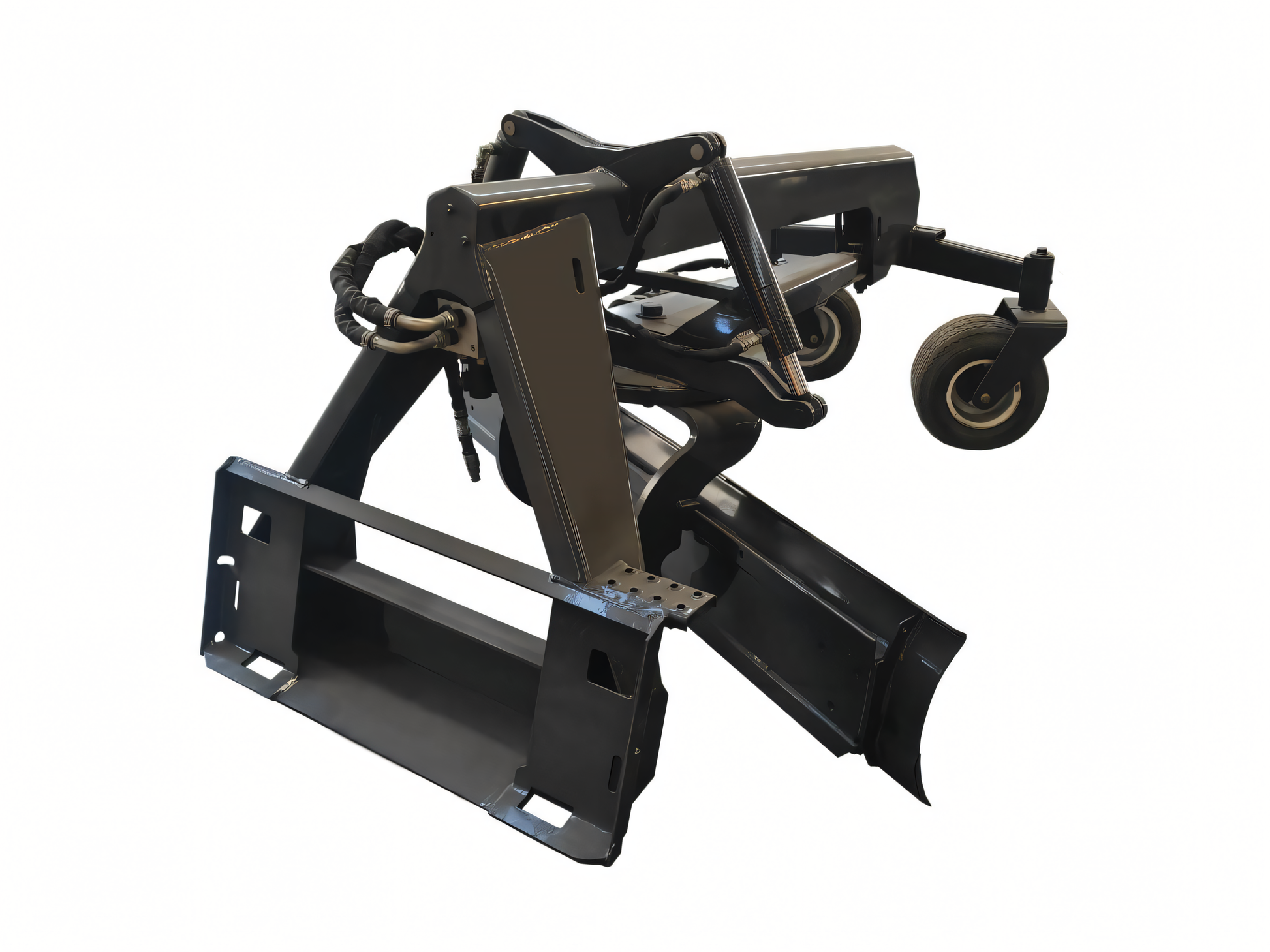

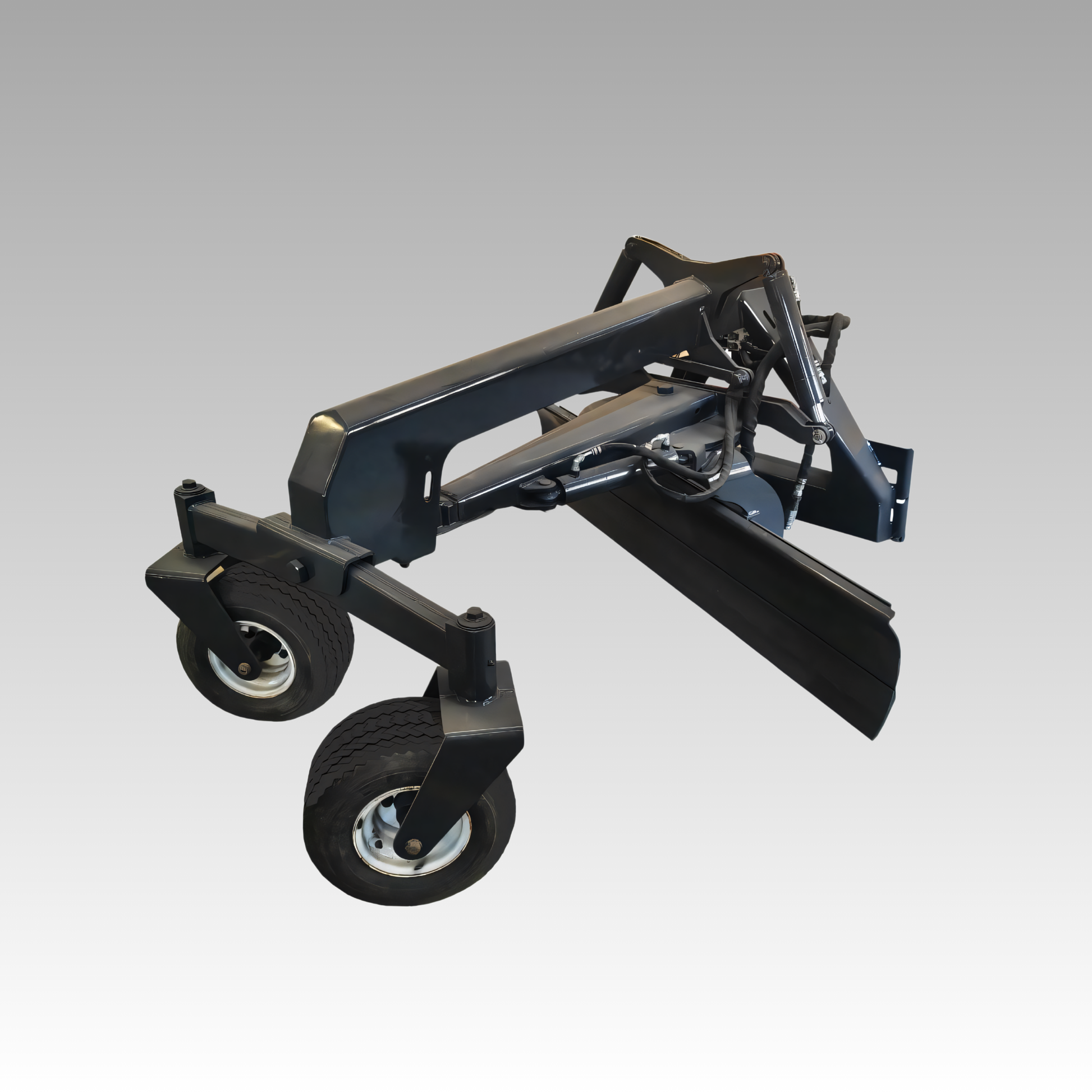

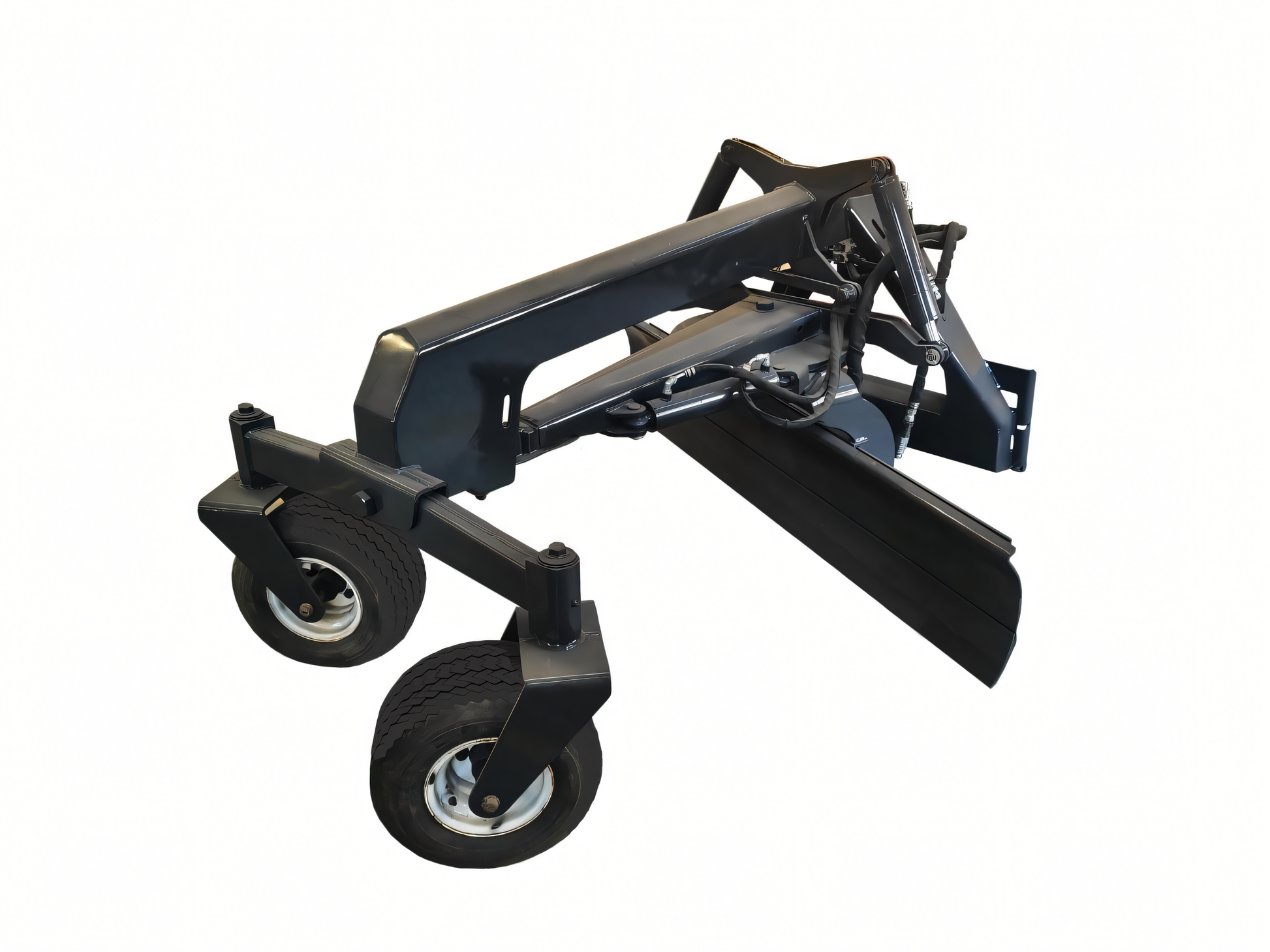

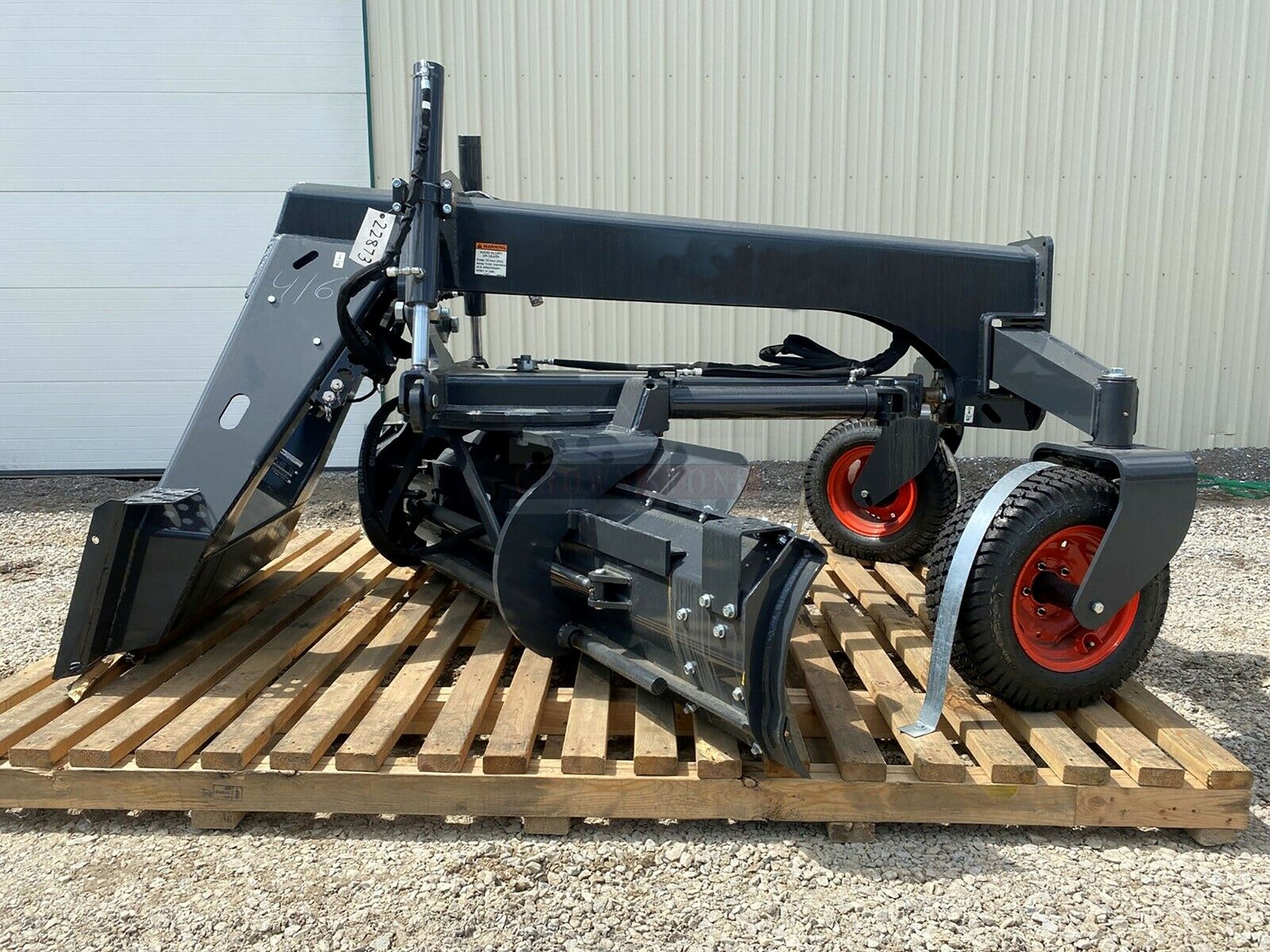

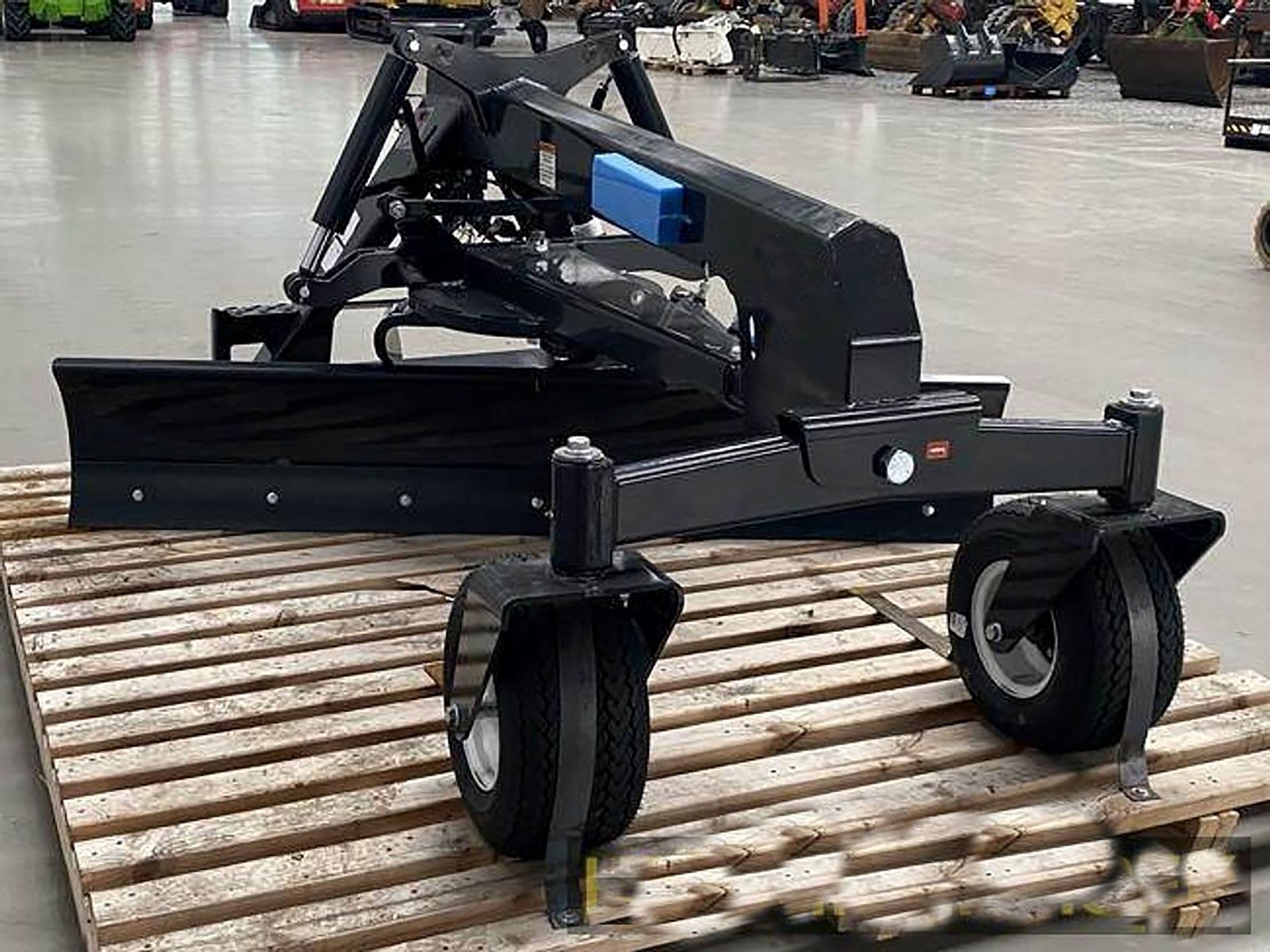

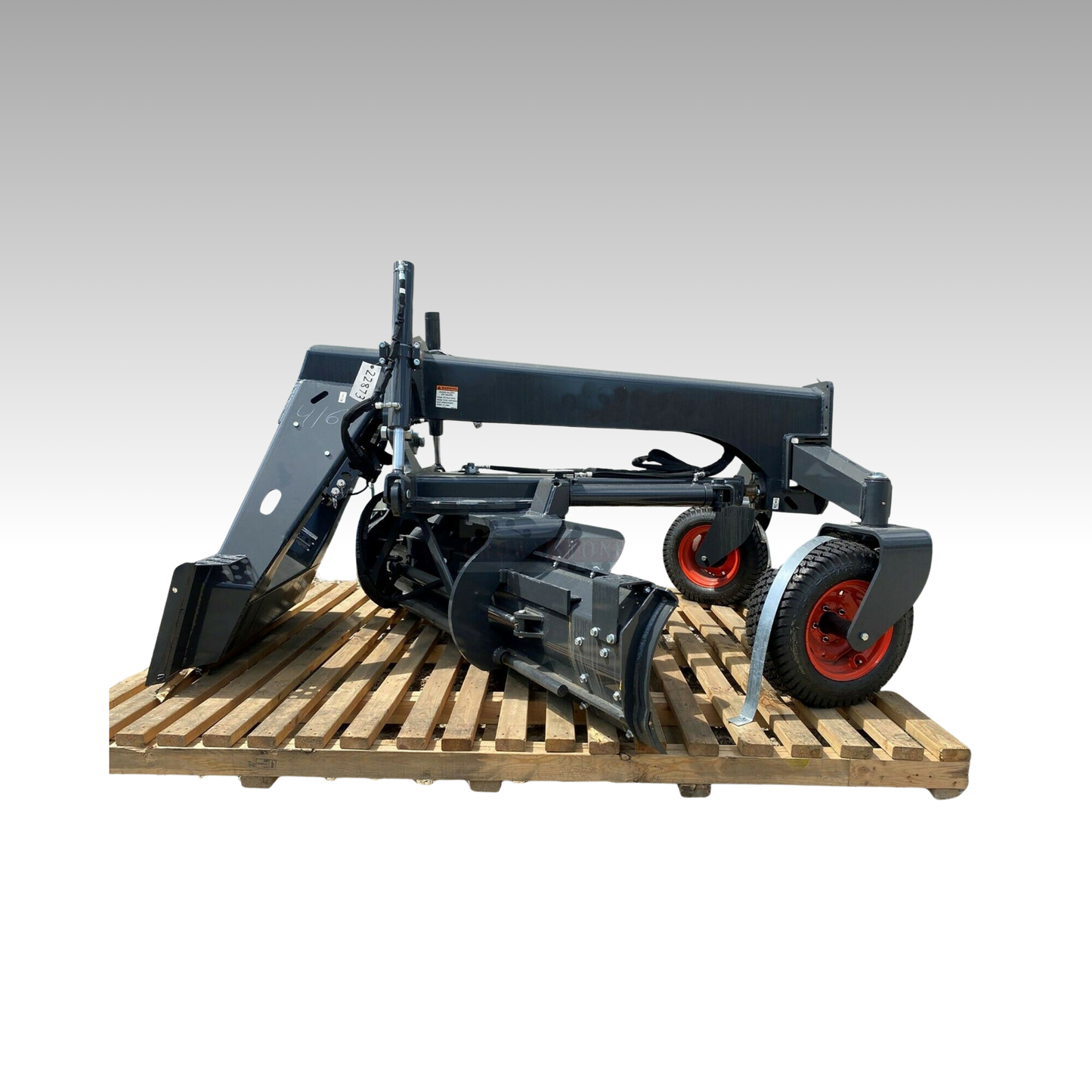

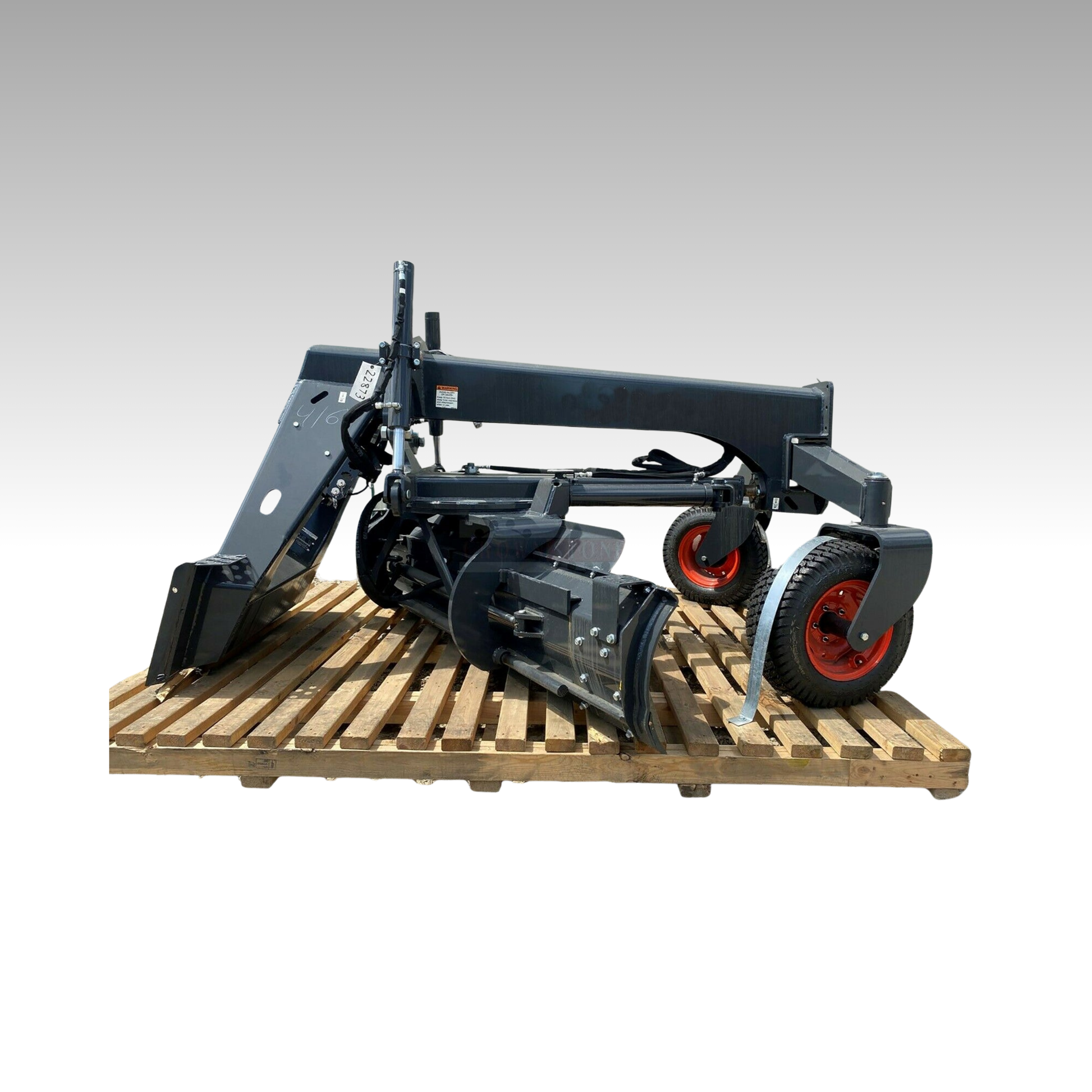

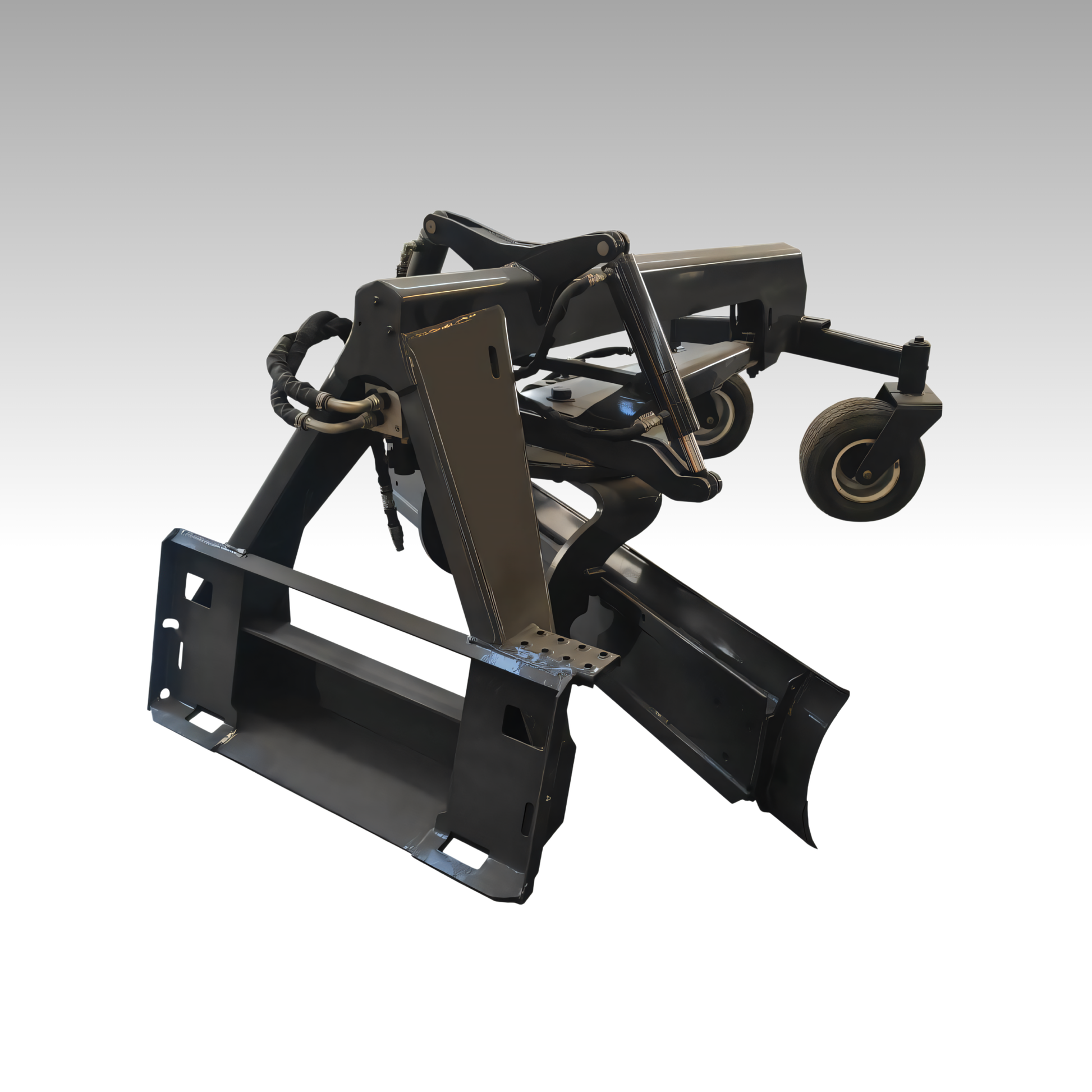

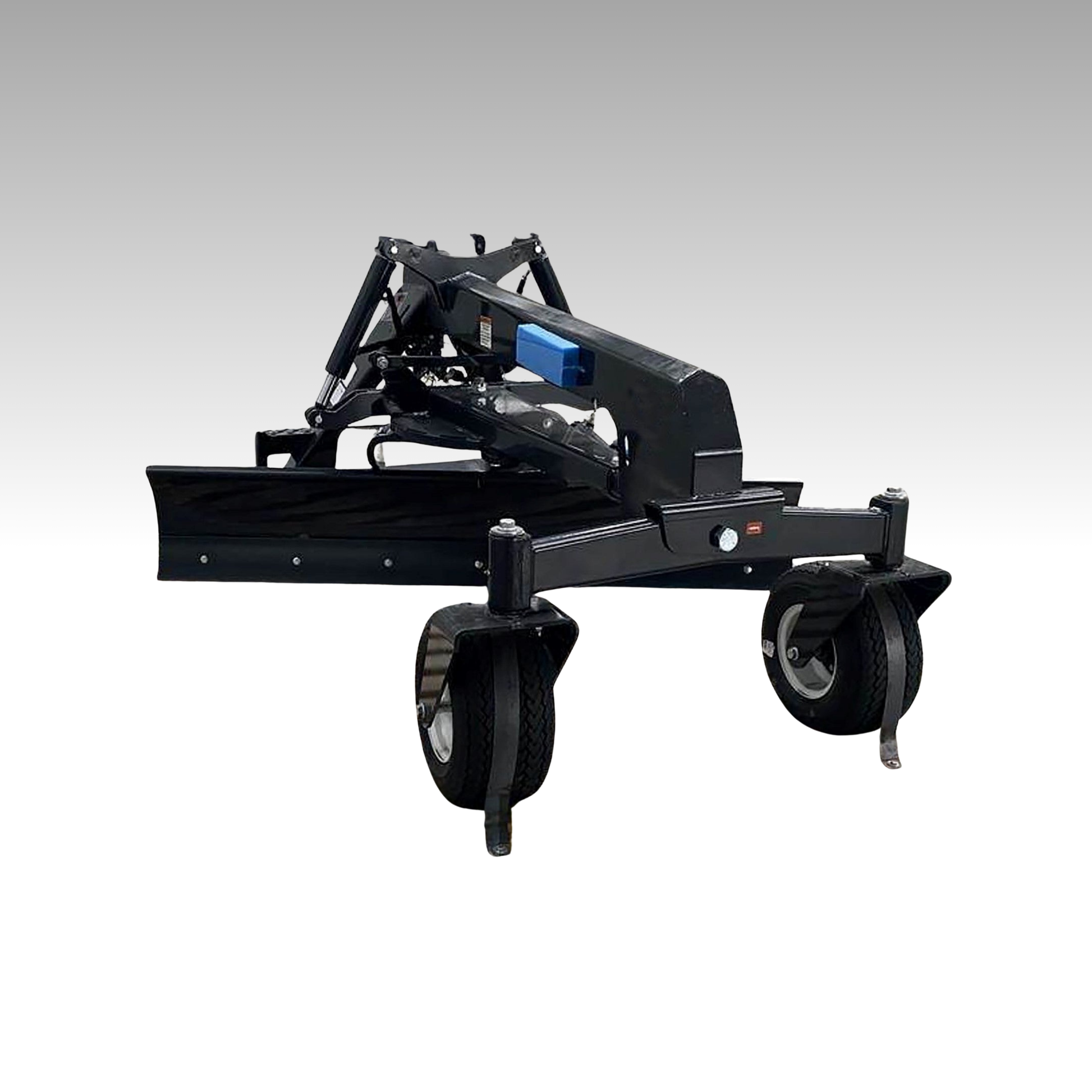

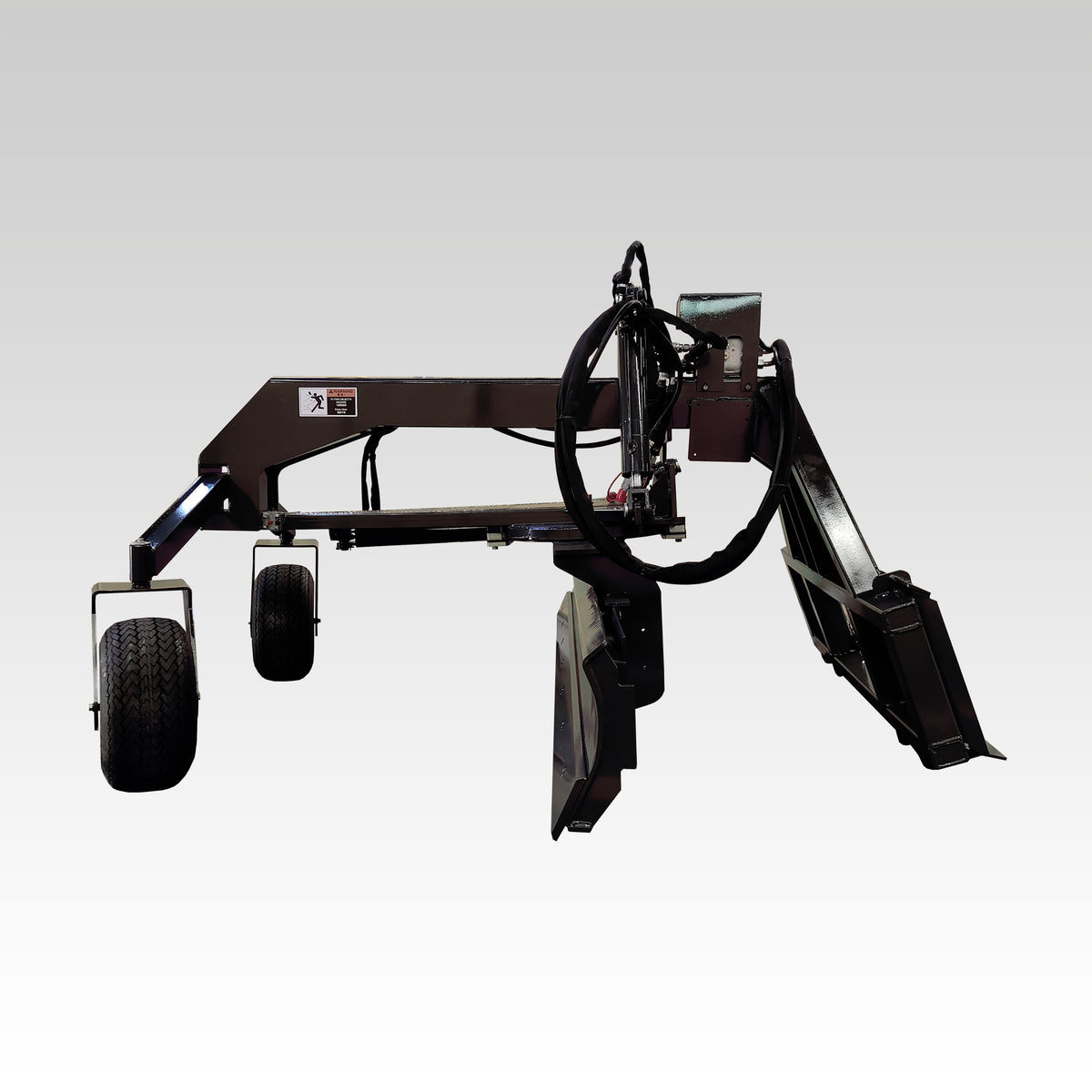

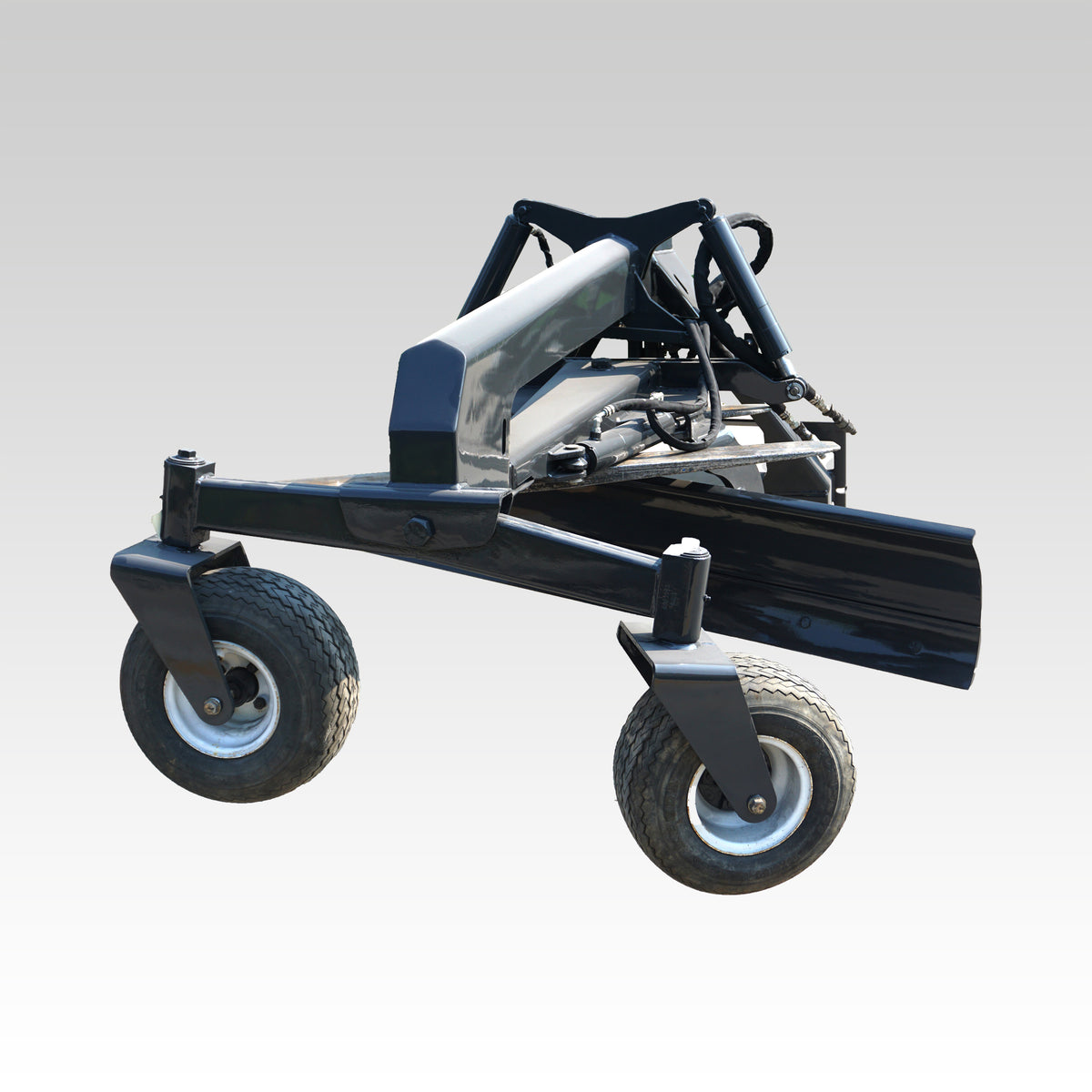

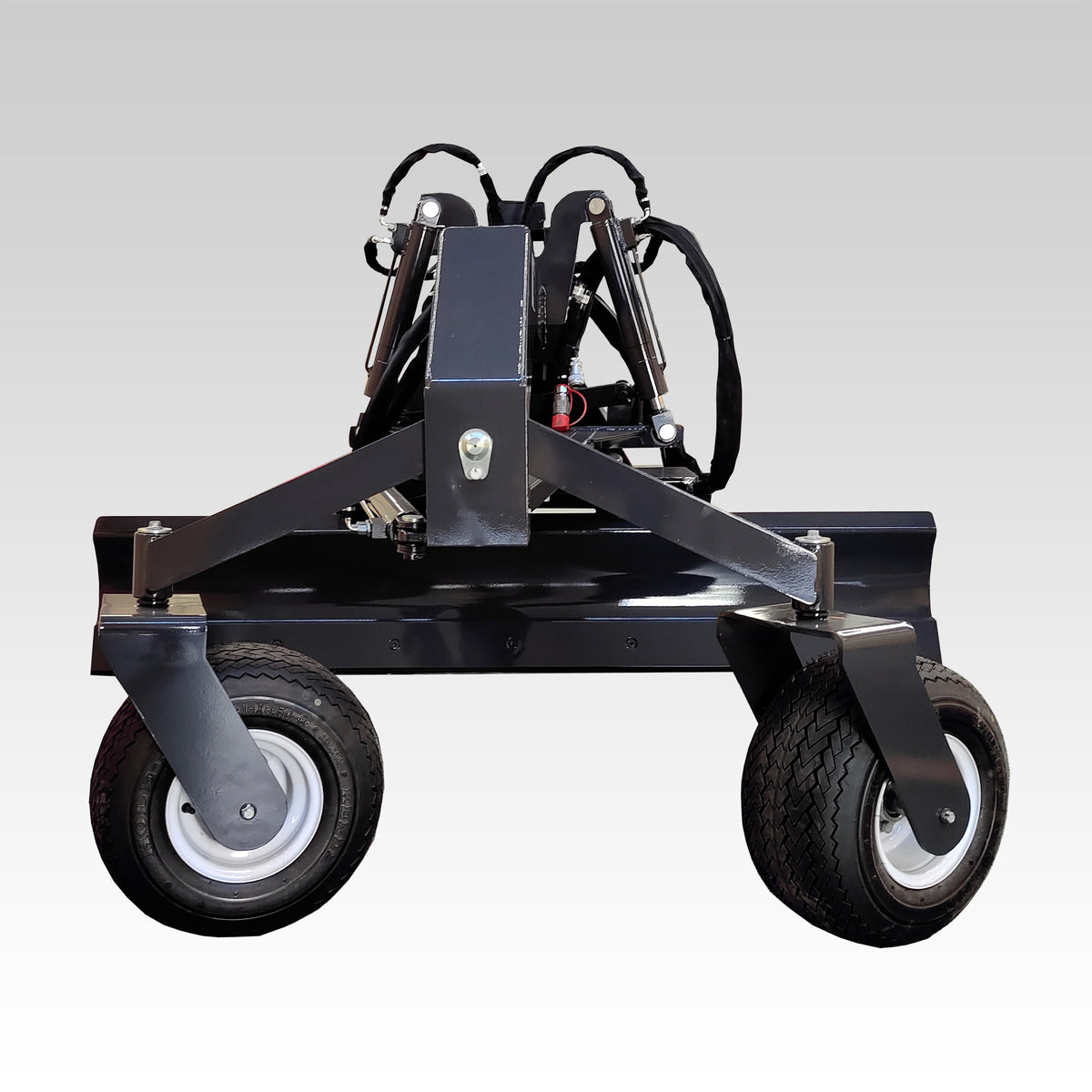

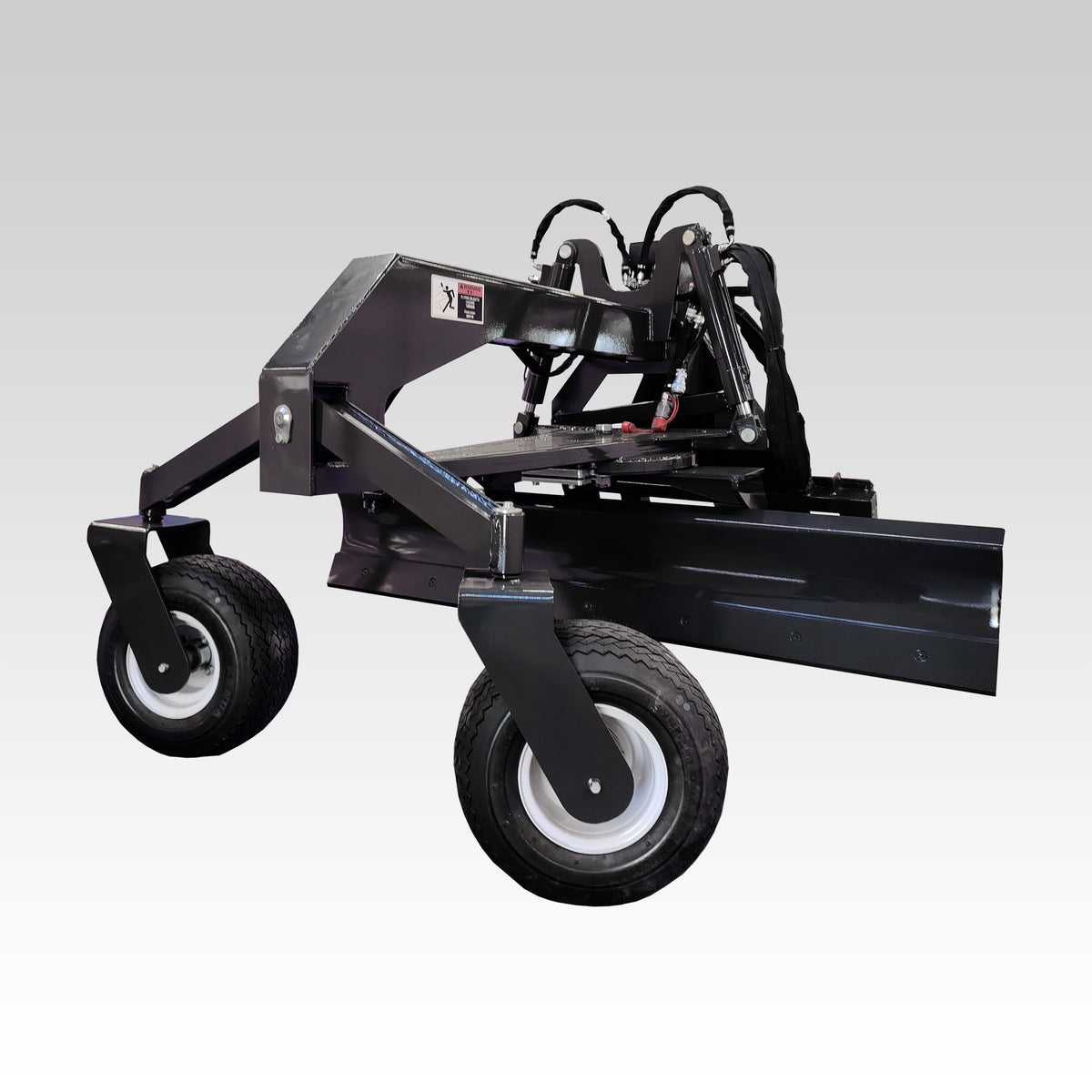

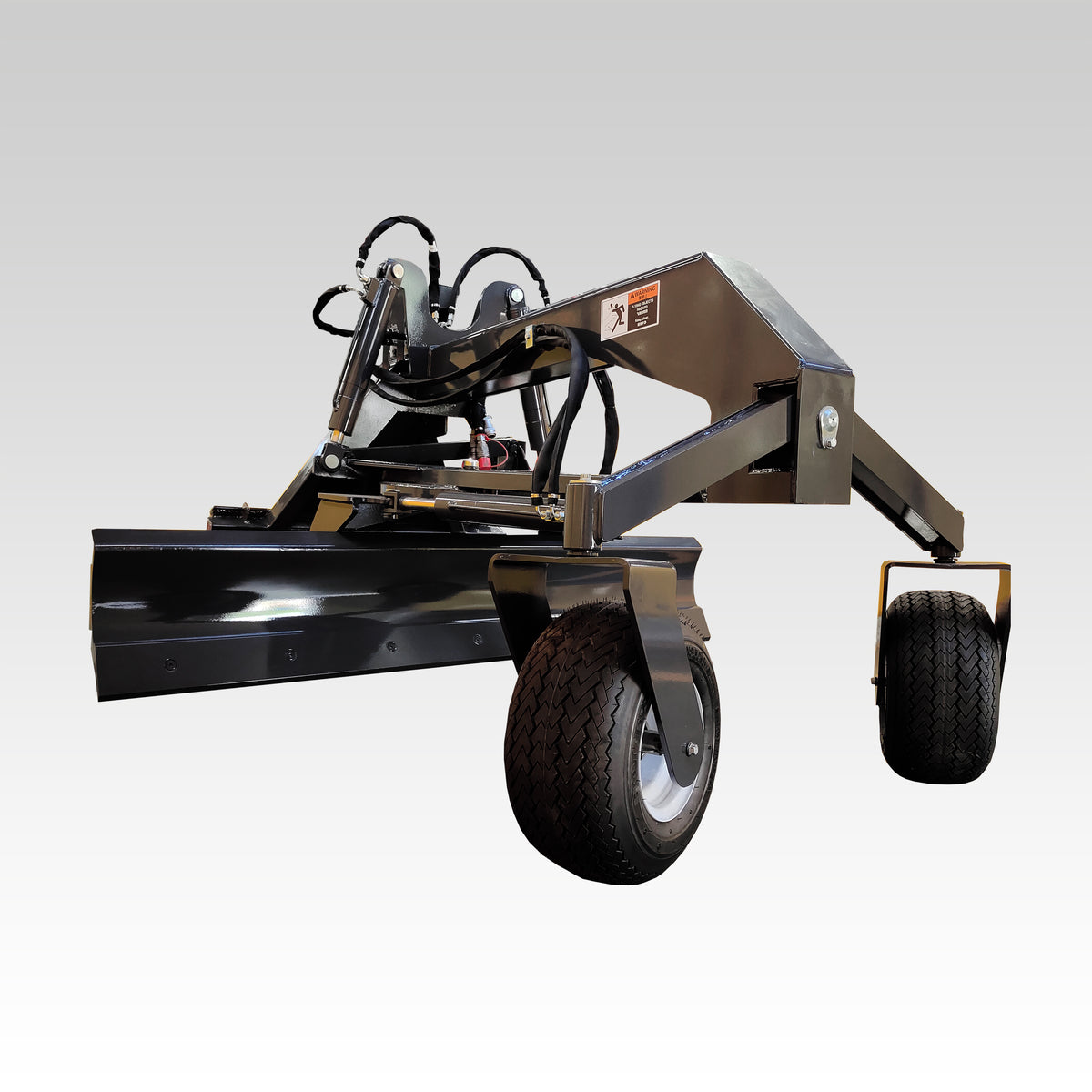

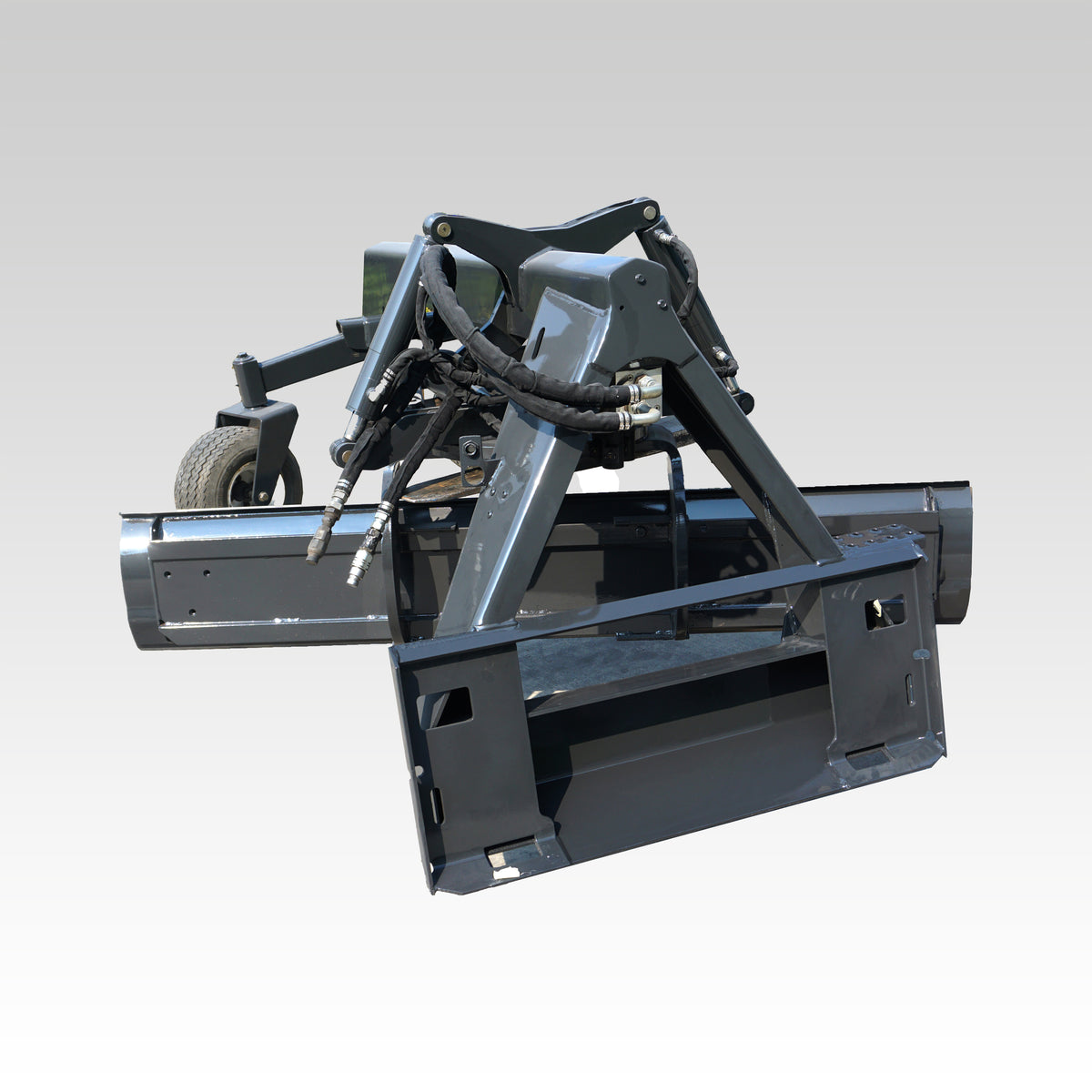

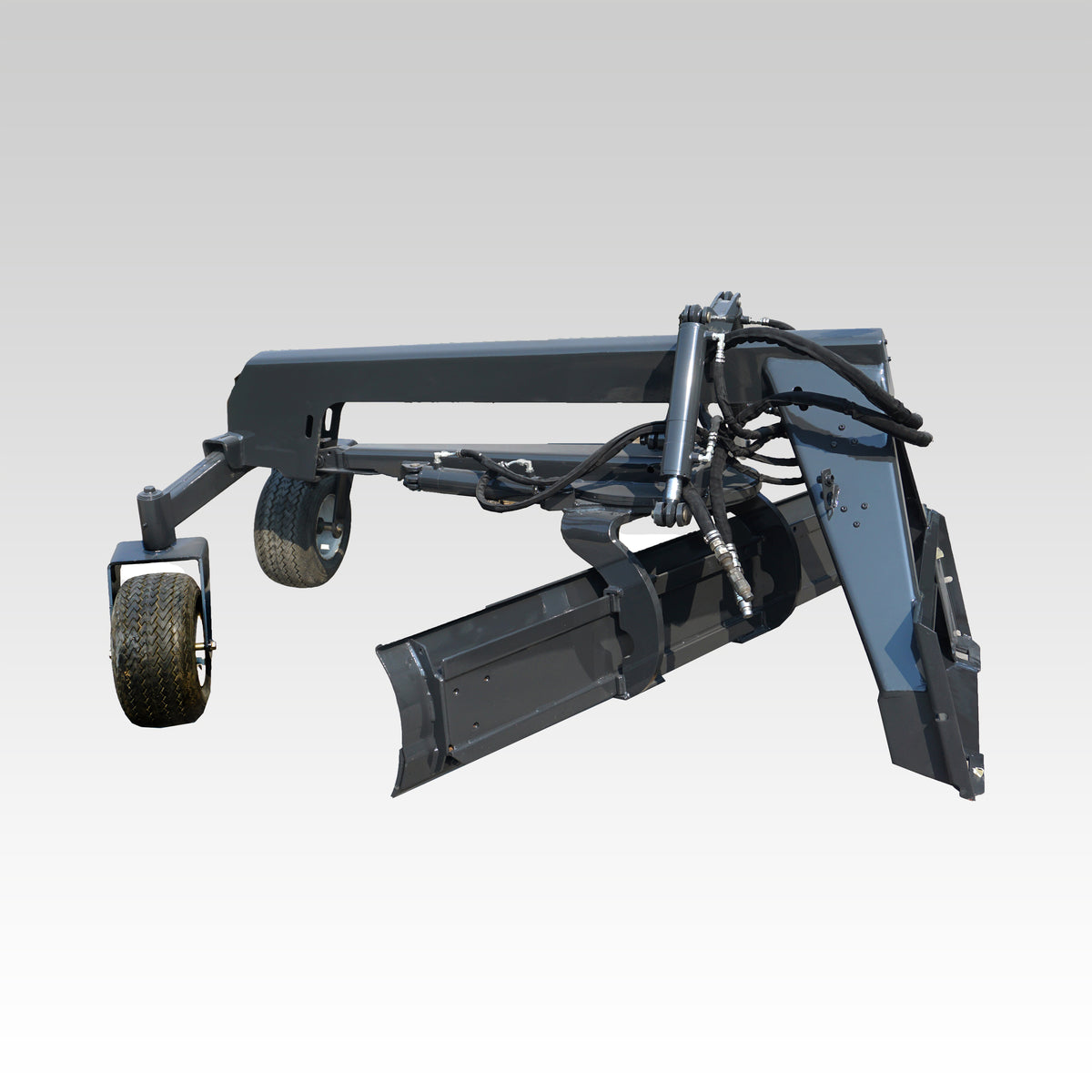

- Engineered for enhanced performance and ease of operation, this grader attachment comes equipped with several advanced features.
- A dirt shield—mounted over the moldboard on larger models—ensures that pushed materials continue moving forward, while flotation tires provide excellent mobility and smooth operation across the work area.
- For added versatility, the side shift feature allows the blade to move laterally; manual side shifts on smaller models offer up to 12 inches of movement, and hydraulic side shifts on larger models deliver up to 13 inches, making grading near buildings, poles, and other obstacles significantly easier.
- An oscillating bolster minimizes the impact of uneven ground, ensuring consistent grading performance.
- Additionally, a proportional hydraulic valve provides three distinct speeds for raising or lowering the moldboard, allowing operators to closely match the grader’s operation to the loader’s pace—with longer button presses resulting in faster movement and finer control when using automatic grading solutions.
- Completing the design is a bolt-on, reversible cutting edge that can be flipped over to reveal a fresh edge when worn, ensuring sustained cutting efficiency and durability.
Specifications
| Model | 031384 |
|---|---|
| Total Width (in) | 83.5 |
| Overall Height (in) | 53.5 |
| Total Length (in) | 86.8 |
| Total Weight (lbs) | 1278.7 |
| Blade Width (in) | 83.5 |
| Maximum Rising Height (in) | 6.3 |
| Maximum Depth of Cut (in) | 4.3 |
| Left and Right Side Shift Width (in) | 11.8 |
| Hydraulic Flow Rate (GPM) | 13.2 - 22.7 |
| Hydraulic Pressure (psi) | 2610.8 - 3045.8 |
| Optional system | Laser control system/hydraulic side shift function |
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
