Product Feature

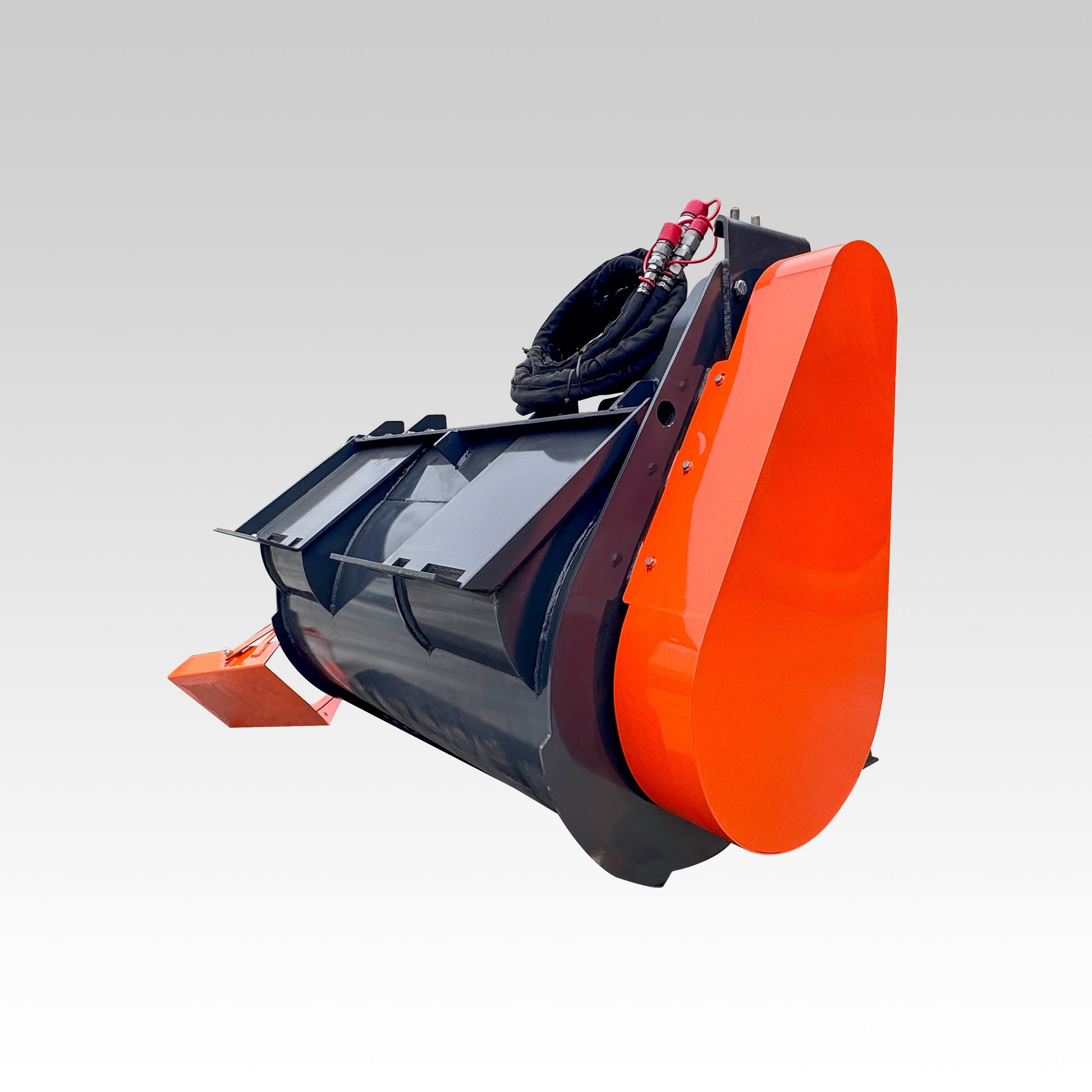

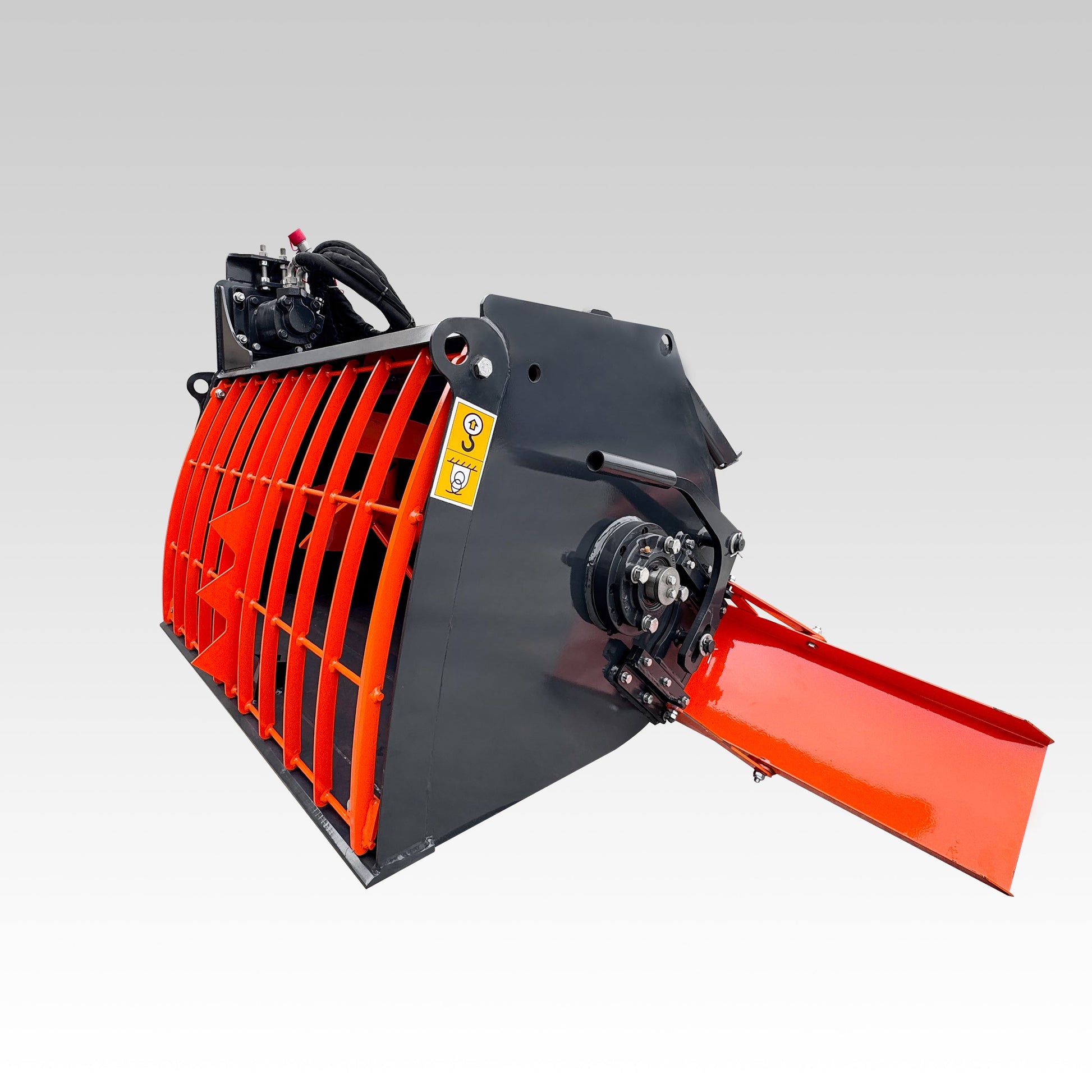

- The HCN Skid Steer Concrete Mixer is perfect for small to medium job sites needing concrete.
- Easily scoop or load concrete from the top, featuring an integrated bag splitter for convenience.

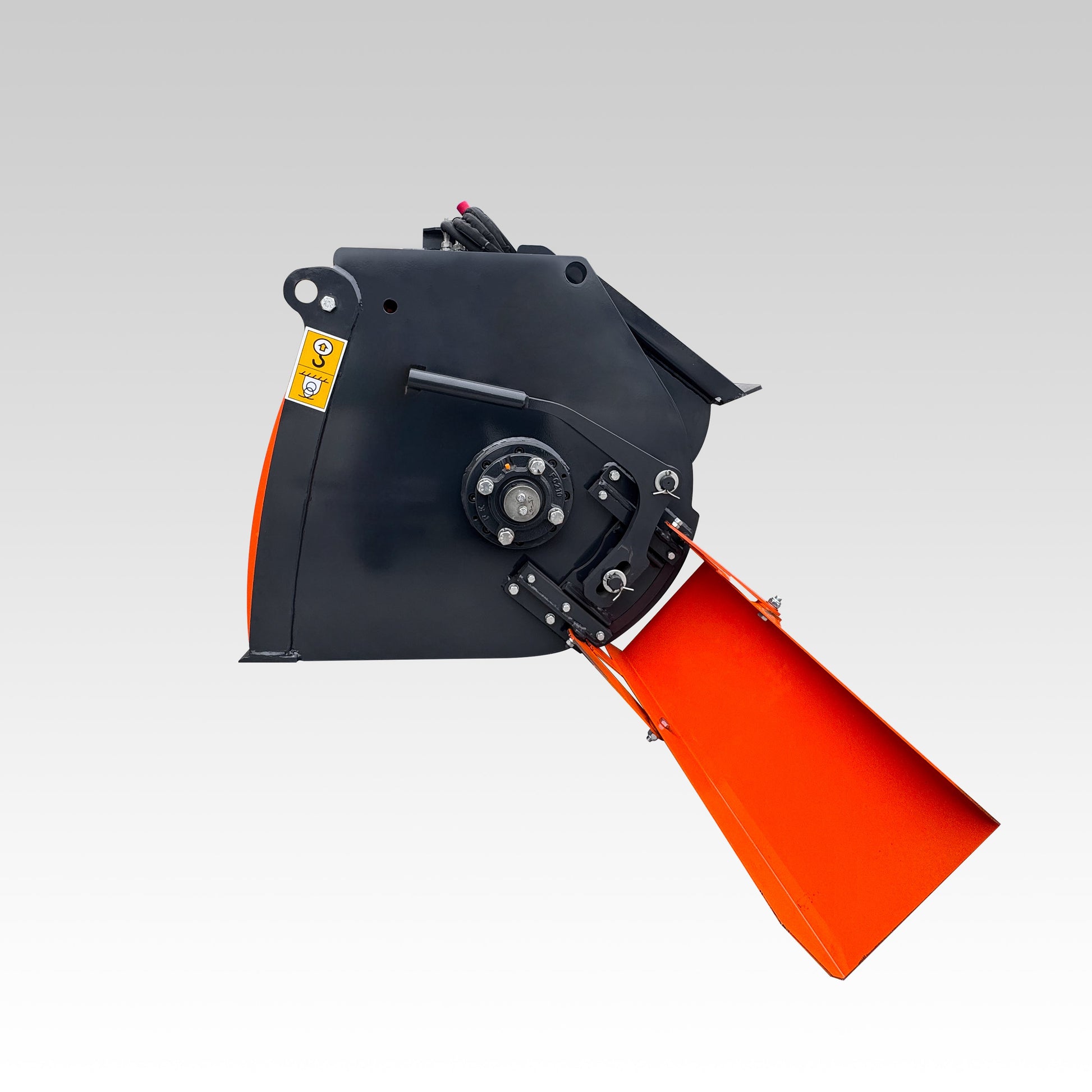

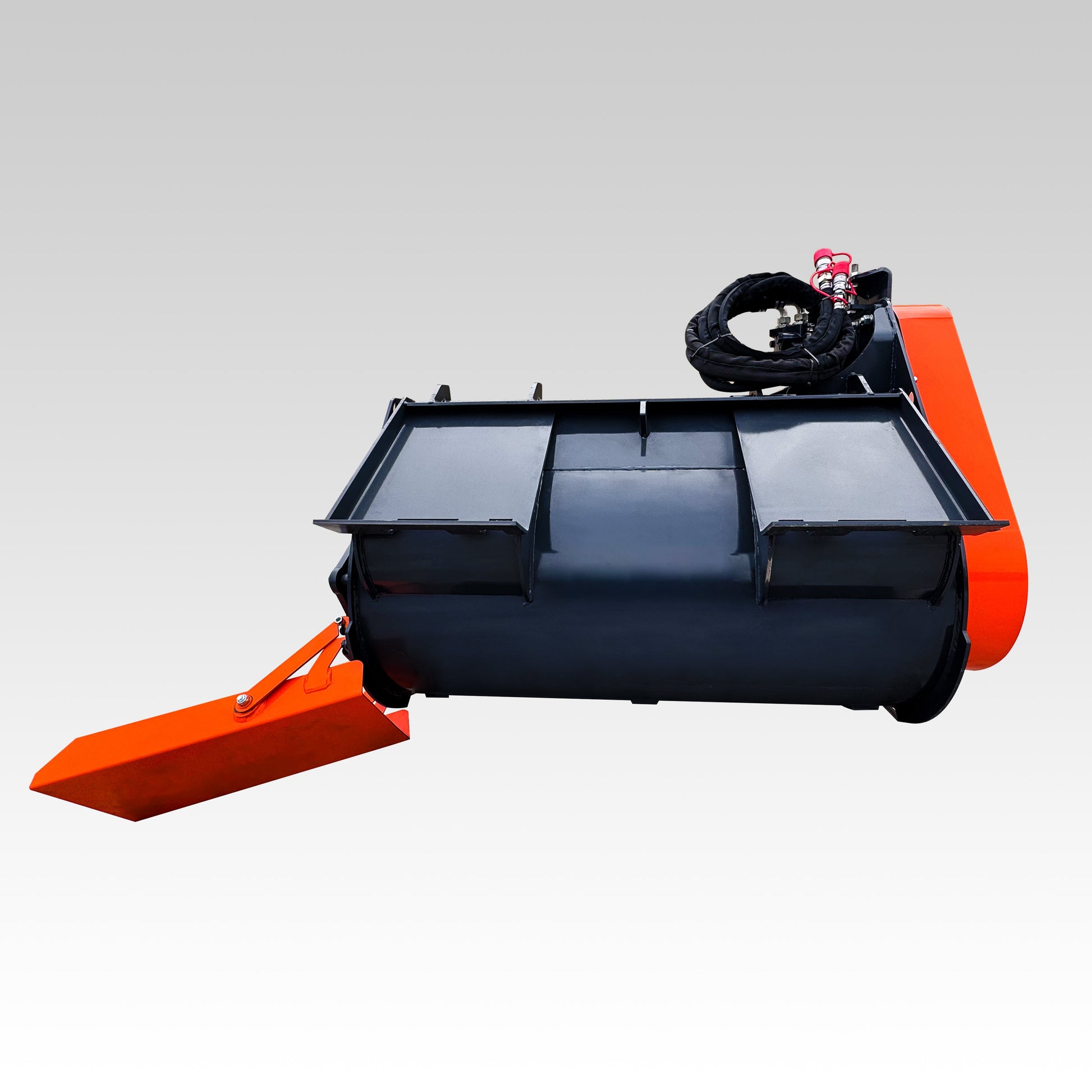

- Pour concrete accurately using the side chute dispenser for controlled pours.

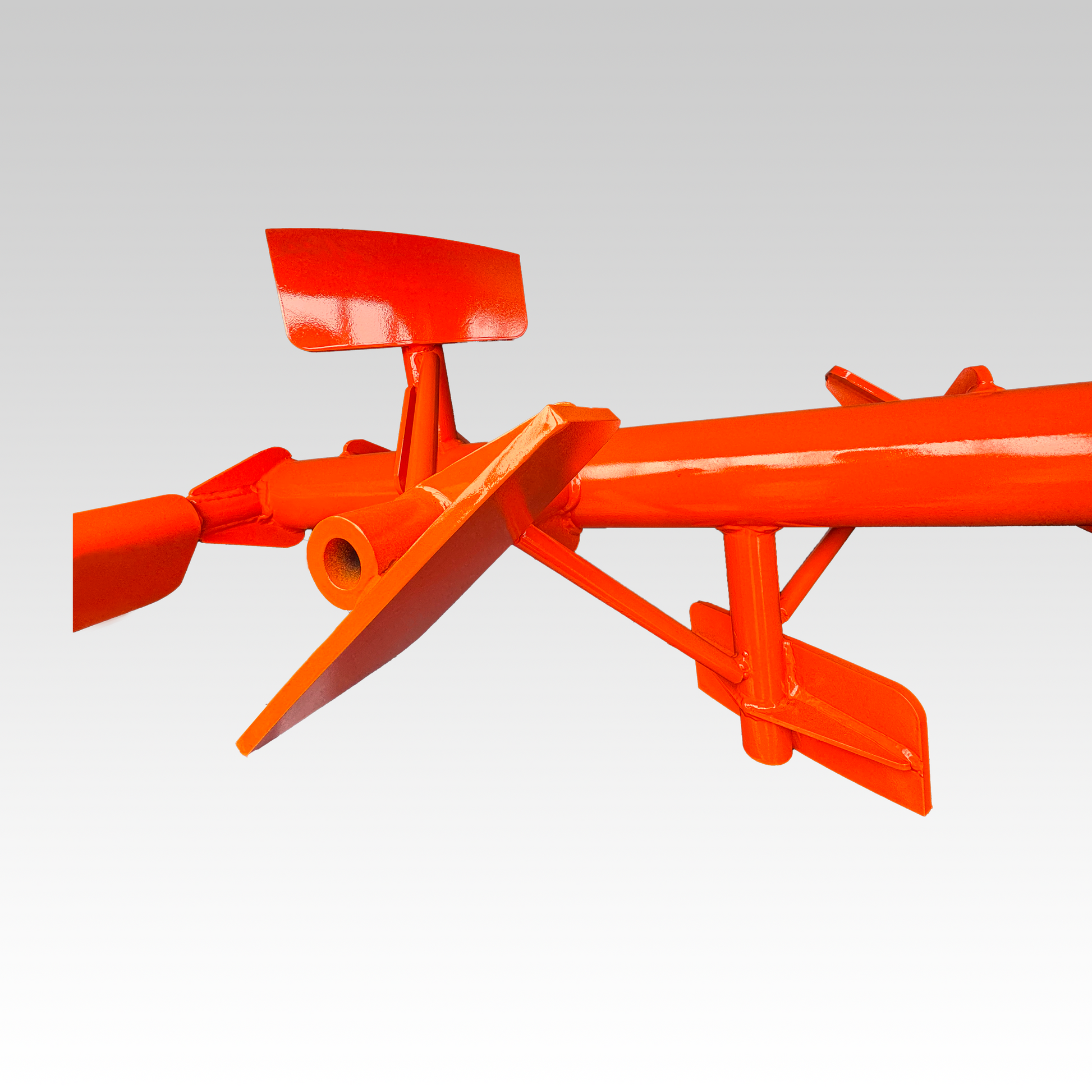

- Efficient mixing right at the pour site with bolt-on replaceable auger paddles.
- Features a 3-in-1 mode: scoop up, mix on the go, and dispense for convenience.
- Reversible revolving paddles ensure optimized mixing and pouring.
- Equipped with a chain and sprocket drive hydraulic motor for reliable operation.

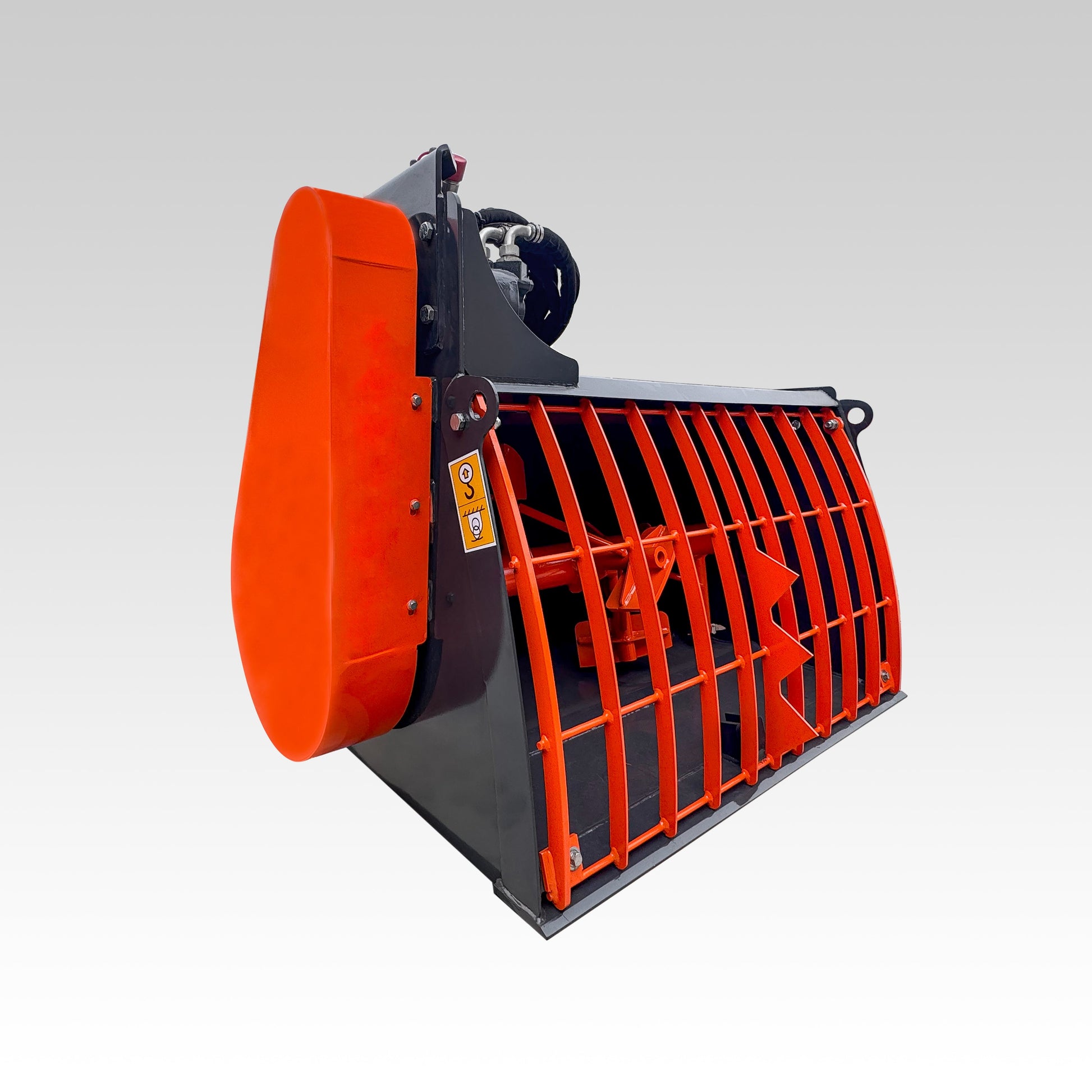

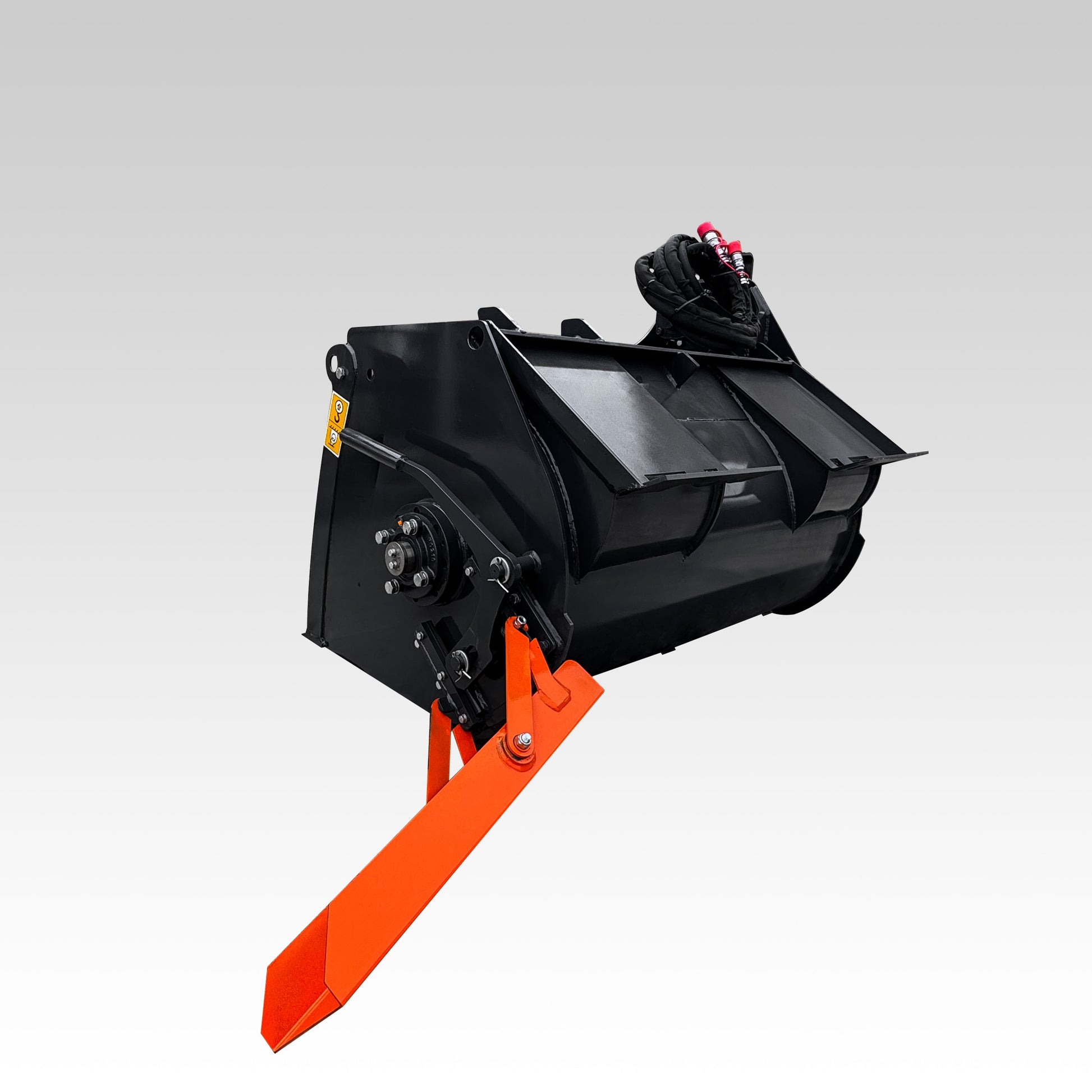

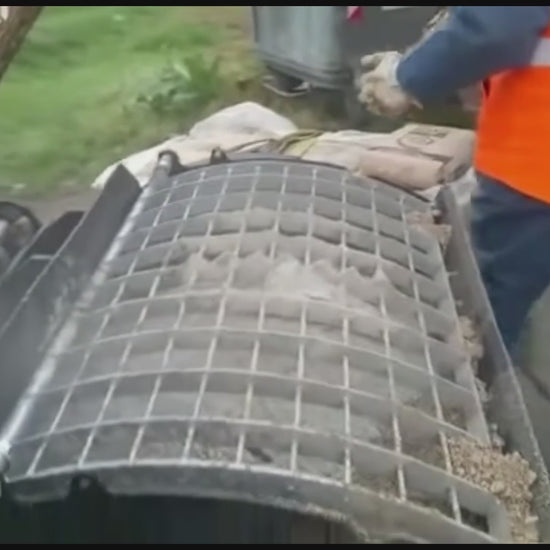

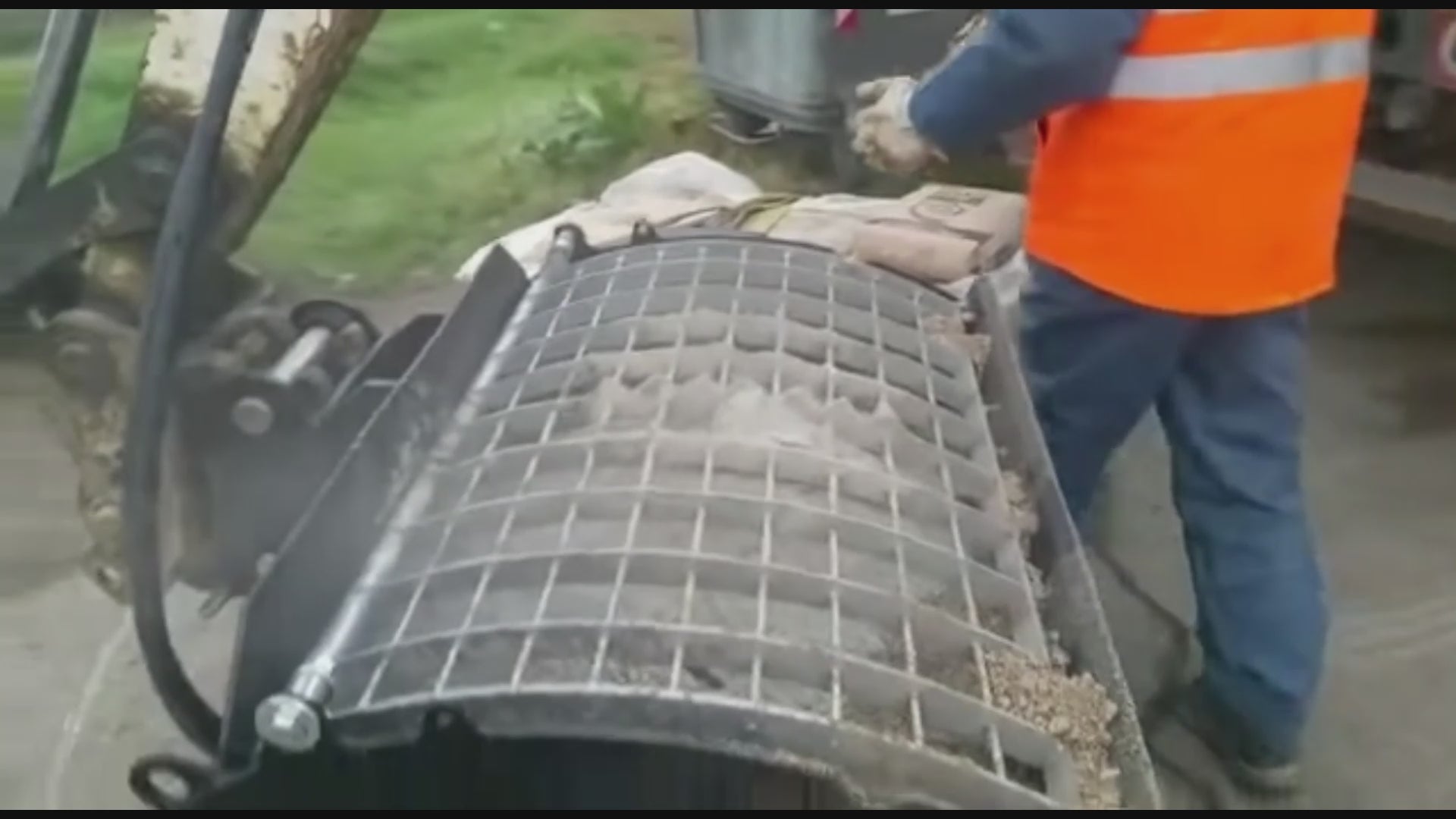

- Includes a manual side chute for precise dispensing and a removable steel grate with bag splitters.
- Universally compatible with skid steer mounts for easy attachment.

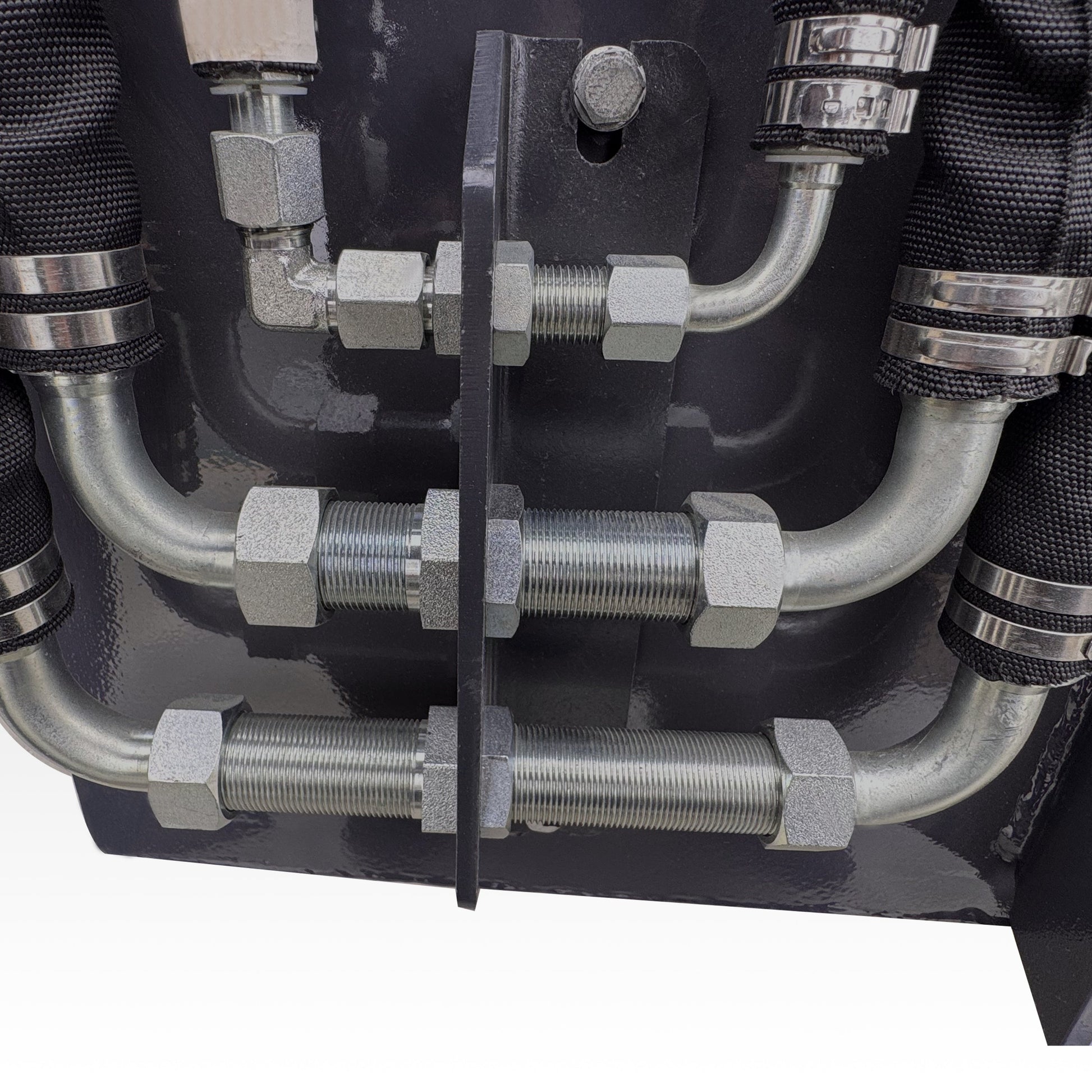

- Comes with hoses and 1/2” flat-faced couplers.
- Use a heavy-type wheel-side motor. The axial and radial force increases to make the mixing materials more uniform. The upgraded motor is connected to the mixing shaft by a bridge mechanism to prevent cement from entering the bearing seat, and fully protect the bearing seat, more than twice the lifetime compared with other similar products in the market.

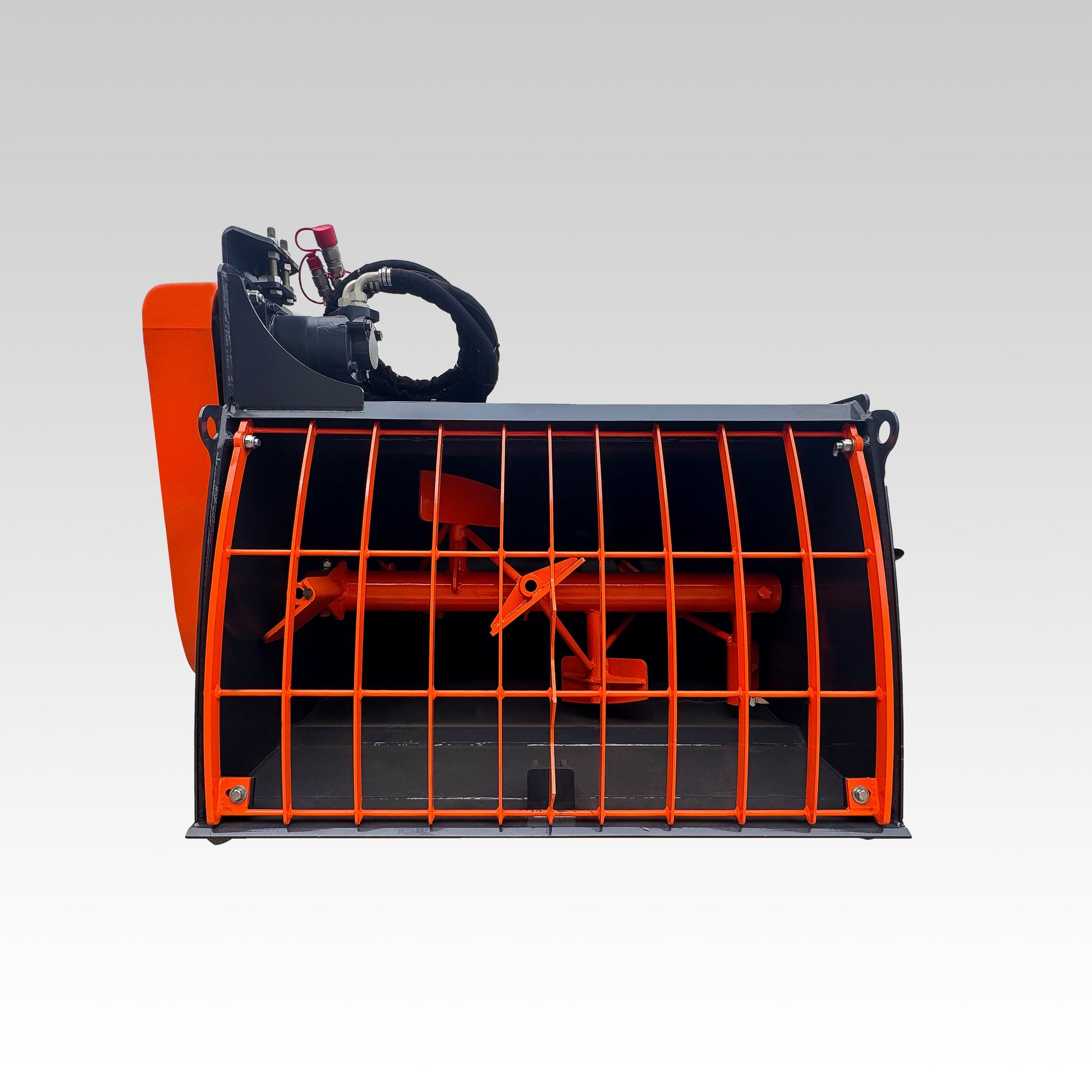

- Enlarge the space of grids. More convenient and easier to use for shoveling and discharging, it has solved the grids stained with cement during working and the low efficiency of feeding and discharging.
- Using a 40Cr steel plate with a hard process makes the gear three times a lifetime better than the ordinary factory manufacturer.
Specifications
| Model | 031004 | 031006 | 0310A04 | 0310L04 |
|---|---|---|---|---|
| Total Length (in) | 72.8 | 84.3 | 58.3 | 73.8 |
| Total Width (in) | 52.8 | 52.8 | 42.3 | 43.3 |
| Total Height (in) | 48.6 | 48.6 | 41.2 | 43.3 |
| Bucket Capacity (cu. ft) | 16 | 21 | 21 | 14 |
| Hydraulic Flow (GPM) | 15.9 - 21.1 | 15.9 - 21.1 | 15.9 - 21.1 | 15.9 - 21.1 |
| Working Pressure (psi) | 3045.8 | 3045.8 | 3045.8 | 3045.8 |
| Total Weight (lbs) | 1263.3 | 1444 | 1300.7 | 992.1 |
| Discharging Material Form | Side Discharging | Side Discharging | Front Discharging | Side Discharging |
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
