Product Feature

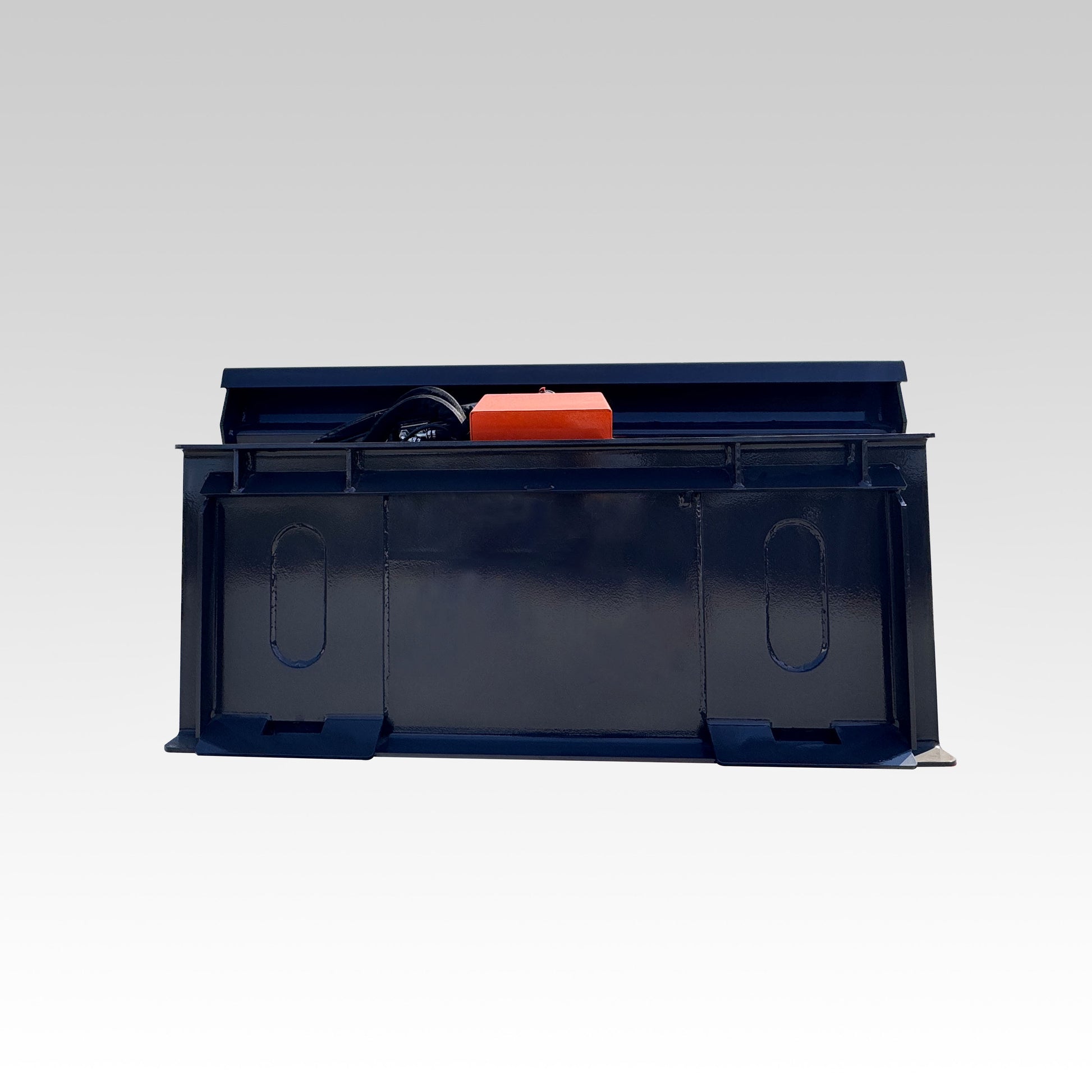

- Designed for universal skid-steer loader quick-attach mounting, the dozer blade is compatible with skid steers up to 110 HP. Its adaptability makes it suitable for a wide range of equipment and applications.

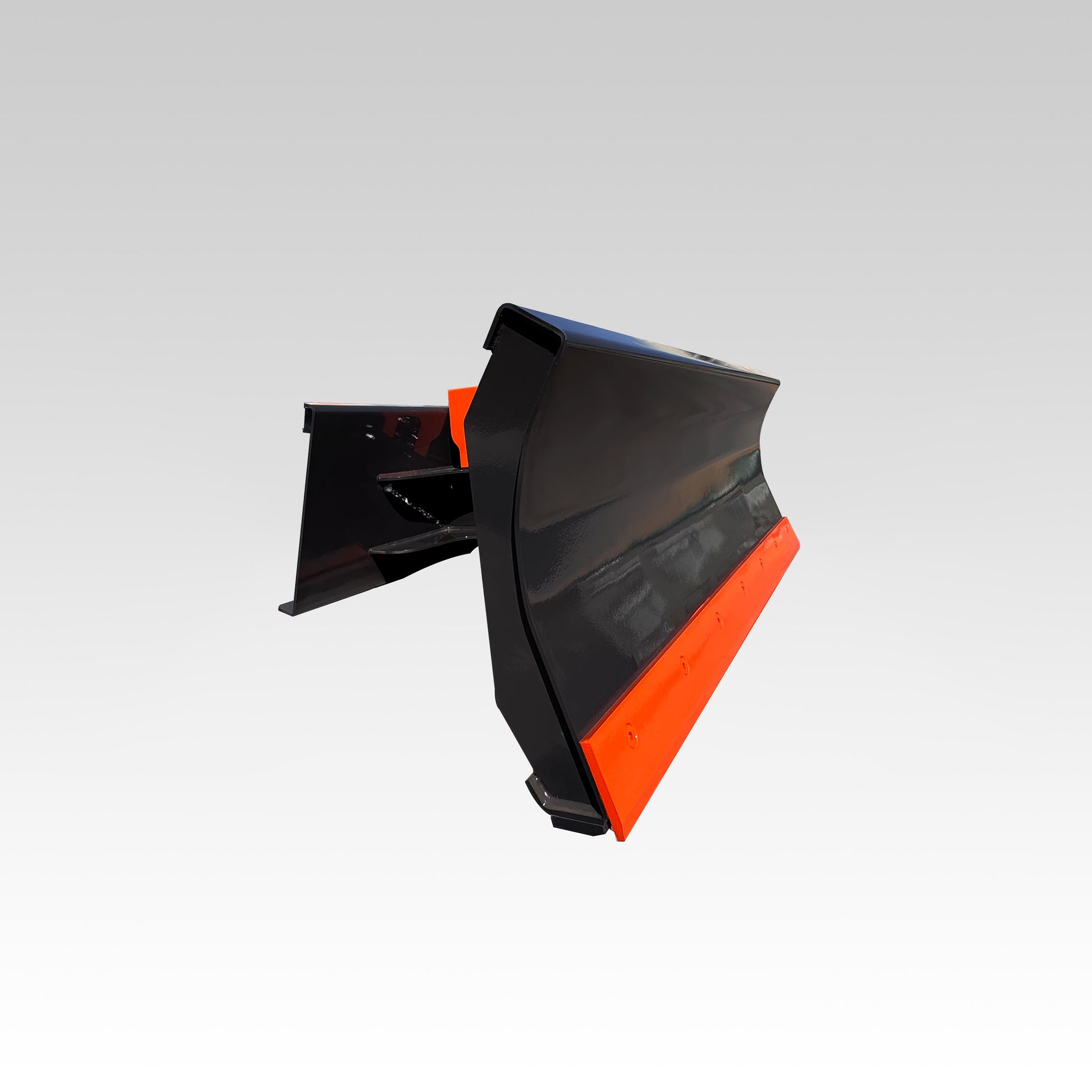

- Available in blade widths of 60", 72", 84", and 96", the Sibom Tilting Dozer Blade features integrated tilt systems that allow for precise grading, leveling, and trenching.
- The blade can tilt left or right up to 30° off-center and rotate up to 10° horizontally in both directions, ensuring exceptional control and accuracy.

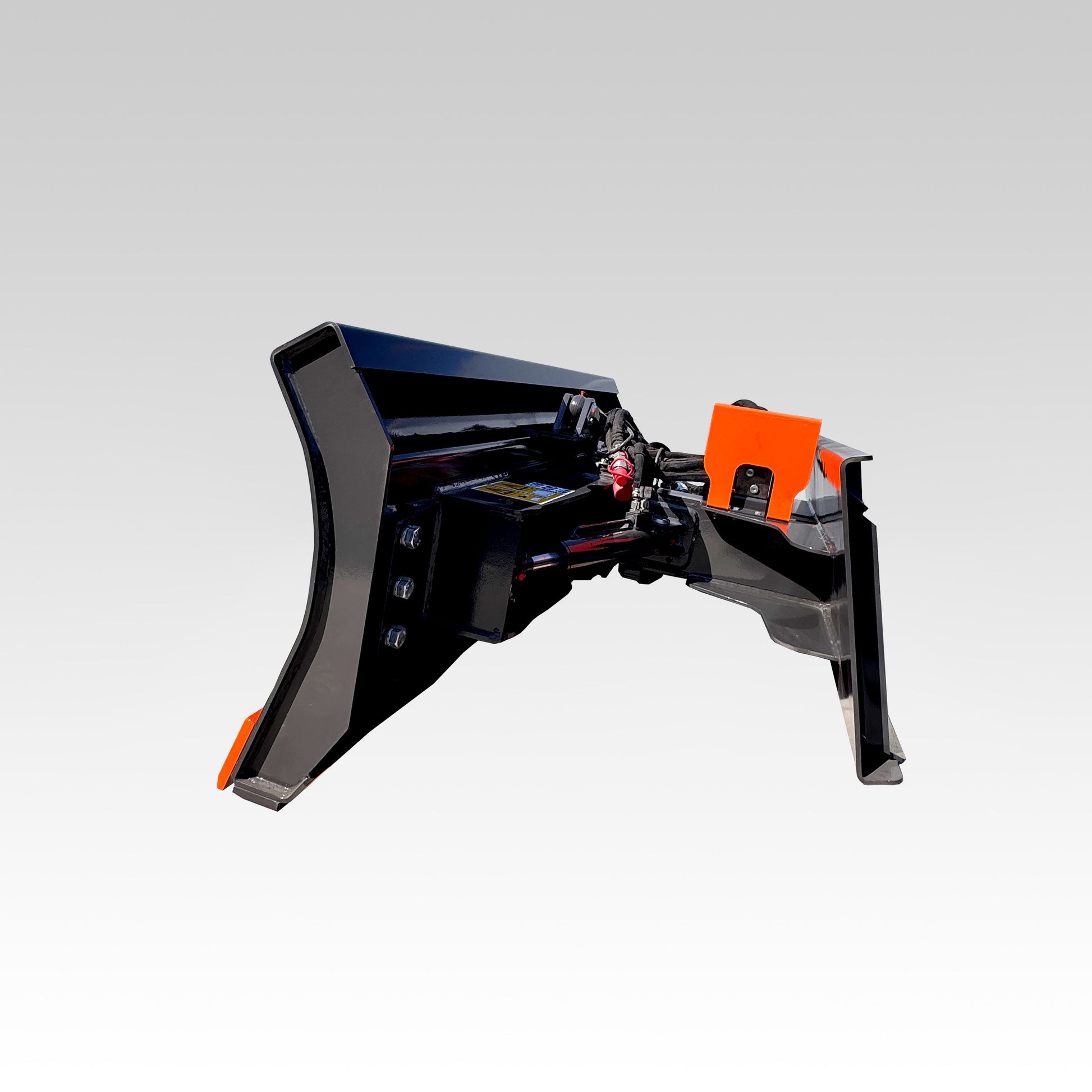

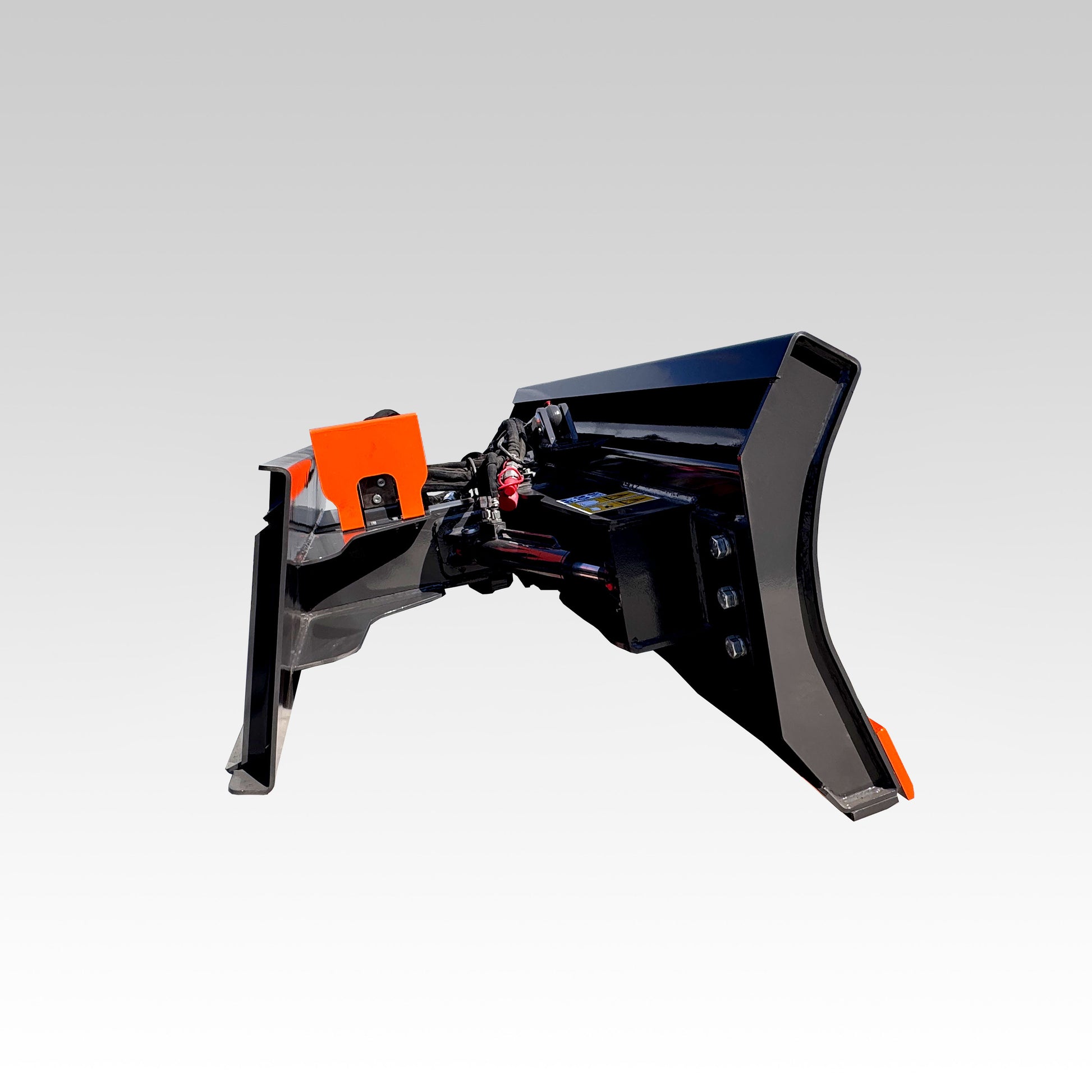

- The interchangeable angle and tilt cylinders are equipped with self-aligning bushings, enhancing operational smoothness and reducing wear over time.

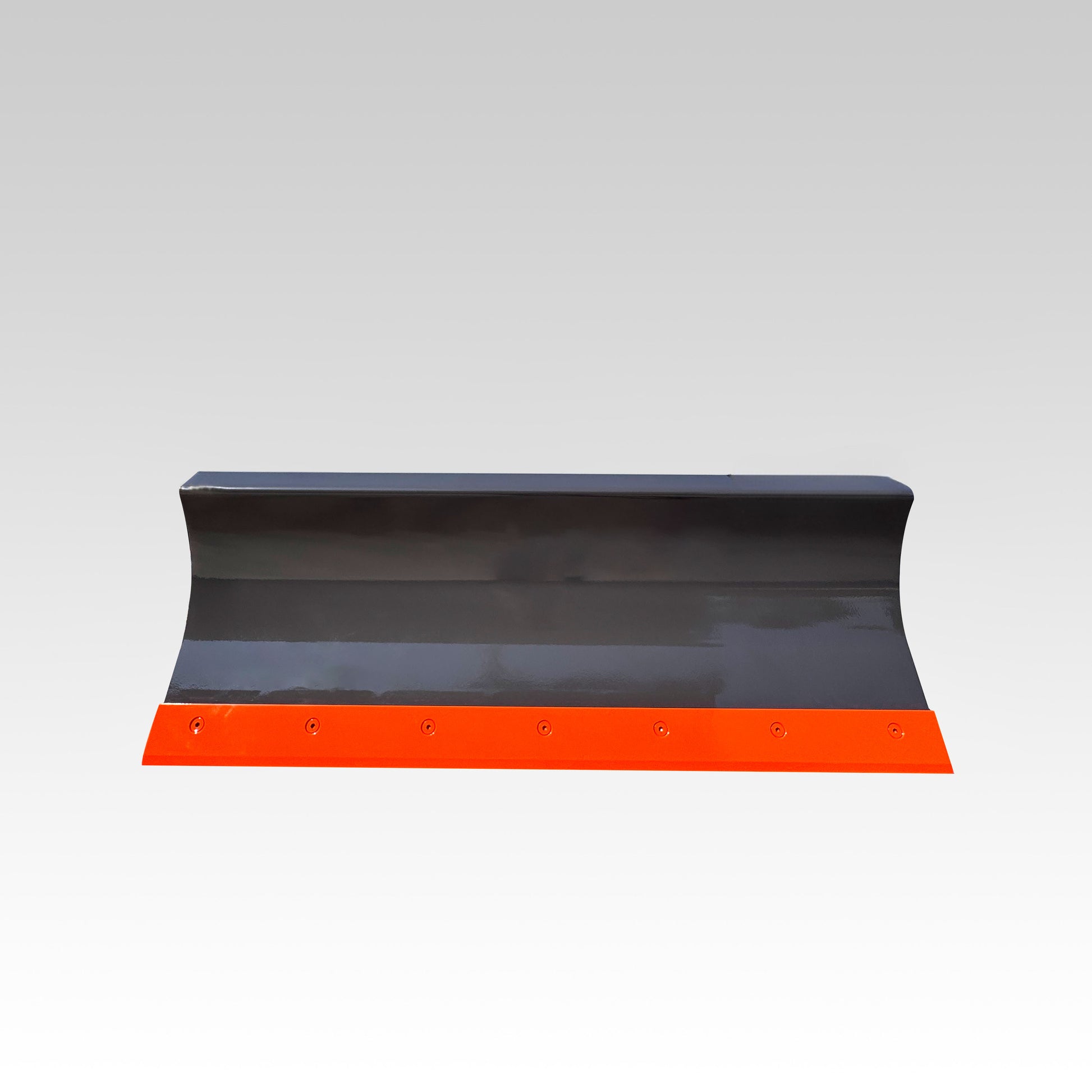

- Equipped with a reversible ½" x 8" bolt-on cutting edge and a formed moldboard measuring 0.31" thick and 28" high, the blade delivers superior cutting performance and durability for extended use.
- Features a large 3" center pivot pin with hardened steel bushings, ensuring stability and strength during heavy-duty operations.
- The full-length, high-carbon steel skid shoe is replaceable, prolonging the attachment’s service life and maintaining optimal performance even in demanding conditions.
- A built-in tilt indicator is positioned for maximum visibility from the operator's seat, allowing precise blade adjustments and better control during operation.
Specifications
| Model | 030960 | 030972 | 030984 | 030996 |
|---|---|---|---|---|
| Overall Width (in) | 60.2 | 72 | 83.5 | 94.5 |
| Steering 30° Width (in) | 50 | 59.8 | 72.7 | 85.8 |
| Overall Height (in) | 27.6 | 27.6 | 27.6 | 27.6 |
| Overall Length (in) | 38 | 38 | 38 | 38 |
| Deflection Angle (°) | ±30 | ±30 | ±30 | ±30 |
| Maximum Angle of Yaw (°) | ±10 | ±10 | ±10 | ±10 |
| Weight (lbs) | 1157.4 | 1225.6 | 1267.7 | 1377.9 |
| Working Flow (GPM) | 5.3 - 7.9 | 5.3 - 7.9 | 5.3 - 7.9 | 5.3 - 7.9 |
| Operating Voltage (V) | DC12/24 | DC12/24 | DC12/24 | DC12/24 |
| Maximum Pressure Allowed (psi) | 3045.8 | 3045.8 | 3045.8 | 3045.8 |
| Package Size (in) | 66.1 x 43.3 x 35.4 | 77.9 x 43.3 x 35.4 | 89.7 x 43.3 x 35.4 | 100.4 x 43.3 x 35.4 |
| Pack Weight (lbs) | 83.8 | 88.2 | 92.6 | 99.2 |
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
