Product Feature
- Employs a powerful impact force to drive steel pipe piles swiftly and securely, ideal for highway guardrail construction.
- Features robust extraction capabilities, allowing the quick removal of damaged or broken piles and reducing labor and operational costs.
- Equipped with an adjustable arm mechanism, enabling precise positioning for various pile lengths and ensuring accurate, efficient performance.
- Designed with a compact structure for quick assembly and disassembly, facilitating rapid relocation between job sites and minimizing downtime.
Specifications
| Model | 0223A70 |
|---|---|
| Total Height (in) | 68.3 - 100.0 |
| Total Width (in) | 67.7 |
| Total Length (in) | 34.8 |
| Weight (including plugins) (lbs) | 1785.7 |
| Brock Diameter (in) | 2.8 |
| Brock Cap Diameter (in) | 5.8 or 4.7 |
| Work Flow (GPM) | 10.6 - 18.5 |
| Working Pressure of the Crushing Hammer (psi) | 1740 - 2030 |
| Impacting Frequency (Bpm) | 500 - 700 |
| Piston Gas Chamber Pressure (psi) | 174 - 203 |
| Pull the Pile Force (Tons) | 8 |
| The Height Range of Piling (in) | 23.6 - 102.4 |
Performance Introduction

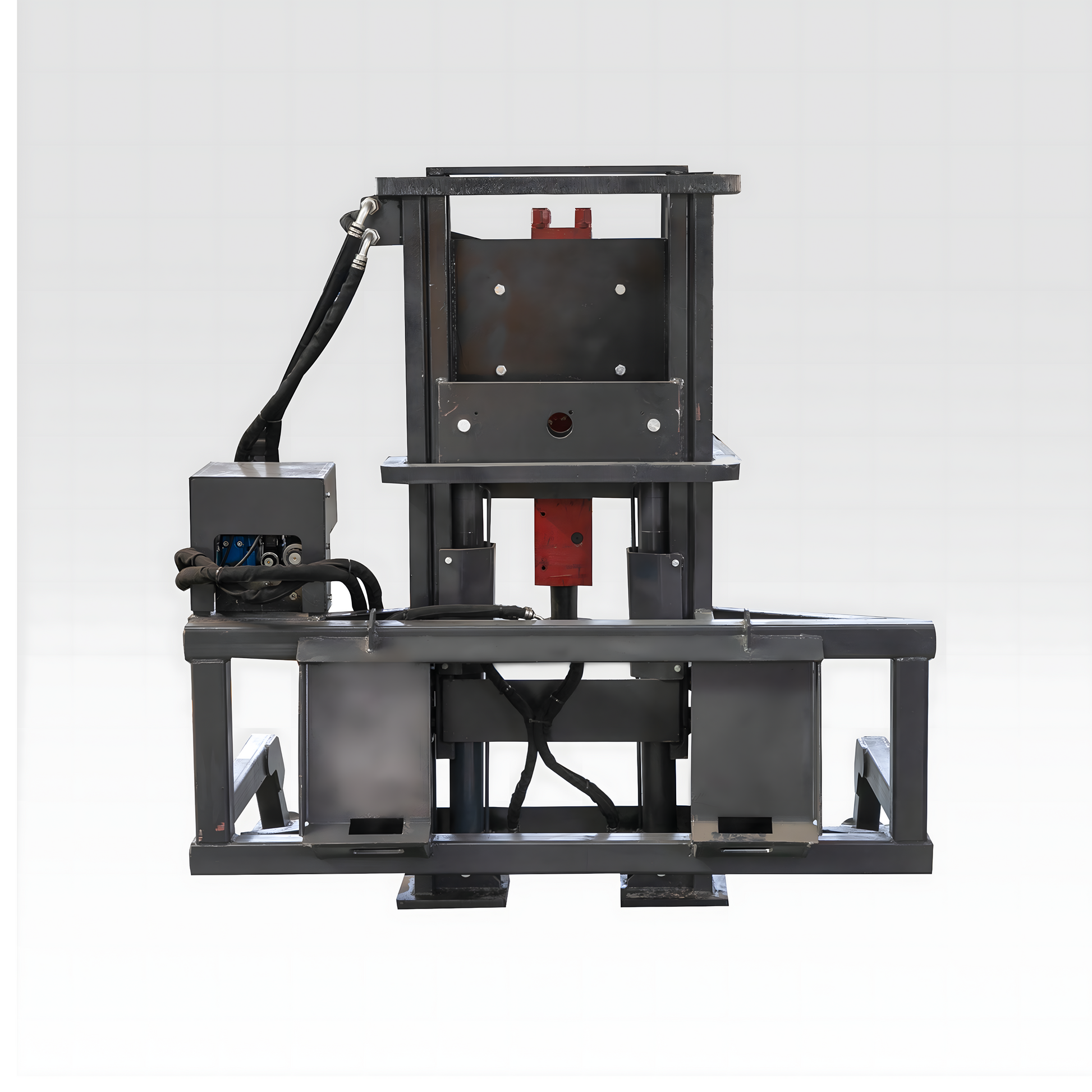

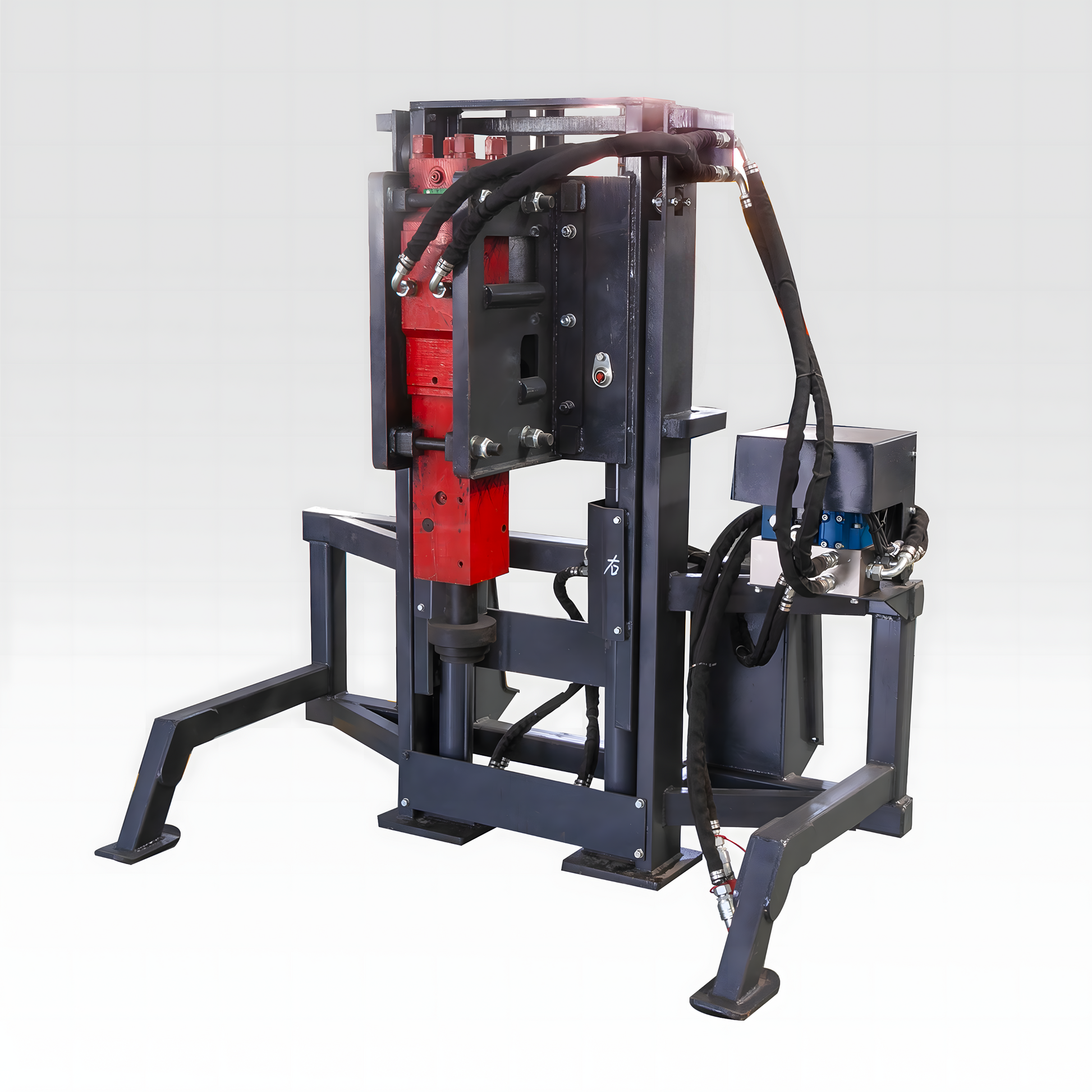

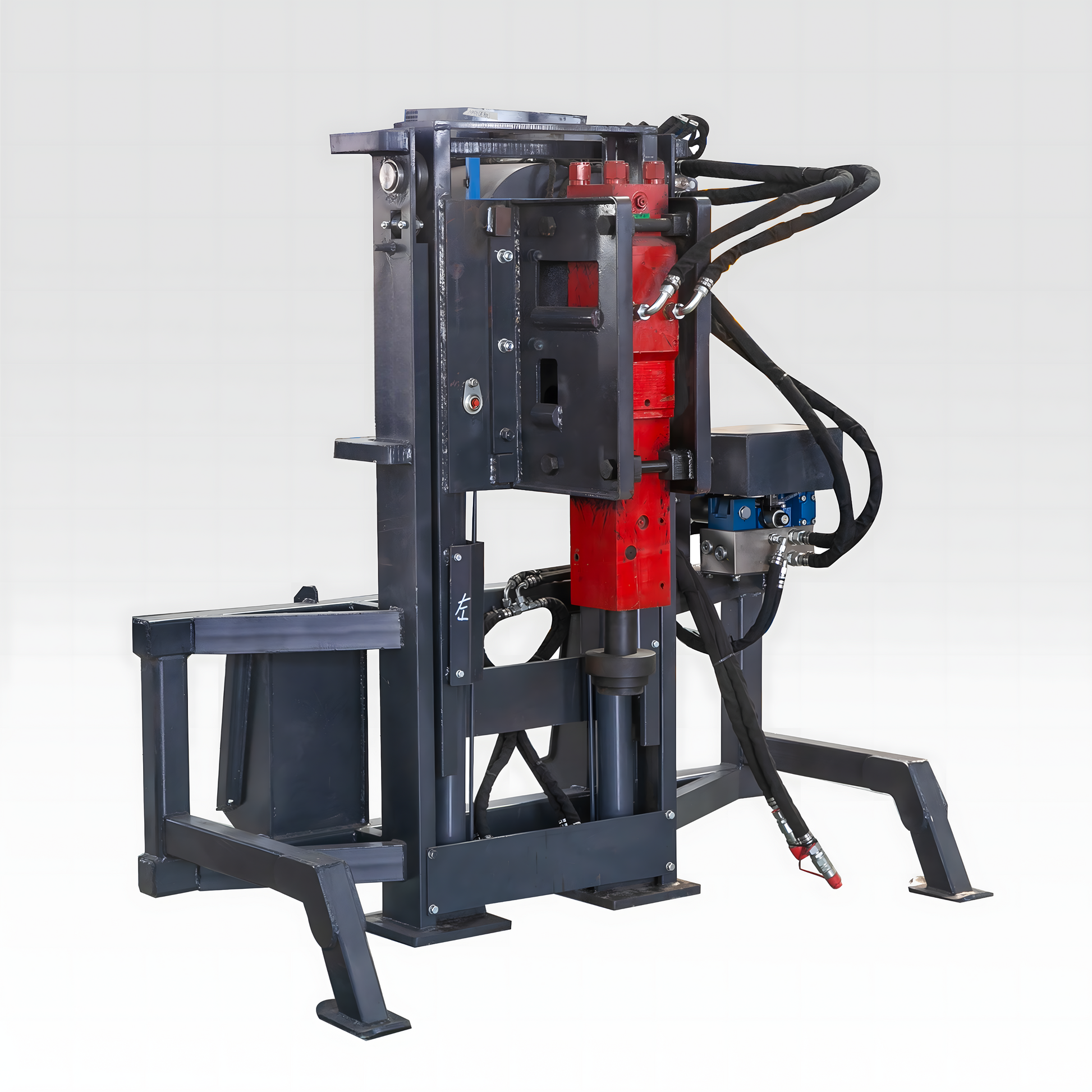

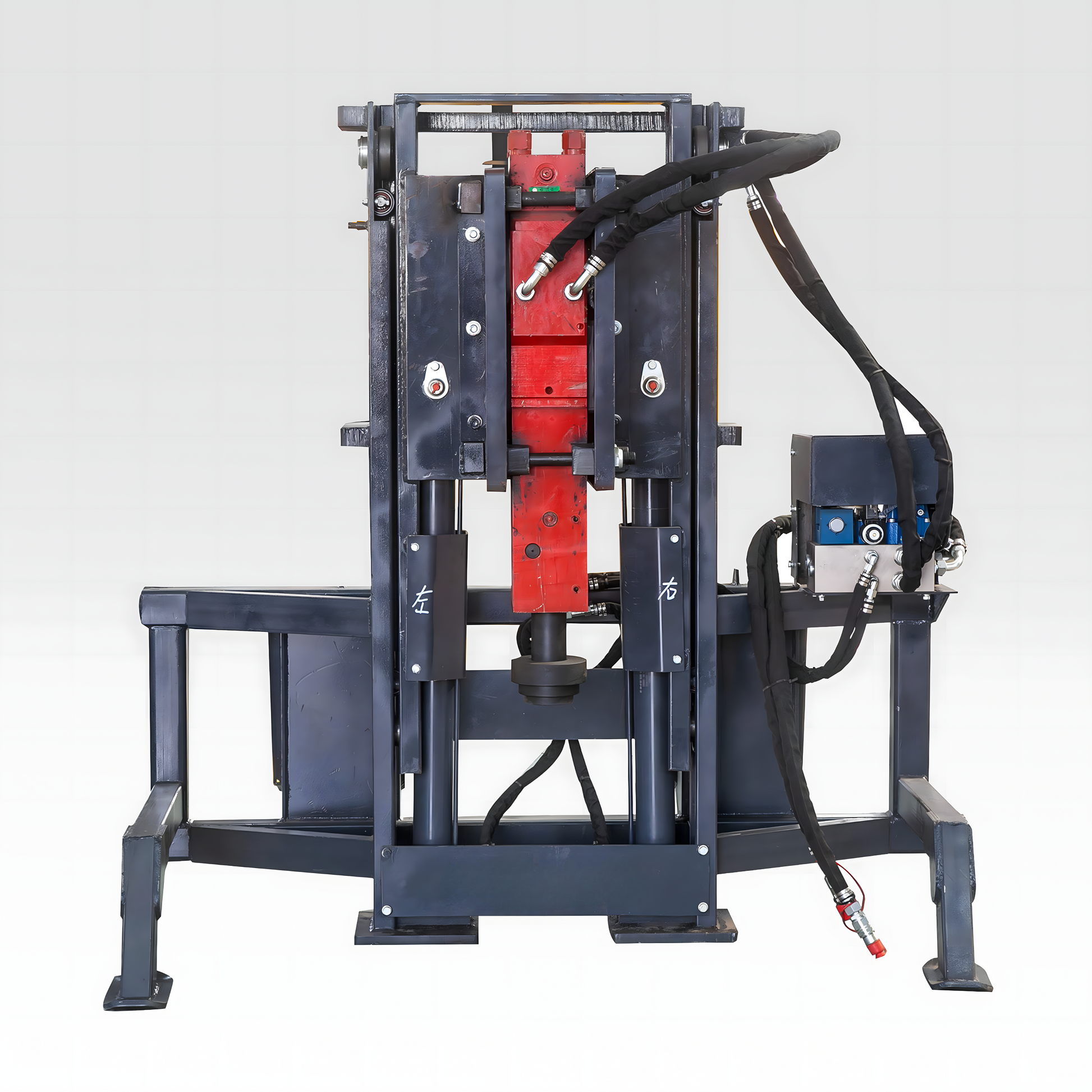

- The HCN Pile-Driver & Pile Extractor is a two-in-one pile driver and pile extractor attachment that transforms any skid steer, small loader, or excavator into a highway-ready guardrail crew. Built around a hydraulic impact pile driver with a powerful hammer mechanism, it delivers the high energy needed to seat steel pipe, beam, or sign posts fast, then switches to a strong-pulling pile extractor mode to yank bent or broken piles without extra tools. The compact frame—only 34.8″ long and 67.7″ wide—fits tight rights-of-way, while the height-adjustable pile driver mast (68.3″ to 100.0″) gives operators the reach and precise positioning needed for varying rail heights, bollards, and fence posts.
- A universal quick-attach mounting plate and auxiliary hydraulics create plug-and-play versatility, making it a perfect skid steer pile driver, post driver skid steer, or excavator pile driver adapter. Contractors appreciate the rapid relocation and quick assembly design: roll off the trailer, lock the coupler, and you’re driving piles within minutes—no dedicated carrier or crane required. When maintenance calls, switch to extraction mode; the integrated hydraulic clamp becomes a pipe pile puller that applies high, continuous force, acting as a broken pile remover or guardrail repair pile extractor that saves crews hours of torching and digging.
- The rugged impact head uses a sealed hydraulic motor and hardened components for long-life pile driver reliability, while the vibration-free damping system keeps noise low and operator fatigue down—ideal for bridge approaches, rail lines, and urban roadways where disruption must be minimal. Whether you’re installing new highway barriers, replacing storm-damaged guard posts, or driving sign and bollard foundations, this versatile pile driver attachment delivers productive, cost-effective results, turning one carrier into a complete piling & extraction combo attachment that slashes downtime and labor costs on every job.
Performance Video
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
