Product Feature
- Efficient Power Delivery: Driven by a skid loader for optimal power and control during operation.
- Versatile Material Handling: Capable of spreading asphalt, concrete, gravel, sand, and other materials.
- Wide Range of Applications: Perfect for sidewalks, parking lots, municipal projects, roadside stones, and more.
- Precision Control: Designed for controlled and even material spreading to enhance project quality.
- Robust Build: Engineered for durability and long-lasting performance in demanding work environments.
Specifications
| Model | 022212 |
|---|---|
| Width (in) | 72.8 |
| Length (in) | 57.5 |
| Height (in) | 48.8 |
| Spread Width (in) | 11.8 - 47.2 |
| Spread Depth (in) | 0 - 4.7 |
| Bucket Capacity (cubic yards) | 1.57 |
| Spinning Blade Diameter (in) | 11.2 |
| Reference Weight (including pendant) (lbs) | 1984.2 |
| Maximum Allowable Pressure (psi) | 2611 |
| Work Flow (GPM) | 15.9 - 22.5 |
| working voltage（V）(optional) | 12 V/24 V |
Performance Introduction

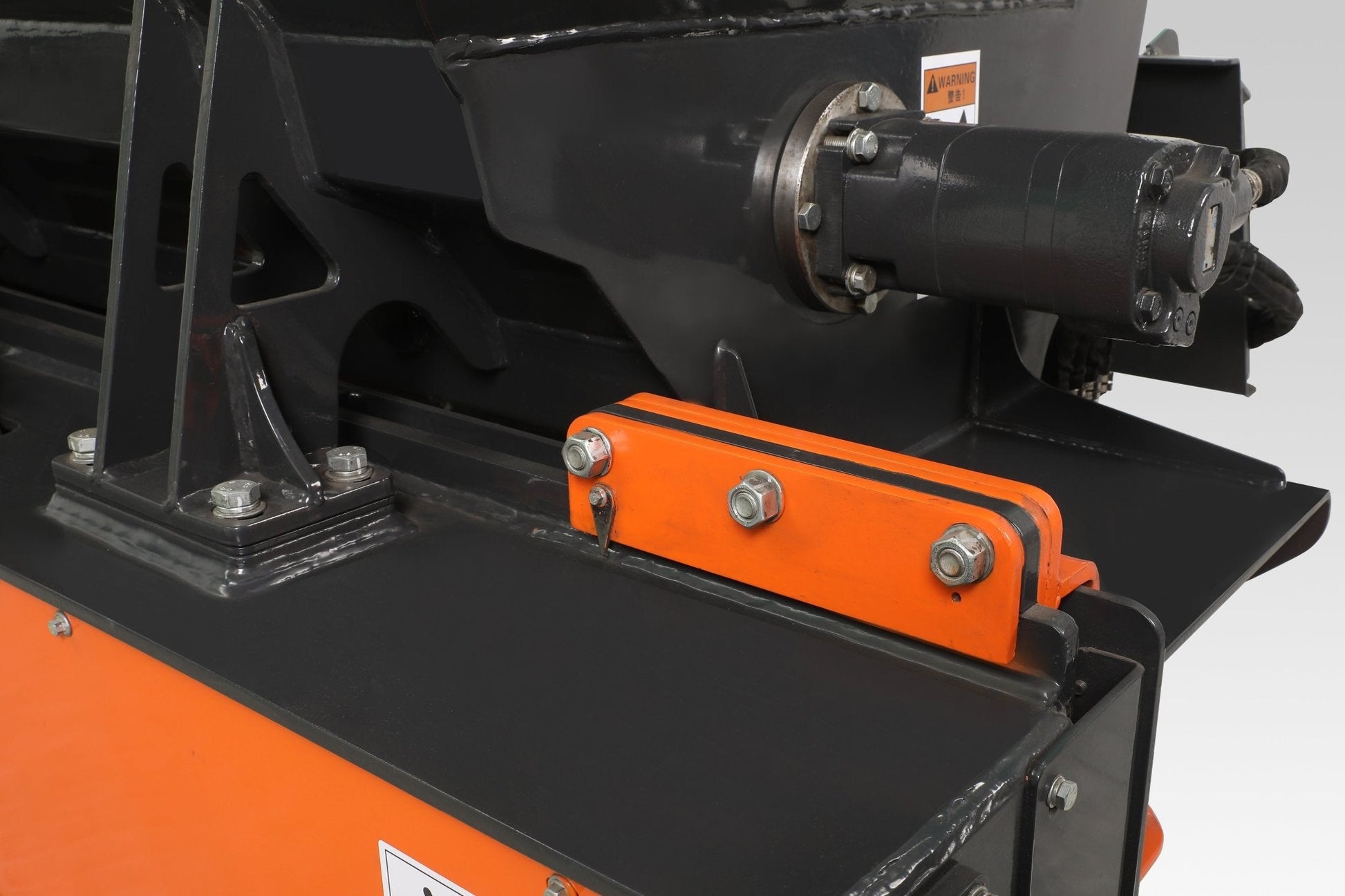

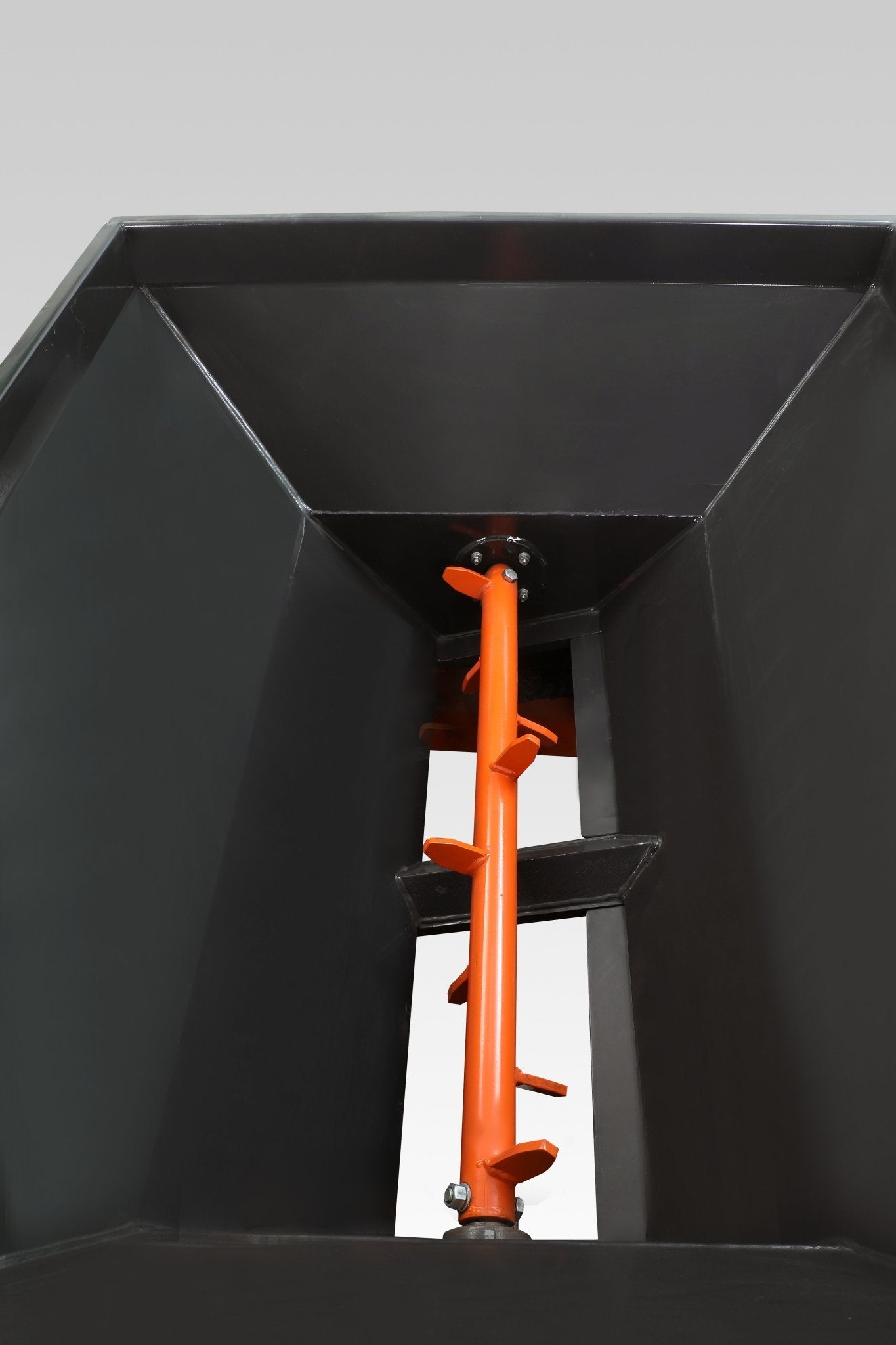

With an adjustable working width from 12 in. to 47 in. and depth settings to 4.7 in., this variable-width paver attachment excels as a sidewalk asphalt paver, driveway paving attachment, or road patching paver for utility cuts and shoulder repairs. Dial the selector pins to match trench widths or curb lanes, then let the hydraulic augers and screed create an even, fine-grade finish that rivals full-sized pavers. A low-profile hopper holds 0.85 yd³ of material—perfect for hot-mix asphalt, dense-graded cold patch, chip-seal aggregate, or even sand and gravel. Set it beside a dump truck or loader bucket and keep the mix flowing with the skid steer’s auxiliary hydraulics (18-21 GPM, 3 050 PSI max). The sealed drive motors meter output continuously, delivering the precision control spreader action needed for thin lifts, top-layer resurfacing, or polymer-modified mixes without segregation. Heavy-gauge steel, powder-coat protection, and abrasion-resistant wear plates make this a truly heavy-duty paver attachment engineered for years of punishing service. Because every wear edge is bolt-on, field maintenance stays quick and cost-effective—ideal for rental fleets and busy patch crews who can’t afford downtime. Whether you call it a skid steer paver box, mini asphalt paver, or compact loader paver, the BeyondTech unit tackles: Municipal asphalt spreading on cul-de-sacs, alleys, and trail systems Parking-lot and driveway resurfacing where a large paver can’t maneuver Utility trench backfill and road-shoulder repair with exact thickness control Gravel or sand base placement for paver-stone walks and landscape features Fast patch repair after milling, water-main work, or winter pothole blow-outs If you need a precision asphalt paver that’s as easy to transport as a bucket and as accurate as a full-size machine, mount the BeyondTech hydraulic asphalt paver and put a professional finish on every small-area job—saving time, labor, and material on every pass.Performance Video
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
