Product Feature

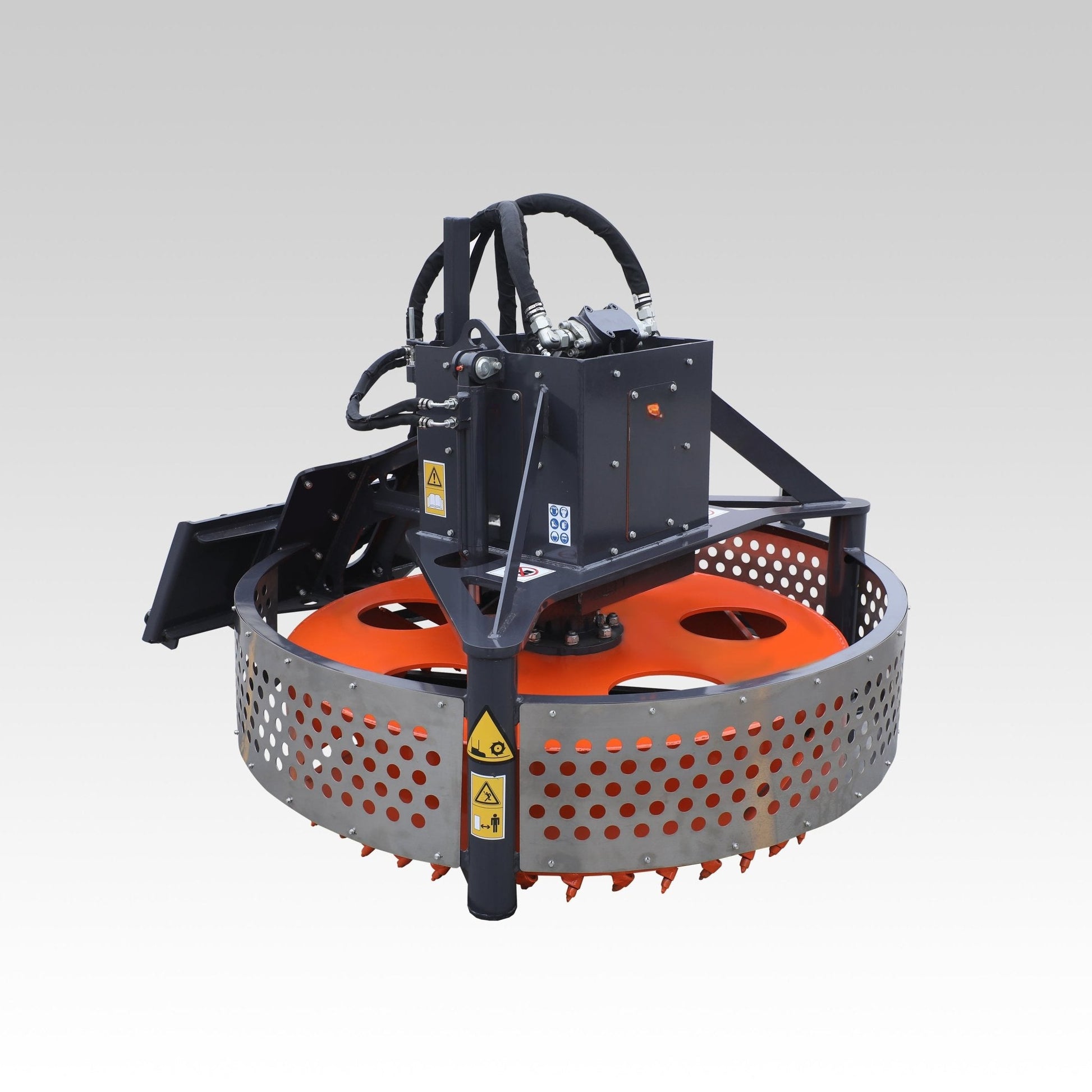

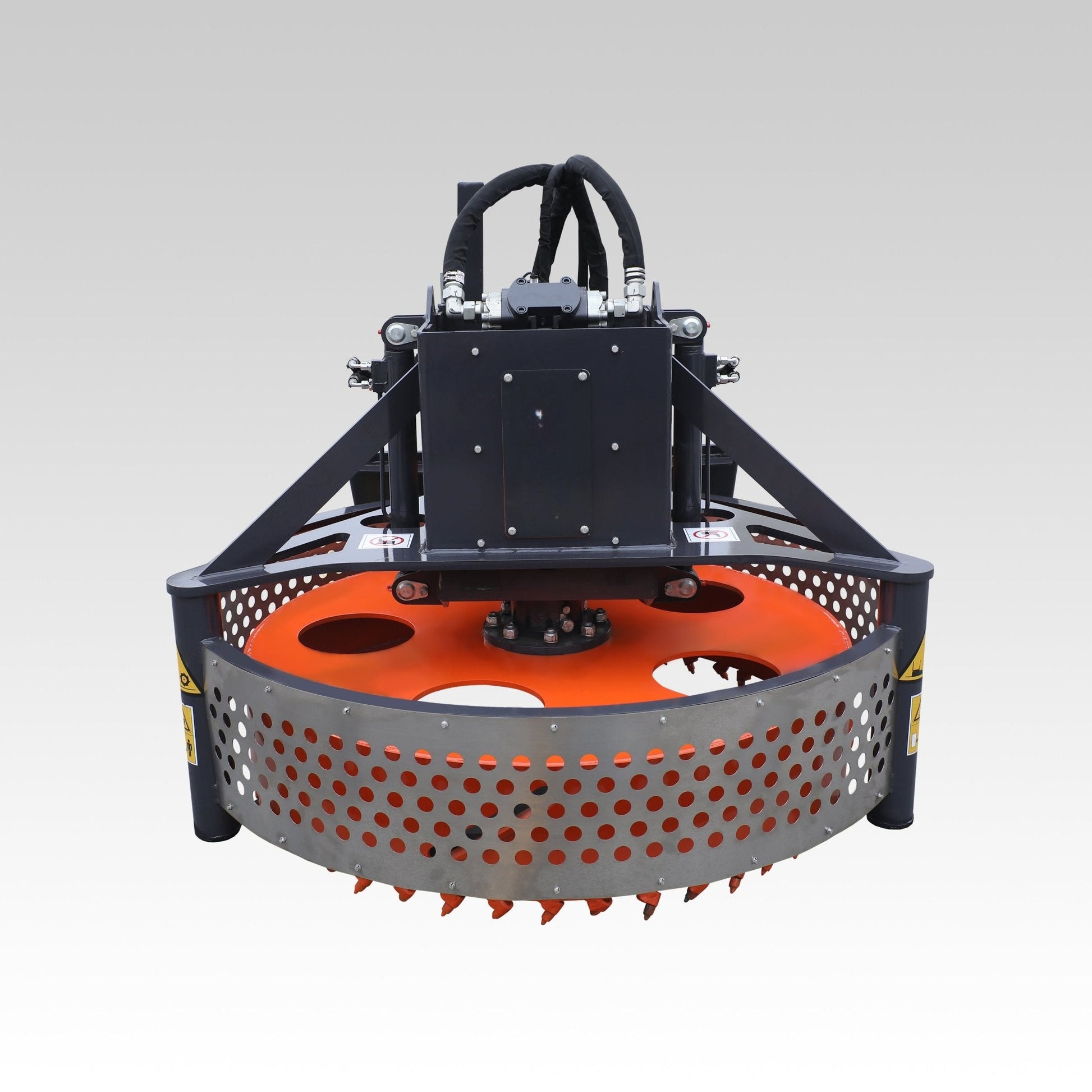

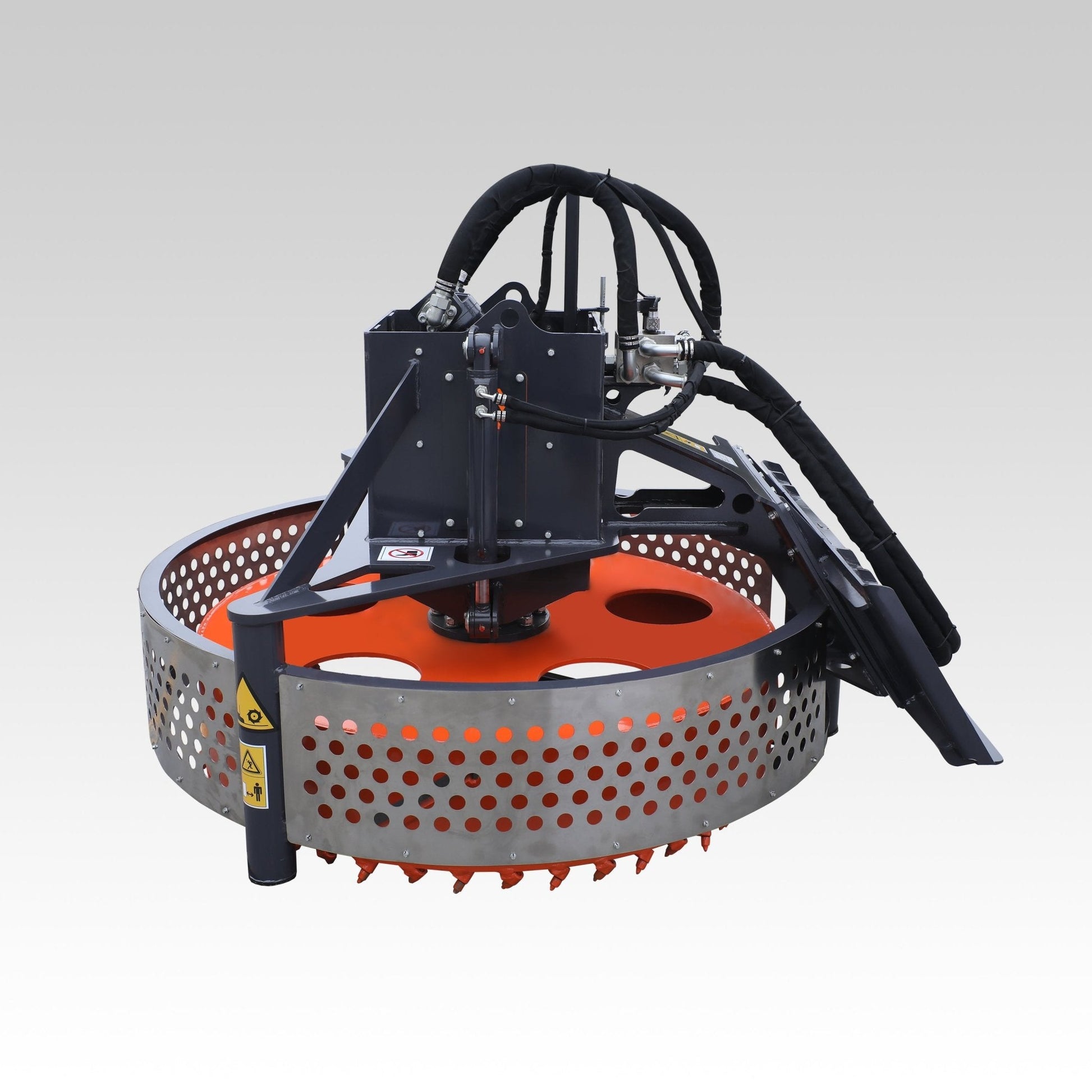

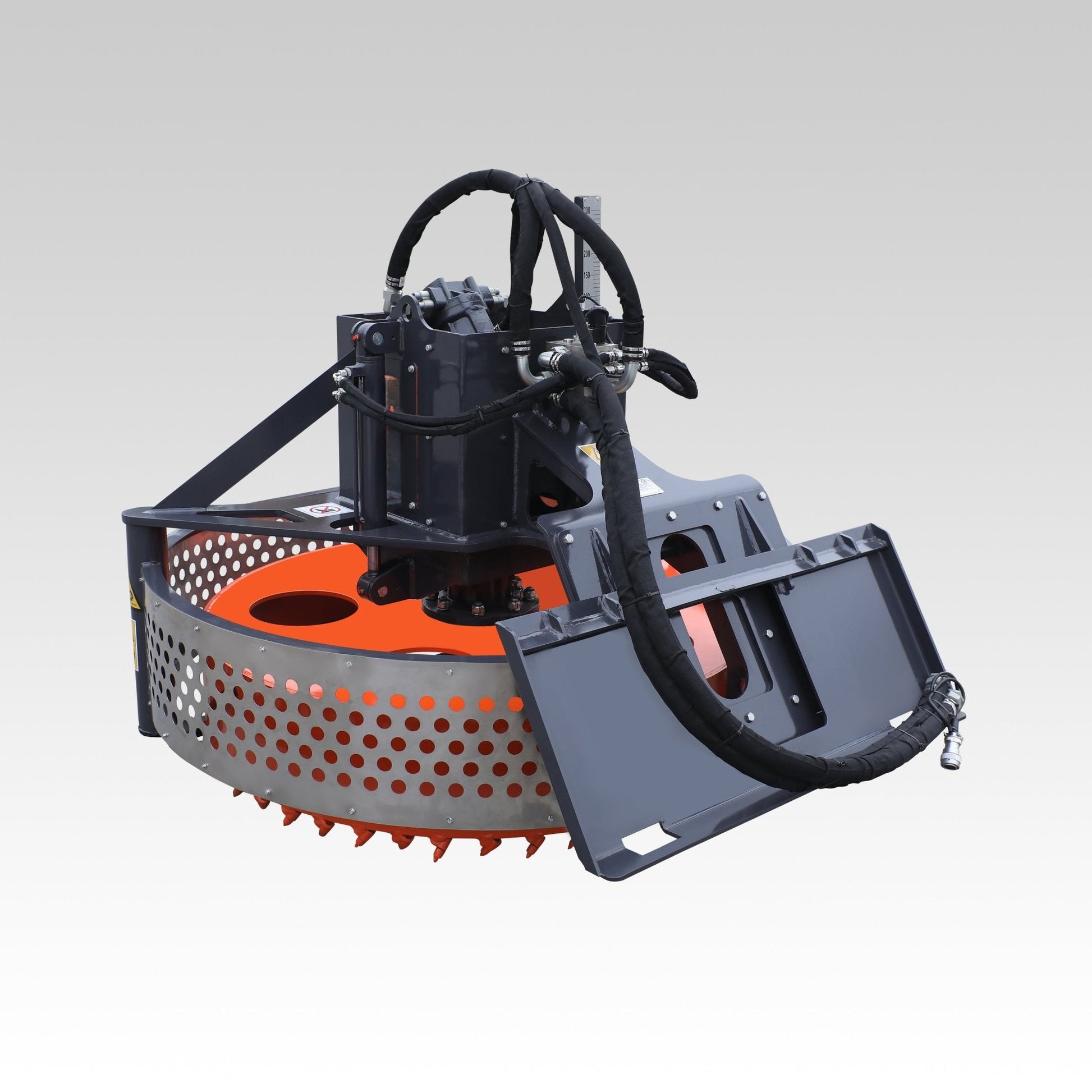

- The Manhole saw is a robust skid steer attachment designed for removing the collar and surrounding concrete or asphalt around manhole covers.
- It significantly reduces repair time from hours to minutes, typically taking 10-20 minutes for concrete and twice as fast for asphalt.
- The Manhole saw from SIBOM INDUSTRY Attachments revolutionizes manhole replacement work, which is traditionally messy and time-consuming.
- It's a heavy-duty skid-steer attachment designed to swiftly remove concrete and asphalt surrounding manhole covers, offering a 14-inch-deep cut and various customization options for different projects.
- With its efficient operation, it saves time and money while ensuring worker safety.

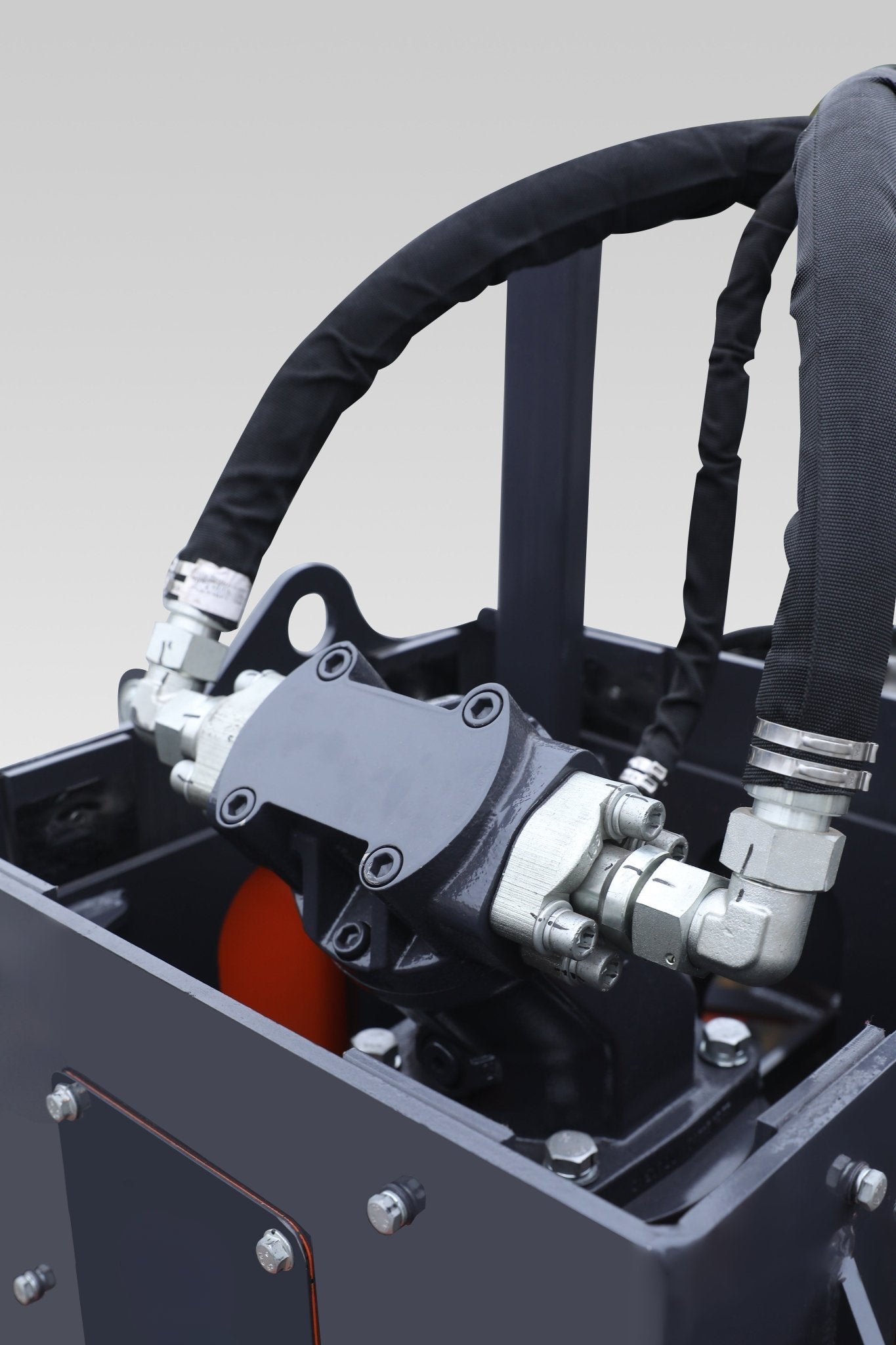

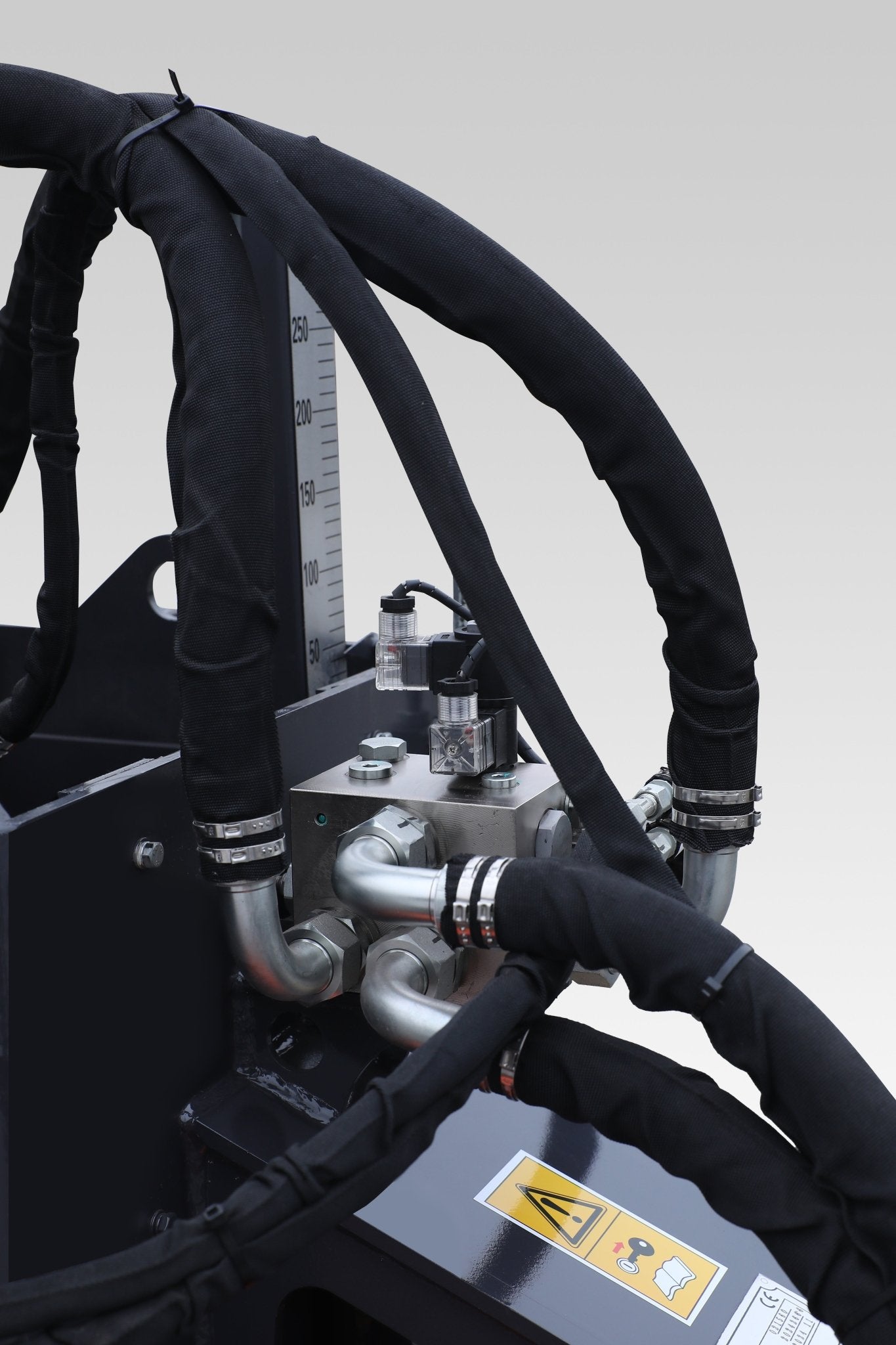

- Equipped with heavy-duty hydraulic motors and a hydraulic-powered breakout feature, it efficiently cuts through concrete, asphalt, and brick with its 45 carbide-tipped picks.

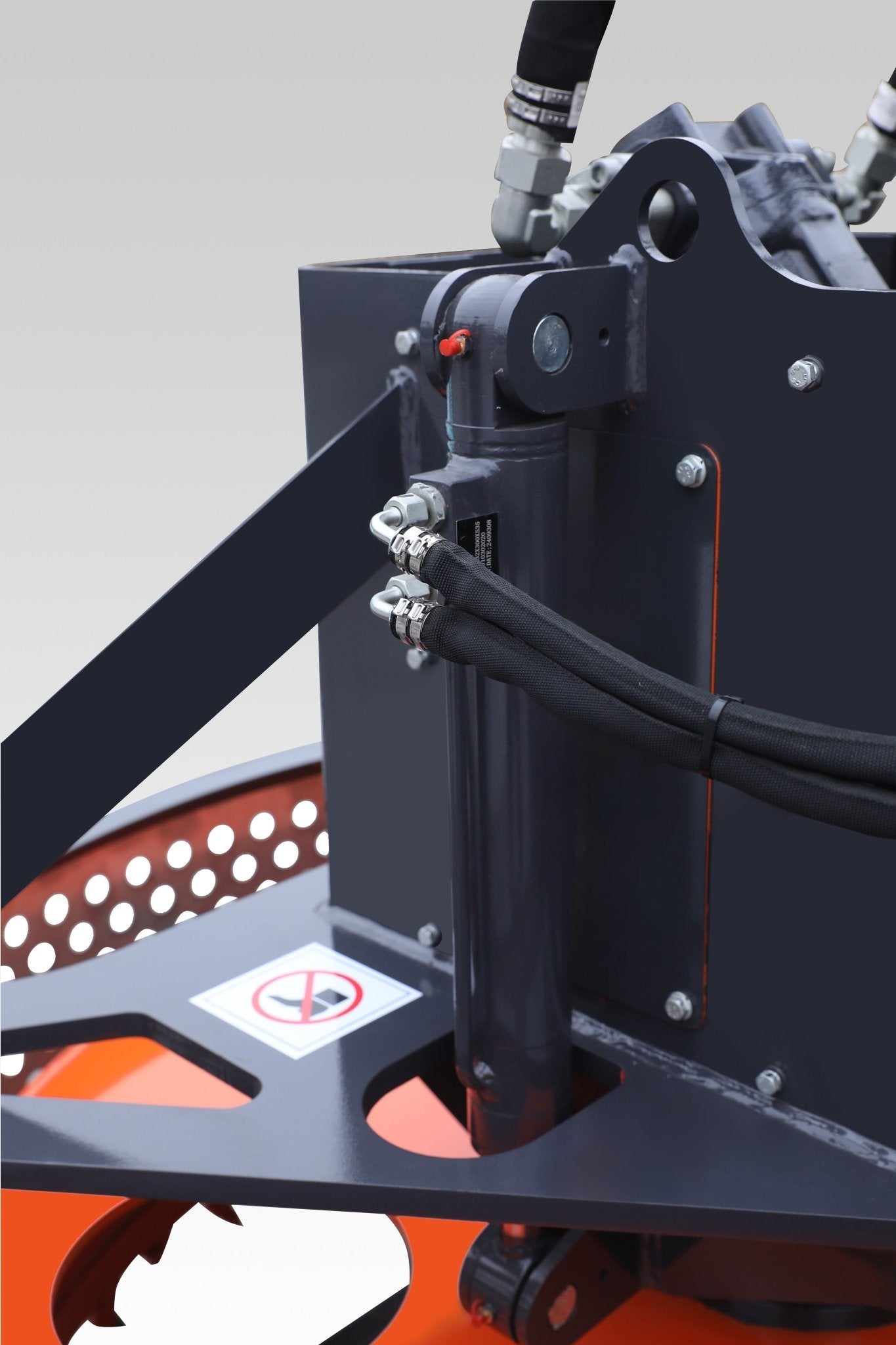

- The attachment's self-aligning hydraulic clamp securely attaches to the collar, ensuring precise and secure cutting.

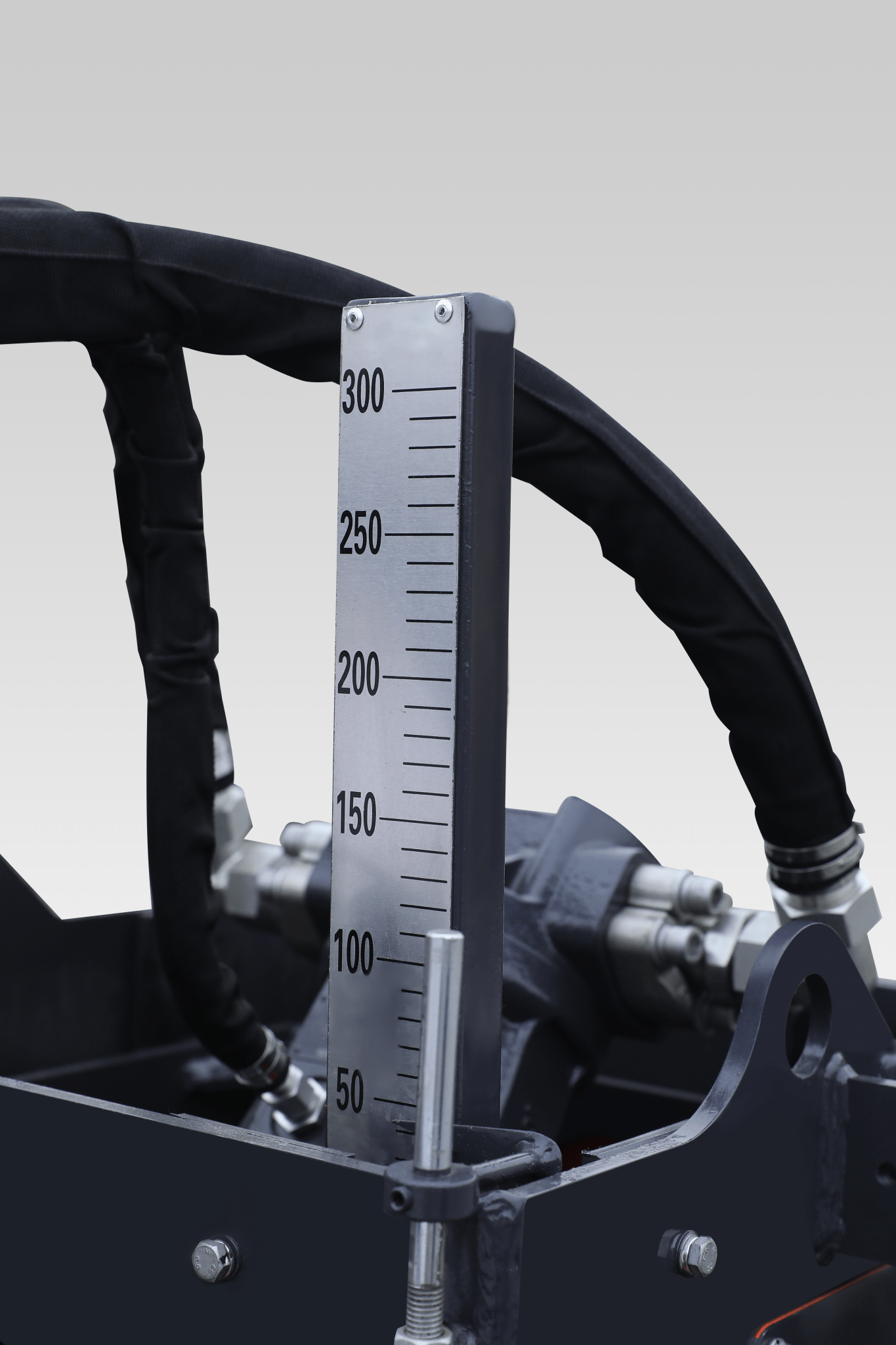

- Its low-cutting design minimizes mess and safety hazards from flying debris, with a depth indicator for precise cutting depth control from the skid-steer cab.
- Standard with a 54-inch-diameter hole cut, optional sizes are available, and it lifts the collar and surrounding layers of material for easy disposal onto a truck bed.
- The circular cut prevents common stress fractures, promoting better adhesion of replacement materials.
- It's an ideal solution for municipalities and contractors, saving them from subcontracting manhole replacement jobs and offering a cost-effective, efficient, and safe alternative.
Specifications
| Model | 021536 |
|---|---|
| Overall Length (in) | 74.8 |
| Overall Width (in) | 64.6 |
| Overall Height (in) | 54.8 |
| Weight (Including the pendant) (lbs) | 1984.2 |
| Maximum milling depth (in) | 11.8 |
| Width of milling groove (in) | 1.6 |
| Internal diameter of milling drum (in) | 53.5 |
| Working Flow (GPM) | 34.3 - 39.6 |
| Pressure (psi) | 3625 |
| Suitable Machine | Above 100hp/high flow skid steer |
| Optional accessories | Blade cooling (spray) system |
Performance Introduction
- The BeyondTech Manhole Cover Milling Machine is a purpose-built skid steer manhole saw that lets municipal crews and road-work contractors mill perfect circles around inspection wells in minutes instead of hours. Locked to your loader with a universal quick-attach plate, this hydraulic manhole cutter becomes a one-man, one-machine solution for asphalt, concrete, or composite collars—no jackhammers, no chiseling, no guesswork.

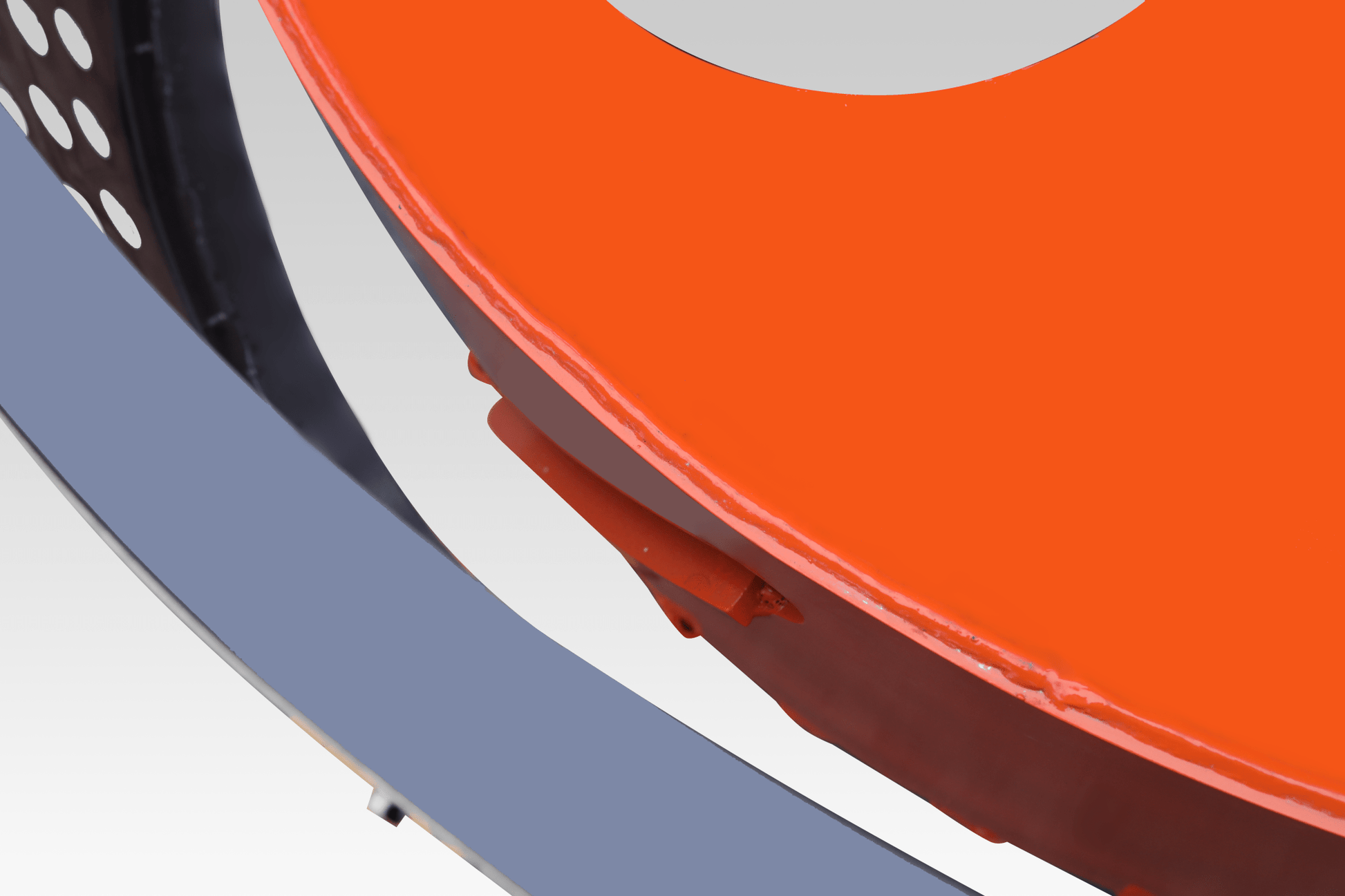

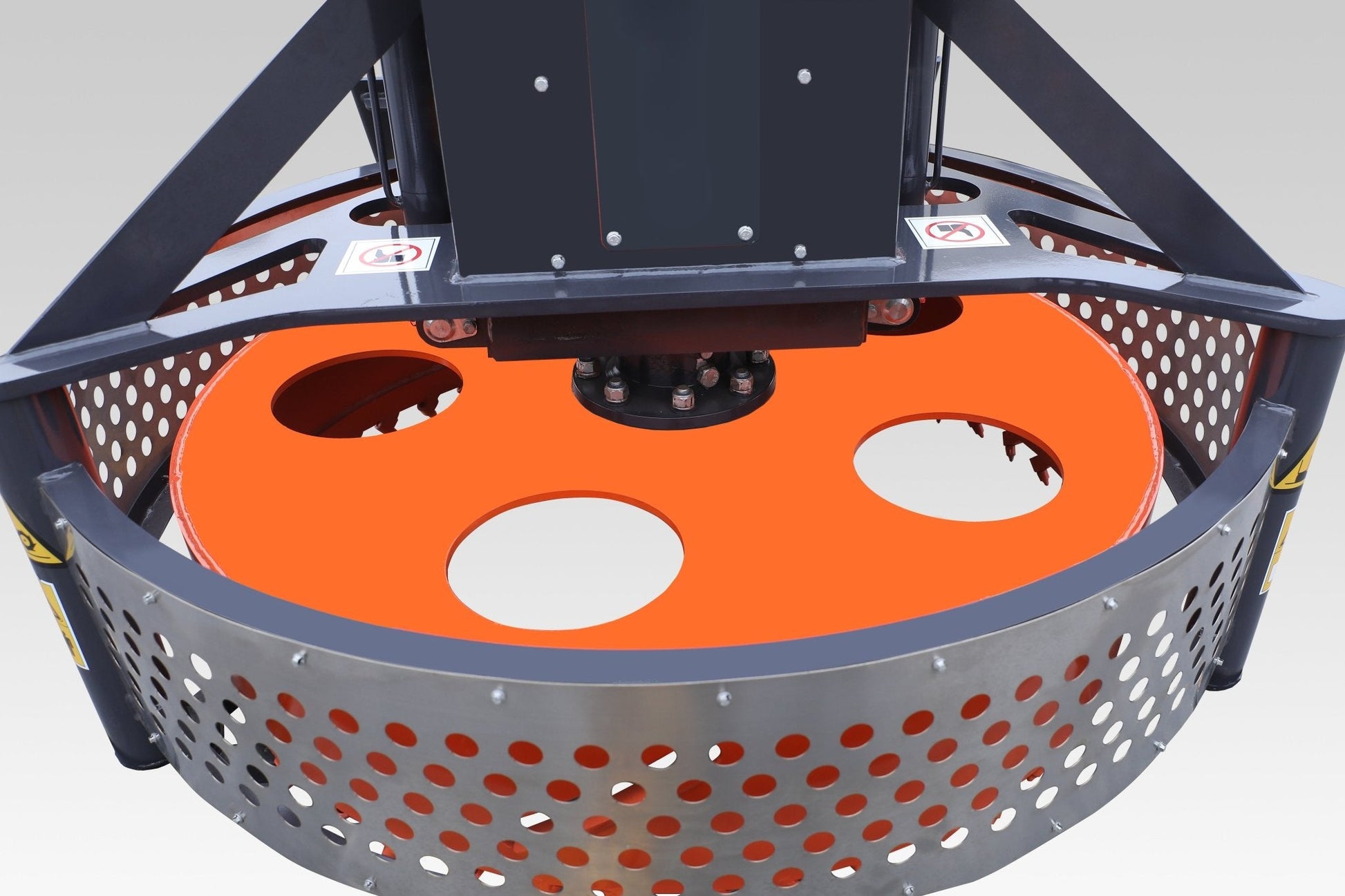

- Inside the low-profile housing a 53.5-inch milling drum manhole cutter armed with carbide-tipped picks delivers high-torque bite through the hardest pavement. The drum creates a precise 1.6-inch-wide groove while a depth indicator guarantees an exact 11.8-inch cut, making it the ultimate precise depth manhole cutter for both resurfacing and full collar replacement. A built-in, two-position clamp self-aligns on every lid, turning the attachment into a self-aligning hydraulic clamp saw that keeps cuts perfectly round even on crowned city streets.
- The heavy-duty, box-section frame is sized for tight urban lanes—just 64.6 in W × 54.8 in H × 74.8 in L—yet tough enough for interstate work. Dual high-flow motors power the circular asphalt cutter without bogging, while debris-control skirts and a low-cutting design protect passing traffic and nearby crews. Whether you call it a skid steer manhole cutter, manhole collar removal saw, or round hole cutter skid steer attachment, it replaces multiple legacy tools with a single, time-saving manhole saw that leaves a smoother, safer driving surface.
- Use it as an asphalt milling manhole saw today, swap bits and run it as a concrete manhole cutter tomorrow. From utility manhole cutter work in dense downtown grids to public-works manhole repair attachments on rural roads, one BeyondTech unit covers every scenario—drastically cutting labor, lane-closure time, and patch failures. If you need a heavy-duty road cutter that pays for itself in the first season, choose the BeyondTech skid steer manhole cover saw: the professional, reliable way to achieve clean cuts, smooth patches, and happier motorists.
Performance Video
HCN Manhole saw Performance Video On Tiktok
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
