HCN Industry

HCN Skid Steer Snow V-Blade, ±30° individual hydraulic angleling, Automatic Obstacle Avoidance

HCN Skid Steer Snow V-Blade, ±30° individual hydraulic angleling, Automatic Obstacle Avoidance

$14,499.00 CAD
$14,499.00 CAD $14,499.00 CAD
Sale Sold out
Model
  • The HCN V-Type Snow Blade is a high-performance attachment designed to remove snow with precision, efficiency, and durability.
  • Built for skid steer loaders and other compatible machinery.
  • V-blade cuts an initial pathway fast through deep, heavy, or hard-packed snow.
  • this V-shaped blade excels in clearing roads, highways, parking lots, and various terrains, providing a reliable solution for winter maintenance.
  • Dimensions: 37.2” L x 30.7” H x 72“ W(021372), 37.2” L x 30.7” H x 83.9“ W(021384)
View full details
Product Feature
  1. Equipped with a double-action hydraulic cylinder and solenoid valve control, allowing each shovel plate to operate independently for maximum flexibility and efficiency.
  2. Enables operators to adjust the blade’s position and angle effortlessly to suit specific snow-clearing needs.
  3. Constructed with a high-strength steel blade, ensuring durability and resistance to wear under heavy use.
  4. The bottom of the blade features a replaceable wear-resistant plate, extending the service life and reducing maintenance costs.
  5. An optional nylon blade plate is available for applications requiring less aggressive contact with the ground.
  6. Features an automatic flip obstacle avoidance design, allowing the blade to flip over obstacles and return to its original position using spring-loaded mechanisms. This prevents damage to both the blade and the obstacle, ensuring uninterrupted operation.
  7. The blade can be transformed into various shapes, including V-shape, straight, and angled configurations, making it suitable for diverse snow removal scenarios.
  8. Capable of swinging left or right for added flexibility in obstacle avoidance and snow direction control.
  9. The blade and push snow plate are bolted for quick and easy replacement, minimizing downtime during maintenance or adjustments.
Specifications
Model 021372 021384
Width (in) 72 83.9
Height (in) 30.7 30.7
Length (in) 37.2 37.2
Shovel Swing Angle (°) ±30° ±30°
Flat Angle Tilt 30 Width (in) 63 73.6
Front V Width (in) 58.3 69.3
Reverse V Width (in) 67.7 77.8
Height of Obstacle Avoidance (in) ≤3.5 ≤3.5
Weight (including pendant) (lbs) 892.9 937
Hanging model Skid Steer loader
Performance Introduction

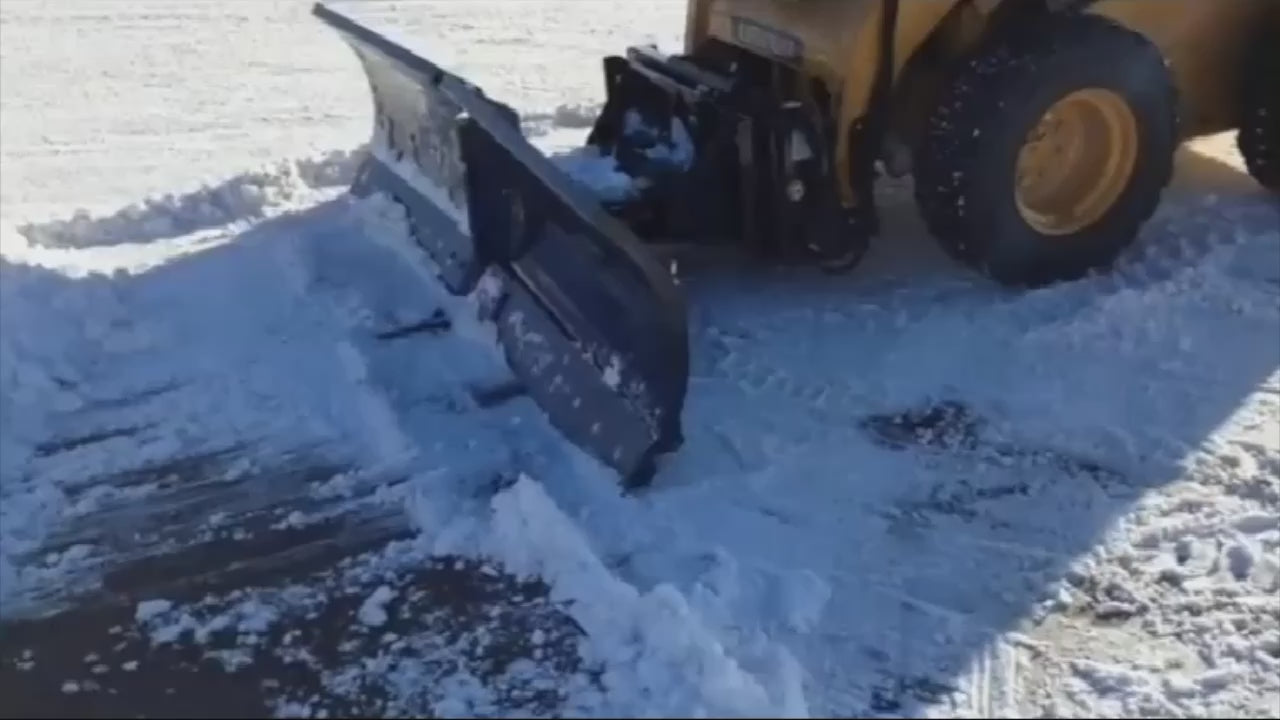

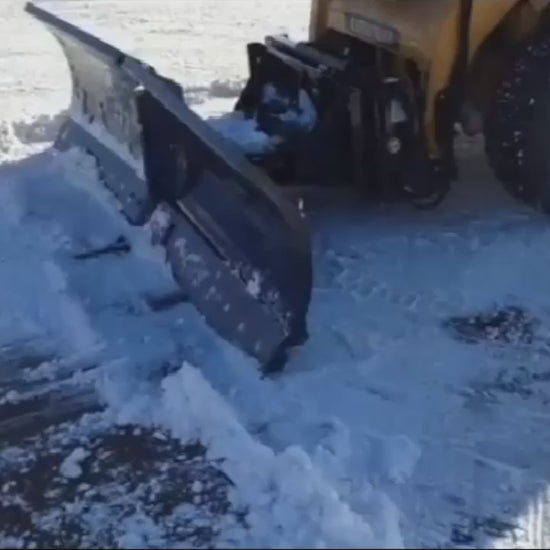

Performance Video
Warranty We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.
