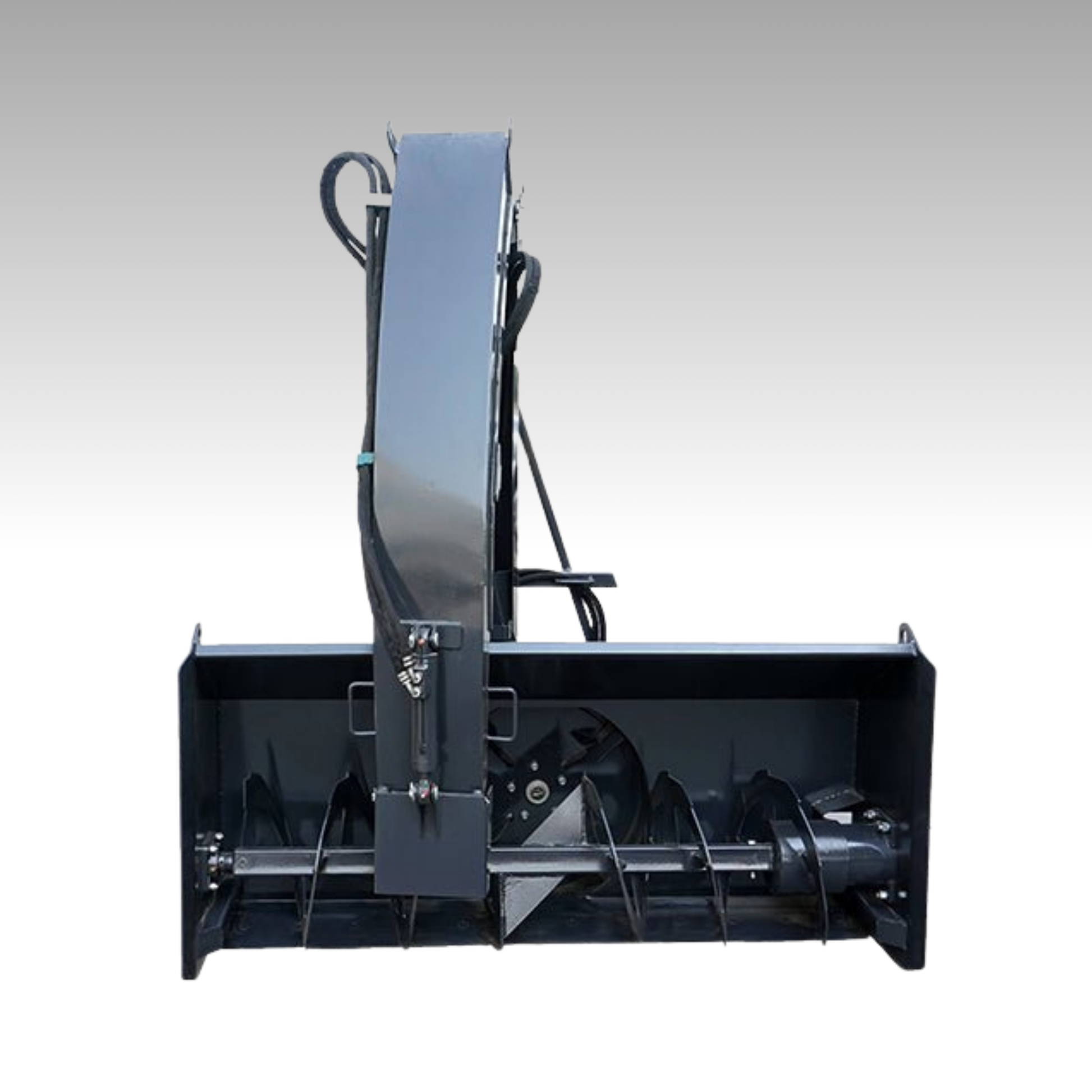

Product Feature

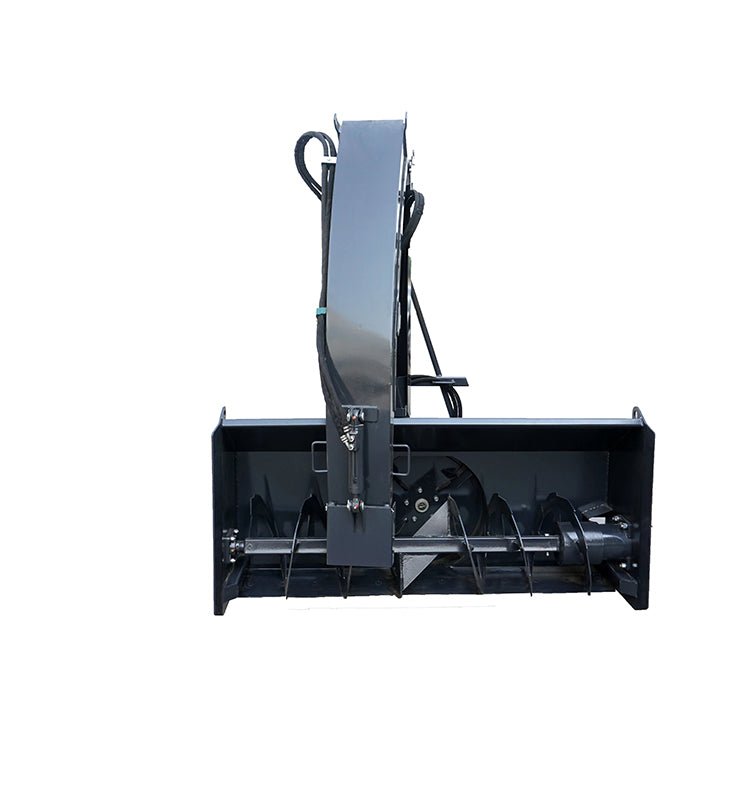

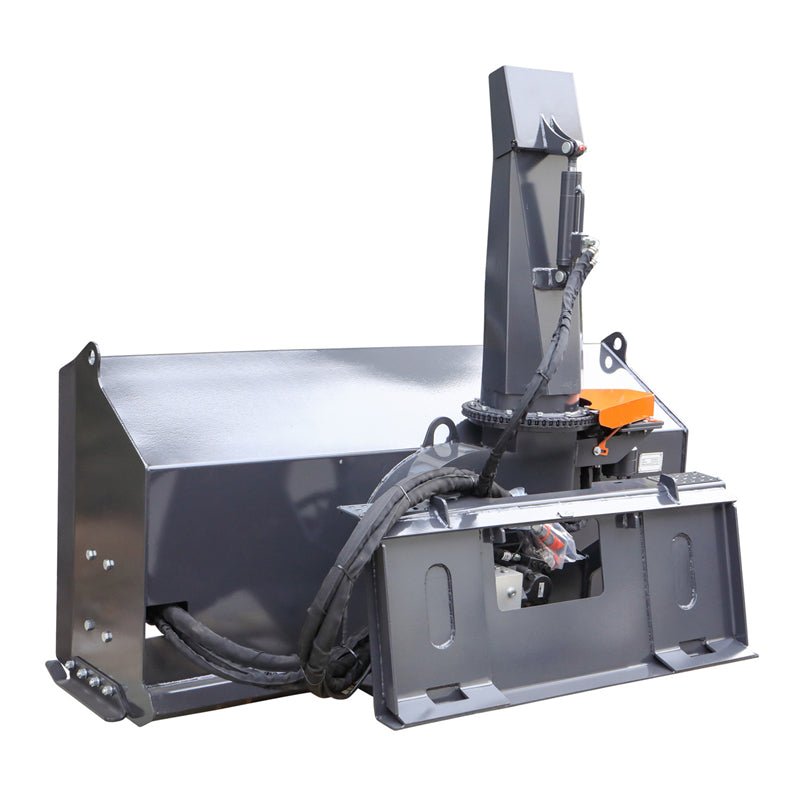

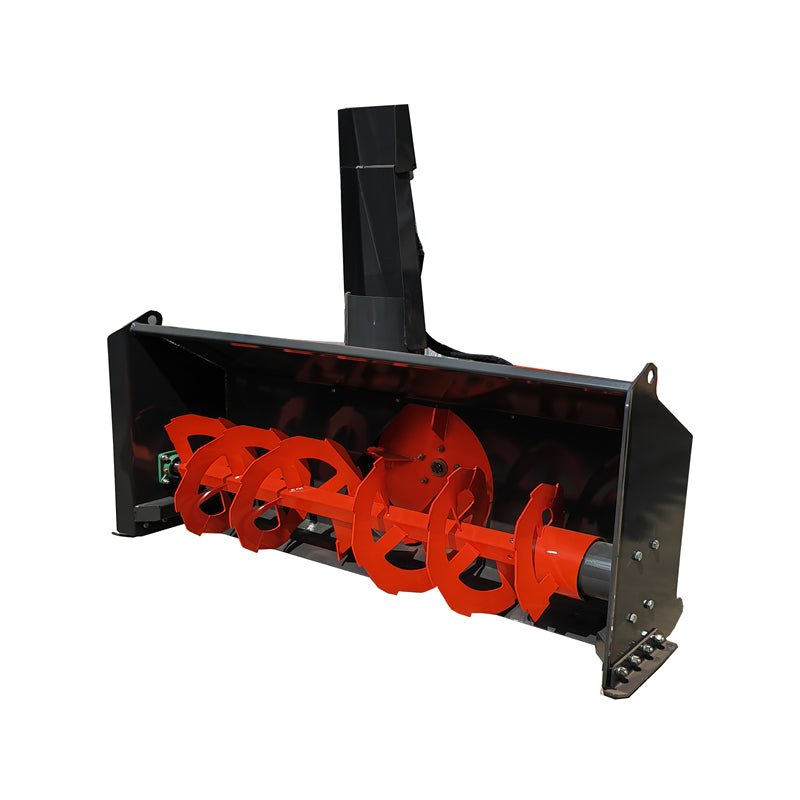

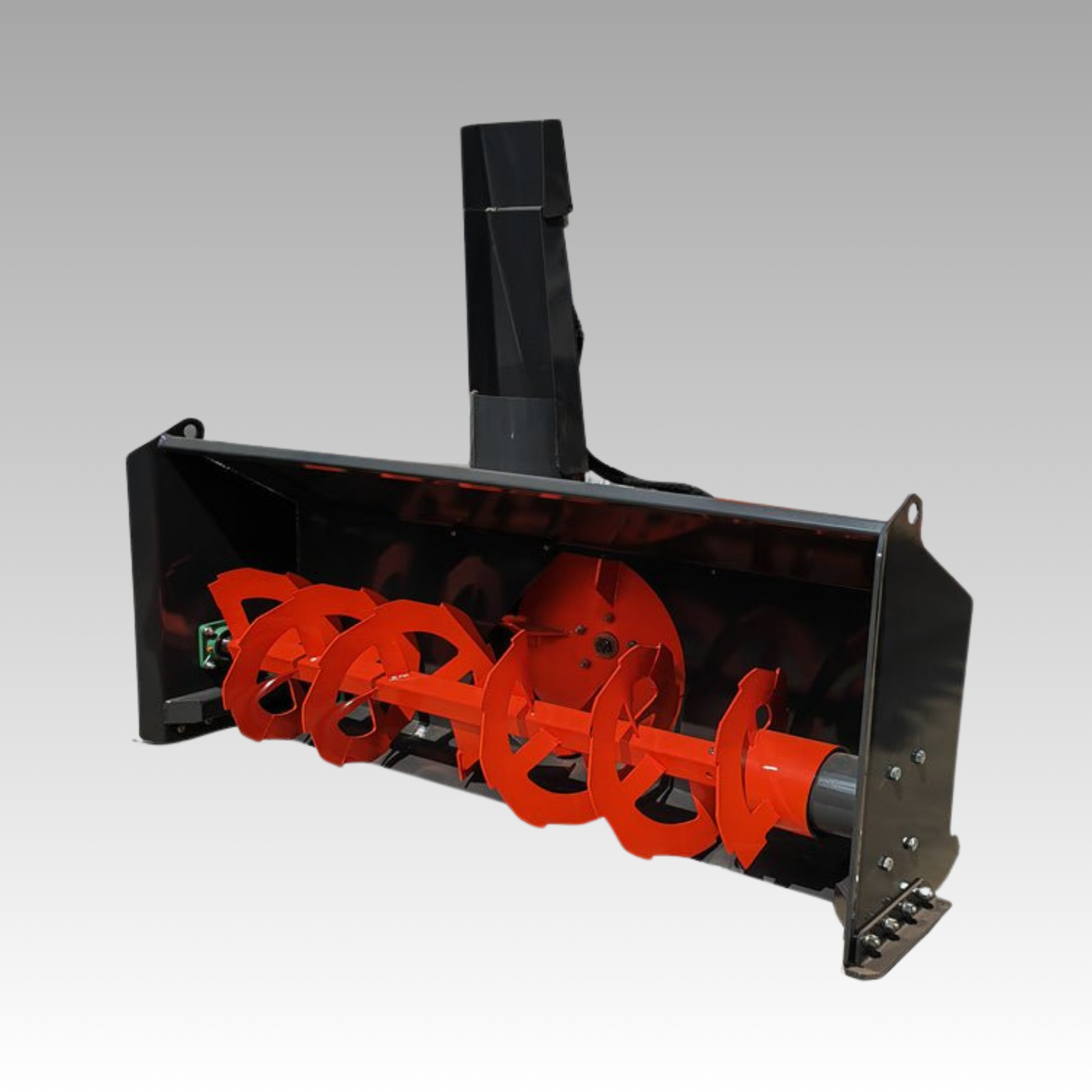

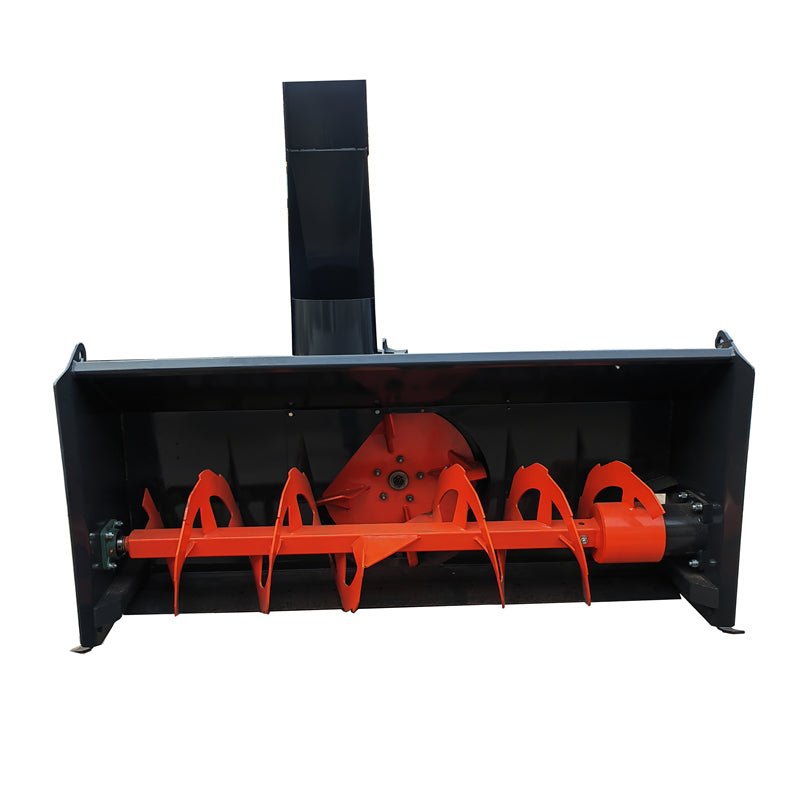

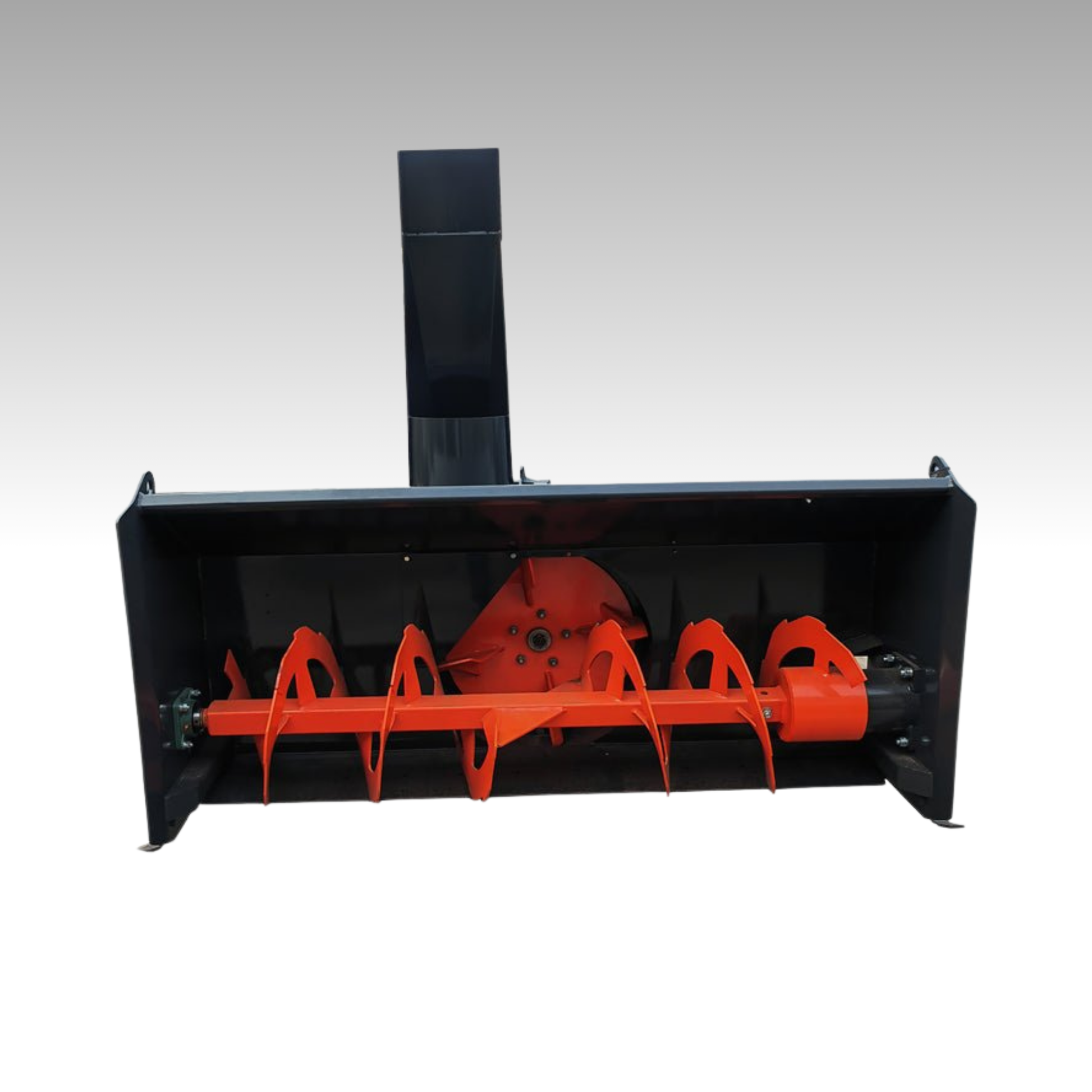

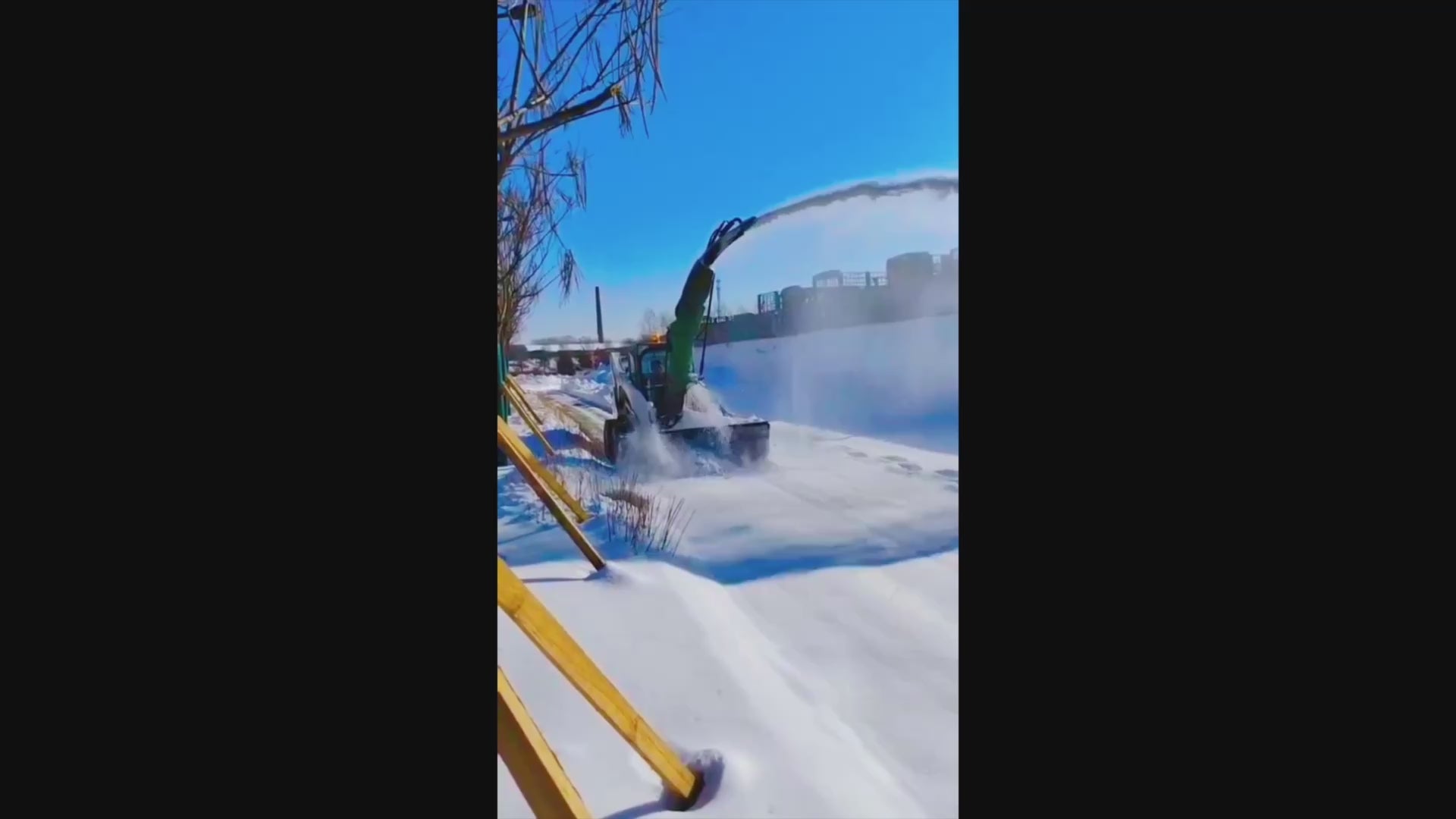

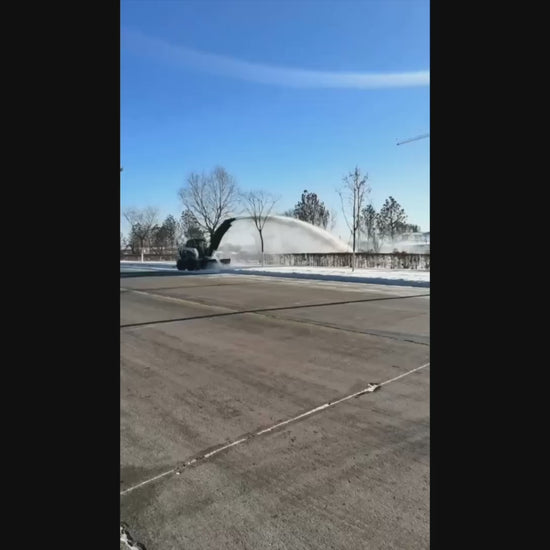

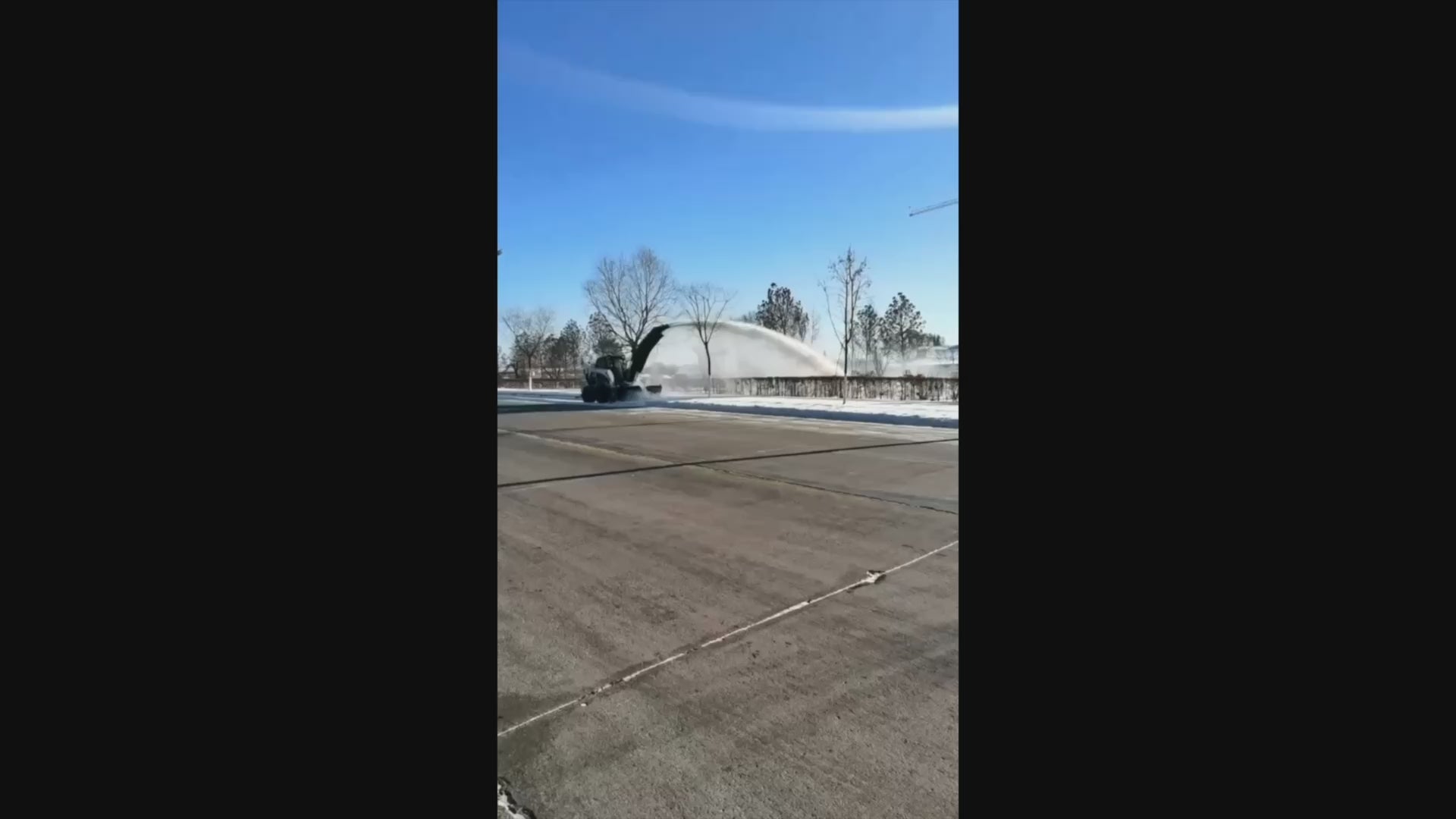

- The hydraulic drive attachment is the ideal tool for removing thick snow from driveways, footpaths and car parks;

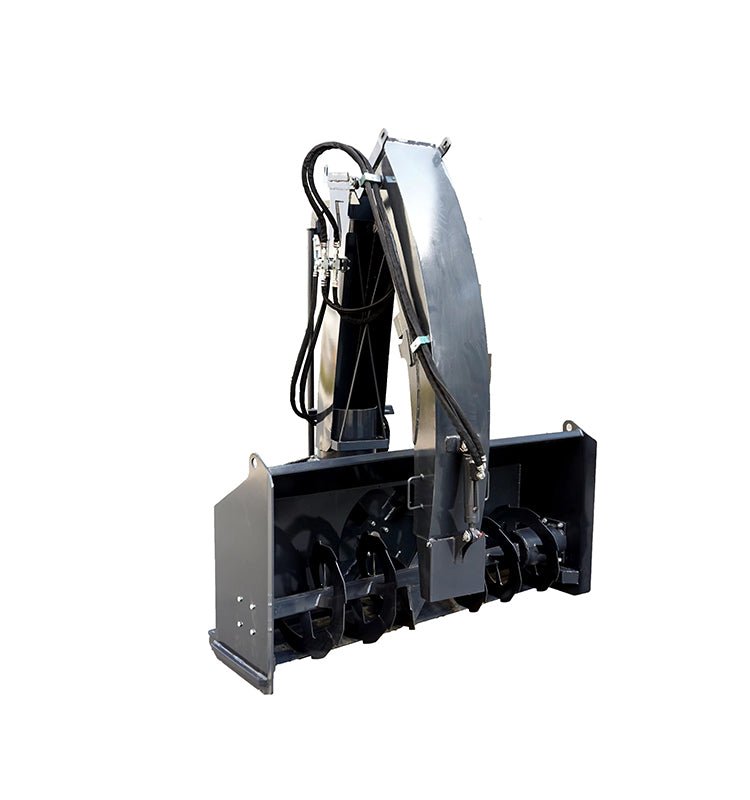

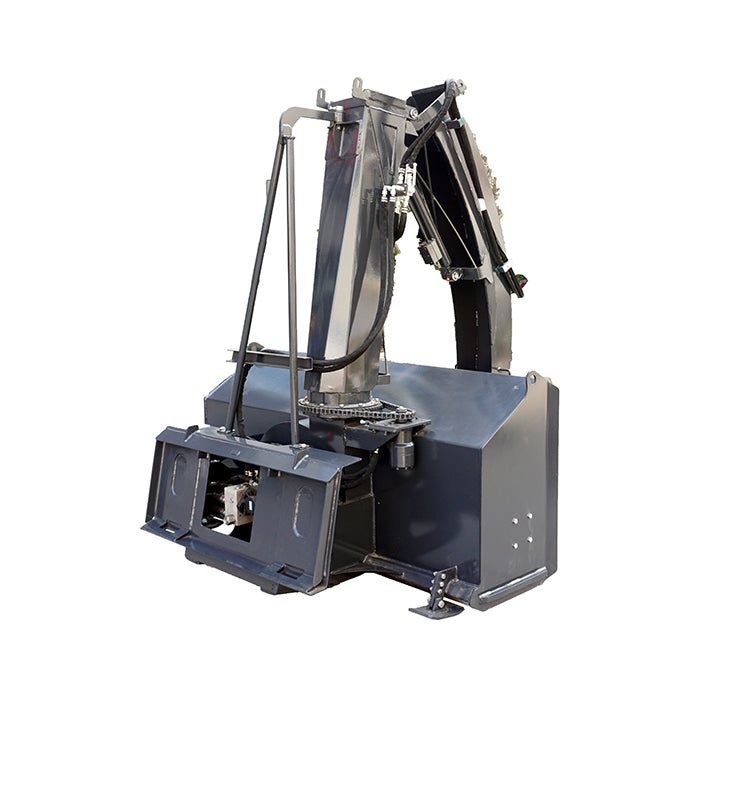

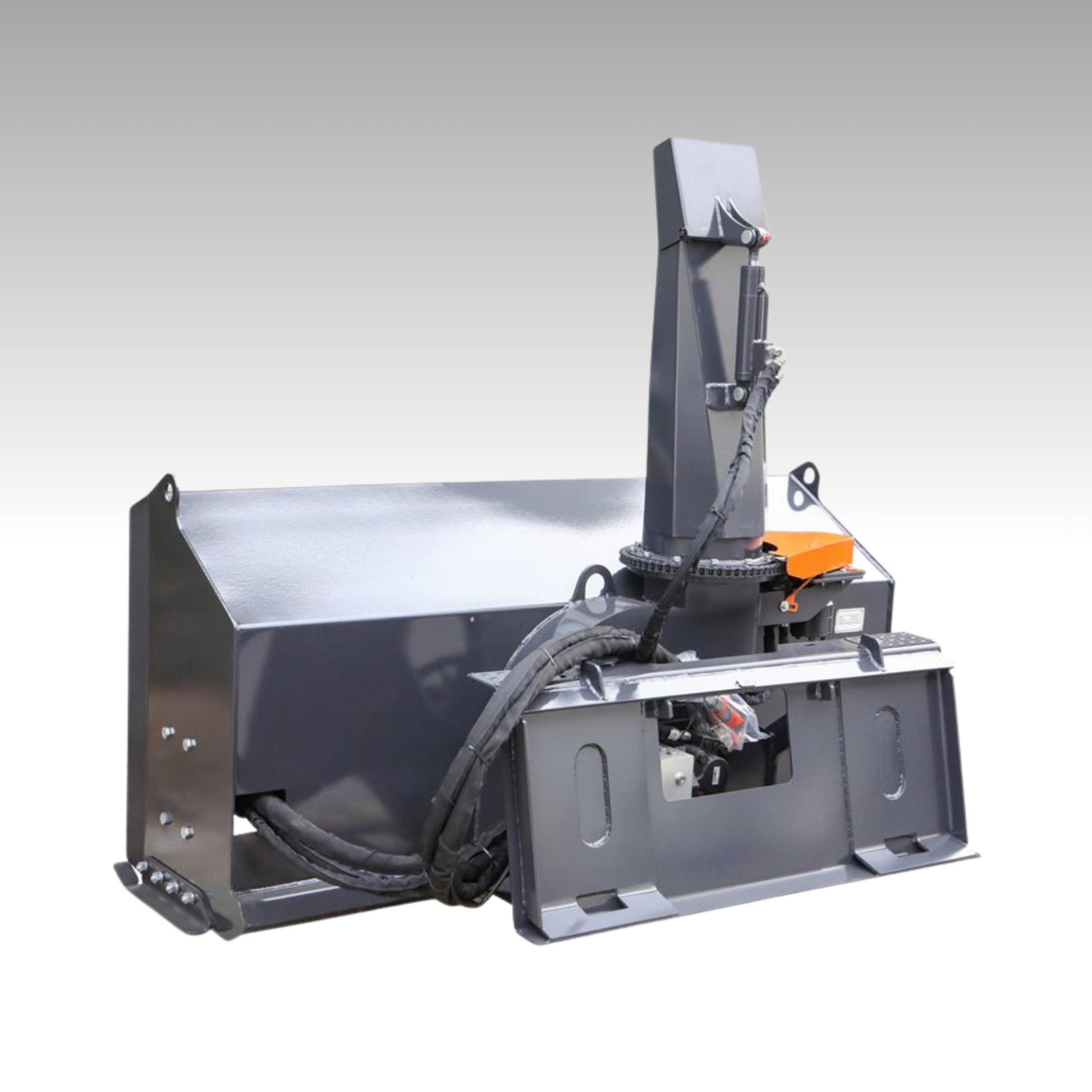

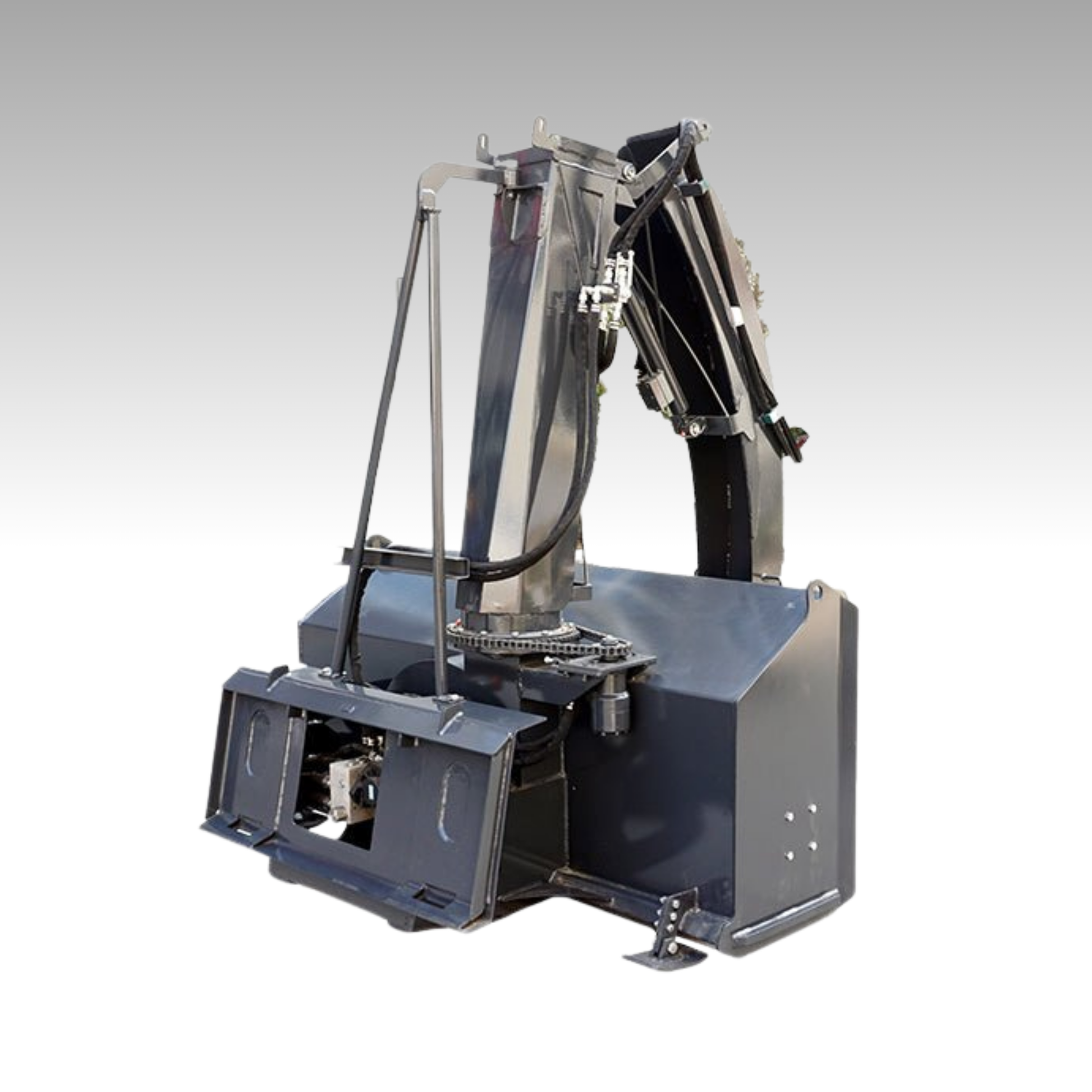

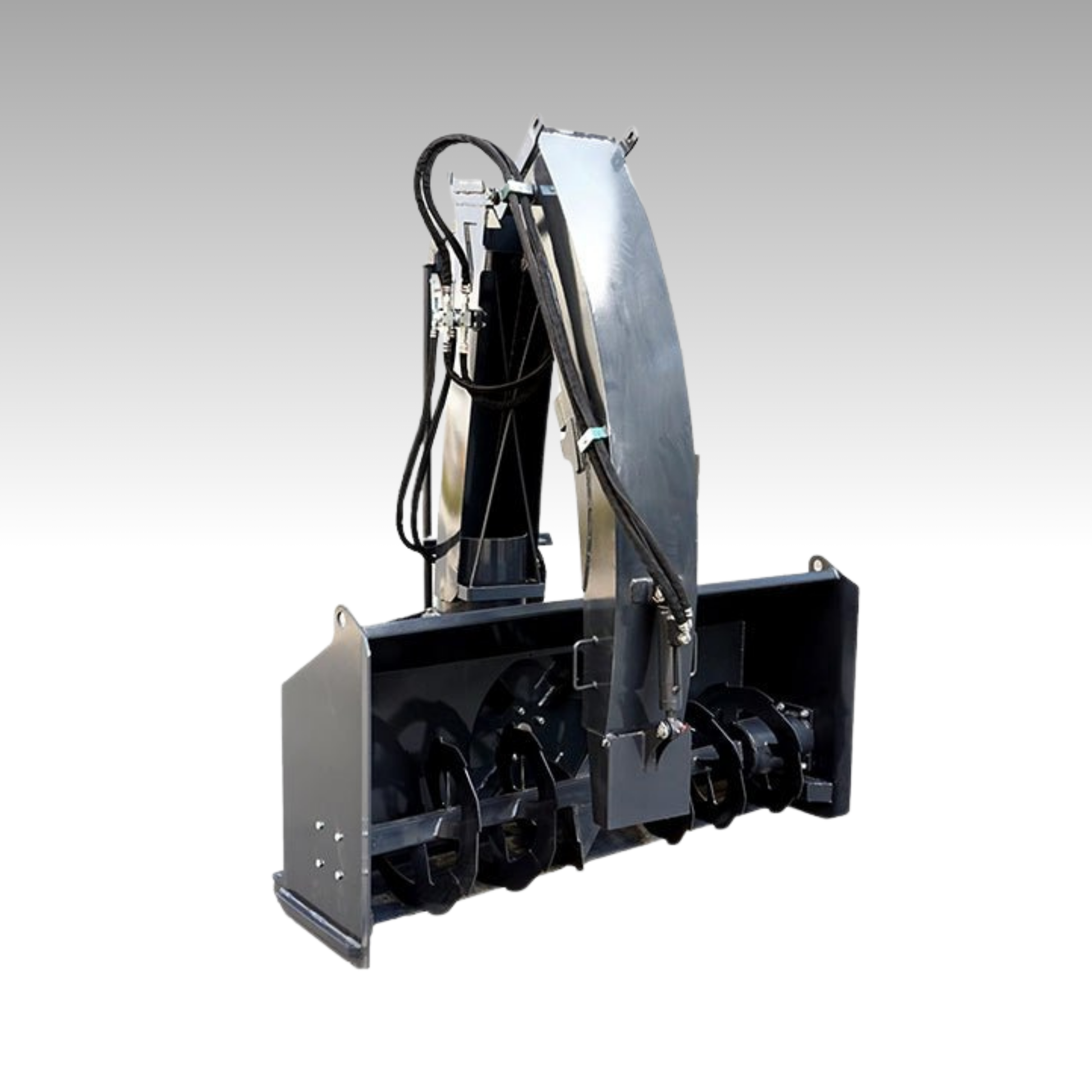

- Optional low-throwing cylinder or high-throwing cylinder, suitable for different working conditions on different occasions;
- The direction of snow throwing can be achieved 270 (low throwing) / 200 (high throwing) degrees of rotation positioning, convenient for a variety of operating environments;
- The snow-throwing direction of the snow-throwing port can be adjusted to ensure that when a large amount of snow is thrown, the equipment works smoothly and achieves the ideal working condition;
- Adjustable height of the support legs, to prevent the blade plate touching gravel and damage to the ground paving surface layer;
- Fast operating speed, is the ideal snow removal machinery, to meet the requirements of urban rapid snow removal;

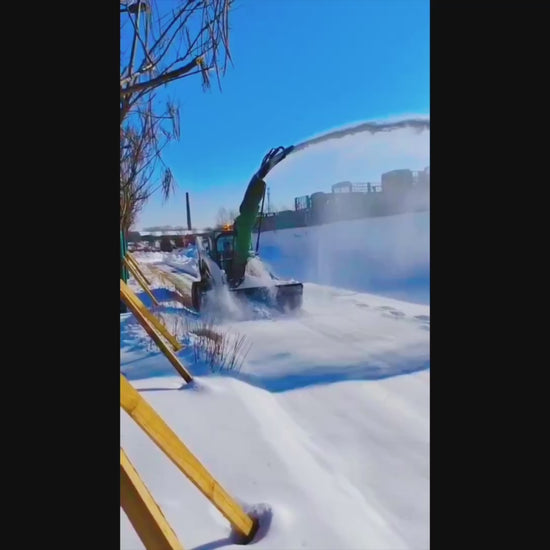

- The farthest able to throw the snow to 12 meters away, according to the thickness of the snow layer, adjust the operating speed of the snow thrower at the right time, in general, the operating speed control in 0-1km/h.

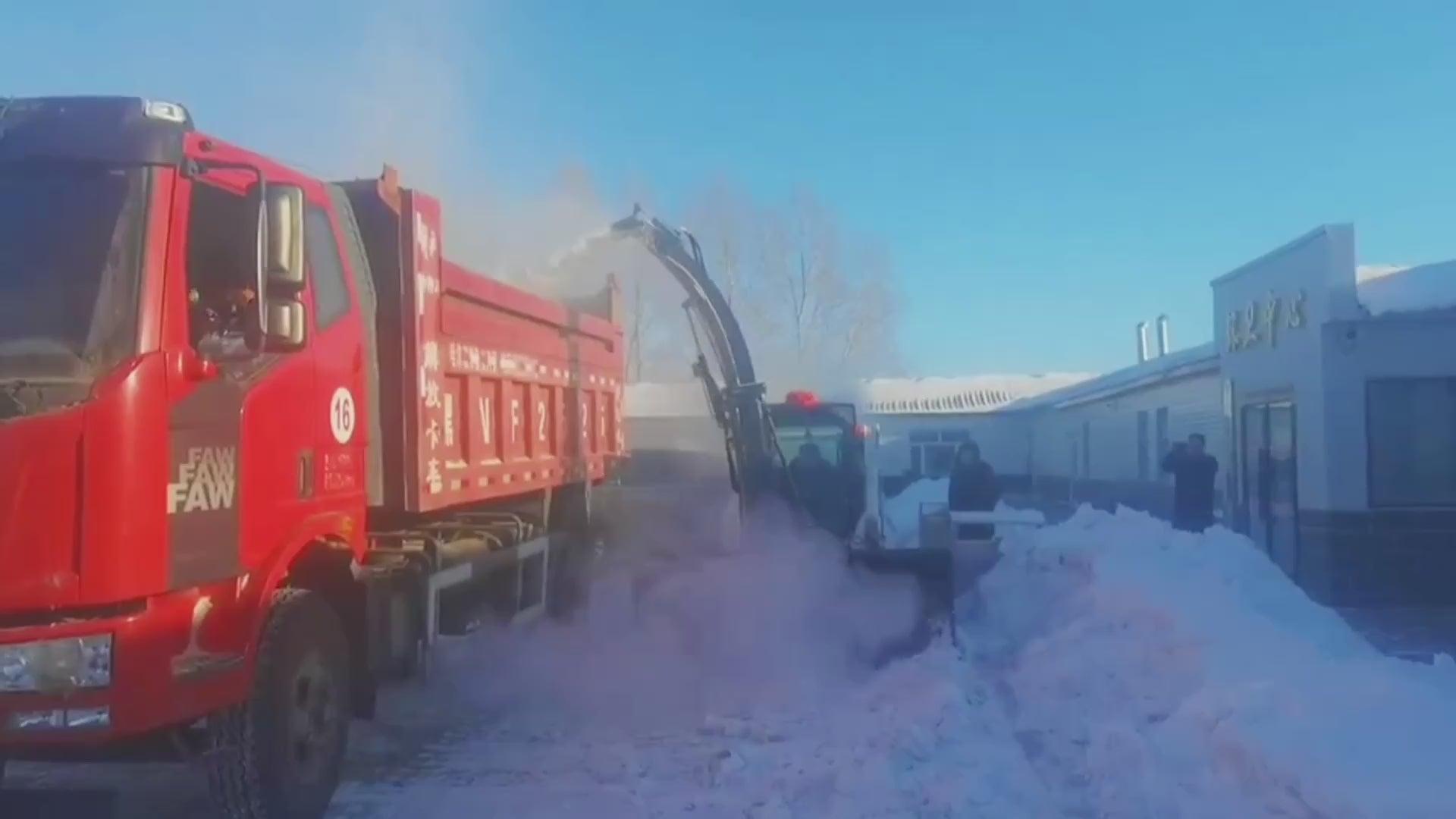

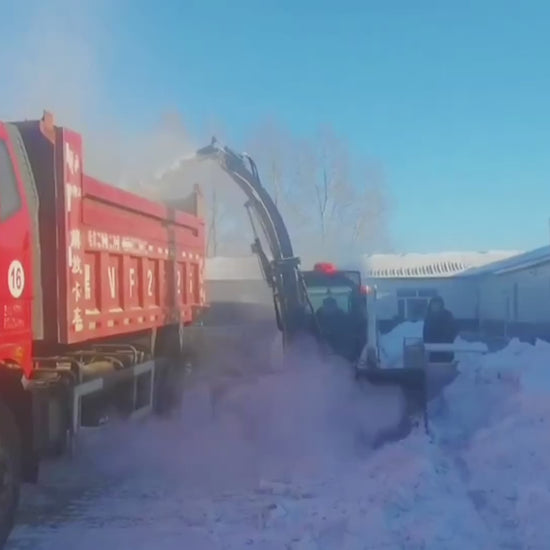

- Can be used jointly with snow shovels, snow removal roller brush and transport vehicles to achieve the removal, collection of top loading (heightened throw cylinder), transport out of a dragon rapid operation, to protect the safety of urban roads and highways.
Specifications
| Model | 0209H84 | 0209H72 |
|---|---|---|
| Total Length (in) | 44.1 | 44.1 |
| Total Width (in) | 86.6 | 74.8 |
| Total Height (Low throw standard) (in) | 66.7 | 66.7 |
| Total Height (High throw optional) (in) | 136.2 | 136.2 |
| Transport Height (Low/High) (in) | 62.7 / 84.3 | 62.7 / 84.3 |
| Operating Weight (Low/High) (lbs) | 1221.5 / 1322.8 | 1146.4 / 1256.6 |
| Operation Method | Electro-hydraulic | Electro-hydraulic |
| Rotation Angle (degrees) | 270 (Low/High) | 270 (Low/High) |
| Maximum Loading Height (High throw) (ft) | 10.8 | 10.8 |
| Farthest Snow Throwing Distance (ft) | 39.4 | 39.4 |
| Hydraulic Flow (gal/min) | 19.8 - 39.6 | 19.8 - 39.6 |
| Maximum Allowable Pressure (Psi) | 3045 | 3045 |
| Suit to machine（High hyfraulic flow） | Skid steer loader | Skid steer loader |
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
