Product Feature
- The trencher is engineered with the strength and durability to cut through all types of soil, including black dirt, gravel, and rocky soils, ensuring consistent performance regardless of the terrain.
- Equipped with a manual or hydraulic side-shift feature (depending on the model), the trencher allows operators to dig trenches close to buildings, fences, and other obstacles without compromising safety or precision.

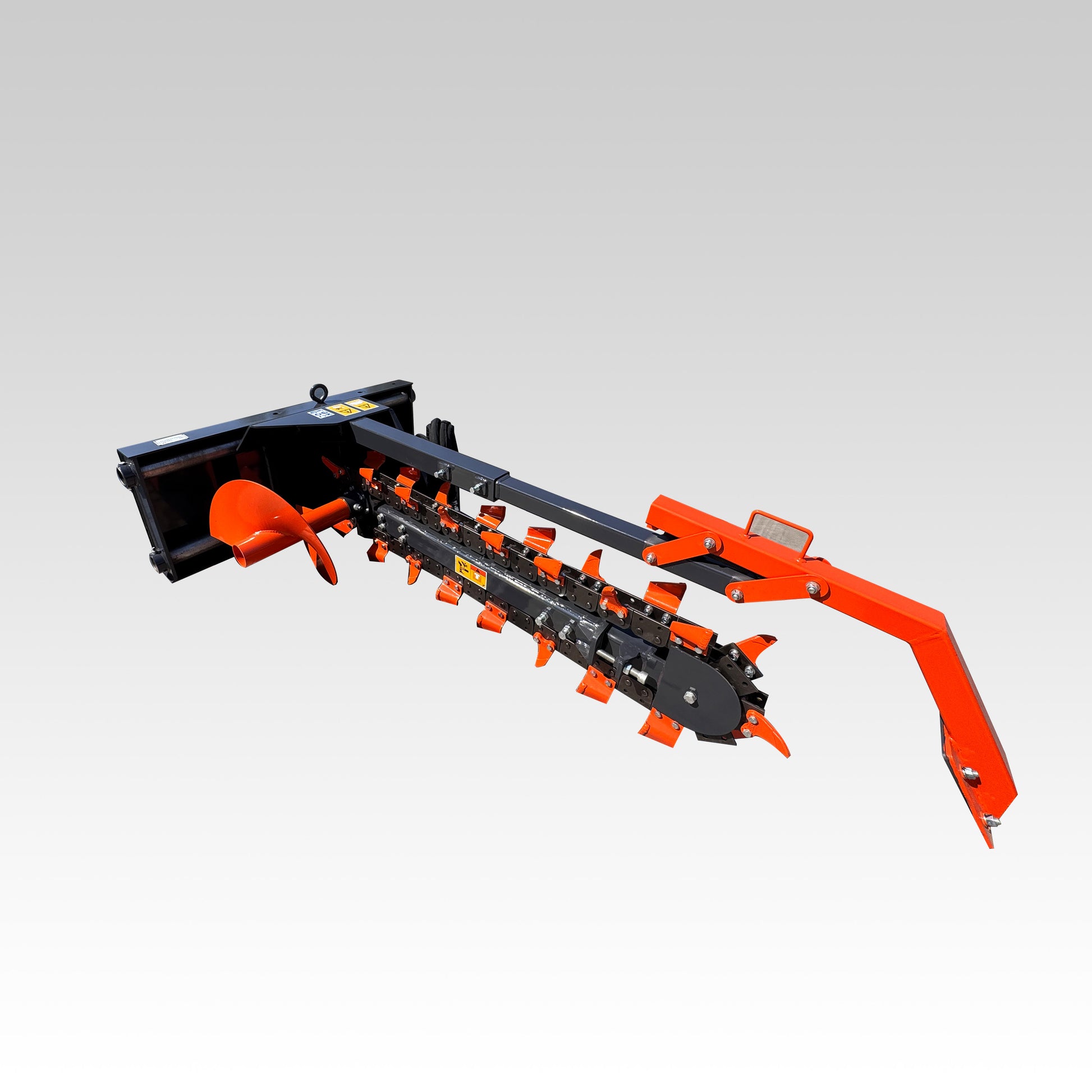

- The large-diameter auger efficiently moves excess material from the side of the trench, reducing the amount of spoil falling back into the trench. This feature ensures a clean trench bottom and minimizes rework.

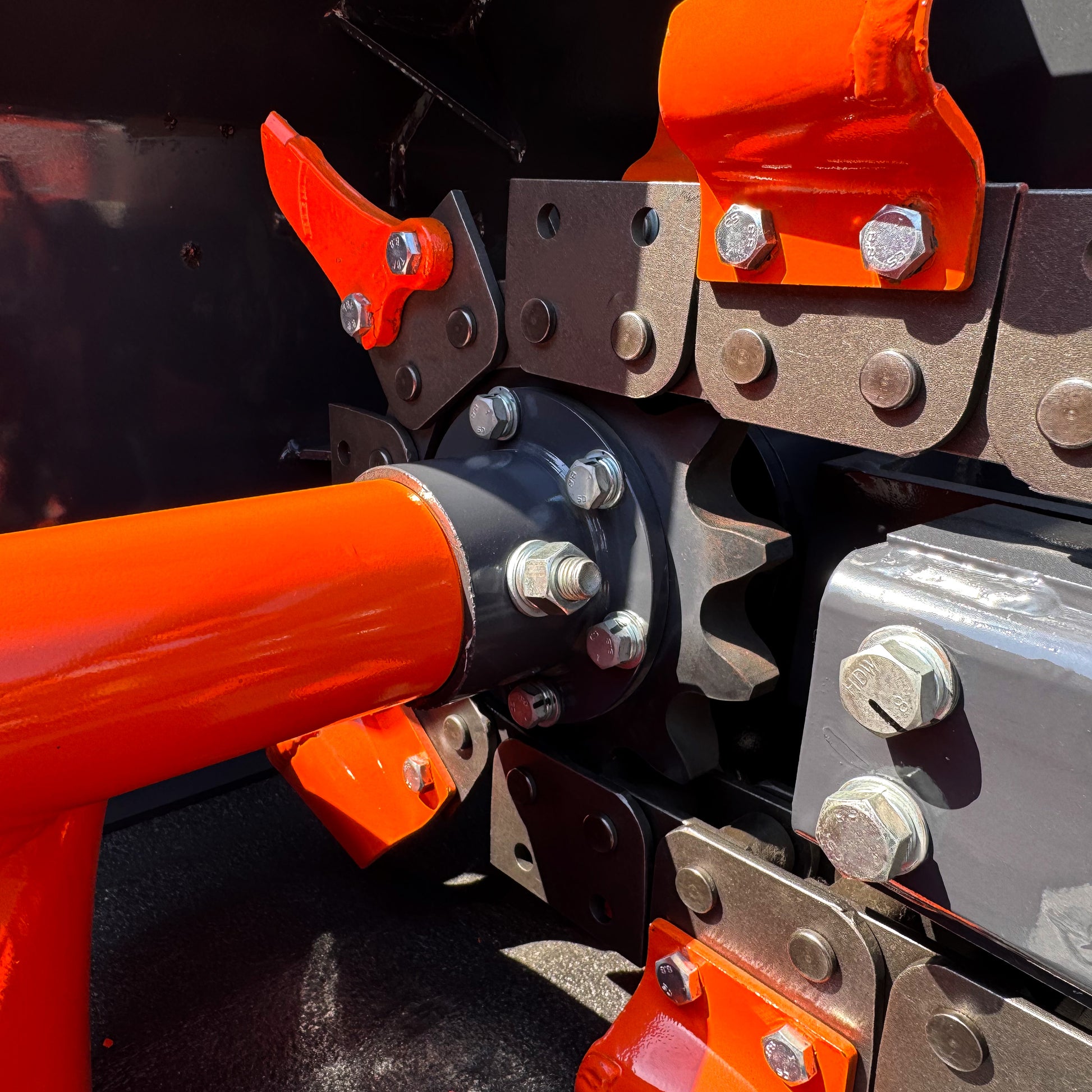

- Operators can quickly and easily adjust the chain tension to ensure optimal performance, extending the lifespan of the trencher while maintaining consistent digging power.
- Standard on all models, the scrubber blade removes loose soil from the trench, providing a smooth and even trench bottom, which is critical for laying pipes, cables, and other installations.
- The trencher is capable of momentarily reversing the chain direction to minimize stalling, allowing for uninterrupted operation in challenging soil conditions.

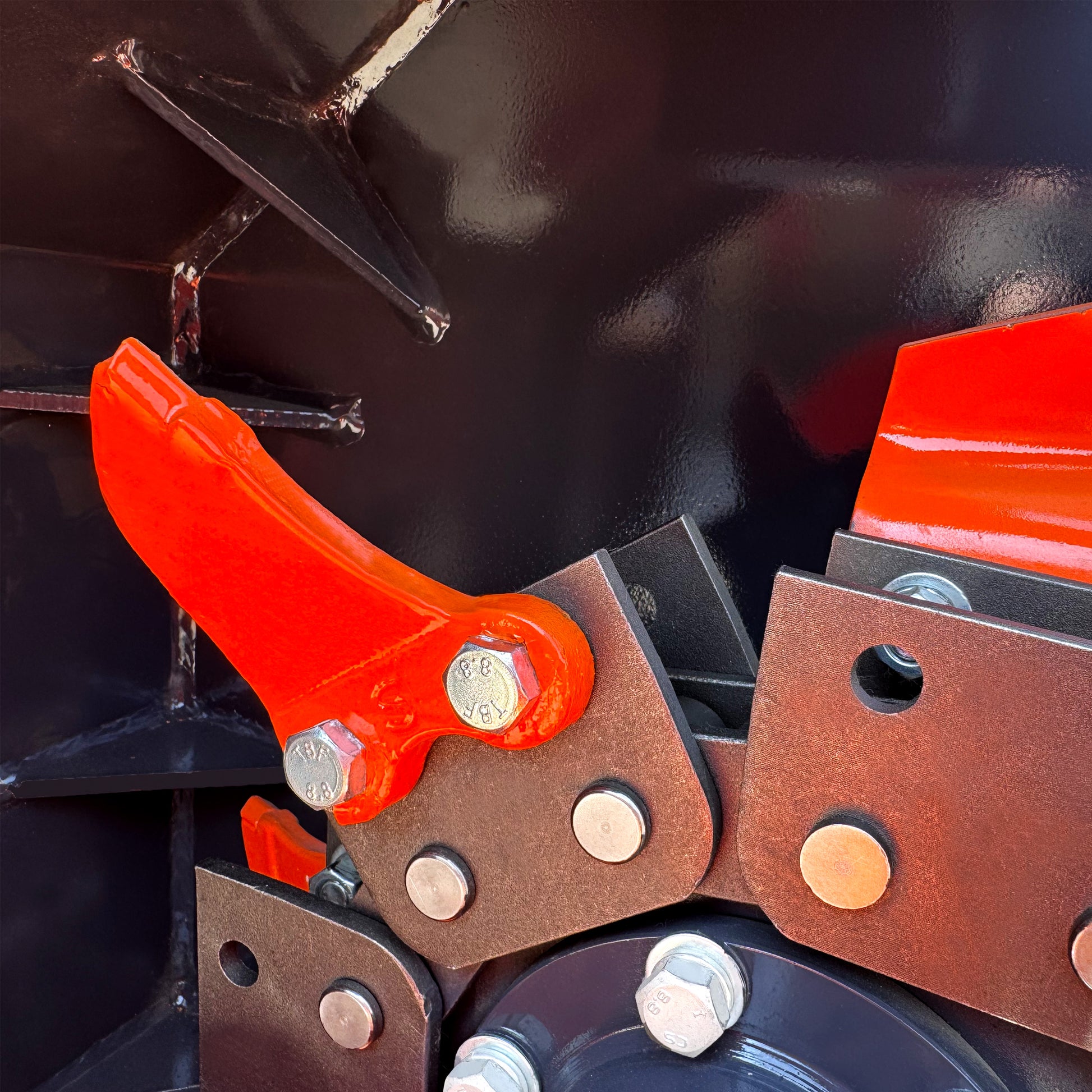

- Designed for adaptability, the trencher can be equipped with various teeth and chain configurations to match specific soil conditions, ensuring maximum efficiency and digging power.
- The attachment is user-friendly and compact, making it suitable for use in confined spaces and enhancing maneuverability around obstacles.
- Constructed from high-quality, durable materials, the trencher is built to withstand the rigors of heavy-duty use, ensuring long-term reliability and minimal maintenance requirements.
Specifications
| Model | 020724I | 020748 |
|---|---|---|
| Length (in) | 68.9 | 79.5 |
| Height (in) | 31.5 | 31.5 |
| Width (in) | 46.1 | 46.1 |
| Weight (including pendant) (lbs) | 727.5 | 937 |
| Ditch Depth (in) | 27.6 | 35.4 |
| Open Ditch Width (in) | 5.9 | 5.9 |
| Flow Rate (gal/min) | 21.1 - 29.0 | 23.8 - 29.0 |
| Maximum Allowable Pressure (psi) | 3045.8 | 3045.8 |

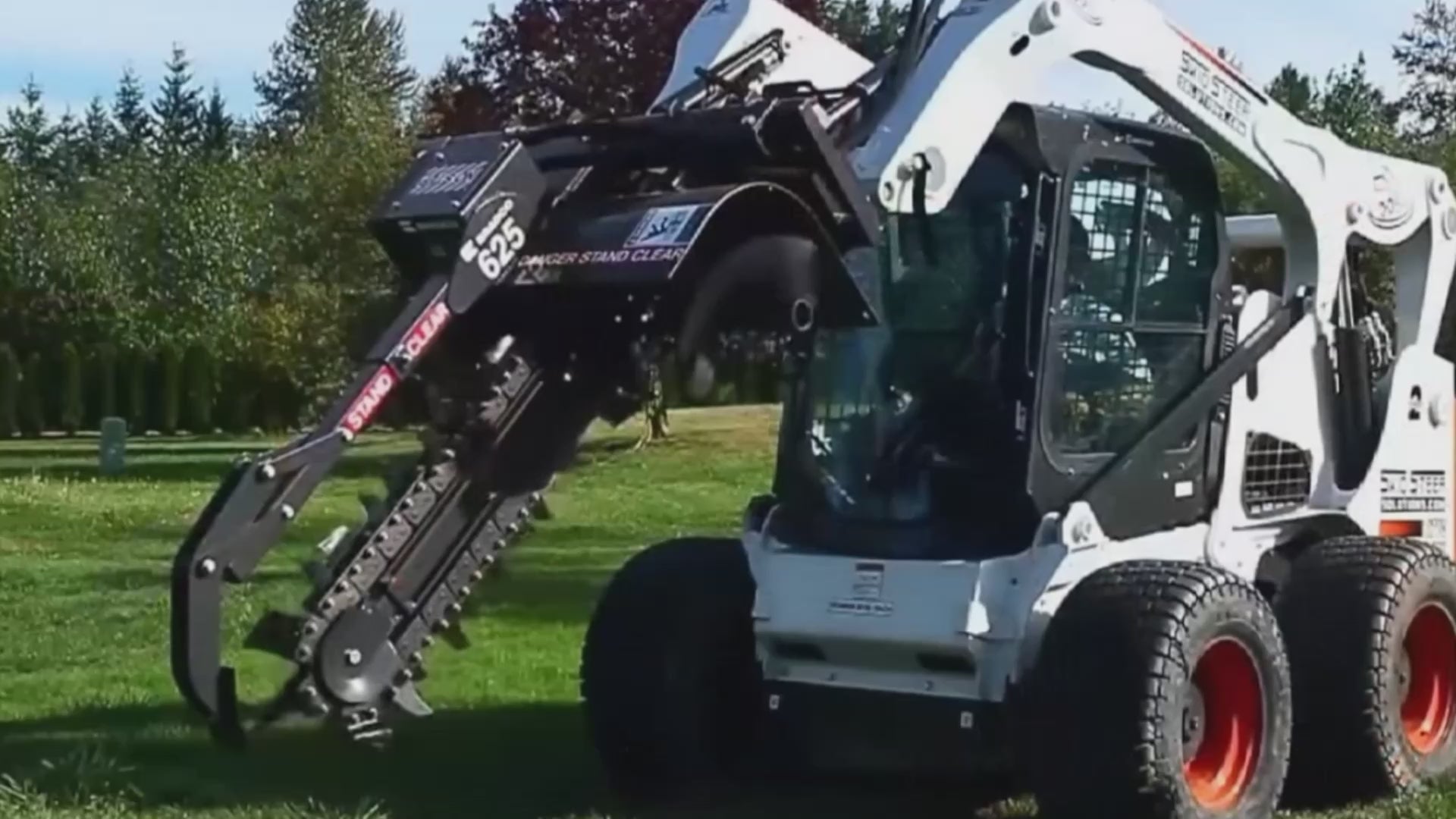

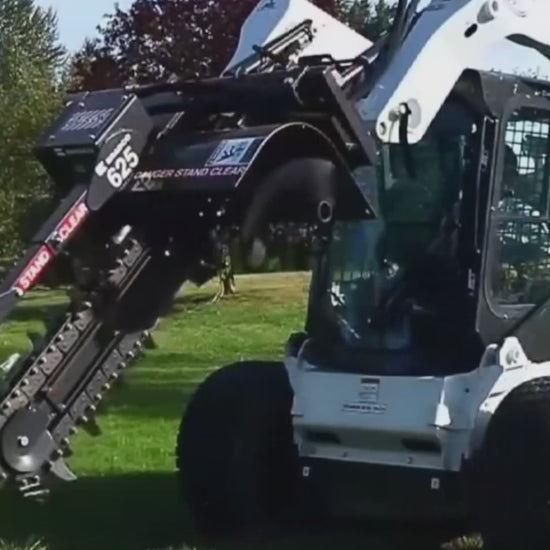

| Adapted models | Skid Steer loader | |
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
