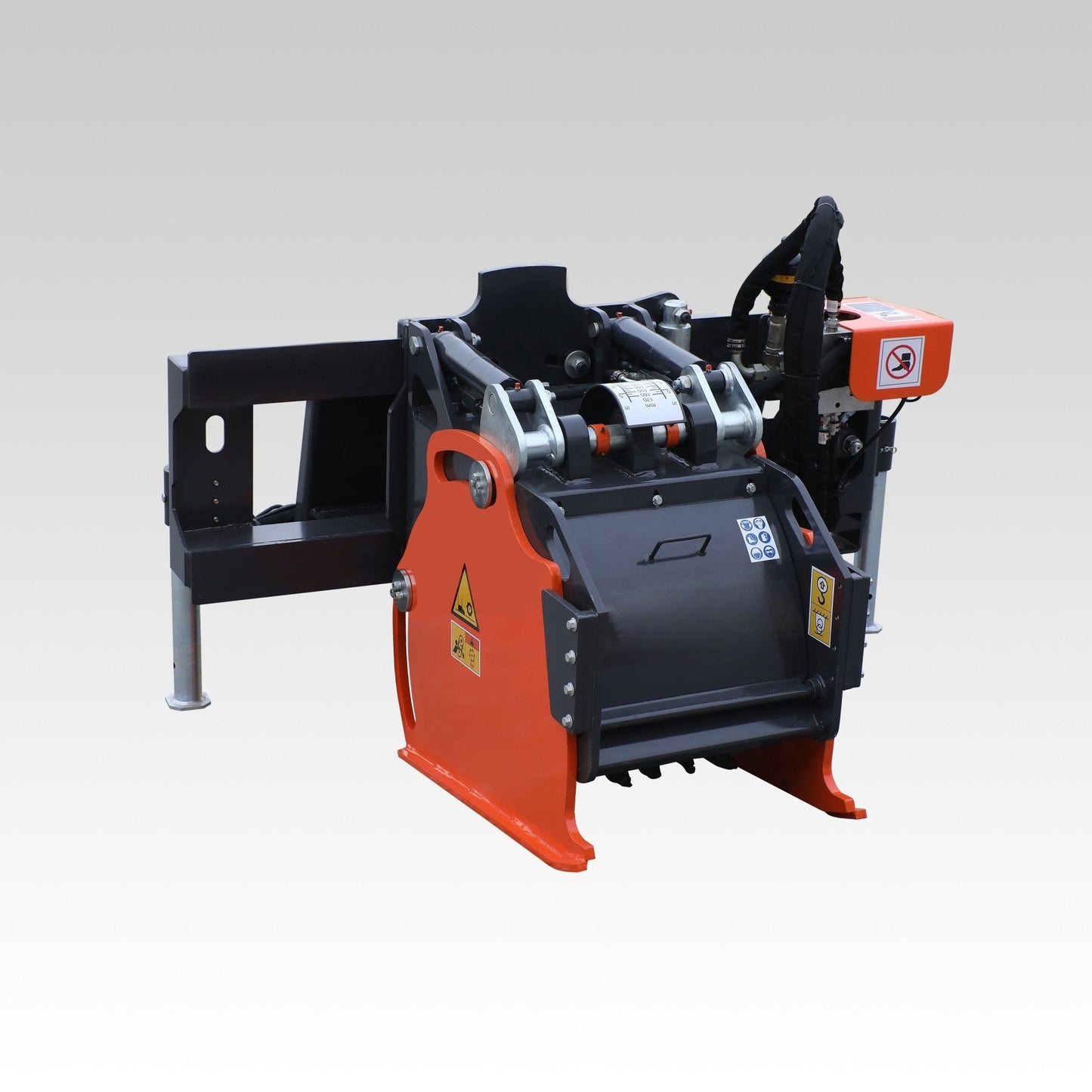

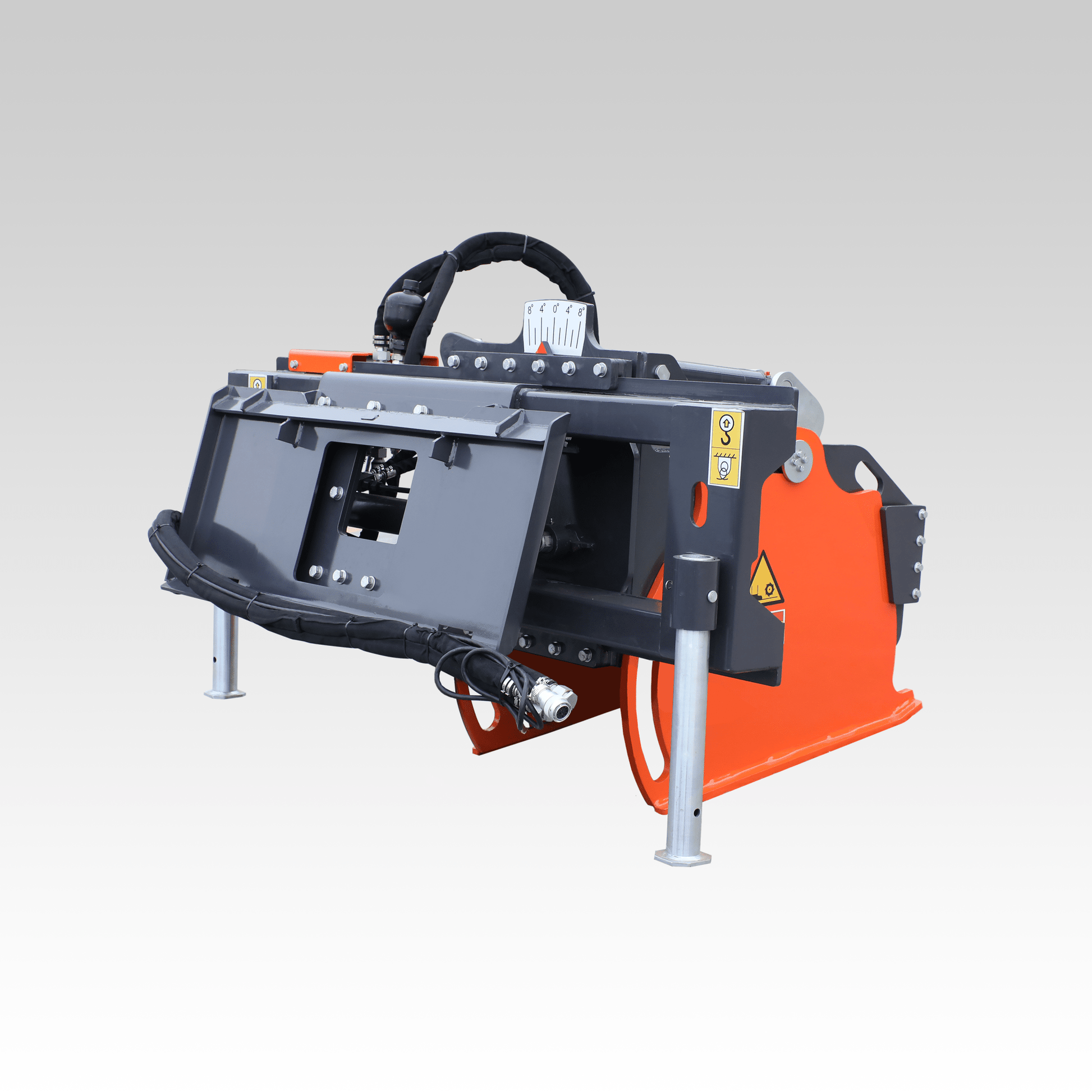

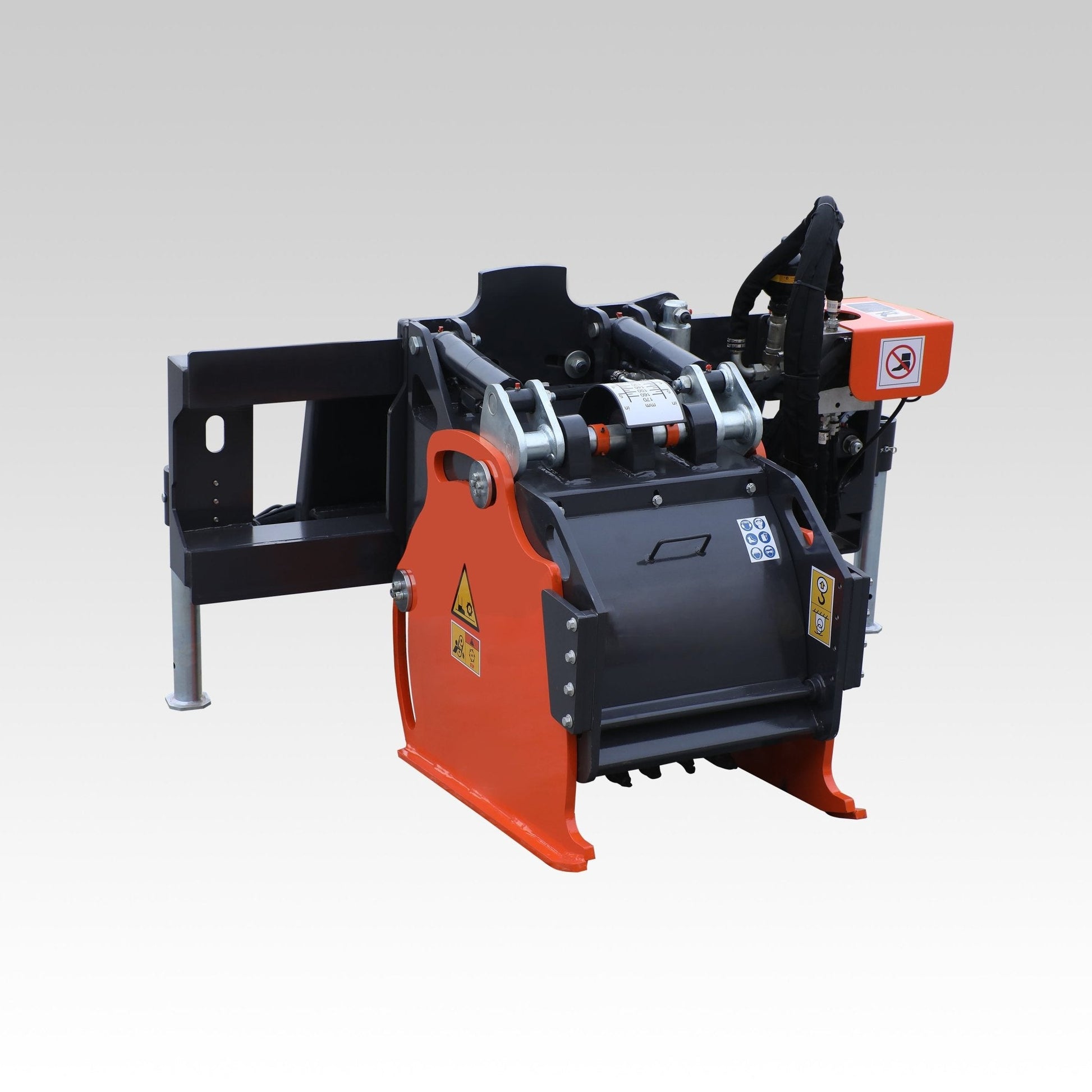

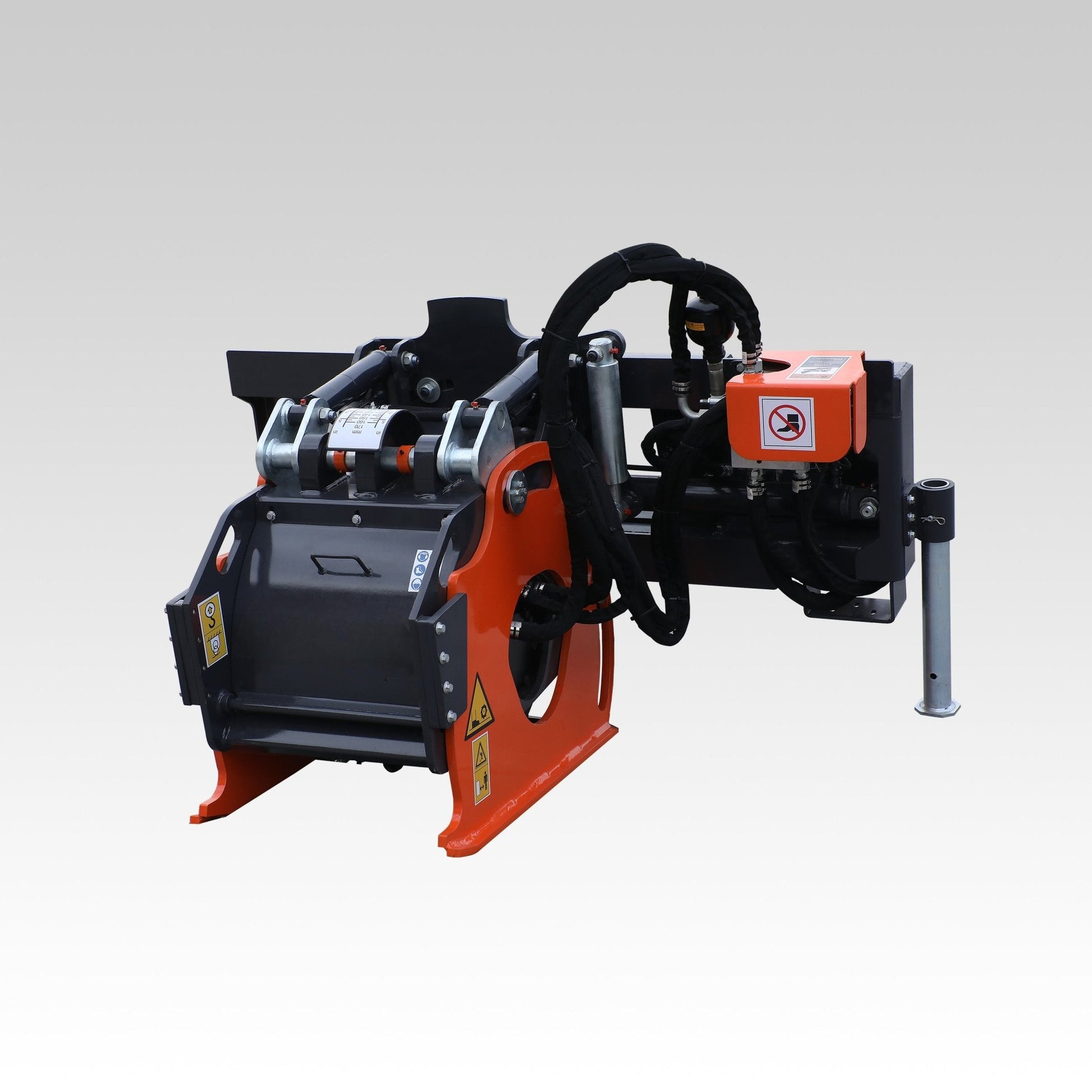

Product Feature
- Can be adapted to a sliding loader with a large flow hydraulic working system for milling asphalt pavement or concrete pavement milling operations
- Equipped with a self-leveling adjustment system, the milling depth in the case of tilt, the operation is more simple.
- The overall structure is relatively simple, easy to replace the milling and plane drum.
- Can make the milling planer side movement, no need to ride on the curb and ditch construction and get a better milling effect.
- An optional spray system can effectively inhibit the dust. At the same time, it can effectively cool the teeth intercept and prolong the service life and working time of the teeth intercept.
- The milling width is large, the milling width can reach 1000mm, the operation efficiency is high.
Specifications
| Model | 020612i | 020618i | 020624i | 020640i |
|---|---|---|---|---|
| Length (in) | 47.8 | 47.8 | 47.8 | 43.3 |
| Width (in) | 69.3 | 69.3 | 69.3 | 69.3 |
| Height (in) | 34.3 | 38.2 | 38.2 | 34.6 |
| Milling Width (in) | 11.8 | 17.7 | 23.6 | 39.4 |
| Milling Depth (in) | 0 - 4.3 | 0 - 6.7 | 0 - 6.7 | 0 - 5.1 |
| Maximum Lateral Shift Distance (in) | 20.1 | 20.1 | 20.1 | 16.5 |
| Angle of Inclination (degrees) | ± 8 | ± 8 | ± 8 | ± 8 |
| Work Flow (gal/min) | 21.1 - 29.0 | 31.7 - 39.6 | 31.7 - 44.9 | 31.7 - 52.8 |
| Maximum Allowable Pressure (psi) | 3045.8 | 3045.8 | 3045.8 | 3045.8 |
| Working Voltage (V) | DC 12/24 | DC 12/24 | DC 12/24 | DC 12/24 |
| Theoretical Weight (lbs) | 1873.9 | 2094.4 | 2425.1 | 2535.3 |
| Choose accessories | 1. Optional blade (asphalt blade and concrete blade) 2. spray system |
|||
| Adapted models | Skid Steer loader (complete with large flow output） | |||
Performance Introduction
Compact footprint, uncompromised capability

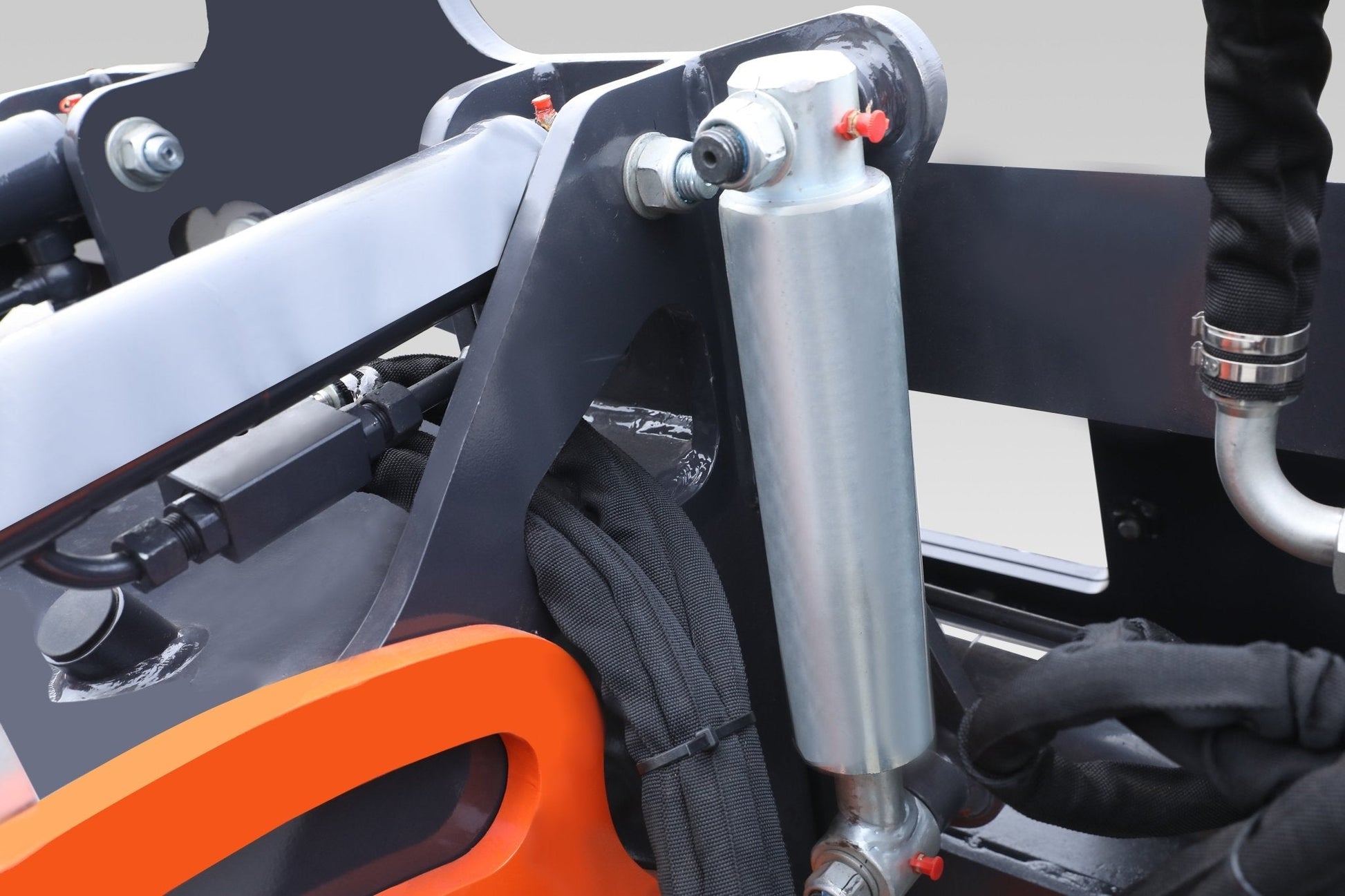

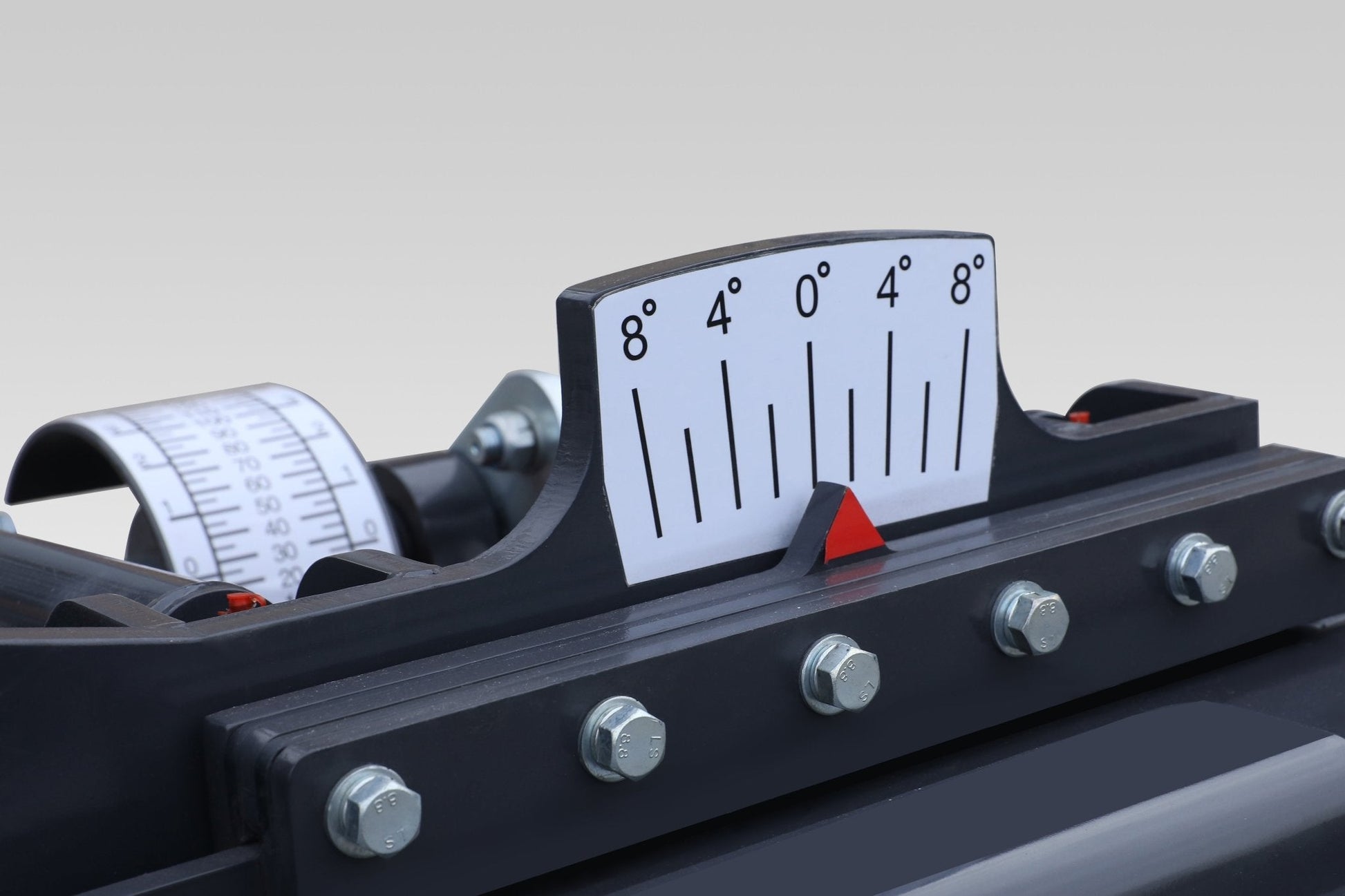

- Cut where others can’t: a low-profile frame, ±8° hydraulic tilt, and 20.1-inch lateral shift let operators reach curb lines, gutters, and trench edges while the machine stays clear of obstacles.

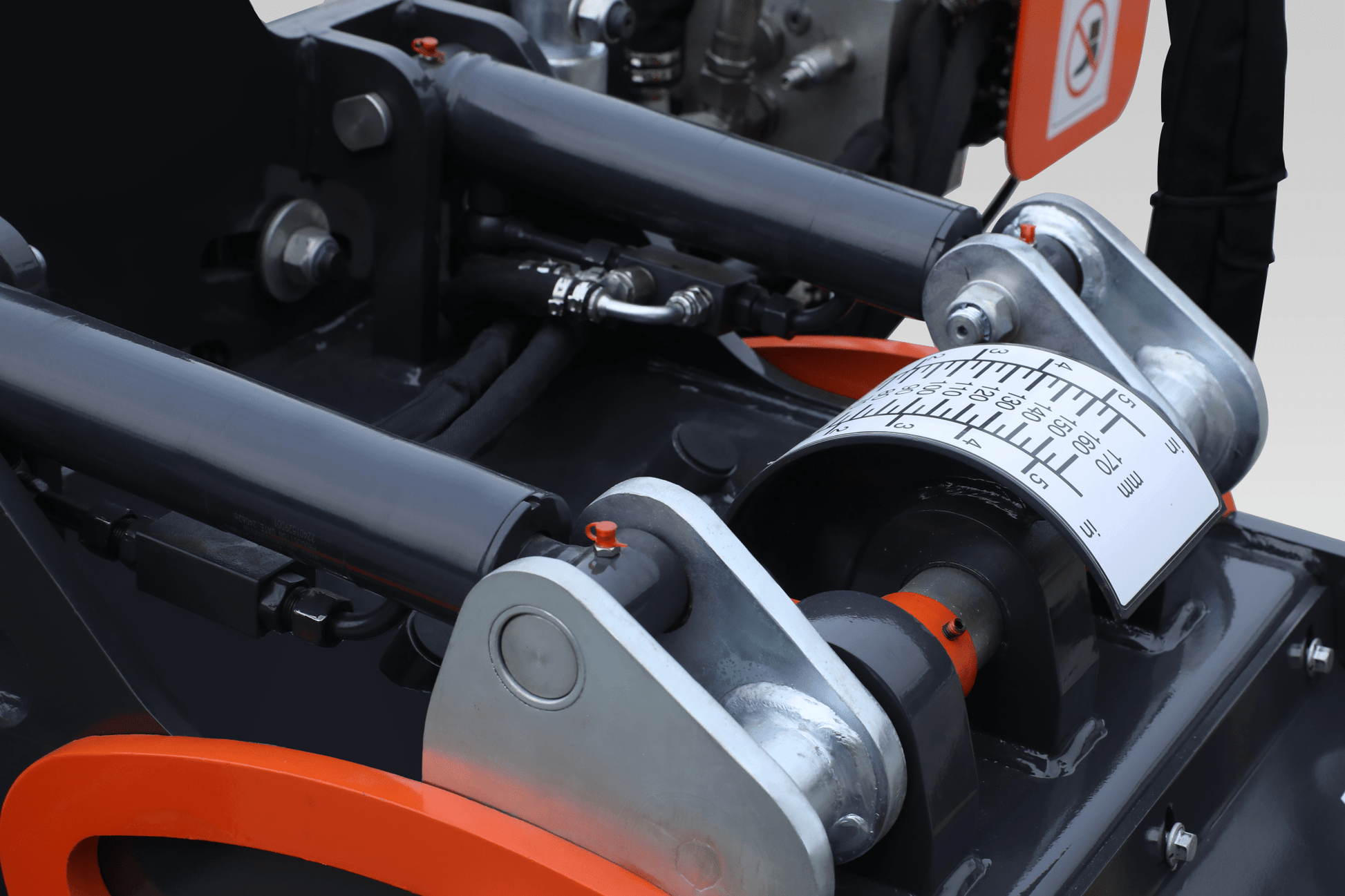

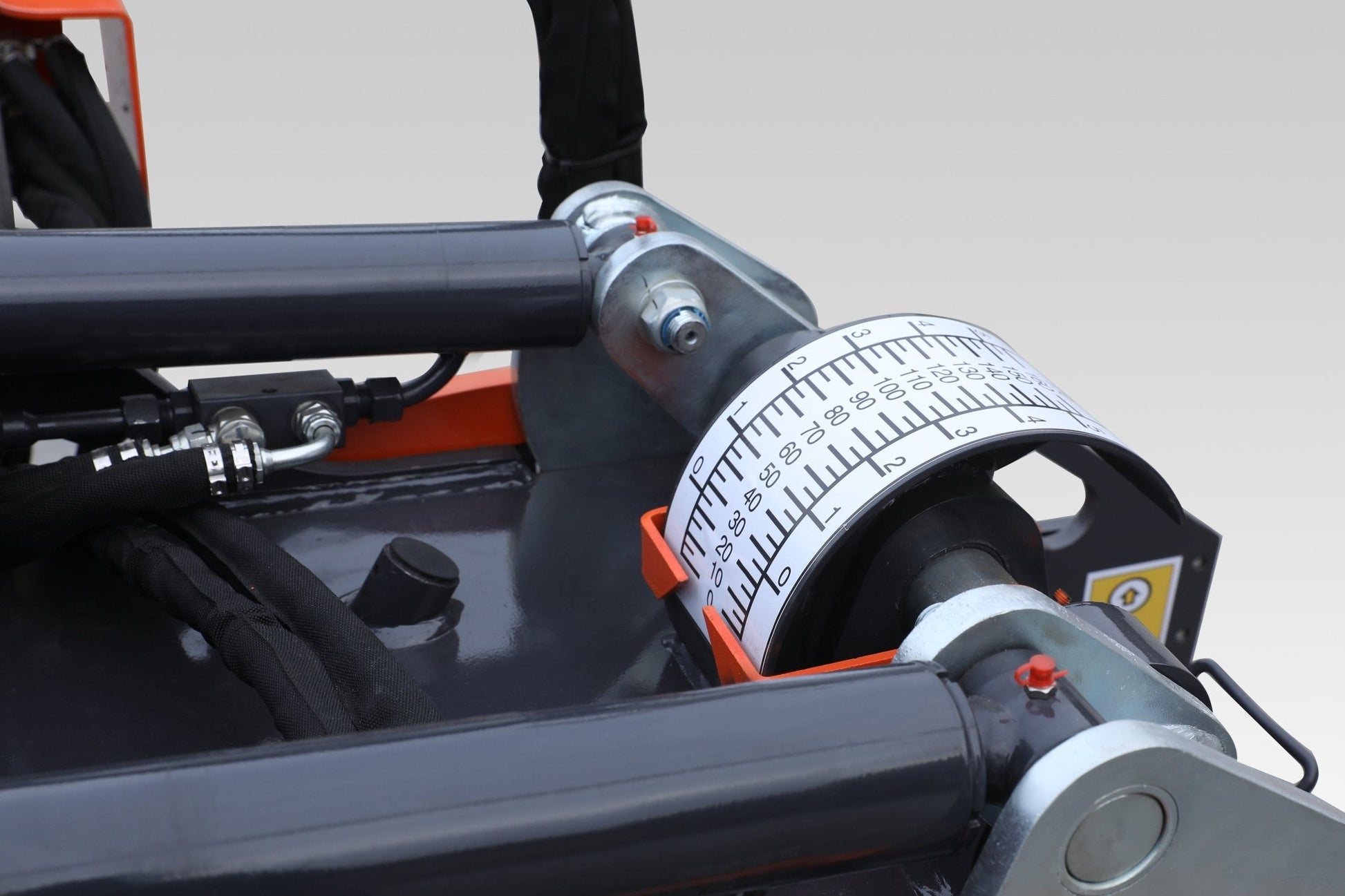

- Dial-in depth control: variable cutting depth from 0″ to 6.7″ gives you everything from light surface scarification to full-depth asphalt removal.
- Stay on grade automatically: the self-leveling adjustment system keeps the drum flat even when your loader arms move, so every pass is surgically smooth.
- Keep it cool & clean: built-in water injection ports tame dust, and an optional spray-cooling system extends bit life on marathon shifts.
Built to work, built to last

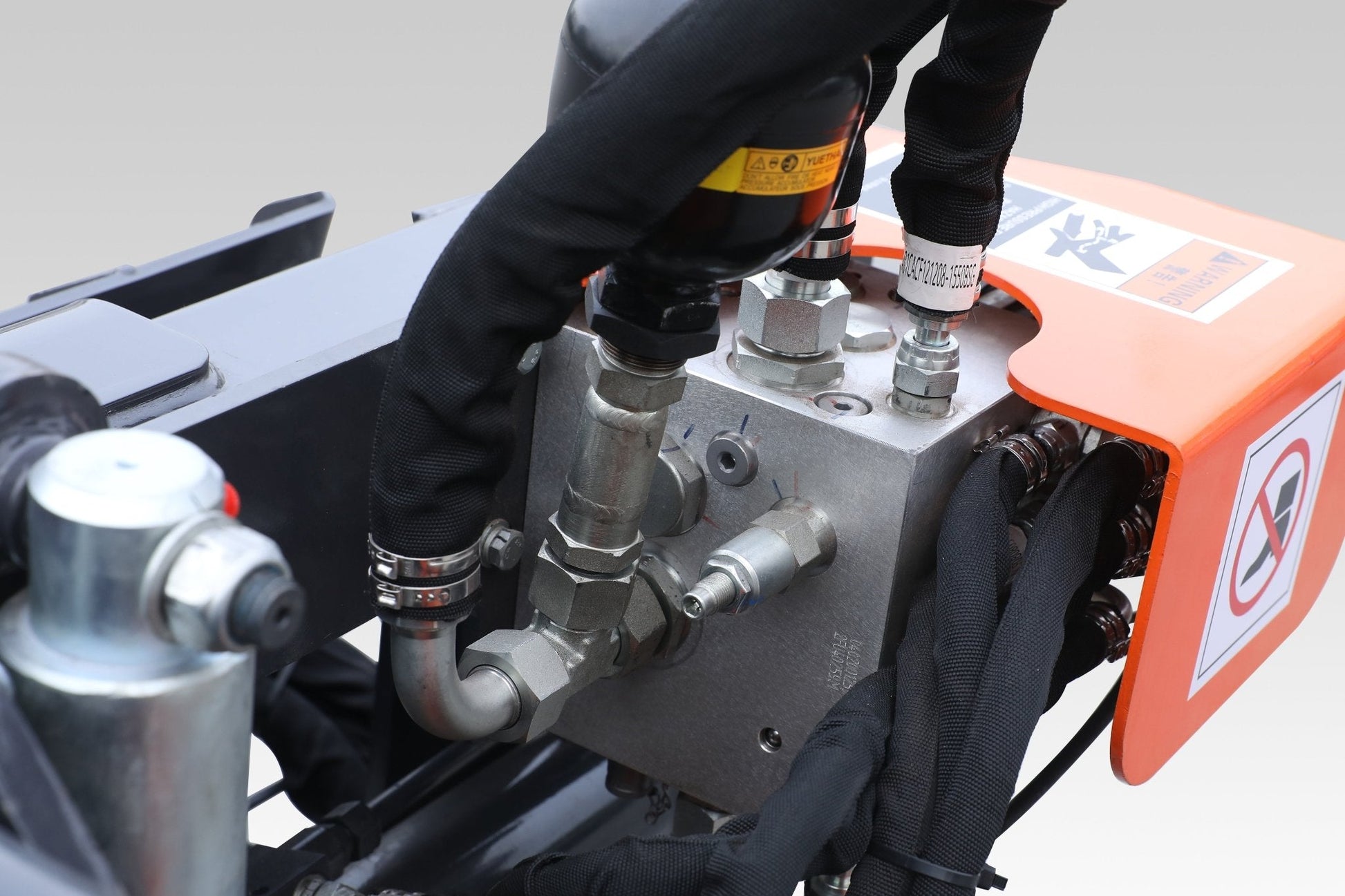

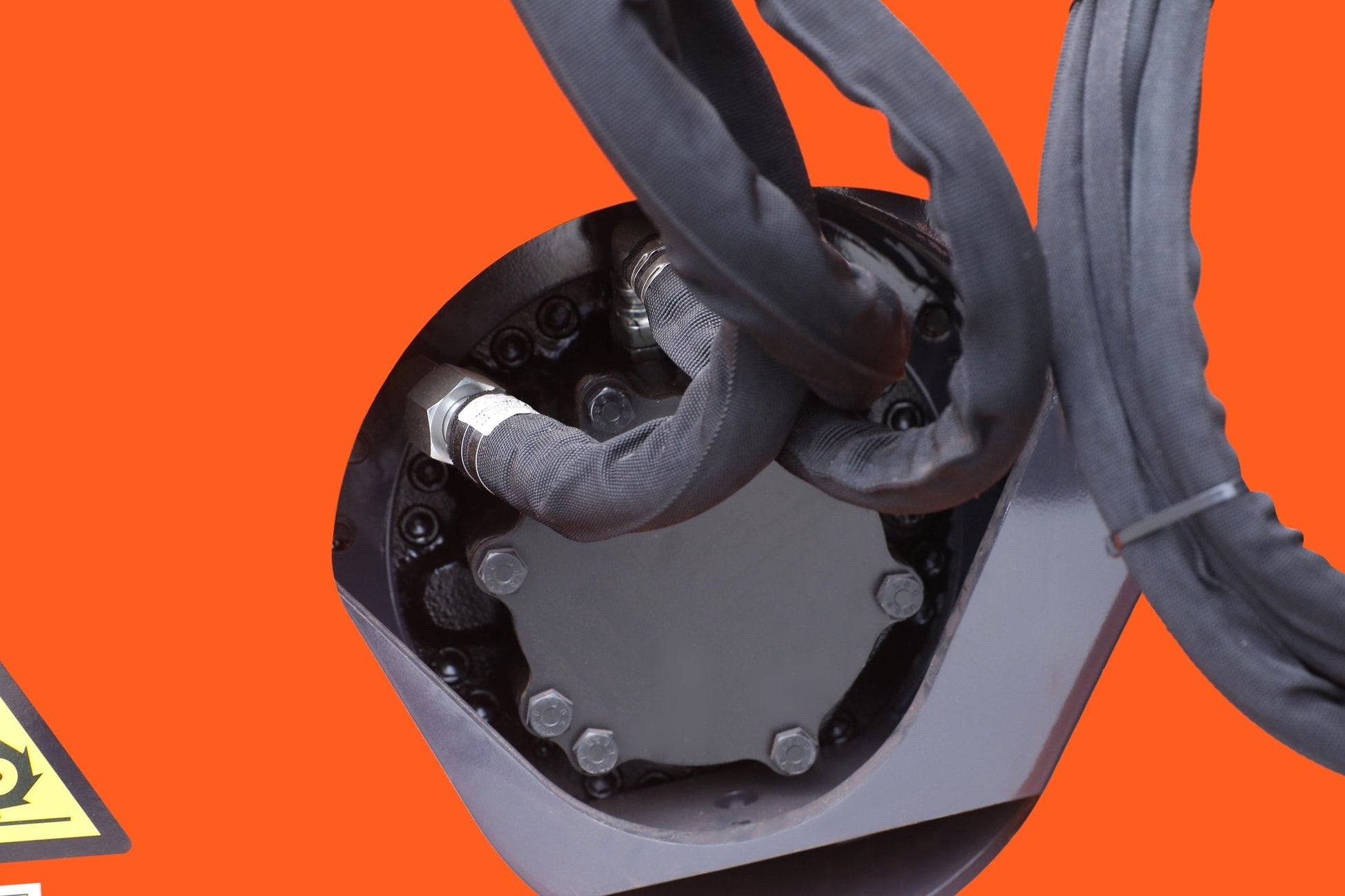

- High-flow cold planer motor chews through dense pavement without stalling; sealed bearings and a simple, open structure make daily checks a one-minute affair.

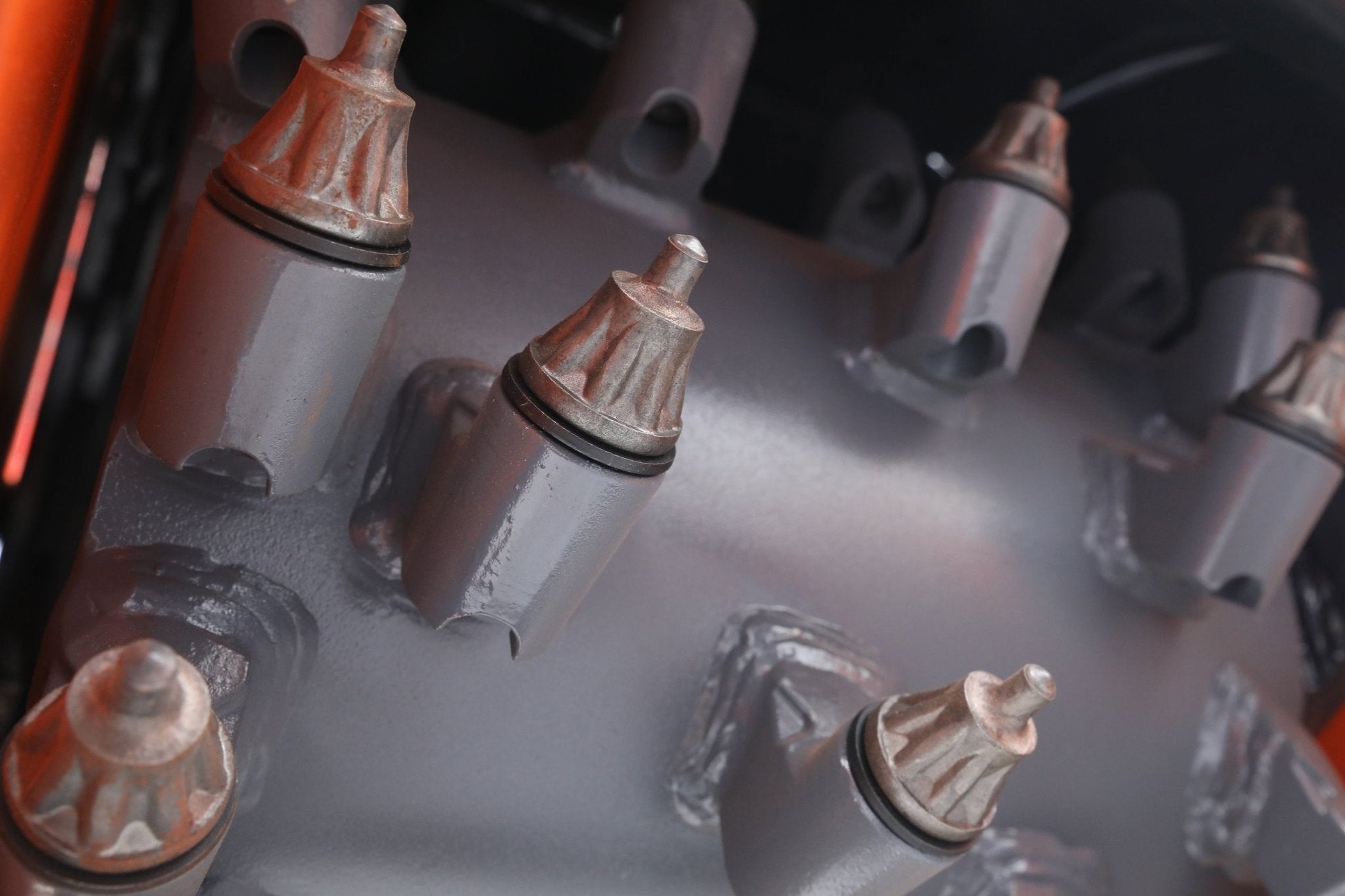

- Quick-change drum and teeth: swap cutter patterns or pop in a replaceable planer drum in the field with basic tools—perfect for rental fleets and busy road crews.
- Dust suppression spray feature protects operators, passes emissions regs, and keeps neighborhoods happy.

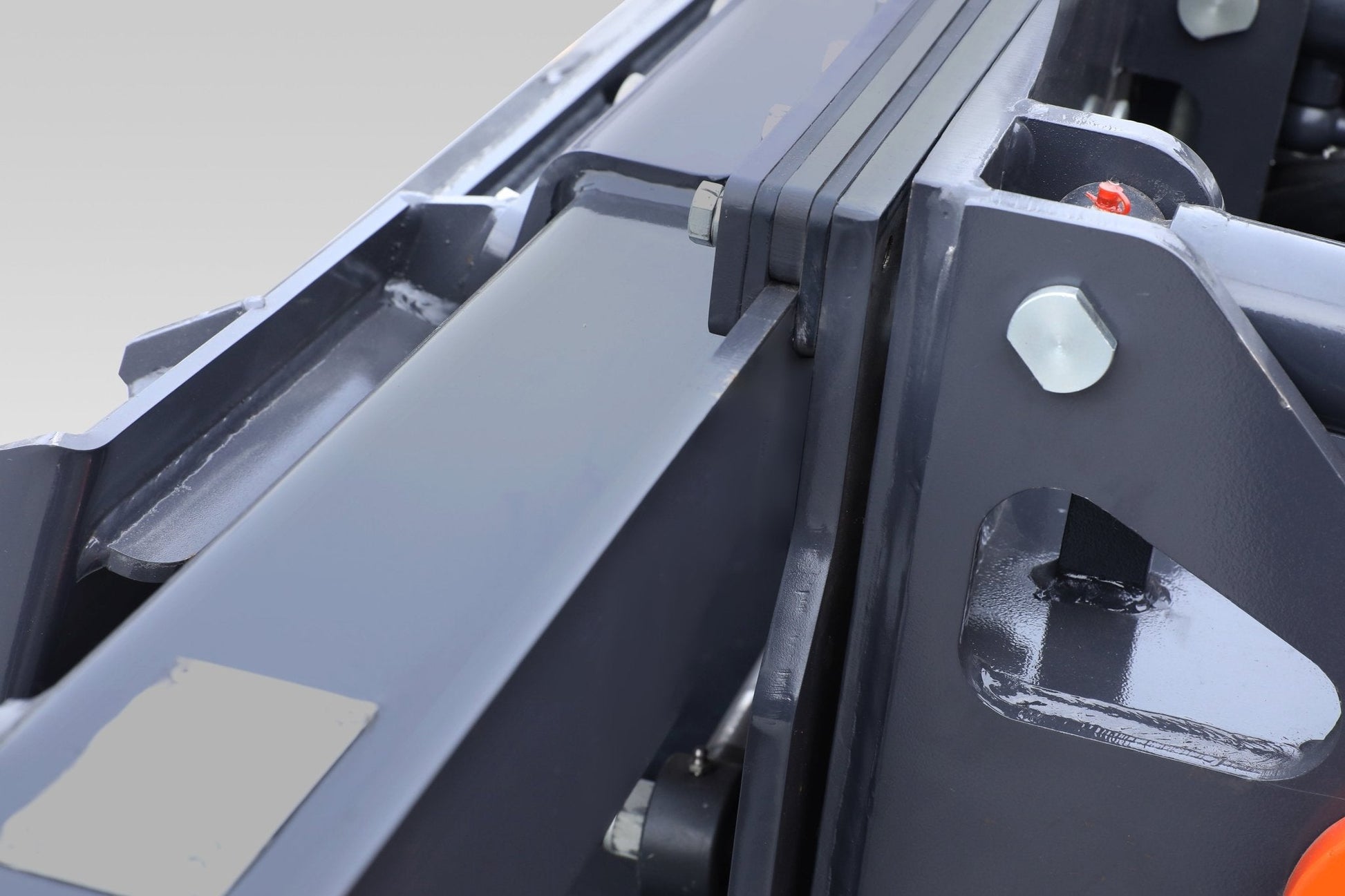

- Side-shift milling capability means fewer reposition moves and faster lane-closure reopen times.
One attachment, many missions
From airport pavement milling and bridge deck repair to curb-and-gutter edge cutting, this planer dominates:
- Asphalt surface rehabilitation and pothole prep
- Concrete surface planing for overlays or epoxy removal
- Trench resurfacing after utility installs
- Freight-yard resurfacing and industrial floor texturing
- Precision road surface preparation before micro-surfacing or seal coat
Performance Video
HCN Cold Planer Performance Video On Tiktok
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
