Product Feature
- Delivers up to 9,370 lbs. of dynamic force when operating at 20 GPM, providing excellent compaction performance for tough materials and demanding projects.

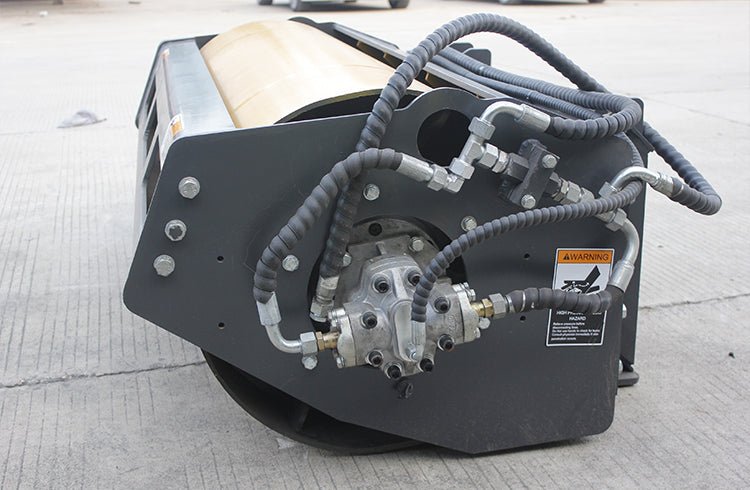

- Equipped with a hydraulically powered exciter system that ensures smooth operation while minimizing exciter shaft deflection and vibration transmission.
- Hydraulic drives are protected and isolated to maximize performance and reliability, extending the life of the system.
- Features a motor protection device that extends motor use life by preventing overheating and wear, enhancing long-term reliability.
- Incorporates an oil-immersed lubrication system inspired by BOMAG and Ingersoll Rand technical solutions, ensuring optimal performance and reduced maintenance.

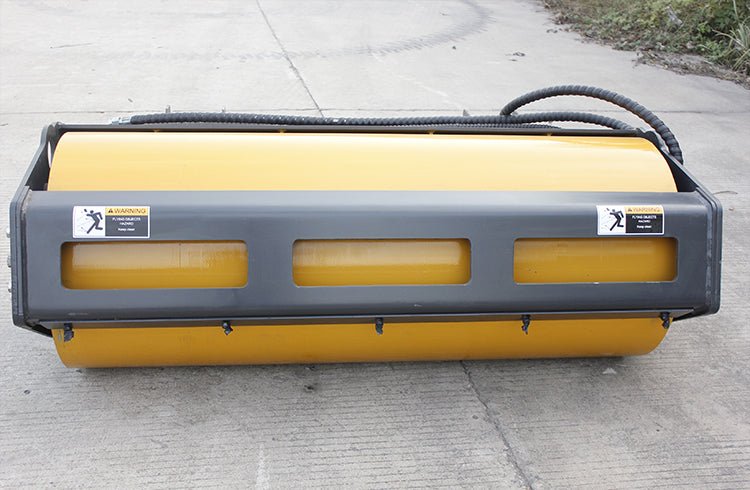

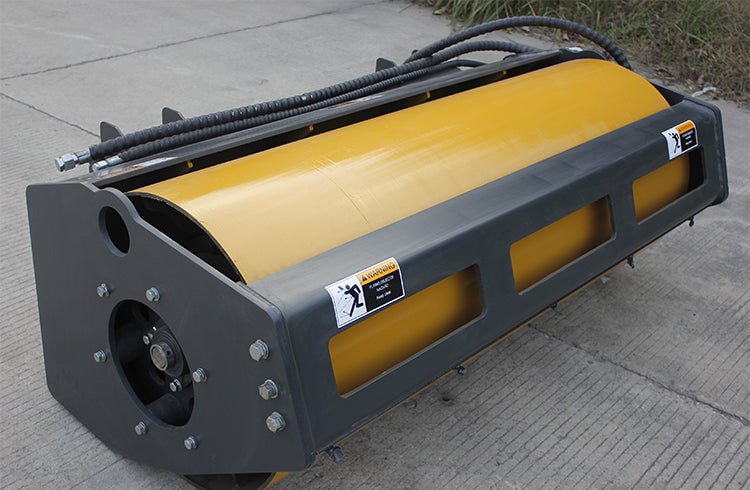

- The steel drum has an adjustable scraper blade located between the frame and drum, ensuring smooth and uniform compaction while preventing material buildup.

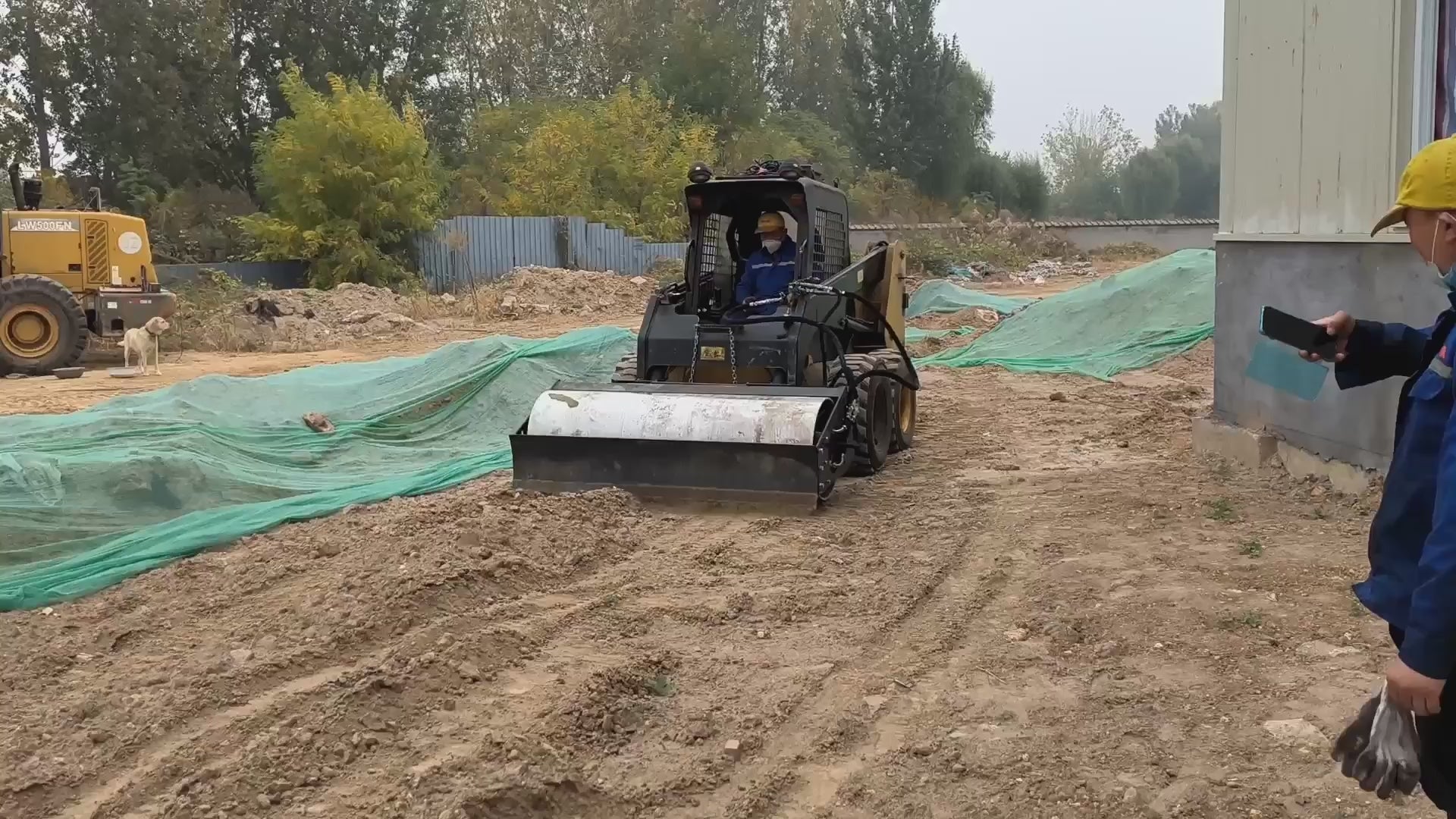

- Compared to larger road rollers, this attachment offers flexible operation, small ground impact, and lower capital investment, making it an excellent choice for smaller and mid-sized projects.
- Available in both smooth drum and pad foot models, providing flexibility for a variety of compaction needs, from asphalt to cohesive soils.
- Built with durable bearings to ensure consistent performance and long-lasting reliability under heavy use.
- Includes an integral knockdown blade for leveling and compacting material simultaneously, enhancing efficiency and reducing the need for additional equipment.
- The roller comes with fully supported and easily replaceable parts, ensuring minimal downtime and simplified maintenance.
Specifications

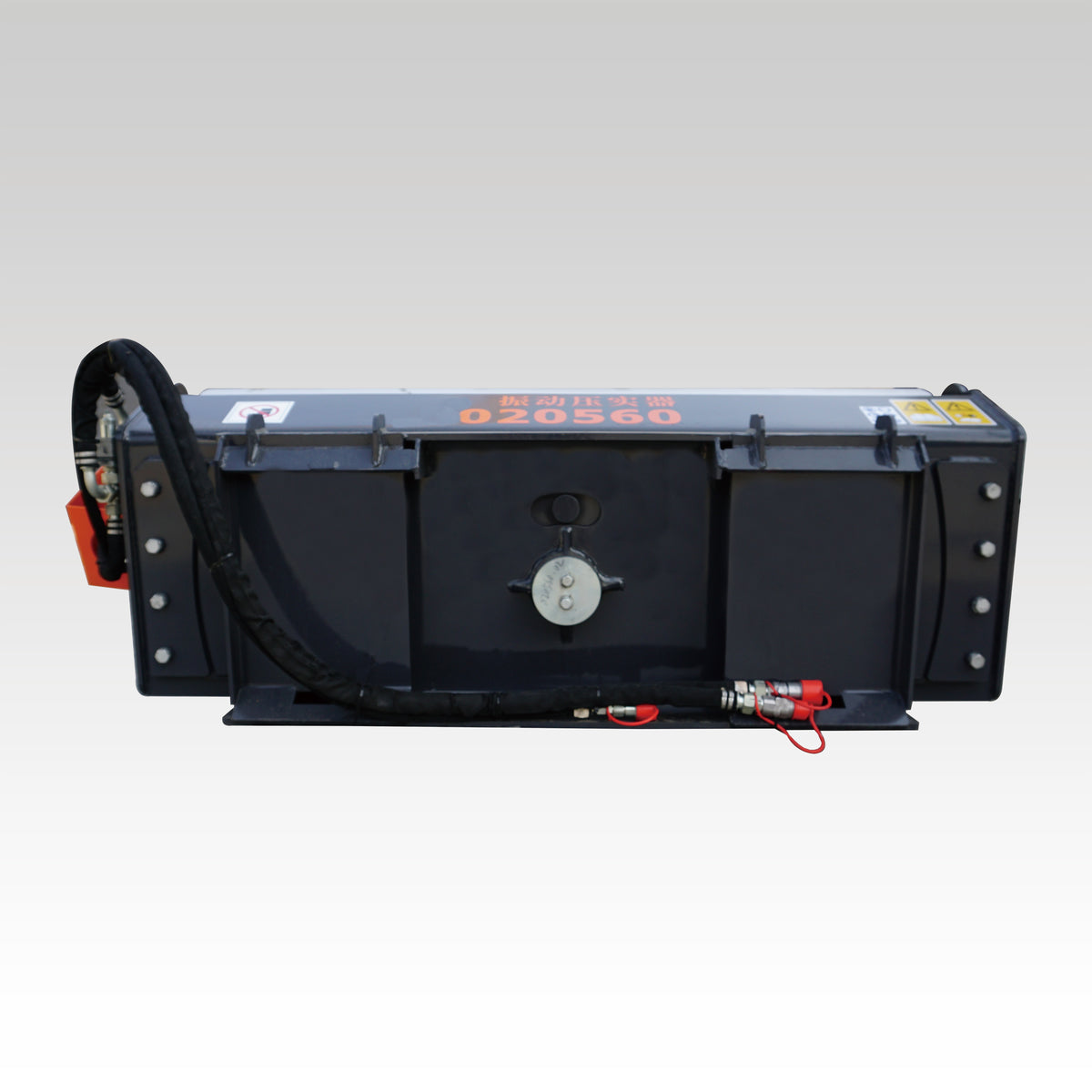

| Model | 020560 | 020572 |
|---|---|---|
| Overall Length (in) | 69.3 | 81.1 |
| Overall Width (in) | 38.6 | 38.6 |
| Overall Height (in) | 26.2 | 26.2 |
| Roller Diameter (in) | 23.2 | 23.2 |
| Weight (lbs) | 1962.1 | 2105.4 |
| Dynamic Force (kips) | 6.97 @ 60 Hz | 8.31 @ 60 Hz |
| Roller Tilt (degrees) | ± 15 | ± 15 |
| Working Flow (gal/min) | 15.9 - 18.5 | 15.9 - 18.5 |
| Working Pressure (psi) | 2900.7 | 2900.7 |
| Suitable Machine | Skid Loader | Skid Loader /Small |
| Volume (cubic yards) | 2.79 | 3.23 |
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
