Product Feature
- Designed for use on forklift trucks and loaders for the efficient removal of cylinders in large industrial machinery.
- Features a solid structure with a high level of automation for reliable performance under heavy-duty conditions.
- Utilizes five hydraulic actions (side shift, rotation, and swing adjustments) for precise positioning of the robot hand.
- Equipped with retractable and holding functions controlled remotely, ensuring intuitive and safe operation.
- Incorporates ergonomic design for practical, accurate, and flexible handling.
- Includes an integrated hook device underneath for an extra layer of security during cylinder handling.
- Available in various colors to meet customer-specific aesthetic or branding needs.
Specifications
| Model | BM5924 |
|---|---|
| Overall Length Range (in) | 125.6 - 144.5 |
| Overall Width (in) | 59.76 |
| Overall Height (in) | 53.03 |
| Weight (without pendant) (lbs) | 4,591.49 |
| Diameter Range of Holding Circle (in) | 11.81 - 16.14 |
| Fuselage Rotation (°) | ±22 |
| Side Shift Distance (in) | 11.81 |
| Fuselage Deflection (°) | ±15 |
| Allowable Maximum Pressure (psi) | 3,046.38 |
| Applicable models | Forklift/loader |
Performance Introduction

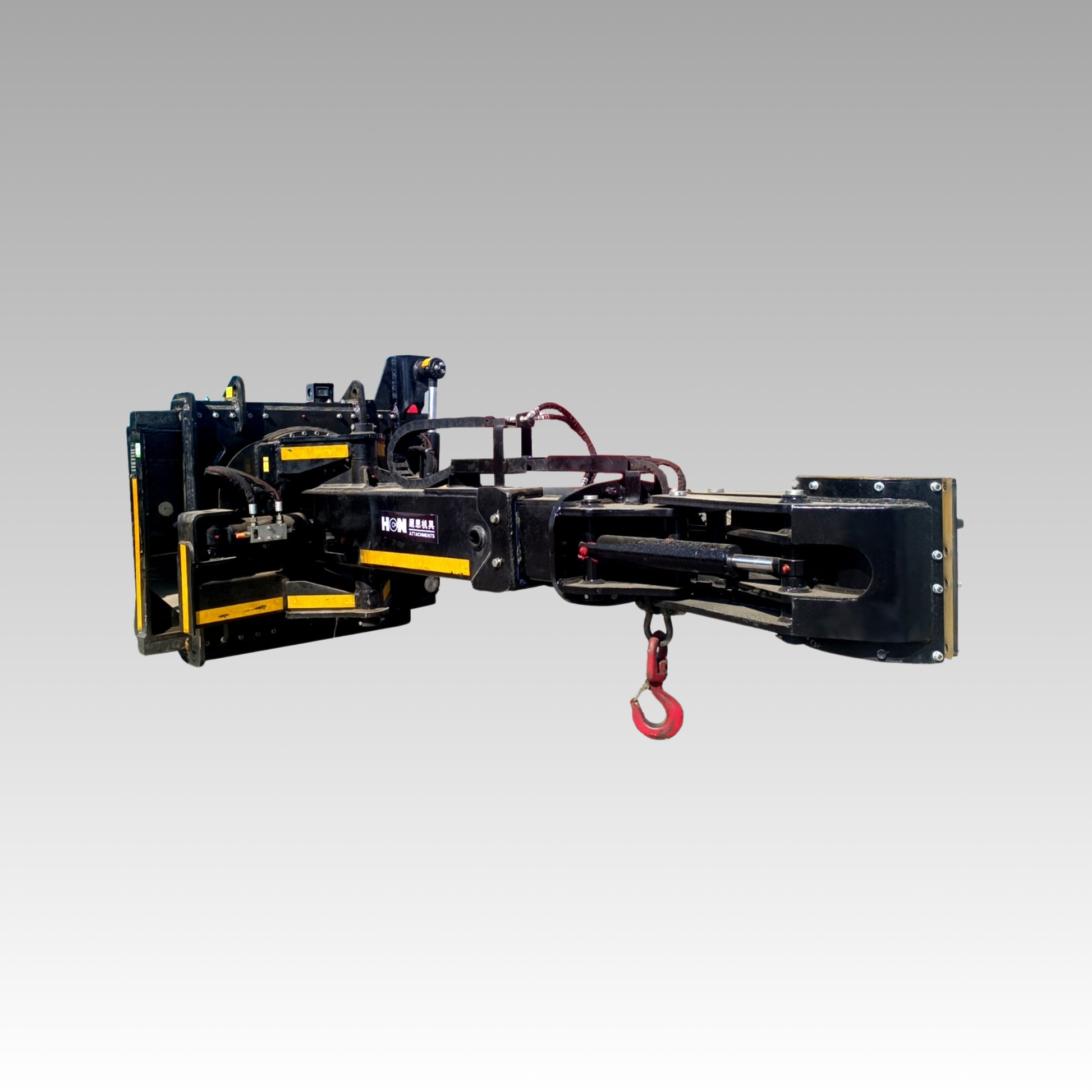

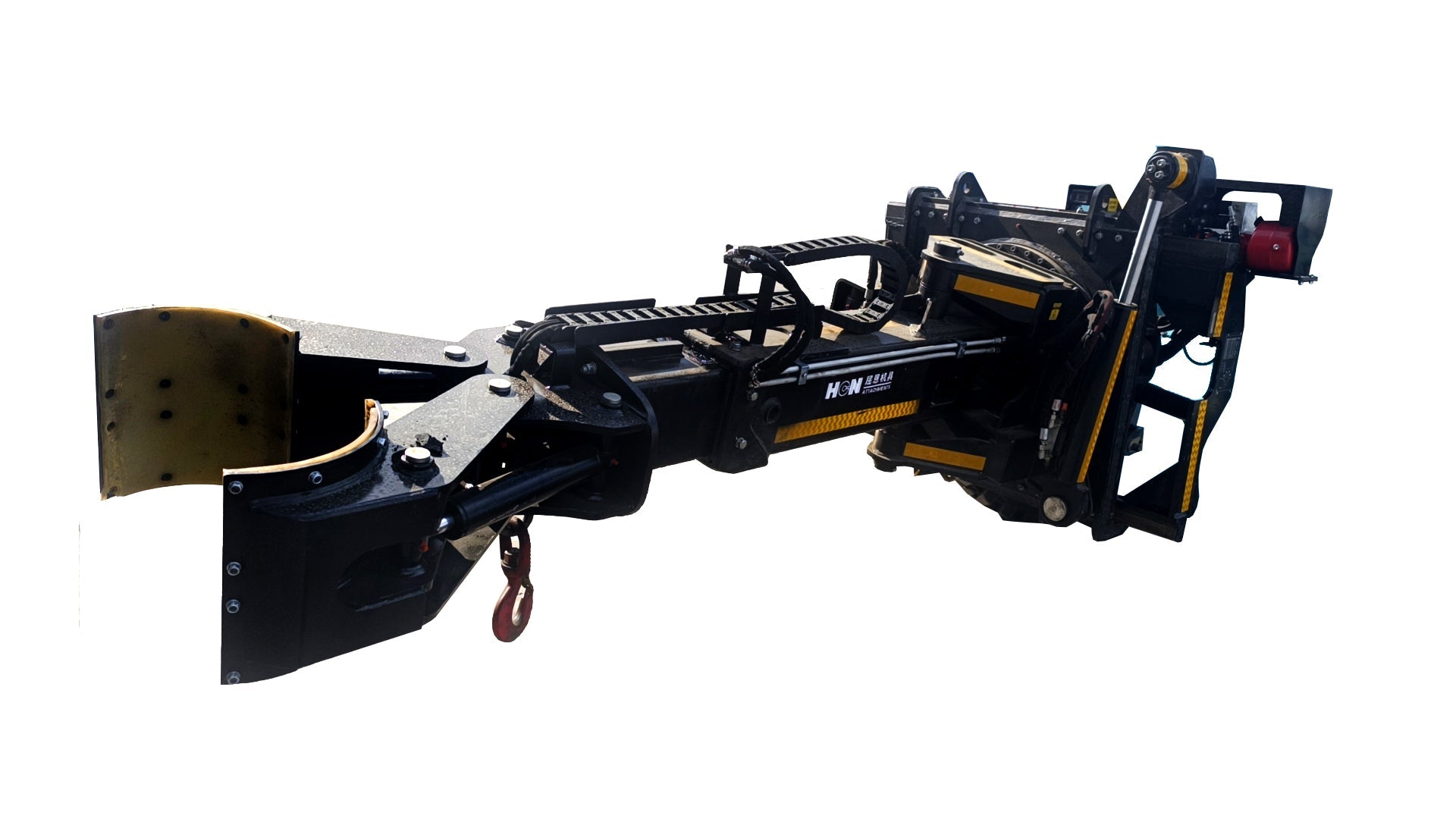

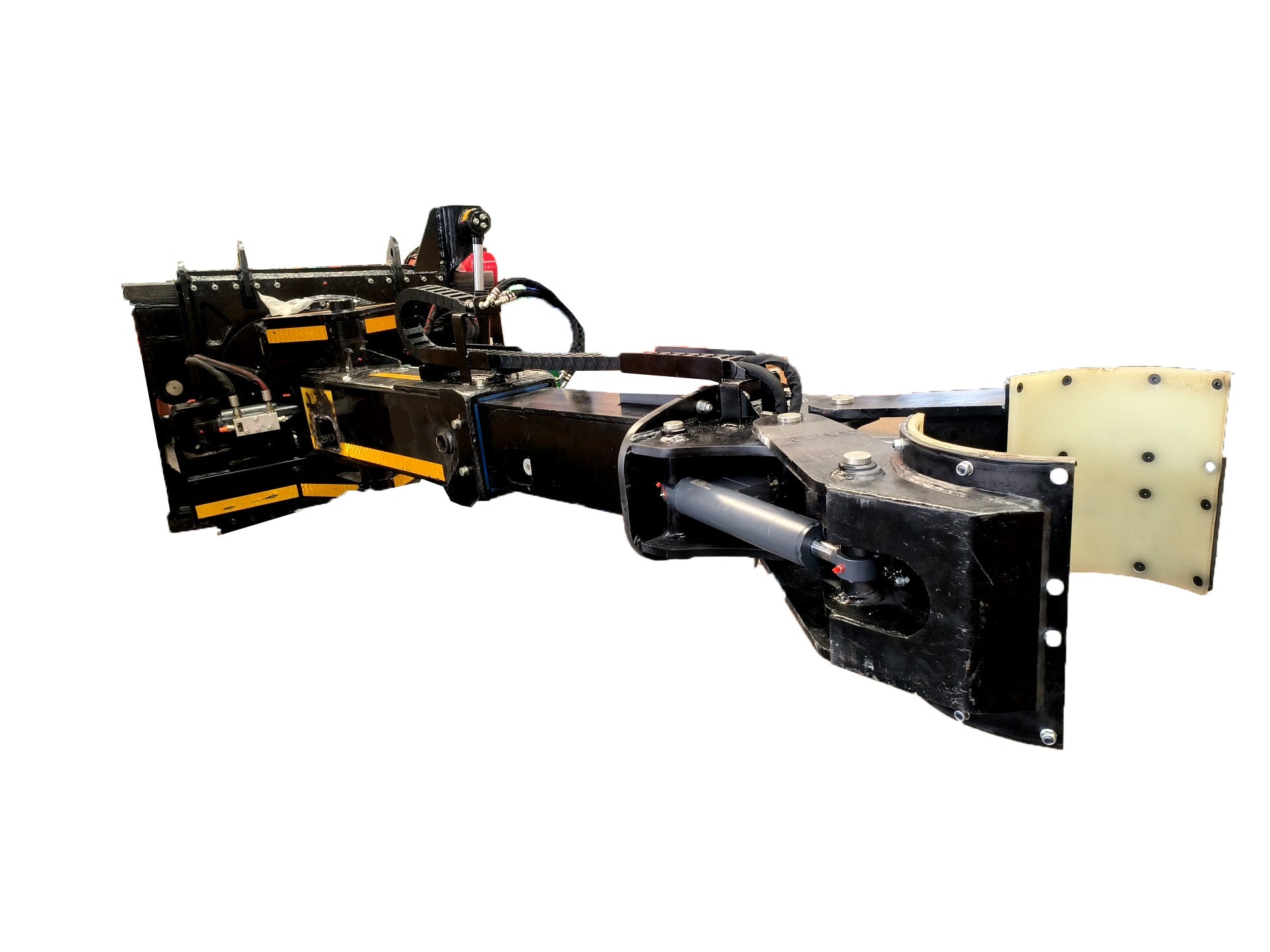

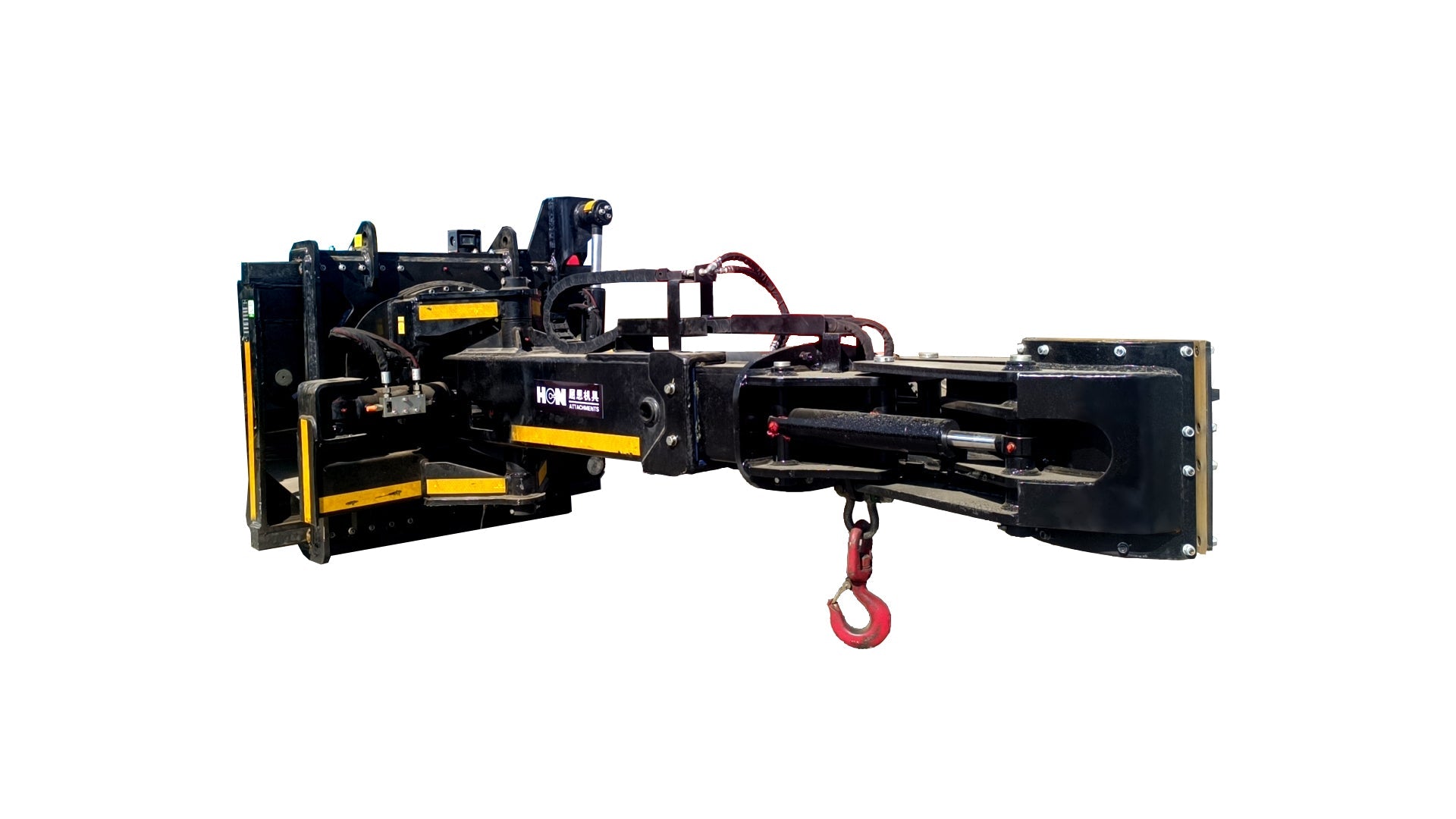

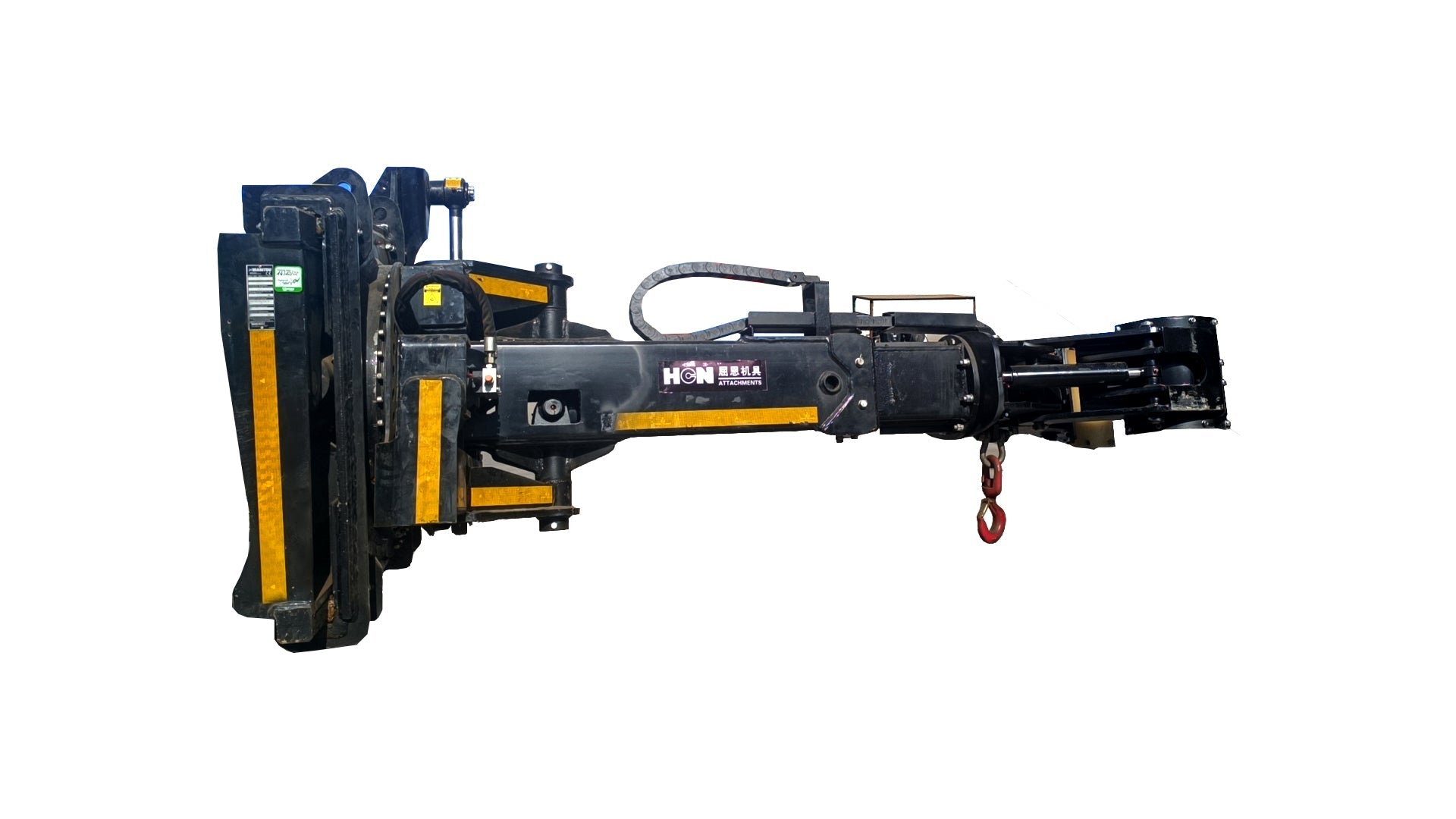

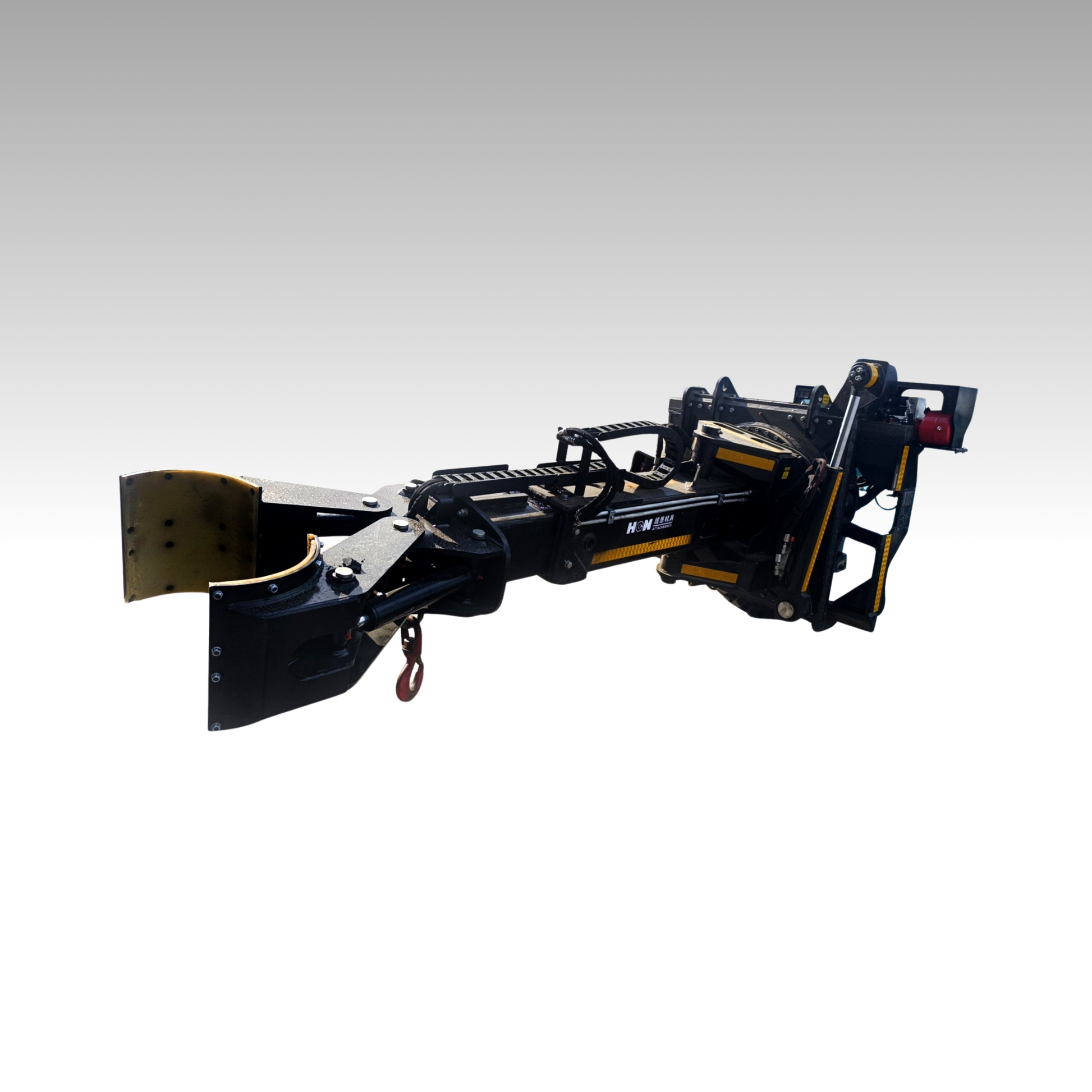

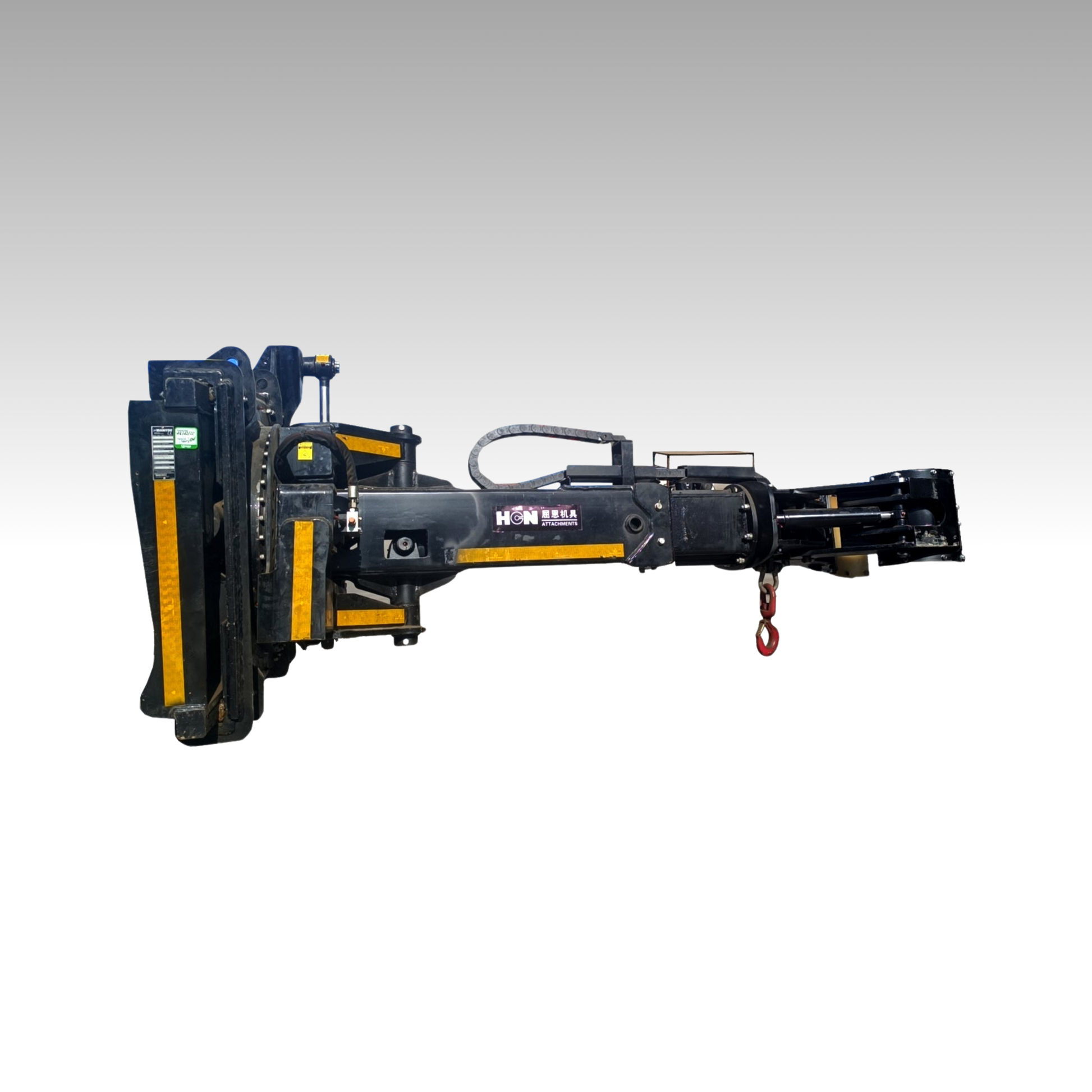

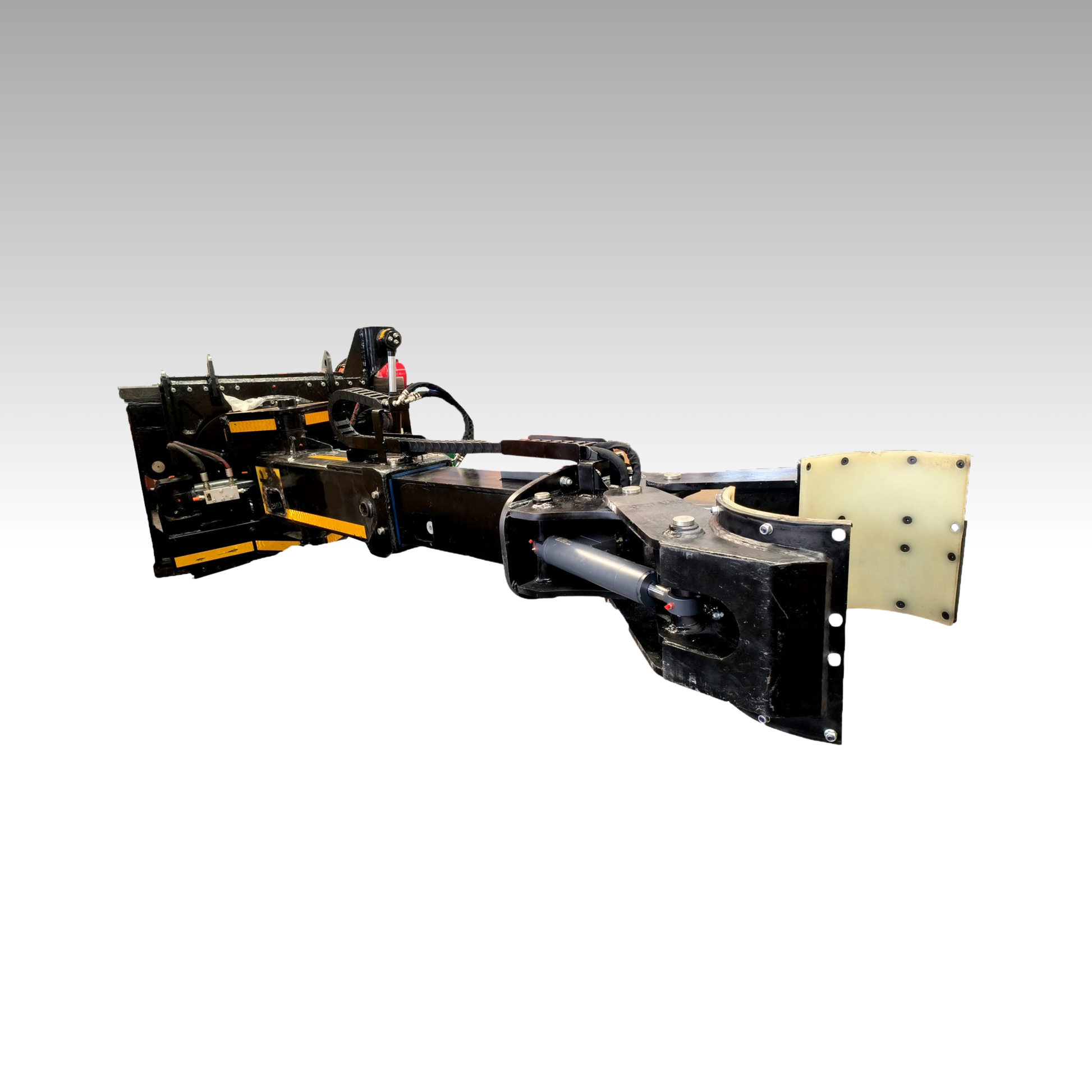

A rugged, high-automation wheel loader cylinder clamping robot that lets you dismantle, grasp, rotate, and position hydraulic cylinders from large machinery (mining trucks, haul trucks, excavators, backhoes) with speed and control. Purpose-built for tight bays and service pits, it replaces risky manual lifts with a wheel loader hydraulic cylinder handler you can trust.
Why it’s different
-
Five hydraulic actions: side-shift, rotation, swing, clamp, and retract—delivering fine positioning in confined spaces.
-
Human-wrist inspiration: a dexterous, multi-axis cylinder manipulator that behaves like a technician’s hand, at machine scale.
-
Remote operation: wireless, proportional control keeps operators at a safe distance while maintaining millimeter-level accuracy.
-
Double safety: primary clamp + integrated lifting hook for secure hoisting and staged removal.
-
Solid structure: a heavy-duty cylinder robot with a reinforced frame for round-the-clock service in mines, quarries, refineries, shipyards, and factories.
Control & safety
-
Load-sensitive, proportional valves enable smooth, precision hydraulic clamping on variable-diameter cylinders—no marring, no slips.
-
Side shift + swing adjust keep the cylinder grasping tool aligned with pins and mounts without repositioning the carrier.
-
Remote joystick / wireless control supports safe-distance cylinder handling, reducing fatigue and incident risk.
-
Integrated hook device adds a second securement point for dual-safety cylinder removal.
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
