HCN Industry

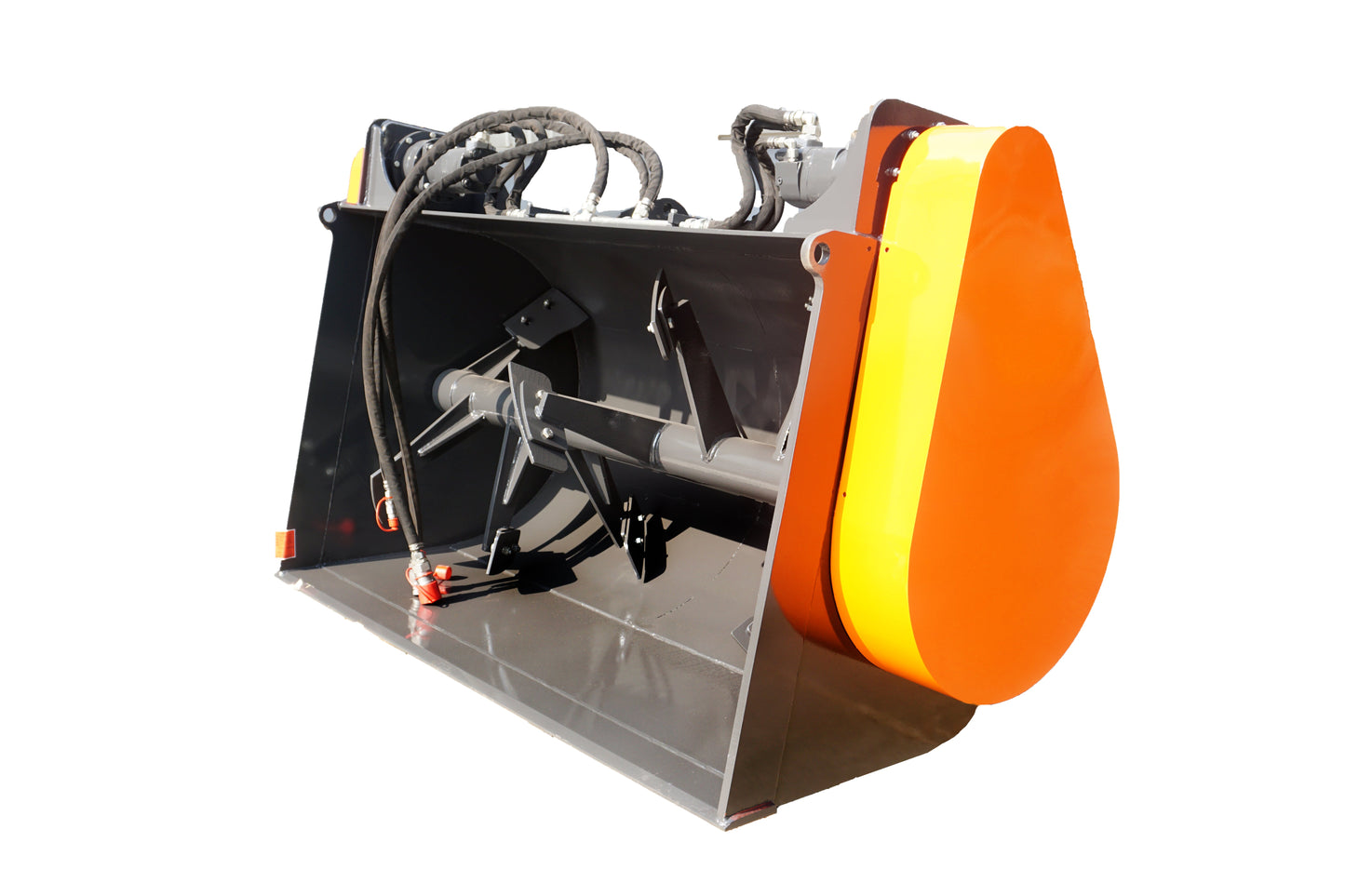

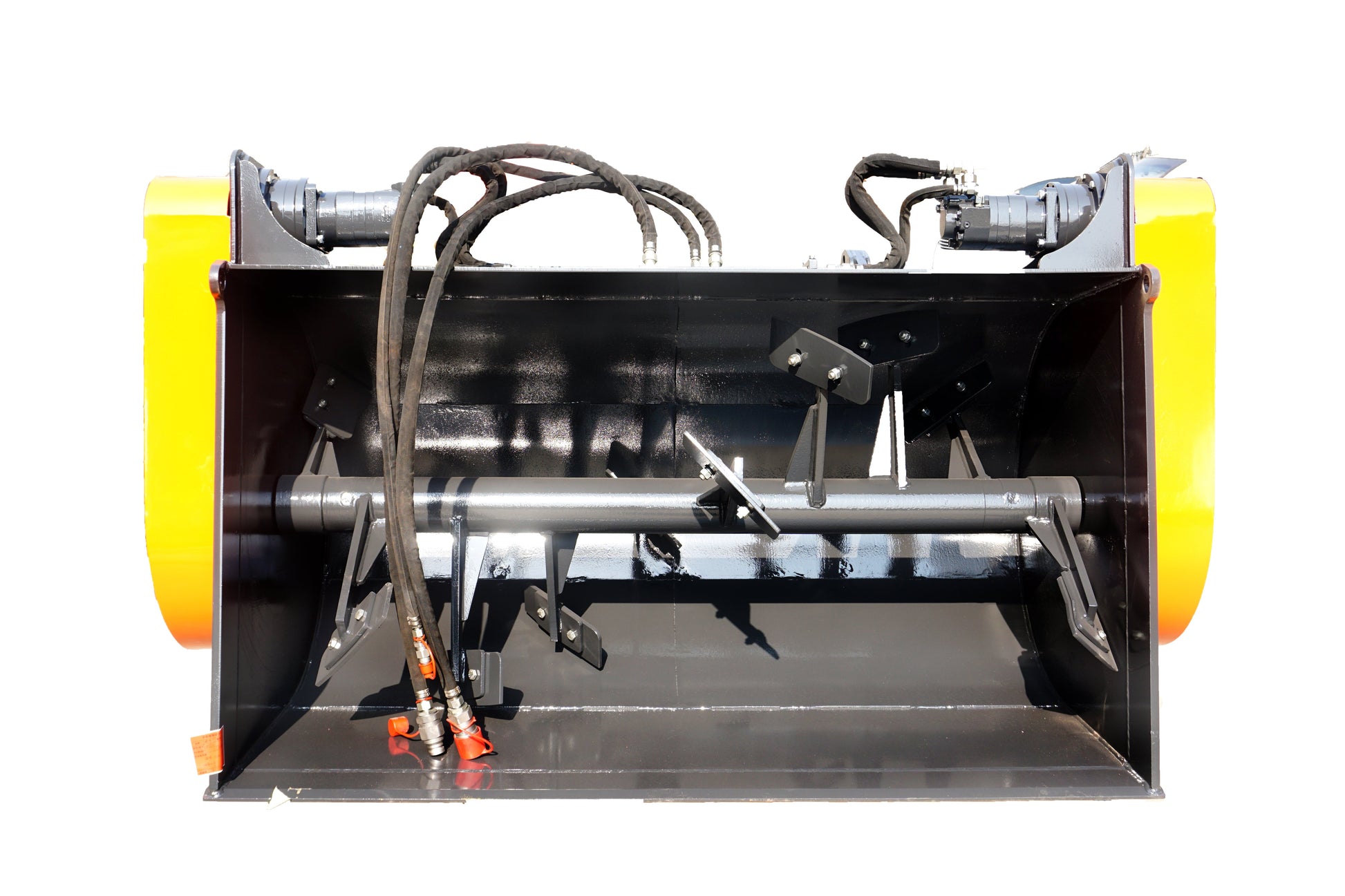

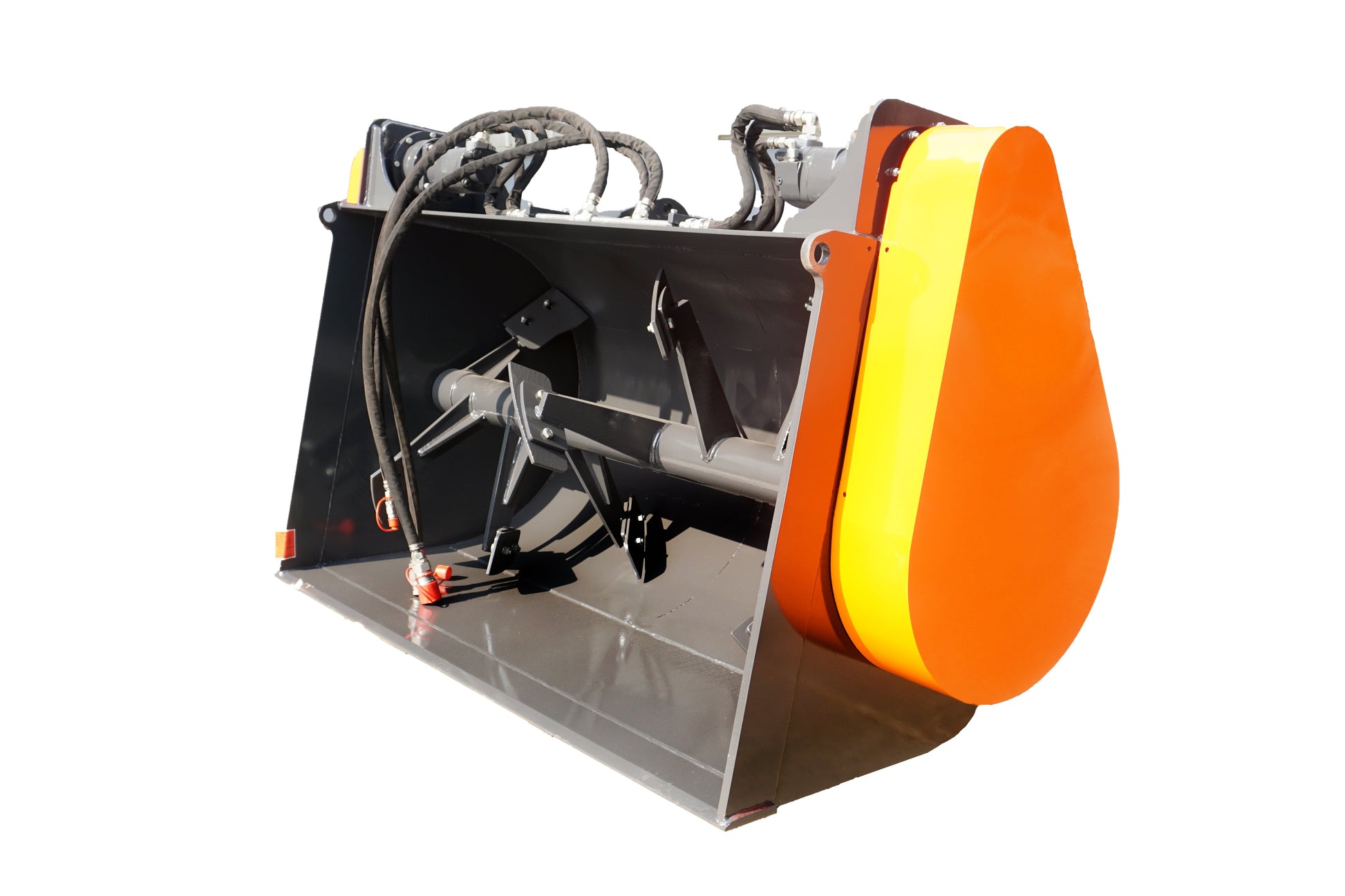

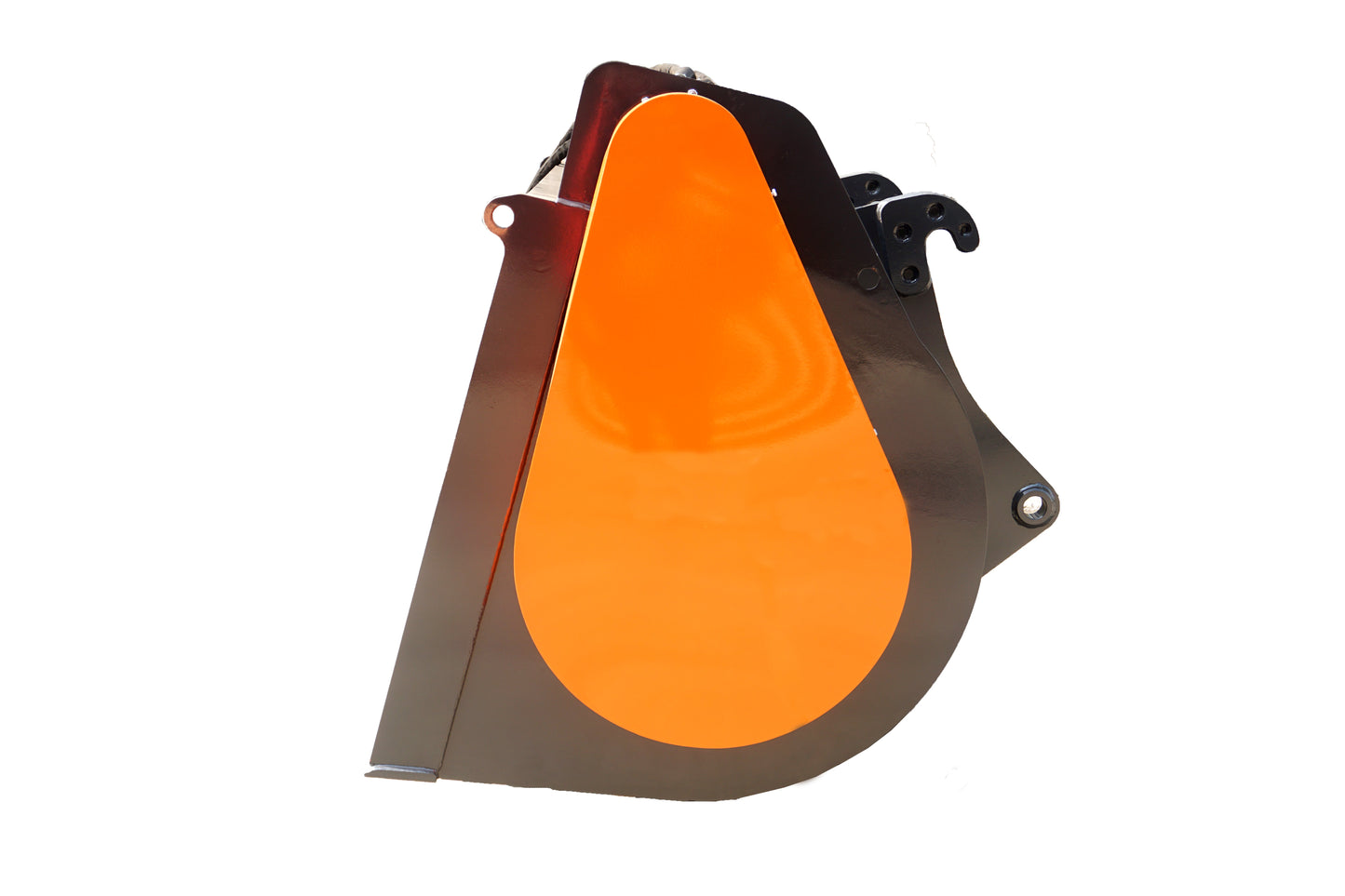

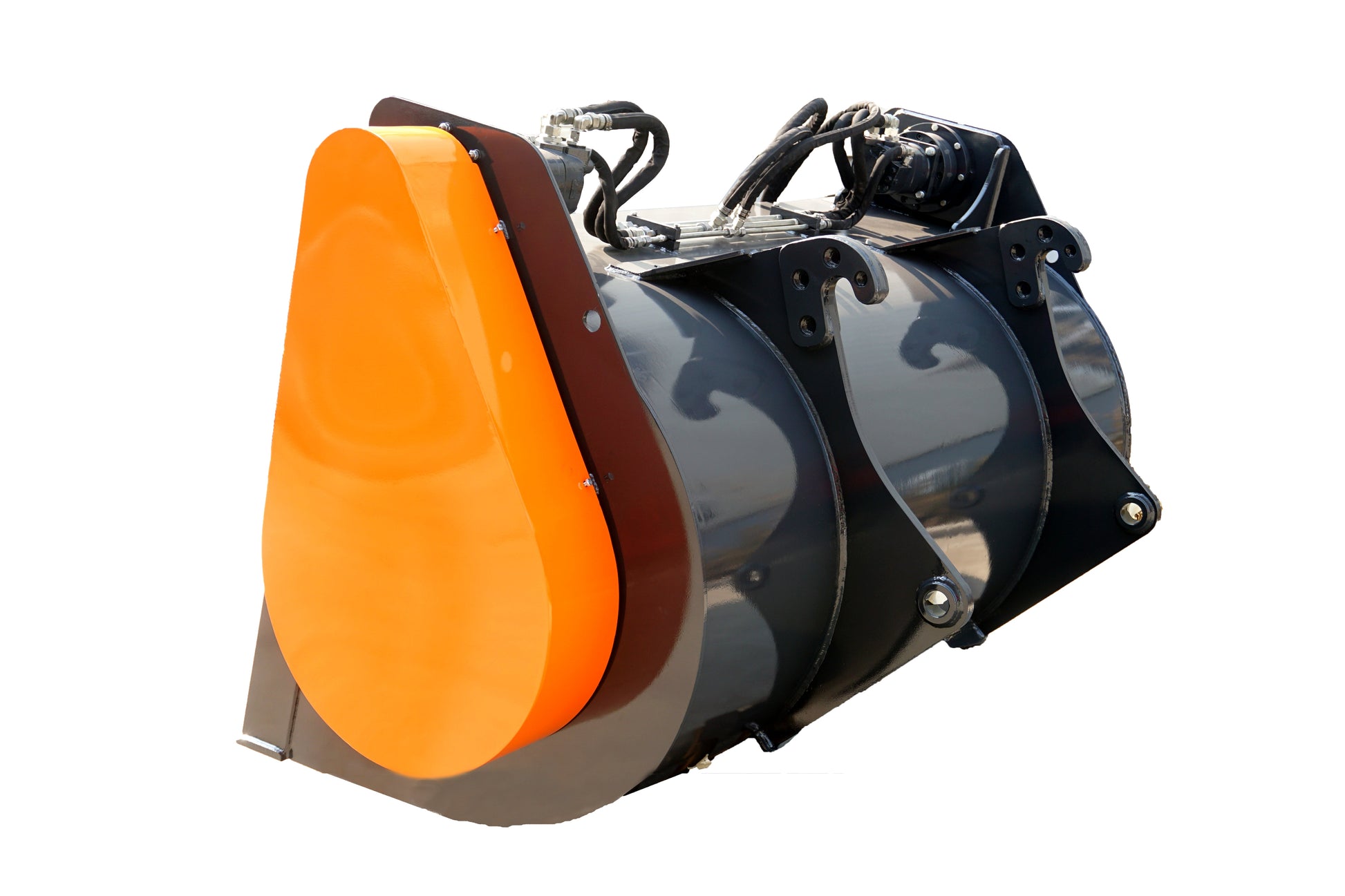

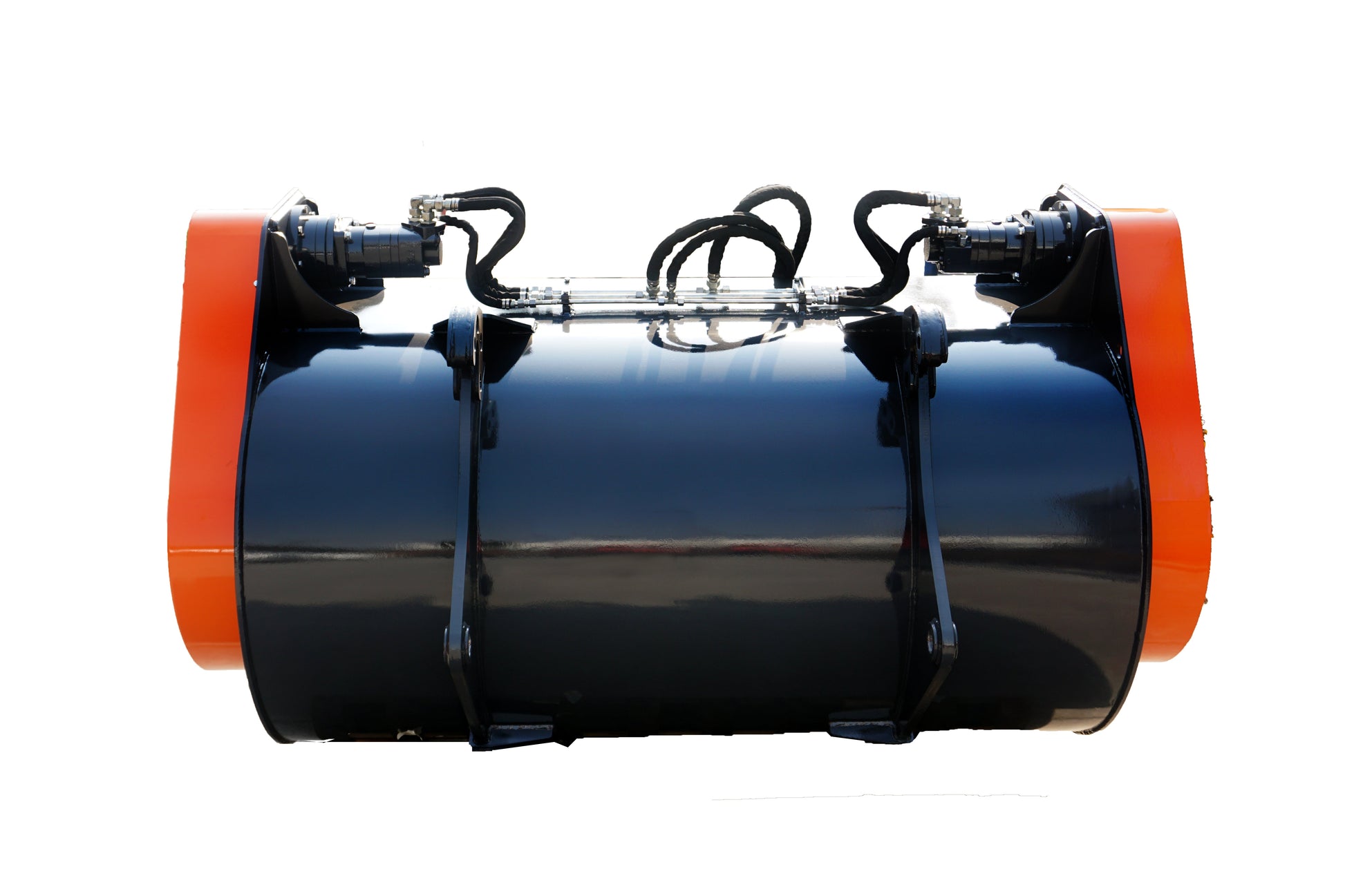

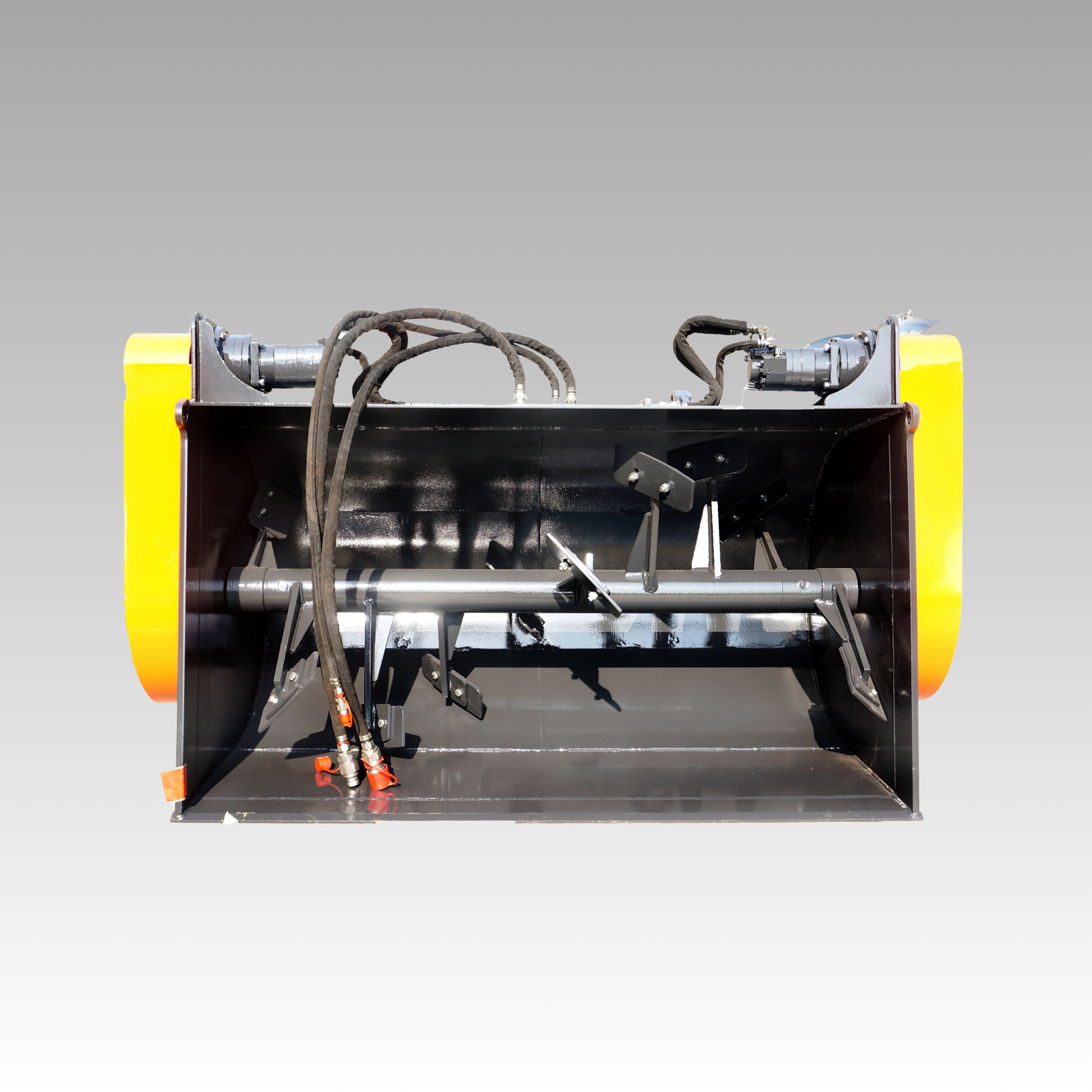

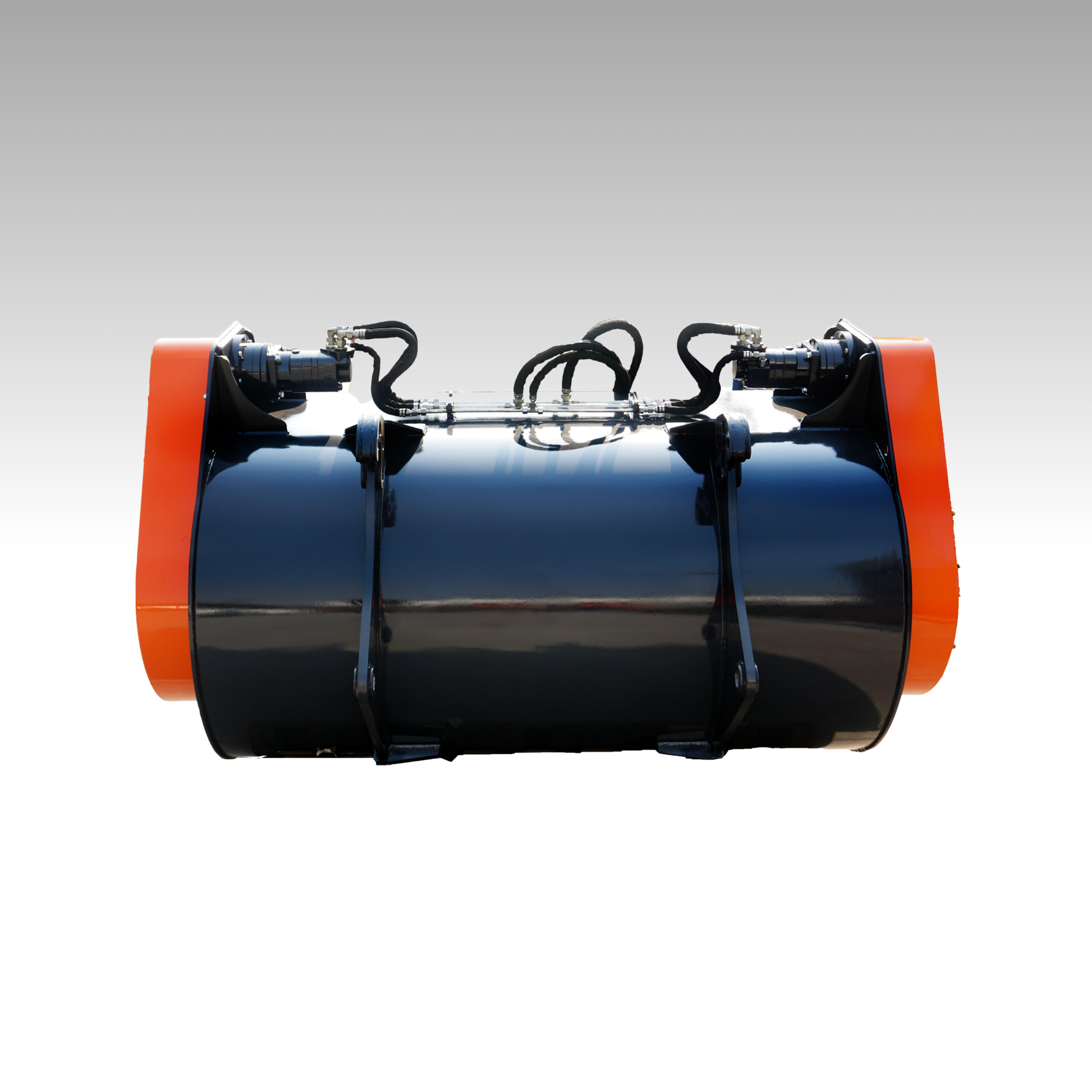

HCN Wheel Loader Dual Motor Mixing Bucket, 2030.52 - 3915.94 psi Allowable Pressure, for 5 T loader

HCN Wheel Loader Dual Motor Mixing Bucket, 2030.52 - 3915.94 psi Allowable Pressure, for 5 T loader

$22,599.00 CAD
$22,599.00 CAD $22,599.00 CAD
Sale Sold out
  • The HCN Dual Motor Mixing Bucket combines the functions of both a mixer and a bucket to streamline the handling of materials such as yellow sand and stone.
  • By breaking down cement particle agglomeration and promoting diffusion, it enhances mix consistency while reducing labor time and boosting overall work efficiency.
  • The bucket is equipped with replaceable wear-resistant plates on its inner walls to minimize friction damage during mixing, thereby extending its service life.
  • Powered by dual hydraulic motors, this system ensures smooth, rapid stirrer rotation for accelerated concrete mixing.
  • Its adjustable, long round hole stirrer paddle allows flexible positioning relative to the bucket’s bottom and side plates, accommodating various applications.
  • Customers should install the appropriate limiting block (e.g., collecting bucket, tipping bucket) according to the host machine’s configuration.
View full details
Product Feature
  1. Combines mixing and bucket functionalities to reduce the challenges of shoveling materials, saving time and increasing efficiency.
  2. Prevents cement particle agglomeration and promotes even diffusion for a more homogeneous mix.
  3. Replaceable plates reduce friction damage during operation, extending the service life of the bucket.
  4. Increases the frequency of mixing unit movements and cross trajectories, accelerating homogenisation.
  5. Provides powerful and smooth stirrer rotation to rapidly mix concrete.
  6. Features a long round hole design with adjustable clearance, allowing flexible positioning for optimal performance.
  7. Customers are advised to add the appropriate limiting block (collecting bucket, tipping bucket) based on the host machine’s requirements.
Specifications
Model BM5320
Overall Length (in) 96.06
Overall Width (in) 45.08
Overall Height (in) 56.46
Production Capacity of One Bucket (cubic yards) 2.62
Flow Rate (gallons/min) 50.20 - 66.04
Allowable Pressure (psi) 2,030.52 - 3,915.94
Weight (including hanging) (lbs) 3,417.17
Unloading method Positive
Use of models 5 tonne loader
Performance Introduction

Meet the wheel loader dual motor mixing bucket that turns your loader into an on-site batch plant. By combining a bucket and mixer in one hydraulic mixer bucket, it cuts out extra shoveling and handling, saves time, and delivers a homogeneous mix—from concrete and mortar to soils, slurries, and specialty blends.

What makes it different

  • Twin hydraulic drive for smooth power
    A dual hydraulic motor mixer delivers powerful, steady stirrer rotation for rapid blending in this wheel loader rotary mixing bucket / agitator bucket.

  • Anti-agglomeration, pro-homogenization
    The paddle system increases mixing unit movements and cross trajectories to prevent cement particle agglomeration and promote even diffusion—your true homogeneous mix bucket.

  • Adjustable paddles = dialed-in results
    A long round-hole design with adjustable clearance lets you fine-tune paddle position for different materials and batch targets—your adjustable paddle mixer / variable stirrer bucket.

  • Built to last
    Replaceable, wear-resistant plates reduce friction damage inside the wheel loader concrete mixing bucket, extending service life with easy maintenance and low downtime.

  • Mix + move in one pass
    Scoop, mix on site, then carry and place—your wheel loader bucket mixer and material mixing bucket in a single, labor-saving package.

Performance Video
Warranty We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.
