HCN Industry

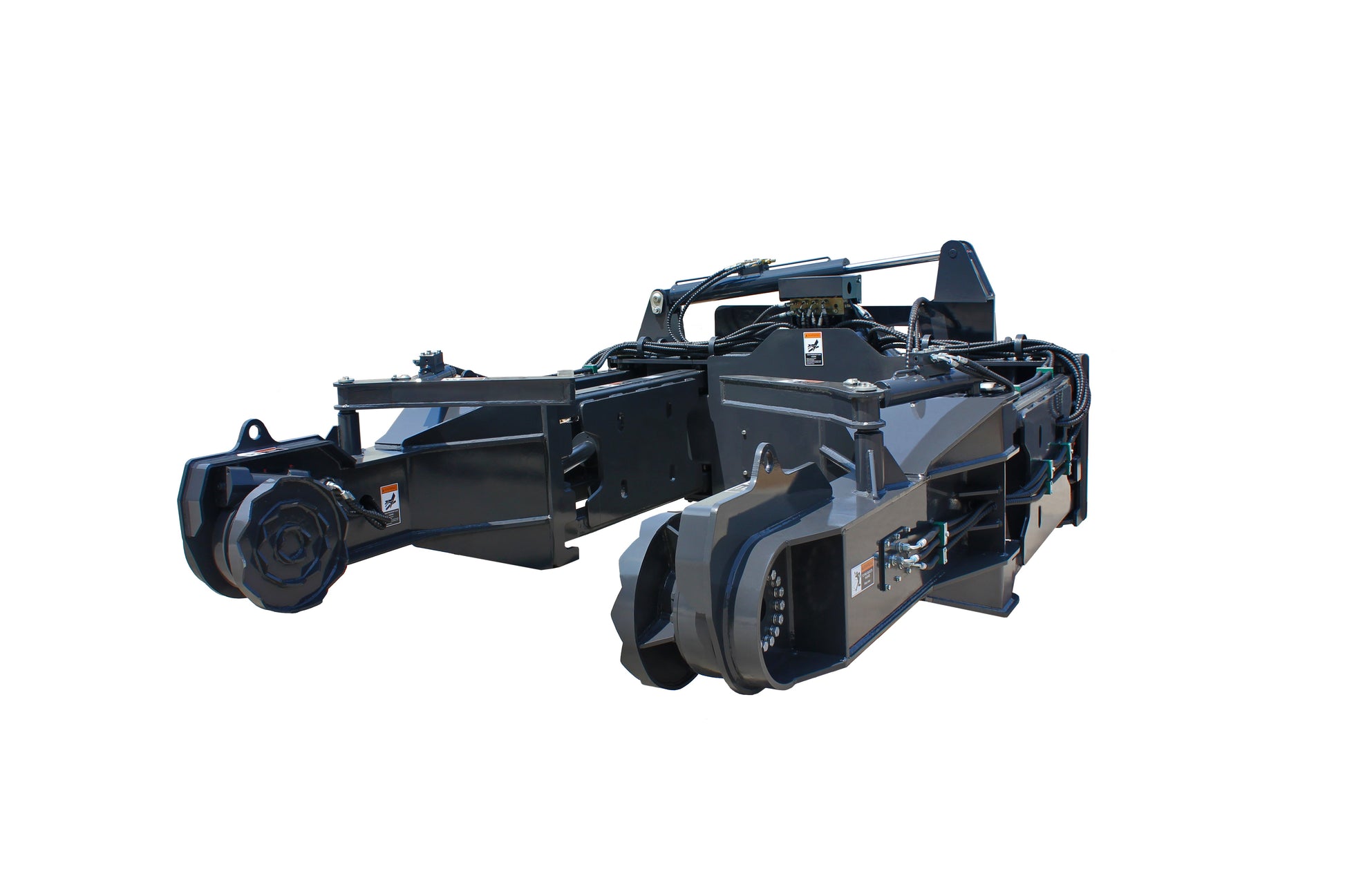

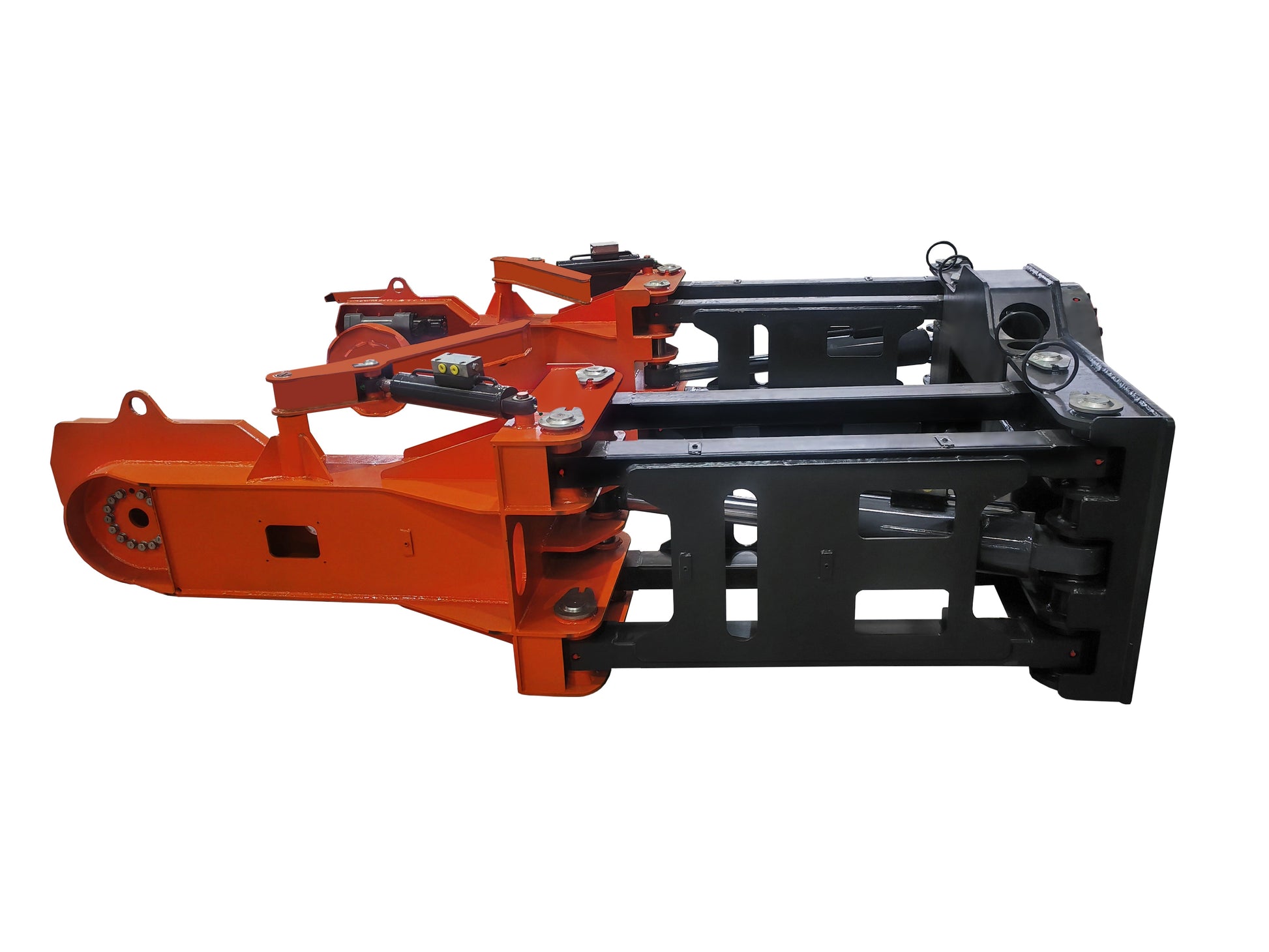

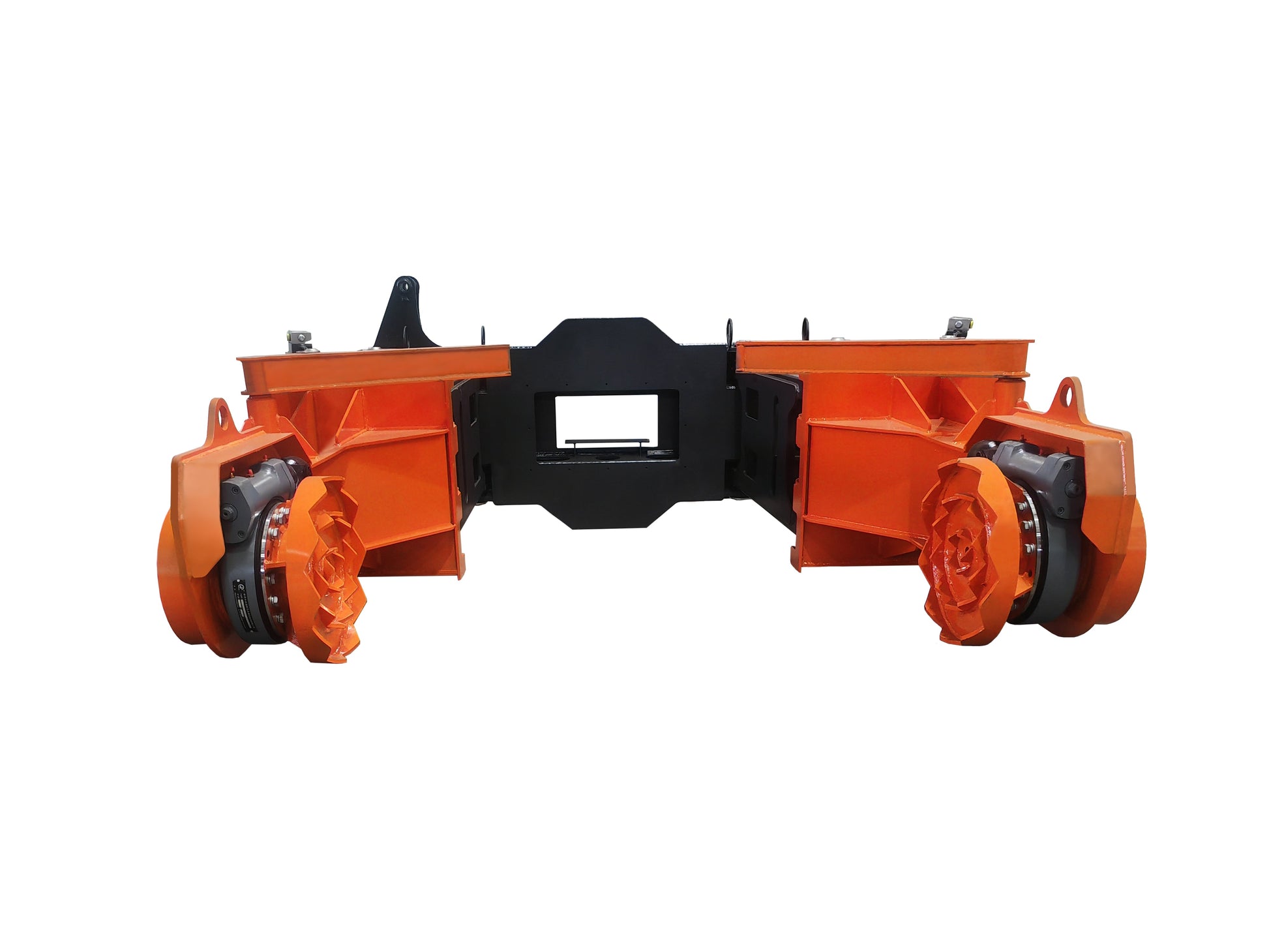

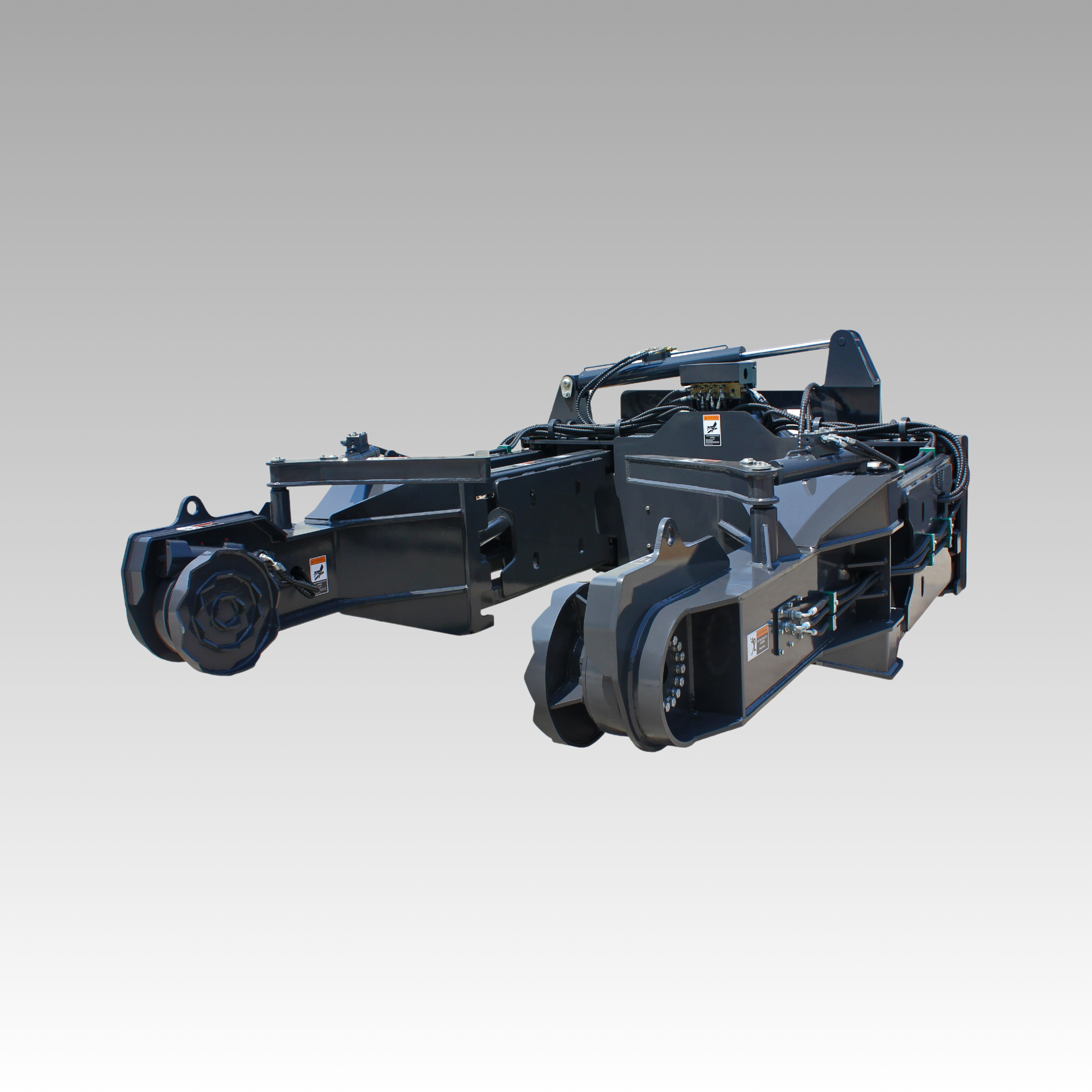

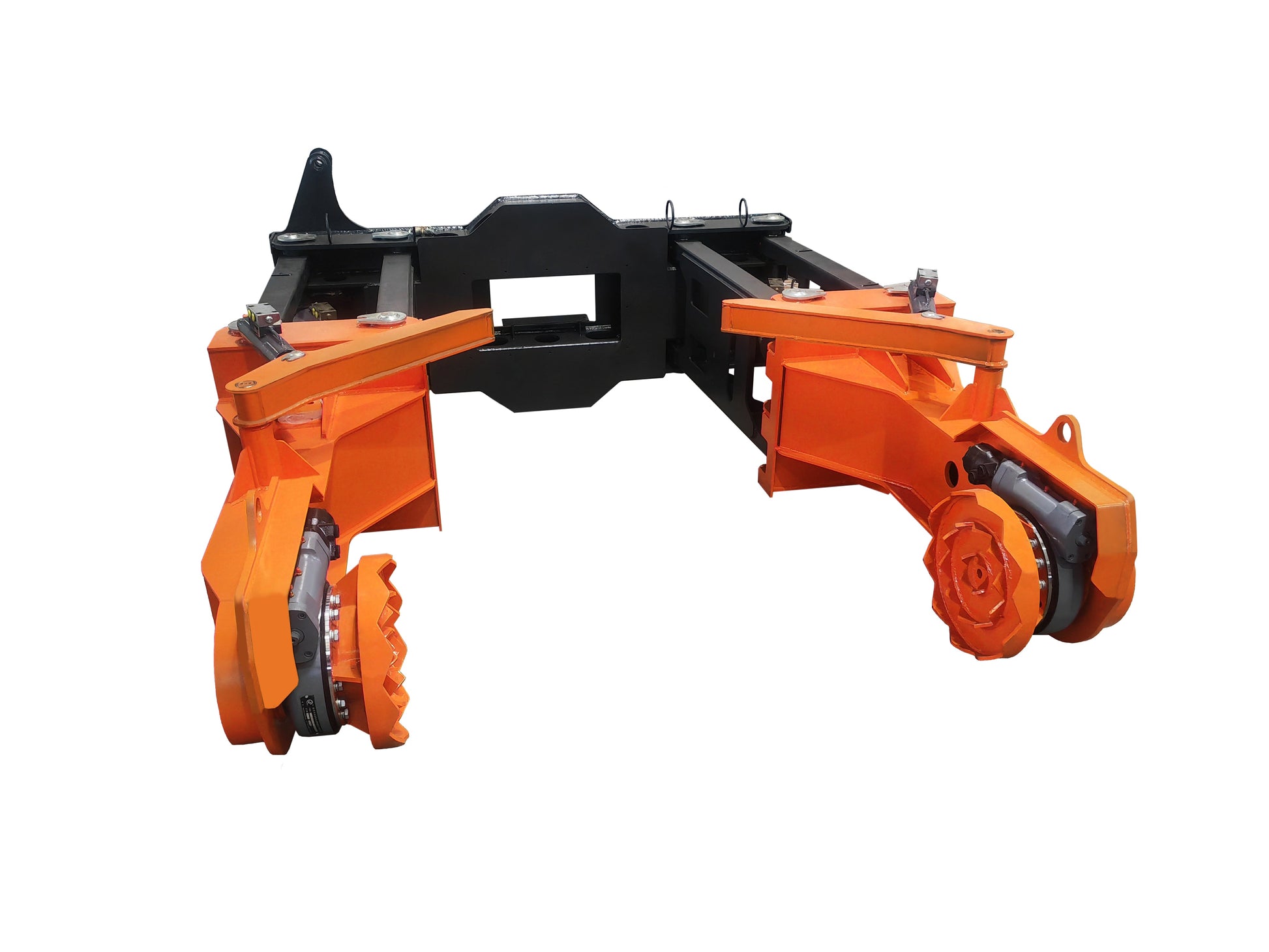

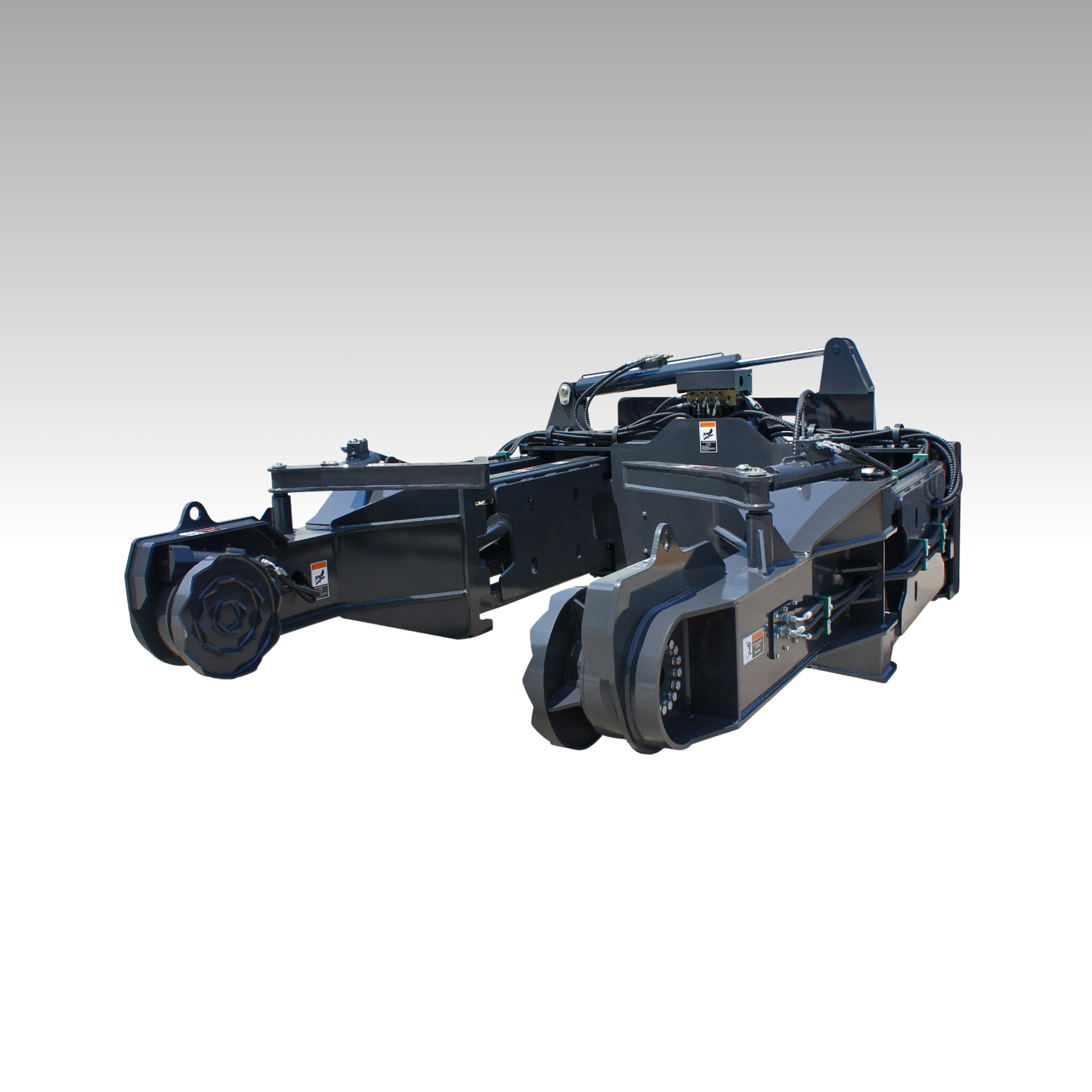

HCN Wheel Loader Tire Grapple Device, 53-133" Clamping Opening Size, for 5T loader and above

HCN Wheel Loader Tire Grapple Device, 53-133" Clamping Opening Size, for 5T loader and above

$126,999.00 CAD
$126,999.00 CAD $126,999.00 CAD
Sale Sold out
  • The HCN Tire Grapple Device is a specialized attachment designed for the installation and removal of large, heavy-duty mining equipment tires—particularly those found on massive dump trucks.
  • Powered by a hydraulic system, its manipulator arms offer precise, reliable performance that significantly reduces manual labor.
  • The robust box-type framework provides enhanced structural integrity and extends the device’s service life.
  • With flexible control and customizable color options, this tire grapple device ensures an efficient, reliable solution for demanding work environments.
View full details
Product Feature
  1. Allows smooth, controlled handling of oversized tires, minimizing manual effort and improving safety.
  2. Engineered to accommodate the substantial weight of large mining tires, ensuring stable and secure operations.
  3. Mimics human arms for flexible, precise grip; utilizes a specialized valve system for synchronized motion, reducing the likelihood of malfunctions.
  4. Reinforced framework offers exceptional durability and extends service life, even under harsh operating conditions.
  5. Significantly decreases labor intensity by streamlining tire installation and removal, making it ideal for heavy industrial applications.
  6. Provides the option to install a limiting block based on the main machine’s requirements, and supports various color schemes to meet specific customer preferences.
Specifications
Model BM48140
Overall Length (in) 96.85
Overall Width (in) 124.64
Overall Height (in) 55.63
Clamping Opening Size Range (in) 53.15 - 133.86
Clamping Arm Overall Left-Right Deflection Angle (°) ±30°
Jaws Front and Rear Rotation Angle (°) 360°
Working Flow Rate (gallons/min) 26.42 - 39.63
Maximum Permissible Pressure (psi) 3,046.33
Working Voltage (V) (optional) 24V
Weight (including pendant) (lbs) 7,275.28
Range of tyre clamping R25-R51
Applicable models Loaders 5T and above
Performance Introduction

Turn your loader into a tire service workhorse. The BeyondTech wheel loader tire grapple / manipulator gives shops and field crews a safer, faster way to lift, rotate, position, install, and remove everything from haul-truck and scraper tires to large industrial and construction wheels—without damaging casings or rims.

Key Capabilities

  • Secure, slip-resistant clamping: High-strength jaws with controlled pressure protect beads and sidewalls while preventing spin or drop.

  • Adjust to the job: Adjustable tire grapple with variable clamping width (working width setup range 12–47 in*) and fine stroke control for different section widths and rim sets.

  • Operator-friendly flow/pressure: Runs on common loader hydraulics—18–21 GPM with max pressure up to 3050 PSI (21 MPa)—for smooth handling and consistent torque.

  • Positioning made easy: Rotate, align, and present tires for studs and hub faces; ideal as a tire mounting device and tire removal device in the shop or on site.

  • Coupler versatility: Quick coupler / ISO / Euro / skid coupler options for fast swaps across brands; limit-block compatibility to match your host machine.

Performance Video
Warranty We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.
