Grabbing More, Faster — How Beyondtech’s wheel loader wood grapple Transforms Cat, Bobcat, and Kubota Loaders into High-Throughput Timber Specialists
Share
Logs move constantly—from hillside to landing, from mill yard to kiln, from port deck to ocean barge—and every transfer costs time, diesel, and risk. Old-school chain slings and bucket scoops still work, but they chew bark, drop pieces, and punish operators. Beyondtech designed its new wheel loader log grapple line so the wheel loaders already earning their keep on job sites, lumber yards, and ports can also become the safest, quickest, most productive timber movers on the ground.
1. Built Around a Fork-Style Backbone

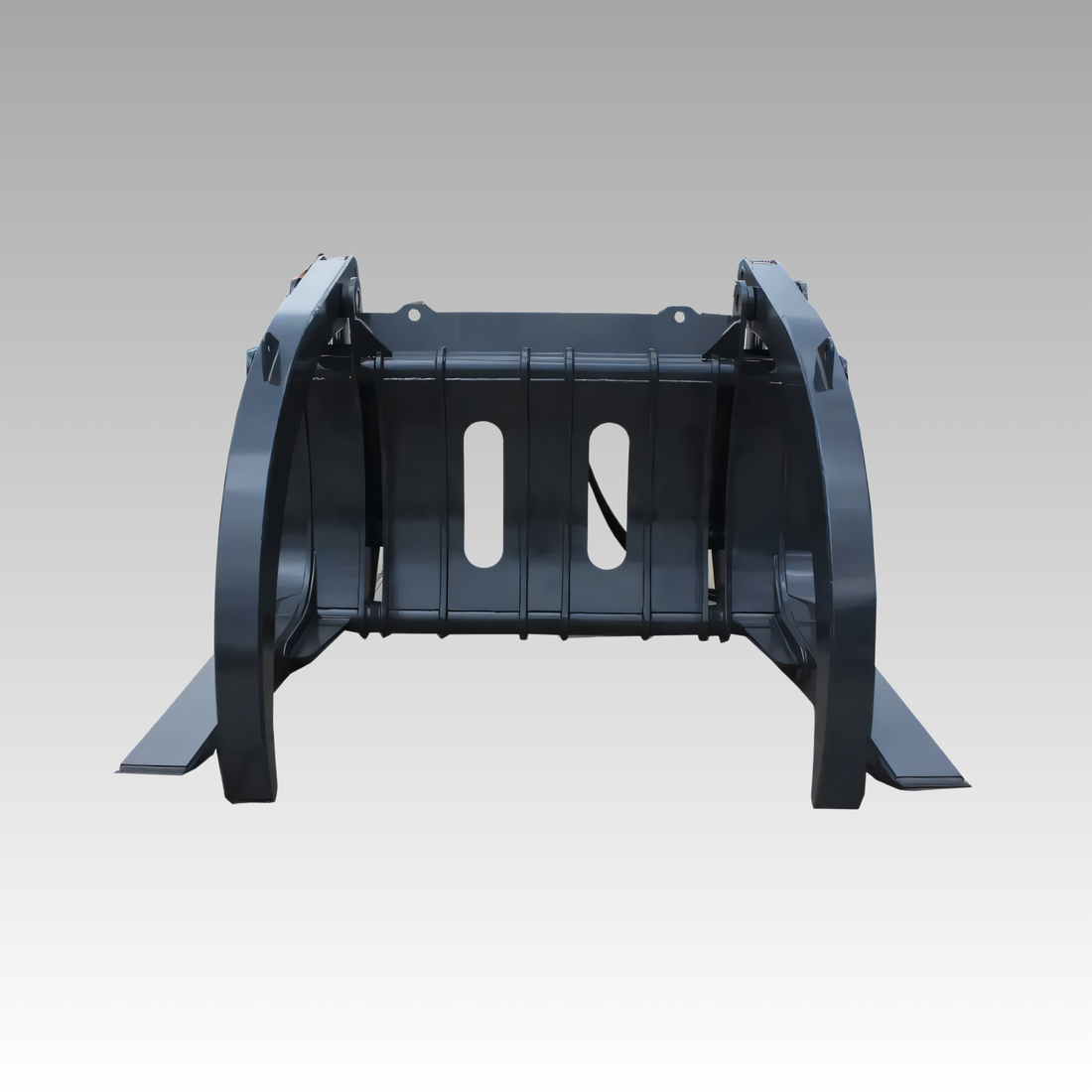

At the heart of the attachment sits a forked carriage shaped for natural log flow. Two sweeping arms form a deep cradle that nests stems whether you are shifting single poles or a full bundle. Reinforced webs, box ribs, and gussets create a robust frame grapple capable of shrugging off impacts from deck logs and loader spikes. The entire structure is cut from high-strength steel grapple plate, delivering the muscle a modern forestry fleet demands without the penalty of dead weight.
2. Dual Arms, Single Purpose: Control
Logs roll—that is physics. A Beyondtech dual clamp log grapple uses two contoured jaws that close symmetrically around the load. Serrated knife edges bite bark, while a wide radius in the lower fork keeps fiber bruising to a minimum. The design produces a non-slip log grapple grip that virtually eliminates scissor roll on downhill carries. A built-in stop pad acts as an anti-roll grapple measure when you tilt back for transport.
Because Beyondtech machines every arm on multi-axis mills, the halves align within a millimeter of true center—important when you’re stacking debarked pine for a kiln or sorting mixed hardwood diameters in a transfer yard. Articulated edges adjust automatically for roundwood grapple work, pulpwood grapple bundles, and heavy pine tree length grapple loads.
3. Responsive Hydraulics for Fast Cycles
The grapple relies on twin cushioned rams tied into a common manifold. Hoses route inside recessed slots and finish at flat-face ports, creating a hydraulic wood grapple that plugs directly into the AUX circuit on Cat’s 930K, Bobcat’s L95, or Kubota’s R640 wheel loaders. Cylinders come with rod boots and a hydraulic cylinder guard grapple plate that absorbs stray chain hooks or bouncing limbs; no more dinged chrome rods or split seals three weeks into the season.
Low-volume pilot ports give the arms a feather touch when you need precision log grab performance for kiln-dried bundles, but open spool paths dump full GPM when you slam for fast cycle grapple loading of green pulp in the pouring rain.
4. Safety First—For Operator, Machine, and Cargo
A forward-angled spine positions the load closer to the mast pivot, producing a balanced center-of-gravity grapple geometry that lifts bigger logs without rear ballast changes. Welded guards protect cab glass from rolling sticks, while the carriage backplate doubles as a safety backrest pallet fork style shield if you ever sling pallets of bagged bark or crate after crate of lumber offcuts.
For wheeled machines bouncing across uneven yards, Beyondtech engineers specified wide opening grapple geometry yet kept the clamp swing inside tire width; it remains a stable lifting grapple even with the loader in a sharp turn on a soft pad.
5. Maintenance That Won’t Stop Your Loader
Every pivot uses hardened pins in chrome-lined bushings—fully greaseable pin grapple hardware accessed from one side of the machine. Service crews shoot eight zerks, wipe two cylinders, and head back to production. No shingled shims, no custom-length kingpins. That philosophy earns the device its “maintenance-friendly grapple” badge and delivers the quick service grapple reality yard managers crave.
The knife edges at the jaw tips accept replaceable wear tips. Re-tip in half an hour with a cordless impact once grit dulls the serrations, keeping the clamp biting instead of slipping— a must for harsh environment grapple applications like sandy pine plantations or dusty port decks.
6. Mount-Up Options to Fit the Fleet
Beyondtech offers four field-proven attachment kits:
-
Pin-on grapple lug plates for older forestry loaders with pinned buckets.
-
Quick coupler grapple ears for Cat’s fusion and ISO hook systems.
-
Bolt-on grapple adapters that sandwich around a standard bucket spill guard—great for rental yards mixing brands.
-
Weld-on lug grapple plates if you want permanent duty on a high-cycle mill loader.
Each kit aligns with factory tilt stops so you retain OEM limit functions; a tough limit block option grapple insert satisfies insurance inspectors on public-roadside loaders.
7. Versatility Across Industries
-
Lumber yard grapple workers break railcar decks 30 % faster, thanks to the aggressive clamp and wide jaw.
-
Sawmill grapple teams stack deck-fresh slabs without chain conveyors.
-
Port log grapple crews move cedar bundles from barge to truck in two passes.
-
Mining pallet fork tasks occasionally surface; just slide in optional pallet tines below the jaws to convert to a hybrid wheel loader log fork for dimensional stone or cement sacks.
-
Storm cleanup grapple missions benefit from the grapples serrated edges gripping ragged crown wood.
-
Land clearing grapple assignments become single-operator jobs—shear, bunch, grab, and load without changing tools.
From tree length grapple lifts to shortwood grapple bunker stacking, one carriage does it all.
8. Built for Long Shifts and Tough Operators
An operator friendly grapple starts with sight lines. Beyondtech angles the carriage spine, leaves twin windows between arm backs, and recesses hose bulkheads—drivers see clamp tips meet log ends without leaning from the seat. Loader joysticks map arm movements intuitively: curl is clamp, crowd opens, third function rotates; low muscle effort means low fatigue grapple operations during twelve-hour mill shifts.
9. Reliability in Ugly Conditions
Corrosion primer, two-part urethane, and powder topcoat make this a weatherproof pallet fork–grade finish that resists salt at port docks. The abrasion-resistant grapple lower horns shrug chain rub. Pins oversize by 20 % to ensure long-life grapple performance even when operators forget to grease. Customers call it the dependable grapple after they realize it rarely leaves the boom even when bucket work calls.
10. Productivity that Pays
A Midwest lumber distributor swapped two cable cranes for one Cat 930 with a Beyondtech grapple. Deck throughput rose 25 %. A Pacific Northwest pulp mill reduced loader idle time by 1.5 hours per shift simply because the quick install grapple swapped on during saw-mill changeovers. After a hurricane, a municipality cleared roadside blow-down twice as fast as neighbors—one loader, one heavy-duty wood grapple, one seasoned operator.
11. Custom Orders Welcome
Need a right-fork grapple only for tight alley stacking? A tilt wood grapple with 360-degree rotation for container stuffing? Beyondtech’s CAD crew returns quote drawings in 48 hours, and plasma tables shape custom carriages the next week. Even the bucket-mount grapple cradle can be trimmed narrower or deeper for specialty log sorts.
Final Lift
From forestry harvest decks to freight transshipment yards, the Beyondtech log handling grapple turns wheel loaders you already own—whether badged Cat, Bobcat, or Kubota—into timber-moving workhorses. Its welded steel skeleton, responsive hydraulics, and operator-centric visibility map mean safer cycles, faster turns, and longer component life—all while cutting manual handling and downtime.
Clamp, lift, swing, stack—repeat. That’s the rhythm of modern wood logistics powered by Beyondtech engineering. When your job is measured in tons per hour and dollars per minute, the smartest upgrade you can bolt to your loader boom is the grapple that never lets go.
