Product Feature

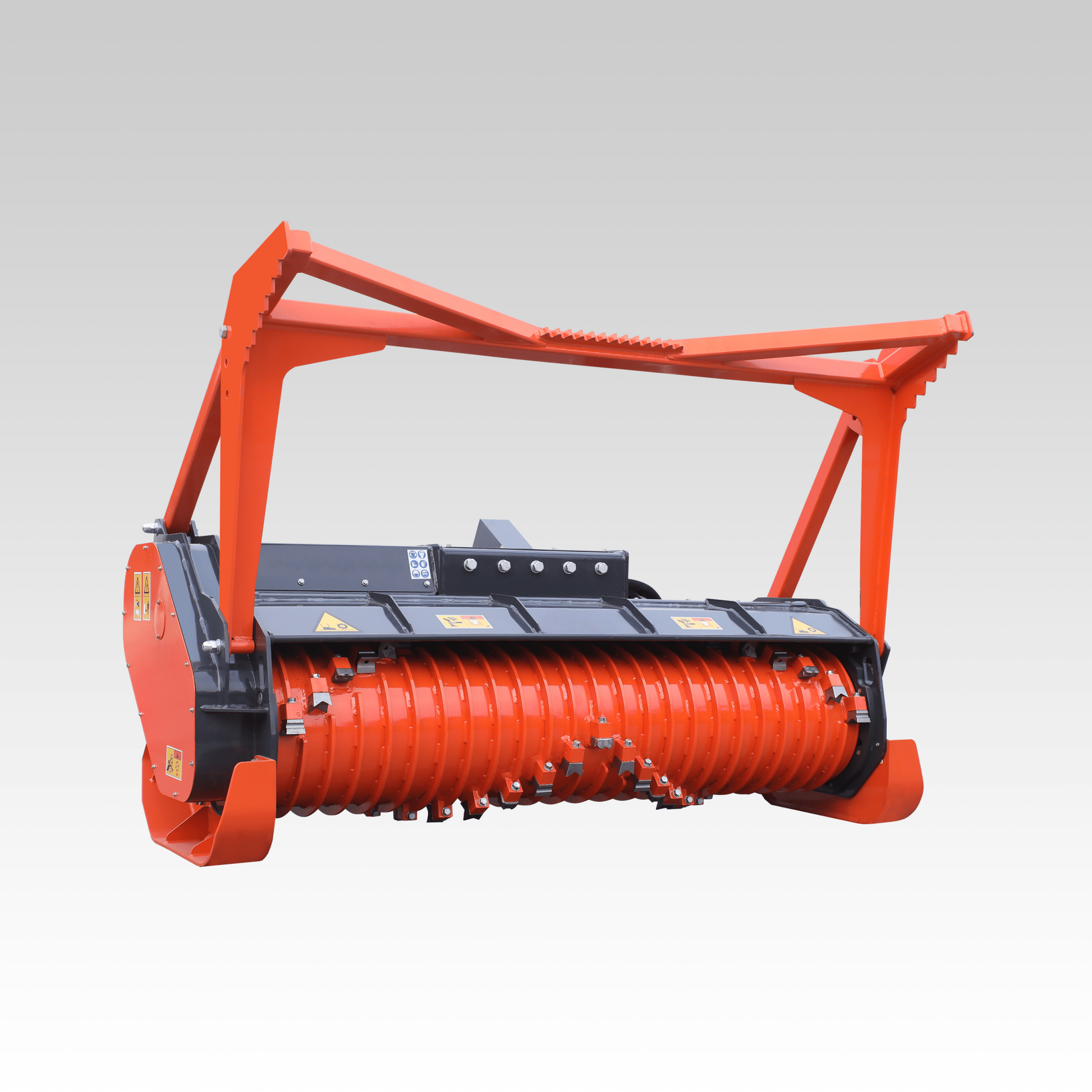

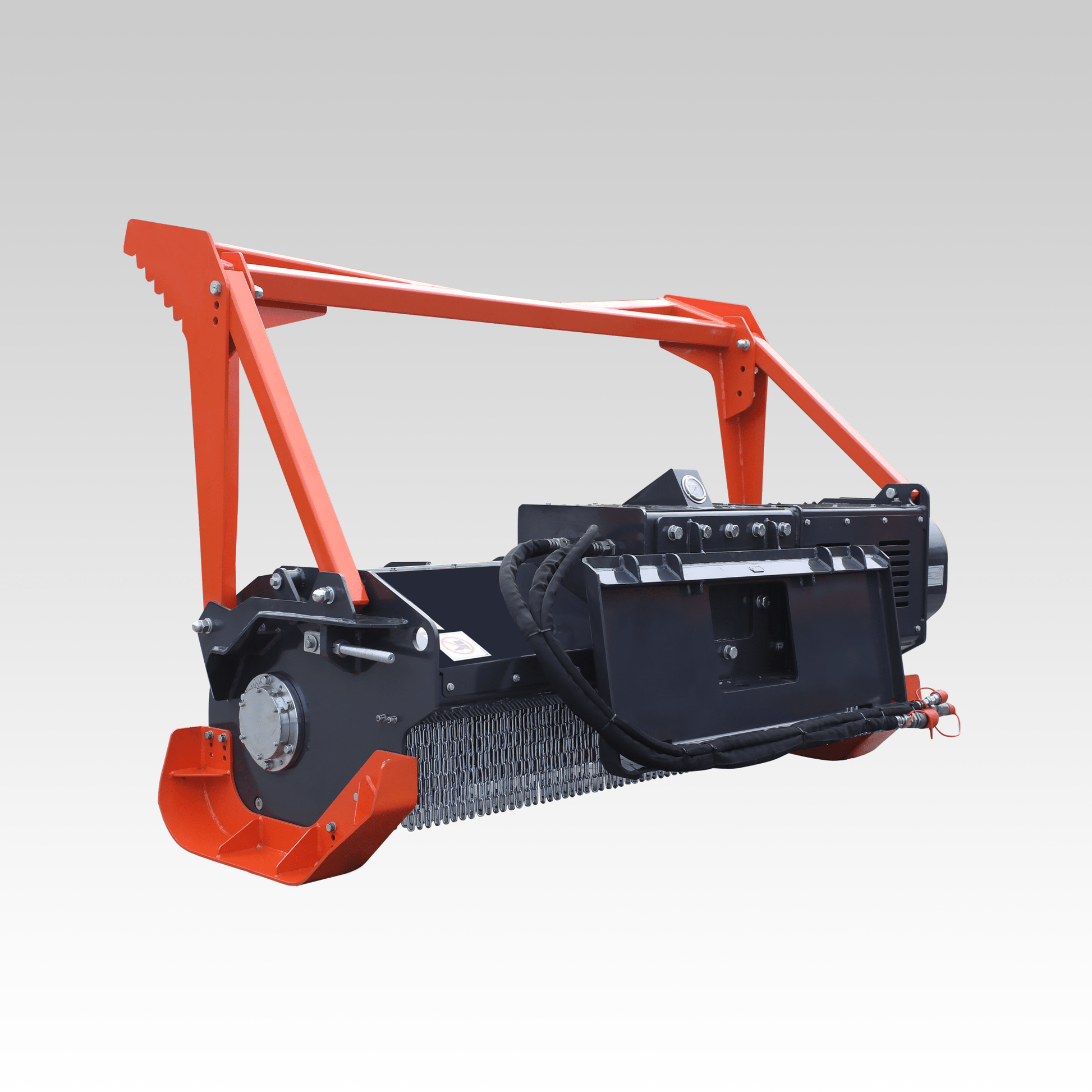

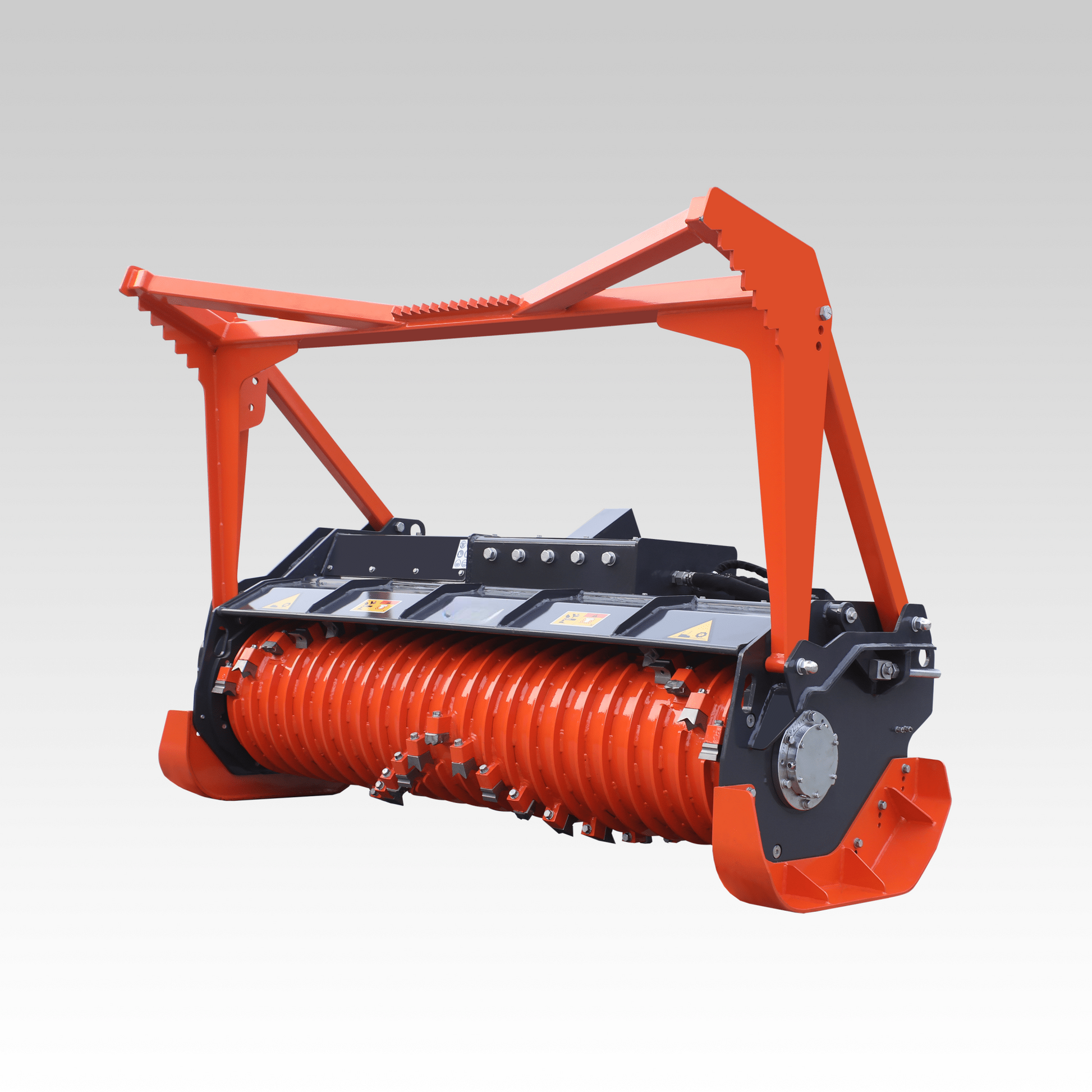

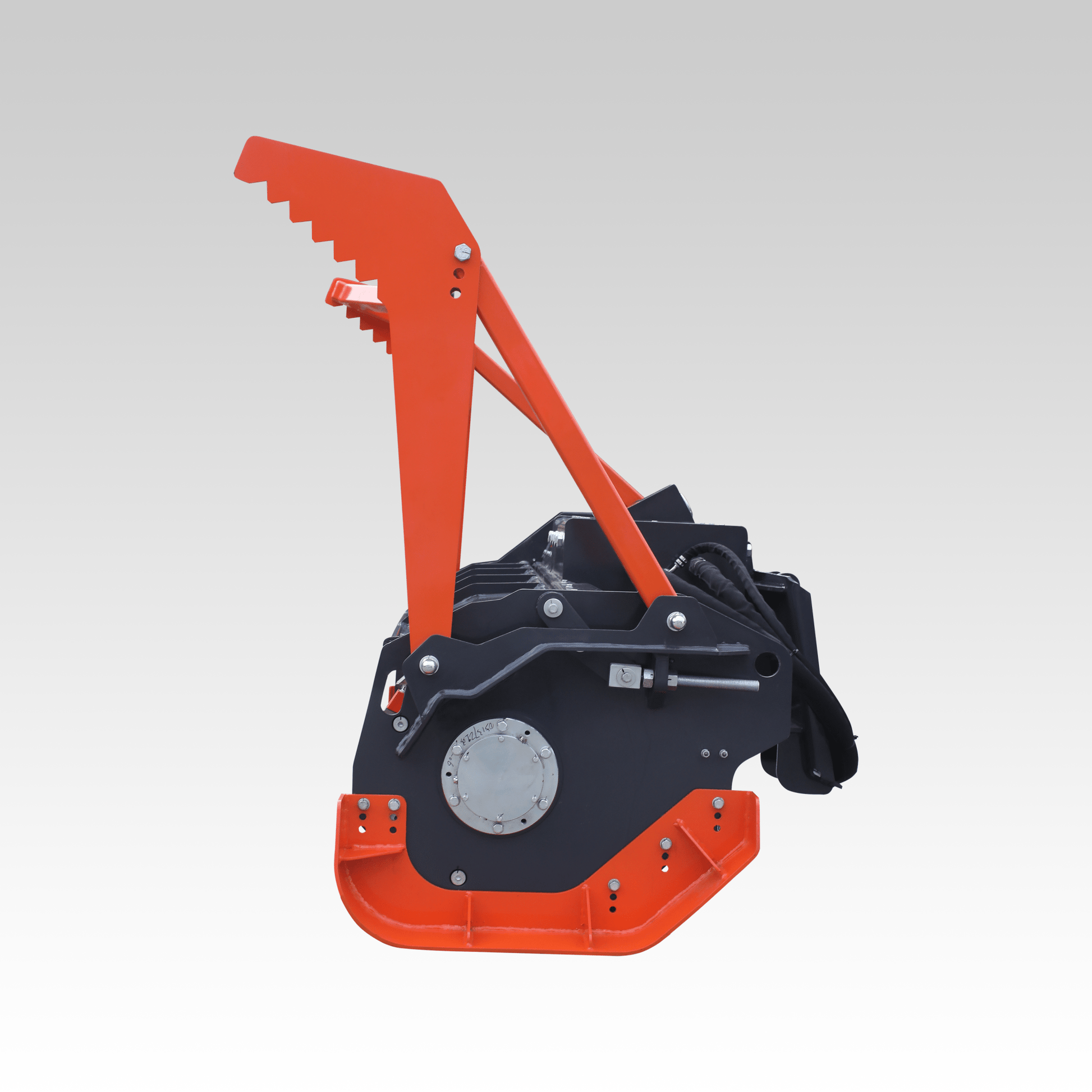

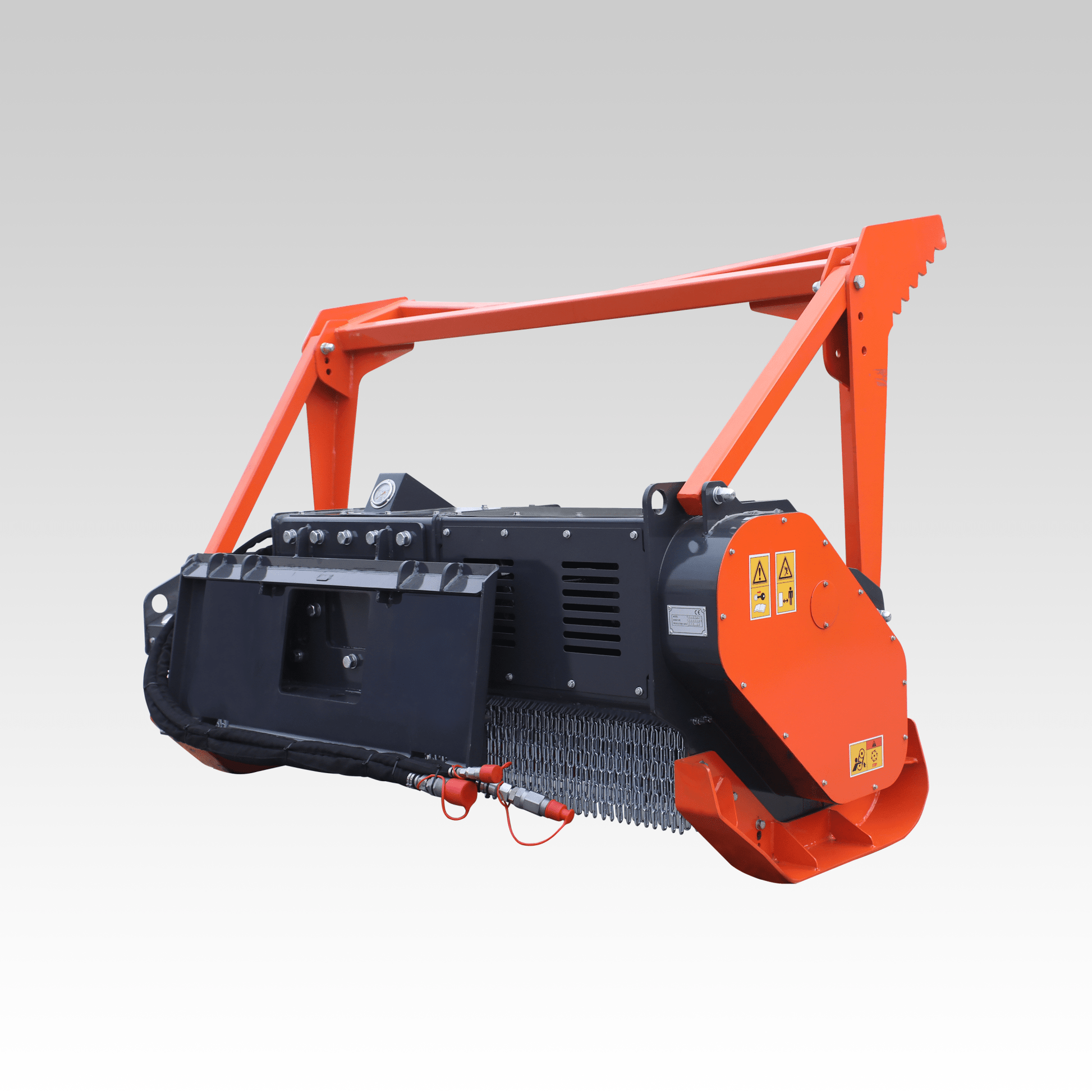

- HCN's 60” skid steer forestry drum mulcher transforms brushes and trees into fine mulch for quick decomposition.

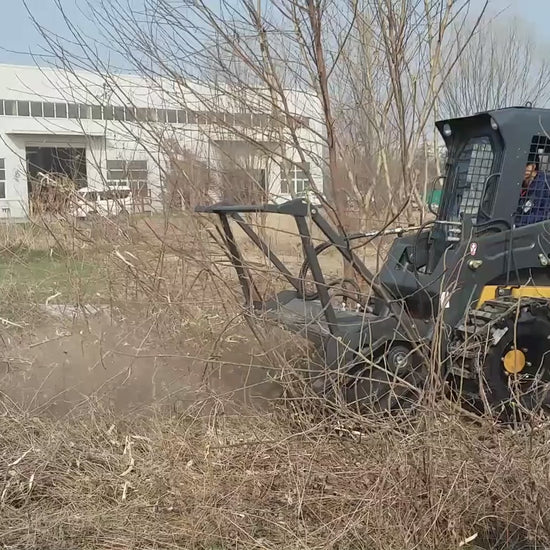

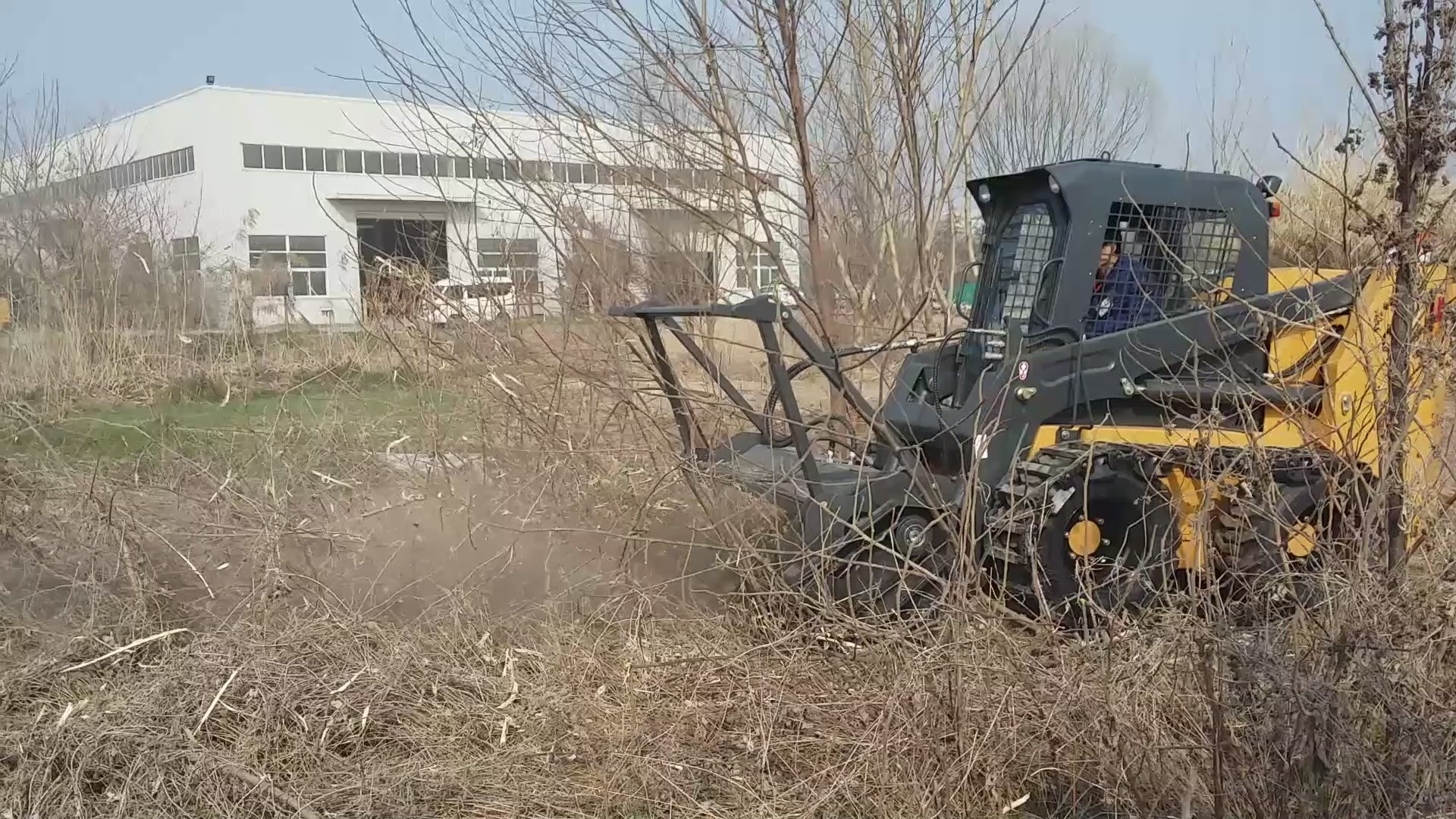

- Capable of punching into large-diameter trees and swiftly bringing down upper limbs, converting overgrowth into mulch.
- Equipped with forty tough alloy mulching teeth, an axial piston motor, and a synchronous belt drive for heavy-duty performance.
- High-strength, steel-body construction ensures durability for tough land-clearing tasks.
- Drum mulchers can pulverize trees up to 8 inches in diameter, replacing forestry cutter attachments.
- Available in cutting widths of 39 inches, 61 inches, 73 inches, and 83 inches.

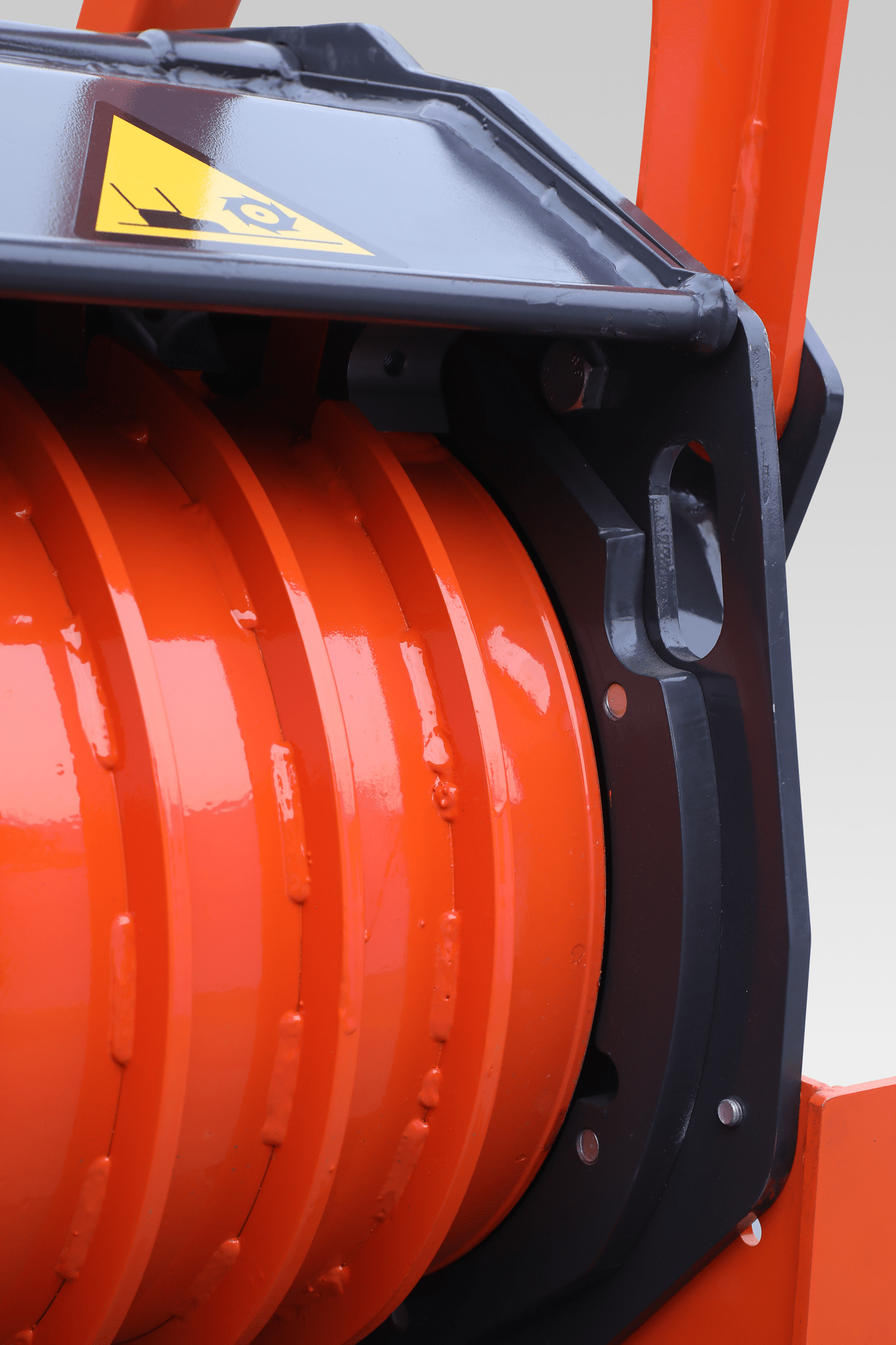

- Heavy-duty carbide teeth on the standard rotor drum provide long life and efficient wood ripping.

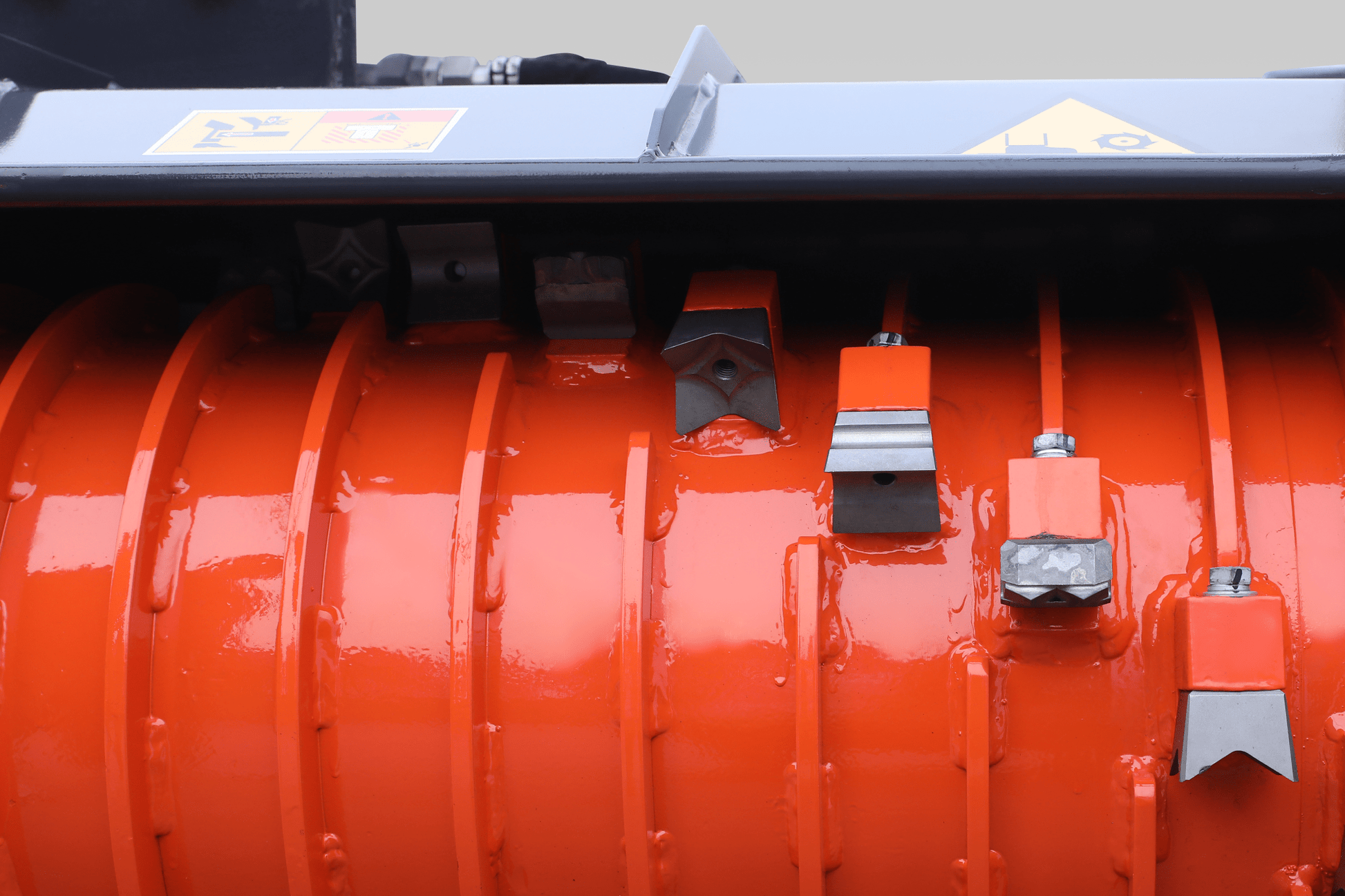

- Features a triple helix claw teeth layout for efficient cutting of hardwood, stumps, and branches.

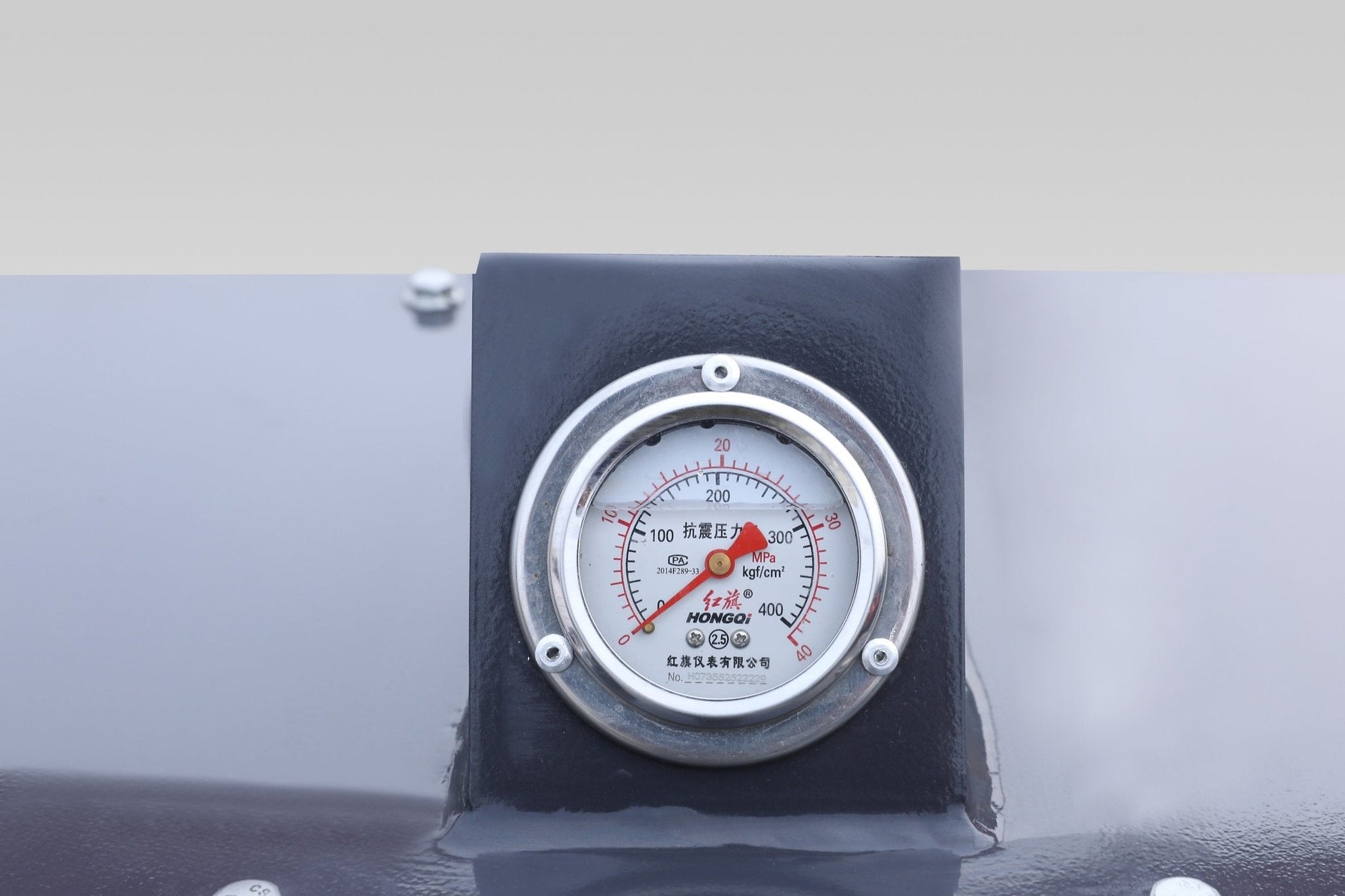

- Includes a pressure gauge, radiator, and independent cooling system for optimal operation.
- Utilizes a sealed transmission chamber to protect belts, pulleys, and key components from damage.
- Comes with hydraulic hoses and ½” flat-faced couplers for easy setup and operation.
- Features a manually adjustable push bar and self-adjusting motor and belt driving system for low maintenance.
- Offers high-speed motor capability of up to 2000r/min, with three customizable mulcher teeth options available.
- Optional depth control rings limit the engagement of cutting teeth for enhanced efficiency and consistent mulching.
- The compact size accommodates various tree removal jobs.

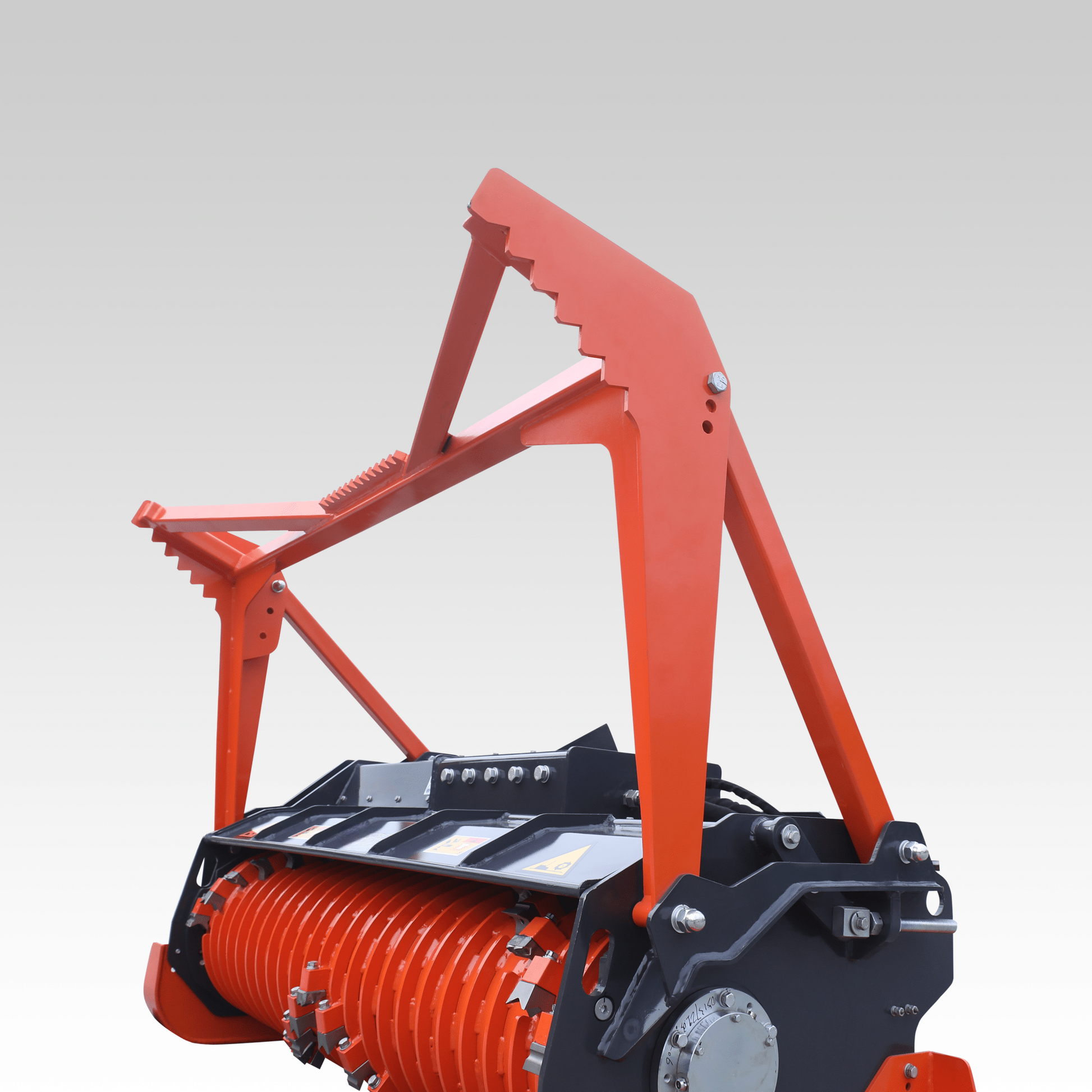

- Reinforced push bar and optional low-profile front gate offer optimal visibility to drum and cutting teeth.
- The hydraulic drum brake stops the drum within 20 seconds of deactivating auxiliary hydraulics.
- Redesigned hydraulic block and drive components enhance durability.

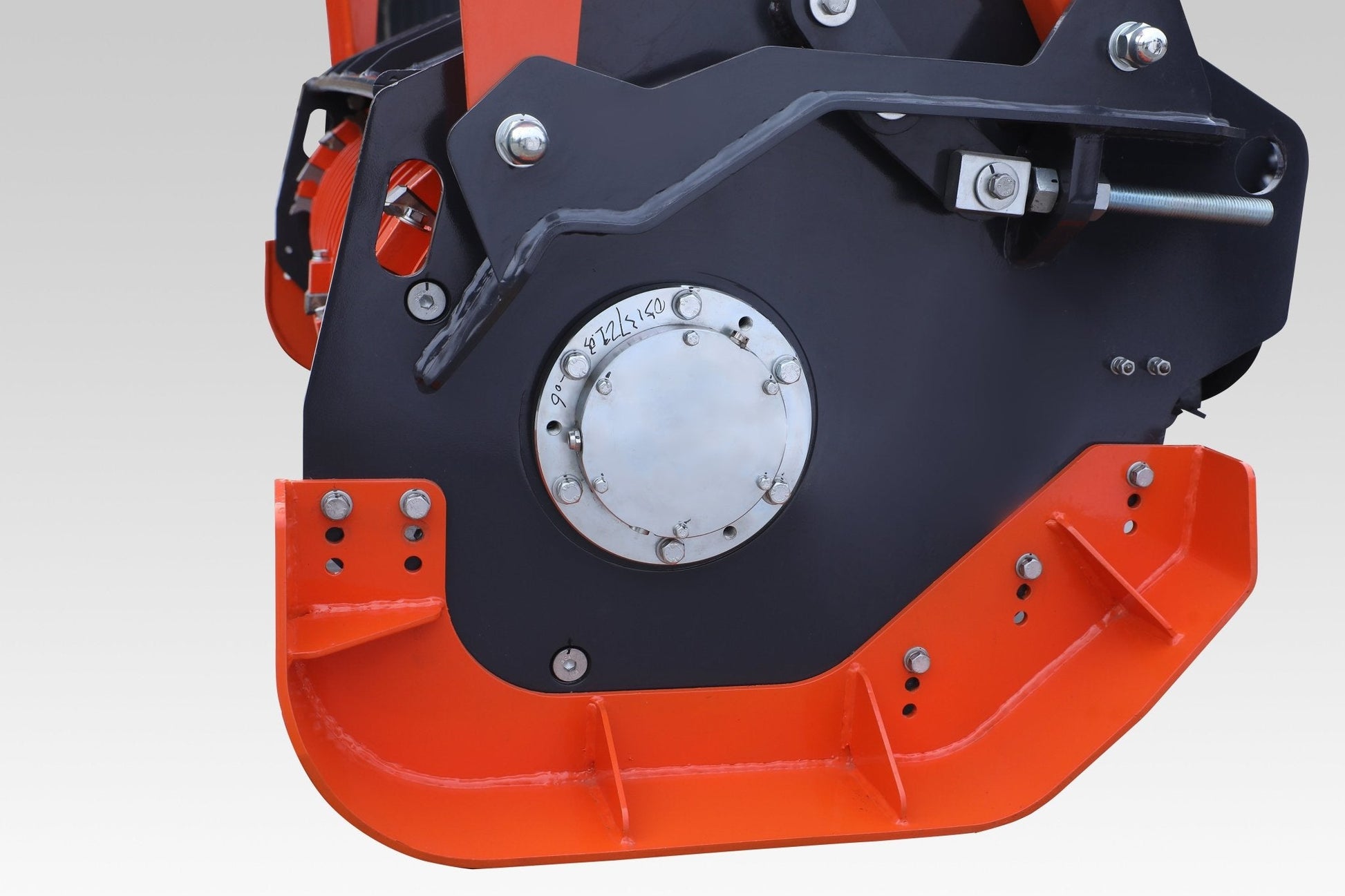

- Replaceable bolt-on skid shoes for operator convenience and uptime.

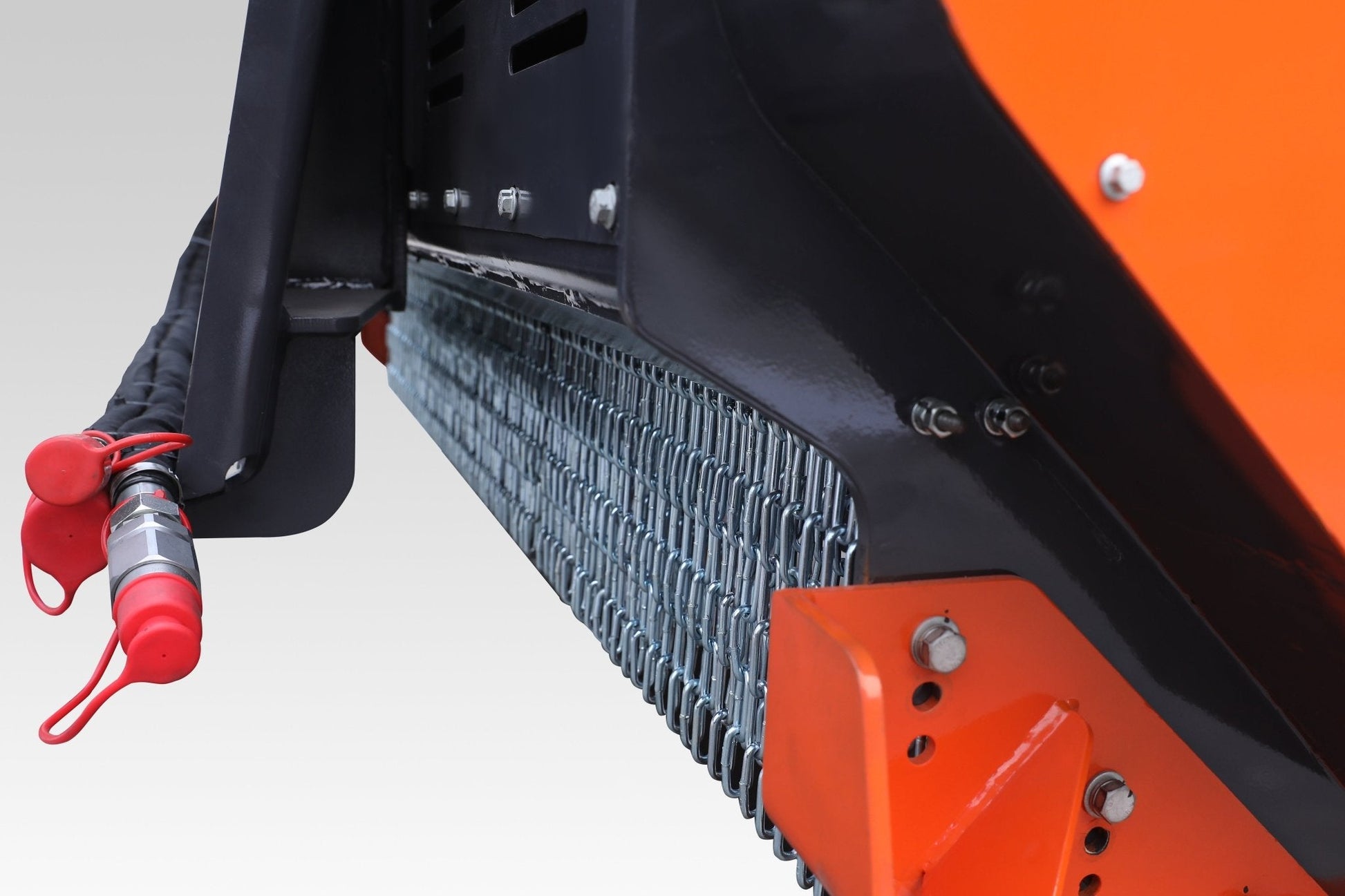

- Hose clamps and hose slings protect hydraulic hoses from damage.
- Rear debris chains obstruct debris thrown toward the rear of the attachment
Specifications
| Model | 051360 | 051372 | 051384 |
|---|---|---|---|
| Length (in) | 35.43 | 35.43 | 35.43 |
| Width (in) | 73.62 | 85.04 | 94.88 |
| Height (in) | 66.14 | 66.14 | 66.14 |
| Transportation Height (in) | 42.52 | 42.52 | 42.52 |
| The Width of the Job (in) | 60 | 72 | 84 |
| Weight (including pendant) (lbs) | 2171.5 | 2479.5 | 2720.5 |
| Work Flow (GPM) | 29.06-35.66 | 29.06-35.66 | 29.06-35.66 |
| Allow Maximum Pressure (psi) | 3045.8 | 3045.8 | 3045.8 |
| Host Lifting Capacity Requirements (tons) | >1 | >1 | >1 |
| Rotary Tillage Ground Depth (in) | ≤3.94 | ≤3.94 | ≤3.94 |
Warranty
We’re here to support you every step of the way. In addition to a 1-year manufacturer’s warranty, our dedicated customer service team is ready to assist with any questions, troubleshooting, or guidance you may need throughout your ownership experience.More warranty Information
